FareedKhan-dev/kimi-k3-in-c

Kimi K3 inference in portable C99.
No BLAS. No framework. No GPU.

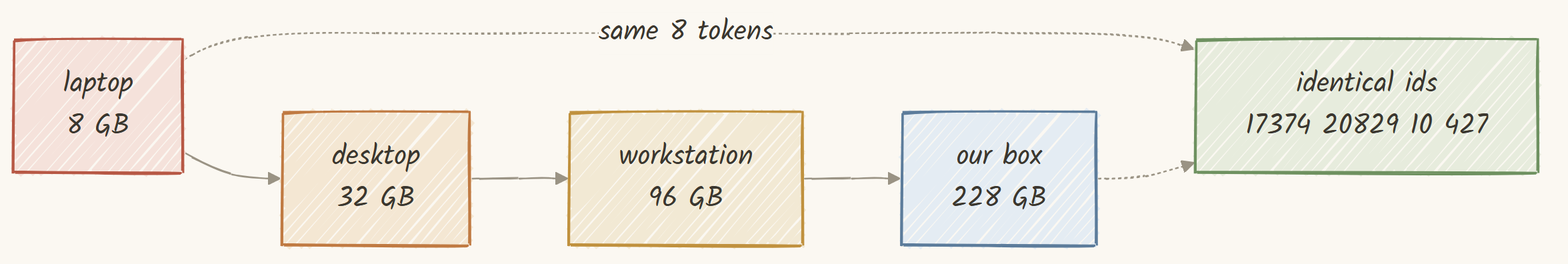

The same 2.78-trillion-parameter model, the same answer, on whatever machine you own.

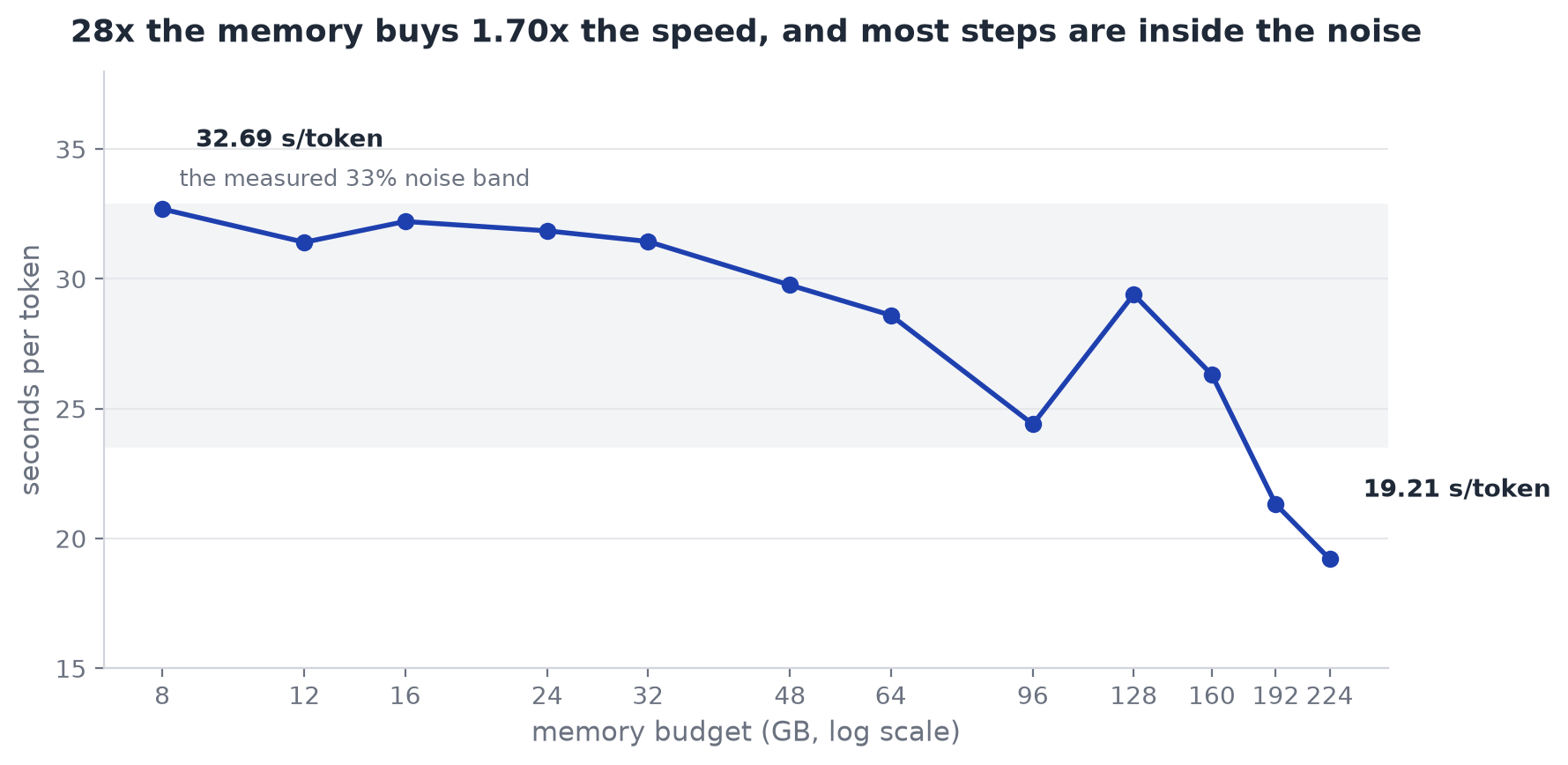

More memory only buys speed:

_{Same short prompt at every size, and the output is byte-identical from the smallest machine to the largest; only the clock changes. One machine, 124 cores, fast NVMe drive: the first three rows still read the model from disk each step, so a slower drive is slower there, while the 128 GB+ row keeps everything in memory and no longer waits on the disk. On that same machine v1.0.0 made the math per token about 8× lighter, a follow-up question in a chat 3.9× faster, and long prompts about half as costly. (A token is roughly a short word-piece; the two runnable demos below are the original captures on a slower drive, so their clock reads a little higher.) Full data in docs/data/.}

I am open to AI research roles and PhD positions. CV.

_{The macOS, Windows and NEON ports, chat mode, the ultra preset, the faster MXFP4 kernels and a long list of parser fixes came from the people below. Who did what.}

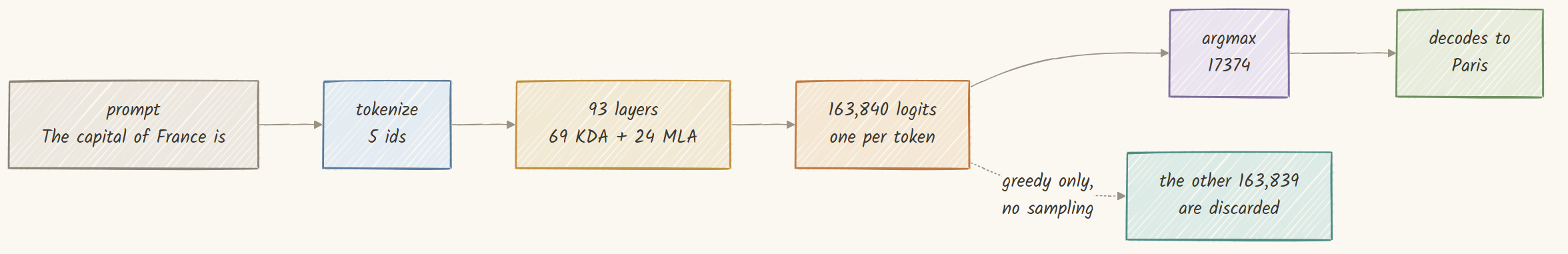

$ ./bin/k3 ~/k3model --trunk ~/k3trunk --preset laptop \
           --tok ~/k3model --prompt "The capital of France is" --gen 8 --incremental

--- generated text ---
 Paris.",
+            "The Eiffel
----------------------

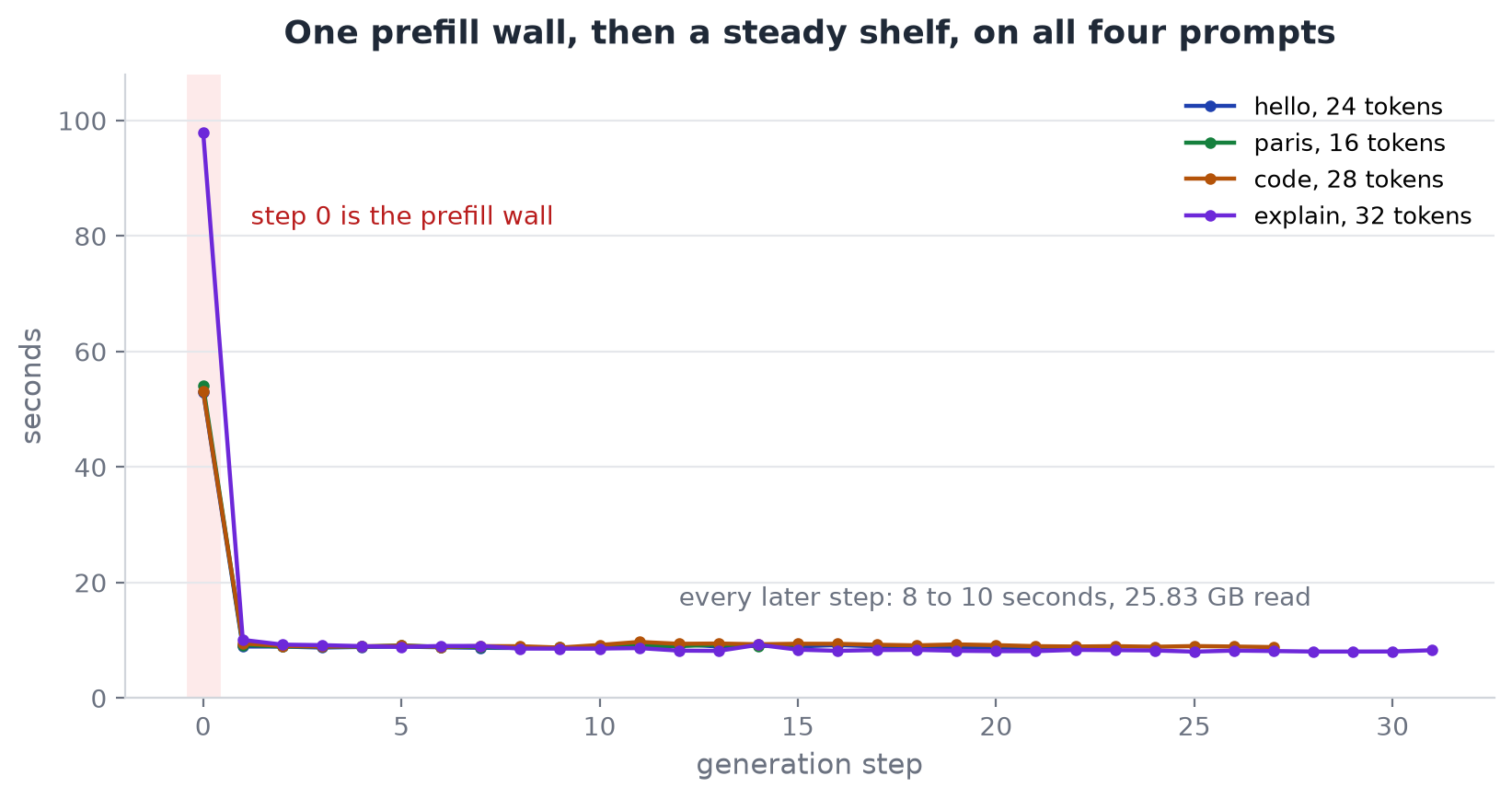

8 tokens in 261.5 s, 32.69 s/token average
PEAK RSS for the whole run: 8.24 GB

$ ./bin/k3 ~/k3model --trunk ~/k3trunk --preset server \
           --tok ~/k3model --prompt "def fibonacci(n):" --gen 28 --incremental

--- generated text ---
    if n <= 1:
        return n
    else:
        return fibonacci(n-1) + fibonacci
----------------------
28 tokens in 299.3 s, 10.69 s/token average
PEAK RSS for the whole run: 127.92 GB

Contents

Part I: Getting started

Requirements

Quick start

git clone https://github.com/FareedKhan-dev/kimi-k3-in-c.git
cd kimi-k3-in-c

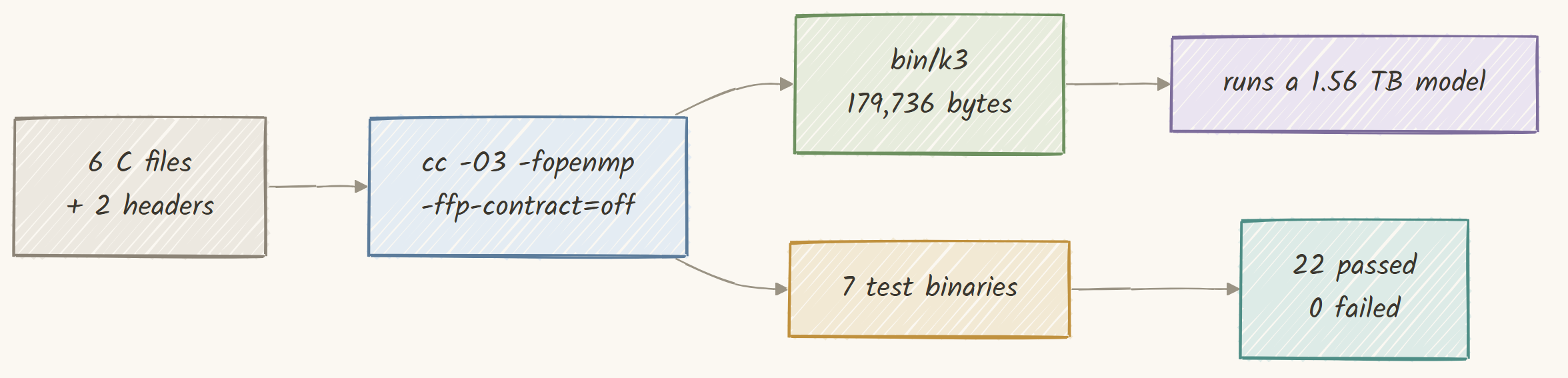

make -j            # seconds. Seven C files, a compiler and OpenMP
make test          # under a minute

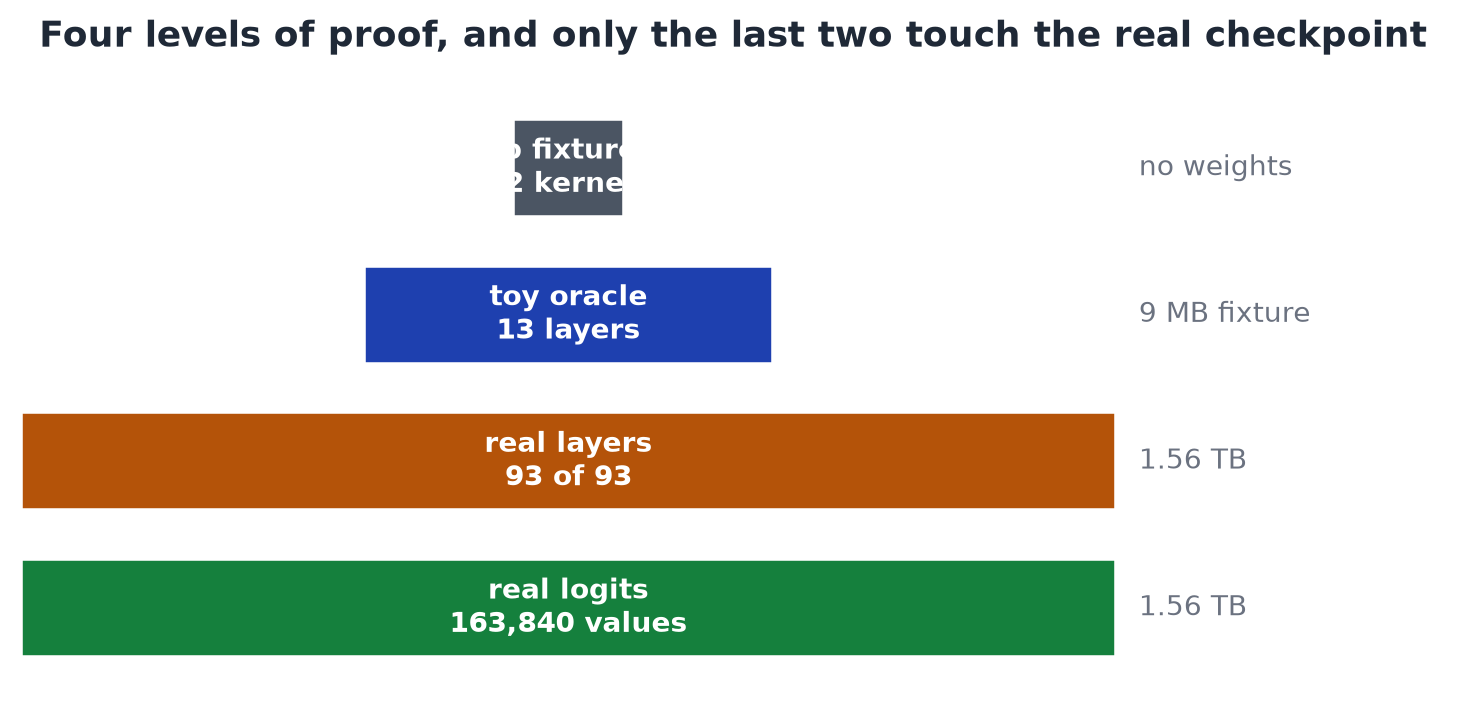

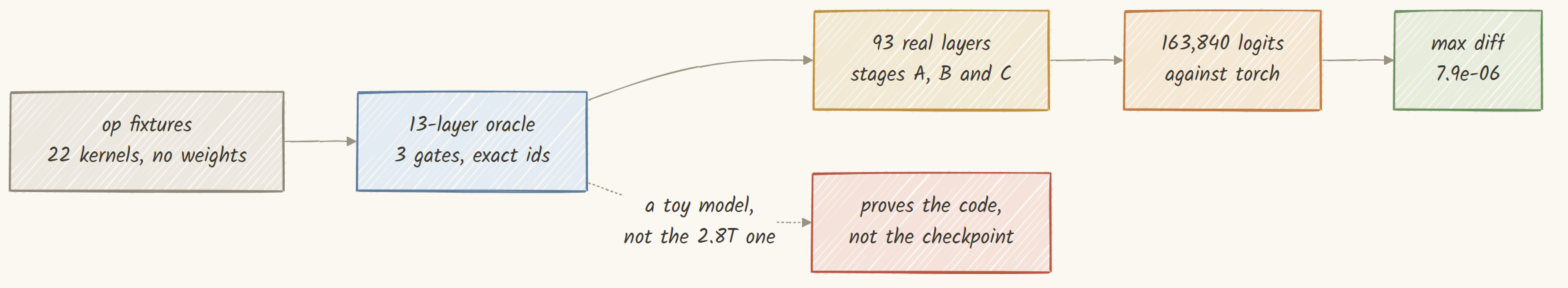

GATE 1  teacher forcing : 32/32 positions match tf_pred
        generated span  : 20/20  <- must be exact
GATE 2  greedy decode   : 20/20 generated tokens match full_ids
GATE 3  incremental    : 20/20 generated tokens match full_ids  <- KV cache + carried KDA state

VERDICT: ENGINE MATCHES THE REFERENCE EXACTLY

ALL WEIGHTLESS TESTS PASSED

python3 tools/sim_cache.py tests/fixtures/expert_trace.bin

Full setup

Step 0. clone

git clone https://github.com/FareedKhan-dev/kimi-k3-in-c.git
cd kimi-k3-in-c

Step 1. check the machine

./scripts/k3-doctor.sh

Step 2. build

make -j

cmake -B build && cmake --build build -j && ctest --test-dir build

Step 3. verify before downloading anything

make test

Step 4. fetch the checkpoint

export HF_TOKEN=hf_your_token_here          # read from the environment, never echoed
./scripts/download-model.sh ~/k3model       # resumable, re-run to continue

verifying…
  shards : 96 (expect 96)
  bytes  : 1560936091448 (expect 1560936091448)
  shards : all 96 match their published sizes individually
  RESULT : byte-exact match

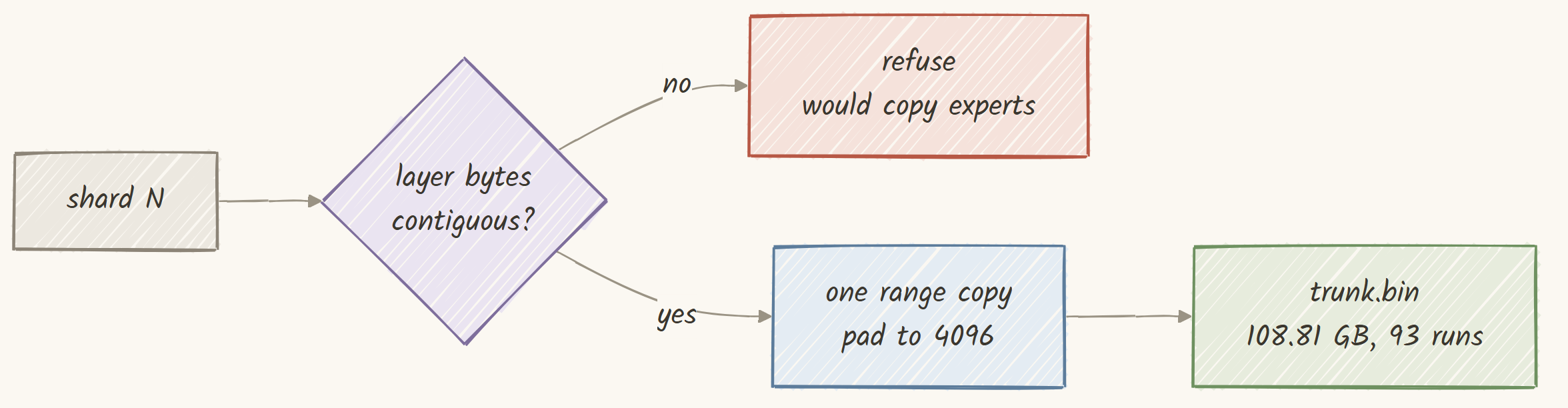

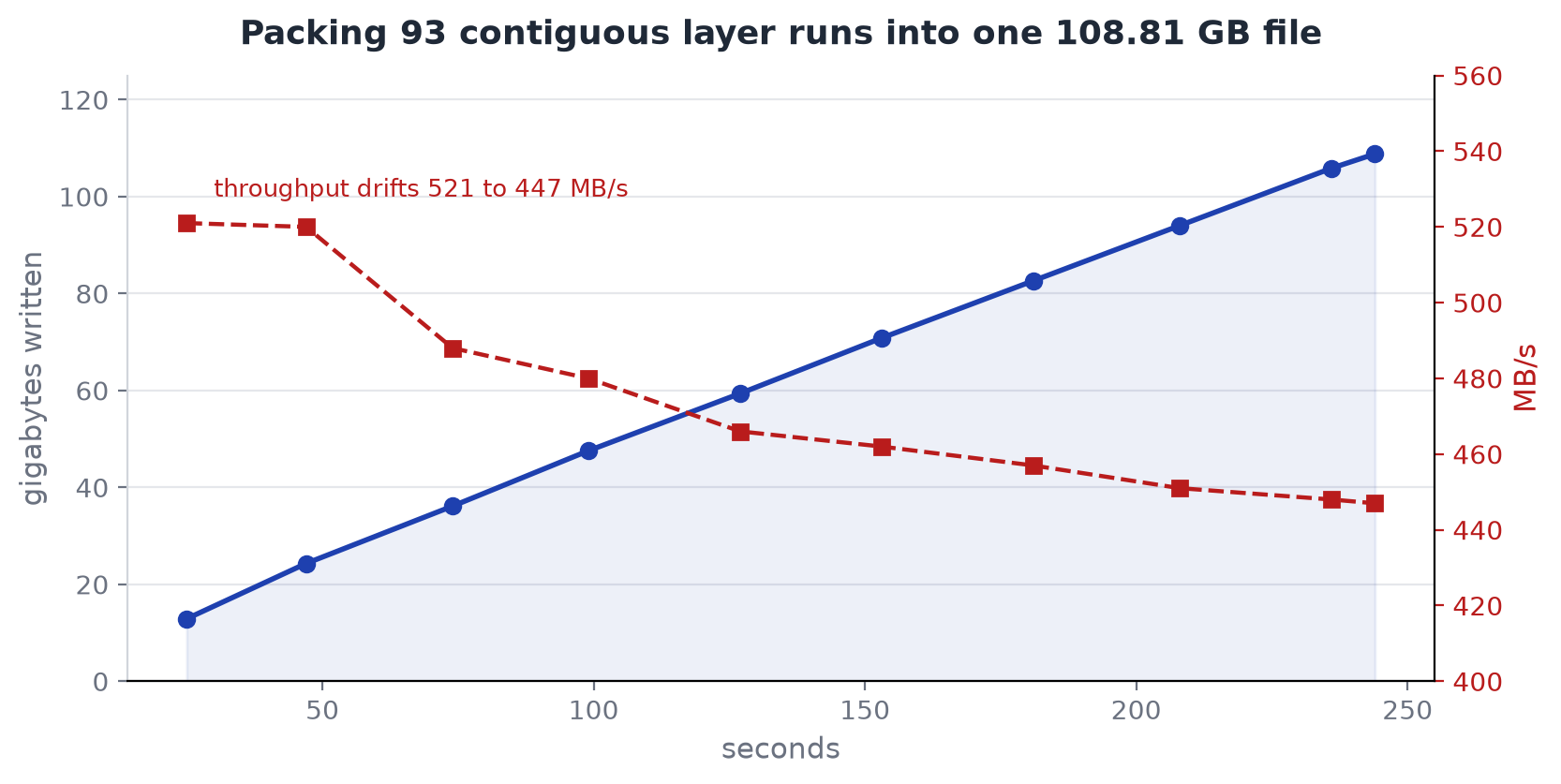

Step 5. pack the trunk

./scripts/pack-trunk.sh ~/k3model ~/k3trunk

Step 6. run

./bin/k3 ~/k3model --trunk ~/k3trunk --preset workstation \
         --tok ~/k3model --prompt "The capital of France is" --gen 8 --incremental

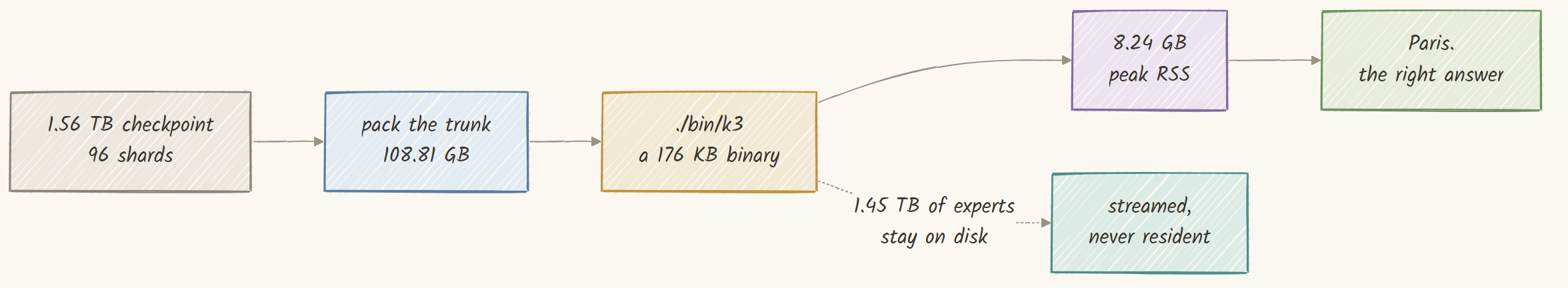

Where everything ends up

kimi-k3-in-c/    ~45 MB   source, docs, images, and bin/k3
~/k3model/      1.56 TB   96 shards · config.json · tiktoken.model · tokenizer_config.json
~/k3trunk/       109 GB   trunk.bin · trunk.json, on the fastest disk you have

Usage

Synopsis

k3 <model_dir> [prompt] [memory] [generation] [diagnostics]

./bin/k3 --help
./bin/k3 --version
./bin/k3 --list-presets

Prompt options

# text in
./bin/k3 ~/k3model --tok ~/k3model --prompt "The capital of France is" ...

# text in, from a file. Use this for CJK, emoji, accents
printf 'La capitale de la France est' > /tmp/p.txt
./bin/k3 ~/k3model --tok ~/k3model --prompt-file /tmp/p.txt ...

# ids in, ids out, no tokenizer needed
./bin/k3 ~/k3model --ids 1008,10484,318,15383,387 ...

Memory options

Generation options

Text chat (official Kimi K3 XTML)

./bin/k3 ~/k3model --trunk ~/k3trunk --preset desktop --tok ~/k3model \
  --chat --system "You are a helpful assistant." \
  --history my-session.jsonl --incremental

{"role":"system","content":"You are a helpful assistant."}
{"role":"user","content":"Explain cache locality."}
{"role":"assistant","content":"…","reasoning_content":"…"}

Diagnostic options

Exit codes

Environment variables

Worked examples

# Full-model, one-token proof of life on an 8 GB-class ARM64 machine.
./bin/k3 ~/k3model --trunk ~/k3trunk --preset ultra \
         --tok ~/k3model --prompt "The capital of France is" --gen 1

# Smallest possible run, the 8 GB floor.
./bin/k3 ~/k3model --trunk ~/k3trunk --preset laptop \
         --tok ~/k3model --prompt "Hello! My name is" --gen 16 --incremental

# Fastest per gigabyte. Pins 90 of 93 trunk layers.
./bin/k3 ~/k3model --trunk ~/k3trunk --preset server \
         --tok ~/k3model --prompt "def fibonacci(n):" --gen 28 --incremental

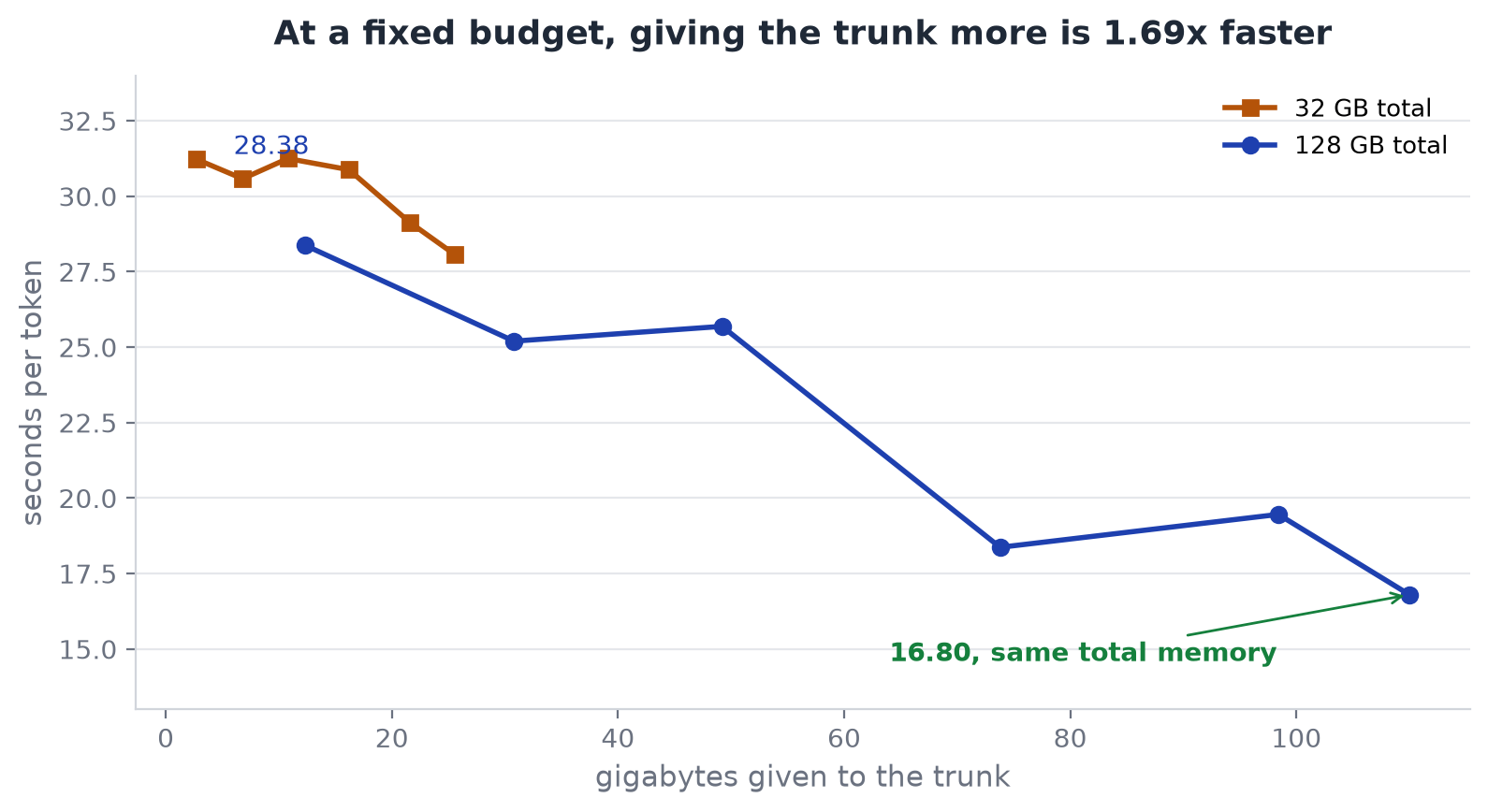

# Hand-tuned split instead of a preset: everything to the trunk.
./bin/k3 ~/k3model --trunk ~/k3trunk --trunk-gb 110 --cache-gb 13 \
         --tok ~/k3model --prompt-file prompt.txt --gen 32 --incremental

# Reproducible: ids in, ids out, no tokenizer, JSON results.
./bin/k3 ~/k3model --trunk ~/k3trunk --preset desktop \
         --ids 1008,10484,318,15383,387 --gen 8 --incremental --out run.json

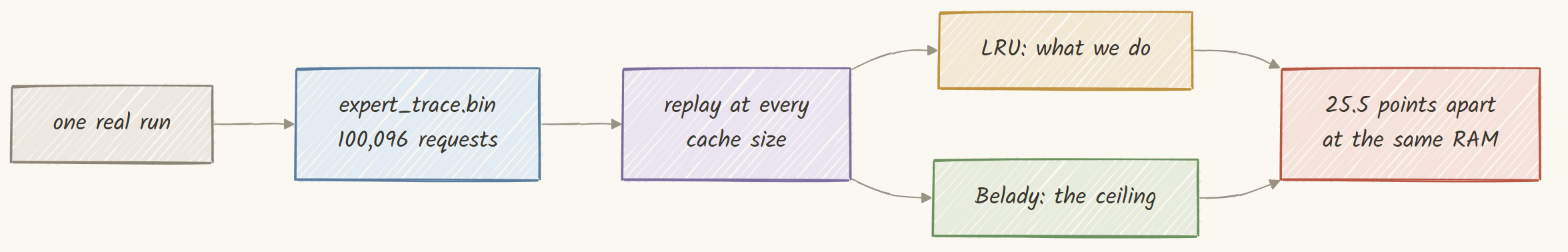

# Capture a cache trace, then replay it offline at any capacity.
./bin/k3 ~/k3model --trunk ~/k3trunk --preset workstation \
         --ids 1008,10484,318,15383,387 --gen 8 --incremental \
         --dump-cache-trace /tmp/trace
python3 tools/sim_cache.py /tmp/trace/expert_trace.bin

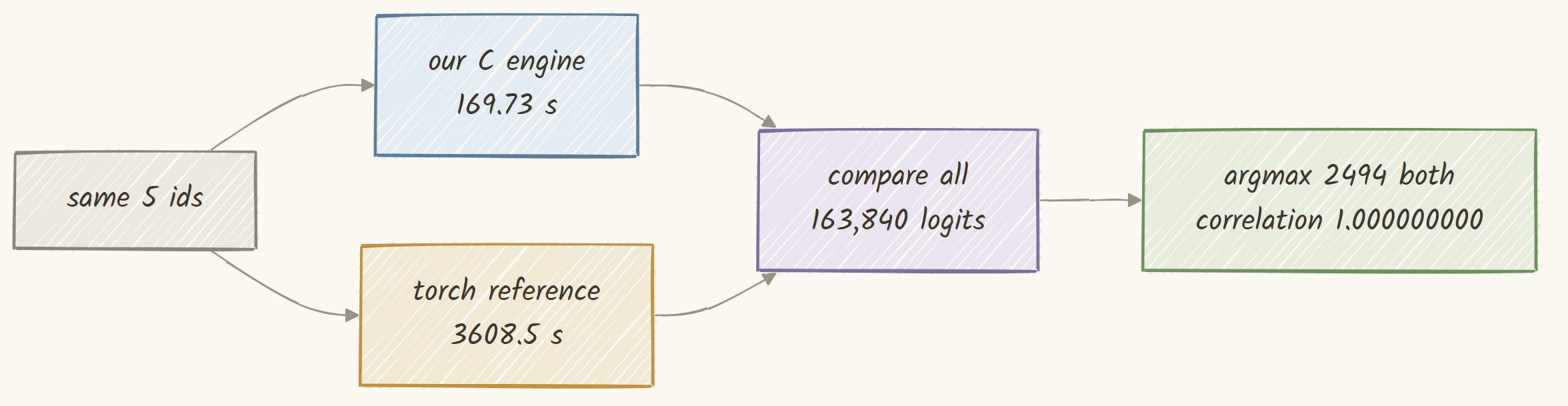

# Elementwise logit comparison against the PyTorch reference.
./bin/k3 ~/k3model --trunk ~/k3trunk --preset server \
         --ids 3,4,5,6,7 --gen 1 --dump-logits /tmp/c_logits.bin
python3 tools/cmp_logits.py /tmp/c_logits.bin ref_logits.json

# Partial shard set: bind only the first 8 layers.
./bin/k3 ~/k3model --trunk ~/k3trunk --layers 8 \
         --ids 1,2,3 --gen 1

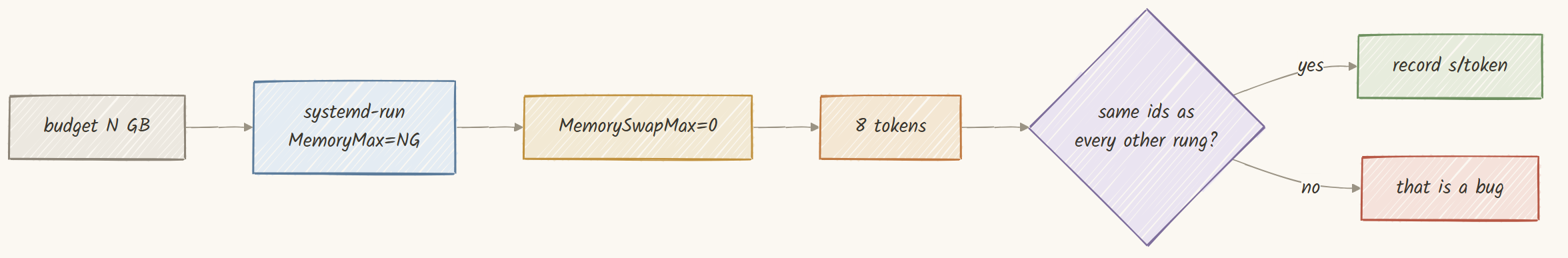

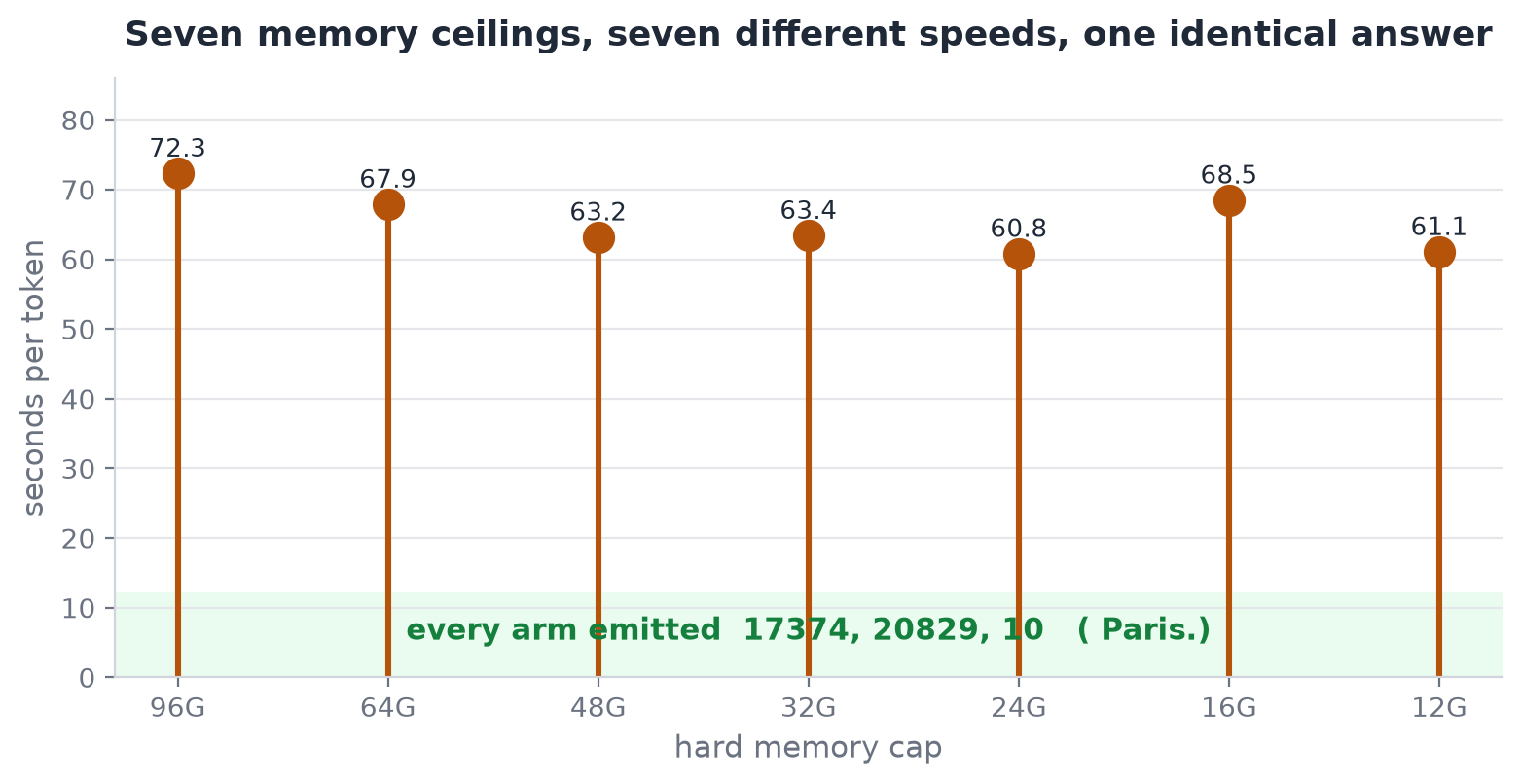

# Under a hard memory ceiling, which is how the ladder was measured.
systemd-run --scope --user -q -p MemoryMax=8G -p MemorySwapMax=0 \
  ./bin/k3 ~/k3model --trunk ~/k3trunk --trunk-gb 2.5 --cache-gb 0.5 \
           --ids 1008,10484,318,15383,387 --gen 8 --incremental

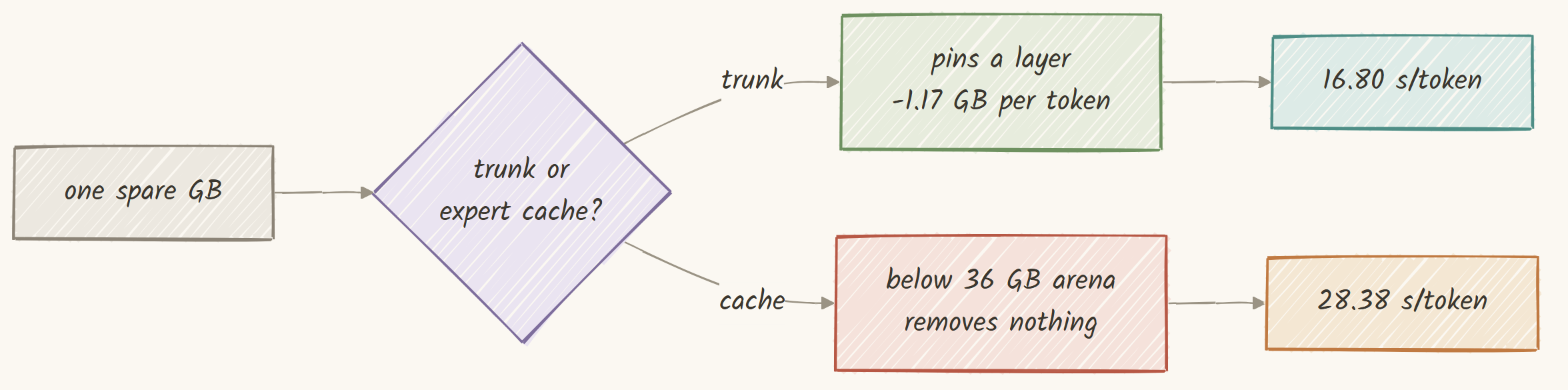

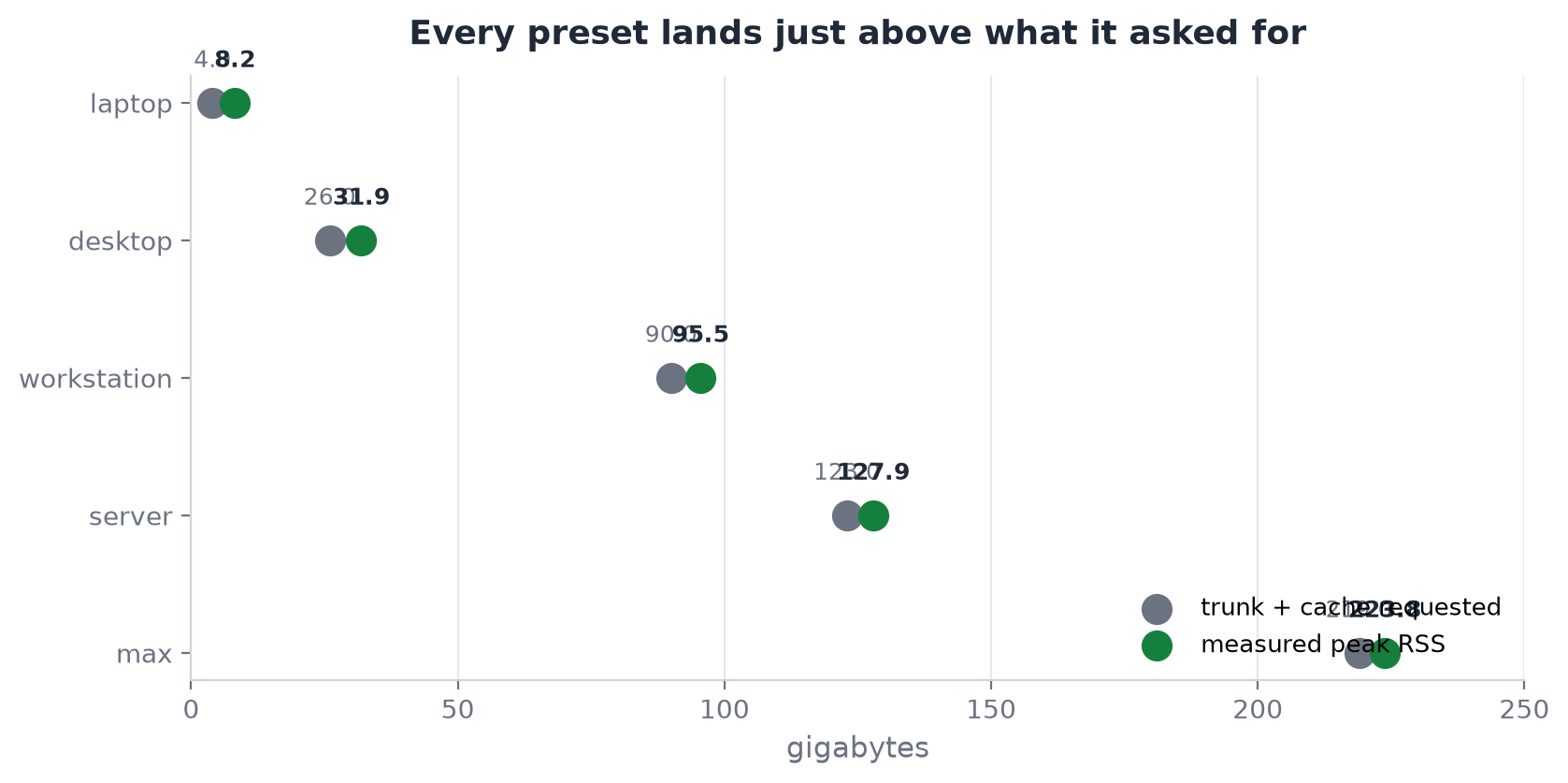

Choosing a preset

$ ./bin/k3 --list-presets
presets (trunk / expert-cache, in GB):
  ultra          2.50 / 0.31    ~3 GB planned: streamed model tables, one state slot. Slow.
  laptop         3.00 / 1.00    8.2 GB peak RSS. The ordinary-path floor.
  desktop       16.00 / 10.00   31.9 GB peak RSS.

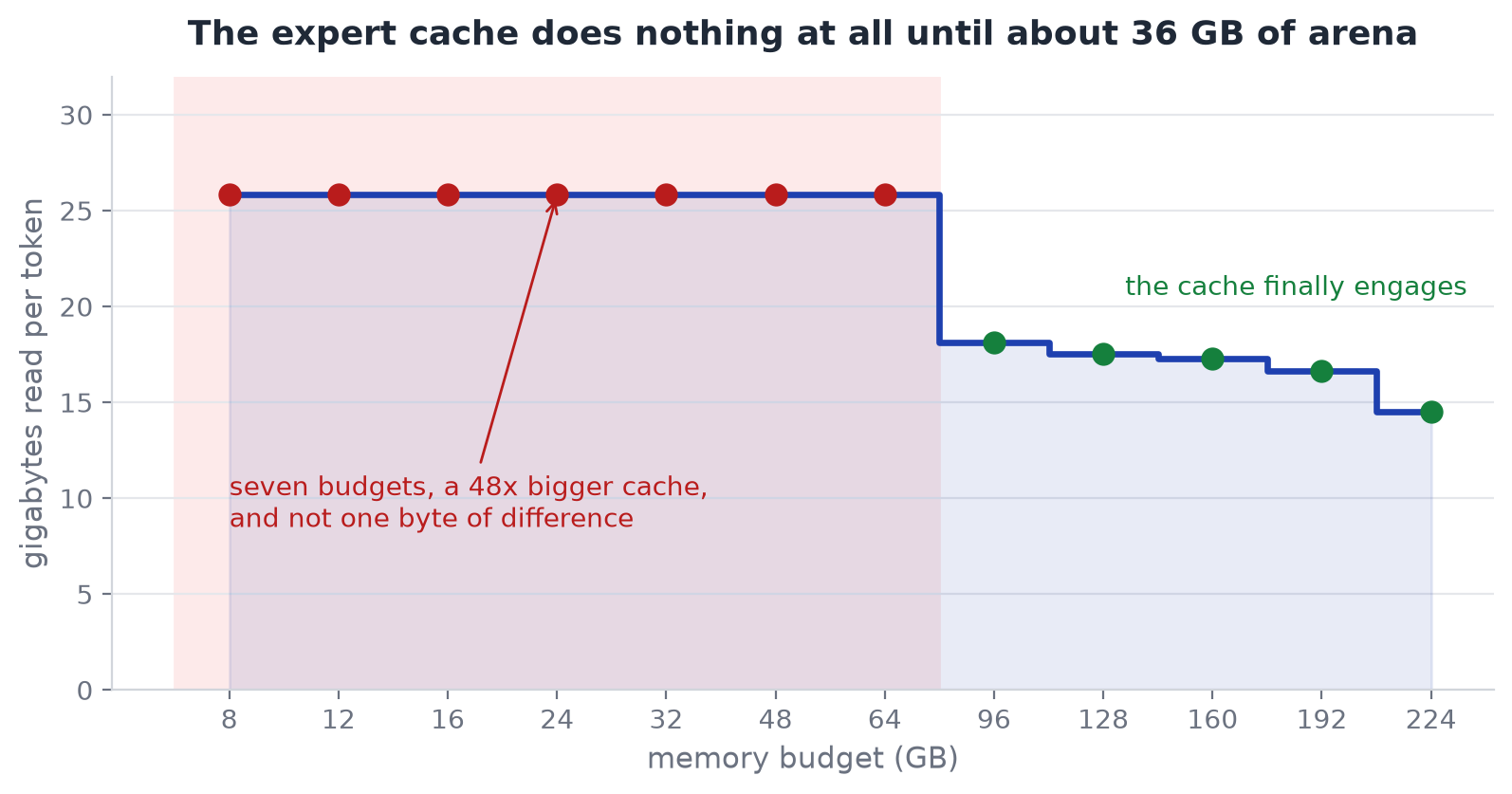

  workstation   60.00 / 30.00   95.5 GB peak RSS; the expert cache starts to matter here.
  server       110.00 / 13.00   ~128 GB peak RSS; 90 of 93 trunk layers pinned. Fastest.
  max          110.00 / 109.00  ~224 GB peak RSS; trunk pinned and a large expert cache.

All presets stream the trunk, so they need --trunk <packed_dir>.
Run scripts/k3-doctor.sh to see which one this machine fits.

if   [ "$AVAIL_GB" -ge 192 ]; then PRESET=server;      EXPECT="~6 s/token"
elif [ "$AVAIL_GB" -ge  96 ]; then PRESET=workstation; EXPECT="~6-20 s/token"
elif [ "$AVAIL_GB" -ge  32 ]; then PRESET=desktop;     EXPECT="~24 s/token"
elif [ "$AVAIL_GB" -ge  10 ]; then PRESET=laptop;      EXPECT="~27 s/token"
else PRESET=""; fi

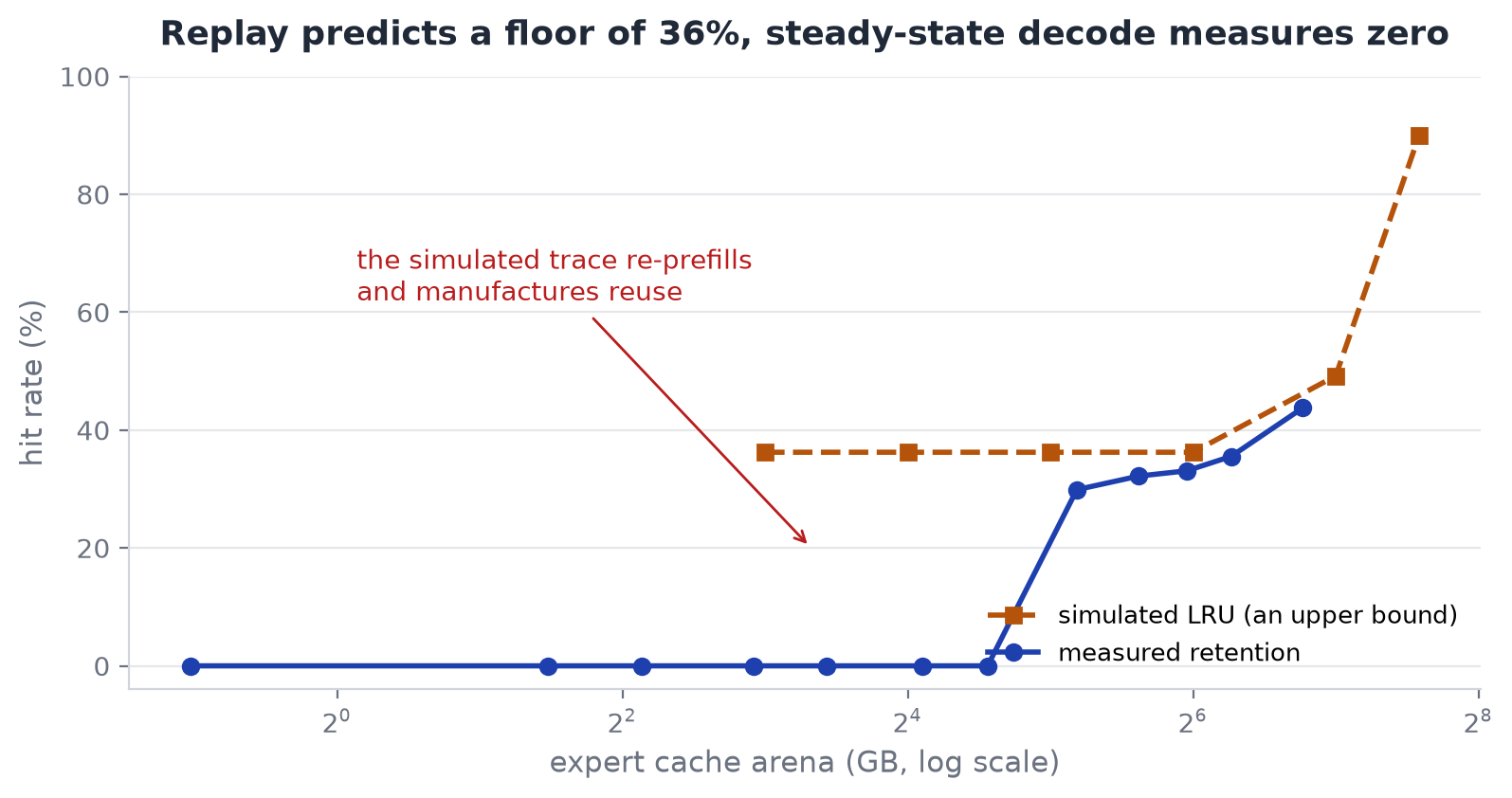

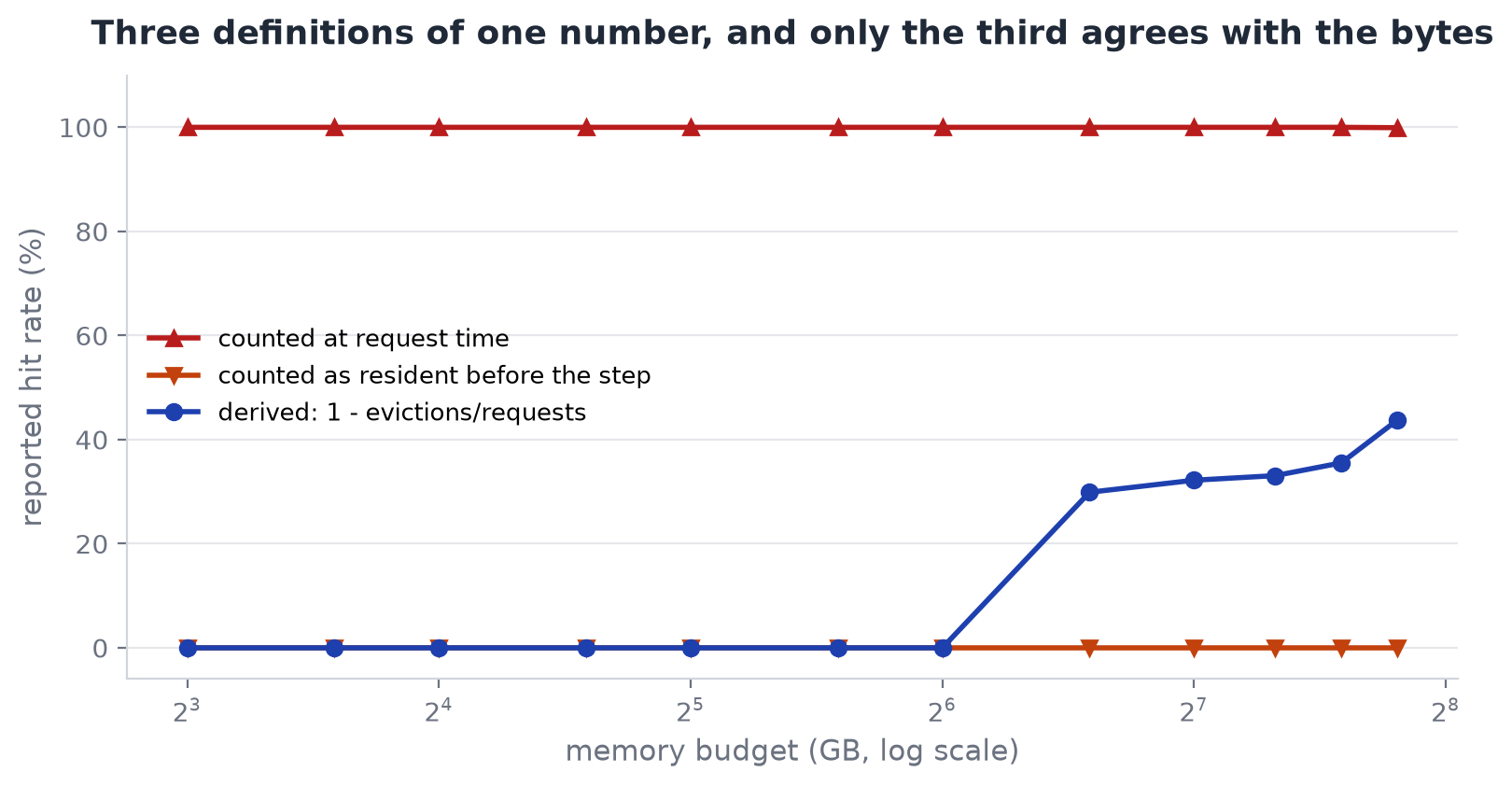

Reading the run report

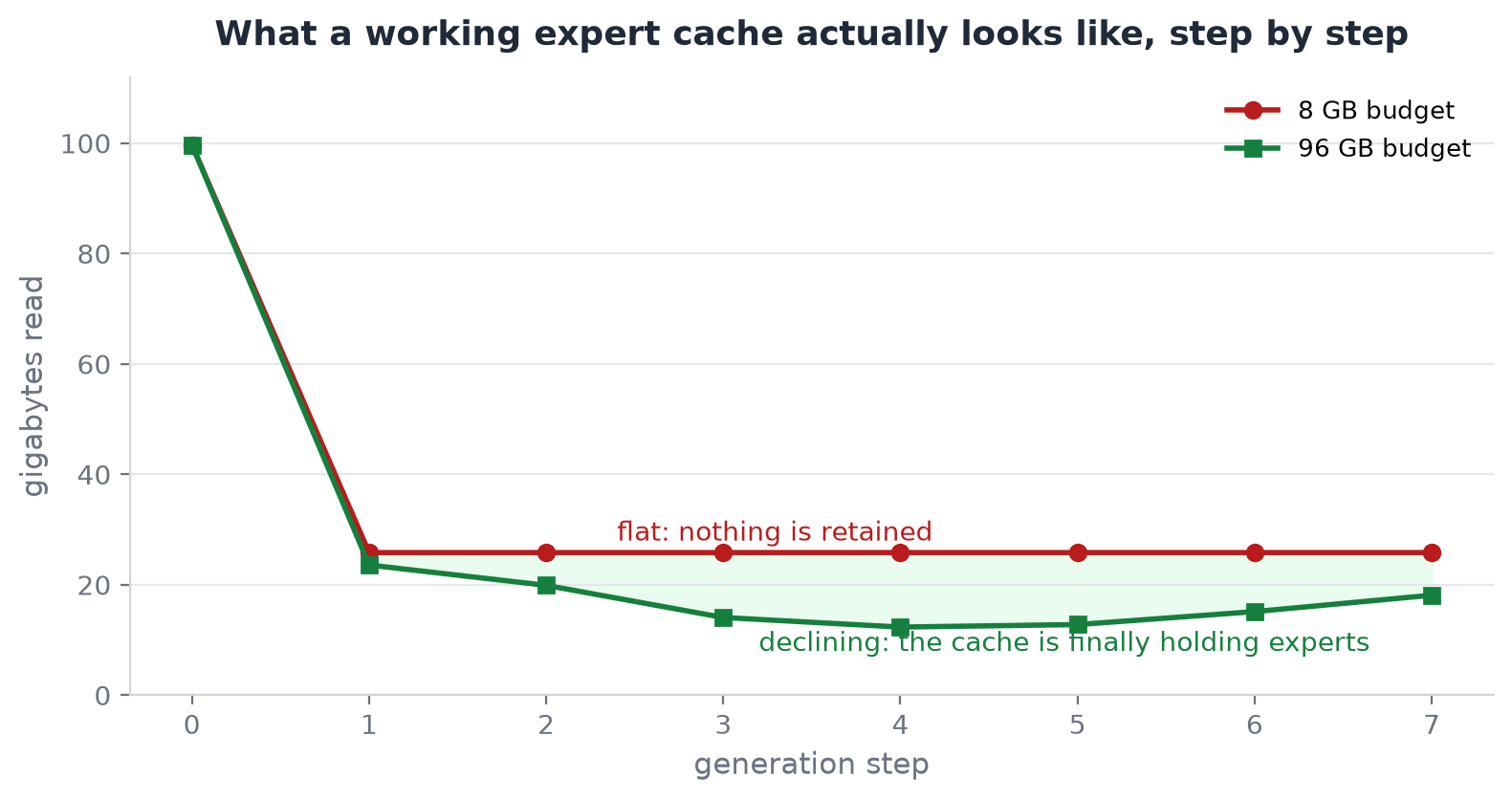

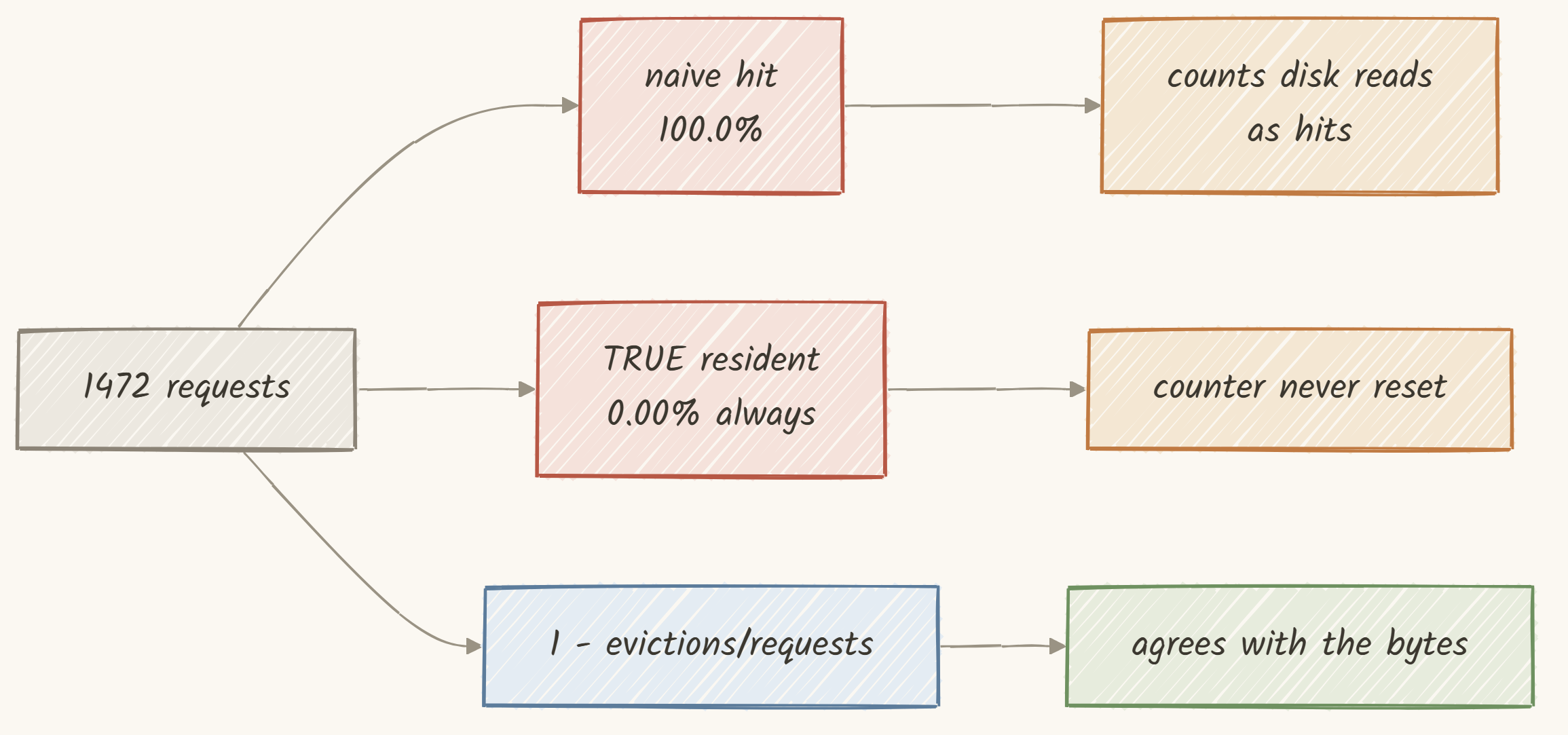

cache [final step]

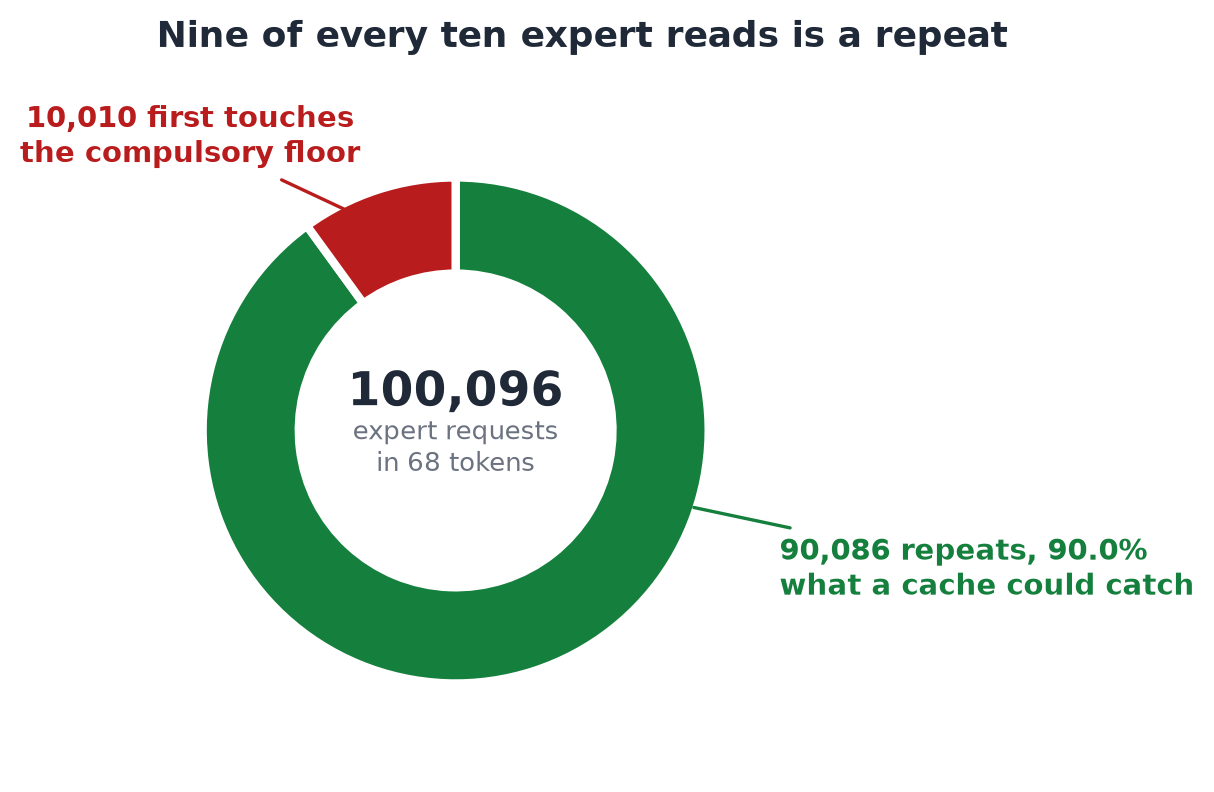

  requests     : 1472  hits 1472 (100.00%)  misses 0  evictions 729

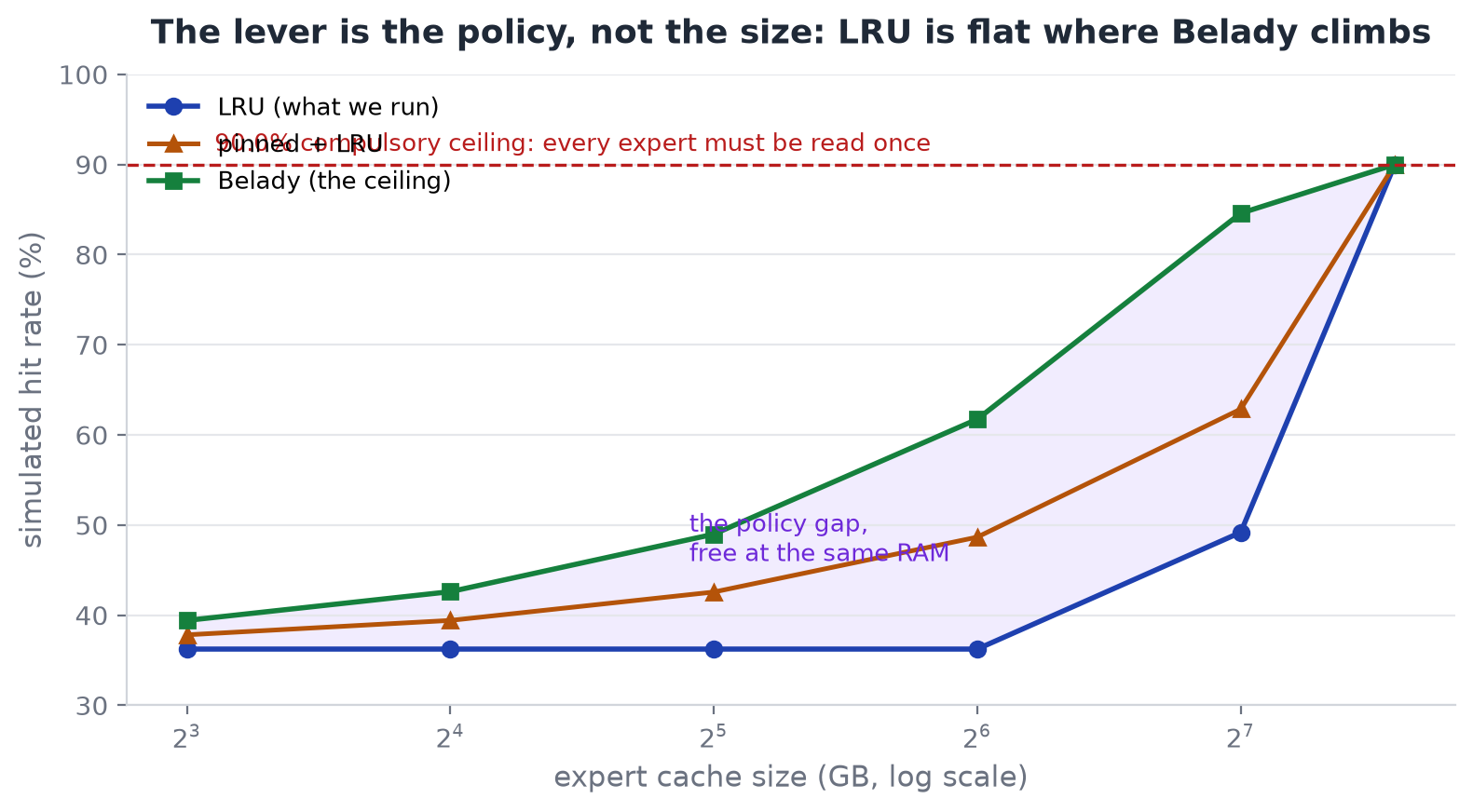

                 TRUE resident hit rate 50.48%

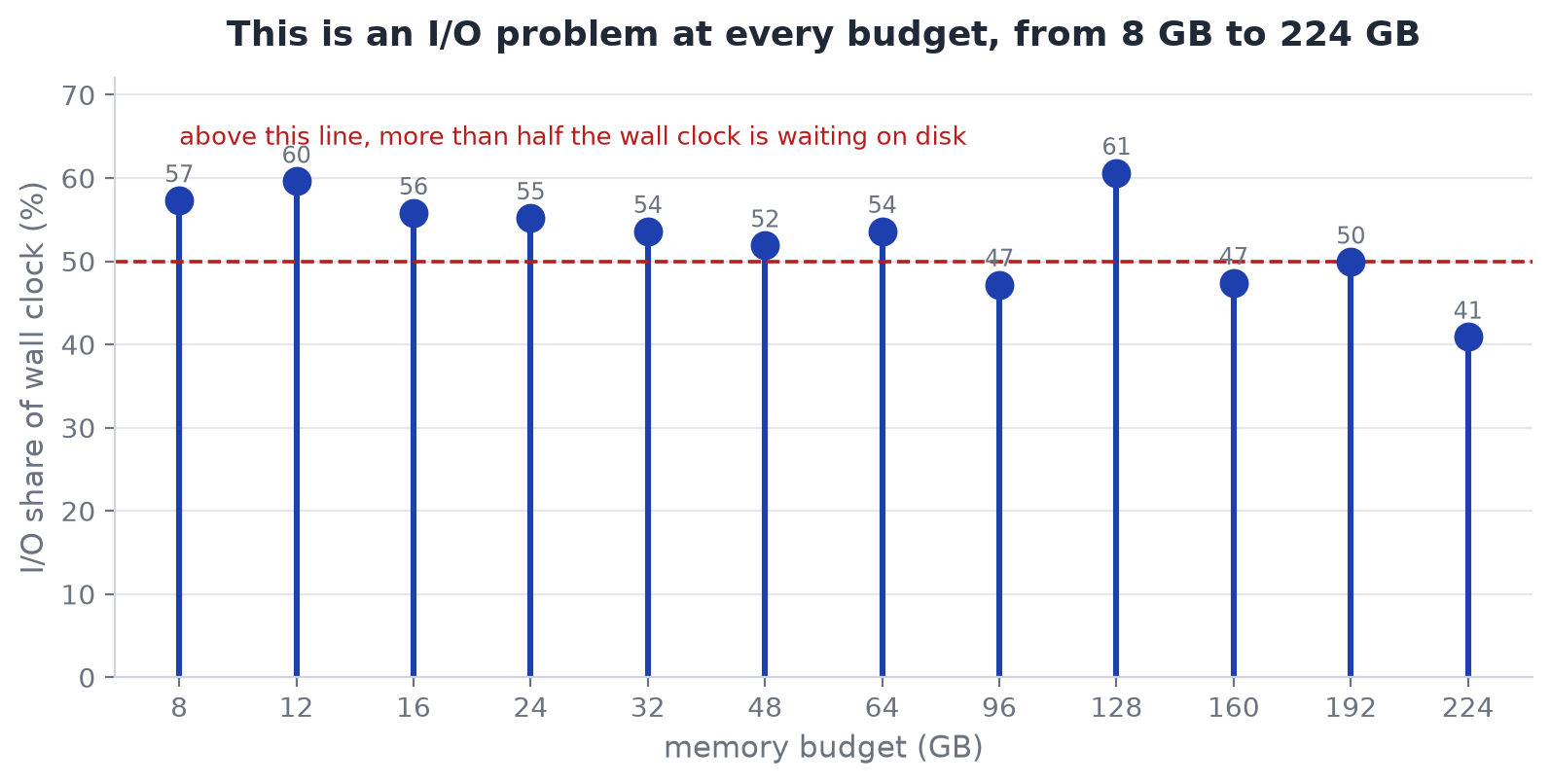

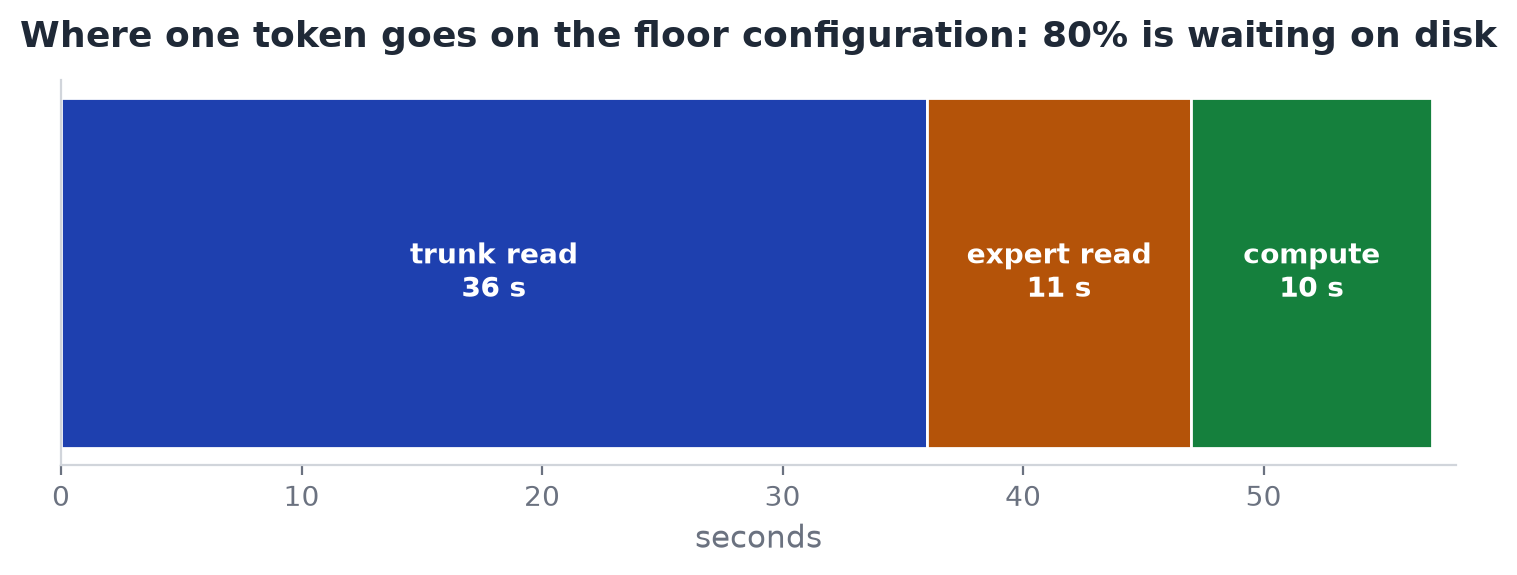

I/O share of wall clock: 71.1%  (trunk 62.4 s + experts 34.2 s of 135.8 s)

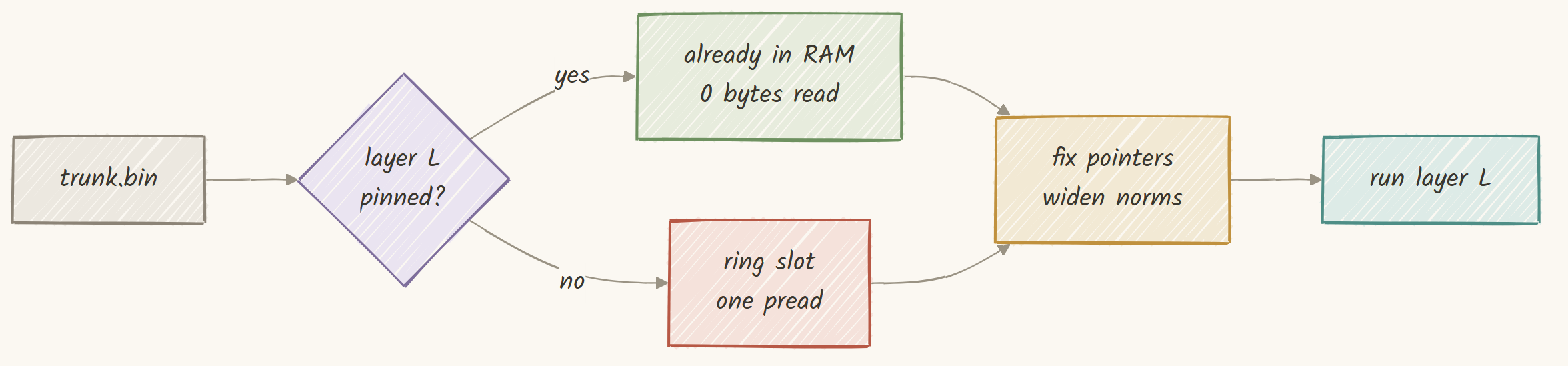

trunk [final]
  pinned 48/93 layers, ring 1 slots
  read 368.65 GB in 62.40 s (5908 MB/s)

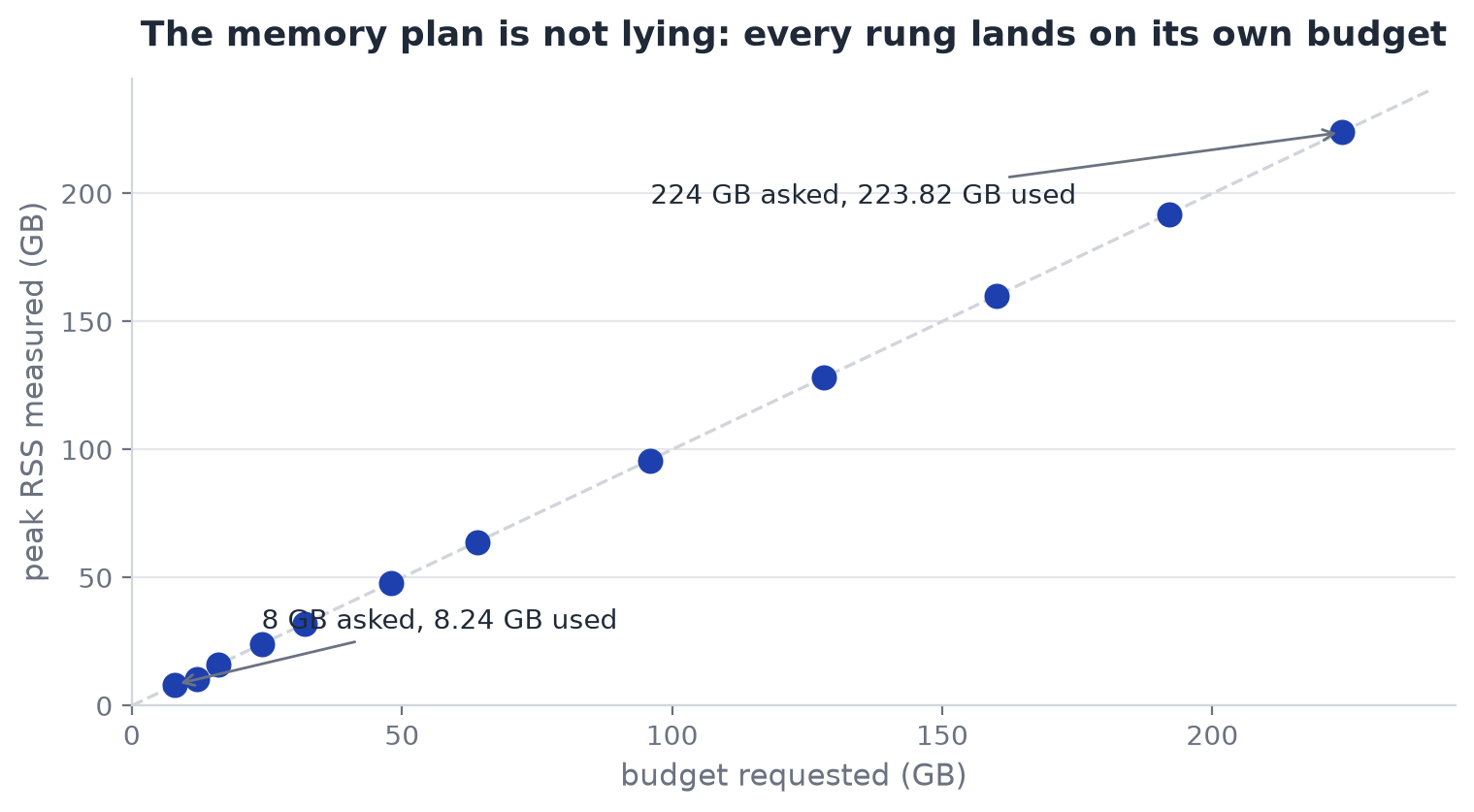

PEAK RSS for the whole run: 94.74 GB   <- quote this, not the plan

Common questions

Part II: How it works

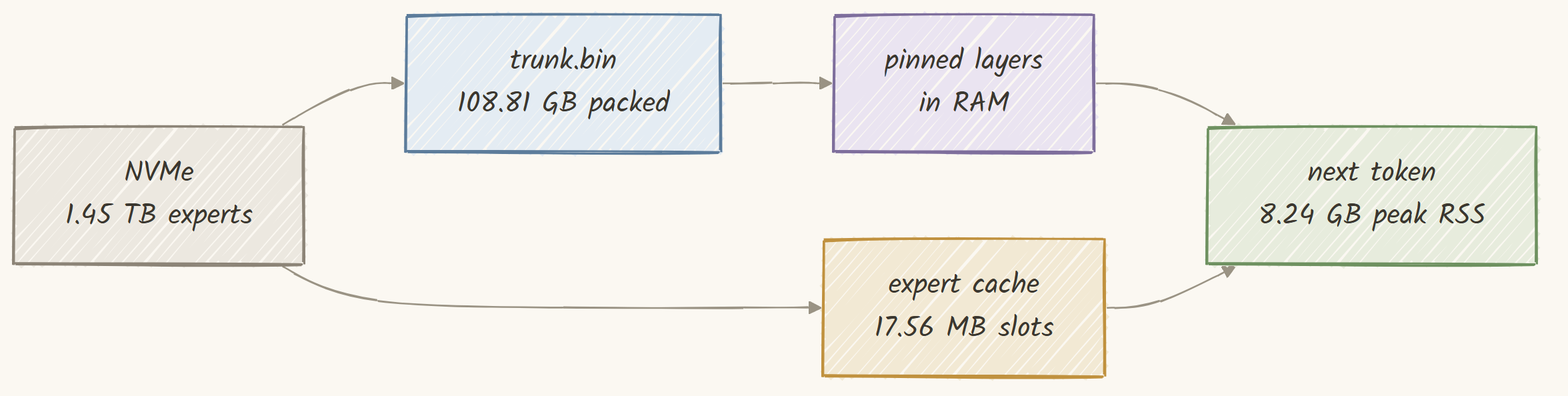

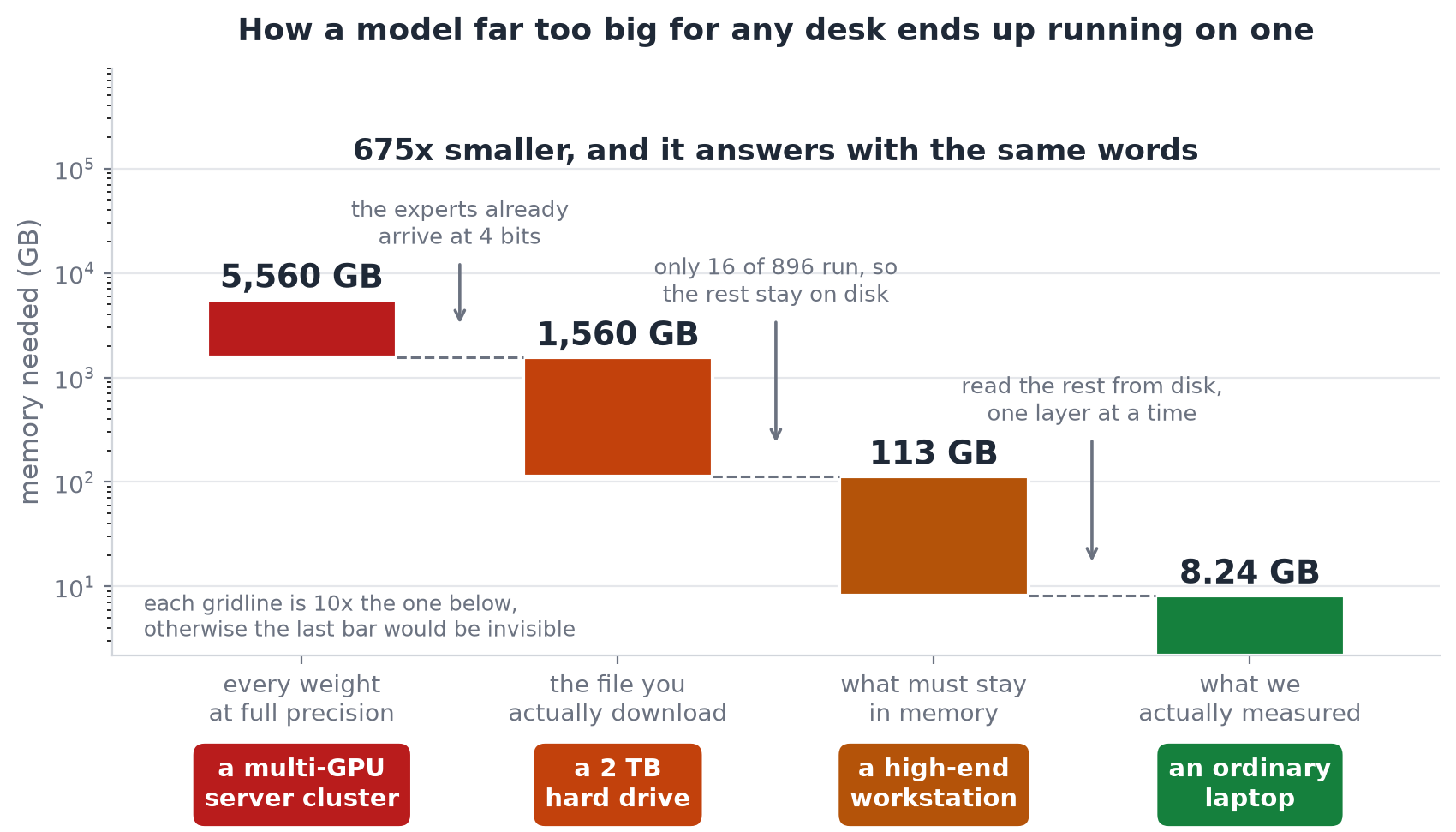

The problem: a model that does not fit

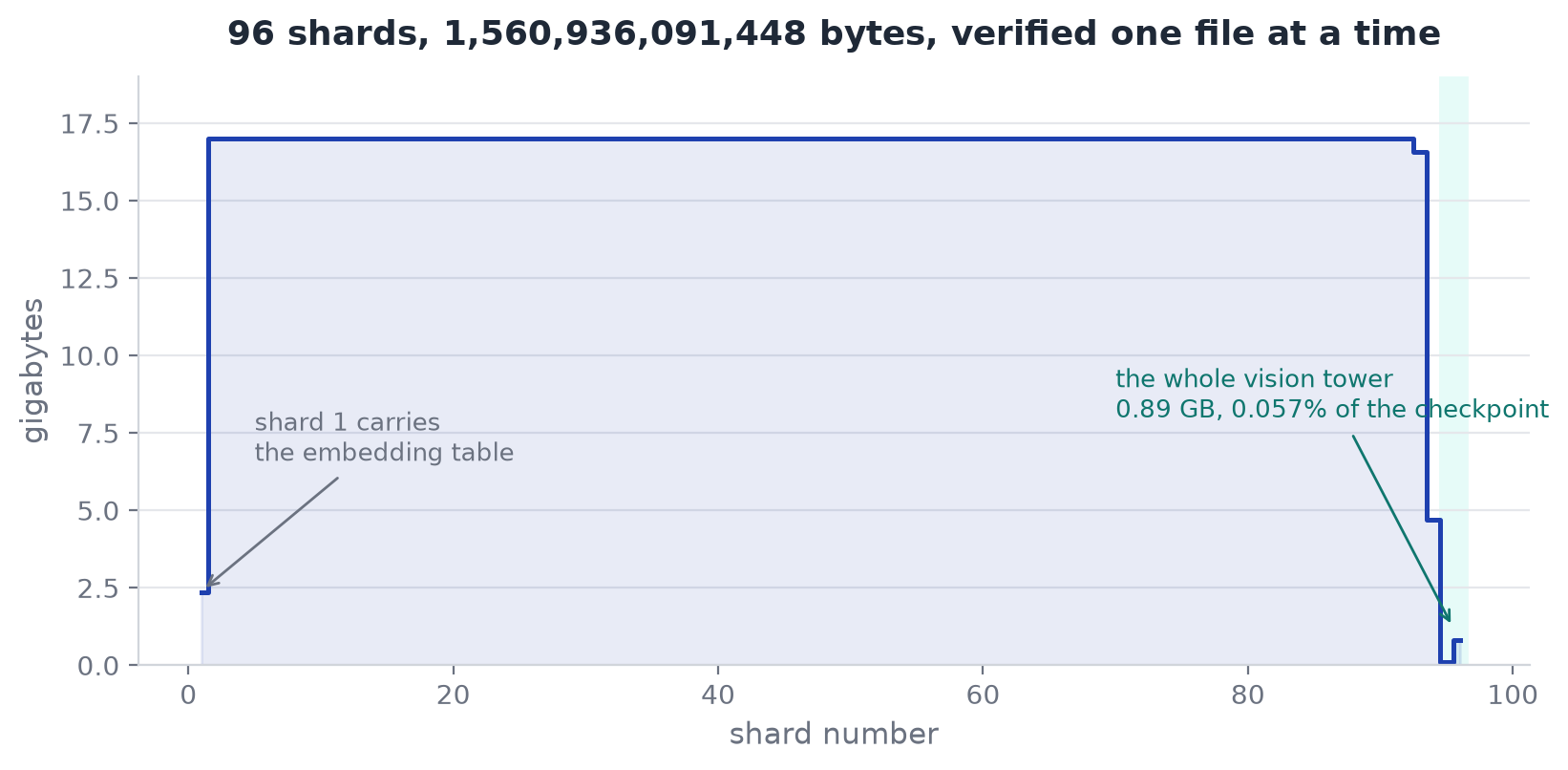

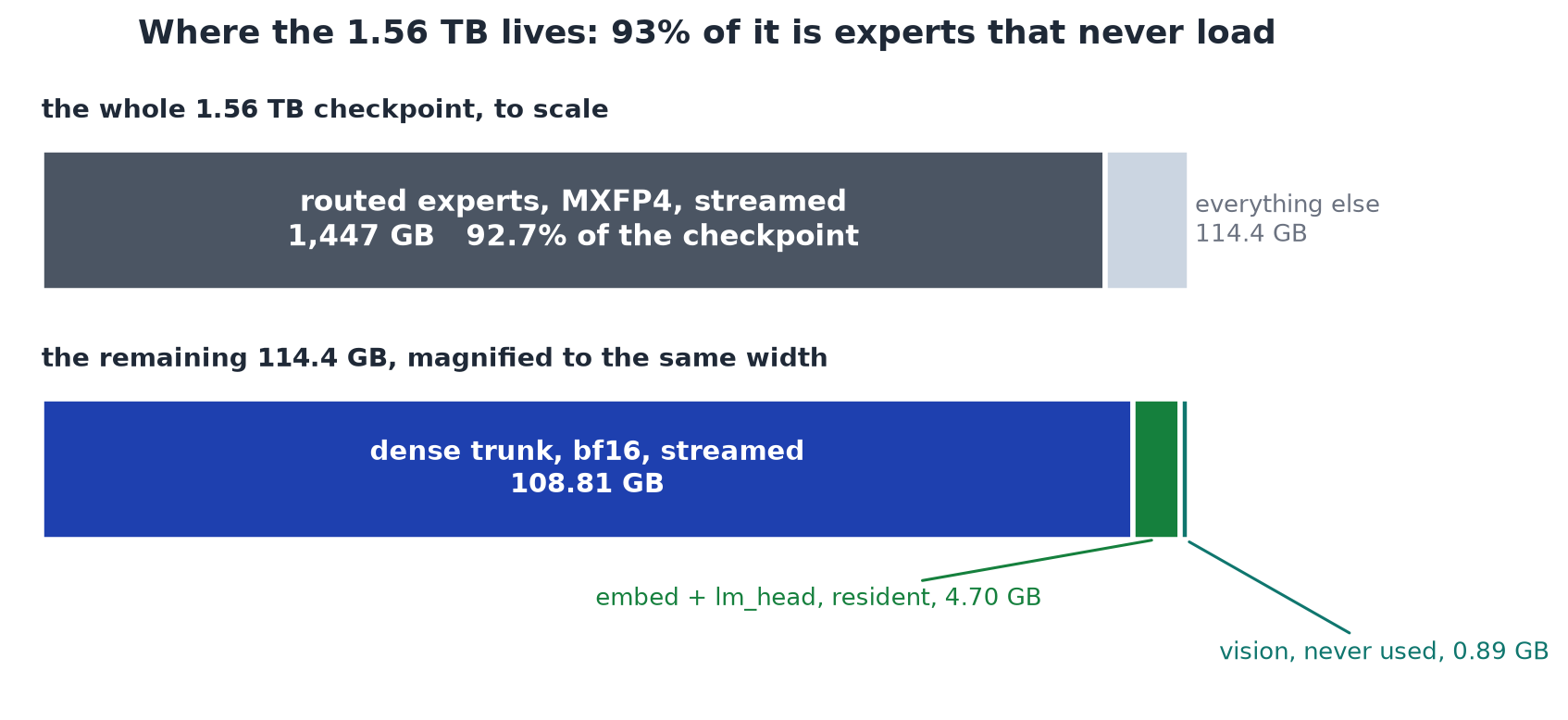

=== shard census: what the 1.56 TB actually is ===
shards            : 96
total bytes       : 1560936091448  (1.56 TB)

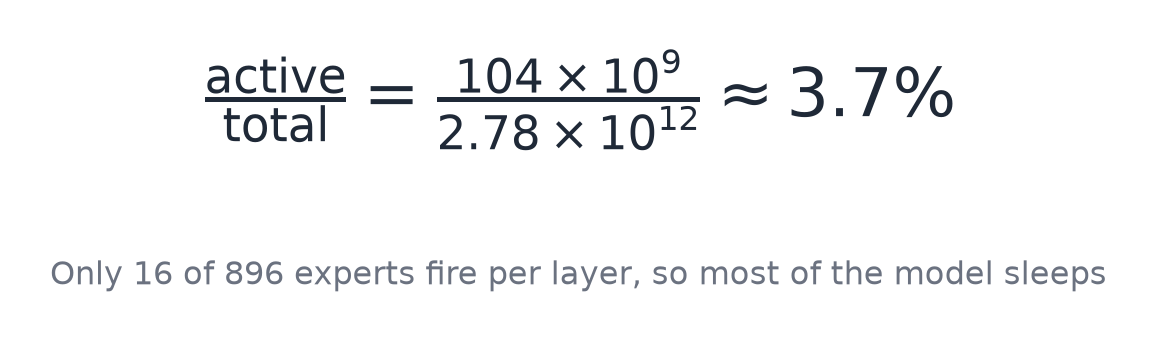

--- routed experts (the part that is streamed, never resident) ---
  experts total     : 82,432   (896 routed x 92 MoE layers)

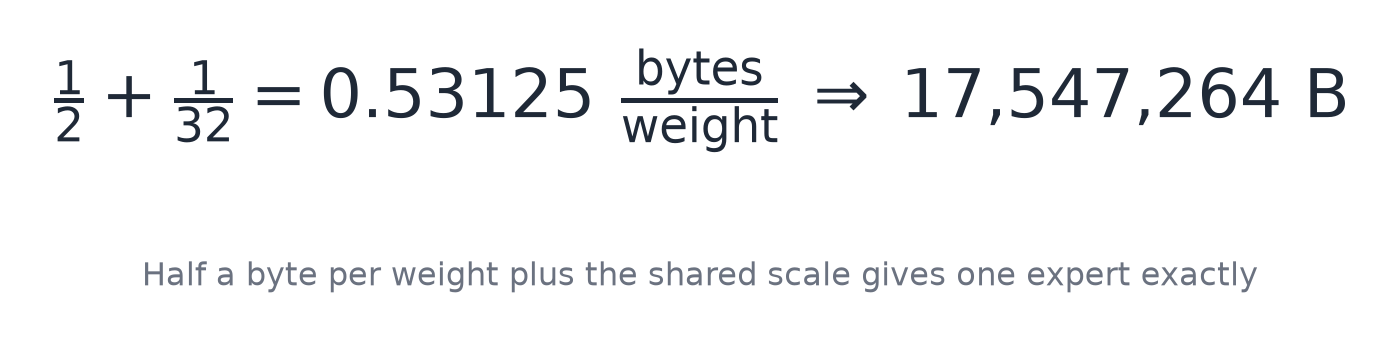

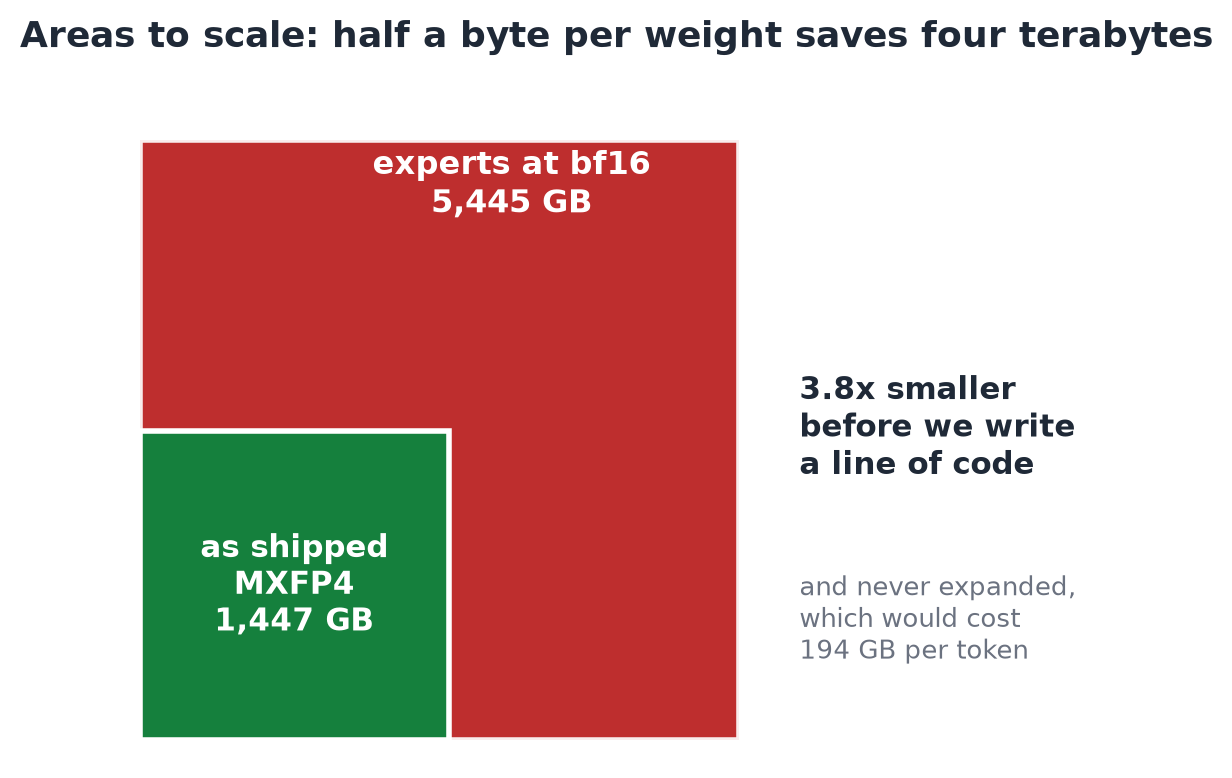

  bytes per expert  : 17,547,264  exactly

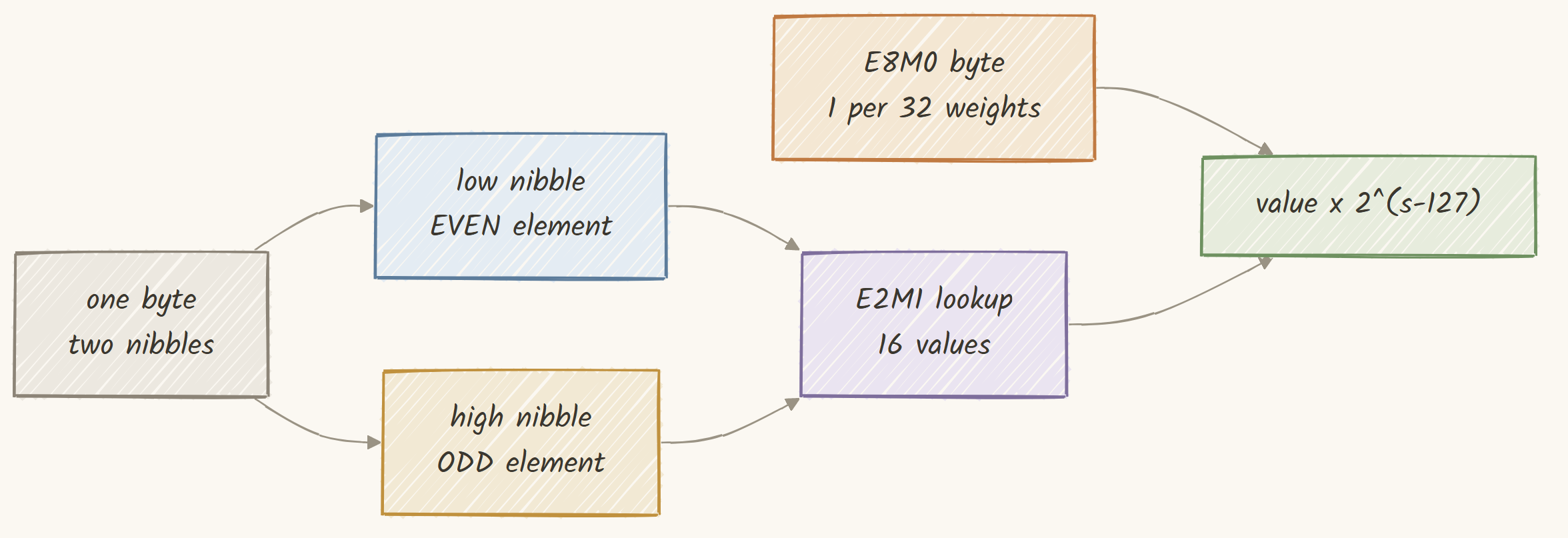

                      = 33,030,144 params x 0.53125 bytes
                      = 0.5 bytes/nibble + 1/32 byte for the shared E8M0 scale
  routed expert set : 82,432 x 17,547,264 = 1.447 TB

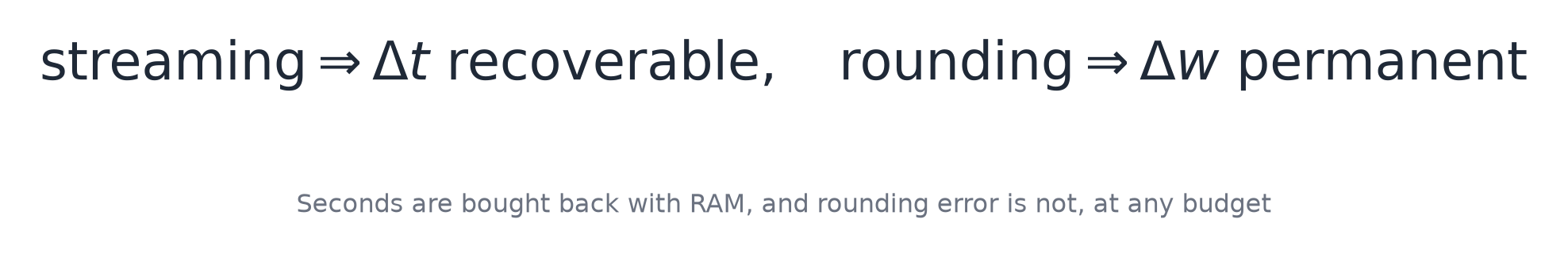

The four reductions

The machine, and what it assumes

--- ISA (note: AVX2 present, AVX-512 ABSENT) ---
avx avx2 fma sse4_2

--- memory ---
Mem:           228Gi       5.1Gi       207Gi       3.1Mi        18Gi       223Gi
MemTotal:       239308464 kB
MemAvailable:   233961008 kB
Hugepagesize:       2048 kB

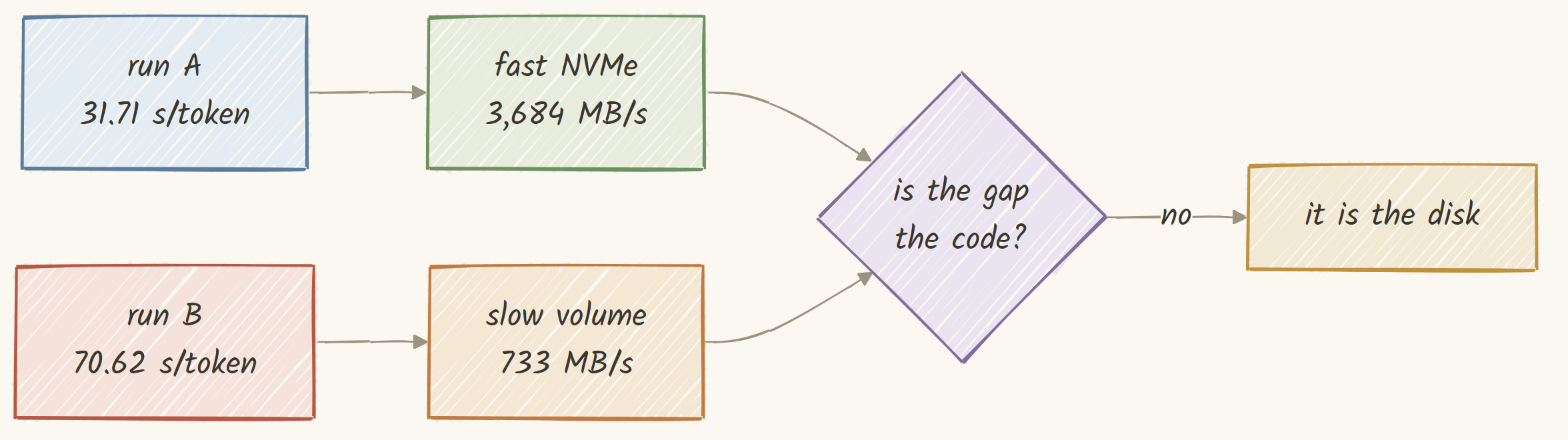

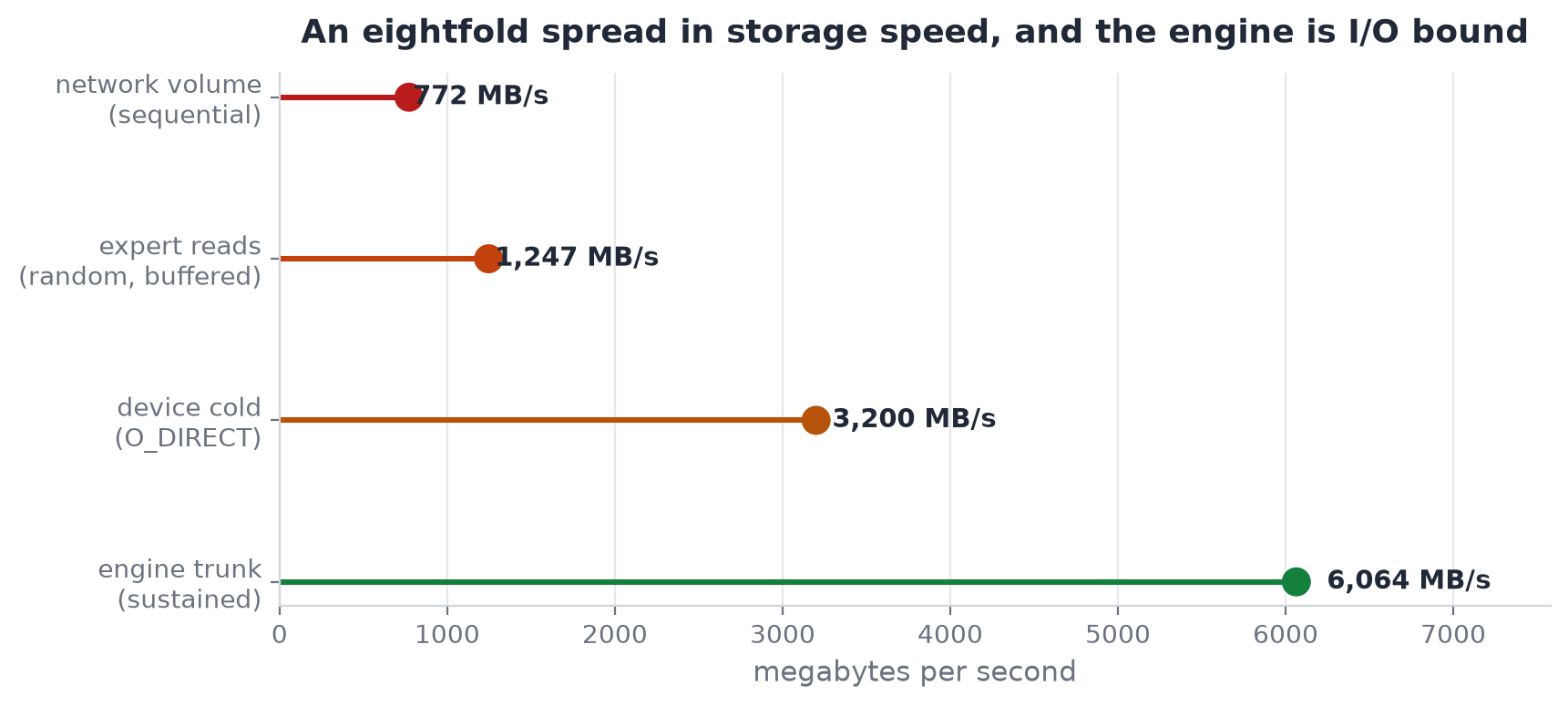

--- storage bandwidth, measured ---
O_DIRECT cold : 3.2 GB/s     (dd bs=4M iflag=direct after drop_caches)
buffered warm : 2.3 GB/s
engine, trunk : 5373-6064 MB/s sustained during runs
NOTE O_DIRECT is FASTER than buffered here. That is the opposite of the usual
expectation, and it is why the engine opens the trunk O_DIRECT.

--- measurement hygiene ---
unattended-upgrades: STOPPED and DISABLED before measurement (was using ~63% of a
  core during the smoke run).
apt-daily.timer and apt-daily-upgrade.timer: DISABLED

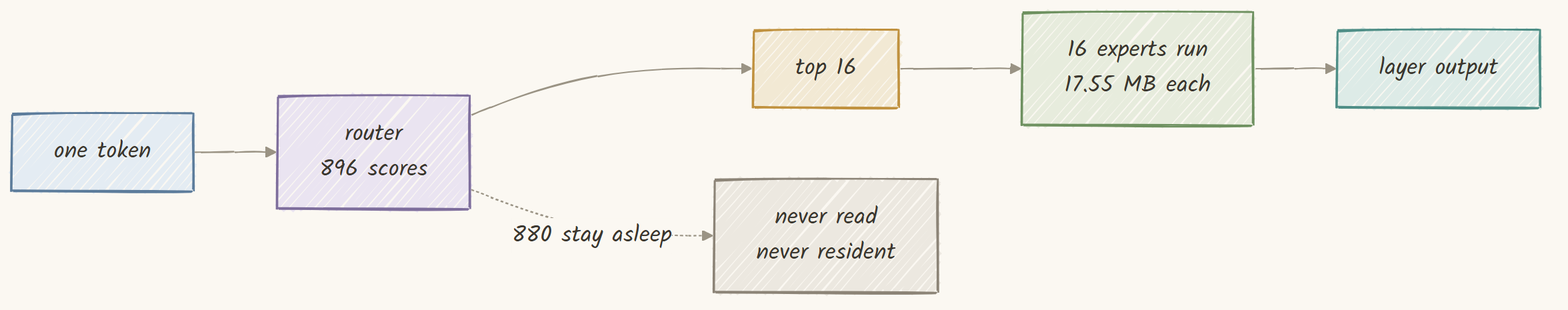

# Streamable only if ROUTED. The 2 SHARED experts sit in the same namespace and
# are NOT streamable, which is where hand arithmetic goes wrong.
def classify(name: str) -> str:
    if ".block_sparse_moe.experts." in name:
        return "routed_expert"          # streamable: only 16 of 896 per token
    if ".block_sparse_moe.shared_expert" in name:
        return "shared_expert"          # RESIDENT: runs on every token
    if ".self_attn." in name:
        return "attention"              # resident
    if "embed_tokens" in name or "lm_head" in name:
        return "embedding"              # resident
    return "other"                      # norms, router gates, biases: resident

The codebase

include/k3/
  k3.h              # the public header: config, weights, every kernel prototype

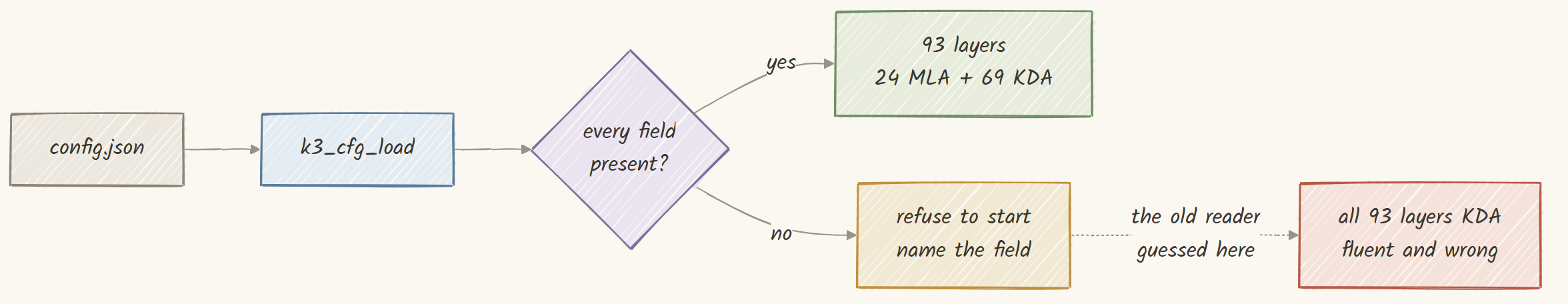

  k3_cfg.h          # config reader, header-only, refuses to substitute defaults
src/

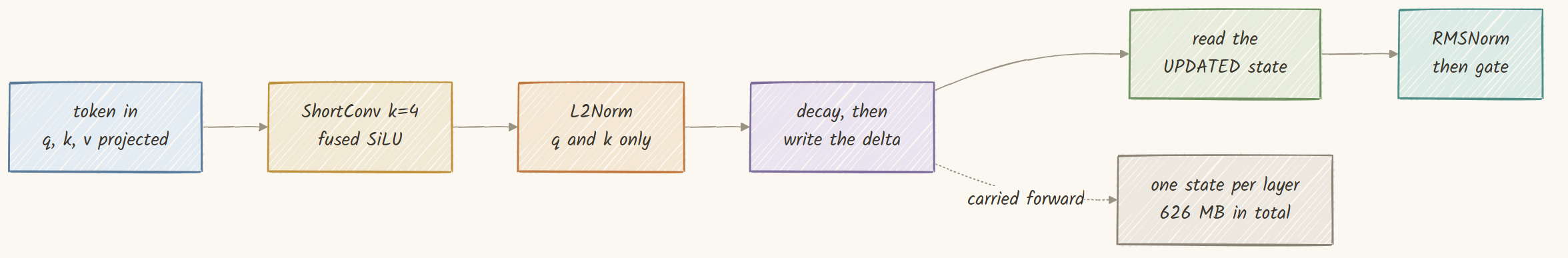

  core/k3_ops.c     # every numeric kernel: RMSNorm, KDA, MLA, MoE, MXFP4 matmul
  io/k3_st.c        # safetensors reader, hand-written JSON scan, O_DIRECT reads
  io/k3_load.c      # locating one expert's bytes inside a shard
  io/k3_trunk.c     # streaming the dense trunk, pinned prefix plus a ring slot

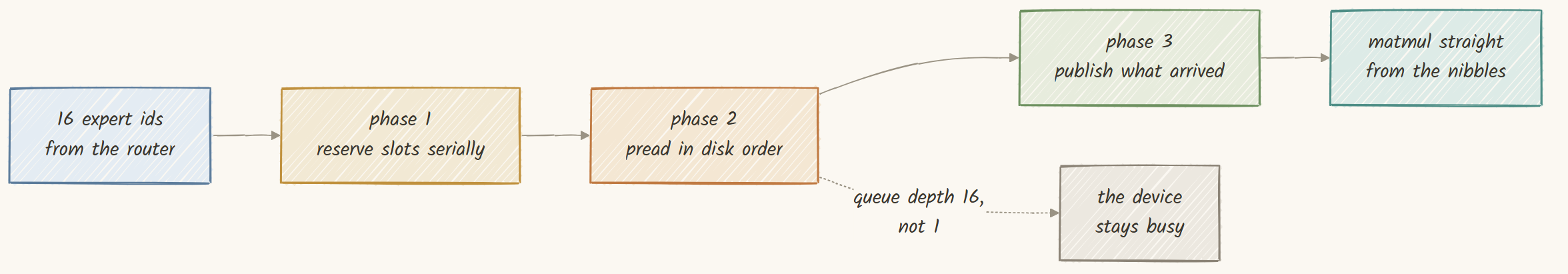

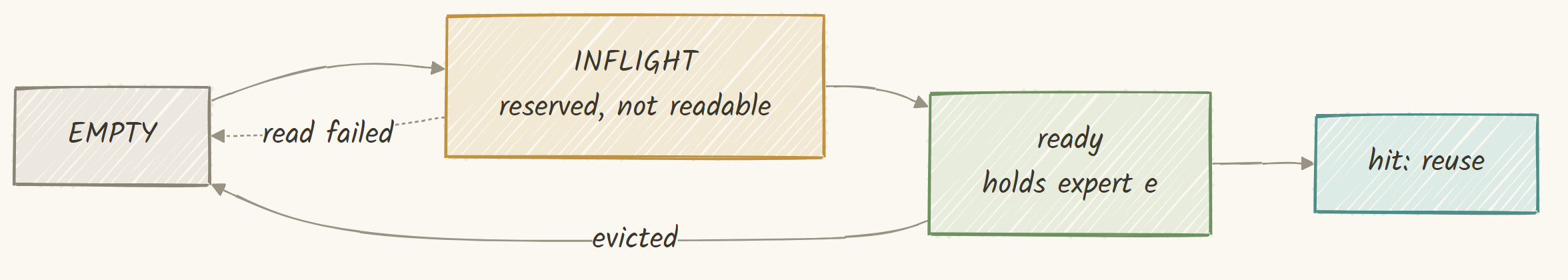

  cache/k3_cache.c  # the routed-expert LRU cache and its batch prefetch
  model/k3_bind.c   # binding checkpoint tensor names to kernel arguments
  tokenizer/k3_tok.h# byte-level BPE loaded from tiktoken.model
  cli/k3_run.c      # the k3 binary: memory plan, decode loop, reporting
tools/              # python: pack the trunk, replay the cache, verify against torch
benchmarks/         # the cgroup memory ladder and the split sweep
tests/              # fixtures, the tiny oracle, the 93-layer conformance run

CFLAGS = -O3 -std=gnu99 -Wall -Wextra -Wpointer-arith -Wshadow -Wvla \
         -march=native -fopenmp -ffp-contract=off
LDFLAGS = -lm -fopenmp

1. build, warnings are failures
  -> clean build, no diagnostics

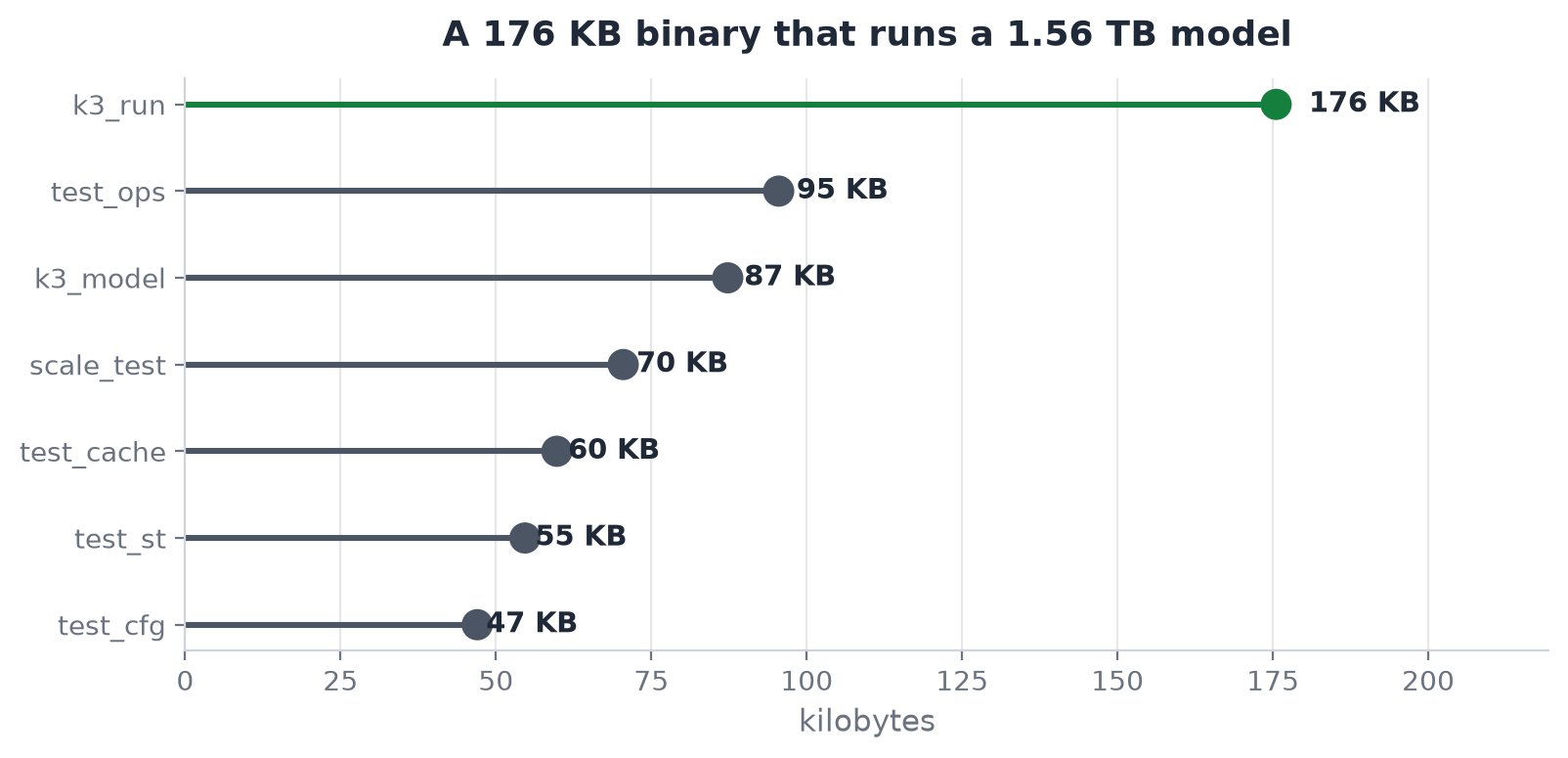

  test_ops          97784 bytes
  k3_model          89392 bytes
  k3_run           179736 bytes

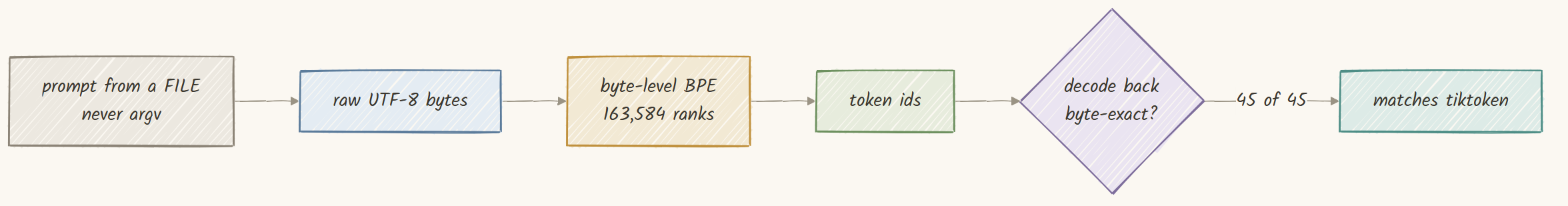

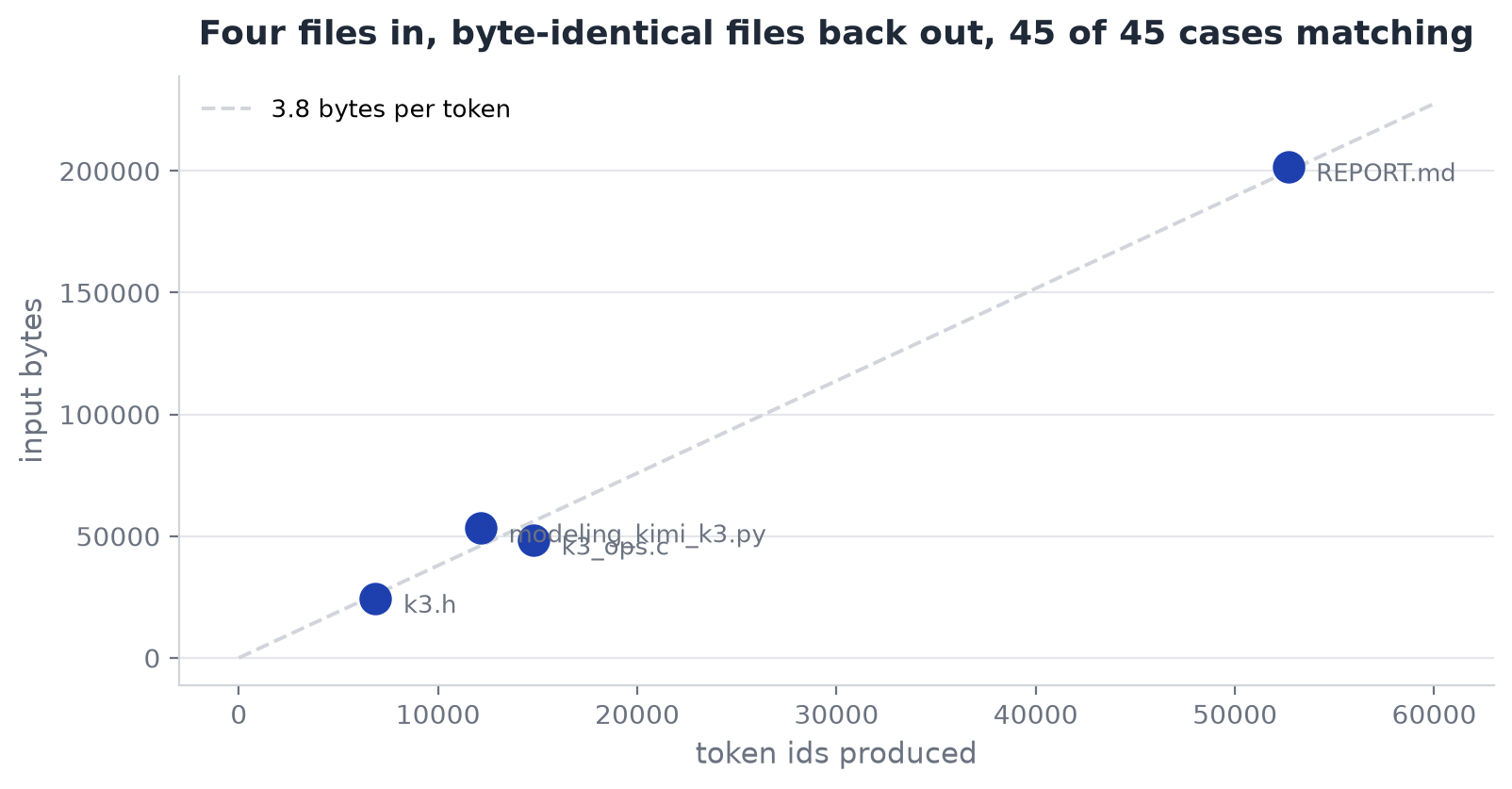

=== cross-platform tokenizer determinism ===
  Linux   gcc 13.3.0  x86_64
  Windows gcc 16.1.0  x86_64
  input   src/k3.h (24,499 bytes) -> 6,862 ids
  result  IDENTICAL id streams

  (a naive md5 of stdout DIFFERS by one byte: Windows text-mode stdout writes the
   trailing newline as CRLF. That is the pipe, not the tokenizer.)

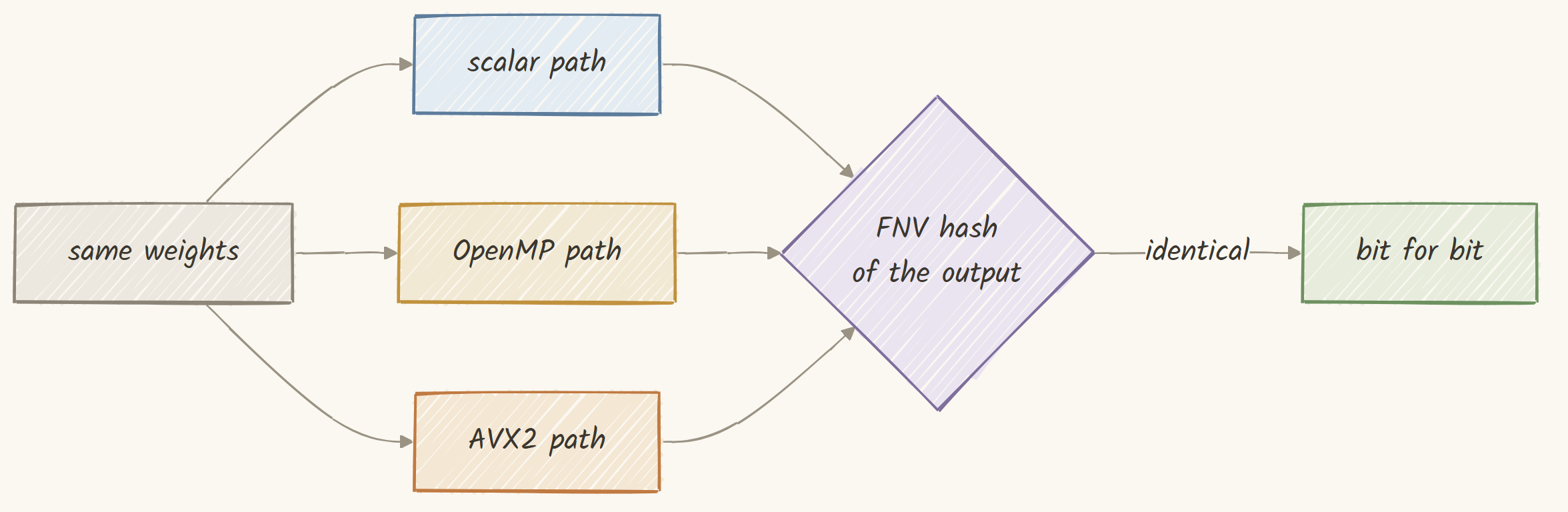

Three invariants

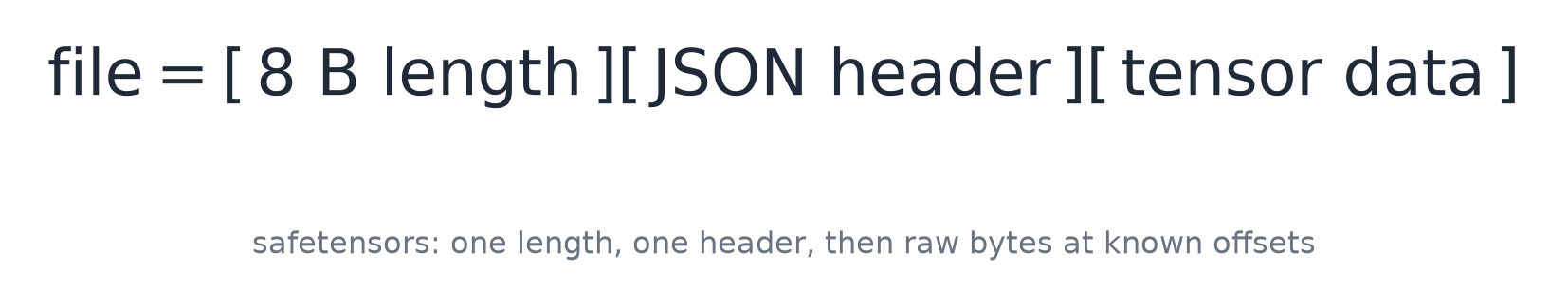

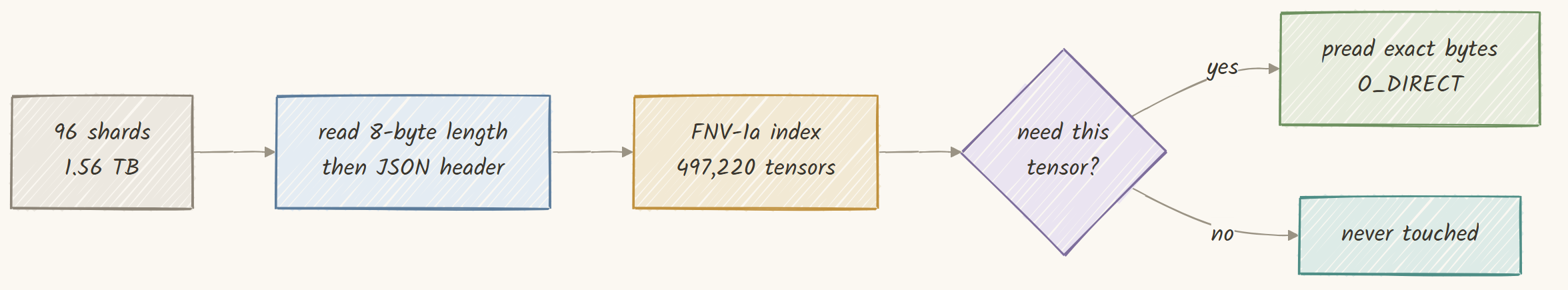

1. Reading a 1.56 TB checkpoint from its headers

/* Walk the header once, copy nothing we do not need. `p` sits just past the
 * opening quote of the tensor name. */
static const char *st_scan_entry(const char *p, const char *end, K3Tensor *t)
{
    const char *q = memchr(p, '"', (size_t)(end - p));
    if (!q || (size_t)(q - p) >= sizeof t->name) return NULL;
    memcpy(t->name, p, (size_t)(q - p));
    t->name[q - p] = '\0';

    const char *d = st_find_key(q, end, "dtype");
    if (!d) return NULL;
    t->dtype = st_dtype_code(d);

    const char *s = st_find_key(q, end, "shape");
    if (!s) return NULL;
    t->rank = 0;
    t->nelem = 1;
    for (const char *c = s; c < end && *c != ']'; c++) {
        if (*c >= '0' && *c <= '9') {
            long v = strtol(c, (char **)&c, 10);
            if (t->rank >= K3_ST_MAXRANK) return NULL;
            t->shape[t->rank++] = v;
            t->nelem *= (size_t)v;
        }
    }

    /* offsets are RELATIVE to the start of the data section */
    const char *o = st_find_key(q, end, "data_offsets");
    if (!o) return NULL;
    t->off  = (size_t)strtoull(o, (char **)&o, 10);
    while (o < end && (*o < '0' || *o > '9')) o++;
    t->nbytes = (size_t)strtoull(o, (char **)&o, 10) - t->off;
    return o;
}

/* Names are long and share deep prefixes
 * ("language_model.model.layers.N.block_sparse_moe.experts.M...."), so the hash must
 * mix every byte; a prefix-only or length-only hash would pile every expert of a
 * layer into one bucket. */
static uint64_t fnv1a(const char *s)
{
    uint64_t h = 1469598103934665603ull;
    while (*s) { h ^= (unsigned char)*s++; h *= 1099511628211ull; }
    return h;
}

int64_t k3_st_read_aligned(const K3St *s, int shard, int64_t off, int64_t nbytes,
                           void *buf, int64_t bufcap, int64_t *payload_off)
{
    /* widen outward to the enclosing aligned window */
    const int64_t lo  = off & ~(int64_t)(K3_ST_ALIGN - 1);
    const int64_t hi  = (off + nbytes + K3_ST_ALIGN - 1) & ~(int64_t)(K3_ST_ALIGN - 1);
    const int64_t len = hi - lo;
    const int64_t pad = off - lo;
    if (len > bufcap) return 0;
    if (payload_off) *payload_off = pad;

    int64_t got = 0;
    while (got < len) {
        ssize_t r = pread(dfd, (char *)buf + got, (size_t)(len - got), (off_t)(lo + got));
        if (r <= 0) break;      /* the last window may run past EOF */
        got += r;
    }
    return got >= pad + nbytes ? nbytes : (got > pad ? got - pad : 0);
}

indexed 497220 tensors from 96 shards in 0.27 s

# Bit patterns, not tolerances: widening bf16 to f32 is lossless.
c_bits = np.asarray(c_values[name], dtype=np.float32).view(np.uint32)
p_bits = ref.astype(np.float32).view(np.uint32)
if not np.array_equal(c_bits, p_bits):
    bad = int(np.count_nonzero(c_bits != p_bits))
    fail(f"{name}: {bad} of {c_bits.size} float32 bit patterns differ")

=== shard verification ===
shards: 96
bytes:  1560936091448
expected: 1560936091448
RESULT: EXACT MATCH

2. The config reader that refuses to guess

--- every value below is READ from the checkpoint, not assumed ---
config: config.json (nested shape) | hidden=7168 layers=93 vocab=163840
        | 24 MLA + 69 KDA | experts 896 top16 shared2 | latent=3584

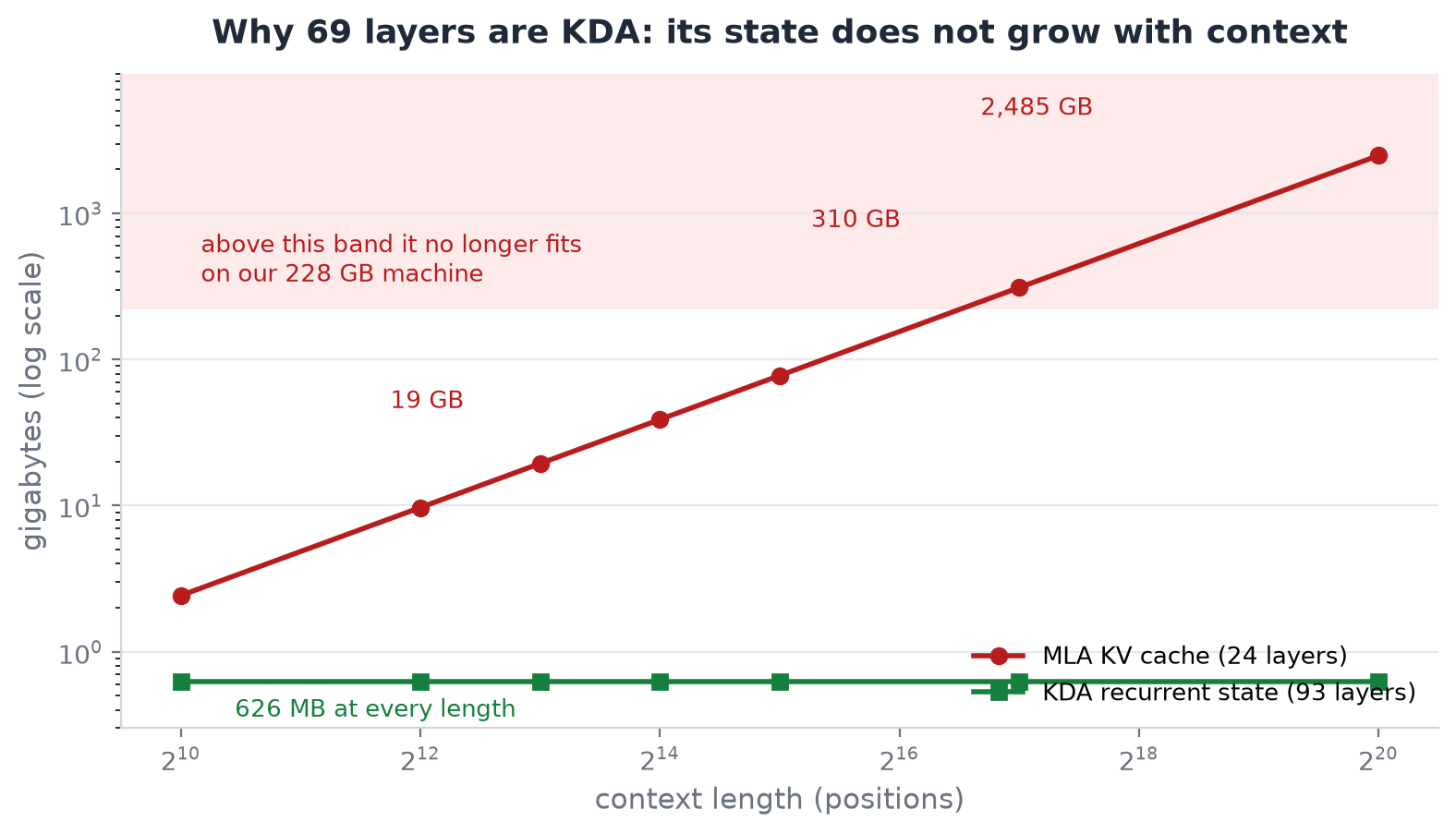

--- KDA/MLA layer map (ONE-based, from full_attn_layers) ---
full_attn_layers (24, all MLA): 4,8,12,16,20,24,28,32,36,40,44,48,52,56,60,64,68,72,76,80,84,88,92,93

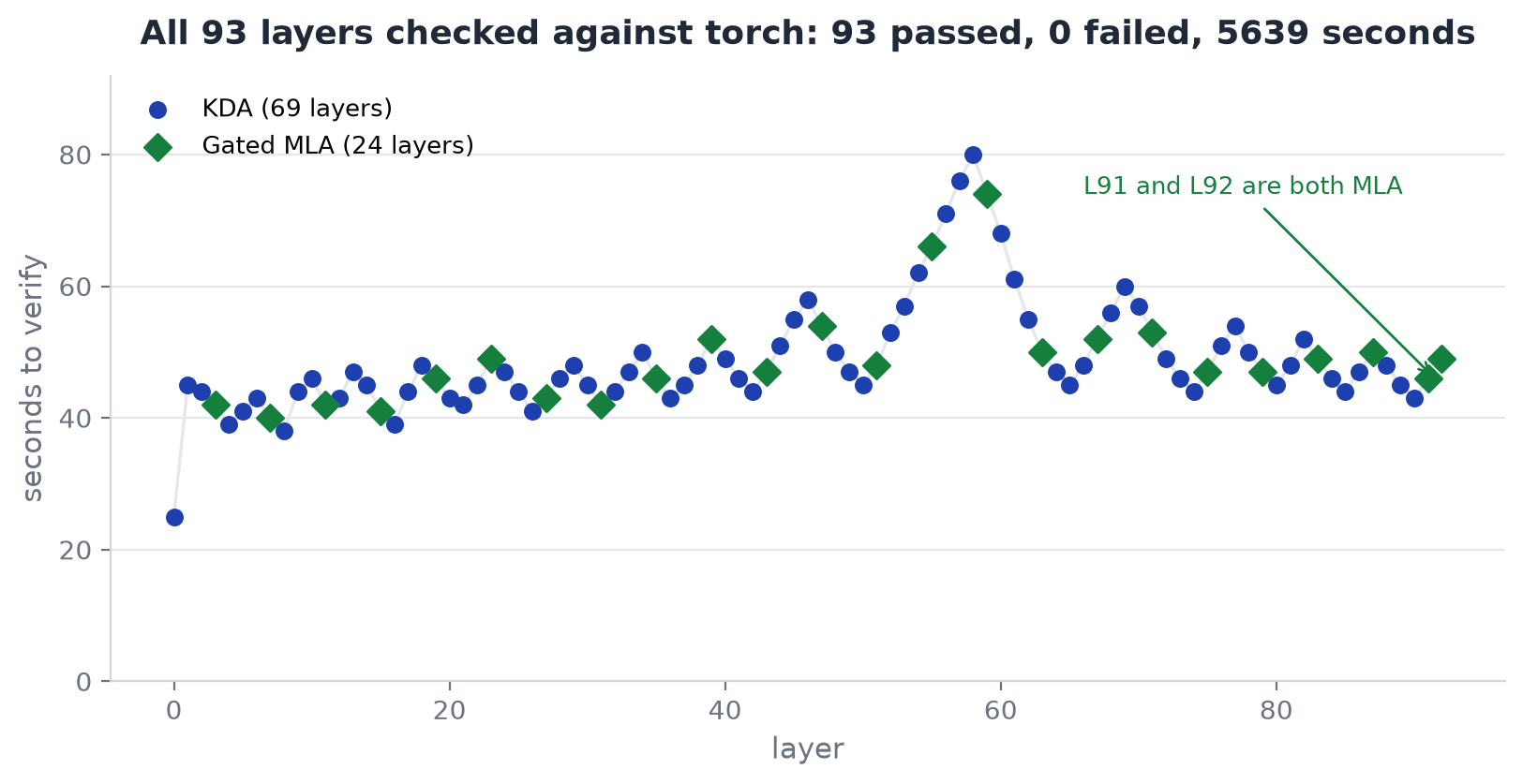

  note 92 AND 93 are both MLA - the report (2.1) places an extra Gated MLA layer
  at the end of the backbone so the final layer always does global attention.
kda_layers (69): every other layer.

typedef struct {
    int hidden;            /* 7168  */
    int n_layers;          /* 93    */
    int vocab;             /* 163840 */
    float rms_eps;         /* 1e-5  */

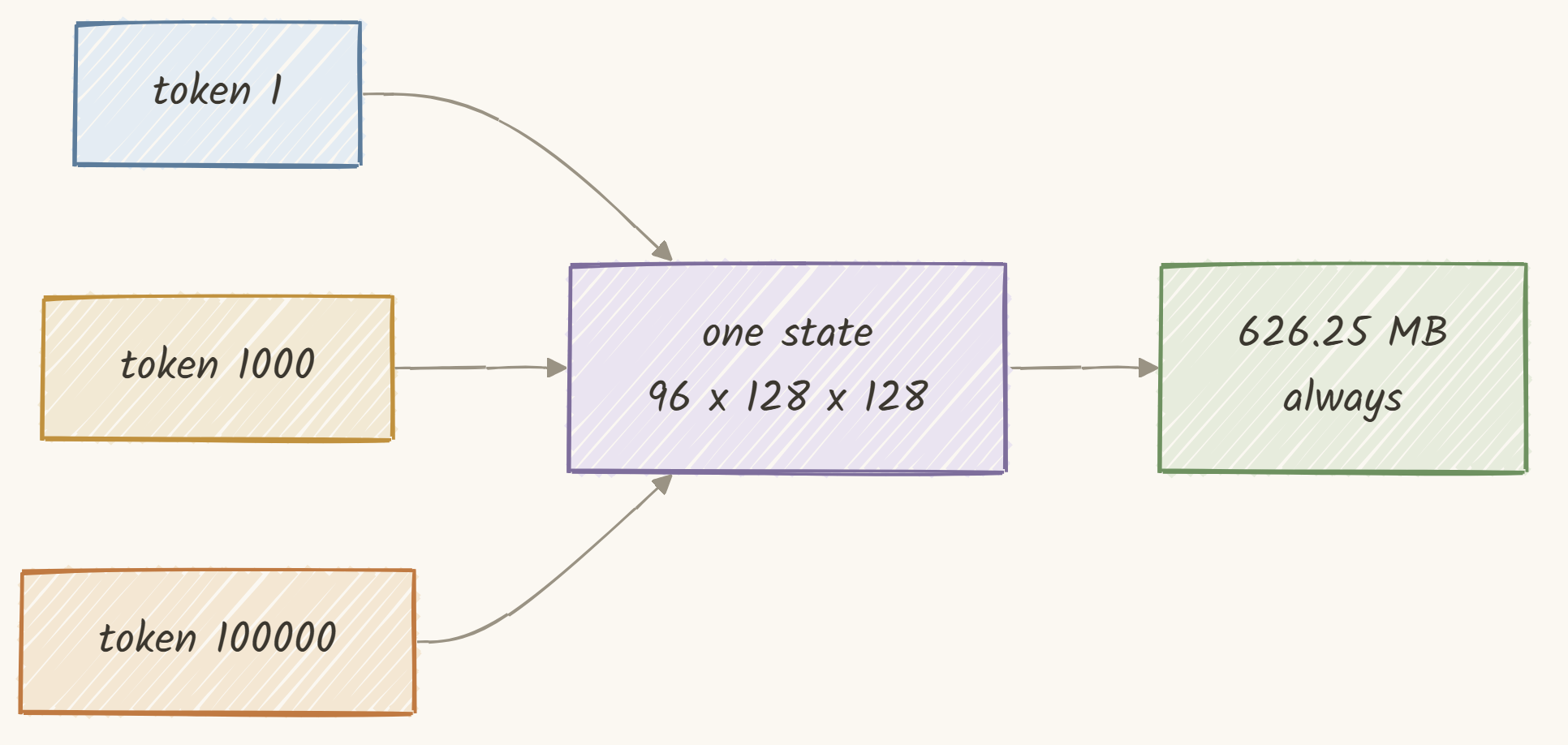

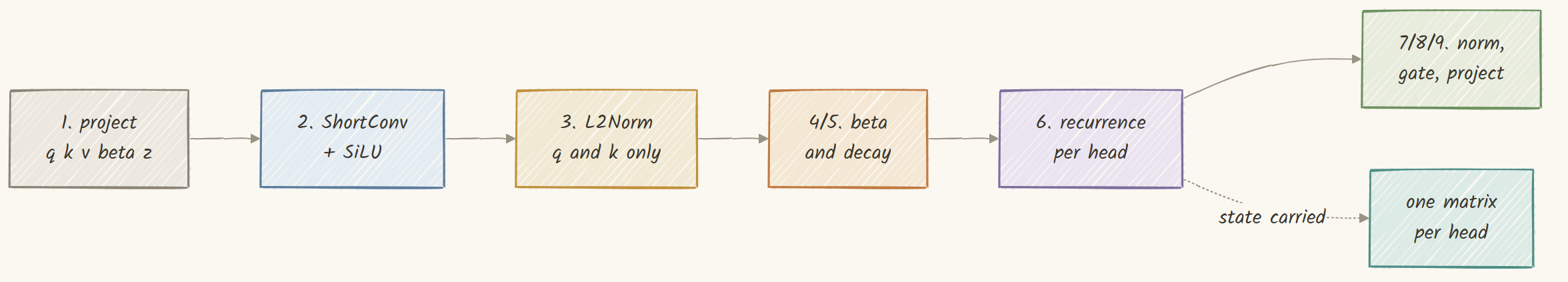

    /* Kimi Delta Attention. 69 of the 93 layers. */
    int kda_heads;         /* 96    */
    int kda_head_dim;      /* 128, and d_k == d_v */
    int conv_k;            /* 4, depthwise, causal, SiLU fused */
    float gate_lb;         /* -5.0, the decay lower bound */

    /* Gated MLA. 24 of the 93 layers. */
    int n_heads;           /* 96    */
    int q_lora;            /* 1536  */

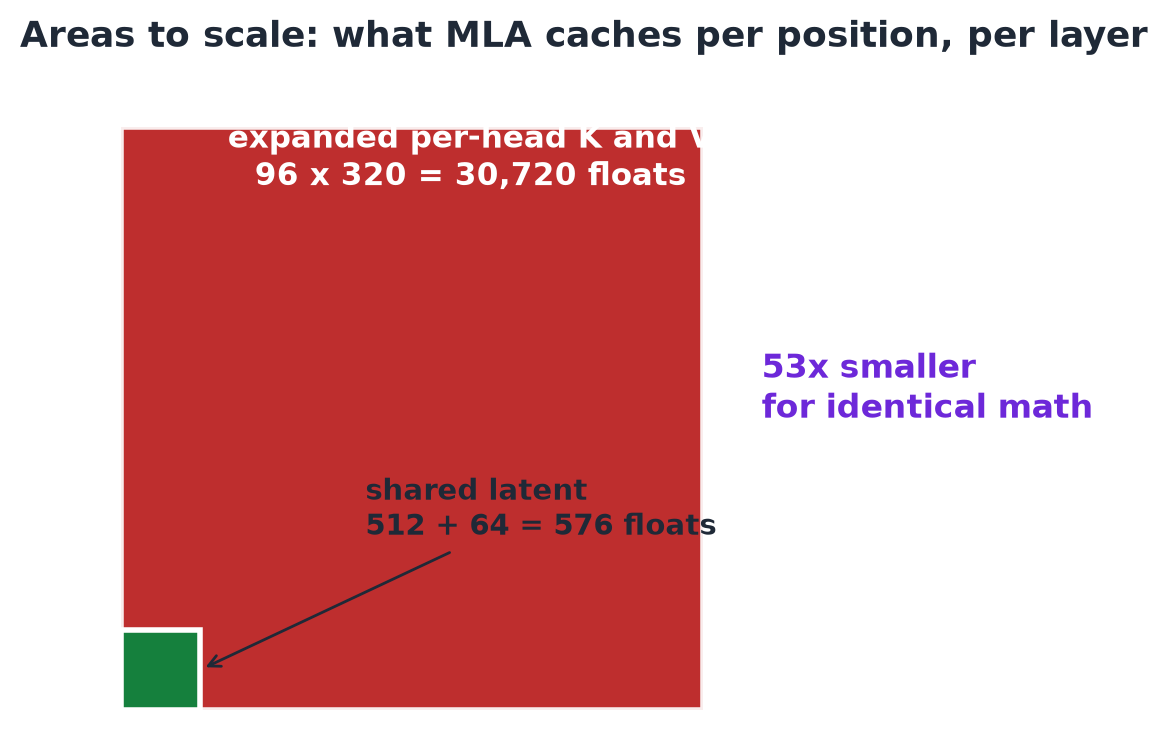

    int kv_lora;           /* 512   */
    int qk_nope;           /* 128   */
    int qk_rope;           /* 64, PRESENT BUT NEVER ROTATED */
    int v_head;            /* 128   */
    int mla_out_gate;      /* 1     */

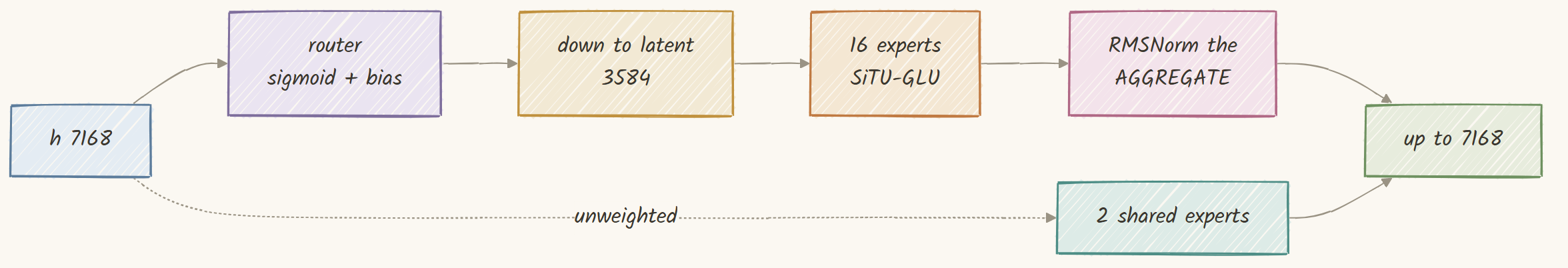

    /* Stable LatentMoE. 92 of the 93 layers. */
    int n_experts;         /* 896   */
    int topk;              /* 16    */
    int n_shared;          /* 2, full width, added UNWEIGHTED */
    int latent;            /* 3584, the routed-expert width */
    int moe_inter;         /* 3072  */
    float routed_scale;    /* 1.0   */
    int moe_renorm;        /* 1     */
    int latent_norm;       /* 1, RMSNorm on the AGGREGATE, not per expert */

    /* the single dense layer, layer 0 */
    int first_dense;       /* 1     */
    int dense_inter;       /* 33792 */

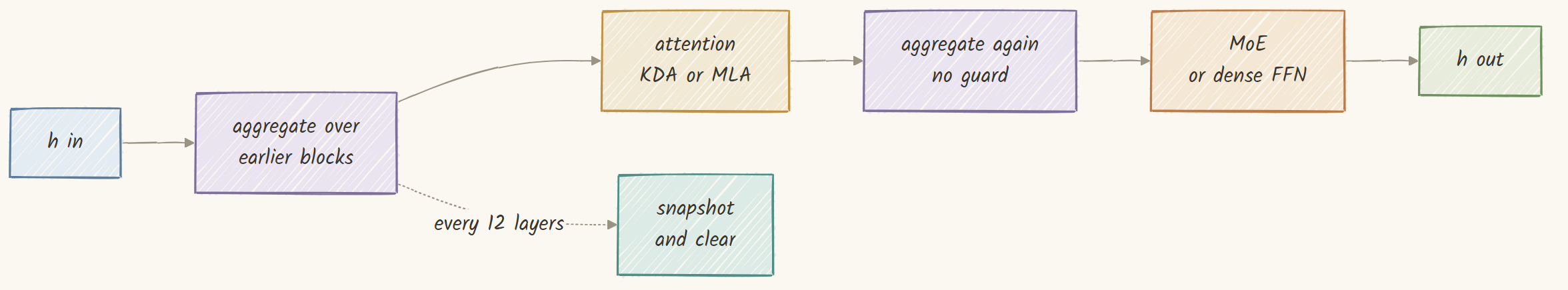

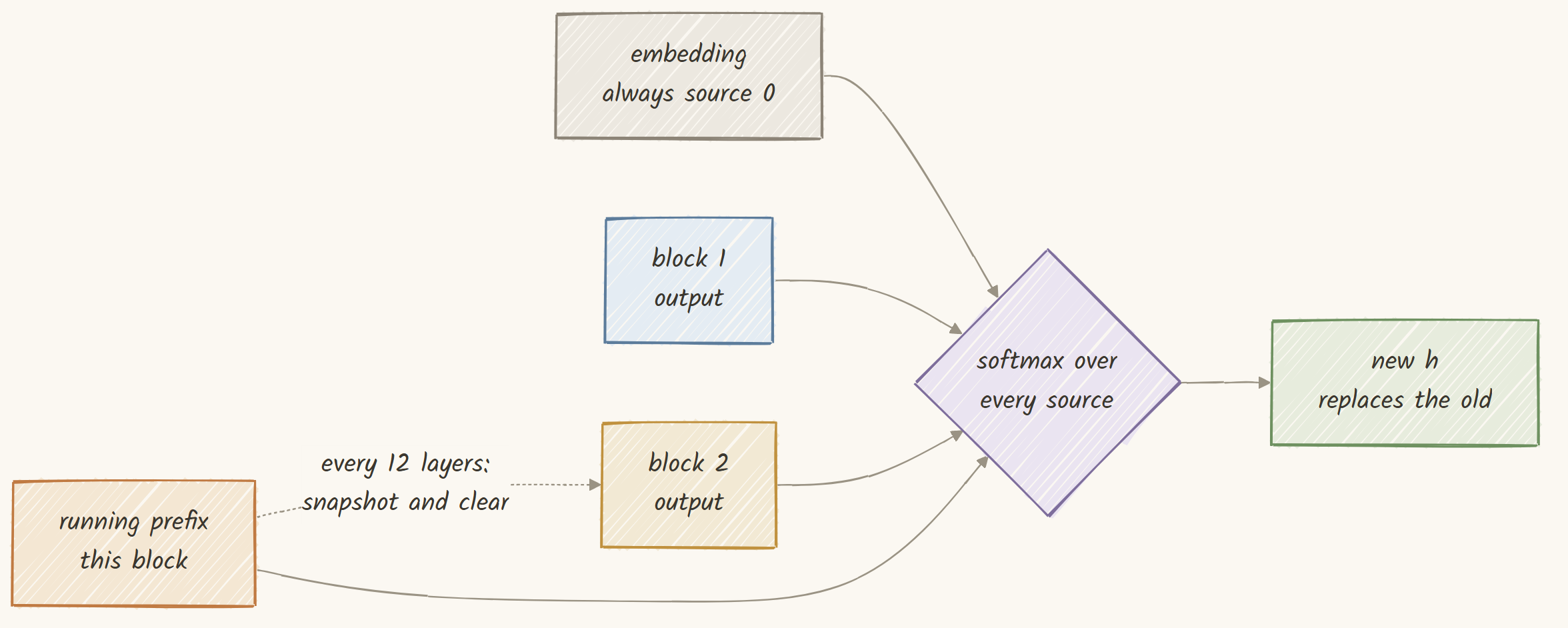

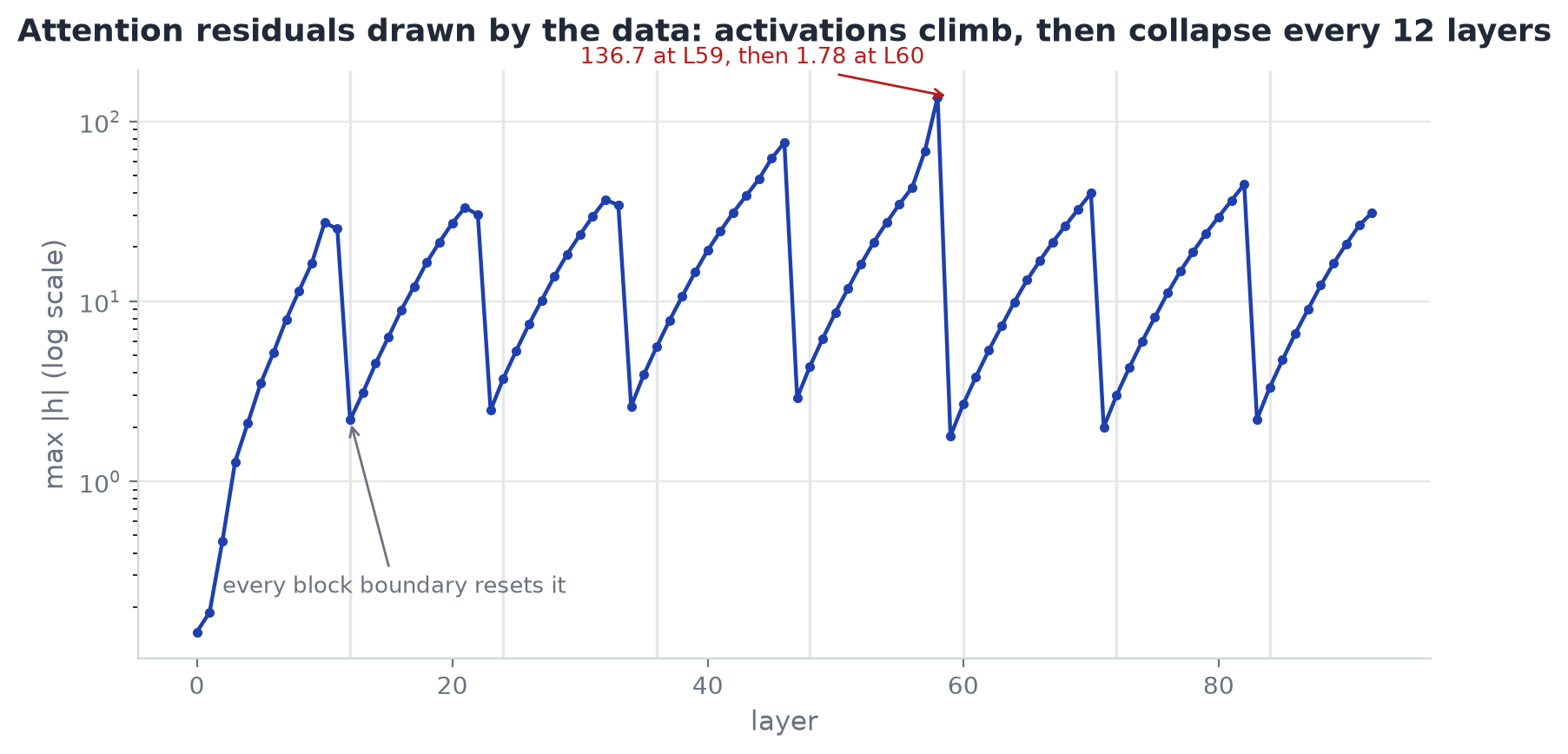

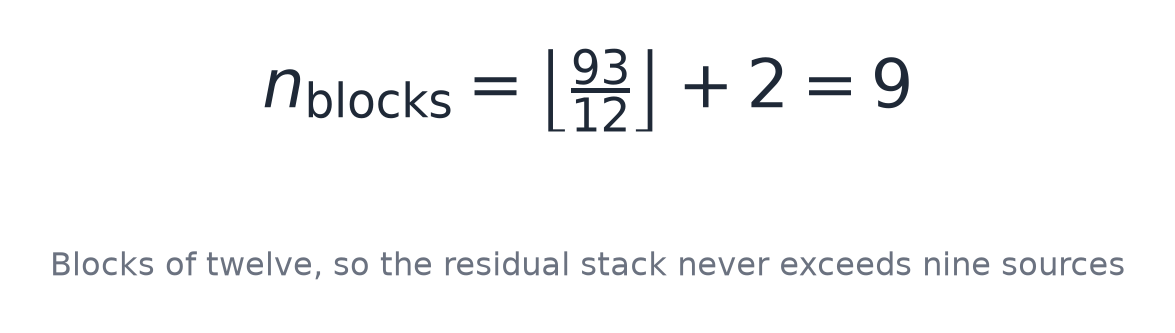

    int attn_res_block;    /* 12. Boundaries fire when layer_idx % this == 0. */
    float situ_b1;         /* 4.0   */
    float situ_b2;         /* 25.0  */

    int  n_full_attn;      /* 24 */
    int *full_attn;        /* ONE-BASED layer indices */
} K3Cfg;

/* An absent field is an ERROR, never a default. Missing names are accumulated so
 * the message lists all of them at once. */
static int cfg_req_int(jval root, const char *key, int *out,
                       const char **missing, int *nmissing)
{
    jval v = json_get(root, key);
    if (v.type != JSON_NUM) {                 /* absent OR the wrong type */
        if (*nmissing < K3_CFG_MAXMISS) missing[(*nmissing)++] = key;
        return 0;
    }
    *out = (int)v.num;
    return 1;
}

  [no_layermap]
    k3_cfg: no_layermap.json is missing 1 required field(s):
        full_attn_layers
      refusing to substitute defaults: a config this reader cannot
      fully understand would silently produce a DIFFERENT model.
      ok    correctly rejected no_layermap.json

  [bad_layer_index]
    k3_cfg: bad_layer_index.json full_attn_layers[2] = 999 is outside 1..93
        (the list is ONE-based)
      ok    correctly rejected bad_layer_index.json

3. The tokenizer, byte for byte

oracle   : tiktoken 0.13.0
method   : token-for-token comparison; every case passed through a FILE, never argv
           (argv is re-encoded to the active code page on Windows and would compare
            different bytes on every non-ASCII case)

  PASS  han only                 2 ids
  PASS  japanese                 6 ids
  PASS  korean                   5 ids
  PASS  cyrillic                 4 ids
  PASS  arabic                   7 ids
  PASS  emoji zwj                5 ids
  PASS  code python             11 ids
  PASS  json                    19 ids

tokenizer parity: 45/45 cases match

roundtrip: 48353 bytes -> 14797 ids -> 48353 bytes : PASS   <- k3_ops.c
roundtrip: 24499 bytes -> 6862 ids -> 24499 bytes : PASS   <- k3.h
roundtrip: 201775 bytes -> 52671 ids -> 201775 bytes : PASS   <- REPORT.md
roundtrip: 53444 bytes -> 12145 ids -> 53444 bytes : PASS   <- modeling_kimi_k3.py

/* Greedily merge the lowest-rank adjacent pair. Everything here is BYTES. */
static int tok_encode_piece(const Tok *t, const unsigned char *p, int n, int *out)
{
    int parts[K3_TOK_MAXPIECE + 1], np = n + 1;
    for (int i = 0; i <= n; i++) parts[i] = i;          /* byte boundaries */

    for (;;) {
        int best = -1, bestrank = INT_MAX;
        for (int i = 0; i + 2 < np; i++) {
            const int r = tok_rank(t, p + parts[i], parts[i + 2] - parts[i]);
            if (r >= 0 && r < bestrank) { bestrank = r; best = i; }
        }
        if (best < 0) break;                            /* no mergeable pair left */
        memmove(&parts[best + 1], &parts[best + 2],
                (size_t)(np - best - 2) * sizeof(int));
        np--;
    }

    for (int i = 0; i + 1 < np; i++)
        out[i] = tok_rank(t, p + parts[i], parts[i + 1] - parts[i]);
    return np - 1;
}

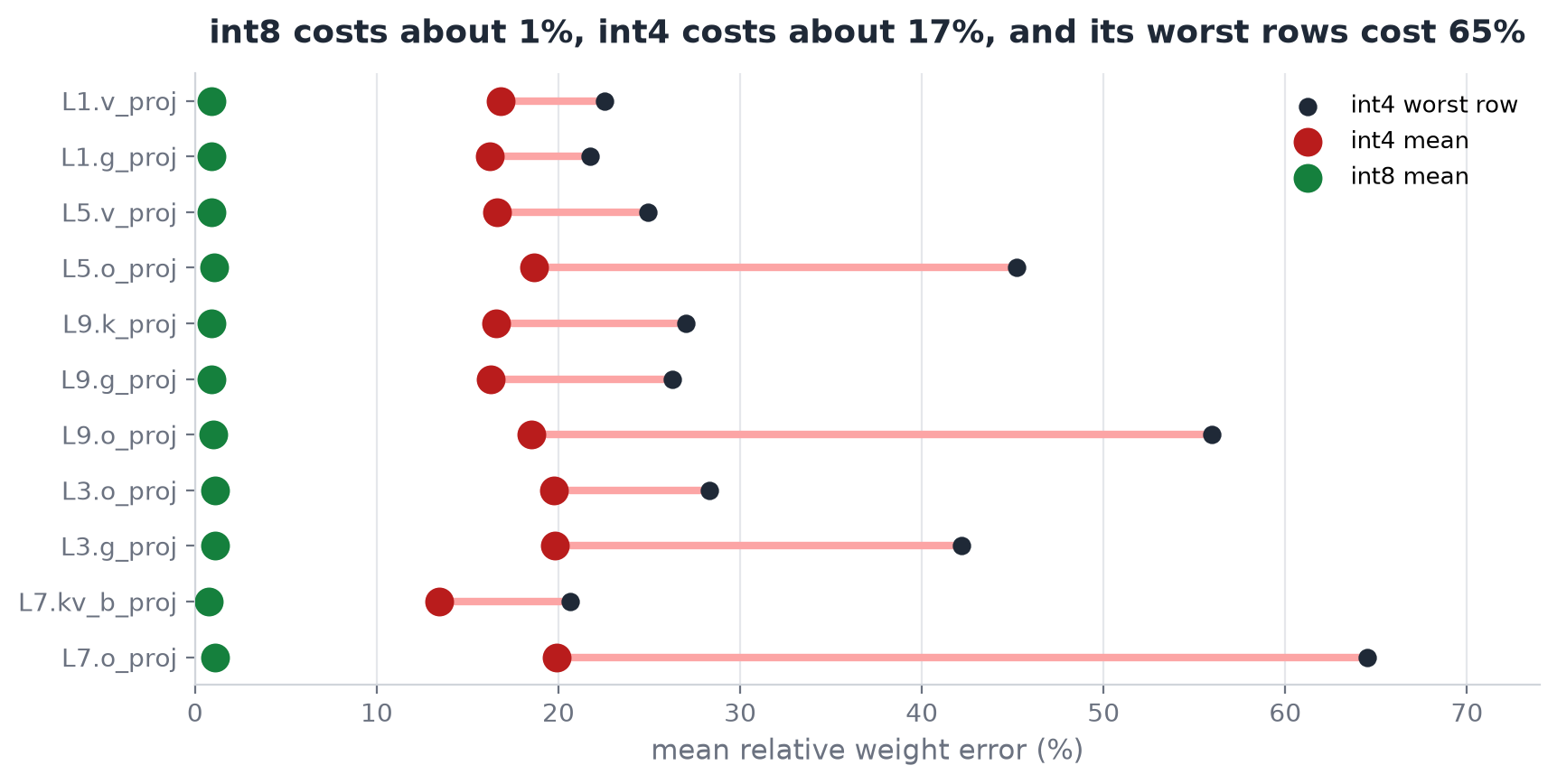

4. Reduction one: the experts already ship at half a byte

{
  "note": "Kimi K3 MXFP4 bytes from the released checkpoint. w = E2M1[nibble] * 2^(scale - 127), one scale per 32 elements.",
  "source": "language_model.model.layers.1.block_sparse_moe.experts.0.w1",
  "rows": 64, "packed_cols": 1792, "scale_cols": 112,
  "logical_width": 3584, "group_size": 32,
  "e2m1_lut": [0.0, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 6.0,
              -0.0, -0.5, -1.0, -1.5, -2.0, -3.0, -4.0, -6.0]
}

/* E2M1: sign, two exponent bits, one mantissa bit. Sixteen values in total. */
static const float K3_E2M1[16] = {
    0.0f,  0.5f,  1.0f,  1.5f,  2.0f,  3.0f,  4.0f,  6.0f,
   -0.0f, -0.5f, -1.0f, -1.5f, -2.0f, -3.0f, -4.0f, -6.0f
};

/* Byte -> its two weights, so the inner loop does one lookup, not two shifts. */
static void k3_pair_init(void)
{
    for (int b = 0; b < 256; b++) {
        K3_E2M1_PAIR[b][0] = K3_E2M1[b & 0x0F];   /* low nibble  = EVEN element */
        K3_E2M1_PAIR[b][1] = K3_E2M1[b >> 4];     /* high nibble = ODD  element */
    }
}

/* Scale byte -> power of two. 255 is NaN by spec, mapped to 0 to contain damage. */
static void k3_e8m0_init(void)
{
    for (int b = 0; b < 256; b++)
        K3_E8M0[b] = (b == 255) ? 0.0f : ldexpf(1.0f, b - 127);
}

"expected_swapped_nibbles": {
  "note": "what you get if the low nibble is treated as the ODD element.
           Statistics are identical; positions are wrong."
}

/* y[rows] = x[in] . W[rows][in], W stored as MXFP4. Nothing is dequantized. */
void k3_matmul_mxfp4(float *y, const float *x, const unsigned char *packed,
                     const unsigned char *scales, int in, int rows, int group)
{
    const int ngroup = (in + group - 1) / group;
    const int rowbytes = (in + 1) / 2;              /* two nibbles per byte */

#pragma omp parallel for schedule(static)
    for (int o = 0; o < rows; o++) {
        const unsigned char *pb = packed + (size_t)o * rowbytes;
        const unsigned char *sb = scales + (size_t)o * ngroup;
        double acc = 0.0;                            /* double, always */

        for (int g = 0; g < ngroup; g++) {
            const float s = K3_E8M0[sb[g]];
            if (s == 0.0f) continue;                 /* a NaN scale zeroes the group */

            const int i0 = g * group;
            const int n = (i0 + group <= in) ? group : (in - i0);
            float wf[64];

            /* low nibble is the EVEN weight, high nibble the ODD one */
            const int half = n / 2;
            for (int k = 0; k < half; k++) {
                const unsigned char b = pb[(i0 / 2) + k];
                wf[2 * k]     = K3_E2M1_PAIR[b][0];  /* low  nibble -> even index */
                wf[2 * k + 1] = K3_E2M1_PAIR[b][1];  /* high nibble -> odd index  */
            }
            if (n & 1) wf[n - 1] = K3_E2M1_PAIR[pb[(i0 / 2) + half]][0];

            double part = 0.0;
            for (int k = 0; k < n; k++) part += (double)x[i0 + k] * (double)wf[k];
            acc += part * (double)s;
        }
        y[o] = (float)acc;
    }
}

  PASS  mxfp4          64 rows x 3584 elems, EXACT on released checkpoint bytes

5. Kernels with a floating point contract

void k3_rmsnorm(float *out, const float *x, const float *w, int n, float eps)
{
    double ss = 0.0;                                   /* double, not float */
    for (int i = 0; i < n; i++) ss += (double)x[i] * (double)x[i];
    const float inv = (float)(1.0 / sqrt(ss / (double)n + (double)eps));
    for (int i = 0; i < n; i++) out[i] = x[i] * inv * (w ? w[i] : 1.0f);
}

/* Four accumulators partitioned by i % 4. This pins the summation order, so a
 * 4-wide vector loop adds the same numbers in the same sequence. */
static float k3_dot4(const float *x, const float *w, int n)
{
    double a0 = 0.0, a1 = 0.0, a2 = 0.0, a3 = 0.0;
    int i = 0;
    for (; i + 3 < n; i += 4) {
        a0 += (double)x[i]     * (double)w[i];
        a1 += (double)x[i + 1] * (double)w[i + 1];
        a2 += (double)x[i + 2] * (double)w[i + 2];
        a3 += (double)x[i + 3] * (double)w[i + 3];
    }
    for (; i < n; i++) a0 += (double)x[i] * (double)w[i];
    return (float)((a0 + a1) + (a2 + a3));       /* the parentheses are the contract */
}

void k3_matmul_bf16(float *y, const float *x, const uint16_t *W, int in, int out)
{
#pragma omp parallel for schedule(static) if (out > 64)
    for (int o = 0; o < out; o++) {
        const uint16_t *row = W + (size_t)o * in;
        int i = 0;
        double acc;
#if defined(__AVX2__)
        {
            __m256d v = _mm256_setzero_pd();
            for (; i + 3 < in; i += 4) {
                /* bf16 -> f32 is a 16-bit shift: no table, no rounding */
                const __m128i h   = _mm_loadl_epi64((const __m128i *)(row + i));
                const __m128i b32 = _mm_slli_epi32(_mm_cvtepu16_epi32(h), 16);
                const __m256d wd  = _mm256_cvtps_pd(_mm_castsi128_ps(b32));
                const __m256d xd  = _mm256_cvtps_pd(_mm_loadu_ps(x + i));
                v = _mm256_add_pd(v, _mm256_mul_pd(wd, xd));   /* NOT fmadd */
            }
            double a[4];
            _mm256_storeu_pd(a, v);
            acc = (a[0] + a[1]) + (a[2] + a[3]);
        }
#else
        {
            double a0 = 0.0, a1 = 0.0, a2 = 0.0, a3 = 0.0;
            for (; i + 3 < in; i += 4) {
                a0 += (double)k3_bf16f(row[i    ]) * (double)x[i    ];
                a1 += (double)k3_bf16f(row[i + 1]) * (double)x[i + 1];
                a2 += (double)k3_bf16f(row[i + 2]) * (double)x[i + 2];
                a3 += (double)k3_bf16f(row[i + 3]) * (double)x[i + 3];
            }
            acc = (a0 + a1) + (a2 + a3);
        }
#endif
        for (; i < in; i++) acc += (double)k3_bf16f(row[i]) * (double)x[i];
        y[o] = (float)acc;
    }
}

tolerance: atol=1.0e-05 rtol=1.0e-04  (from MANIFEST.json)
  PASS  rmsnorm        n=384    worst=0.01x tol
  PASS  situ_glu       n=48     worst=0.00x tol
        bound check |out|=100.000 must be <= b1*b2=100.0 : ok
  PASS  kda_decay      H=4 D=16 tok=4  max|dg|=4.768e-07 max|dalpha|=1.788e-07
  PASS  mla            n=768    worst=0.08x tol
        H=4 qh=32 (nope 24 + rope 8) v=16 kv_lora=32 scale=0.176777
  PASS  mxfp4          64 rows x 3584 elems, EXACT on released checkpoint bytes
  PASS  matmul_bf16   n=129    bit-identical to k3_matmul
22 passed, 0 failed, 0 skipped

6. Reduction two: KDA, attention with a memory that never grows

/* Causal depthwise conv with SiLU fused. State is carried across calls. */
void k3_shortconv(float *y, const float *x, const float *w, float *state,
                  int channels, int k, int T)
{
    const int hist = k - 1;                  /* guard on hist, not on buf */
    float *buf = hist ? (float *)malloc((size_t)hist * sizeof(float)) : NULL;
    if (hist && !buf) k3_fatal_oom("ShortConv history", (size_t)hist * sizeof(float));

    for (int c = 0; c < channels; c++) {
        if (hist) {
            if (state) memcpy(buf, state + (size_t)c * hist, (size_t)hist * sizeof(float));
            else       memset(buf, 0, (size_t)hist * sizeof(float));
        }

        for (int t = 0; t < T; t++) {
            const float cur = x[(size_t)t * channels + c];
            float acc = w[(size_t)c * k + hist] * cur;   /* taps run oldest to newest */
            for (int j = 0; j < hist; j++)
                acc += w[(size_t)c * k + j] * buf[j];

            for (int j = 0; j + 1 < hist; j++) buf[j] = buf[j + 1];
            if (hist > 0) buf[hist - 1] = cur;

            y[(size_t)t * channels + c] = acc * sigmoidf_(acc);   /* SiLU, fused */
        }
        if (state && hist) memcpy(state + (size_t)c * hist, buf, (size_t)hist * sizeof(float));
    }
    free(buf);
}

void k3_kda_decay(float *g, float *alpha, const float *z, const float *A_log,
                  const float *dt_bias, int H, int D, float lb)
{
    for (int h = 0; h < H; h++) {
        const float a = expf(A_log[h]);      /* PER HEAD, not per channel */
        for (int d = 0; d < D; d++) {
            const int i = h * D + d;
            const float u  = a * (z[i] + dt_bias[i]);
            const float gi = lb * sigmoidf_(u);   /* in (lb, 0] */
            g[i] = gi;
            alpha[i] = expf(gi);                  /* in (e^lb, 1] */
        }
    }
}

void k3_kda_step(float *S, float *o, const float *q, const float *k,
                 const float *v, const float *alpha, float beta, int dk, int dv)
{
    /* 1. decay: scale ROW i of S by alpha[i], per key channel */
    for (int i = 0; i < dk; i++) {
        float *row = S + (size_t)i * dv;
        const float a = alpha[i];
        for (int j = 0; j < dv; j++) row[j] *= a;
    }

    /* 2. read the state along k: u = S^T k */
    float *u = (float *)calloc((size_t)dv, sizeof(float));
    if (!u) k3_fatal_oom("KDA recurrence temporary", (size_t)dv * sizeof(float));
    for (int i = 0; i < dk; i++) {
        const float ki = k[i];
        if (ki == 0.0f) continue;
        const float *row = S + (size_t)i * dv;
        for (int j = 0; j < dv; j++) u[j] += ki * row[j];
    }

    /* 3. rank-one delta write: (v - u) is the prediction error */
    for (int i = 0; i < dk; i++) {
        const float ki = k[i];
        if (ki == 0.0f) continue;
        float *row = S + (size_t)i * dv;
        for (int j = 0; j < dv; j++) row[j] += ki * beta * (v[j] - u[j]);
    }

    /* 4. output from the ALREADY UPDATED state: o = S^T q */
    for (int j = 0; j < dv; j++) o[j] = 0.0f;
    for (int i = 0; i < dk; i++) {
        const float qi = q[i];
        if (qi == 0.0f) continue;
        const float *row = S + (size_t)i * dv;
        for (int j = 0; j < dv; j++) o[j] += qi * row[j];
    }
    free(u);
}

void k3_kda_layer(float *out, const float *x, const K3KdaW *w, const K3Cfg *c,
                  int T, float *state, float *scratch)
{
    const int E = c->hidden, H = c->kda_heads, D = c->kda_head_dim;
    const int P = H * D, K = c->conv_k, hist = K - 1;

    float *q  = scratch;                 float *k  = q + (size_t)T * P;
    float *v  = k + (size_t)T * P;       float *z  = v + (size_t)T * P;
    float *al = z + (size_t)T * P;       float *bt = al + (size_t)T * P;
    float *o  = bt + (size_t)T * H;      float *gb = o + (size_t)T * P;
    float *wr = gb + P;                  float *fa = wr + P;

    /* 1. projections */
    for (int t = 0; t < T; t++) {
        const float *xt = x + (size_t)t * E;
        k3_mmw(q + (size_t)t * P, xt, w->q, w->wdt, E, P);
        k3_mmw(k + (size_t)t * P, xt, w->k, w->wdt, E, P);
        k3_mmw(v + (size_t)t * P, xt, w->v, w->wdt, E, P);
        k3_mmw(bt + (size_t)t * H, xt, w->b, w->wdt, E, H);
        k3_mmw(fa, xt, w->f_a, w->wdt, E, D);        /* one low-rank pair, all heads */
        k3_mmw(z + (size_t)t * P, fa, w->f_b, w->wdt, D, P);
    }

    /* 2. ShortConv with fused SiLU, carrying state across calls */
    float *cs = state ? state + (size_t)H * D * D : NULL;
    k3_shortconv(q, q, w->q_conv, cs ? cs : NULL, P, K, T);
    k3_shortconv(k, k, w->k_conv, cs ? cs + (size_t)P * hist : NULL, P, K, T);
    k3_shortconv(v, v, w->v_conv, cs ? cs + (size_t)2 * P * hist : NULL, P, K, T);

    /* 3. L2Norm on q and k ONLY, per head. v is deliberately left alone. */
    for (int t = 0; t < T; t++)
        for (int h = 0; h < H; h++) {
            l2norm_(q + (size_t)t * P + (size_t)h * D, D, 1e-6f);
            l2norm_(k + (size_t)t * P + (size_t)h * D, D, 1e-6f);
        }

    /* 4/5. beta and the decay chain */
    for (int t = 0; t < T; t++) {
        for (int h = 0; h < H; h++) bt[(size_t)t * H + h] = sigmoidf_(bt[(size_t)t * H + h]);
        k3_kda_decay(z + (size_t)t * P, al + (size_t)t * P, z + (size_t)t * P,
                     w->A_log, w->dt_bias, H, D, c->gate_lb);
    }

    /* 6. recurrence, per head, with q pre-scaled by d_k^-0.5 */
    float *S = state;
    float *Sown = NULL;
    if (!S) {
        Sown = (float *)calloc((size_t)H * D * D, sizeof(float));
        if (!Sown) k3_fatal_oom("KDA recurrent state", (size_t)H * D * D * sizeof(float));
        S = Sown;
    }
    const float qscale = 1.0f / sqrtf((float)D);
    for (int t = 0; t < T; t++)
        for (int h = 0; h < H; h++) {
            const size_t off = (size_t)t * P + (size_t)h * D;
            for (int i = 0; i < D; i++) wr[i] = q[off + i] * qscale;
            k3_kda_step(S + (size_t)h * D * D, o + off, wr, k + off, v + off,
                        al + off, bt[(size_t)t * H + h], D, D);
        }

    /* 7/8/9. head-wise RMSNorm, THEN the gate, THEN the output projection */
    for (int t = 0; t < T; t++) {
        const float *xt = x + (size_t)t * E;
        float *ot = o + (size_t)t * P;
        for (int h = 0; h < H; h++)
            k3_rmsnorm(ot + (size_t)h * D, ot + (size_t)h * D, w->o_norm, D, c->rms_eps);
        k3_mmw(gb, xt, w->g, w->wdt, E, P);
        for (int i = 0; i < P; i++) ot[i] *= sigmoidf_(gb[i]);
        k3_mmw(out + (size_t)t * E, ot, w->o, w->wdt, P, E);
    }
    free(Sown);
}

one KDA layer  : 443740384 params  (887.48 MB at bf16)
69 KDA layers  : 61.24 GB at bf16   (KDA attention ONLY, not the whole trunk)
full trunk     : 113.49 GB at bf16, 56,743,648,000 always-active params
one expert     : 33030144 params  (17.55 MB at MXFP4)
all 82432 experts: 1.45 TB at MXFP4  <- streamed from NVMe

per-sequence state, FIXED regardless of context:
  KDA recurrent : 217.06 MB at bf16
  ShortConv     : 15.26 MB at bf16

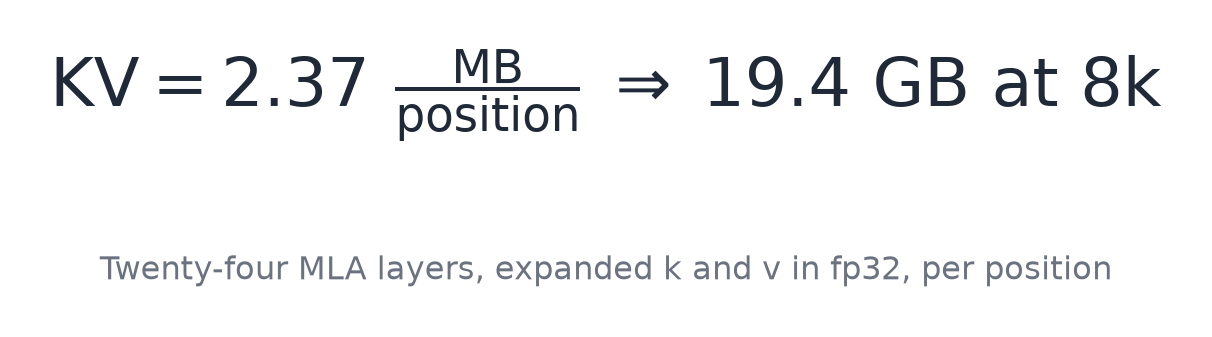

  MLA KV        : 2.37 MB per position (24 MLA layers, EXPANDED k and v, fp32)
                  19.38 GB at 8192 context
                  310.04 GB at 131072 context

allocating and running ONE full-width KDA layer (fp32)...
  weights: 1.77 GB
  ran 4 tokens in 0.17 s (44 ms/token)
  output all finite: YES, max |y| = 0.000003
  state non-zero   : yes

7. Reduction three: MLA, one latent instead of ninety-six heads

/* NoPE: the 64 rope dimensions are projected and cached, but never rotated. */
static void k3_mla_project(float *q, float *kv, const float *x, const K3MlaW *w,
                           const K3Cfg *c)
{
    float qa[K3_MAX_QLORA];                  /* down to 1536, norm, back up */
    k3_mmw(qa, x, &w->q_a_proj, c->q_lora, c->hidden);
    k3_rmsnorm(qa, qa, w->q_a_norm, c->q_lora, c->rms_eps);
    k3_mmw(q, qa, &w->q_b_proj, c->n_heads * (c->qk_nope + c->qk_rope), c->q_lora);

    /* one 576-wide projection: the entire per-position cache for this layer */
    k3_mmw(kv, x, &w->kv_a_proj, c->kv_lora + c->qk_rope, c->hidden);
    k3_rmsnorm(kv, kv, w->kv_a_norm, c->kv_lora, c->rms_eps);
    /* the trailing qk_rope floats are left unnormalised and unrotated */
}

    for (int t = 0; t < T; t++) {
        const int p = cached + t;
        for (int h = 0; h < H; h++) {
            const float *qt = q + ((size_t)t * H + h) * qh;
            float m = -INFINITY;
            for (int s = 0; s <= p; s++) {                 /* causal: s <= p */
                const float *ks = K3_KV_AT(s) + (size_t)h * kvd;
                const float *kr = K3_ROPE_AT(s);           /* shared slot */
                double d = 0.0;
                for (int i = 0; i < qn; i++) d += (double)qt[i] * (double)ks[i];
                /* the rope slot is UNROTATED but still scored, and the SAME 64
                 * values serve every head */
                for (int i = 0; i < qr; i++) d += (double)qt[qn + i] * (double)kr[i];
                sc[s] = (float)d * scale;
                if (sc[s] > m) m = sc[s];
            }
            double z = 0.0;
            for (int s = 0; s <= p; s++) { sc[s] = expf(sc[s] - m); z += sc[s]; }

/* The context limit is the MLA KV cache, not any array size. */
if (incremental) {
    const double kv_need = (double)(np + gen + 1) * K3_KV_BYTES_PER_POS;
    const double avail   = mem_available_bytes();
    if (avail > 0.0 && kv_need > avail * 0.9) {
        fprintf(stderr,
            "\nREFUSING: the KV cache for %d positions needs %s but only %s is\n"
            "available. This is a MEMORY limit, not an engine ceiling: MLA caches\n"
            "expanded k and v in fp32 across 24 layers, so context costs ~2.37 MB per\n"
            "position regardless of budget. Shorten the request, or use full\n"
            "recompute (drop --incremental), which carries no KV cache at all.\n",
            np + gen + 1, kb, ab);
        return 2;
    }
}

8. Attention residuals: layers that look back

void k3_attn_res(float *out, const float *src, const float *fold,
                 int nsrc, int n, float eps)
{
    float *score = (float *)malloc((size_t)nsrc * sizeof(float));
    if (!score) k3_fatal_oom("AttnRes scores", (size_t)nsrc * sizeof(float));

    for (int s = 0; s < nsrc; s++) {
        const float *v = src + (size_t)s * n;
        double ss = 0.0;
        for (int i = 0; i < n; i++) ss += (double)v[i] * (double)v[i];
        const float inv = (float)(1.0 / sqrt(ss / (double)n + (double)eps));
        double acc = 0.0;                            /* key: the NORMALISED source */
        for (int i = 0; i < n; i++) acc += (double)(v[i] * inv) * (double)fold[i];
        score[s] = (float)acc;
    }

    float m = score[0];
    for (int s = 1; s < nsrc; s++) if (score[s] > m) m = score[s];
    double z = 0.0;
    for (int s = 0; s < nsrc; s++) { score[s] = expf(score[s] - m); z += score[s]; }

    for (int i = 0; i < n; i++) out[i] = 0.0f;
    for (int s = 0; s < nsrc; s++) {
        const float p = (float)(score[s] / z);
        const float *v = src + (size_t)s * n;   /* the RAW source, not the key */
        for (int i = 0; i < n; i++) out[i] += p * v[i];
    }
    free(score);
}

void k3_decoder_layer_inc(float *h, float *block_residual, int *n_blocks,
                          const K3LayerW *w, const K3Cfg *c, int layer_idx,
                          int T, float *state, float *scratch,
                          float *kvc, float *ropec, int cached, int cap)
{
    const int E = c->hidden;
    const int maxb = c->n_layers / c->attn_res_block + 2;

    float *pref   = scratch;                    /* [T][E] the running residual   */
    float *tmp    = pref + (size_t)T * E;       /* [T][E] module output          */
    float *hin    = tmp  + (size_t)T * E;       /* [T][E] normalised layer input */
    float *foldA  = hin  + (size_t)T * E;       /* [E] attention aggregator      */
    float *foldM  = foldA + E;                  /* [E] mlp aggregator            */
    float *src    = foldM + E;                  /* [maxb+1][E] source stack      */
    float *dgu    = src + (size_t)(maxb) * E;   /* [2*dense_inter]               */
    float *sub    = dgu + (size_t)2 * c->dense_inter;   /* scratch for the module */

    /* norm gain and scoring projection collapse into one vector */
    for (int i = 0; i < E; i++) {
        foldA[i] = w->attn_res_norm[i] * w->attn_res_proj[i];
        foldM[i] = w->mlp_res_norm[i]  * w->mlp_res_proj[i];
    }

    memcpy(pref, h, (size_t)T * E * sizeof(float));
    int have_prefix = 1;                        /* mirrors "prefix_sum is not None" */

    /* aggregation before attention, only when snapshots already exist */
    if (*n_blocks > 0) {
        for (int t = 0; t < T; t++) {
            for (int b = 0; b < *n_blocks; b++)
                memcpy(src + (size_t)b * E,
                       block_residual + ((size_t)t * maxb + b) * E,
                       (size_t)E * sizeof(float));
            memcpy(src + (size_t)(*n_blocks) * E, pref + (size_t)t * E,
                   (size_t)E * sizeof(float));
            k3_attn_res(h + (size_t)t * E, src, foldA, *n_blocks + 1, E, c->rms_eps);
        }
    }

    /* block boundary: snapshot the running residual, then CLEAR it */
    if (layer_idx % c->attn_res_block == 0) {
        for (int t = 0; t < T; t++)
            memcpy(block_residual + ((size_t)t * maxb + *n_blocks) * E,
                   pref + (size_t)t * E, (size_t)E * sizeof(float));
        (*n_blocks)++;
        have_prefix = 0;
    }

    /* whichever attention was bound for this layer */
    for (int t = 0; t < T; t++)
        k3_rmsnorm(hin + (size_t)t * E, h + (size_t)t * E, w->in_norm, E, c->rms_eps);
    if (w->kda) k3_kda_layer(tmp, hin, w->kda, c, T, state, sub);
    else        k3_mla_cached(tmp, hin, w->mla, c, T, sub, kvc, ropec, cached, cap);

    if (have_prefix) for (size_t i = 0; i < (size_t)T * E; i++) pref[i] += tmp[i];
    else             { memcpy(pref, tmp, (size_t)T * E * sizeof(float)); have_prefix = 1; }

    /* aggregation before the MLP, with no emptiness guard */
    for (int t = 0; t < T; t++) {
        for (int b = 0; b < *n_blocks; b++)
            memcpy(src + (size_t)b * E,
                   block_residual + ((size_t)t * maxb + b) * E,
                   (size_t)E * sizeof(float));
        memcpy(src + (size_t)(*n_blocks) * E, pref + (size_t)t * E,
               (size_t)E * sizeof(float));
        k3_attn_res(h + (size_t)t * E, src, foldM, *n_blocks + 1, E, c->rms_eps);
    }

    for (int t = 0; t < T; t++)
        k3_rmsnorm(hin + (size_t)t * E, h + (size_t)t * E, w->post_norm, E, c->rms_eps);

    if (w->moe) {
        int   idx[K3_MAX_TOPK]; float wt[K3_MAX_TOPK];
        k3_moe(tmp, hin, w->moe, c, T, idx, wt, sub);
    }
}

  L45  KDA MoE      41.2 s   |h| max 47.714829
  L46  KDA MoE      38.9 s   |h| max 62.183392
  L47  MLA MoE      44.3 s   |h| max 76.281532
  L48  KDA MoE      36.1 s   |h| max 2.902113
  L49  KDA MoE      39.5 s   |h| max 4.353188

9. Picking 16 experts of 896

/* Score all n_experts, pick the top-k, weight them. The bias steers SELECTION only. */
void k3_router(int *idx, float *w, const float *x, const float *W, const float *bias,
               int hidden, int n_experts, int topk, int renorm, float routed_scale)
{
    float sc[K3_MAX_EXPERTS], ch[K3_MAX_EXPERTS];

#pragma omp parallel for schedule(static)
    for (int e = 0; e < n_experts; e++) {
        double acc = 0.0;
        for (int i = 0; i < hidden; i++)
            acc += (double)x[i] * (double)W[(size_t)e * hidden + i];
        sc[e] = 1.0f / (1.0f + expf(-(float)acc));      /* the UNBIASED score */
        ch[e] = sc[e] + (bias ? bias[e] : 0.0f);        /* the SELECTION score */
    }

    char taken[K3_MAX_EXPERTS] = {0};        /* top-k by repeated max */
    for (int j = 0; j < topk; j++) {
        int best = -1;
        for (int e = 0; e < n_experts; e++)
            if (!taken[e] && (best < 0 || ch[e] > ch[best])) best = e;
        taken[best] = 1;
        idx[j] = best;
        w[j] = sc[best];                                 /* the UNBIASED score again */
    }

    if (renorm) {
        float s = 0.0f;
        for (int j = 0; j < topk; j++) s += w[j];
        if (s > 0.0f) for (int j = 0; j < topk; j++) w[j] /= s;
    }
    for (int j = 0; j < topk; j++) w[j] *= routed_scale;
}

/* Stable LatentMoE for one token.
 *
 * Six steps, and step 4 is the one people get wrong: the RMSNorm is applied to the
 * AGGREGATE of the weighted expert outputs, not to each expert individually. Norming
 * per expert and then summing is a different function.
 *
 * The two shared experts run on the ORIGINAL full-width input, not the latent, and
 * their output is added UNWEIGHTED. They are not part of the top-k sum. */
void k3_moe(float *out, const float *x, const K3MoeW *w, const K3Cfg *c,
            int T, int *idx, float *wt, float *scratch)
{
    const int E = c->hidden, L = c->latent, I = c->moe_inter;
    float *z = scratch, *accL = z + L, *gu = accL + L, *act = gu + 2 * I;
    float *edn = act + I;

    for (int t = 0; t < T; t++) {
        const float *xt = x + (size_t)t * E;

        /* 1. route on the FULL width, not the latent */
        k3_router(idx, wt, xt, w->gate, w->gate_bias, E,
                  c->n_experts, c->topk, c->moe_renorm, c->routed_scale);

        /* 2. down-project into the expert latent */
        k3_mmw(z, xt, w->down, w->wdt, E, L);

        /* 3. run the chosen experts, accumulating in the latent */
        for (int i = 0; i < L; i++) accL[i] = 0.0f;
        if (w->src && w->src->getmany) w->src->getmany(w->src, w->layer, idx, c->topk);

        for (int j = 0; j < c->topk; j++) {
            K3ExpertQ q;
            if (w->src->get(w->src, w->layer, idx[j], &q) != 0) {
                k3_expert_drops++;          /* counted, never silent */
                continue;
            }
            k3_matmul_mxfp4(gu,     z, q.p1, q.s1, L, I, K3_MXFP4_GROUP);
            k3_matmul_mxfp4(gu + I, z, q.p3, q.s3, L, I, K3_MXFP4_GROUP);
            k3_situ_glu(act, gu, I, c->situ_b1, c->situ_b2);
            k3_matmul_mxfp4(edn, act, q.p2, q.s2, I, L, K3_MXFP4_GROUP);
            for (int i = 0; i < L; i++) accL[i] += wt[j] * edn[i];
        }

        /* 4. norm the AGGREGATE, not each expert */
        if (c->latent_norm) k3_rmsnorm(accL, accL, w->latent_norm, L, c->rms_eps);

        /* 5. back up to full width */
        float *ot = out + (size_t)t * E;
        k3_mmw(ot, accL, w->up, w->wdt, L, E);

        /* 6. shared experts, on the ORIGINAL input, added UNWEIGHTED */
        const int SI = I * c->n_shared;
        k3_mmw(gu,      xt, w->sh1, w->wdt, E, SI);
        k3_mmw(gu + SI, xt, w->sh3, w->wdt, E, SI);
        k3_situ_glu(act, gu, SI, c->situ_b1, c->situ_b2);
        k3_mmw(edn, act, w->sh2, w->wdt, SI, E);
        for (int i = 0; i < E; i++) ot[i] += edn[i];
    }
}

void k3_situ_glu(float *y, const float *x, int n, float b1, float b2)
{
    const float *gate = x;
    const float *up   = x + n;
    for (int i = 0; i < n; i++) {
        const float g = gate[i];
        /* the sigmoid takes the UNCAPPED gate */
        const float a = b1 * tanhf(g / b1) * sigmoidf_(g);
        const float u = b2 * tanhf(up[i] / b2);
        y[i] = a * u;
    }
}

  PASS  situ_glu       n=48     worst=0.00x tol
        bound check |out|=100.000 must be <= b1*b2=100.0 : ok

/* Silent numerical corruption that exits 0 is indistinguishable from a good run. */
if (k3_expert_drops) {
    fprintf(stderr,
            "\nRUN INVALID: %ld routed expert load(s) failed and were dropped from\n"
            "the MoE sum. The token ids above are CORRUPT. Re-run; if this repeats,\n"
            "the shard set or the storage is at fault.\n", k3_expert_drops);
    return 4;
}
return 0;

10. Packing the trunk: 93 layers, one read each

# 93 sequential range copies, one per layer, each verified contiguous first.
for L in range(n_layers):
    names = [n for n in index if n.startswith(f"model.layers.{L}.") and not is_expert(n)]
    shards = {index[n] for n in names}
    if len(shards) != 1:
        die(f"layer {L} spans {len(shards)} shards; refusing")

    runs = sorted((offsets[n][0], offsets[n][1]) for n in names)
    lo, hi = runs[0][0], runs[-1][1]
    covered = sum(b - a for a, b in runs)
    if covered != hi - lo:
        # a gap would drag expert bytes along with it
        die(f"layer {L} is not contiguous: {hi - lo - covered} bytes of gap")

    out_off = align_up(out_off, ALIGN)      # head aligned for O_DIRECT
    copy_range(shard_path(shards.pop()), lo, hi, out_fh, CHUNK)
    out_off += align_up(hi - lo, ALIGN)     # and the tail, so reads never overrun

  packed 10/93 layers, 12.90 GB, 25 s (521 MB/s)
  packed 20/93 layers, 24.31 GB, 47 s (520 MB/s)
  packed 30/93 layers, 36.14 GB, 74 s (488 MB/s)
  packed 40/93 layers, 47.55 GB, 99 s (480 MB/s)
  packed 50/93 layers, 59.38 GB, 127 s (466 MB/s)
  packed 60/93 layers, 70.79 GB, 153 s (462 MB/s)
  packed 70/93 layers, 82.62 GB, 181 s (457 MB/s)
  packed 80/93 layers, 94.02 GB, 208 s (451 MB/s)
  packed 90/93 layers, 105.86 GB, 236 s (448 MB/s)
  packed 93/93 layers, 108.81 GB, 244 s (447 MB/s)

wrote trunk.bin: 108.81 GB across 93 layers
largest layer run: 2.341 GB  <- the streaming slot size

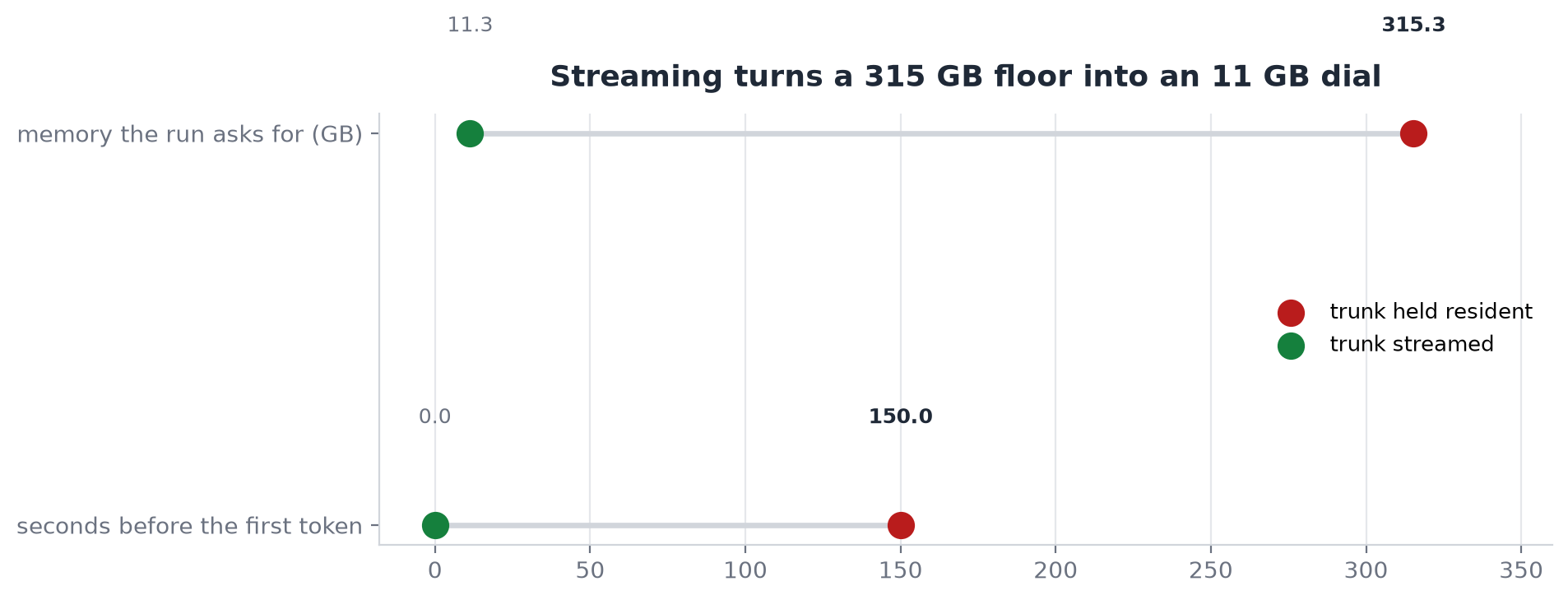

11. Reduction four: streaming the trunk turns a floor into a dial

/* Pinned count and slot size are mutually dependent, so iterate to a fixed point. */
size_t slot = tr->max_run;                 /* start assuming nothing is pinned */
int npin = 0;
for (int pass = 0; pass < 4; pass++) {
    size_t avail = budget > slot * (size_t)nring ? budget - slot * (size_t)nring : 0;
    int n = 0;
    size_t used = 0;
    while (n < tr->n_layers && used + tr->lay[n].nbytes <= avail) {
        used += tr->lay[n].nbytes;
        n++;
    }
    size_t need = 0;                       /* largest run still not pinned */
    for (int L = n; L < tr->n_layers; L++)
        if (tr->lay[L].nbytes > need) need = tr->lay[L].nbytes;
    if (need == 0) need = 4096;            /* everything pinned: degenerate but valid */
    if (n == npin && need == slot) break;  /* converged */
    npin = n;
    slot = k3_align_up(need, K3_TRUNK_ALIGN);
}

/* Add up EVERYTHING before allocating anything. */
const double need_b = w_trunk + w_model + w_cache + w_state + w_buf + w_kv;
const double have = mem_available_bytes();      /* MemAvailable, not MemFree */

if (need_b > have * 0.95) {
    fprintf(stderr,
            "\nREFUSING TO START: this needs %s and the machine has %s "
            "available, a shortfall of %s.\n"
            "Options: a larger box, a smaller --cache-gb, or fewer --layers.\n",
            b6, b1, b2);
    return 1;
}

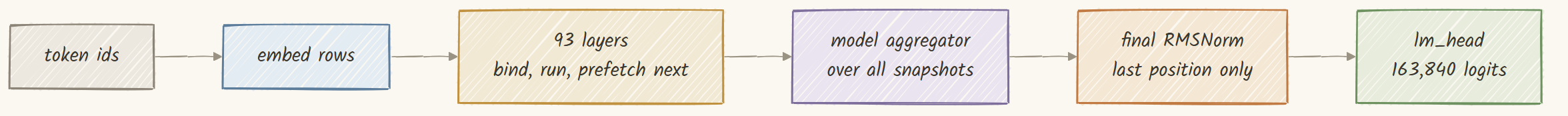

/* One full forward over T tokens, writing logits for the LAST position only. */
static int forward(Weights *w, const K3Cfg *c, K3Cache *cache, const int *ids, int T,
                   float *logits_last, float *scratch, float *h, float *br, float *kstate)
{
    const int E = c->hidden;
    const int maxb = c->n_layers / c->attn_res_block + 2;
    const int P = c->kda_heads * c->kda_head_dim;
    const size_t kper = (size_t)P * c->kda_head_dim + (size_t)3 * P * (c->conv_k - 1);

    for (int t = 0; t < T; t++)
        k3_embed_row(h + (size_t)t * E, w->mb.embed, w->mb.wdt, ids[t], E);

    memset(br, 0, (size_t)T * maxb * E * sizeof(float));
    /* incremental decode carries the KDA state forward; full recompute rebuilds it */
    if (!w->kvc) memset(kstate, 0, kper * (size_t)w->n_bound * sizeof(float));

    int nb = 0;
    for (int L = 0; L < w->n_bound; L++) {
        /* bring this layer in, and hint the next one so its read overlaps */
        if (w->trunk) {
            if (k3_trunk_bind(w->trunk, c, L, &w->lay[L]) != 0) {
                fprintf(stderr, "trunk bind failed at layer %d\n", L);
                return -1;
            }
            k3_trunk_prefetch(w->trunk, L + 1);
        }
        if (w->lay[L].lay.moe) {
            w->lay[L].moe.src = &cache->src;
            w->lay[L].moe.layer = L;
        }
        if (w->kvc && w->mla_slot[L] >= 0) {
            const size_t kvper = (size_t)w->kv_cap * c->n_heads * (c->qk_nope + c->v_head);
            const size_t rpper = (size_t)w->kv_cap * c->qk_rope;
            const int mi = w->mla_slot[L];
            k3_decoder_layer_inc(h, br, &nb, &w->lay[L].lay, c, L, T,
                                 kstate + kper * (size_t)L, scratch,
                                 w->kvc + kvper * (size_t)mi,
                                 w->ropec + rpper * (size_t)mi,
                                 w->cached, w->kv_cap);
        } else {
            k3_decoder_layer_inc(h, br, &nb, &w->lay[L].lay, c, L, T,
                                 kstate + kper * (size_t)L, scratch,
                                 NULL, NULL, 0, 0);
        }
    }

    /* one model-level aggregator, beyond the two in every layer */
    if (w->mb.out_res_norm && w->mb.out_res_proj) {
        float *fold = scratch;
        float *src  = fold + E;
        for (int i = 0; i < E; i++) fold[i] = w->mb.out_res_norm[i] * w->mb.out_res_proj[i];
        for (int t = 0; t < T; t++) {
            for (int b = 0; b < nb; b++)
                memcpy(src + (size_t)b * E, br + ((size_t)t * maxb + b) * E,
                       (size_t)E * sizeof(float));
            memcpy(src + (size_t)nb * E, h + (size_t)t * E, (size_t)E * sizeof(float));
            k3_attn_res(h + (size_t)t * E, src, fold, nb + 1, E, c->rms_eps);
        }
    }

    float *nrm = scratch;
    k3_rmsnorm(nrm, h + (size_t)(T - 1) * E, w->mb.norm, E, c->rms_eps);
    k3_mmw(logits_last, nrm, w->mb.lm_head, w->mb.wdt, E, c->vocab);
    return 0;
}

Kimi K3, pure C, released checkpoint
  model    : /home/k3/k3model
  prompt   : 5 tokens, generating 2

indexed 497220 tensors from 96 shards in 0.70 s

memory plan
  trunk (STREAMED) 16.00 GB
  embed + lm_head  4.70 GB
  expert cache     6.00 GB
  recurrent state  626.25 MB
  buffers          6.68 MB
  KV cache         0.00 B
  TOTAL            27.33 GB
  available        65.91 GB

trunk stream: 108.81 GB packed, 10/93 layers PINNED (13.16 GB), ring 1 x 2.37 GB
              reads use O_DIRECT (page cache bypassed)
              deterministic hit rate 10.8% (a cyclic scan defeats LRU, so a pinned
              prefix is used instead)

peak RSS after loading weights: 4.78 GB  (the plan above is a forecast, this is measured)
expert cache: 341 slots x 17.56 MB = 5.99 GB (0.41% of the 1.45 TB expert pool)

STEP   TOKEN      SECONDS      CACHE HIT  READ GB    TOK/S
--------------------------------------------------------------------
0      2494       167.84       35.0       83.91      0.006
1      9          171.65       39.3       94.05      0.006
--------------------------------------------------------------------
2 tokens in 339.5 s, 169.75 s/token average
PEAK RSS for the whole run: 25.83 GB   <- quote this, not the plan

trunk stream: 108.81 GB packed, 0/93 layers PINNED (0.00 GB), ring 2 x 2.37 GB
              deterministic hit rate 0.0%
expert cache: 113 slots x 17.56 MB = 1.98 GB (0.14% of the 1.45 TB expert pool)

STEP   TOKEN      SECONDS      CACHE HIT  READ GB    TOK/S
--------------------------------------------------------------------
0      17374      57.08        22.8       99.70      0.018
1      20829      27.72        0.0        25.83      0.036
2      10         26.95        0.0        25.83      0.037
3      427        27.25        0.0        25.83      0.037
--------------------------------------------------------------------

cache [final step]
  requests     : 1472  hits 0 (0.00%)  misses 1472  evictions 1472

/* Offset and length are both 4096-aligned, so this is a plain pread with no fixup. */
static int load_run(K3Trunk *tr, int L, unsigned char *dst)
{
    const K3Run *r = &tr->lay[L];
    size_t got = 0;
    while (got < r->nbytes) {
        const ssize_t n = pread(tr->fd, dst + got, r->nbytes - got,
                                (off_t)(r->off + got));
        if (n <= 0) return -1;      /* a short read is a corrupt layer */
        got += (size_t)n;
    }
    tr->bytes_read += got;
    return 0;
}

12. An LRU cache for the experts

/* Three slot states, not two: a key, EMPTY, or INFLIGHT. */
static int pick_victim(K3Cache *c)
{
    int best = -1;
    uint64_t oldest = (uint64_t)-1;
    for (int i = 0; i < c->nslot; i++) {
        if (c->key_of[i] == K3_SLOT_INFLIGHT) continue;   /* being read into RIGHT NOW */
        if (c->key_of[i] == K3_SLOT_EMPTY) return i;      /* free, take it */
        if (c->pinned[i]) continue;
        if (c->used_at[i] < oldest) { oldest = c->used_at[i]; best = i; }
    }
    return best;
}

static int cache_getmany(K3ExpertSrc *self, int layer, const int *experts, int n)
{
    K3Cache *c = (K3Cache *)self->ctx;
    int slots[K3_MAX_TOPK];

    /* phase 1: reserve serially, so no two experts take the same slot */
    int nres = 0;
    for (int j = 0; j < n; j++) {
        int s = cache_lookup(c, layer, experts[j]);
        if (s >= 0) { slots[j] = -1; continue; }        /* already resident */
        s = cache_pick_victim(c);
        if (s < 0) { slots[j] = -1; continue; }
        c->slot_id[s] = K3_SLOT_INFLIGHT;
        slots[j] = s;
        nres++;
    }

    /* phase 2: read in parallel, in disk-offset order */
    int order[K3_MAX_TOPK];
    cache_sort_by_offset(c, layer, experts, slots, n, order);
#pragma omp parallel for schedule(dynamic)
    for (int k = 0; k < n; k++) {
        const int j = order[k];
        if (slots[j] < 0) continue;
        if (!k3_expert_load_direct(c->st, layer, experts[j], c->arena + slot_off(c, slots[j])))
            slots[j] = -2;
    }

    /* phase 3: publish only what arrived */
    for (int j = 0; j < n; j++) {
        if (slots[j] >= 0) c->slot_id[j] = expert_key(layer, experts[j]);
        else if (slots[j] == -2) c->slot_id[j] = K3_SLOT_EMPTY;
    }
    return nres;
}

int64_t k3_expert_load(const K3St *s, const K3ExpertRef *r, unsigned char *buf)
{
    if (r->contiguous) {                     /* one coalesced 17.55 MB read */
        K3Tensor t;
        memset(&t, 0, sizeof t);
        t.name = (char *)"expert";
        t.shard = r->shard;
        t.off = r->off;
        t.nbytes = r->nbytes;
        t.dtype = K3_DT_U8;
        t.ndim = 1;
        t.shape[0] = r->nbytes;
        return k3_st_read(s, &t, buf);
    }

    /* fallback: six separate reads, one per tensor */
    static const char *W[3] = { "w1", "w2", "w3" };
    char name[256];
    int64_t got = 0;
    for (int i = 0; i < 3; i++) {
        snprintf(name, sizeof name, EXPERT_FMT, r->layer, r->expert, W[i], "weight_packed");
        const K3Tensor *p = k3_st_find(s, name);
        snprintf(name, sizeof name, EXPERT_FMT, r->layer, r->expert, W[i], "weight_scale");
        const K3Tensor *c = k3_st_find(s, name);
        if (!p || !c) return got;
        got += k3_st_read(s, p, buf + (p->off - r->off));
        got += k3_st_read(s, c, buf + (c->off - r->off));
    }
    return got;
}

4. streaming expert cache
  PASS  prefetch_reads <= hits             requests 24, hits 24, prefetch 24
  PASS  mixed batch and serial             0 of 24 wrong
CACHE TESTS PASSED

13. How big should that cache be? Ask the trace

def belady(trace, cap):
    """Evict whatever is needed furthest in the future. A ceiling, not a policy."""
    nxt = defaultdict(deque)
    for i, k in enumerate(trace):
        nxt[k].append(i)
    resident, hits = set(), 0
    for k in trace:
        nxt[k].popleft()
        if k in resident:
            hits += 1
            continue
        if len(resident) >= cap:
            victim = max(resident, key=lambda r: nxt[r][0] if nxt[r] else 1 << 60)
            resident.discard(victim)
        resident.add(k)
    return hits / len(trace)

trace: 100096 requests, 10010 distinct experts, about 68 token(s)
distinct experts touched: 10010 of 82432 (12.14% of the pool)
if nothing were cached: 25.83 GB per token
total reuse: 90086 of 100096 requests are repeats (90.0%)

CACHE        SLOTS       LRU    BELADY   PIN+LRU  GB READ/TOK     SEC/TOK
----------------------------------------------------------------------------
8 GB           455    36.24%    39.42%    37.82%        16.47       13.35
16 GB          911    36.24%    42.61%    39.42%        16.47       13.35
32 GB         1823    36.24%    48.99%    42.57%        16.47       13.35
64 GB         3647    36.24%    61.74%    48.66%        16.47       13.35
128 GB        7294    49.19%    84.59%    62.86%        13.12       10.64
192 GB       10941    90.00%    90.00%    90.00%         2.58        2.09
1450 GB      82633    90.00%    90.00%    90.00%         2.58        2.09

compulsory misses: 10010 (every expert must be read at least once), a ceiling of
90.00% hit rate for ANY policy at ANY size on this trace.

CAVEAT, and it matters
This trace was recorded during a run that re-prefills the whole prefix every step, so
the same experts are legitimately touched ~68 times. Steady-state incremental decode
has far less reuse, and its hit rates will be LOWER than this curve suggests. Treat
these numbers as an upper bound on what caching can do, not a forecast.

Part III: Validation

The gate ladder

A tiny oracle first

3. full-model oracle gates on the 13-layer reference
checkpoint: 628 tensors loaded
layer map (0-based): KKKMKKKMKKKMM   (M=MLA, K=KDA; dense layer = 0)
attn_res boundaries at: 0 3 6 9 12
prompt_ids 12, full_ids 32, tf_pred 32
all layer weights bound

GATE 1  teacher forcing : 32/32 positions match tf_pred
        generated span  : 20/20  <- must be exact
GATE 2  greedy decode   : 20/20 generated tokens match full_ids
GATE 3  incremental    : 20/20 generated tokens match full_ids  <- KV cache + carried KDA state

VERDICT: ENGINE MATCHES THE REFERENCE EXACTLY

The strongest-sounding line in gates.txt is about a toy model. "VERDICT: ENGINE
MATCHES THE REFERENCE EXACTLY" refers to the 13-layer, hidden-128, vocab-256 oracle
- NOT the 2.8T checkpoint.

Proving it on the full checkpoint

# A wrong binding does not miss by 1e-6, it misses by ~1.
tol = 1.2e-7 * math.sqrt(width) * 50

L87  KDA  PASS   3 stages  worst 0.00x budget   44s
L88  KDA  PASS   3 stages  worst 0.00x budget   46s
L89  KDA  PASS   3 stages  worst 0.00x budget   43s
L90  KDA  PASS   3 stages  worst 0.00x budget   45s
L91  MLA  PASS   3 stages  worst 0.00x budget   46s
L92  MLA  PASS   3 stages  worst 0.00x budget   49s

==============================================================================
LAYERS 0..92   93 passed, 0 failed   (69 KDA, 24 MLA)   5639 s total
worst stage across all passing layers: 0.00x of its rounding budget
==============================================================================
VERDICT: ALL LAYERS CONFORM

reference forward: 93 layers, 5 prompt ids, hidden 7168, vocab 163840
embedded 5 ids (BF16)
  L0   KDA dense    20.7 s   |h| max 0.145457
  L1   KDA MoE      44.7 s   |h| max 0.187096
  L2   KDA MoE      41.8 s   |h| max 0.463652
  L3   MLA MoE      39.2 s   |h| max 1.284419
  ...
  L92  MLA MoE      36.7 s   |h| max 31.064180

final position: argmax token 2494, logit 15.021948, mean -0.462536, max 15.021948
total 3608.5 s

===== ELEMENTWISE LOGIT COMPARISON =====
prompt cross-check     : both sides ran [3, 4, 5, 6, 7]
vocab                 : 163840
C argmax              : 2494  (logit 15.021946)
reference argmax      : 2494  (logit 15.021948)
top-10 overlap        : 10/10
max |diff|            : 7.867813e-06
relative to max|ref|  : 5.237545e-07   (budget 5.1e-04)
mean |diff|           : 1.231738e-06
correlation           : 1.000000000

VERIFIED: the C engine's logits match the torch reference over the FULL 93-layer
stack on the released checkpoint, elementwise, and the argmax token agrees.

The logit parity run used prompt ids 3,4,5,6,7, which decode to: $%&'(
That is synthetic junk, not text.

That same run reports `KV cache 0.00 B`, so the KV path is not exercised by the
parity check at all.

The first tokens

  prompt    ids : 1008,10484,318,15383,387
  prompt    txt : The capital of France is
  generated ids : 17374,20829,10,427,414,1008,606,142957
  generated txt :  Paris.",~+            "The Eiffel~
                  (~ marks a newline)

  The first two tokens are 17374 = ' Paris' and 20829 = '.",' - the model answers
  the question CORRECTLY.

  cap    trunk  cache  s/token    token ids          decoded
96G    48G    40G    72.3430    17374,20829,10  Paris.",~+~
64G    32G    24G    67.8921    17374,20829,10  Paris.",~+~
48G    24G    16G    63.1822    17374,20829,10  Paris.",~+~
32G    12G    12G    63.4072    17374,20829,10  Paris.",~+~
24G    10G    7G     60.8162    17374,20829,10  Paris.",~+~
16G    6G     4G     68.4805    17374,20829,10  Paris.",~+~
12G    4G     2G     61.0702    17374,20829,10  Paris.",~+~

Every row that ran must show the SAME tokens. A differing row is a bug.

Sustained generation: text in, text out

for (int g = 0; g < gen; g++) {
    k3_cache_reset_stats(&cache);
    const double ts = now_s();
    int frc;
    if (incremental) {
        /* step 0 feeds the whole prompt; later steps feed only the new token */
        const int base = w.cached;
        const int nT   = (g == 0) ? np : 1;
        frc = forward(&w, &c, &cache, seq + base, nT, lg, sc, h, br, ks);
        w.cached = base + nT;
    } else {
        frc = forward(&w, &c, &cache, seq, T, lg, sc, h, br, ks);
    }
    /* Abort the run rather than argmax a buffer the forward never wrote. */
    if (frc != 0) {
        fprintf(stderr, "forward pass failed at generation step %d; aborting.\n", g);
        return 1;
    }
    const int nxt = argmax_(lg, c.vocab);
    ...
}

static int argmax_(const float *v, int n)
{ int b = 0; for (int i = 1; i < n; i++) if (v[i] > v[b]) b = i; return b; }
