ESPARGOS/esp-sdr

ESP-SDR turns the ESP32's built-in 2.4 GHz Wi-Fi radio into a software-defined radio (SDR). It lets you capture the radio signal itself and process it in software, so you can view the spectrum and study signals beyond ordinary Wi-Fi packets. No separate SDR hardware is needed. The ESP32-C5 also supports reception in the 5 GHz band.

With the help of LLMs, we discovered an undocumented debug path that bypasses the chip's fixed-function Wi-Fi modem. This gives software access to raw radio samples, called I/Q samples, from the built-in receiver. ESP-SDR captures short bursts of these samples and sends them to your computer over USB or UART for analysis. It can also compute spectra on-device, including continuous RF capture on selected chips.

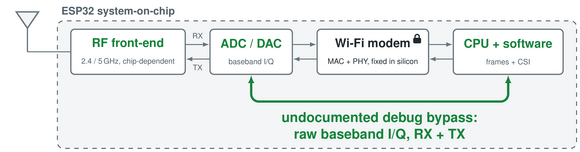

The diagram shows the hardware's receive and transmit paths; this firmware currently implements reception only.

Parts of the firmware code are AI-generated. While we have a very good understanding of how the IQ sampling functionality works on the ESP32-C61 chip (used in our ESPARGOS One array), making IQ sampling work on the whole range of ESP32 family chips would have been too much work without LLM support.

✅ Supported · 🚧 Not yet supported · ❌ Unsupported (no integrated radio).

USB, UART, and flash requirements above refer to the standard firmware; see each special firmware variant for its board requirements.

Experimental: The S31 streaming mode is under development. Signal quality, including the remaining DC peak, still needs improvement.

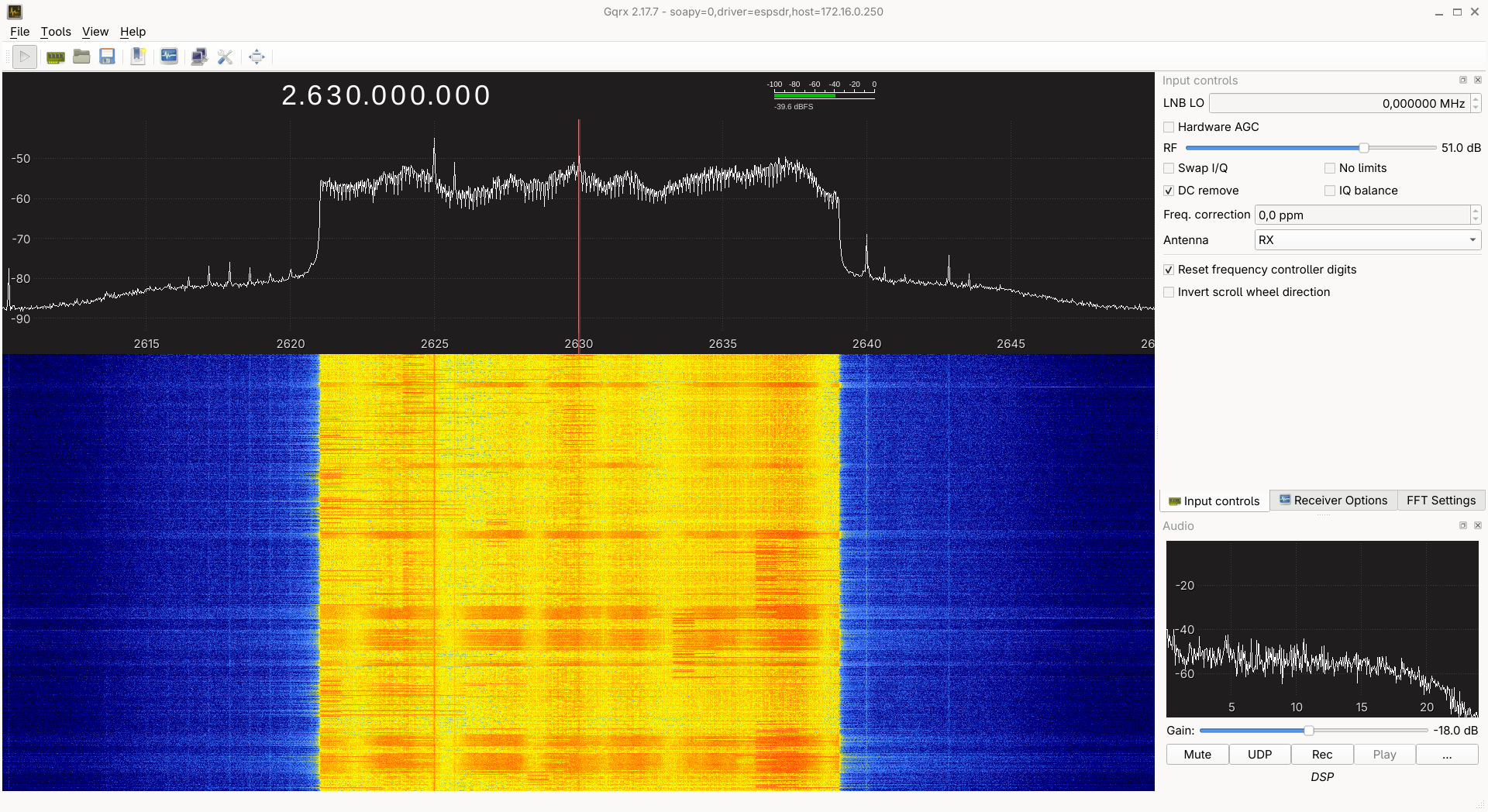

The separate esp32s31-stream firmware targets the ESP32-S31 Function-CoreBoard with Gigabit Ethernet and native high-speed USB. It streams receive-only I/Q to SoapyESPSDR and includes an on-device web page for receiver controls and status, with rates up to 20 MSa/s over USB and 40 MSa/s over Ethernet using 8-bit I plus 8-bit Q. The ordinary esp32s31 firmware provides serial burst/FFT capture for ESP-WebSDR. See streaming build, architecture, and protocol.

The standard esp32s3 firmware includes an IQS mode for continuous, decimated I/Q streaming over native USB Serial/JTAG. The second core filters and decimates the 16 MSa/s capture stream by powers of two from 64 to 1024, giving output rates from 250 down to 15.625 kSa/s, with 4, 8 or 16 bits per I and Q component. This mode requires native USB; UART is not supported.

Use esp-sdr-bridge to connect the receiver to SDR++, SDR#, Gqrx or GNU Radio through SpyServer / rtl_tcp. For custom clients, IQS 0 64 8 6 starts a 250 kSa/s stream with 8-bit I and 8-bit Q until the host sends a byte to stop it. Frames include sample indices, gap flags and CRC32 checksums; host stalls or processing overruns can cause sample loss. See the continuous I/Q protocol for command options, sample formats, filtering and frequency-offset tuning.

The firmware can compute FFTs on the device and send compact spectra instead of raw I/Q. The viewer queries each device's supported rates, FFT sizes and transport before offering this mode.

Continuous capture keeps the RF writer running, but the CPU analyzes only selected FFT windows. It does not deliver every sample or guarantee that every short RF event will be visible. Snapshot FFT stops reception between captures; the viewer labels these gaps explicitly. Raw I/Q capture remains available separately.

The original S3 Turbo Mode was developed by Zoltan Doczi from Z2Labs. The shared implementation extends it with C6/C61 bank rotation, S31 dual-core SIMD processing with continuous bank rotation, and portable snapshot FFTs. See spectrum protocol and hardware validation for the wire format, limitations and test results. The S3 ring diagnostic host tool is tools/s3_ring.py.

GPIO outputs can be controlled from the browser’s GPIO section or the serial protocol. Firmware reports available pins; each supports high impedance (Z), low (0), or high (1). See GPIO controls.

Connect over native USB or a 3.3 V USB-to-UART adapter with crossed TX/RX and common ground, using the pins above. Both interfaces carry the same request/response protocol: send newline-terminated ASCII commands and read text replies. Capture replies also include a binary I/Q payload.

Query INFO and CAPS to identify the firmware and supported features. VERSION? reports the Git revision and UTC build date/time; see firmware version reporting. LIMITS? reports receive-control limits, RANGE? reports the tuning range, and TRANSPORT? identifies the active interface. Configure reception with FREQ <MHz>, BANDWIDTH <MHz> and GAIN commands.

Request a snapshot with CAP16 <samples> <rate-index> for signed 8-bit I/Q or CAP20 <samples> <rate-index> for packed signed 10-bit I/Q. The reply is DATA <samples> <crc32-hex> <capture-microseconds>, followed by exactly ceil(samples × bits-per-component × 2 / 8) binary bytes. Verify the payload CRC32 before using the samples. Rate indices 0–6 select 80, 40, 20, 10, 8, 4 or 16 MS/s respectively; use only rates advertised by LIMITS?.

Finish reading each reply before sending another command. Failures return ERR <reason>. SYNC <nonce> echoes the nonce to let clients resynchronize after an incomplete transfer. One client controls the radio at a time; RELEASE or five seconds of idle time releases it, while other clients receive ERR busy.

firmware-targets.json lists the supported firmware variants and pins their ESP-IDF commits, including the preview SDK for S31. Check out the matching SDK, initialize its submodules, run install.sh <target>, and source export.sh.

Use a separate build directory and configuration for each chip:

idf.py -B build-s3 -DIDF_TARGET=esp32s3 \
  -DSDKCONFIG=sdkconfig.s3 \
  -DSDKCONFIG_DEFAULTS=sdkconfig.defaults.esp32s3 build
idf.py -B build-s3 -p /dev/ttyACM0 flash

Substitute the target and paths for your chip. S31 also requires idf.py --preview.

The C2 firmware uses a 26 MHz crystal, as on the tested ESP8684H board. For a 40 MHz board, select CONFIG_XTAL_FREQ_40=y in menuconfig and rebuild; the packaged browser image requires 26 MHz. C2 uses UART0 at 2 Mbaud by default. With a CH340 bridge, use the viewer's Switch to 1 Mbaud warning when transfers lose bytes; baud changes are session-only. C2 provides raw IQ8/IQ10 captures, hardware/manual gain, and snapshot FFTs. Continuous capture is not advertised; approximate analog bandwidth covers 12–20 MHz. See C2 backend and validation.

The esp32h2 firmware uses the Bluetooth PHY capture engine and supports both native USB Serial/JTAG and UART0. It supports 32, 16, approximately 10.667 and 6.4 MS/s hardware sampling, plus approximately 4–11 MHz analog bandwidth control. See H2 backend and validation.

• main/targets/<target>/: chip receiver or adapter, tuning helpers, and the linker guard for its capture SRAM. CMake selects only the requested target.
• main/targets/esp32s31/burst/: serial IQ capture and on-chip FFT firmware.
• main/targets/esp32s31/streaming/: continuous USB/Ethernet IQ application for SoapyESPSDR. Both S31 firmware variants share main/targets/esp32s31/tuning.h.
• main/families/c5_c6_c61/: receiver shared by C5, C6, and C61; its chip.h comes from the selected target directory.
• main/common/: burst serial transport, gain control, limits, and bandwidth helpers. The gain-table wrapper is linked only for C61 and S31.
• main/diagnostics/: optional register probes, excluded from release exports.
• platform/esp32s2/: pinned ROM USB CDC compatibility component.

The application component and UART configuration stay in main/. Target SDK defaults stay at the repository root for the build tools and ESP-IDF defaults lookup. The firmware uses the burst protocol over UART/native USB; the separate main/targets/esp32s31/streaming/ application implements the receive-only Ethernet and vendor USB streaming firmware.

Run python3 -m unittest discover -s tests for host checks. Build every firmware variant with tools/build_firmware.py and its pinned SDK before distributing a change; the CI matrix does this automatically. Preserve the target SRAM guards and gain-table linker wrappers when moving or refactoring receiver code.

Hardware AGC is the default. GAIN MANUAL <index> sets manual gain; GAIN HARDWARE restores AGC. LIMITS? reports available gain indices, bandwidths, sample rates and bit depths. BANDWIDTH <MHz> sets approximate analog bandwidth; zero selects the widest setting.

All supported burst targets accept tuning attempts from 100–6000 MHz in 1 MHz steps. The viewer shows an informational warning outside 2400–2483.5 MHz, with 5150–5895 MHz also treated as the supported 5 GHz Wi-Fi band on C5. The warning never blocks tuning. These are software attempt limits, not a guaranteed reception range. ESP32, S2, S3, C2, C3 and C6 automatically use the experimental 5/6 LO mode from 1842–2209 MHz, extending reception down to about 1.84 GHz on the tested boards. No extra command or browser setting is needed. An equivalent divider mode is not yet verified on C5, C61, H2 or S31. C61 and S31 instead recover failed low-band PLL calibration automatically, with reception verified down to 2.18 GHz and 2.15 GHz, respectively, on the tested boards. This uses hardware capacitor calibration and also applies to S31 streaming; the achievable range depends on the individual chip.

• ESP32: 80/40/16 MS/s.
• C2: 80/40/16 MS/s; up to 8,190 complex samples; approximately 12–20 MHz analog bandwidth.
• H2: 32/16/10.667/6.4 MS/s; approximately 4–11 MHz analog bandwidth; up to 16,380 complex samples.
• C3: 80 MS/s; 14–62 MHz analog bandwidth.
• C5: 11–48 MHz bandwidth; selects its 5 GHz RF path above 3000 MHz.
• C61: 80/40/20/10/8/4 MS/s; 13–54 MHz bandwidth.
• C6: 80 MS/s; 12–54 MHz bandwidth.
• S2: 80/40/16 MS/s; 15–60 MHz bandwidth; up to 12,284 complex samples.
• S3: 13–69 MHz bandwidth.
• S31: 80/40/20/10/8/4 MS/s; 13–54 MHz bandwidth.

Captures have gaps; nominal sample rates exceed sustained serial throughput. Gain and power are uncalibrated. Extended tuning does not guarantee PLL lock or reception; the viewer uses the ISM-band warning described above.

See receive-control details.

Florian Euchner

Zoltan Doczi

14sea

Special thanks to h0m3us3r for providing eSpDR, whose 5/6 LO investigation informed our lower-frequency tuning implementation.

ESP-SDR is licensed under the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version (GPL-3.0-or-later). See LICENSE for the full terms. It is provided without any warranty, including implied warranties of merchantability or fitness for a particular purpose.

We chose the GPL because we want improvements to ESP-SDR to make their way back to the community. When you distribute modified versions, the GPL requires you to make the corresponding source available to recipients under the GPL, so they can study, share, and build on those improvements. We encourage you to contribute changes upstream, but the GPL does not require upstream submissions or publication of private modifications. See the GNU GPL FAQ.

The discovery of the capture mechanism itself is not protected by copyright: copyright covers the code and other copyrightable expression, not the underlying facts, ideas, or methods. You are free to independently implement the mechanism in your own projects under a license of your choice.

Third-party components retain their own licenses and copyright notices, including the Apache-2.0 ESP-IDF compatibility code in platform/esp32s2/esp_usb_cdc_rom_console/, the pinned ESP-DSP component, and the derived FFT kernels in main/targets/esp32s3/s3_fft_rnd.S and main/targets/esp32s31/burst/s31_fft_rnd.S.
