itzik123/ClashRoyaleAi

ClashRoyaleEnv

A fast, deterministic Clash Royale battle engine in C++, with Python bindings, a recurrent PPO agent, lookahead search, and a computer-vision bridge to the real game.

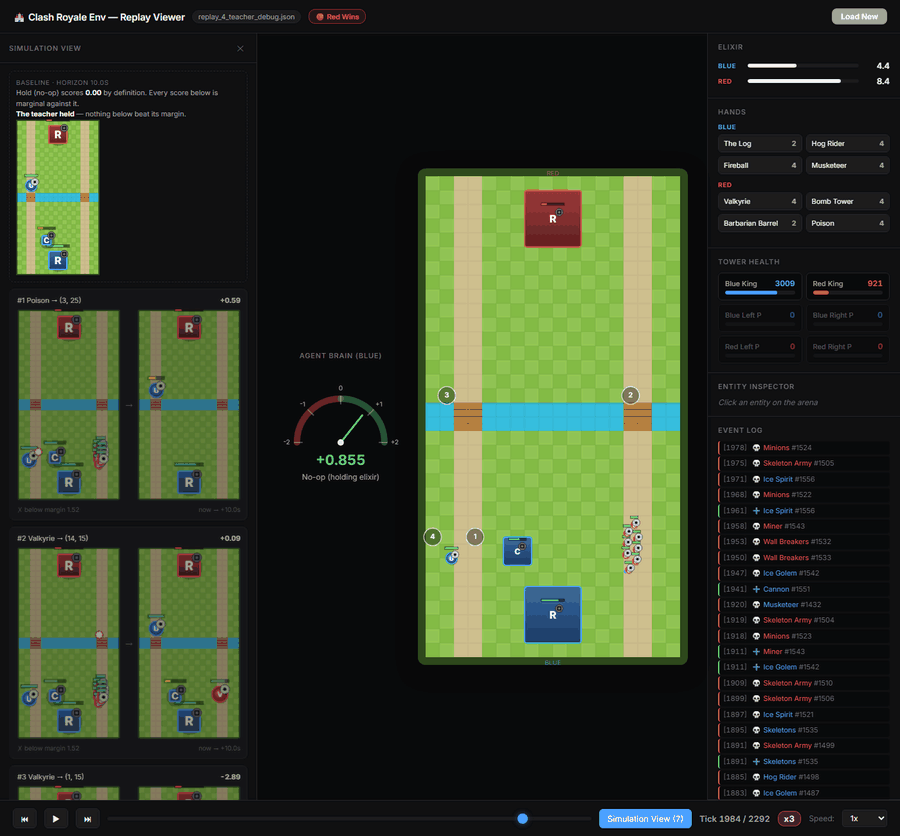

_{The replay viewer's Simulation View. The opponent (red) plans by simulation. Every second it scores each candidate play by running the match 10 seconds forward inside the engine. The left panel shows each candidate's placement now and the board it predicts afterwards, and the numbered rings on the arena mark the same candidates. Blue is the PPO agent.}

The story in 87 seconds. Unmute for the voiceover.

short_readme.mp4

_{Music: "Hiding Your Reality" by Kevin MacLeod (incompetech.com), licensed under CC BY 4.0. Edited: trimmed, faded and mixed under the voiceover.}

Reflex Lab is a two-minute demo of what this project does, with nothing to install. The C++ engine is compiled to WebAssembly and runs in your tab. An enemy attack heads for your tower (six attackers, from a Hog Rider to a Goblin Barrel) and you get one defending card: drop it yourself (where and when both count), then watch a small neural network learn the same problem from scratch, scored by the engine every try, against your score and the best score that was possible, found by trying every cell and every timing.

It is a miniature (one attacker, one defender, no elixir), and it says so. The code, the learner (plain JavaScript, no ML library) and how the card list was chosen are in web/lab/.

You can't speed up the real game, and it has no API. Reinforcement learning needs millions of games. ClashRoyaleEnv rebuilds the battle from the ground up as a headless simulator. It plays a full match in about 10 ms on one laptop CPU core, roughly 20,000× real time. It can also fork any position in 7–20 µs to look ahead.

The engine is the core of the project. On top of it sit a complete RL training stack, a search-based opponent, and a perception pipeline. That pipeline reads a live match off the screen and replays it inside the engine.

Engine (include/, src/)

• 132 cards and 41 Evolutions: troops, buildings, spells, spawners, Champions and their abilities, death effects, knockback, slows, stuns and rolling spells.
• Real-game timing: 10 ticks per second, deploy time, King Tower activation, and 1×/2×/3× elixir phases on the real schedule.
• Movement speeds calibrated against recorded real matches, and cross-checked by two other independent methods.
• Deterministic: the same inputs always give the same match. seed() fixes the opening hand, and snapshot() forks a match for lookahead or paired A/B tests.
• Header-only C++17, exposed to Python through pybind11.
• 715 Catch2 test cases covering combat, pathing, targeting, placement rules and match resolution.

Learning (python_ai/)

• A Gymnasium environment with a 13,977-float observation. It covers a 21-channel board grid, the hands and elixir, and a record of which cards the opponent has played, which makes card counting learnable.
• Recurrent PPO (CNN + LSTM, 1.85M parameters). Actions are chosen in two steps: first a card, then one of 612 placement cells, with per-card legality masks.
• Curriculum against a search-based teacher. The opponent proposes plays by rules and ranks them by simulating each one forward. It pilots 16 real ladder meta decks. Difficulty comes from how far ahead it looks, not from an elixir handicap.
• Self-play league with prioritized fictitious self-play (PFSP): the agent plays frozen past versions of itself and four scripted bots, and gets Elo ratings.
• Decision-time search and expert iteration: roll the top candidate actions forward in the engine and pick the best, then distill those choices back into the policy.

Perception (perception/)

• Reads a live or recorded match from the screen: arena calibration, elixir, the clock, and your hand and card cycle.
• Drives the simulator as a state estimator. Vision detects events; the deterministic engine works out everything else.

Tooling

• A replay viewer in one HTML file (web/viewer.html) with tower health, hands, an event log, an entity inspector, and the agent's value estimate. Its Simulation View shows the teacher's candidate plays and the board it predicted for each. It works offline.
• Standalone C++ audit tools (tools/audit/) that measure engine behaviour directly: pathing stalls, sight ranges, spawn speeds and collision performance.

• Windows 10/11 with Visual Studio 2022 and the Desktop development with C++ workload
• Python 3.11. The compiled extension is built for the 3.11 ABI.
• Git and an internet connection. CMake fetches pybind11 and Catch2.

The engine is standard C++, and its test suite has also been built with g++ under WSL. Linux and macOS builds of the Python extension are on the roadmap.

A single script installs Python 3.11 if it's missing, creates the virtual environments, configures CMake, builds the extension and the test suite, and runs both test suites:

git clone https://github.com/itzik123/ClashRoyaleAi.git
cd ClashRoyaleAi
powershell -ExecutionPolicy Bypass -File tools\setup_dev_env.ps1

This produces python_ai/clash_royale_env.pyd and build_python/Release/ClashRoyaleTests.exe. The script's header documents flags for skipping steps, such as -SkipTests.

import python_ai                      # puts the compiled engine on sys.path
import clash_royale_env as cr

deck = [15, 6, 25, 40, 24, 72, 33, 7] # 2.6 Hog Cycle
env = cr.ClashRoyaleEnv(deck, deck, max_ticks=3600)
env.seed(0)

print(env.get_hand())                 # card ids in hand, e.g. [24, 7, 72, 40]
print(cr.get_card_info(15))           # {'name': 'Hog Rider', 'cost': 4.0, ...}

result = env.step(card_index=0, target_x=3.0, target_y=14.0)  # play slot 0 at the left bridge
print(len(result.observation), result.reward, result.done)

branch = env.snapshot()               # fork the match
for _ in range(20):
    branch.step(4, 0.0, 0.0)          # slot 4 = no-op; the live match is untouched

from python_ai.envs.gym_wrapper import MicroRoyaleEnv

env = MicroRoyaleEnv()                # 2.6 Hog Cycle vs. the utility teacher
obs, info = env.reset(seed=0)
done = False
while not done:
    action = env.action_space.sample()
    obs, reward, terminated, truncated, info = env.step(action)
    done = terminated or truncated

$env:CLASH_DECK = "hog rider,musketeer,cannon,ice golem,skeletons,ice spirit,the log,fireball"
python_ai\venv\Scripts\python.exe -m python_ai.trainers.train

Training logs to TensorBoard under runs/ and writes replays to replays/. To watch a replay, open web/viewer.html in a browser and drop a replay JSON onto it. The full operator guide, including monitoring and the phase-2 handoff, is in docs/runbooks/FINAL_RUN_RUNBOOK.md.

.\build_python\Release\ClashRoyaleTests.exe                          # C++: 715 cases
python_ai\venv\Scripts\python.exe -m pytest python_ai\tests -q       # training stack
perception\.venv\Scripts\python.exe -m pytest perception\tests -q    # perception

In a healthy C++ run exactly one case fails "as expected". It pins a known open collision defect, and the runner still exits 0.

flowchart LR
    subgraph Engine["C++ engine (header-only)"]
        GM[GameManager<br/>board, towers, elixir] --> ENT[Entities<br/>troops, buildings, spells]
        GM --> SNAP[snapshot / seed]
    end
    Engine -- pybind11 --> PY[clash_royale_env]
    PY --> GYM[Gymnasium env]
    GYM --> PPO[Recurrent PPO<br/>CNN + LSTM]
    TEACH[Utility teacher<br/>simulation-ranked] --> GYM
    LEAGUE[PFSP league<br/>snapshots + bots] --> GYM
    PY --> SEARCH[Lookahead search]
    SEARCH -. distill .-> PPO
    CV[Perception<br/>screen → events] -- state setters --> PY
    GYM --> REPLAY[(Replay JSON)] --> VIEW[web/viewer.html]

All numbers are measured, and each comes with the conditions it was measured under. The complete record, including the reversals, is in docs/DECISIONS.md.

This is an active research project. The engine and tooling are the mature part. The agent isn't strong yet and doesn't beat competent human players. The PPO agent is being retrained from scratch on a new deck, after a full audit of the reward function and curriculum. Perception reads the elixir bar and your own hand from live gameplay. Detecting the opponent's placements is blocked until more recordings are available.

Every release from v0.1.0 onward, with what changed and whether it affects checkpoints, is listed in docs/CHANGELOG.md.

• Cross-platform wheels (pip install) for Linux and macOS
• Card data in a data file, so balance updates don't require C++ changes
• Crown Tower damage reduction for spells
• Opponent placement detection in perception/

Issues and pull requests are welcome. Read CONTRIBUTING.md for setup, tests and the rules for engine changes. A good place to start is the list of good first issues, and questions and ideas are welcome in Discussions.

Released under the MIT License. perception/clashroyalebuildabot/ is vendored from Clash Royale Build-A-Bot and keeps its own MIT license.

This content is not affiliated with, endorsed, sponsored, or specifically approved by Supercell and Supercell is not responsible for it. For more information see Supercell's Fan Content Policy.

ClashRoyaleEnv is a research simulator. Automating play on a real Clash Royale account breaks Supercell's Terms of Service.
