BehaviorTree/BehaviorTree.CPP

This C++ 17 library provides a framework to create BehaviorTrees. It was designed to be flexible, easy to use, reactive and fast.

Even if our main use-case is robotics, you can use this library to build AI for games, or to replace Finite State Machines.

There are a few features that make BehaviorTree.CPP unique, when compared to other implementations:

• It makes asynchronous Actions, i.e. non-blocking, a first-class citizen.

• You can build reactive behaviors that execute multiple Actions concurrently (orthogonality).

• Trees are defined using a Domain Specific scripting language (based on XML), and can be loaded at run-time; in other words, even if written in C++, the morphology of the Trees is not hard-coded.

• You can statically link your custom TreeNodes or convert them into plugins and load them at run-time.

• It provides a type-safe and flexible mechanism to do Dataflow between Nodes of the Tree.

• It includes a logging/profiling infrastructure that allows the user to visualize, record, replay, and analyze state transitions.

• Tutorials and general documentation: https://www.behaviortree.dev/
• Auto-generated Doxygen: https://behaviortree.github.io/BehaviorTree.CPP/
• Community support and forum: https://github.com/BehaviorTree/BehaviorTree.CPP/discussions

Editing a BehaviorTree is as simple as editing an XML file in your favorite text editor.

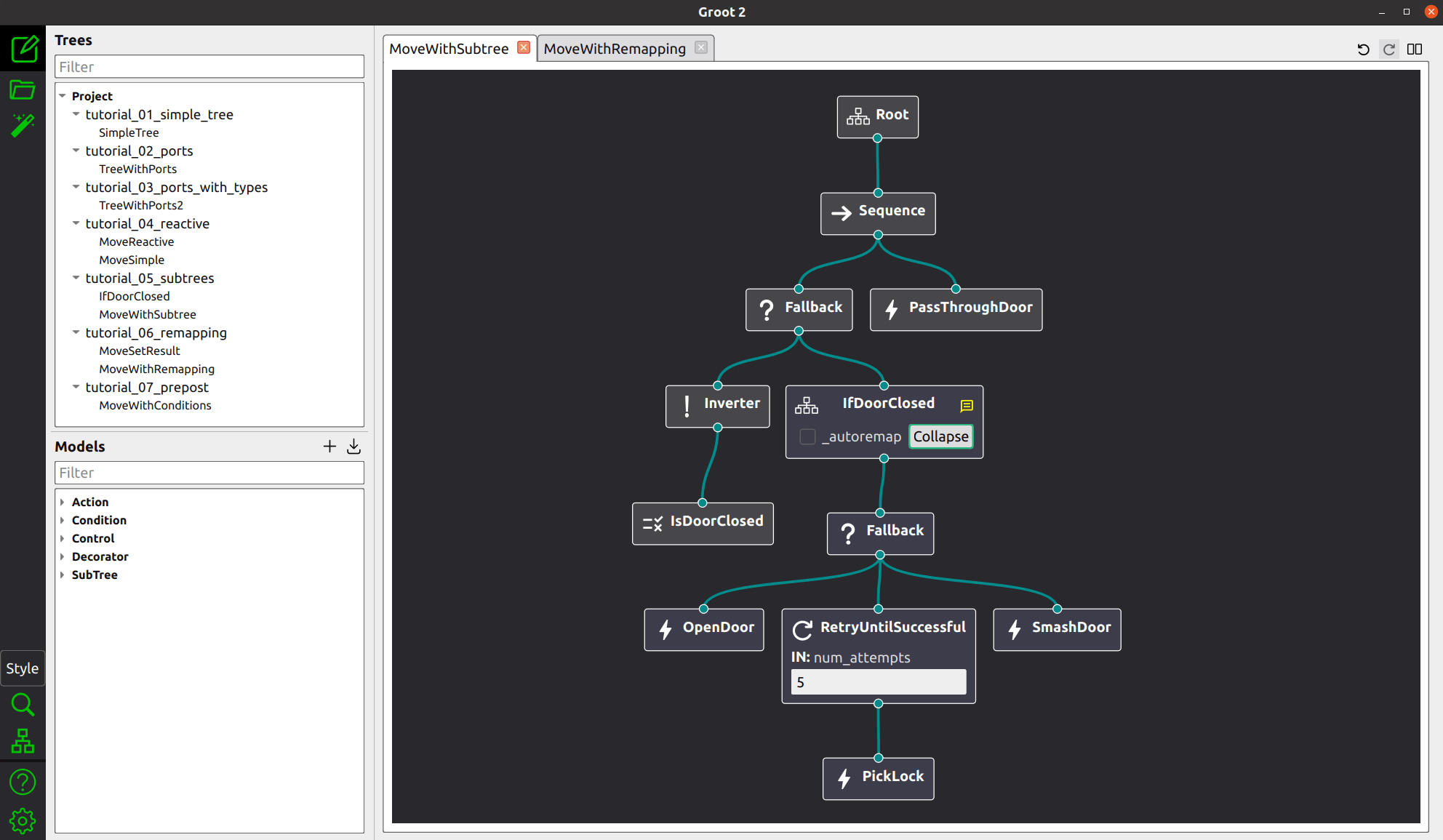

If you are looking for a fancier graphical user interface (and I know you do) check Groot2 out.

BT.CPP requires a compiler that supports C++17.

Three build systems are supported:

• colcon (ament), if you use ROS2
• conan otherwise (Linux/Windows).
• straight cmake if you want to be personally responsible for dependencies :)

Compiling with conan:

Assuming that you are in the root directory of BehaviorTree.CPP:

conan install . -s build_type=Release --build=missing
cmake --preset conan-release
cmake --build --preset conan-release

If you have dependencies such as ZeroMQ and SQlite already installed and you don't want to use conan, simply type:

mkdir build_release
cmake -S . -B build_release
cmake --build build_release --parallel

BT.CPP includes its own copy of nlohmann/json. To use the one installed in your system instead (version 3.10 or newer), add -DUSE_VENDORED_JSON=OFF. Since nlohmann::json is part of the public API, everything that links BT.CPP must then be compiled with that same version.

If you want to build in a pixi project (conda virtual environment).

pixi run build

If you want to use BT.CPP in your application, please refer to the example here: https://github.com/BehaviorTree/btcpp_sample .

Alternatively, you can build and install behaviortree-cpp using vcpkg dependency manager:

git clone https://github.com/Microsoft/vcpkg.git
cd vcpkg
./bootstrap-vcpkg.sh
./vcpkg integrate install
./vcpkg install behaviortree-cpp

The behaviortree-cpp port in vcpkg is kept up to date by Microsoft team members and community contributors. If the version is out of date, please create an issue or pull request on the vcpkg repository.

Are you using BT.CPP in your commercial product, and do you need technical support / consulting? You can contact the primary author, dfaconti@aurynrobotics.com, to discuss your use case and needs.

Version 3.8 of the software can be found in the branch v3.8.

That branch might receive bug fixes, but the new features will be implemented only in the master branch.
