ASIG-X/JEPLO

[Youtube] [Website] [arXiv] [Dataset]

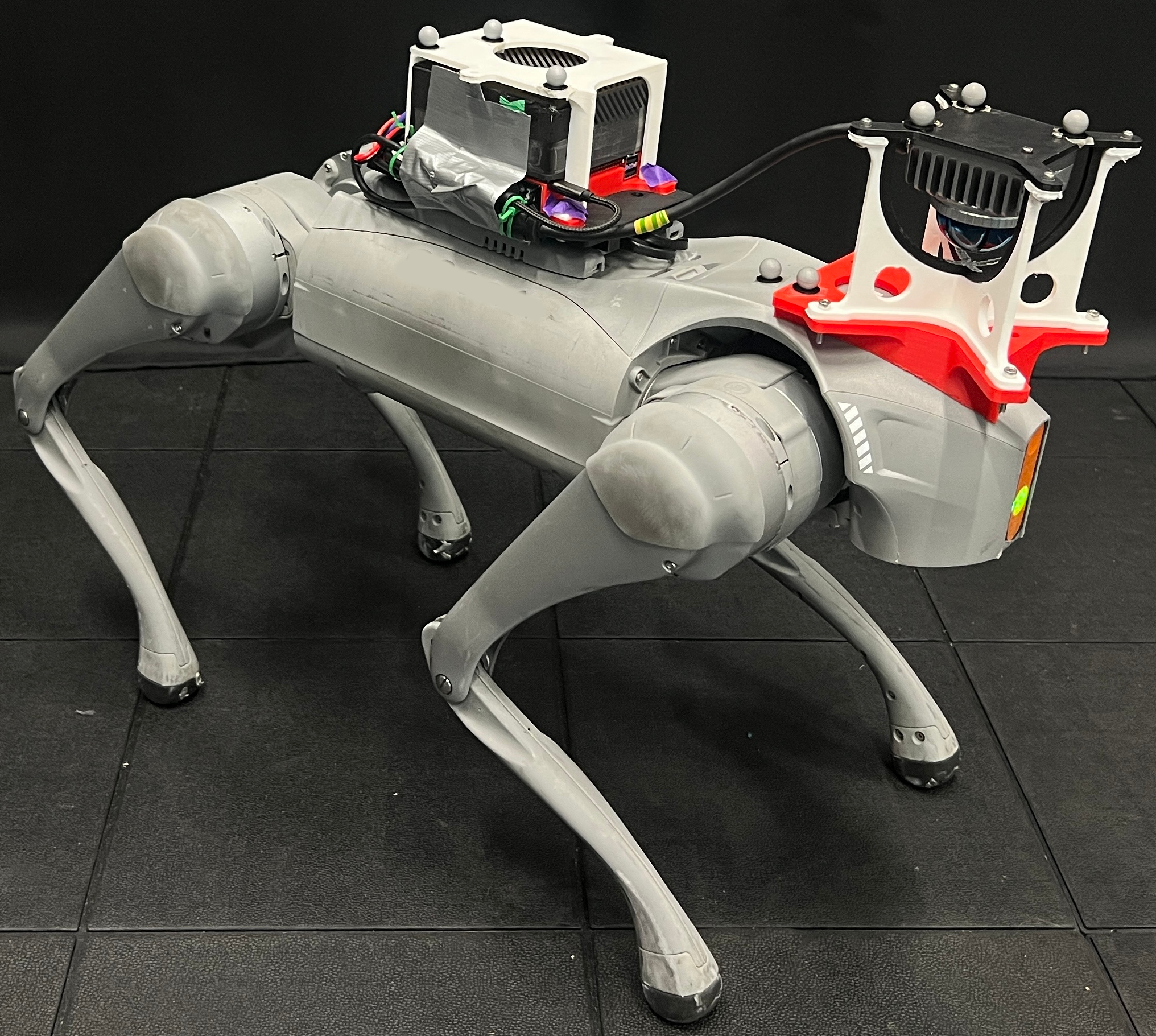

This is a JEPA-based mapless perceptive locomotion for quadrupedal robot (on Unitree Go2). It uses a single Mid-360 LiDAR for perception.

@ARTICLE{yuan2026jeplo,
  title={{JEPLO: Joint-Embedding Predictive Learning for LiDAR-Based Legged Locomotion}},
  author={Yuan, Qihao and Qiu, Yixuan and Cao, Ziyu and Cao, Ming and Li, Kailai},
  journal={arXiv preprint arXiv:2609.15770},
  year={2026}
}

Feel free to open an issue or contact us if you encoutner any problem using the code!

First create a conda envirnoment, install IsaacLab and IsaacSim:

conda create -n env_jeplo python=3.11 -y
conda activate env_jeplo
pip install --upgrade pip
pip install isaaclab[isaacsim,all]==2.3.2.post1 --extra-index-url https://pypi.nvidia.com
pip install -U torch==2.7.0 torchvision==0.22.0 --index-url https://download.pytorch.org/whl/cu128

Then install JEPLO:

# after cloning this repository and enter the cloned folder:
cd training
pip install -e go2_parkour
pip install -e lejepa
pip install -e rsl_rl

Install dependencies:

pip install wandb

To train a new policy:

# inside the training folder
python scripts/train.py --run_name my_policy --wandb_proj jeplo --num_envs 4096 --max_iterations 20000 --student_env_ratio 0.25 --warmup_iters 5000 10000

We strongly recommend using the MuJoCo validation tool to choose a good checkpoint. The training can be unstable sometimes and produce bad models (we usually test checkpoints after 15k iterations and find the one performing the best in MuJoCo).

To play a policy:

# inside the training folder
# play our pretrained policy
python scripts/play.py --load_run '^pretrained$' --num_envs 32
# add --student to play the student policy
# add --onnx_test_samples (requires --student) to export onnx model validation samples required by the deployment code

We found that TensorRT on Nvidia Jetson Orin sometimes produces trash models. Therefore a model should be validated by recorded input/output before controlling a real robot.

With the exported onnx models and validation samples, we can test the policy in MuJoCo.

We have tested on Ubuntu 22.04. If you have other system, distrobox is recommended to setup an isolated environment.

Note that you will need a decent computer (with a Nvidia GPU to use TensorRT) to allow the simulation and control to run fast enough (we have tested it on a RTX 4090 laptop). Otherwise, the performance might degrade, since this is an asynchronous evaluation environment, mimicing the scenario on a real robot.

If you are not on Ubuntu 22.04 and want use distrobox, you can create a container and exposing Nvidia GPU to it:

distrobox create -i ubuntu:22.04 --name ubuntu-22-04 --home /home/YOUR_USER_NAME/ubuntu_22_04 --hostname ubuntu2204 --nvidia

Then enter it with:

distrobox enter ubuntu-22-04

Check availability of GPU:

nvidia-smi

Whether within distrobox or on Ubuntu 22.04 (it might also work on Ubuntu 24.04 or 26.04, but we haven't tested), now we install unitree_mujoco first.

sudo apt update
sudo apt install -y build-essential cmake git libyaml-cpp-dev libspdlog-dev libboost-all-dev libglfw3-dev libfmt-dev libzmq3-dev libeigen3-dev

Install untiree_sdk2 (last tested on 13th Sep. 2026):

cd
git clone https://github.com/unitreerobotics/unitree_sdk2.git ~/unitree_sdk2
cmake -S ~/unitree_sdk2 -B ~/unitree_sdk2/build \
-DCMAKE_INSTALL_PREFIX=/usr/local
cmake --build ~/unitree_sdk2/build --parallel
sudo cmake --install ~/unitree_sdk2/build
sudo ldconfig

Build unitree_mujoco (our customized version):

# first, go to jeplo folder (inside distrobox if you use it)
cd deployment/unitree_mujoco
rm -rf simulate/build
cmake -S simulate -B simulate/build -DCMAKE_BUILD_TYPE=Release
cmake --build simulate/build --parallel

Run unitree_mujoco:

cd simulate/build
./unitree_mujoco --lidar # no need for specifying other flags

This should pop up a MuJoCo window with a Untiree Go2 robot.

We use a separate depth generator (from LiDAR point clouds) to ensure the same deployment interface for sim-to-sim and sim-to-real.

First install ROS2 Humble.

Then install Livox ROS2 driver and Livox SDK2 following this. Last tested on 14th Sep. 2026. (If you encounter "colcon not found" error, install it first: sudo apt update && sudo apt install python3-colcon-common-extensions)

Source ROS2 and the Livox driver workspace before going on.

# install dependencies
sudo apt update
sudo apt install -y build-essential cmake pkg-config libzmq3-dev

# source ros2 and livox driver (if you haven't done so)
source /opt/ros/humble/setup.bash
source ~/ws_livox/install/setup.bash

# before this, go to jeplo folder (inside distrobox if you use it)
cd deployment/lidar_depth_pub

# build depth generator
rm -rf build
cmake -S . -B build -DCMAKE_BUILD_TYPE=Release
cmake --build build --target lidar_depth_pub --parallel

Now we can run the depth generator with:

./build/lidar_depth_pub --sim --downsample-rate 4 --fov 25x60

This won't open any window, but if you have launched unitree_mujoco with --lidar, it will print received and published messages.

Now we can build the deployment code. First install dependencies:

sudo apt update
sudo apt install -y build-essential cmake pkg-config libeigen3-dev libfmt-dev libzmq3-dev zlib1g-dev python3-pip
pip install pygame numpy pyzmq

Next install ONNX Runtime with TensorRT support. Go to the release page and download prebuilt binaries. We have tested with this file: onnxruntime-linux-x64-gpu-1.22.0.tgz. Then follow these steps:

• Extract the folder and copy the “include” folder to “/usr/local”.
• Copy the “lib” folder as “/usr/local/lib64”.
• Copy the “lib/cmake” folder to “/usr/local/lib”.
• Add “/usr/local/lib64” to your “LD_LIBRARY_PATH”:

export LD_LIBRARY_PATH=/usr/local/lib64:$LD_LIBRARY_PATH

Now download TensorRT 10.9 GA from here and extract to a separate folder. We have tested with this version: TensorRT 10.9 GA for Linux x86_64 and CUDA 12.0 to 12.8 TAR Package. After downloading and extracting, add lib folder of extracted TensorRT to your LD_LIBRARY_PATH:

export LD_LIBRARY_PATH=/absolute/path/to/tensorrt/lib:$LD_LIBRARY_PATH

Now we install CUDA and cuDNN. First, install cuda-12.8 and cudnn-9 and add to LD_LIBRARY_PATH
Install cuda-12.8 follow this. Then install cudnn-9 follow this.
Finally add to LD_LIBRARY_PATH:

export PATH=/usr/local/cuda-12.8/bin${PATH:+:${PATH}}
export LD_LIBRARY_PATH=/usr/local/cuda-12.8/lib64${LD_LIBRARY_PATH:+:${LD_LIBRARY_PATH}}

Now build the deployment code:

# first to go jeplo folder
cd deployment/go2_deploy
./run_build.sh

This creates an output folder, including the built deployment program and copied configration files. If you want to change Kp/Kd, change it there. Other options do not need any change.

About LD_LIBRARY_PATH, we recommend adding those lines to .bashrc so that you don't have to export the variables in each new terminal.

Now we can validate policies in the MuJoCo environment. 5 terminals are needed, assuming current working directory is the cloned jeplo folder.

Terminal 1 for unitree_mujoco:

cd deployment/unitree_mujoco/simulate/build
./unitree_mujoco --lidar

Here you can use Backspace to reset the scene, press Ctrl+B in the intial stairs scene to toggle the high box. Press Ctrl+1, Ctrl+2, Ctrl+3, and so on to switch different predefined scenes.

Terminal 2 for depth generator:

cd deployment/lidar_depth_pub
./build/lidar_depth_pub --sim --downsample-rate 4 --fov 25x60

This will generate a random mask to mimic the 3D-printed cage on the real robot. Use --no-cage-mask to disable it.

Terminal 3 for monitoring the generated depth images:

cd deployment/go2_deploy
python3 scripts/view_lidar_depth.py

Terminal 4 for running deployment code:

cd deployment/go2_deploy/output
./deploy --net lo --model-dir pretrained --ood-count-threshold 15 --raw-actions

Terminal 5 for keyboard control:

cd deployment/go2_deploy
python3 scripts/pygame_wm_control.py

With this, you can control the robot moving in MuJoCo.

For deployment on real robot, we basically reproduce the same environment on Jetson Orin AGX. The only difference is that when flashing with the SDK Manager, CUDA, cuDNN and TensorRT needs to be enabled so that we have those on-board.

On Jetson, first build the depth generator following the previous instructions for sim-to-sim.

To build the deployment code on Jetson, we need to flash Jetson Orin AGX and install SDK packages like CUDA, cuDNN, TensorRT and so on. Check this for details on flashing the system and installing components.

Log into Jetson AGX Orin and check whether the required packages are installed correctly:

nvcc --version
ls -l /usr/local/cuda
ls /usr/lib/aarch64-linux-gnu/libcudnn*
ls /usr/lib/aarch64-linux-gnu/libnvinfer*

First, install packages:

sudo apt update
sudo apt install -y build-essential cmake pkg-config libeigen3-dev libfmt-dev libzmq3-dev zlib1g-dev

Next, install ROS2 Humble, Unitree SDK, and Livox driver following the previous sections (this and this).

We need to build onnxruntime from source on Jetson, since the prebuilt binaries for aarch64 do not support GPU backends. The procedure is based on official manuscript.

We will install onnxruntime v1.23.2 from source code:

# does not matter in which folder
git clone --recursive --branch v1.23.2 https://github.com/microsoft/onnxruntime
sudo apt install -y --no-install-recommends build-essential software-properties-common libopenblas-dev libpython3.10-dev python3-pip python3-dev python3-setuptools python3-wheel

Install cmake 3.28.5 from here. Choose cmake-3.28.5-linux-aarch64.sh.

chmod +x ./cmake-3.28.5-linux-aarch64.sh
sudo ./cmake-3.28.5-linux-aarch64.sh --prefix=/usr/local
# check cmake version; should be 3.28 now
cmake --version
# if you encounter errors or version not update, try rebooting.

Go to cloned onnxruntime project. Make sure you set onnxruntime\_BUILD\_UNIT\_TESTS=OFF , more details in github.

./build.sh --config Release --update --build --parallel --use_tensorrt --cuda_home /usr/local/cuda --cudnn_home /usr/lib/aarch64-linux-gnu --tensorrt_home /usr/lib/aarch64-linux-gnu --skip_tests --cmake_extra_defines 'CMAKE_CUDA_ARCHITECTURES=native' 'onnxruntime_BUILD_UNIT_TESTS=OFF' --build_shared_lib

cd build/Linux/Release
sudo make install

cd /usr/local/lib/cmake/onnxruntime

Open the cmake file and make some changes:

sudo vim ./onnxruntimeTargets-release.cmake
# change all "lib64" to "lib" and save

Now copy the go2_deploy and lidar_depth_pub folder to Jetson and build. They should work now. For --net argument of deploy, use the network interface name connecting Jetson to the robot. You can check with ifconfig, ip addr or nmcli connection show.

For lidar_depth_pub, run this on Jetson:

./build/lidar_depth_pub --fov 25x60 --no-cage-mask

For go2_deploy, run this on Jetson:

cd go2_deploy
./run_build.sh
cd output
./deploy --net <network, e.g., eno1> --model-dir pretrained --ood-count-threshold 15 --raw-actions --gamepad-mode joystick

After launching the deployment code, press R1 (once) to switch to the wireless controller. We support joystick mode (--gamepad-mode joystick, default): left stick for movement and right stick for turning; and gamepad button mode (--gamepad-mode buttons) for one-handed control: X to move forward, Y to turn left, and A to turn right.

Press B for an emergency stop (zero velocity commands); press it again to stop the controller. The OOD (out-of-distribution) safety check flags excessive estimated joint torque or joint velocity. After --ood-count-threshold consecutive violations, deployment switches to damping mode.

For monitoring the depth images in real-time, run this on a PC in the same subnet:

python scripts/view_lidar_depth.py --host <IP.OF.THE.JETSON>

Qihao Yuan (Email: qihao.yuan@rug.nl)

Yixuan Qiu (Email: yixuan.qiu@rug.nl)

Ziyu Cao (Email: ziyu.cao@liu.se)

Kailai Li (Email: kailai.li@liu.se)

We would like to thank go2_rl_robotlab for their excellent open-source code!

The source code is released under GPLv3 license. For commercial use, please contact Qihao Yuan at qihao.yuan@rug.nl or Kailai Li at kailai.li@liu.se to discuss an alternative license.
