youcci/playport

Wireless CarPlay in your browser. A server-side CarPlay receiver that turns any screen on your network into a head unit.

PlayPort runs the car side of CarPlay on a Mac. Your iPhone connects wirelessly (Bluetooth bootstrap, then Wi-Fi), and every browser on the network can watch and control CarPlay — touch, rotary knob, media keys, Siri and phone calls. No dongle, no head unit, no app install: open a URL and drive.

Port notice. PlayPort's AirPlay, iAP2 and accessory-authentication code is ported from DiPlay by shihabal3amri, itself based on xcertplay by shilapi (both GPL-3.0). PlayPort replaces the Android head-unit app with a JVM server and a WebCodecs browser client. It is an independent project, not affiliated with or endorsed by the DiPlay or xcertplay authors.

• How it works
• Features
• Screenshots
• Requirements
• Quick start
• Accessory identity (required)
• Display, orientation and quality
• Audio and microphone
• Controls
• Configuration
• Troubleshooting
• Security and privacy
• Project layout
• Development
• Status and limitations
• Credits and license

          Bluetooth (first pairing)                     Wi-Fi / LAN
   ┌──────────────────────────────────┐   ┌─────────────────────────────────────────┐
   │  iAP2 identification             │   │  mDNS advertisement (_airplay._tcp)     │
   │  MFi authentication              │   │  AirPlay RTSP: pairing, /info, SETUP    │
   │  Wi-Fi credentials handoff       │   │  H.264 / HEVC video  +  RTP audio       │
   └──────────────────────────────────┘   │  HID input  +  iAP2 control tunnel      │
                                          └─────────────────────────────────────────┘
                        │                                     │
                        ▼                                     ▼
              ┌──────────────────────────────────────────────────────────┐
              │  PlayPort server (Kotlin/JVM + Ktor)                     │
              │  · :protocol — ported DiPlay stack (AirPlay, iAP2, MFi)  │
              │  · RTSP listener, mDNS, pairing store, BT bridge         │
              │  · decrypts media, never re-encodes it                   │
              └──────────────────────────────────────────────────────────┘
                        │  WebSocket: binary media + JSON control
                        ▼
              ┌──────────────────────────────────────────────────────────┐
              │  Browser client (TypeScript, no framework)               │
              │  · WebCodecs VideoDecoder → canvas  ·  AudioDecoder      │
              │  · pointer + keyboard → CarPlay HID                      │
              └──────────────────────────────────────────────────────────┘

The iPhone thinks it is talking to a car head unit: PlayPort advertises itself over Bonjour, authenticates with an MFi identity, receives the encrypted H.264/HEVC screen and RTP audio, and sends touch/knob/media HID reports back. The server passes the phone's encoded media straight to the browser (no server-side decoding or re-encoding), and the browser decodes it with WebCodecs.

• Wireless CarPlay — Bluetooth iAP2 bootstrap + Wi-Fi handoff, with a connection supervisor that re-invites the phone whenever the link drops.

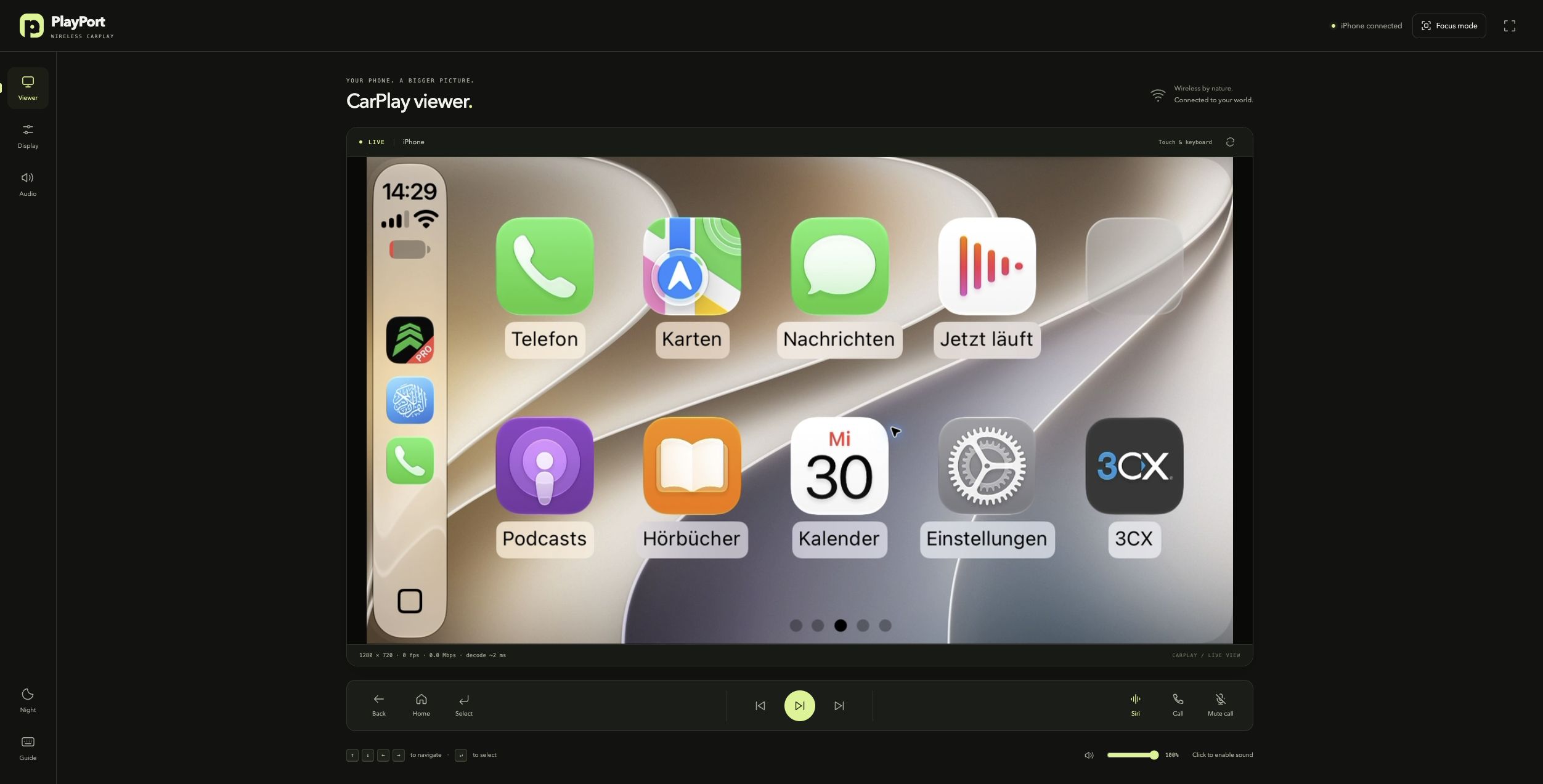

• Any browser is the screen — laptop, tablet, wall panel, another Mac. Multiple viewers at once.
• Responsive viewer — grouped controls, dedicated display/audio panels, a connection guide, and focus mode for a larger CarPlay screen.
• Touch and knob input — up to two touch contacts, keyboard as rotary knob, toolbar buttons for Home/Back/Select, media transport and Siri.
• Calls and Siri — when the phone opens its speech/telephony stream, the browser asks for the microphone and streams audio back (PCM, or Opus when requested).
• Display control — live resolution, portrait/landscape, frame rate, CarPlay UI size and H.264/HEVC selection, with presets from 800×480 up to 4K.
• Quality tuning — "Match this window" advertises your display's physical pixels for 1:1 sharpness; a stats HUD shows resolution, fps, bitrate, drops, decode queue and latency.
• Audio mixer — master plus per-stream volumes (media, navigation, Siri/calls).
• Persistent settings — display settings are saved to ~/.playport/config.json; audio levels are saved in your browser.
• No cloud, no account — everything runs on your machine and your LAN.

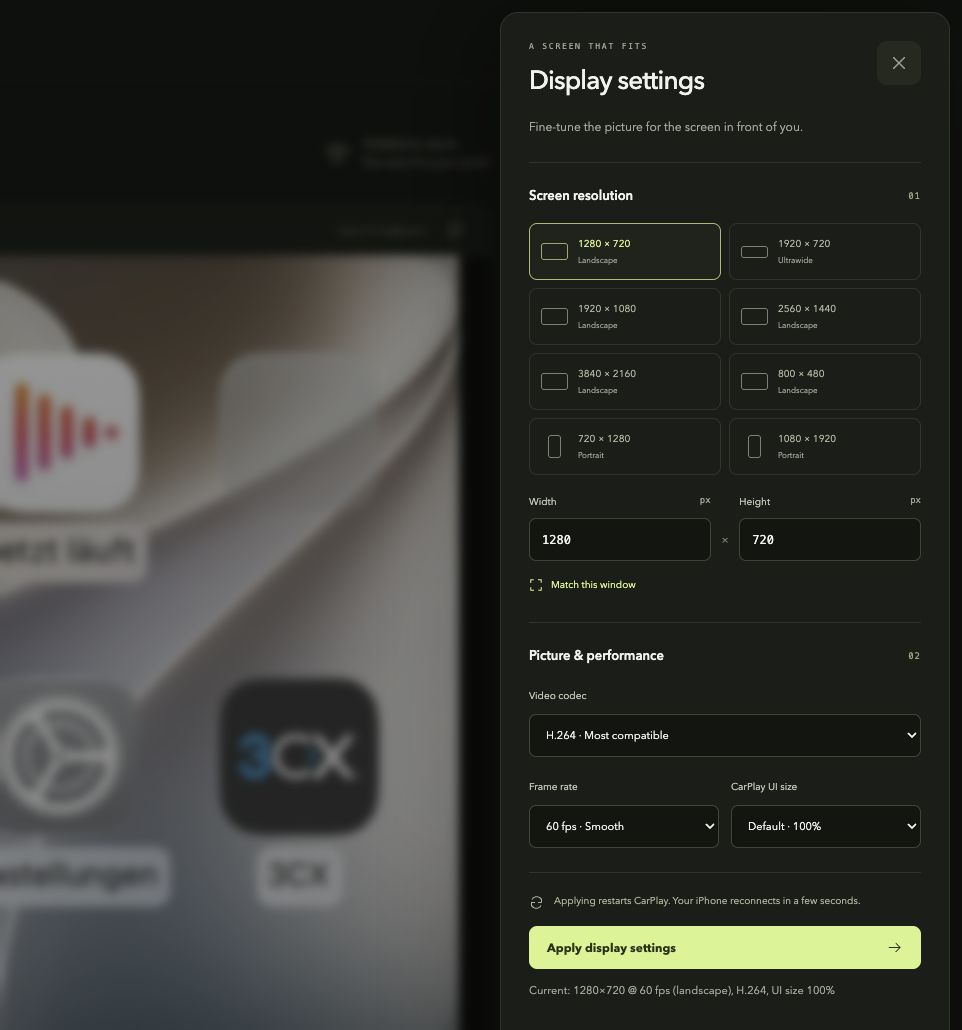

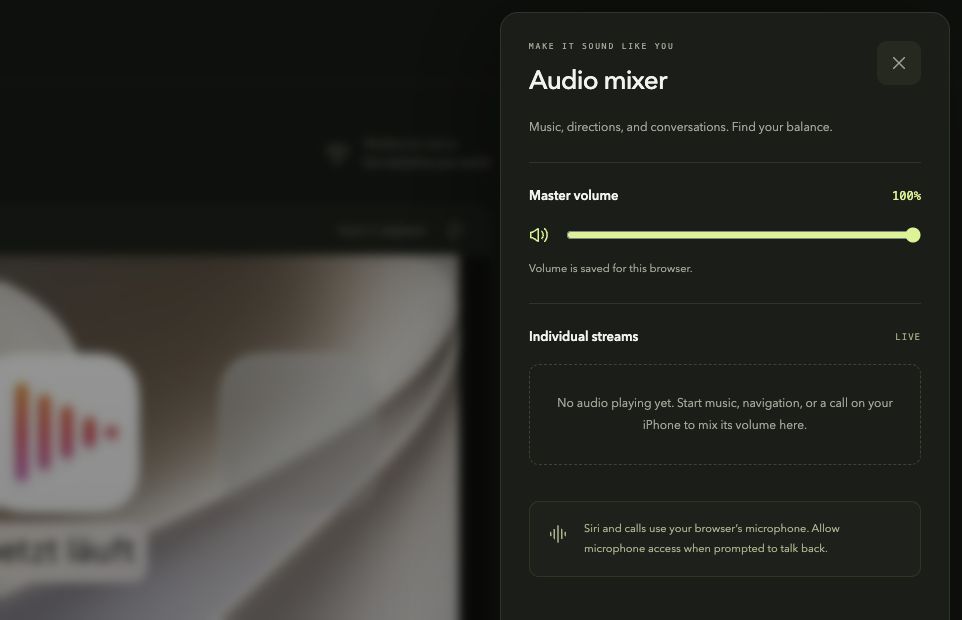

Display and quality	Audio mixer (no active streams)

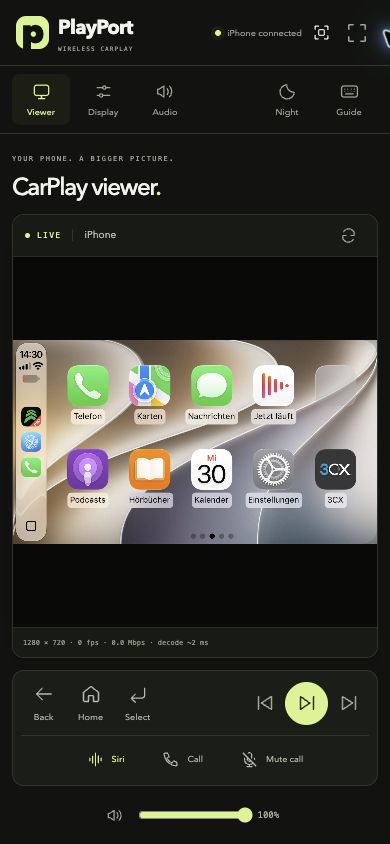

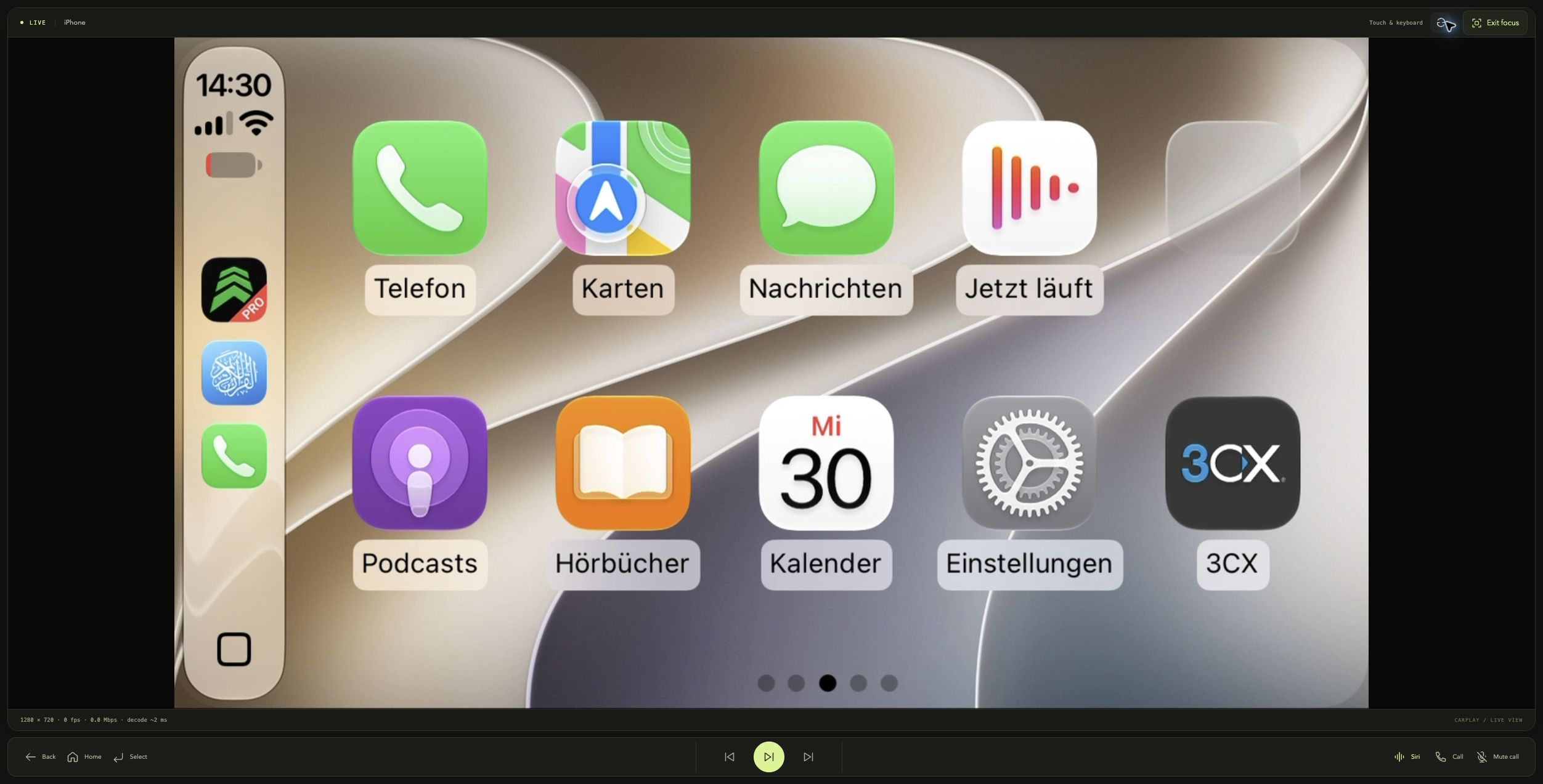

Focus mode	Mobile viewer

git clone https://github.com/youcci/playport.git
cd playport

# 1. Add the accessory identity (see the section below) — the server refuses to start without it
mkdir -p identity/offline-mfi
cp /path/to/identity.pk8 /path/to/certificate.p7b identity/offline-mfi/

# 2. Build everything
./gradlew build                      # protocol + server, runs 96 tests
(cd web && npm install && npm run build)

# 3. Build the Bluetooth bridge (macOS RFCOMM helper)
macos/bt-bridge/build.sh

# 4. Pair the iPhone once (keep Settings > Bluetooth open on the phone)
macos/bt-bridge/bt-bridge --scan
macos/bt-bridge/bt-bridge --pair AA:BB:CC:DD:EE:FF      # confirm the code on the iPhone

# 5. Prepare macOS
#    · System Settings → General → AirDrop & Handoff → turn OFF "AirPlay Receiver"
#    · System Settings → Privacy & Security → Bluetooth → enable your terminal app
#    · Allow incoming connections for java if the firewall asks

# 6. Run the server (use the Wi-Fi name the iPhone is on)
./gradlew :server:run --args="--wireless --wifi-ssid \"YOUR_WIFI\" --wifi-passphrase \"YOUR_PASSWORD\""

Open the https:// URL the server prints (it contains an access token) and accept the self-signed certificate warning once. HTTPS is required because browsers only expose WebCodecs — the video/audio decoders — in secure contexts. On the iPhone, accept the CarPlay prompt; if it asks for a code, enter 3939. The dashboard appears in the browser as soon as the first video frame arrives.

The iPhone will only start CarPlay with an authenticated accessory. On every connection it requests the accessory certificate and sends a challenge; PlayPort signs it with the matching private key. AirPlay setup uses the same identity. Without these two files the server exits at startup, and there is no software workaround.

PlayPort does not ship this identity — it is third-party key material, it is not relicensed as source code, and it must not be redistributed.

identity/offline-mfi/identity.pk8       # PKCS#8 EC P-256 private key
identity/offline-mfi/certificate.p7b    # accessory certificate (Apple Accessories CA)

identity/ is ignored by Git. To keep it somewhere else, pass --identity-dir /path/to/identity. You can verify a pair at any time with the bundled test — it signs a challenge and checks it against the certificate:

./gradlew :server:test --tests '*MfiIdentityTest*'

1. From a DiPlay release APK (easiest public source). DiPlay bundles an experimental identity recovered from Carlinkit firmware and documents that it is extractable by design:

   curl -L -o DiPlay.apk \
     https://github.com/shihabal3amri/DiPlay/releases/download/v0.2.7/DiPlay-0.2.7.apk
   unzip -j DiPlay.apk 'assets/offline-mfi/*' -d identity/offline-mfi

   See DiPlay's docs/THIRD_PARTY_NOTICES.md for provenance.

2. From Carlinkit C2Air firmware. The pair was originally recovered from public Allwinner V821 firmware. The reverse-engineering community documents how to dump and unpack these dongles — for example ludwig-v/wireless-carplay-dongle-reverse-engineering and the projects it links. Search the unpacked root filesystem for an Apple-issued X.509 certificate and a matching PKCS#8 EC key.

3. Your own MFi credentials. If you are an MFi licensee with an accessory identity, use your own certificate and key. A physical MFi authentication coprocessor is not supported by this project.

4. A remote MFi server. If you run an authentication service, point PlayPort at it instead of a local identity: --mfi-server https://host --mfi-token <token>.

Caveats. The publicly available identity is shared, experimental and not issued to PlayPort. Apple can revoke it in any iOS update, and this is not an Apple-certified product. Use it for personal experimentation, do not sell it, and do not commit or redistribute the key.

The phone renders CarPlay at whatever resolution PlayPort advertises, so the Display panel in the browser is the quality control room:

• Landscape presets — 800×480, 1280×720, 1920×720, 1920×1080, 2560×1440, 3840×2160.
• Portrait presets — 720×1280, 1080×1920 (portrait is simply height > width).
• CarPlay UI size — Smaller/Small/Default/Large requests a proportionally larger canvas, so CarPlay draws finer controls (75–115%).
• Video codec — H.265/HEVC is sharper at the same bitrate and is offered when the browser can decode it (probed with VideoDecoder.isConfigSupported). The phone makes the final call.
• Frame rate — 60 fps for smoothness, 30 fps to spend more bitrate on detail.
• Match this window — advertises your window's physical pixels (CSS × devicePixelRatio), so the canvas maps 1:1 to the display. Best used fullscreen.

Applying a change restarts CarPlay (the phone reconnects in a few seconds). Values persist in ~/.playport/config.json. The same knobs exist as flags for a fixed setup:

./gradlew :server:run --args="--width 1920 --height 720 --fps 60 --ui-scale 85 --hevc"

Audio is passed through per stream (media, guidance, speech, telephony) and decoded in the browser with a jitter buffer. The Audio panel has a master volume and per-stream sliders; the control dock has Call (answer/end) and Mute call, and the sidebar has Night (day/night mode). When the phone opens Siri or a call, the browser asks for microphone permission and sends audio back to the phone.

Use Guide for connection steps and keyboard shortcuts. Focus mode hides the header and sidebar while keeping the CarPlay controls within reach.

Every option can be given as a CLI flag; UI changes are saved to ~/.playport/config.json (hand-editable — CLI flags always win). Run with --help for the full list.

• The server binds the AirPlay port to your LAN address; the browser UI is HTTPS with a self-signed certificate and an access token (regenerated every start unless --token is set).
• The MFi private key never leaves the machine and is never sent to the browser; it is only used to sign the iPhone's challenge.
• State files live in ~/.playport with owner-only permissions where the filesystem supports it.
• Nothing is uploaded anywhere. Diagnostics are local. Pair records stay on your machine.
• Treat the machine as you would a car head unit: anyone on your LAN with the token can control CarPlay while your iPhone is connected.

protocol/   Kotlin/JVM library ported from DiPlay's shared module (AirPlay, iAP2, MFi, streams)
server/     Ktor server: RTSP + mDNS + Bluetooth bridge + WebSocket hub + display/mic/config APIs
web/        Vite + TypeScript browser client (WebCodecs video/audio, input, panels)
macos/      bt-bridge: Swift IOBluetooth RFCOMM helper for the wireless bootstrap
identity/   Accessory identity drop-in (gitignored — see above)
docs/       Logo and screenshots

./gradlew build          # compiles both modules and runs the test suite (96 tests)
(cd web && npm run build)  # type-checks and bundles the browser client
(cd web && npm test)       # checks keyboard isolation and touch mapping
./gradlew :server:run --args="--help"

The protocol module is a faithful port of DiPlay's shared sources with Android dependencies replaced by small JVM shims (platform/Log, network/TcpLiveness, transport/IphoneUsbException), so future upstream fixes stay easy to merge. MfiIdentityTest validates the local identity against its certificate; WireTest covers the browser wire framing.

PlayPort is experimental. It has been validated on macOS with an iPhone (iOS 27) over Wi-Fi: wireless bootstrap, MFi authentication, live video with touch input, display switching and persistence. Tested with H.264; HEVC passthrough is implemented but depends on your browser.

• Not an Apple-certified product; the public identity is shared and can be revoked by Apple.
• Wired USB CarPlay is not supported; wireless only.
• Linux is not supported yet (the server and mDNS are portable; the Bluetooth bridge is macOS-only).
• Telephony buttons are implemented but their HID indexes are unverified in DiPlay — report if Call does nothing during a call.
• H.265/HEVC requires a browser with HEVC WebCodecs support (Chrome/Edge on macOS, Safari 17+).
• iOS behavior can change with any update; this project may break without warning.

PlayPort is free software under the GNU General Public License v3.0 — see LICENSE. As a derivative of DiPlay and xcertplay (both GPL-3.0), it must remain under the same license: you may use, study, modify and share it, but distributed copies and modifications must keep this license and make their source available.

• Protocol stack: DiPlay by shihabal3amri and xcertplay by shilapi.
• The accessory identity discussed above was recovered from public Carlinkit C2Air firmware during the DiPlay project's investigation and is not part of this repository.
• Interface inspiration: DiAuto (AGPL-3.0) — no code from it is used here.

CarPlay, iPhone, AirPlay and MFi are trademarks of Apple Inc. PlayPort is an independent project; no Apple affiliation or endorsement is implied.
