aireet/kube-bmc

Baseboard management controllers as Kubernetes resources: in-band discovery, hardware health,
power control, a web dashboard, a kubectl plugin, a Grafana dashboard,
and an MCP endpoint so that AI agents can inspect and operate your servers.

简体中文 · Installation · AI agents · Architecture · Authentication · MCP · kubectl plugin · Go libraries

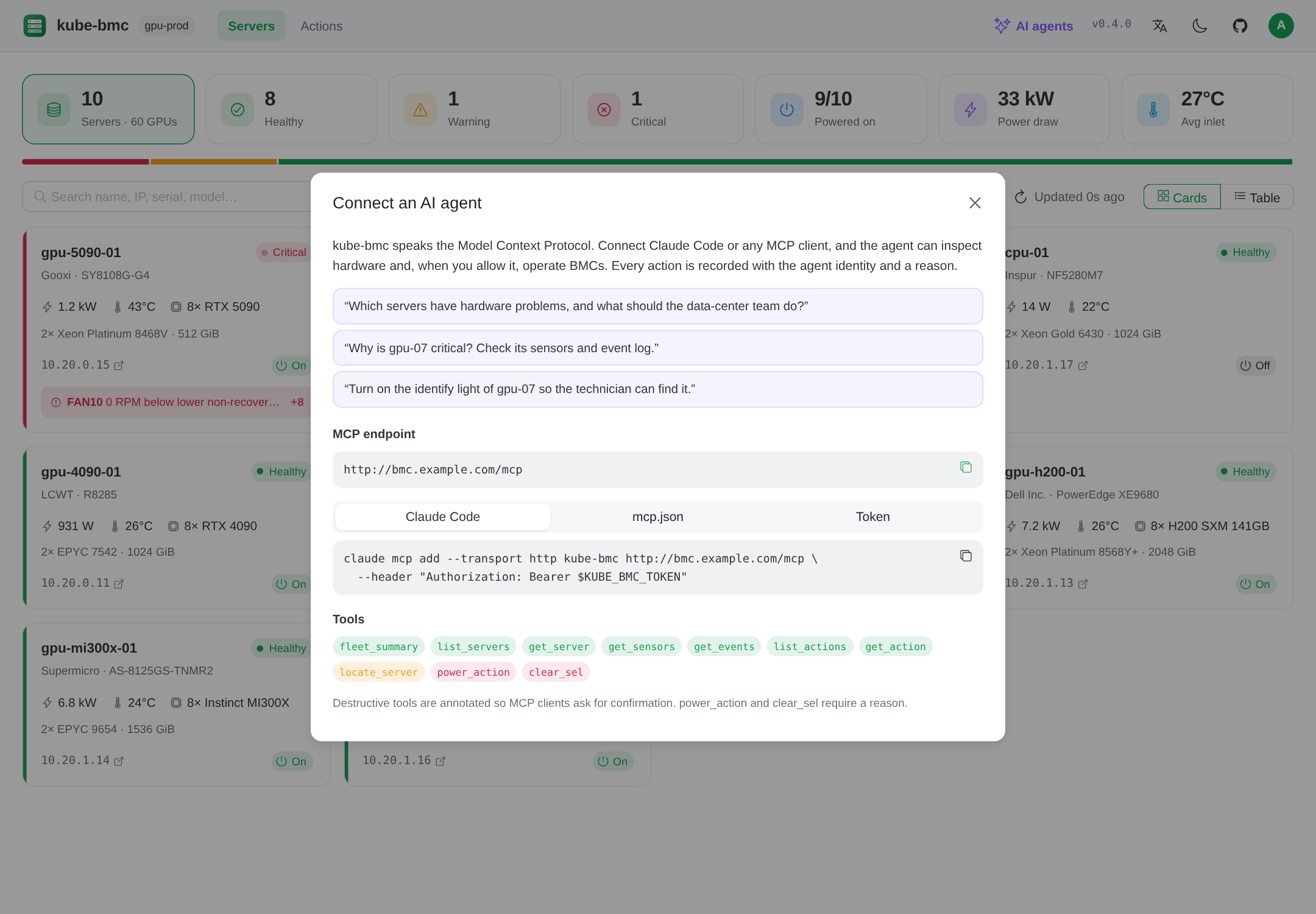

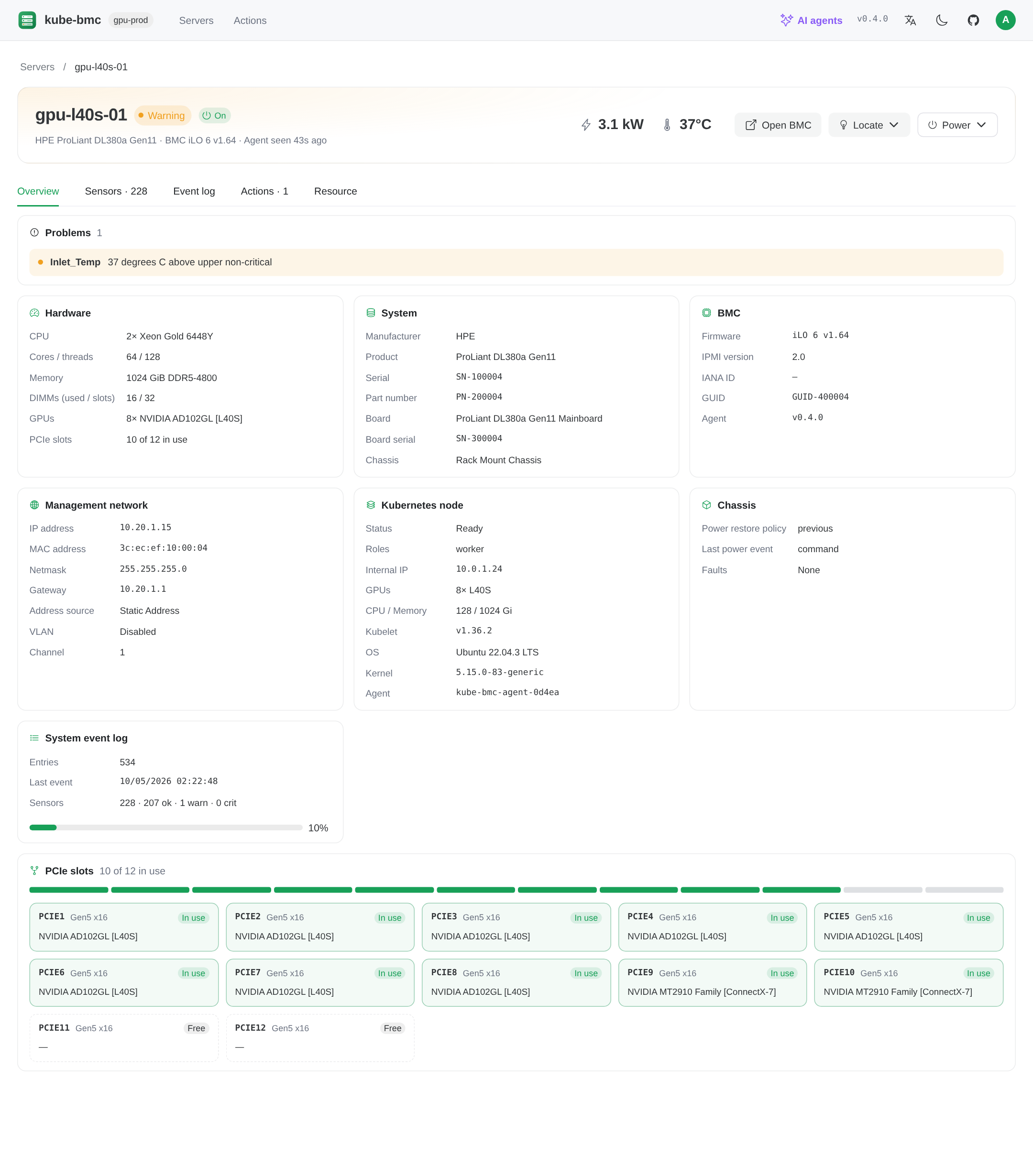

Server details with hardware and PCIe slots	AI agents over MCP

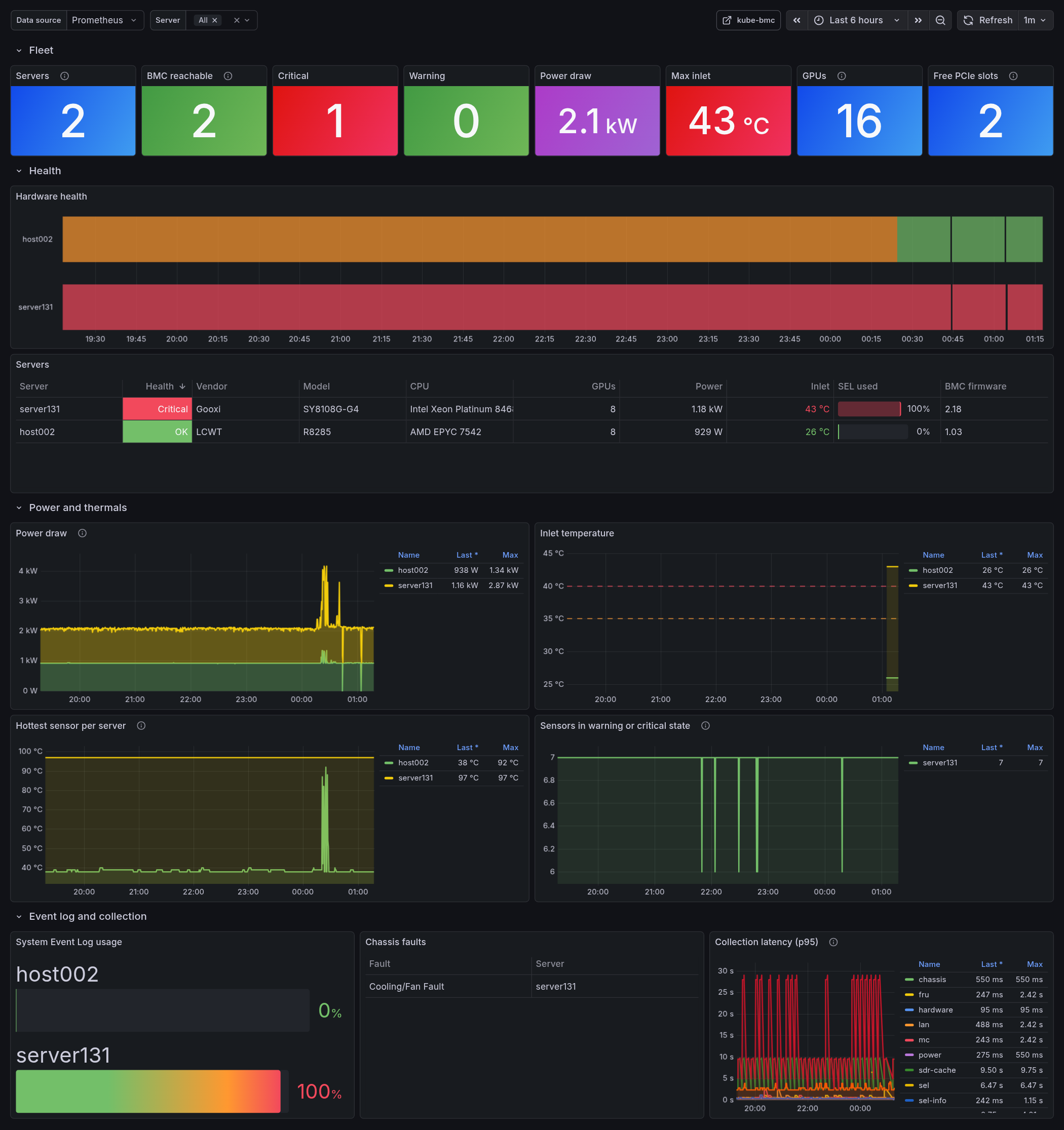

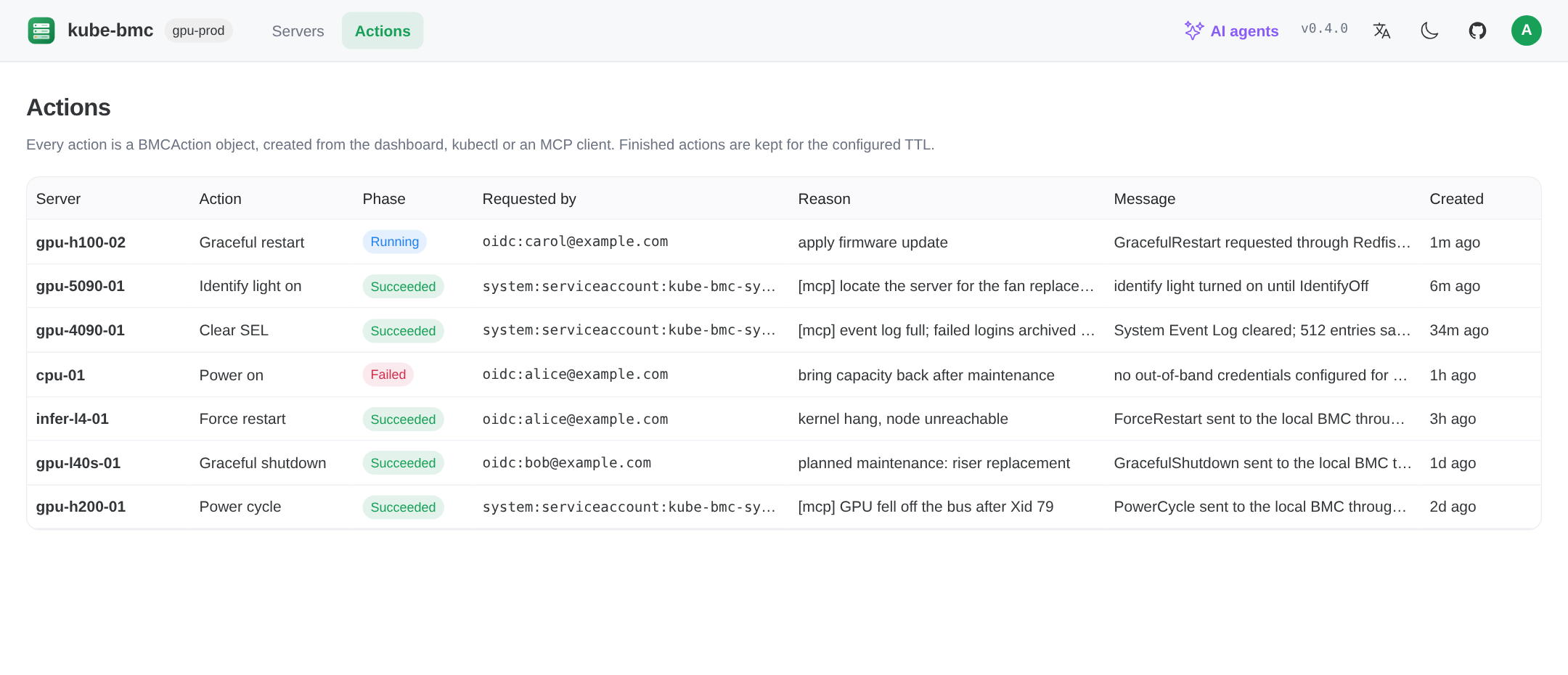

Actions from the dashboard, kubectl and AI agents	Grafana dashboard

More screenshots

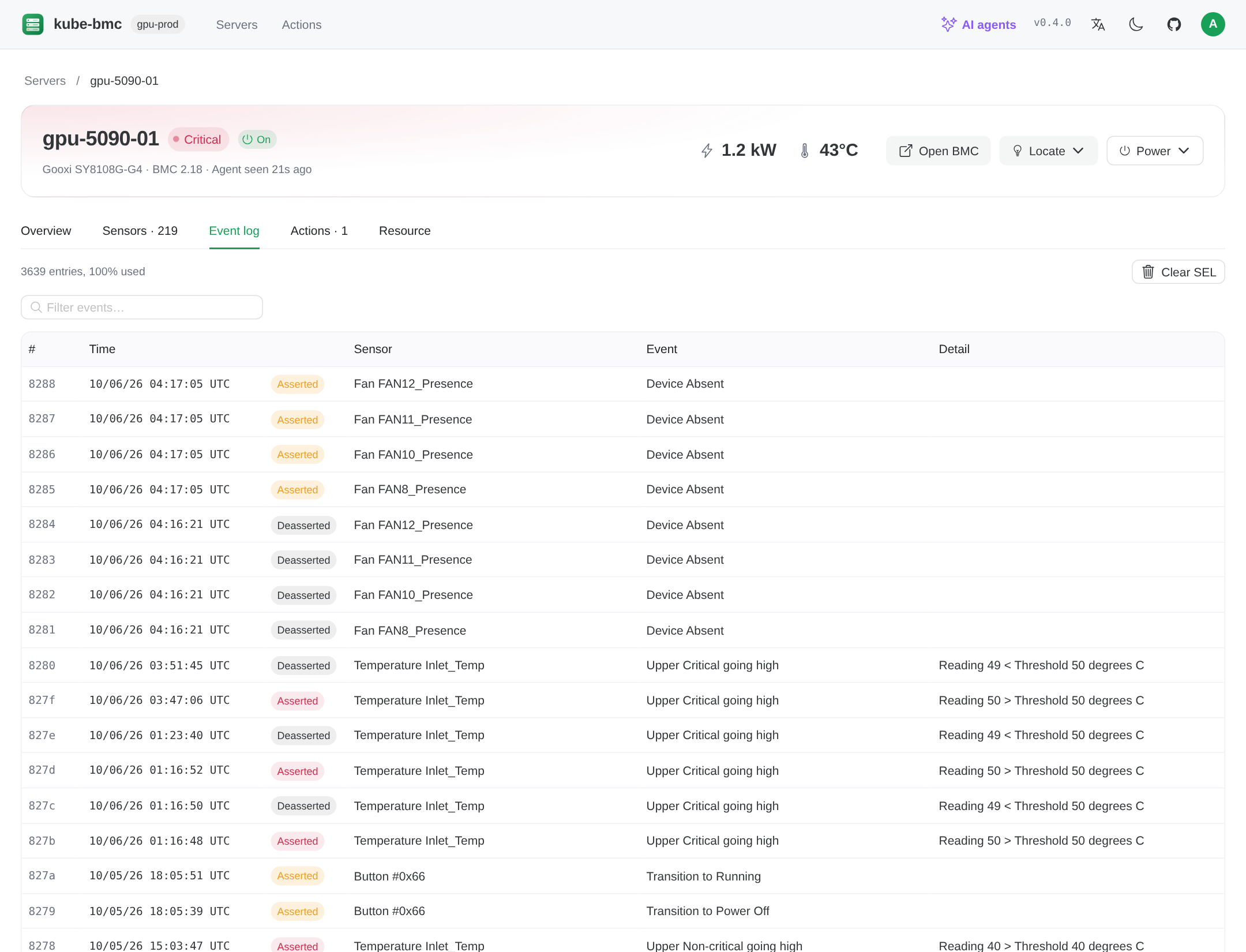

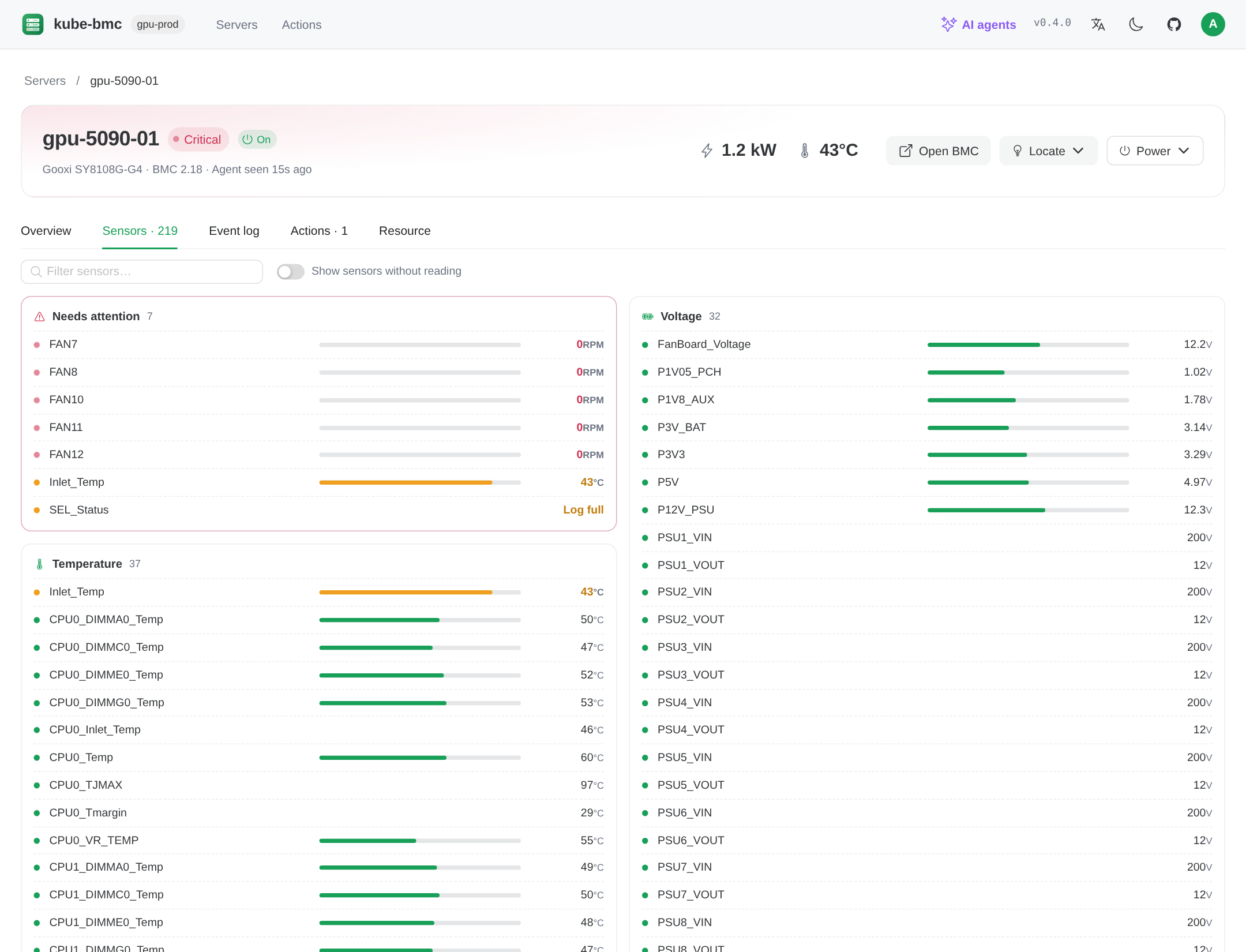

Sensors	System event log

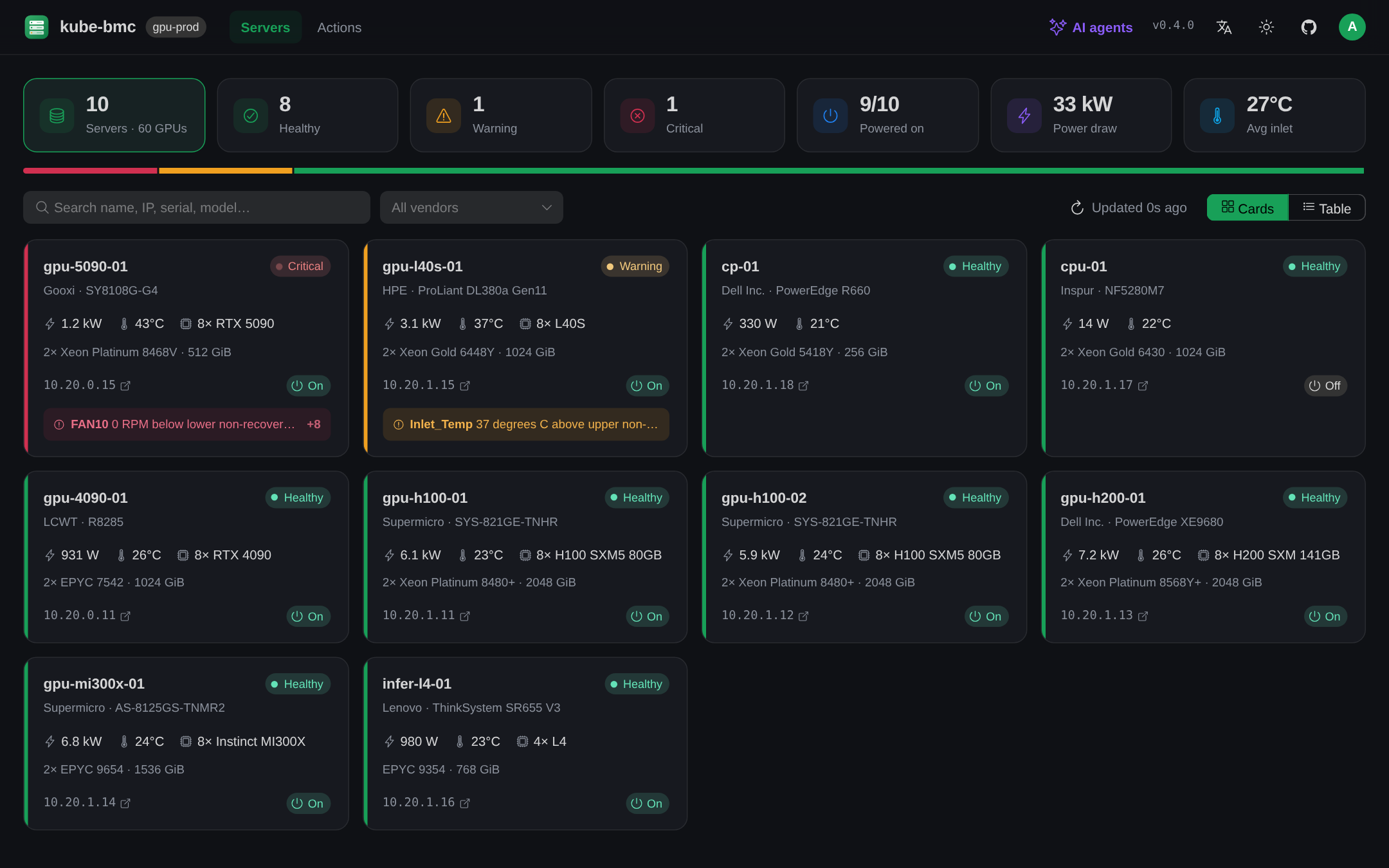

Dark theme

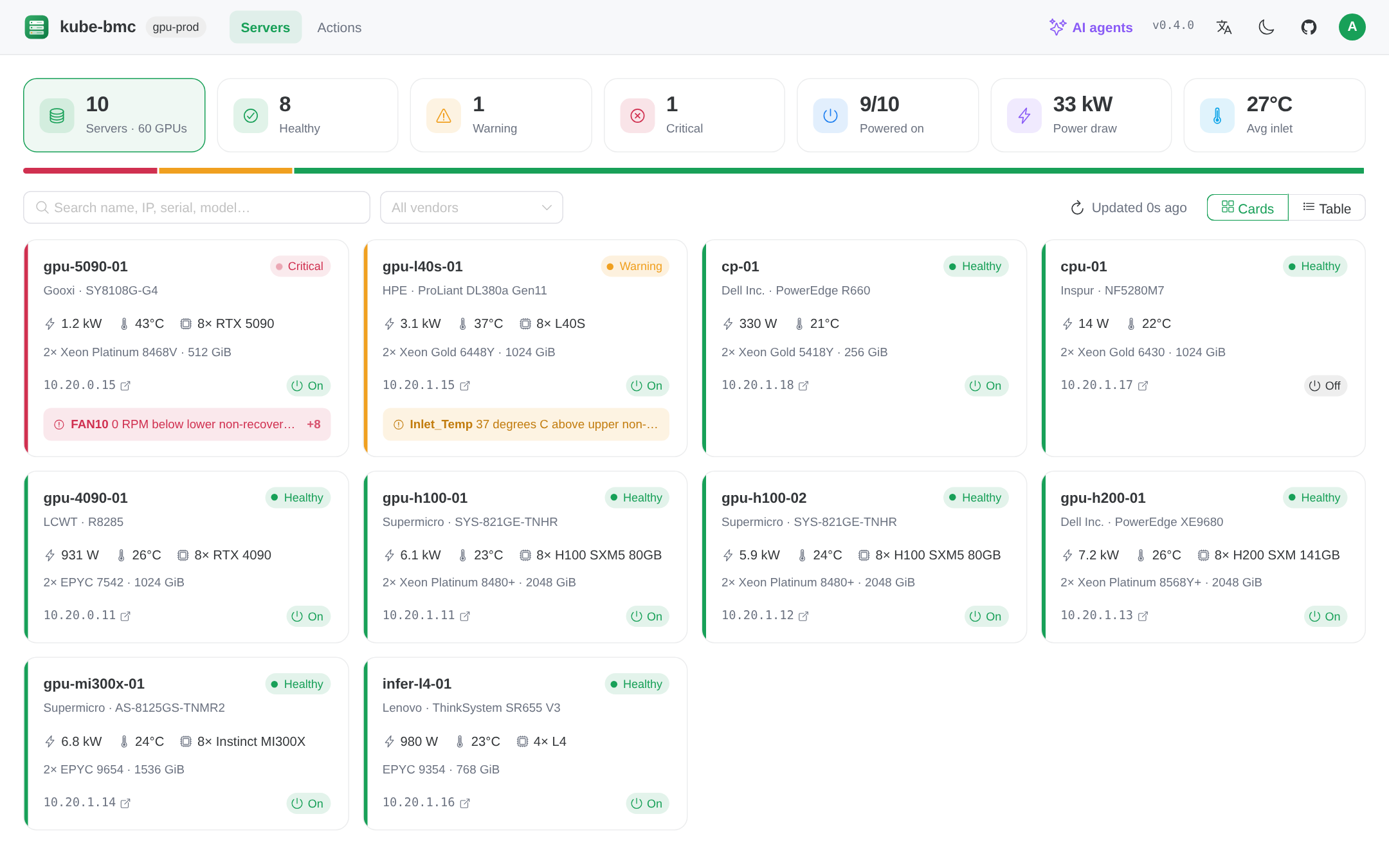

The dashboard screenshots show two real servers, with addresses and serial numbers replaced, and eight generated ones that illustrate a larger fleet. The Grafana screenshot shows the two real servers.

kube-bmc runs an agent on every node that reads the local BMC through the in-band IPMI interface (/dev/ipmi0). No BMC addresses or credentials are needed for monitoring. Each node gets a cluster-scoped BMC object that is owned by its Node:

$ kubectl get bmc
NAME        NODE        BMC-IP          VENDOR   MODEL        POWER   WATTS   INLET   HEALTH     AGE
host002     host002     10.30.4.27      LCWT     R8285        On      951     26      Warning    2d
server131   server131   10.20.0.31      Gooxi    SY8108G-G4   On      1240    43      Critical   2d

$ kubectl get bmc server131 -o jsonpath='{range .status.problems[*]}{.severity}{"\t"}{.source}{"\t"}{.message}{"\n"}{end}'
Critical   FAN7      0 RPM below lower non-recoverable
Critical   chassis   Cooling/Fan Fault reported by the BMC
Warning    sel       System Event Log is 100% full; new hardware events may be dropped

Features:

• Inventory and health from any IPMI 2.0 BMC: FRU data, firmware, management network, sensors with thresholds, chassis faults, DCMI power and the System Event Log. Health is summarized as OK, Warning or Critical with a list of problems.
• Actions: shutdown, restart, power cycle, the identify light and clearing the System Event Log are executed by the agent on the node through its local BMC interface, without BMC credentials; power on uses Redfish or IPMI-over-LAN. Every request is a BMCAction object, which serves as the audit record. Disabled by default.
• AI agents: an MCP endpoint lets Claude Code and other agents inspect hardware and operate BMCs, with every action audited. See Operate servers with AI agents.
• Hardware inventory: CPU and memory configuration, GPUs and PCIe slot occupancy, read by the agent from SMBIOS and the PCI bus.
• Three human interfaces: the web dashboard, the kubectl bmc plugin and a Grafana dashboard.
• Authentication with OpenID Connect or built-in username and password for the dashboard, and OIDC or ServiceAccount bearer tokens for API and MCP clients.
• Prometheus metrics for every sensor, power draw, health and SEL usage.

kube-bmc includes a Model Context Protocol server. Connect Claude Code, or any MCP client, and an agent can triage hardware across the fleet and, when you allow it, act on it:

claude mcp add --transport http kube-bmc https://kube-bmc.example.com/mcp \
  --header "Authorization: Bearer $(kubectl -n kube-bmc-system create token mcp-agent)"

> Which servers have hardware problems, and what should the data-center team do?

  ⏺ kube-bmc · fleet_summary
  ⏺ kube-bmc · get_sensors  name=gpu-07 problemsOnly=true
  ⏺ kube-bmc · get_events   name=gpu-07 limit=20

  gpu-07 (Gooxi SY8108G-G4) is critical: FAN7, FAN8, FAN10, FAN11 and FAN12 read 0 RPM and
  the chassis reports a cooling fault. Inlet temperature is 47 °C (critical above 50 °C).
  Replace the failed fan modules soon; the GPUs are still within limits.
  infer-02 is a warning: its event log is full and contains 25 failed BMC logins.

> Turn on the identify light of gpu-07 so the technician can find it.

  ⏺ kube-bmc · locate_server  name=gpu-07 on=true
  Done. The light stays on until it is turned off.

Agents are first-class but accountable: every action is a BMCAction recorded with the agent's identity and a mandatory reason, destructive tools are annotated so clients ask before calling them, and actions can be disabled entirely. The dashboard's AI agents dialog shows the endpoint and a ready-to-copy client configuration. See docs/mcp.md.

Requirements:

• Kubernetes 1.28 or later.
• Nodes with a BMC and the IPMI kernel modules loaded (ipmi_si, ipmi_devintf), so that /dev/ipmi0 exists. Nodes without a BMC can be excluded with agent.nodeSelector.

helm install kube-bmc oci://ghcr.io/aireet/charts/kube-bmc \
  --namespace kube-bmc-system --create-namespace

kubectl get bmc
kubectl -n kube-bmc-system port-forward svc/kube-bmc 8080:80   # dashboard on http://localhost:8080

Plain manifests are attached to each release: kubectl apply -f https://github.com/aireet/kube-bmc/releases/latest/download/install.yaml.

The chart installs without authentication. Before exposing the dashboard beyond a port-forward, configure authentication.

flowchart LR
  subgraph node["Each node"]
    A[kube-bmc agent<br>DaemonSet] -- "ipmitool (in-band)<br>/dev/ipmi0" --> B[(BMC)]
  end
  A -- "BMC object" --> K[(Kubernetes API)]
  A -. "/metrics" .-> P[Prometheus]
  S[kube-bmc server<br>Deployment] -- "watch BMC, BMCAction" --> K
  S -- "live sensors and SEL" --> A
  A -- "BMCAction: shutdown,<br>restart (in-band)" --> B
  S -- "BMCAction: power on<br>(Redfish / IPMI-over-LAN)" --> B
  U[Dashboard / MCP clients] -- "OIDC or bearer token" --> S
  C[kubectl bmc] -- "kubeconfig" --> K

Agent. Runs privileged on every node and polls the local BMC with read-only ipmitool commands on three schedules. When actions are enabled, it also executes shutdown, restart, power cycle, identify and ClearSEL requests for its own node.

The agent keeps the load on the API server and etcd low:

• Liveness is reported by renewing a small coordination.k8s.io Lease per node, as kubelet does for nodes, instead of rewriting the BMC status.
• The BMC status is written only when health, problems, conditions or inventory change, when a reading leaves its deadband (power ±20% or 100 W, inlet temperature ±3 °C, SEL usage ±5 points), or every 10 minutes. Sensor counts are refreshed with the readings. The agent patches against the last written object without reading it first.
• New problems are reported immediately, but a problem is removed only after it has been clear for 5 minutes, so sensors oscillating around a threshold do not cause repeated writes.
• Complete sensor lists and SEL entries are served by the agent on request and never stored in etcd.

In steady state each node causes about one status write per 10 minutes plus one Lease renewal per minute. kube_bmc_status_writes_total{reason} reports the write rate.

Server. Serves the dashboard, the JSON API and the MCP endpoint, authenticates users, and runs the controller that executes BMCAction objects. It is stateless and reads through an informer cache.

kubectl plugin. Reads BMC and BMCAction objects directly and fetches live data from the agents through the API server's pod proxy, using the caller's kubeconfig.

Power actions, the identify light and clearing the System Event Log are requested as BMCAction objects:

apiVersion: bmc.kube-bmc.io/v1alpha1
kind: BMCAction
metadata:
  generateName: gpu-01-forcerestart-
spec:
  bmcName: gpu-01
  action: ForceRestart
  requestedBy: oidc:alice@example.com
  reason: kernel hang, node unreachable
status:
  phase: Succeeded            # Pending, Running, Succeeded, Failed or Rejected
  message: ForceRestart sent to the local BMC through /dev/ipmi0
  powerStateBefore: "On"

Who executes an action depends on whether it can be done from the node itself:

If the agent does not claim a power action within 30 seconds, because the node is down, the server executes it out-of-band when credentials are configured, and rejects it otherwise. Every action is executed at most once and recorded as an Event on the Node. spec.requestedBy is set to the authenticated user by the server (dashboard and MCP) and by kubectl-bmc.

Actions are disabled by default. To enable them:

helm upgrade kube-bmc oci://ghcr.io/aireet/charts/kube-bmc -n kube-bmc-system --reuse-values \
  --set server.actions.enabled=true

SEL archives can be listed and read with the kubectl plugin:

kubectl bmc sel-archives host002
kubectl bmc sel-archives host002 --show sel-host002-20261006-090000

For power on, also provide BMC credentials, and make sure the server can reach the BMC network:

kubectl -n kube-bmc-system create secret generic bmc-credentials \
  --from-literal=username=kube-bmc --from-literal=password='...'
helm upgrade kube-bmc oci://ghcr.io/aireet/charts/kube-bmc -n kube-bmc-system --reuse-values \
  --set server.credentials.existingSecret=bmc-credentials

The BMC address is discovered in-band. To override it, or to use per-server credentials or IPMI instead of Redfish, edit the BMC spec (see examples/bmc-override.yaml). Finished actions are deleted after server.actions.ttl (seven days by default). BMCAction objects are about 1 KB and only created on request; SEL archives are gzip-compressed, typically a few tens of KB.

kube-bmc is intended for the team that operates the cluster: it authenticates callers and records who requested each action, and every authenticated user has full access.

# Password mode
auth:
  mode: password
  existingSecret: kube-bmc-auth   # keys: session-secret, htpasswd

# OIDC mode
server:
  externalURL: https://kube-bmc.example.com
auth:
  mode: oidc
  existingSecret: kube-bmc-auth   # keys: session-secret, client-secret
  oidc:
    issuerURL: https://login.example.com
    clientID: kube-bmc

docs/authentication.md describes both modes step by step, with guides for common identity providers and troubleshooting.

$ kubectl bmc list
$ kubectl bmc describe server131
$ kubectl bmc sensors server131 --problems
$ kubectl bmc events server131 --grep fan
$ kubectl bmc power server131 ForceRestart --reason "kernel hang" --wait
$ kubectl bmc locate server131            # identify light on; --off turns it off
$ kubectl bmc clear-sel server131 --reason "log full"
$ kubectl bmc actions

Download kubectl-bmc from the releases and place it on your PATH. See docs/kubectl.md.

Agents expose Prometheus metrics on port 9580. Every metric carries a node label. Set metrics.podMonitor.enabled=true to create a PodMonitor.

Example alerting rules: examples/prometheus-rules.yaml. A Grafana dashboard is included; see docs/grafana.md.

• The agent runs privileged because opening /dev/ipmi0 requires it. For monitoring it only issues read-only commands (mc info, mc guid, lan print, fru print, chassis status, sdr, sensor, sel info, sel elist, sel get, dcmi power reading, and reading LAN parameters with raw 0x0c 0x02). It runs chassis power, chassis identify and sel clear only for BMCActions of its own node, and only when actions are enabled.
• The server runs as non-root with a read-only root filesystem and no capabilities. It reads Secrets only in its own namespace.
• Without authentication (auth.mode=none) everyone who can reach the server has full access, including power actions when they are enabled. Use password or oidc for any exposed deployment.
• IPMI-over-LAN has known weaknesses. Keep BMC networks isolated and prefer Redfish.

Report vulnerabilities as described in SECURITY.md.

All chart values are documented in charts/kube-bmc/values.yaml.

make ui         # build the dashboard into web/dist
make build      # build bin/kube-bmc and bin/kubectl-bmc
make test       # unit tests
make lint       # golangci-lint and vue-tsc
make generate   # deepcopy functions and CRDs after changing api/
make dev        # dashboard with hot reload against a port-forwarded server on :8080

See CONTRIBUTING.md.

The hardware access of kube-bmc is available as Go packages without Kubernetes dependencies:

c := ipmi.New(ipmi.Tool{}) // the BMC of this host, through /dev/ipmi0
sensors, err := c.Sensors(ctx)

err = bmc.Power(ctx, bmc.Endpoint{Address: "10.0.0.7", Username: "admin", Password: pw}, bmc.PowerCycle)

inv, err := hardware.Read(ctx)

The packages follow the version of kube-bmc. Until 1.0, minor releases may change their API; changes are listed in the changelog.

• Governance and maintainers
• Design proposals
• Code of Conduct (CNCF Code of Conduct)
• Security policy, including how to verify signed releases
• Adopters

Apache 2.0
