GTR 🏎️💨
Gated Token Recurrence for Efficient Dense Prediction
Zhe Feng1,2,3, Longfei Liu2, Wei Liu1, Kai Chen5, Jiangang Kong1, Wei Zhou1, Yifeng Qian5, Dexiong Chen4, Xuanlong Yu2, Xi Shen2 📧
1 Didi International Business Group,
2 Intellindust AI Lab,
3 Institute of Automation, Chinese Academy of Sciences,
4 The Hong Kong University of Science and Technology (Guangzhou),
5 Didi Research
(📧) corresponding author, shenxiluc@gmail.com

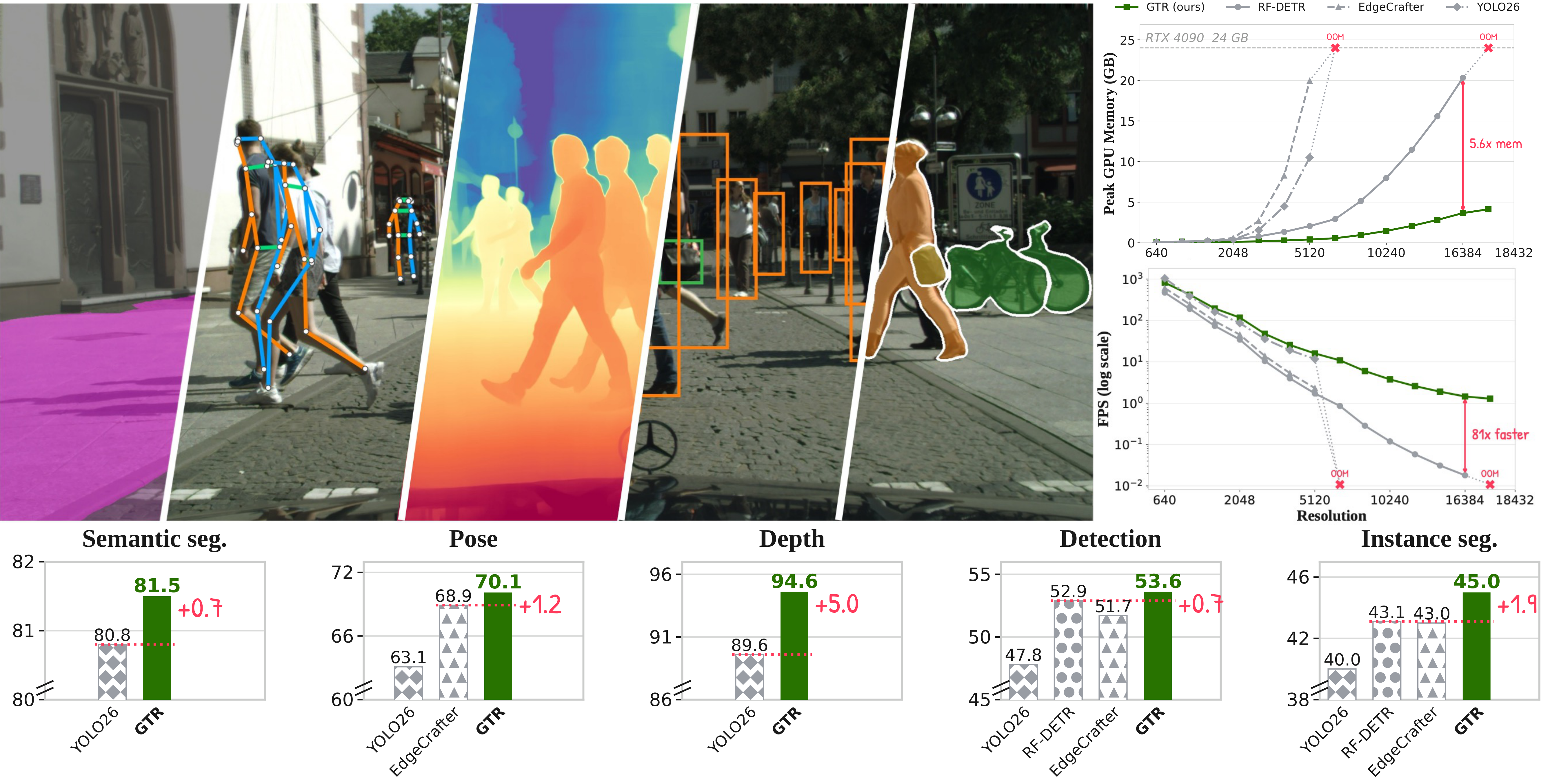

We introduce Gated Token Recurrence (GTR), a softmax-free recurrent vision backbone that combines gated linear attention, alternating spatial scan directions, and spatially enhanced SwiGLU blocks. GTR models deliver strong dense predictions across segmentation, pose, depth, and detection, while scaling efficiently to high-resolution inputs.

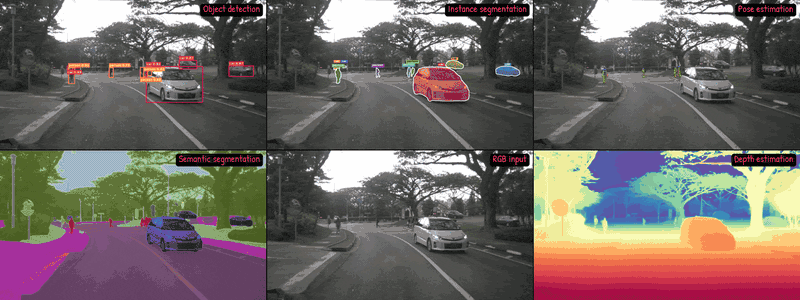

One GTR backbone, five dense prediction tasks on the same driving clip: object detection, instance segmentation, pose estimation, semantic segmentation and metric depth.

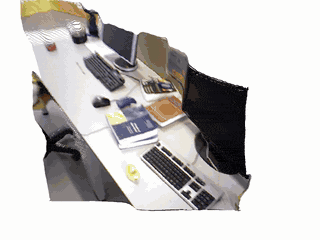

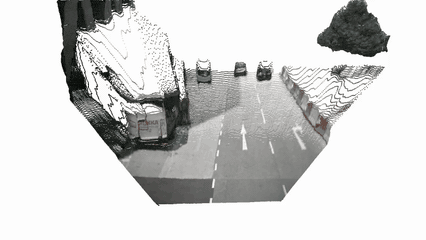

Metric depth predicted by GTR, unprojected into a 3D point cloud: an outdoor driving scene (left) and an indoor scene (right).
🔥 Changelog
- [2026-09-27] 🥳 GTR has been integrated into LibreYOLO.
📚 Table of Contents
- Overview
- Chunkwise CUDA Operator
- Getting Started
- Model Zoo
- Evaluation
- Training
- Inference and Benchmarks
- TensorRT Deployment
- Acknowledgements
- Citation
Overview

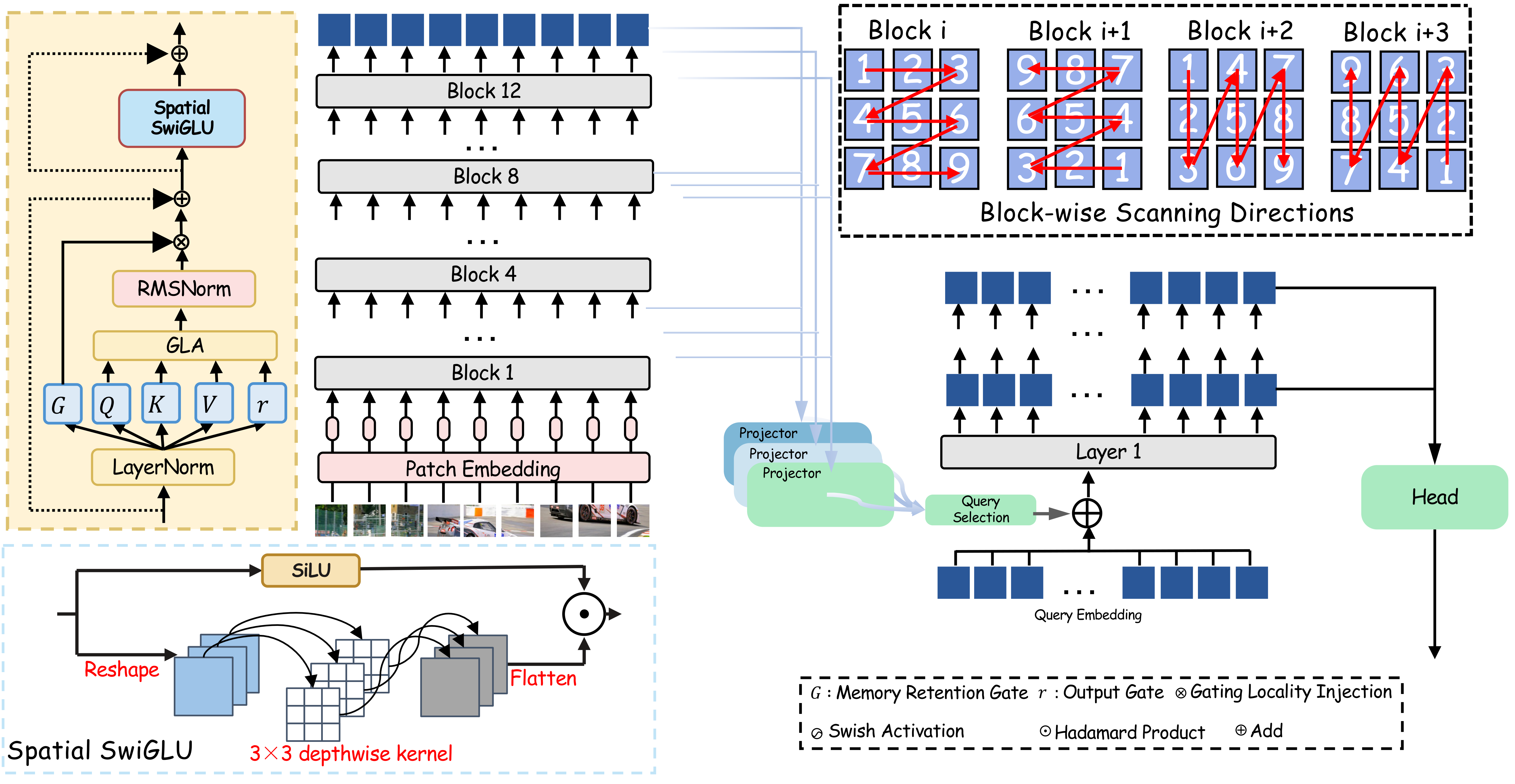

Each backbone block combines GLA with Spatial SwiGLU, whose 3×3 depthwise convolution mixes neighboring patch tokens in the value branch. The 12-layer backbone alternates two-dimensional scan directions and exposes intermediate features to a lightweight three-scale projector. A query-based head decodes the resulting feature pyramid.
Chunkwise CUDA operator

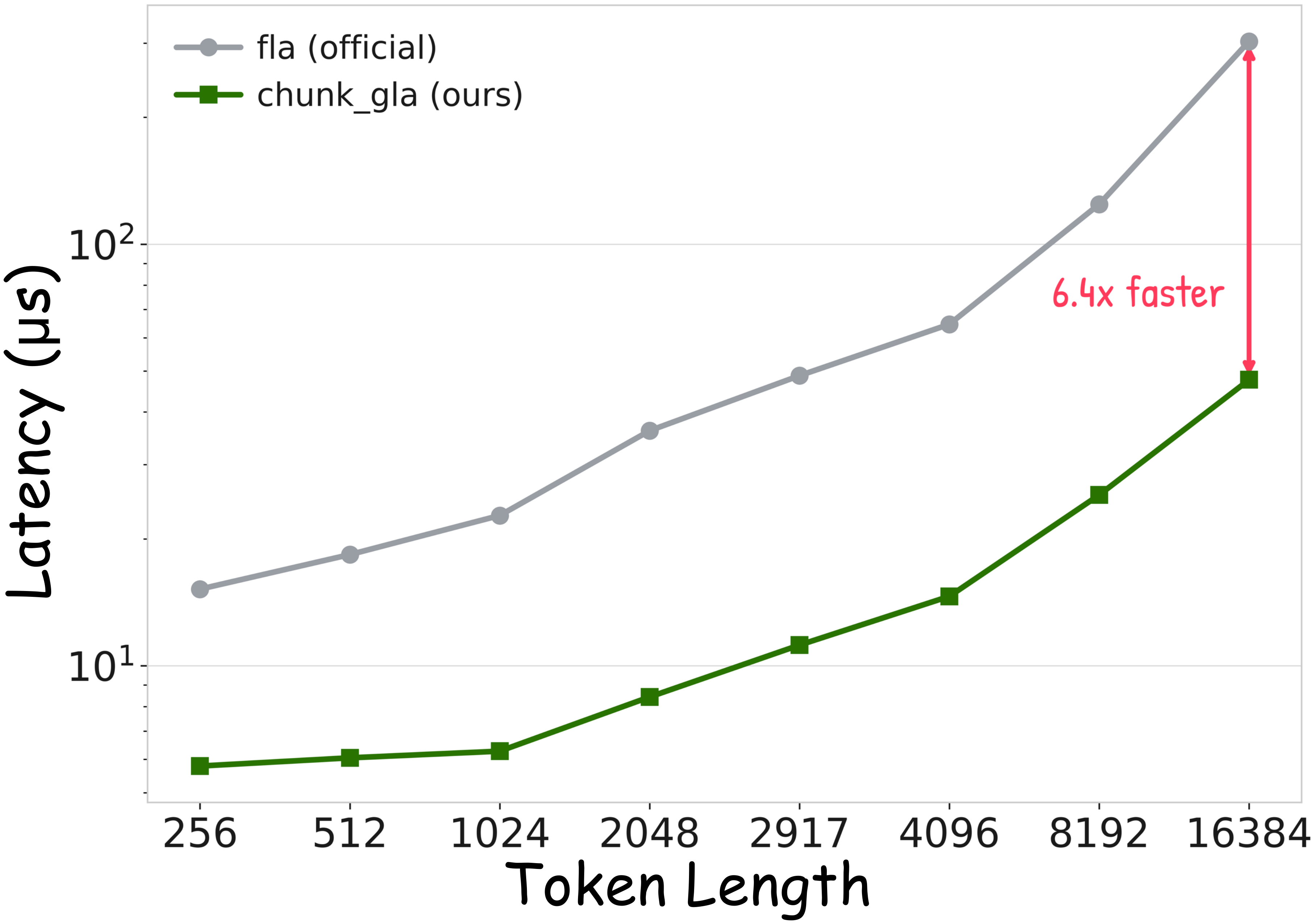

Isolated GLA operator latency on RTX 4090 (log scale), comparing FLA v0.5.0 with our inference-only
operator under FP16 inputs and CUDA Graph execution. The source is in
engine/gtr/backbone/csrc.
Getting Started
Prepare Environment
Reference environment: Python 3.11, CUDA 12.8, PyTorch 2.11.0.
git clone https://github.com/Intellindust-AI-Lab/GTR.git && cd GTR
Install Packages
pip install -r requirements.txt
bash engine/gtr/backbone/csrc/build.sh # optional: fused CUDA GLA kernel used for the latency numbersWithout the CUDA extension (or with GTR_DISABLE_CUDA_GLA=1) the backbone falls back to the
flash-linear-attention Triton kernel.
Prepare Data
The dataset configs in configs/dataset/ expect the following layout under ./dataset:
dataset/
├── coco/{train2017,val2017,annotations}
├── cityscapes/{leftImg8bit,gtFine,train.txt,val.txt}
├── nyu/{nyu_depth_v2_labeled.mat,splits.mat}
└── DOTA/...
Model zoo
All checkpoints live in one Hugging Face repository: GTR. Fetch everything with
hf download Phoenix8125/GTR --local-dir weights
Every task checkpoint stores both the raw weights (model) and the EMA weights (ema). All
reported numbers are evaluated with the EMA weights, which is what --test-only uses.
Latency is the median single-image FP16 forward time on one RTX 4090 (see the paper for the
full protocol).
Object detection — COCO val2017, 640×640
| Model | Params (M) | GFLOPs | Latency (ms) | AP | AP50 | AP75 | APS | APM | APL | Config | Weights |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GTR-S | 12.1 | 33.8 | 1.225 | 53.6 | 71.1 | 58.3 | 36.4 | 58.3 | 70.2 | yml | gtr_s_coco.pth |
| GTR-M | 22.7 | 62.6 | 1.462 | 57.3 | 75.0 | 62.4 | 41.1 | 62.0 | 74.1 | yml | gtr_m_coco.pth |
| GTR-L | 37.2 | 106.0 | 1.908 | 58.9 | 76.8 | 64.3 | 42.4 | 64.0 | 76.0 | yml | gtr_l_coco.pth |
| GTR-X | 46.5 | 130.2 | 2.115 | 59.4 | 77.3 | 64.7 | 42.1 | 64.6 | 76.4 | yml | gtr_x_coco.pth |
Instance segmentation — COCO val2017, 640×640 (mask AP)
| Model | Params (M) | GFLOPs | Latency (ms) | AP | AP50 | AP75 | APS | APM | APL | Config | Weights |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GTR-S | 12.6 | 46.8 | 1.465 | 45.0 | 67.9 | 48.3 | 23.8 | 48.4 | 65.9 | yml | gtrseg_s_coco.pth |
| GTR-M | 23.6 | 84.2 | 1.807 | 47.7 | 71.3 | 51.6 | 27.7 | 51.3 | 69.3 | yml | gtrseg_m_coco.pth |
| GTR-L | 38.1 | 127.6 | 2.250 | 49.5 | 73.5 | 53.6 | 28.5 | 53.5 | 71.3 | yml | gtrseg_l_coco.pth |
| GTR-X | 47.4 | 151.6 | 2.472 | 49.8 | 74.2 | 53.8 | 28.5 | 53.7 | 71.4 | yml | gtrseg_x_coco.pth |
Human pose estimation — COCO val2017 keypoints, 640×640
| Model | Params (M) | GFLOPs | Latency (ms) | AP | AP50 | AP75 | APM | APL | AR | Config | Weights |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GTR-S | 11.9 | 37.0 | 1.455 | 70.1 | 89.7 | 76.8 | 62.6 | 81.1 | 76.1 | yml | gtrpose_s_coco.pth |
| GTR-M | 22.8 | 69.8 | 1.860 | 74.1 | 91.5 | 80.7 | 67.5 | 84.1 | 79.6 | yml | gtrpose_m_coco.pth |
| GTR-L | 38.4 | 115.5 | 2.328 | 74.7 | 91.9 | 81.6 | 68.3 | 84.5 | 79.9 | yml | gtrpose_l_coco.pth |
| GTR-X | 47.6 | 142.9 | 2.590 | 75.5 | 92.4 | 81.8 | 69.1 | 85.3 | 80.7 | yml | gtrpose_x_coco.pth |
Semantic segmentation — Cityscapes val, 1024×1024 sliding window
| Model | Params (M) | GFLOPs | Latency (ms) | mIoU | Config | Weights |
|---|---|---|---|---|---|---|
| GTR-S | 6.9 | 82.8 | 1.495 | 81.5 | yml | gtrsemseg_s_cityscapes.pth |
| GTR-M | 12.9 | 153.0 | 1.970 | 83.0 | yml | gtrsemseg_m_cityscapes.pth |
| GTR-L | 25.0 | 258.7 | 2.958 | 83.2 | yml | gtrsemseg_l_cityscapes.pth |
| GTR-X | 32.2 | 317.1 | 3.482 | 83.6 | yml | gtrsemseg_x_cityscapes.pth |
Monocular depth estimation — NYU Depth V2, Eigen test split
🔴 GTR performs metric depth estimation and directly predicts depth in meters.
Six test-time views and a per-image log-affine fit to ground truth, no NYU fine-tuning
(tools/eval_nyu_depth.py).
| Model | Params (M) | GFLOPs | Latency (ms) | δ1 ↑ | AbsRel ↓ | RMSE ↓ | Config | Weights |
|---|---|---|---|---|---|---|---|---|
| GTR-S | 11.5 | 65.0 | 1.296 | 0.946 | 0.074 | 0.336 | yml | gtrdepth_s.pth |
| GTR-M | 19.4 | 93.2 | 1.508 | 0.952 | 0.069 | 0.319 | yml | gtrdepth_m.pth |
| GTR-L | 33.9 | 136.6 | 1.948 | 0.951 | 0.069 | 0.328 | yml | gtrdepth_l.pth |
| GTR-X | 41.1 | 159.4 | 2.158 | 0.954 | 0.067 | 0.317 | yml | gtrdepth_x.pth |
Oriented object detection — DOTA-v1.0 test (evaluation server), 1024×1024
| Model | Params (M) | GFLOPs | Latency (ms) | AP50 | Config | Weights |
|---|---|---|---|---|---|---|
| GTR-S | 12.1 | 82.8 | 1.946 | 80.0 | yml | gtrobb_s_dota.pth |
| GTR-X | 46.3 | 324.0 | 3.960 | 81.3 | yml | gtrobb_x_dota.pth |
Pre-trained weights
| Scale | Objects365 detector |
|---|---|
| S | gtr_s_obj365.pth |
| M | gtr_m_obj365.pth |
| L | gtr_l_obj365.pth |
| X | gtr_x_obj365.pth |
Evaluation
Per-task evaluation commands
train.py --test-only -r <checkpoint> evaluates the EMA weights of a checkpoint:
# detection / instance segmentation / pose / semantic segmentation python train.py -c configs/det/coco_finetune/gtr_s.yml --test-only -r weights/det/gtr_s_coco.pth python train.py -c configs/seg/coco_seg_finetune/gtrseg_s.yml --test-only -r weights/seg/gtrseg_s_coco.pth python train.py -c configs/pose/coco_pose_finetune/gtrpose_s.yml --test-only -r weights/pose/gtrpose_s_coco.pth python train.py -c configs/semseg/cityscapes_finetune/gtrsemseg_s.yml --test-only -r weights/semseg/gtrsemseg_s_cityscapes.pth # monocular depth on NYU Depth V2 (paper protocol) python tools/eval_nyu_depth.py -c configs/depth/pretrain/gtrdepth_s.yml -r weights/depth/gtrdepth_s.pth # DOTA-v1.0 test: writes the Task1 files to upload to the evaluation server python tools/dota_submit.py -c configs/obb/dota_finetune/gtrobb_s.yml -r weights/obb/gtrobb_s_dota.pth \ --weights ema --img-dir <test patches> --out-dir outputs/dota_submit/gtrobb_s
Training
Launch script, staged initialisation and per-task commands
train.sh launches torchrun on the visible GPUs, logs to the output folder and auto-resumes
from the newest checkpoint found there:
CONFIG=configs/det/coco_finetune/gtr_s.yml ./train.sh -t weights/init/gtr_s_obj365_full_raw.pth
All released models were trained on 8 GPUs in pure FP32 with TF32 matmul/conv enabled
(use_amp: False, GTR_TF32=1, the defaults of train.sh) and with the global batch size written
in each config. Seed 0 everywhere except pose, which used SEED=1.
Staged initialisation
Every stage starts from the raw (model, non-EMA) weights of the previous stage, passed to
train.py with -t. Since -t uses the EMA weights when available, we first re-pack the raw checkpoint with tools/export_init_weights.py:
| Stage | Initialised from | How to build the -t file |
|---|---|---|
| COCO detection | Objects365 detector, whole model | --ckpt weights/obj365/gtr_s_obj365.pth |
| COCO instance segmentation | COCO detector, whole model | --ckpt weights/det/gtr_s_coco.pth |
| COCO pose | COCO detector, backbone only | --ckpt weights/det/gtr_s_coco.pth --backbone-only |
| Cityscapes semantic segmentation | Objects365 detector, backbone only | --ckpt weights/obj365/gtr_s_obj365.pth --backbone-only |
| DOTA oriented detection | Objects365 detector, backbone only | --ckpt weights/obj365/gtr_s_obj365.pth --backbone-only |
| Depth | Objects365 detector | pass weights/obj365/gtr_s_obj365.pth to -t directly |
python tools/export_init_weights.py --ckpt weights/obj365/gtr_s_obj365.pth \
--out weights/init/gtr_s_obj365_full_raw.pth
python tools/export_init_weights.py --ckpt weights/obj365/gtr_s_obj365.pth \
--out weights/init/gtr_s_obj365_backbone_raw.pth --backbone-onlyCommands
CONFIG=configs/det/coco_finetune/gtr_s.yml ./train.sh -t weights/init/gtr_s_obj365_full_raw.pth CONFIG=configs/seg/coco_seg_finetune/gtrseg_s.yml ./train.sh -t weights/init/gtr_s_coco_full_raw.pth CONFIG=configs/pose/coco_pose_finetune/gtrpose_s.yml SEED=1 ./train.sh -t weights/init/gtr_s_coco_backbone_raw.pth CONFIG=configs/semseg/cityscapes_finetune/gtrsemseg_s.yml ./train.sh -t weights/init/gtr_s_obj365_backbone_raw.pth CONFIG=configs/obb/dota_finetune/gtrobb_s.yml ./train.sh -t weights/init/gtr_s_obj365_backbone_raw.pth CONFIG=configs/depth/pretrain/gtrdepth_s.yml ./train.sh -t weights/obj365/gtr_s_obj365.pth
Replace _s with _m, _l or _x for the other scales. The released checkpoint of each run is
its last epoch, except oriented detection (GTR-S: epoch 11 of 20, GTR-X: epoch 13 of 30).
Inference and benchmarks
Single-image inference, FLOPs and latency
python tools/inference/torch_inf.py -c configs/det/coco_finetune/gtr_s.yml -r weights/det/gtr_s_coco.pth -i image.jpg python tools/benchmark/flops.py --config configs/det/coco_finetune/gtr_s.yml python tools/benchmark/torch_speed.py --configs configs/det/coco_finetune/gtr_s.yml --dtype fp16
TensorRT deployment🚀
TensorRT support lives in tensorrt_plugin/. It includes ONNX export, fp32/fp16 engine builds with trtexec, and PyTorch-vs-TensorRT checks. GLA is handled by a TensorRT plugin backed by the CUDA kernels in engine/gtr/backbone/csrc.
More details are in tensorrt_plugin/README.md.
Acknowledgements💗
This code base builds on EdgeCrafter, RF-DETR, DPT, RiO-DETR and flash-linear-attention.
We thank Zhangchi Hu for helpful suggestions on the oriented object detection task.
Citation
If you find GTR useful in your research or applications, please consider giving us a star ⭐ and citing it by the following BibTeX entry.
@article{gtr2026feng, title = {GTR: Gated Token Recurrence for Efficient Dense Prediction}, author = {Feng, Zhe and Liu, Longfei and Liu, Wei and Chen, Kai and Kong, Jiangang and Zhou, Wei and Qian, Yifeng and Chen, Dexiong and Yu, Xuanlong and Shen, Xi}, journal = {arXiv preprint arXiv:2609.26590}, year = {2026} }
