AhmadHassan-BTed/Jantt

Where human intuition meets declarative AI planning.

Turn any declarative JSON document into a high-performance, interactive, draggable Gantt chart.
Zero runtime dependencies. 100% pure TypeScript.
Runs everywhere: Plain HTML, React, Next.js, Node.js CLI, and autonomous AI toolchains.

Designed from the ground up for:

• Autonomous AI Agents & LLMs — Declarative JSON schema contract eliminates UI hallucinations; models generate timeline data with 10x fewer tokens than fragile JSX code.
• Students, Hobbyists & Creators — Lightweight, beautiful Swiss Noir dark mode, intuitive drag-and-drop, touch gestures, and instant local storage persistence.
• Engineering Teams & Program Directors — Operations Research Critical Path solver, EVM (Earned Value Management), DCMA-14 schedule health audits, and multi-user CRDT collaboration with secure role-based permissions.

Live Playground • JSON Cheatsheet • Architecture • Schema Specification • API Docs • Roadmap • Changelog

Why Jantt? The Declarative Revolution

The 4 Superpowers of Jantt

Visual Showcase & Curated Themes

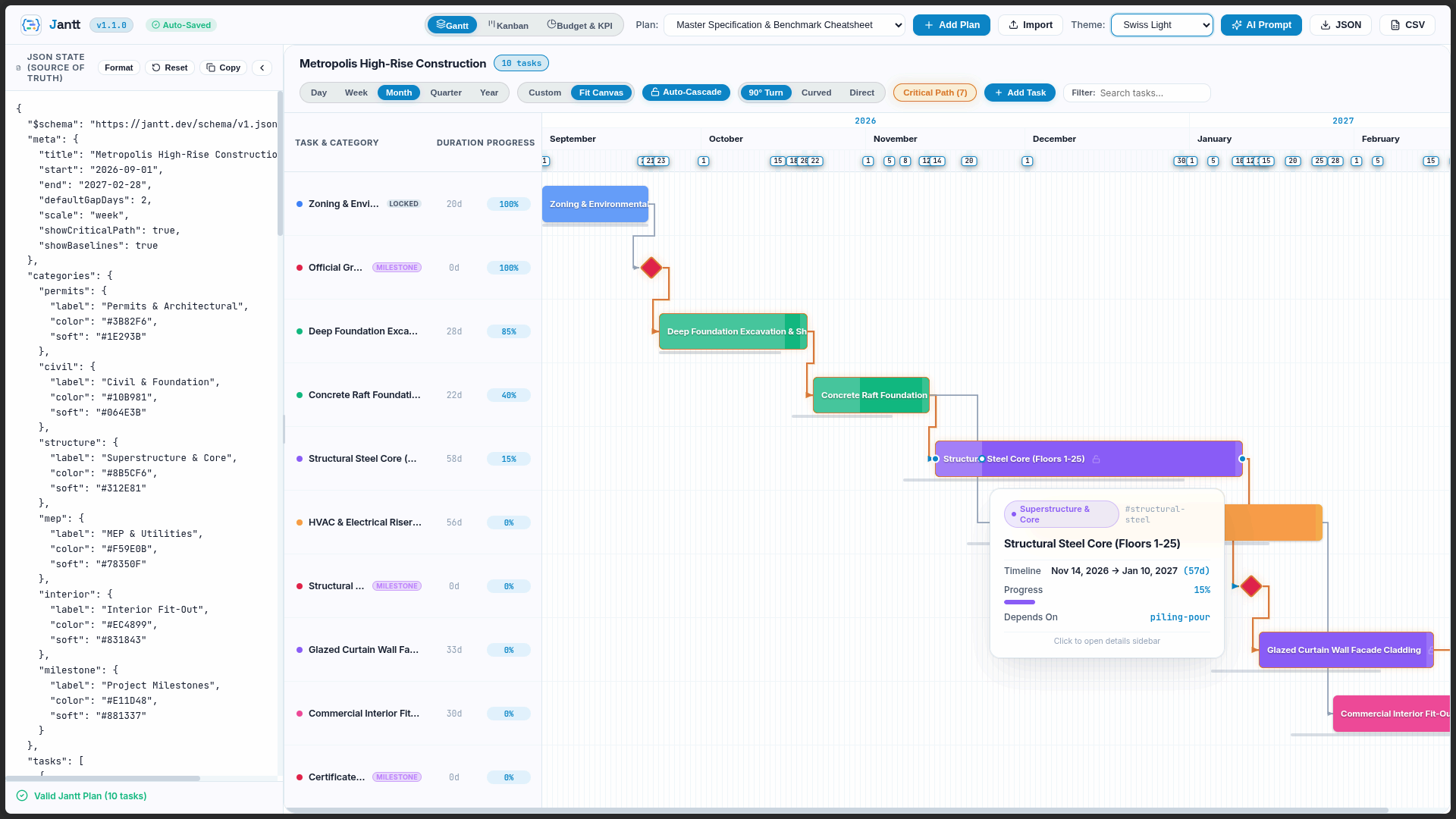

Daylight clarity, high contrast typography, and subtle glassmorphic tooltips.

Sleek obsidian palette with glowing critical path indicators and 90° right-angle routing.

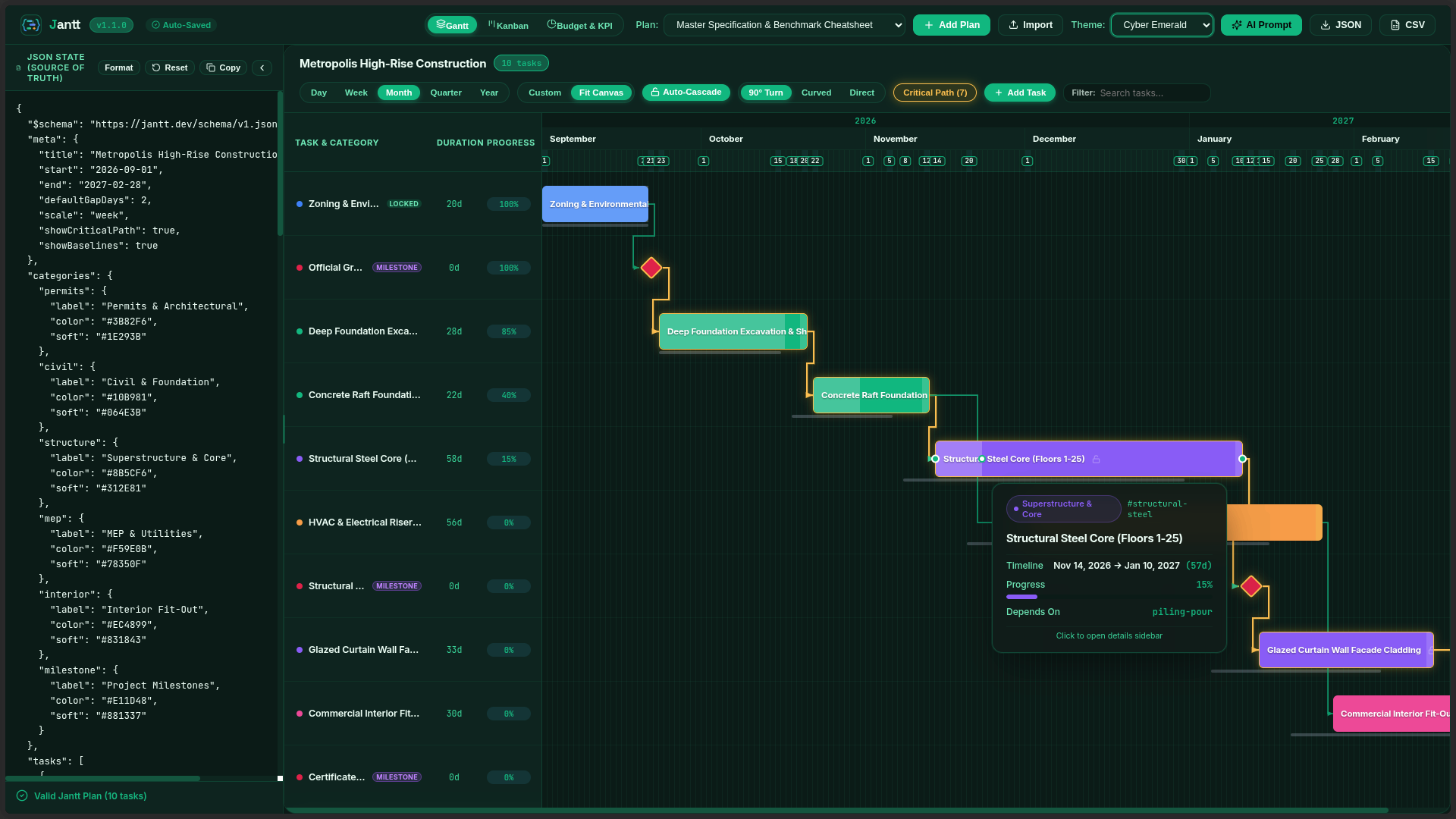

Color Theme Gallery

Comparison Matrix

60-Second Quickstart

1. React Integration (@jantt/react)

npm install @jantt/react @jantt/core

import { Jantt } from "@jantt/react";
import "@jantt/react/dist/index.css";

const projectData = {
  tasks: [
    { id: "t1", label: "Architecture RFC", category: "core", start: "2026-09-01", end: "2026-09-14", progress: 1.0 },
    { id: "t2", label: "Core Implementation", category: "core", start: "2026-09-15", end: "2026-10-15", dependsOn: "t1" }
  ],
  categories: {
    core: { label: "Core Engineering", color: "#38BDF8" }
  }
};

export default function Timeline() {
  return <Jantt data={projectData} theme="swiss-dark" />;
}

2. Plain HTML / Script Tag (@jantt/standalone)

<script src="https://unpkg.com/@jantt/standalone"></script>
<link rel="stylesheet" href="https://unpkg.com/@jantt/standalone/dist/jantt.css" />

<div id="timeline" style="width: 100vw; height: 100vh;"></div>

<script>
  JanttStandalone.render("#timeline", projectData, { theme: "swiss-dark" });
</script>

AI Agent Workbench & Schema Cheatsheet

AI-Native Ideology: Stop Asking AI to Write Fragile Timeline Code

Schema Contract: https://raw.githubusercontent.com/AhmadHassan-BTed/Jantt/main/schema/jantt.schema.json (v1.4.0)

LLM System Prompt

You are a precision project management schedule generator.
Output ONLY raw, valid JSON conforming strictly to the Jantt JSON Schema (https://raw.githubusercontent.com/AhmadHassan-BTed/Jantt/main/schema/jantt.schema.json).

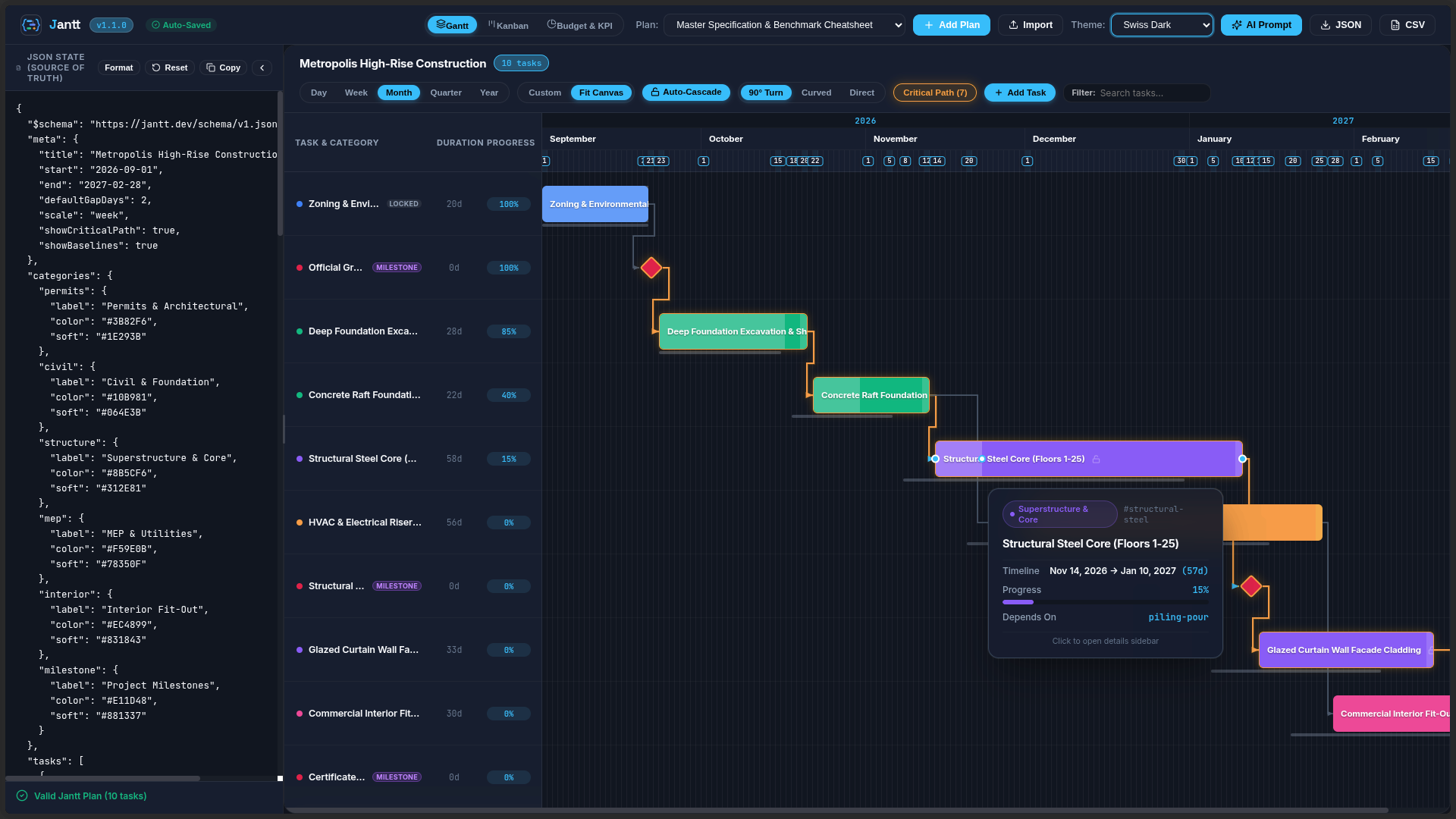

# JANTT JSON SCHEMA BENCHMARK & SPECIFICATION CHEATSHEET (v1.4.0)

## 1. Top-Level Root Structure
{
  "$schema": "https://raw.githubusercontent.com/AhmadHassan-BTed/Jantt/main/schema/jantt.schema.json",
  "meta": {
    "title": "<Project Title>",
    "description": "<Project narrative and objectives>",
    "person": "<Lead Program Manager / Owner>",
    "organization": "<Enterprise / Organization Name>",
    "start": "YYYY-MM-DD",
    "end": "YYYY-MM-DD",
    "defaultGapDays": 2,
    "scale": "day" | "week" | "month" | "quarter" | "year",
    "linkRouting": "orthogonal" | "curved" | "direct",
    "showCriticalPath": true,
    "showBaselines": true,
    "autoCascade": true,
    "currency": "USD",
    "budget": 450000,
    "version": "1.4.0"
  },
  "categories": {
    "<category_id>": {
      "label": "<Category Display Name>",
      "color": "#HEX_COLOR",
      "soft": "#BG_TINT_HEX",
      "icon": "<lucide_icon_name>"
    }
  },
  "people": [
    {
      "id": "@alex",
      "name": "Alex Mercer",
      "username": "@alex",
      "role": "Lead Architect",
      "email": "alex@org.com",
      "teamId": "core-team",
      "color": "#3B82F6"
    },
    {
      "id": "person-contractor",
      "name": "Sarah Miller",
      "role": "External Specialist",
      "teamId": "core-team",
      "color": "#10B981"
    }
  ],
  "teams": [
    {
      "id": "core-team",
      "name": "Core Platform Squad",
      "color": "#3B82F6",
      "description": "Backend services and architecture"
    }
  ],
  "notes": [
    {
      "id": "note-unique-id",
      "title": "Architecture RFC & Specs",
      "content": "Detailed markdown requirements, meeting minutes, and acceptance criteria.",
      "color": "#3B82F6",
      "pinned": true,
      "category": "Architecture",
      "tags": ["RFC", "Architecture"],
      "task_ids": ["task-1"],
      "updatedBy": "@alex",
      "createdAt": "YYYY-MM-DDTHH:mm:ssZ",
      "updatedAt": "YYYY-MM-DDTHH:mm:ssZ"
    }
  ],
  "documents": [
    {
      "id": "doc-unique-id",
      "label": "<Document or Deliverable Title>",
      "status": "have" | "pending" | "missing",
      "owner": "<Owner Name>",
      "url": "<Documentation Link>",
      "note": "<Review notes / status>"
    }
  ],
  "tasks": [
    {
      "id": "task-unique-id",
      "wbs": "1.1",
      "label": "Task Name / Title",
      "category": "<matching_category_id>",
      "start": "YYYY-MM-DD",
      "end": "YYYY-MM-DD",
      "assignee": "@alex",
      "phase": "Phase 1: Foundation",
      "priority": "low" | "medium" | "high" | "urgent",
      "estimatedCost": 28000,
      "actualCost": 15000,
      "dependsOn": "prereq-id" | ["prereq-1", "prereq-2"] | null,
      "gapDays": 2,
      "locked": false,
      "progress": 0.75,
      "milestone": false,
      "status": "not-started" | "in-progress" | "submitted" | "completed" | "blocked",
      "urgent": false,
      "color": "#EC4899",
      "baseline": {
        "start": "YYYY-MM-DD",
        "end": "YYYY-MM-DD"
      },
      "notes": "Detailed task description, acceptance criteria, and technical specs.",
      "fields": {
        "jira": "JANTT-101",
        "storyPoints": 13,
        "repo": "github.com/org/repo",
        "deliverable": "schemas/v1.json"
      }
    }
  ]
}

## 2. Critical Constraints & Validation Rules:
1. DATES: All dates must be ISO "YYYY-MM-DD" format. "end" must be >= "start".
2. CATEGORIES: Every task "category" must match an existing key in the "categories" dictionary.
3. DEPENDENCIES (DAG):
   - "dependsOn" can be a single task ID string, an array of strings ["t1", "t2"], or null.
   - All referenced dependency IDs must exist in the "tasks" list (no dangling references).
   - Strict Directed Acyclic Graph: NO circular dependency loops (e.g. A -> B -> C -> A).
   - Timing Sanity: A task's "start" must be on or after prerequisite "end" + gapDays.
4. MILESTONES: For zero-duration milestone gates, set "milestone": true and "start" equal to "end".
5. PROGRESS: Must be a decimal float from 0.0 (0%) to 1.0 (100%).
6. BASELINES: Optional planned timeframe object { "start": "YYYY-MM-DD", "end": "YYYY-MM-DD" } for baseline variance tracking.
7. LOCKED: Set "locked": true on fixed gates or hard-deadline milestones to prevent accidental drag shifts.
8. SINGLE SOURCE OF TRUTH & ZERO DATABASE IDS IN JSON:
   - Real registered teammates use canonical "@username" for both "id" and "username".
   - Non-account individuals are defined as offline personas (e.g. "id": "person-contractor", without "username").
   - Tasks assigned to real accounts reference the handle in "assignee": "@username".
   - NO INTERNAL DATABASE IDS OR UIDs IN JSON: Private database keys, Firebase UIDs, auth tokens, and secret keys are strictly stripped from JSON. The ONLY exception is public "@username" mentions.

Minimal JSON Template

{
  "$schema": "https://raw.githubusercontent.com/AhmadHassan-BTed/Jantt/main/schema/jantt.schema.json",
  "meta": {
    "title": "Master Delivery Plan",
    "person": "@ahmadhassan",
    "start": "2026-09-01",
    "end": "2027-02-28",
    "scale": "week",
    "linkRouting": "orthogonal",
    "showCriticalPath": true,
    "currency": "USD",
    "budget": 250000
  },
  "categories": {
    "core": { "label": "Core Dev", "color": "#38BDF8" },
    "qa": { "label": "QA & Release", "color": "#10B981" }
  },
  "tasks": [
    {
      "id": "t1",
      "wbs": "1.0",
      "label": "Engine Architecture",
      "category": "core",
      "start": "2026-09-01",
      "end": "2026-09-20",
      "progress": 1.0,
      "status": "completed",
      "assignee": "@ahmadhassan"
    },
    {
      "id": "gate-1",
      "wbs": "1.1",
      "label": "Architecture Approved",
      "category": "core",
      "start": "2026-09-21",
      "end": "2026-09-21",
      "milestone": true,
      "dependsOn": "t1"
    },
    {
      "id": "t2",
      "wbs": "2.0",
      "label": "Core Implementation",
      "category": "core",
      "start": "2026-09-23",
      "end": "2026-10-30",
      "dependsOn": "gate-1",
      "gapDays": 2,
      "progress": 0.4,
      "status": "in-progress"
    }
  ]
}

System Architecture

Interaction & Request Lifecycle

Feature Matrix & Capabilities Guide

Visual & Interactive Experience (Up Front)

Core Engine & Algorithmic Internals (Under the Hood)

Monorepo Directory Structure

Jantt/
├── packages/
│   ├── core/                  # Pure TypeScript engine (ZERO runtime dependencies)
│   │   ├── src/
│   │   │   ├── date-math.ts   # Pure UTC date math & calendar functions
│   │   │   ├── validator.ts   # Schema, cycle, and integrity validator
│   │   │   ├── resolver.ts    # Topological solver & Critical Path analysis
│   │   │   ├── layout.ts      # Multi-scale coordinate engine & 90° line router
│   │   │   ├── controller.ts  # Pointer event interaction state machine
│   │   │   ├── detail-modal.ts# Accessible task detail modal subsystem
│   │   │   ├── exporter.ts    # Client-side CSV, SVG, and JSON exporters
│   │   │   ├── renderers/     # Modular DOM presentation subsystems
│   │   │   └── index.ts       # Public package exports
│   │   └── tests/             # Vitest test suites (339/339 tests passing across 22 suites)
│   ├── react/                 # Official React component (<Jantt />)
│   └── standalone/            # UMD & IIFE script-tag bundles for plain HTML
├── cli/                       # Standalone Node.js CLI runner (npx jantt open)
├── apps/
│   └── playground/            # Split-view interactive documentation sandbox
├── assets/                    # Official vector logos & curated screenshot gallery
├── schema/
│   └── jantt.schema.json      # Formal JSON Schema v1 specification
├── examples/                  # Validated JSON planning fixtures
└── docs/                      # Technical specifications & architectural guides

Quickstarts

1. React Application (@jantt/react)

npm install @jantt/react @jantt/core

import React, { useState } from "react";
import { Jantt } from "@jantt/react";
import "@jantt/core/dist/theme.css";

const initialPlan = {
  "$schema": "https://jantt.dev/schema/v1.json",
  "meta": {
    "title": "High-Rise Construction",
    "scale": "week",
    "showCriticalPath": true,
    "showBaselines": true
  },
  "categories": {
    "civil": { "label": "Civil Engineering", "color": "#10B981" },
    "structure": { "label": "Superstructure", "color": "#8B5CF6" }
  },
  "tasks": [
    { "id": "T1", "label": "Deep Foundation Excavation", "category": "civil", "start": "2026-09-01", "end": "2026-09-20", "progress": 1.0 },
    { "id": "T2", "label": "Structural Steel Erection", "category": "structure", "start": "2026-09-22", "end": "2026-10-30", "dependsOn": "T1", "progress": 0.35 }
  ]
};

export function RoadmapView() {
  const [plan, setPlan] = useState(initialPlan);

  return (
    <div style={{ width: "100%", height: "600px" }}>
      <Jantt
        data={plan}
        viewport={{ scale: "week", showCriticalPath: true }}
        onChange={(draft) => console.log("Draft state:", draft)}
        onCommit={(finalPlan) => {
          setPlan(finalPlan);
        }}
      />
    </div>
  );
}

2. Standalone Plain HTML (@jantt/standalone)

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <link rel="stylesheet" href="https://unpkg.com/@jantt/standalone/dist/style.css">
  <script src="https://unpkg.com/@jantt/standalone/dist/jantt.standalone.iife.js"></script>
</head>
<body>
  <div id="chart-mount" style="max-width: 1200px; margin: 40px auto;"></div>

  <script>
    fetch("./roadmap.json")
      .then(res => res.json())
      .then(data => {
        window.Jantt.mount(document.getElementById("chart-mount"), data, {
          onCommit: (updatedPlan) => console.log("Saved JSON:", updatedPlan)
        });
      });
  </script>
</body>
</html>

3. Local CLI with Live Two-Way Sync (jantt)

# Open interactive browser chart with auto-save to file
npx jantt open ./examples/construction-enterprise.json

# Validate JSON file against schema from terminal
npx jantt validate ./examples/basic.json

4. Headless Core Engine (@jantt/core)

import { resolveSchedule, calculateCriticalPath, validate, exportToCsv } from "@jantt/core";

// 1. Validate payload
const validation = validate(rawJson);
if (!validation.valid) {
  console.error("Schema errors:", validation.errors);
}

// 2. Cascade topological schedules
const resolvedTasks = resolveSchedule(rawJson.tasks, 2);

// 3. Compute critical path bottleneck sequence
const { criticalTaskIds } = calculateCriticalPath(resolvedTasks);

// 4. Export to CSV spreadsheet
const csvData = exportToCsv({ ...rawJson, tasks: resolvedTasks });

JSON Schema Contract

{
  "$schema": "https://jantt.dev/schema/v1.json",
  "meta": {
    "title": "Metropolis High-Rise Construction",
    "start": "2026-09-01",
    "end": "2027-02-28",
    "defaultGapDays": 2,
    "scale": "week",
    "showCriticalPath": true,
    "showBaselines": true
  },
  "categories": {
    "civil": { "label": "Civil & Foundation", "color": "#10B981" },
    "milestone": { "label": "Project Milestones", "color": "#E11D48" }
  },
  "tasks": [
    {
      "id": "excavation",
      "label": "Deep Foundation Excavation",
      "category": "civil",
      "start": "2026-09-01",
      "end": "2026-09-20",
      "progress": 1.0,
      "baseline": { "start": "2026-09-01", "end": "2026-09-18" }
    },
    {
      "id": "foundation-pour",
      "label": "Foundation Pour Milestone",
      "category": "milestone",
      "start": "2026-09-22",
      "end": "2026-09-22",
      "milestone": true,
      "dependsOn": "excavation",
      "gapDays": 2,
      "progress": 0.0
    }
  ]
}

Real-Time Cloud Collaboration & Architecture

1. GitHub-Only Authentication (Zero Google Auth)

2. Single Source of Truth & Zero Internal Database IDs in JSON

3. Dual-Mode People & Assignee Management

4. Realtime Database Security Rules (database.rules.json)

AI Prompting Specification

You are a project timeline generator. Output only raw, valid JSON conforming strictly to the Jantt Schema (https://jantt.dev/schema/v1.json).

Rules:
1. Root must contain: "tasks": [{ "id", "label", "category", "start", "end", "dependsOn", "progress", "milestone", "baseline" }]
2. All dates must be ISO "YYYY-MM-DD"
3. All task categories must match keys declared in "categories"
4. Put custom domain metadata inside the "fields" object
5. Output ONLY raw JSON without markdown explanations.

Theming & CSS Variables Reference

:root {
  --jantt-bg: #0B111E;              /* Chart background */
  --jantt-surface: #141D2F;         /* Toolbar & left table surface */
  --jantt-surface-hover: #1A263D;   /* Row hover state */
  --jantt-border: #24324B;          /* Border lines */
  --jantt-text: #F1F5F9;            /* Primary text */
  --jantt-text-muted: #94A3B8;      /* Secondary text */
  --jantt-accent: #38BDF8;          /* Active selection & ports */
  --jantt-today: #F43F5E;           /* Today indicator line */
  --jantt-critical: #F59E0B;        /* Critical path glowing line */
  --jantt-bar-radius: 6px;          /* Task bar corner radius */
}

Keyboard Accessibility

Local Development & Contributing

# Clone the repository
git clone https://github.com/AhmadHassan-BTed/Jantt.git
cd Jantt

# Install dependencies
npm install

# Run verification test suite (339/339 passing across 22 test suites)
npm test

# Typecheck all packages
npm run typecheck

# Launch local interactive development playground
npm run dev

Author & Maintainer

License
