TinyDesk
A tiny board. A real desktop. Inside your terminal.
v0.1.5 · Developer preview.
Install it from the browser: flash an ESP32 (Chrome or Edge, no toolchain), or download the Windows and Linux programs. Then open the board in the web terminal, or in PuTTY. Full documentation. To build from source, see below.

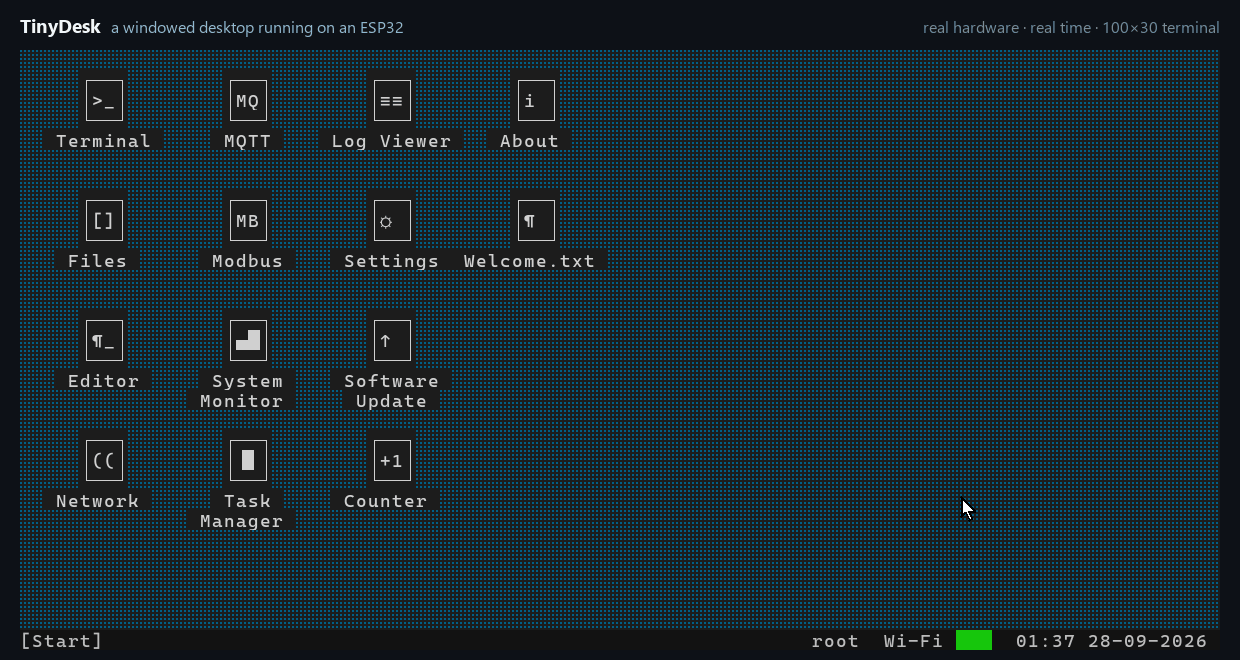

One continuous take from an ESP32 over USB serial, at normal speed: Editor, Files, System Monitor and Terminal are opened, dragged and resized side by side, then About. The board runs the desktop; the computer only displays it. Watch the MP4 or read the capture details.
TinyDesk draws overlapping, draggable text-mode windows with ANSI escape sequences and reads the keyboard and mouse back from the terminal. There is no display hardware: open a UTF-8 terminal with ANSI/VT cursor control and xterm mouse reporting (for example, configured PuTTY) on the board's serial port and you get a desktop, with a full shell, TinyDesk Shell, in a Terminal window. The core is portable C11; ports exist for ESP32 boards (ESP-IDF), Linux and Windows, and a new target needs four functions.
- Pure C11 core with no third-party dependencies. Screen buffers are allocated
at initialization; pasted text can grow a heap buffer with
realloc(). Only changed cells are sent each frame. - Runs on the ESP32-C6 (built-in USB port) and the classic ESP32 (USB-UART, 921600 baud, PSRAM boards), and natively in Windows, Linux and macOS terminals for development.
- Windows with z-order, drag, resize, minimise, maximise; taskbar, start menu, mouse and keyboard; copy and paste with the PC; screen size follows the terminal.
- Apps: Terminal (the shell), Files, Editor, Network, MQTT, Modbus (TCP and RTU), Task Manager, System Monitor, Log Viewer, Settings, Software Update (OTA), and a small API for writing your own.
- Shell scripts (
.tdsh): variables,if/while/for, functions, pipes and redirection, run from the Terminal or with right-click → Run on the desktop. Language reference:docs/SCRIPTING.mdin TinyDesk Shell. - Optional, root-only desktop takeover over unencrypted Telnet. SSH provides an encrypted shell and SFTP, not the windowed desktop. FTP, SMB mounts, Wi-Fi and W6100 Ethernet are available from the shell.
Choose a target
| Desktop target | Hardware | Console / limits |
|---|---|---|
| ESP32-C6 | 8 MB flash | Built-in USB Serial/JTAG |
| Classic ESP32 with PSRAM | 16 MB flash, PSRAM required | USB-UART, 921600 baud |
| Classic ESP32, 4 MB | PSRAM optional | USB-UART, 921600 baud; 80×25, no SSH server or OTA |
| PC | Linux, Windows with MinGW, or macOS | Compatible terminal; host simulator for development |
TinyDesk Shell also runs as
standalone firmware or a POSIX host program. Every
release has the firmware
images for both editions, the PC programs and SHA256SUMS.txt; the
web installer uses the same files.
Community ports
Maintained by their authors, not built or tested here:
| Port | Hardware | Notes |
|---|---|---|
| TinyTang by @aquasock | BL616 on the Sipeed Tang Console 138K | Desktop over USB CDC, SD card as filesystem; loads FPGA cores and ROMs from the shell |
First connection
Open the board's serial port (any speed on the ESP32-C6; 921600 baud for
the desktop on the ESP32, 115200 for the shell) and press a key. You start
as root. Run passwd locally (old password: TinyDesk) before enabling
remote access. Telnet starts disabled and requires an explicit Network
setting. Telnet, SSH and FTP refuse remote authentication while the factory
root password remains. After any Telnet takeover, physical rootrecover
requires a local reboot; disconnecting does not restore recovery privileges.
Build from source
The shell is a git submodule, so clone with --recursive:
git clone --recursive https://github.com/tinydesk-project/tinydesk.git
cd tinydesk(Already cloned without it? git submodule update --init.)
| Target | Commands |
|---|---|
| Desktop on the PC (Linux, macOS, WSL, Windows with MinGW) | cmake -B build -G Ninja && cmake --build build && ./build/tinydesk |
| ESP32-C6, ESP-IDF 5.3.1 | cd ports/esp32c6 && idf.py build && idf.py -p PORT flash |
| Classic ESP32 with PSRAM, ESP-IDF 5.3.1 | cd ports/esp32 && idf.py build && idf.py -p PORT -b 921600 flash |
| Classic ESP32, 4 MB flash, no PSRAM | cd ports/esp32-4mb && idf.py build && idf.py -p PORT -b 921600 flash |
Step-by-step instructions, terminal settings and troubleshooting are in the getting started guide.
Your board's pins
Pins are not in the code. RS-485 lines, W6100 Ethernet, the SD card and
the ESP32's console UART come from a small key = value file:
cd ports/esp32c6 cp board.example.conf board.conf # your wiring; board.conf is in .gitignore
On a running board, board set rs485.1.tx 16 (as root) does the same
without a rebuild. See
example board configuration.
Repositories
| Repository | What it is | Licence |
|---|---|---|
| tinydesk (this one) | the desktop, apps, ports and tools | MIT |
| tinydesk-shell | TinyDesk Shell (tdsh): the shell, its ESP-IDF services and host port; included here as the submodule third_party/tdsh |
MIT, with third-party parts under their own licences |
Licence
TinyDesk is released under the MIT licence.
The firmware images also contain third-party code under its own licence,
notably wolfSSH and wolfSSL (GPLv3) for the SSH/SFTP server. Firmware
built with them, including the prebuilt releases, is therefore distributed
under the terms of the GPLv3 as a whole. The source code in this repository
stays MIT. See third_party/tdsh/THIRD_PARTY_LICENSES.md
for the list.
Contributing
Bug reports and pull requests are welcome: see CONTRIBUTING.md. Security problems: please report them privately (GitHub → Security → Report a vulnerability), see SECURITY.md.
