Tools Are Not Islands: Set-Level Tool Retrieval for LLM Agents via Query-Conditioned Hyperedge Prediction

Large language model agents increasingly rely on invoking external tools to complete real-world tasks. As tool libraries scale to thousands of APIs, presenting the full library in every prompt becomes impractical, so tool retrieval remains a necessary pre-selection step. HYSET formulates retrieval as query-conditioned hyperedge prediction on a tool co-invocation hypergraph, where the candidate tool set itself becomes the unit of scoring.

• 2026-10-09 — 🥳 We are honored to have HYSET featured in The Batch (Issue 374), the AI newsletter from Andrew Ng's DeepLearning.AI, under “Pick the Right Tools for the Right Job”, alongside coverage of OpenAI's GPT-6.1 Sol, Google's Gemini 4 Argon, and Black Forest Labs' FLUX 3 Action. We sincerely thank Andrew Ng and the DeepLearning.AI editorial team for the thoughtful coverage and clear technical explanation of our work!
• 2026-07-30 — Released the arXiv preprint.
• 2026-07-25 — Published the first public release, including the HYSET core implementation, the 13,860-tool corpus, the six official ToolBench test splits, and unit tests.
• 2026-07-16 — Launched the live demo.

The paper asks two simple questions:

• Can tool sets be scored as a whole, instead of scoring each tool independently and hoping the top results fit together?
• Do tool co-invocation patterns depend on set size, so that a pair of tools may make sense in a 4-tool task but not in a 2-tool task?

The motivation is practical. For the travel-planning query in the paper, the ground-truth set is {Flight, Hotel, Weather, Currency}. A standard retriever can still rank {Flight, CheapFlight, FlightTracker, Hotel} at the top, because each flight-related API looks individually relevant. But the set is incomplete and cannot finish the task. This is exactly why set-level retrieval is necessary: the agent needs a jointly useful set, not just individually strong tools.

How HYSET Works turns this observation into a scoring problem over sets.

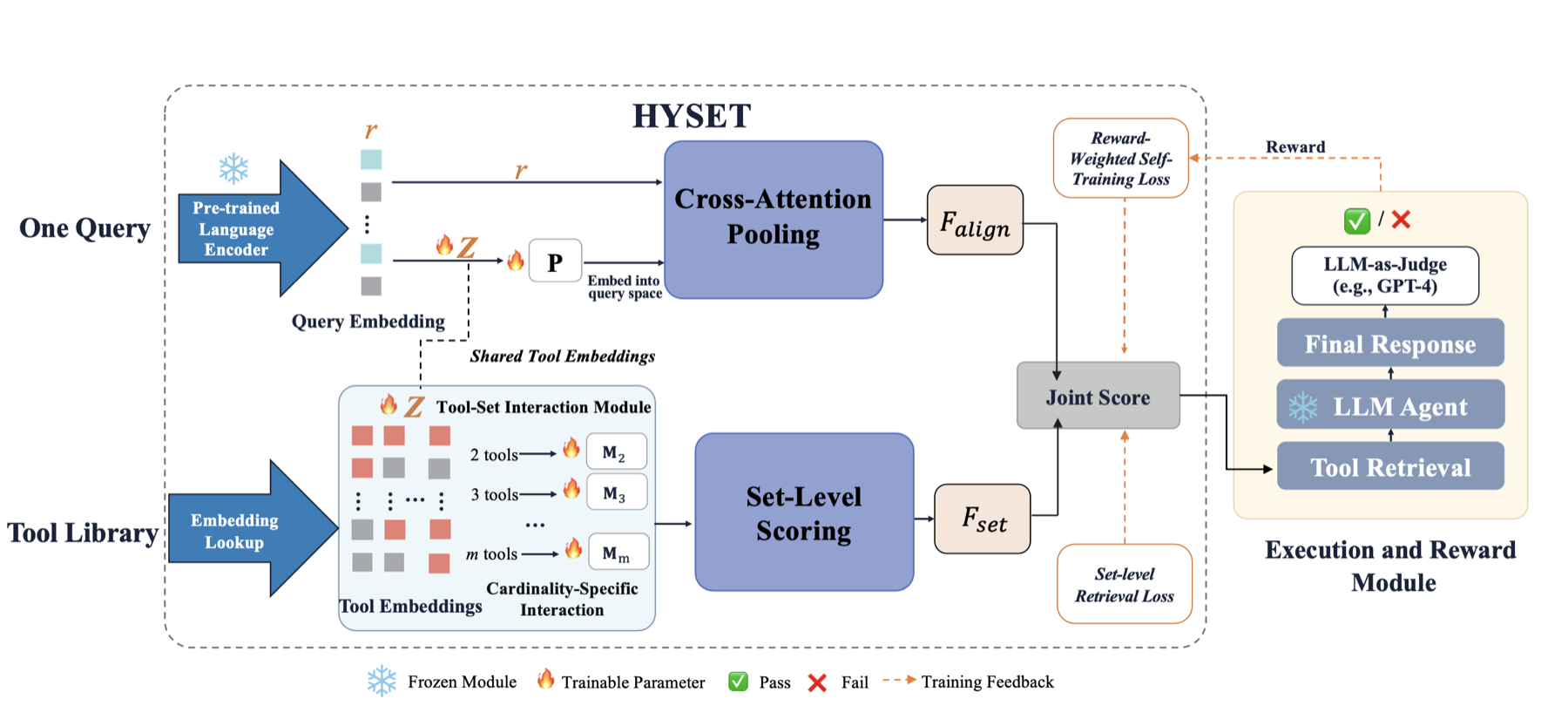

HYSET scores a candidate set E against a query x with two terms that simply add up.

F(x, E) = F_set(E) + F_align(x, E)

F_set reads the set as a hyperedge and sums the interaction of every tool pair inside it through a matrix that belongs to that particular set size. The same pair of tools can therefore count differently in a set of two and in a set of four. F_align is a query conditioned attention over the tools in the set, so a tool that matches the query well lifts the whole set. The full formulation lives in docs/method.md.

This is where HYSET answers the second question. It makes cardinality explicit. Pairs in 2-tool sets are scored with M_2. Pairs in 3-tool sets are scored with M_3. The paper’s core conclusion is precise. F_set reduces to a fixed pairwise model precisely when every pair receives the same score at all cardinalities from 2 to M. Otherwise its cardinality dependence induces interactions above order two. In other words, HYSET does not just model pairwise relevance. It captures structured joint effects at the level of the set itself.

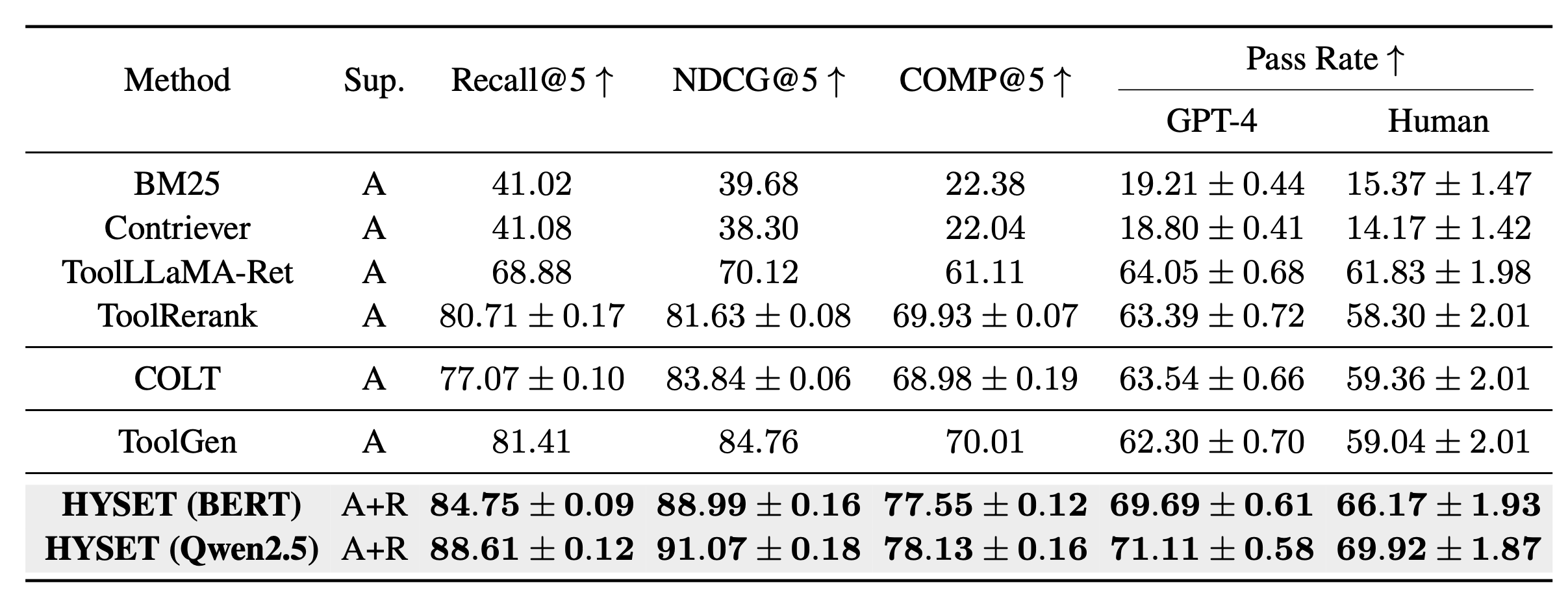

Numbers reported in the paper on ToolBench, measured over the six official held out test splits and 600 queries in total.

The widest margins land on COMP, which counts a query as solved only when every ground truth tool has been recovered. That is exactly the quantity set-level scoring is built to improve, and the gain carries through to the agent as a higher Pass Rate. To regenerate these numbers see Reproducing the Paper.

git clone --recurse-submodules https://github.com/stormwther18/HYSET.git
cd HYSET
python -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt

Set the frozen retriever checkpoint used as the query encoder:

export HYSET_ENCODER_PATH=/path/to/frozen/retriever

Run a load-and-retrieve smoke test:

python scripts/smoketest_load.py \
  --checkpoint /path/to/best.pt \
  --encoder "$HYSET_ENCODER_PATH" \
  --device cuda

Paper-aligned BERT configuration:

./train_hyset.sh \
  --encoder "$HYSET_ENCODER_PATH" \
  --encoder_type bert \
  --d_z 768 \
  --reward_cache data/reward_cache.json \
  --checkpoint_dir checkpoints/hyset_bert_seed42 \
  --seed 42

Paper-aligned Qwen configuration:

./train_hyset.sh \
  --encoder "$HYSET_ENCODER_PATH" \
  --encoder_type qwen \
  --d_z 1536 \
  --reward_cache data/reward_cache.json \
  --checkpoint_dir checkpoints/hyset_qwen_seed42 \
  --seed 42

The training script follows the paper defaults, including M=5, K_neg=64, K1=15, K_pool=20, eta=0.3, lambda_interaction=0.01, and early stopping on validation Recall@5.

If you want the annotation-only ablation, set --eta 0 and omit --reward_cache.

The self-training term requires a reward cache built from frozen-agent trajectories:

JUDGE_API_KEY=... JUDGE_MODEL=... \
python src/precompute_rewards.py \
  --trajectories outputs/training_trajectories.json \
  --output data/reward_cache.json

Each trajectory record must identify the selected tool set used by the agent. Scores are stored by query ID and canonicalized tool set.

Single query:

./inference_hyset.sh \
  --checkpoint checkpoints/hyset_bert_seed42/best.pt \
  --encoder "$HYSET_ENCODER_PATH" \
  --query "Find flights, a hotel, weather, and currency conversion."

Batch JSONL:

./inference_hyset.sh \
  --checkpoint checkpoints/hyset_bert_seed42/best.pt \
  --encoder "$HYSET_ENCODER_PATH" \
  --input queries.jsonl \
  --output predictions.jsonl

Each output record contains:

• predicted_set: the variable-cardinality set passed to the agent
• ranking: the greedy length-5 ranking used for rank-based metrics
• shortlist: the K_pool shortlist built before exhaustive subset scoring
• predicted_score: the final set score

Evaluate one checkpoint on the six official ToolBench test splits:

python src/evaluate_hyset.py \
  --checkpoint checkpoints/hyset_bert_seed42/best.pt \
  --encoder "$HYSET_ENCODER_PATH" \
  --instruction_dir data/instruction \
  --test_id_dir data/test_query_ids \
  --output_dir results/hyset_bert_seed42

This writes per-split prediction files and summary.json with:

• Recall@3, Recall@5
• NDCG@3, NDCG@5
• COMP@3, COMP@5
• PredictedSetExactMatch
• MeanPredictedCardinality

HYSET stands on ToolBench, which supplies the tool library, the training queries, and the evaluation protocol, and on StableToolBench for the stable execution environment used in the end to end runs. We thank the authors of all of them for releasing their work.

@article{hong2026tools,
  title={Tools Are Not Islands: Set-Level Tool Retrieval for LLM Agents via Query-Conditioned Hyperedge Prediction},
  author={Hong, Xinyi and Dong, Pinjun and Yu, Xinyang and Jiang, Binyan},
  journal={arXiv preprint arXiv:2607.25718},
  year={2026}
}

The source code in this repository is released under the MIT License. The submodules under external/ keep their own upstream licenses. data/hyset_corpus.json is derived from ToolBench and stays subject to ToolBench's terms.
