🏠 Animated Appliance Card for Home Assistant
English | Русский | Deutsch | Français | Nederlands
An Oikos-inspired Lovelace card that turns a dumb washer, dryer, dishwasher, oven or microwave on a smart plug into a beautiful, animated dashboard widget — no smart appliance required.
Same card in other UI languages: Русский · Deutsch · Français · Nederlands · Português
✨ Features

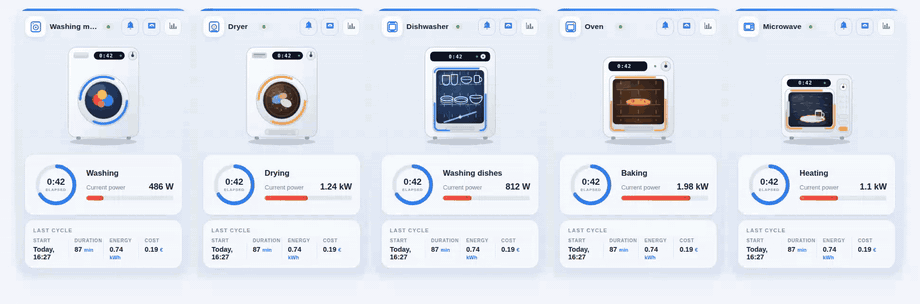

- Five appliances, one card —
washer,dryer,dishwasher,ovenandmicrowave, each with its own illustration, icon and wording. Switch with a single line:appliance_type: dryer. - Animated while running — laundry tumbles behind the glass, dishwasher jets sweep, the oven glows, the microwave turntable turns. All animation is pure CSS/SVG, no external assets, and it respects
prefers-reduced-motion. - Light and dark themes — the card follows your Home Assistant theme automatically, or you can pin it with
theme: light | dark. A fourth value,theme: ha, drops the card's own palette and uses the colours of your active Home Assistant theme. - Live status — a pulsing "RUNNING / IDLE" badge, an elapsed-time ring and a power gauge with automatic unit handling (
1950 Wis shown as1.95 kW; an ampere sensor is labelled "Current draw" automatically). - Last cycle summary — start time ("Today, 09:55"), duration, energy and cost, each column tappable for more-info.
- Quick actions — header buttons toggle the smart plug and the finish-notification automation, and open the power history.
- Six languages — English, Russian, German, French, Dutch and Portuguese labels out of the box. The language follows your Home Assistant profile, or set
language: en | ru | de | fr | nl | ptexplicitly. - Visual editor — the card ships a config form, so it can be set up from the UI without touching YAML.
- Zero dependencies — a single vanilla-JS file with Shadow DOM. Every entity option except
status_entityis optional: blocks without an entity are simply hidden. Responsive from a full-width dashboard column down to a narrow phone layout.

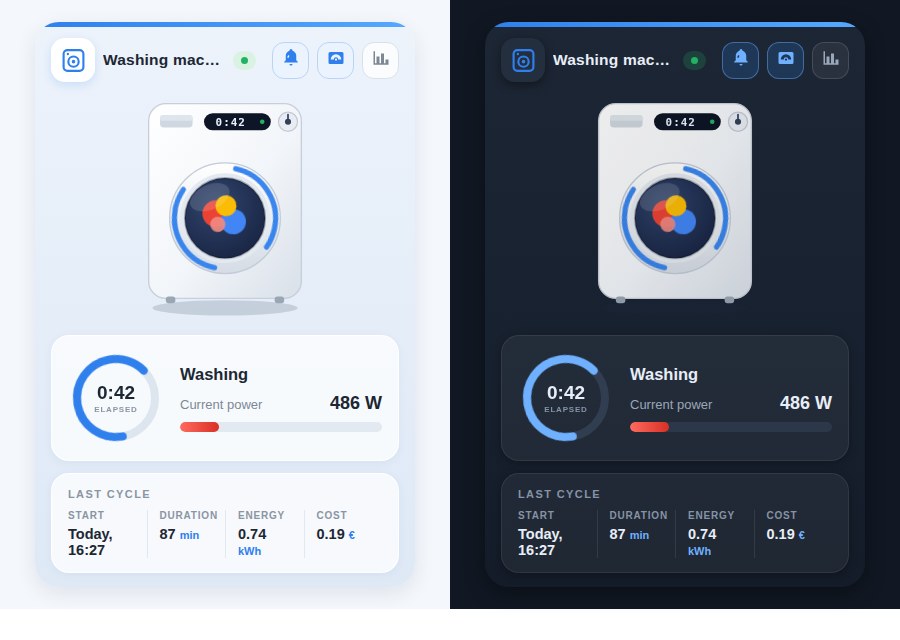

🌗 Light and dark
theme: auto (the default) follows Home Assistant: switch your dashboard to a dark theme and the card follows on the next render. theme: light and theme: dark pin it regardless of the dashboard. theme: ha works differently: instead of the card's own palette it takes the colours of whichever Home Assistant theme is active, so the card blends into a custom theme.
📦 Installation
Two steps: first the card itself, then the entities it displays.
Step 1 — the card
Manual
-
Copy
washing-machine-card.jsto/config/www/. -
Add a dashboard resource (Settings → Dashboards → Resources, or
lovelace: resources:in YAML mode):url: /local/washing-machine-card.js?v=6 type: module
Bump
?v=after every update to bust the browser cache.
HACS
Add https://github.com/sionetta/wm_animated_ha_card as a custom repository (type: Dashboard), then install Washing Machine Animated Card.
Step 2 — the appliance entities
The card only displays data, and status_entity is required, so this step cannot be skipped.
A smart appliance (Home Connect, Miele@home, LG ThinQ, SmartHQ) already reports its own state — go straight to "Using it with a smart appliance" below.
An ordinary appliance on a smart plug — the ready-made package creates everything:
-
Find your plug's sensors in Developer tools → States: power (W) and cumulative energy (kWh), e.g.
sensor.washer_plug_powerandsensor.washer_plug_energy. -
Enable packages in
configuration.yaml(if ahomeassistant:block already exists, add the line to it):homeassistant: packages: !include_dir_named packages
-
Copy
examples/washing_machine_package.yamlto/config/packages/washing_machine.yaml. -
Replace
sensor.YOUR_PLUG_powerandsensor.YOUR_PLUG_energyin it with your own. -
Restart Home Assistant.
-
Set your electricity price in
input_number.el_tarif— it defaults to zero, and without a tariff the cycle cost will always be0.00. -
Check that the entities appeared:
Entity Purpose binary_sensor.washing_in_progressfor status_entityinput_datetime.wm_last_startcycle start input_number.wm_last_durationduration input_number.wm_last_energyenergy input_number.wm_last_costcost input_number.el_tarifyour tariff (step 6) input_number.wm_energy_startinternal -
Add the card to your dashboard — see "Configuration" below.
The notification arrives as a
persistent_notification. For your phone, replace the last block of the automation with your ownnotify.mobile_app_....For a dryer, dishwasher, oven or microwave, copy the package under a different name with different entity prefixes, and set the matching
appliance_typeon the card.Without packages: the same helpers can be created in the Home Assistant UI, and the automations pasted into the automation editor (⋮ → Edit in YAML).
⚙️ Configuration
type: custom:washing-machine-card appliance_type: washer # washer | dryer | dishwasher | oven | microwave name: Washing machine status_entity: binary_sensor.washing_in_progress # REQUIRED plug_entity: switch.washing_machine_plug # plug button, tap = toggle notify_entity: automation.washing_finished # notification button, tap = toggle image_tap_action: # tap on the illustration (optional) action: navigate navigation_path: /lovelace/laundry power_entity: sensor.washing_machine_power # gauge + running detection power_threshold: 10 # running above this value standby_threshold: 1 # optional: appliance left on, no cycle → STANDBY power_max: 2500 # gauge maximum last_wash_entity: input_datetime.wm_last_start # cycle start timestamp duration_entity: input_number.wm_last_duration # cycle duration, minutes energy_entity: input_number.wm_last_energy # kWh per cycle cost_entity: input_number.wm_last_cost # cost per cycle hide_status_panel: true # Hide status panel only when idle (Default: false) show_raw_status: false # Shows the raw value of the status entity in the card's status panel (Default: false) duration_format: minutes # minutes / hhmm confirm_plug_off: true # displays a confirmation popup before turning off the `plug_entity` currency: "€" language: en # auto / en / ru / de / fr / nl / pt (auto = follow Home Assistant) theme: auto # auto / light / dark / ha
| Option | Required | Default | Description |
|---|---|---|---|
status_entity |
yes | — | Entity whose state marks a running cycle. A template binary_sensor on the plug's power/current works great; textual states (washing, spin, …) are matched via running_states. |
appliance_type |
no | washer |
Visual + labels: washer, dryer (alias tumbler), dishwasher, oven or microwave. |
name |
no | localized | Card title (defaults depend on appliance_type). |
plug_entity |
no | — | Smart plug switch; shown as a header button, tap toggles it. |
notify_entity |
no | — | Automation/switch/input_boolean for the "cycle finished" notification; tap toggles it. |
image_tap_action |
no | — | What tapping the appliance illustration does, using Home Assistant's standard actions: navigate, url, more-info, perform-action and so on. Not set: tapping the illustration does nothing. |
power_entity |
no | — | Power (W) or current (A) sensor: red gauge, value display, and it tells a running cycle from a paused one — see power_threshold. |
power_threshold |
no | 10 |
With a power_entity, a cycle that is under way but drawing less than this shows as paused rather than running. Without one the card cannot tell the two apart, and status_entity alone decides. |
standby_threshold |
no | — | With a power_entity: when no cycle is running but the appliance still draws more than this (W), the card shows standby instead of off — handy when the plug stays on and the machine has not been switched off after the cycle. Set it just above what your plug reports with the appliance off (often 0–1). Not set: no standby state. |
power_max |
no | 2500 |
Gauge maximum, in power_entity units. |
last_wash_entity |
no | — | input_datetime with the cycle start; also the source of the elapsed time. |
duration_entity |
no | — | Last cycle duration in minutes. |
energy_entity |
no | — | Energy per cycle, kWh. |
cost_entity |
no | — | Cost per cycle. |
currency |
no | € |
Currency symbol for the cost column. |
running_states |
no | on, washing, run, spin, rinse, … | States of status_entity treated as "running" (English, Russian, German, French, Dutch and Portuguese states are recognised). |
hide_status_panel |
no | false | Hide status panel only when idle. |
show_raw_status |
no | false | Displays the raw value of status_entity in the card's status panel. This is useful when a smart appliance sends its state directly. The state must still match running_states. |
duration_format |
no | minutes | minutes, hhmm. Formats the last cycle duration. When duration_format is set to hhmm and the duration is 60 minutes or longer, the value is displayed in HHhMM format (for example, 1h05). |
confirm_plug_off |
no | true | Displays a confirmation popup before turning off the plug_entity. |
language |
no | auto |
auto, en, ru, de, fr, nl or pt. |
theme |
no | auto |
auto, light and dark use the card's own styling. ha adopts your Home Assistant theme colors instead. |
🧺 Appliance types
appliance_type |
Default title | Running label |
|---|---|---|
washer |
Washing machine | Washing |
dryer (alias tumbler) |
Dryer | Drying |
dishwasher |
Dishwasher | Washing dishes |
oven |
Oven | Baking |
microwave |
Microwave | Heating |
Titles and labels are translated into all six languages; name overrides the title.
🧠 How it works with a dumb appliance
The appliance itself reports nothing — everything is derived from a smart plug with power monitoring:
- a template
binary_sensor(power above a threshold, withdelay_offof a few minutes so inter-cycle pauses don't count as "finished") drives the status; - a small automation stores the cycle start into
input_datetime, and on finish writes duration, energy and cost intoinput_numberhelpers which the card displays as the "Last cycle" panel.
The ready-made package that creates all of this is installed in step 2 above.
🔌 Using it with a smart appliance
If your appliance already reports its own state, you don't need the plug or any of the
helpers. Home Connect (Bosch / Siemens / Neff / Gaggenau), Miele@home, LG ThinQ and
SmartHQ all expose an operation state entity, so status_entity can point straight at it:
type: custom:washing-machine-card appliance_type: washer status_entity: sensor.washer_operation_state plug_entity: switch.washer_power running_states: [run] show_raw_status: true
A dryer, dishwasher, oven or microwave is the same config with a different
appliance_type and entity prefix. Narrow running_states to the one state that
really means "running", otherwise a paused or powered-but-idle appliance reads as running.
examples/smart_appliance.yaml has the full version,
including the progress, finish time and door values the card has no options for, plus
notes on what stays empty and why.
