pissang/mutracer

MuTracer is a physically based path tracer for the web. It renders on WebGPU and falls back to WebGL 2, with OpenPBR materials, TinyBVH acceleration and denoising built in.

Try the viewer. MuTracer is a 0.x library; APIs may change between minor releases.

• WebGPU first, WebGL 2 as fallback: unidirectional progressive path tracing with next-event estimation and multiple importance sampling over rect, sphere, spot (with IES profiles), directional and HDR environment lights. Without WebGPU, the same code renders on WebGL 2.
• OpenPBR 1.1 surface: F82 metals, anisotropic GGX specular and coat, fuzz, thin-film interference, dispersive transmission with absorption and volume scattering, subsurface scattering, emission and ray-marched height-field displacement.
• Interactive with millions of triangles: a two-level BVH whose BLASes are built with binned SAH in parallel Workers (a JavaScript port of TinyBVH, or the TinyBVH WebAssembly builder with SBVH and CWBVH layouts). Moving instances only refits the TLAS. See performance.
• Low-noise sampling and denoising: Owen-scrambled Sobol or blue-noise ZSobol sequences. Albedo- and normal-guided denoising with Intel Open Image Denoise (WebGPU) or a joint non-local means filter (WebGPU and WebGL 2), while the image converges or on the final frame.
• Incremental Three.js sync: THREESync converts standard and physical materials, lights, instancing, skinning and morph targets, and picks up transform, material and light edits on every update without reconverting the scene.
• Offline-quality output: deterministic converge() with variance-driven adaptive sampling (WebGPU); AgX, ACES, Cineon, Reinhard and linear tone mapping, color grading, bloom, thin-lens depth of field, shadow catchers and transparent backgrounds.

Rendered live in the browser. Click an image to open the scene in the viewer.

Yamaha MT-09 · metal and coat · VTX, CC-BY-NC-SA 4.0	Super Human · subsurface skin · Davyd Vidiger, CC-BY 4.0	Gelatinous Cube · transmission · glenatron, CC-BY-NC 4.0

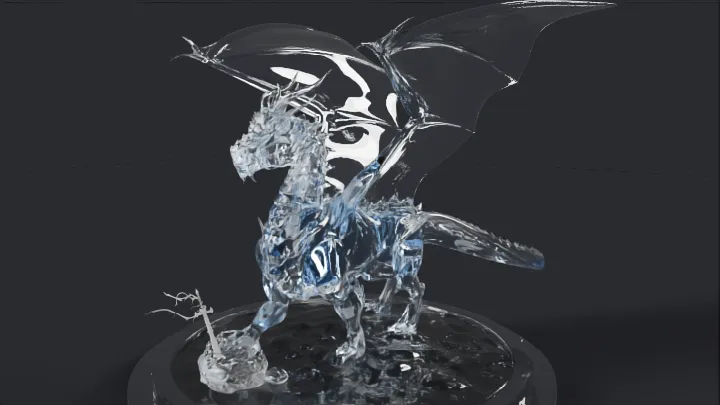

Dragon · glass · Delatronic, CC-BY 3.0	Blender Cover Remix · characters · bandinopla, CC-BY 4.0	Material spheres · OpenPBR layers · procedural, CC0

The LEGO Technic Bugatti Chiron (VTX, CC-BY-NC-SA 4.0) is a heavy scene that path traces interactively in the viewer:

Measured on an Apple M4 Max: rendering in Chrome with WebGPU at the viewer's default settings (6 bounces), BVH builds on CPU threads excluding worker startup.

npm install @meimu/mutracer

Install three to load glTF with GLTFLoader + THREESync or to use the Three.js helpers. The quick start below also uses gl-matrix for matrix math.

The package is ESM with TypeScript declarations (lib/main.js). A UMD build with a MuTracer global is at dist/mutracer.umd.js; deploy its dist/assets/ alongside it. See loading and deployment.

Build or load a Three.js scene as usual and let THREESync keep MuTracer in sync with it. RenderLoop renders progressively and calls the sync each frame.

import * as THREE from 'three';
import { GLTFLoader } from 'three/examples/jsm/loaders/GLTFLoader.js';
import { OrbitControls } from 'three/examples/jsm/controls/OrbitControls.js';
import { Engine, RenderLoop, THREESync } from '@meimu/mutracer';

const canvas = document.querySelector('canvas')!;

const scene = new THREE.Scene();
scene.add((await new GLTFLoader().loadAsync('model.glb')).scene);

const camera = new THREE.PerspectiveCamera(40, canvas.width / canvas.height, .1, 100);
camera.position.set(0, 2, 6);
const controls = new OrbitControls(camera, canvas);

const engine = new Engine({ canvas });
const sync = new THREESync(engine, { scene, camera, controls });
const loop = new RenderLoop(engine, { sync });
loop.start();

Custom Three.js materials and lights can use convertMaterial / convertLight in the same sync options; see Three.js integration.

Describe meshes, materials, lights and the camera directly with MuTracer.

import { mat4 } from 'gl-matrix';
import {
  Camera, EnvironmentLight, Mesh, OpenPBRMaterial, RectLight, Engine, RenderLoop,
  Texture, createPlaneGeometry, createSphereGeometry, type Scene
} from '@meimu/mutracer';

const canvas = document.querySelector('canvas')!;

const red = new OpenPBRMaterial({ baseColor: [0.8, 0.1, 0.1], specularRoughness: 0.3 });

const ball = new Mesh(createSphereGeometry(64, 32), red);
mat4.fromTranslation(ball.transform, [0, 1, 0]);

const floor = new Mesh(createPlaneGeometry(), new OpenPBRMaterial());
mat4.fromScaling(floor.transform, [5, 1, 5]);

// Rect lights emit along their local -Z axis.
const light = new RectLight({ size: [2, 2], color: [1, 1, 1], intensity: 5 });
mat4.fromTranslation(light.transform, [0, 4, 0]);
mat4.rotateX(light.transform, light.transform, -Math.PI / 2);

// A constant grey sky as a 1x1 float environment map.
const sky = new Texture({ data: new Float32Array([0.3, 0.3, 0.3, 1]), width: 1, height: 1 });

const scene: Scene = {
  meshes: [ball, floor],
  lights: [light, new EnvironmentLight({ map: sky })]
};

const camera = new Camera({ projection: 'perspective', fov: 40, near: .1, far: 100 });
camera.position = [0, 2, 6];
camera.lookAt([0, 1, 0]);

const engine = new Engine({ canvas });
engine.on('error', error => console.error(error));
engine.scene = scene;
engine.camera = camera;
const loop = new RenderLoop(engine);
loop.start();

For many copies of one geometry, use InstancedMesh with shared materials and a Float32 matrix array. THREESync converts Three.js instancing into the same batches automatically. See the instancing example.

Enable denoising on an individual result:

loop.final.setDenoiser({ type: 'jnlm' }); // required type; call again to change it
loop.final.setDenoiser({ type: 'oidn', model: 'standard' }); // WebGPU; custom weightsUrl also supported
// Third-party WebGPU filters: { type: 'custom', denoiser: yourCallerOwnedDenoiser }.

Borrow WebGPU output with render.getOutputTexture('hdr') or render.getOutputTexture('display'), or add a display overlay through engine.display.addPostProcess(pass). Passes also run during PNG export; see the overlay example and texture lifetime.

Batch quality or display edits use Object.assign(loop.final, settings) or Object.assign(engine.display, settings), typed with RenderSettings or DisplaySettings; see the setting defaults.

RenderLoop provides preview and final results. For custom frame control, use Engine / Render / Display directly with a fallback, or a fixed-size invisible render for export. See independent render results.

The examples cover a procedural scene, a Three.js/glTF scene and an OpenPBR gallery with denoising and PNG export. Run them with:

npm install
npm run dev

• WebGPU (recommended): any browser with WebGPU, such as current Chrome, Edge and Safari. Required for OIDN denoising, HDR output and the options marked WebGPU in the API reference.
• WebGL 2 fallback: requires EXT_color_buffer_float. Pass backend: 'webgl' to force it.

The first frame compiles large shaders, which can take several seconds on some platforms; refine() reports the progress through its return status.

Pull requests are not accepted at the moment; please open an issue instead. See CONTRIBUTING.md for development setup, required checks and GPU validation.

MuTracer is released under the MIT License. It includes third-party code and data under MIT, Apache-2.0 and CC0 licenses; see THIRD_PARTY_NOTICES.md.

For host WebGPU integration, supply your own GPUDevice.

Render on an OffscreenCanvas in a Worker with the worker integration guide.
