munzzyy/tern

Android apps from where their developers publish them, checked before they install.

Most open source Android apps put their releases on GitHub, GitLab, Codeberg or a repository of their own, days before any store carries them, if a store ever does. Obtainium showed that a phone can follow those release pages by itself. Tern does that job too, and then it looks hard at what it was handed: who signed the file, whether it is the app you asked for, and whether it matches the checksum the publisher gave. Only then does Android's installer see it.

It is a native app of about 7 MB, with no analytics and no account. It talks only to where your apps come from and to the places PRIVACY.md lists, such as an icon host or the places you search, and to nobody on its own behalf. Every request says it comes from Tern.

• Every signature is verified twice: by Tern's own verifier and by Android.
• Each app stays tied to the certificate of its first install. For 15 well-known apps Tern knows the certificate before that.
• It reads the forges, repositories and sites Obtainium reads, and eight third-party stores once you turn them on, and installs through Android, Shizuku, Dhizuku, root or another installer app.
• A widget, a Quick Settings tile and launcher shortcuts check and update from outside the app.
• Android TV works by remote, and a phone can send links to it sealed with a code the TV shows.
• With Orbot chosen, everything goes through Tor and nothing goes around it.
• An Obtainium export brings your list and your settings along, and Tern can write one for Obtainium too.

Get it from F-Droid, or download tern.apk from the latest release. It runs on Android 9 and later, on phones, tablets and TVs. Once it is installed, the Tern badge above adds Tern to itself, so it keeps itself up to date.

Before it downloads anything, Tern reads the file's own package name, version code and signing certificate off the server with a handful of range requests. For a 6 MB file that took 4 requests and 106 KiB. What it reads there is a claim, and the screen says "claims" until Android has confirmed it.

After the download:

1. The file's SHA-256 is compared with the publisher's checksum when there is one: GitHub's release digest, a signed F-Droid index, a .sha256 or .sha256.txt file next to the download, a SHA256SUMS or other checksums file that names it, or a hash in the release notes.
2. The signature is verified twice, by Tern's own verifier (APK Signature Scheme v1, v2, v3 and v3.1) and by Android. If the two disagree about who signed the file, it is refused. Android does not read every part of a split bundle on every version, and a part it skips has to pass Tern's check alone.
3. The signer has to be the signer of the app you already have, and the one pinned for it. The pin is set from the first install and travels with your exports, so a reinstall on a new phone is held to the same certificate. For 15 well-known apps Tern carries the developer's certificate itself, each one confirmed by a second source, so even their first install is checked.
4. A file for another package, an older version than the installed one, or a test-only build is refused.

An install counts when Android says it succeeded and the package manager then shows the new version code. Until both are true the app's row says what is really on the phone. docs/SECURITY-MODEL.md says who is trusted with what, and where each check ends.

For a file whose SHA-256 is known, the same panel links to the file's page on VirusTotal. Your browser opens it. Tern uploads nothing and needs no key. When AppVerifier is installed, an app's page also offers a second check there, against AppVerifier's own list.

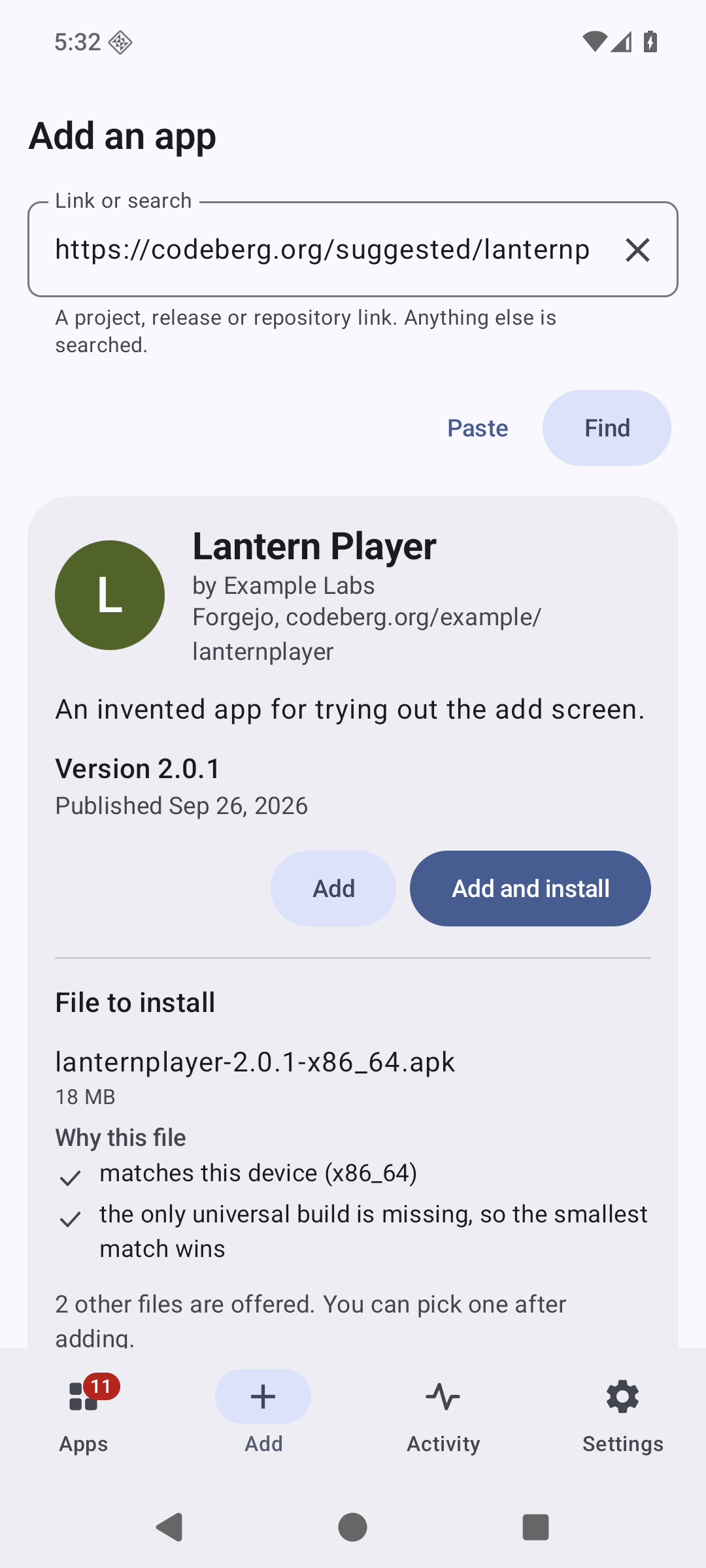

Paste a link, or share one from the browser, and Tern works out which of these it is. Searching by name looks in the forges and F-Droid, and in the stores you pick once they are on.

The stores sit behind one setting, Settings, Network, Third-party stores, which starts off. A store serves its own copies of apps, and Tern reads it through the interface the store made for its own app or site, as Tern and with nothing borrowed from that app. Pasting a store's address while the setting is off shows what that means and a button to turn it on. An app from a store says so on its page, and says what its first install decides: the certificate its updates must carry, unless the app is one whose developer's certificate Tern carries, or you pinned one. Whatever the source, a file is held to the certificate of the app you have, and to the pinned one.

Some places Obtainium reads are left out on purpose. docs/COMPARISON.md says which and why.

Before the very first install, Android wants to hear from you that Tern may install apps. Tern asks before it starts, opens the right page of the system settings, and carries on with the install when you come back.

The first install of any app asks once, as Android requires. After that Tern asks Android for a silent update every time and does what the system answers. On Android 12 and newer, for an app Tern installed, that is normally a silent update; where Android wants a confirmation you get a notification instead of a surprise. Android refuses a second silent update of the same app within 30 seconds of the last one, and that is one of the cases where you are asked.

With Shizuku, Dhizuku or root chosen under Settings, Installing, first installs and updates install without a prompt. Shizuku 13.6 and Dhizuku 2.12 did that on an Android 13 emulator, for a first install and for an update. Root has not been tried yet: the su of Android's emulator images answers only adb, so Tern could not be given root there. With Dhizuku, Android names Dhizuku as the installer, and may show its own notice that an admin installed the app. You can also hand every checked file to another installer app; Tern then compares the signer of what it installed with the file it checked.

Checks run every six hours by default, and anywhere from every 15 minutes to every 30 days, through Android's own job scheduler. The schedule is put back after a reboot and after Tern itself is updated. You can limit them to unmetered networks or to charging, and hold updates that install by themselves for Wi-Fi or a charger on their own. You can check when Tern opens or when an app's page opens, and choose per app between being told, updating automatically, and never checking in the background. If you force stop Tern, Android drops the schedule until you open the app again.

A widget on the home screen says how many updates there are, with a Check button and an Update all button. A Quick Settings tile checks and shows the count, and the launcher icon's shortcuts check, update everything or add an app. Notifications about updates carry an Update button of their own, and one about a single app, from Android 12 on, a Skip this version button. From Android 12 on both work only once the phone is unlocked. A notification that an app was installed has an Open button when the app has a screen to open.

Choose Orbot under Settings, Network, and every request Tern makes goes through Orbot's proxy, names included. If the proxy is not there, the request fails and says so. Nothing goes round it, and tests on a device hold it to that for checks, downloads and icons. The same row shows whether Orbot is connected and opens it when it is not.

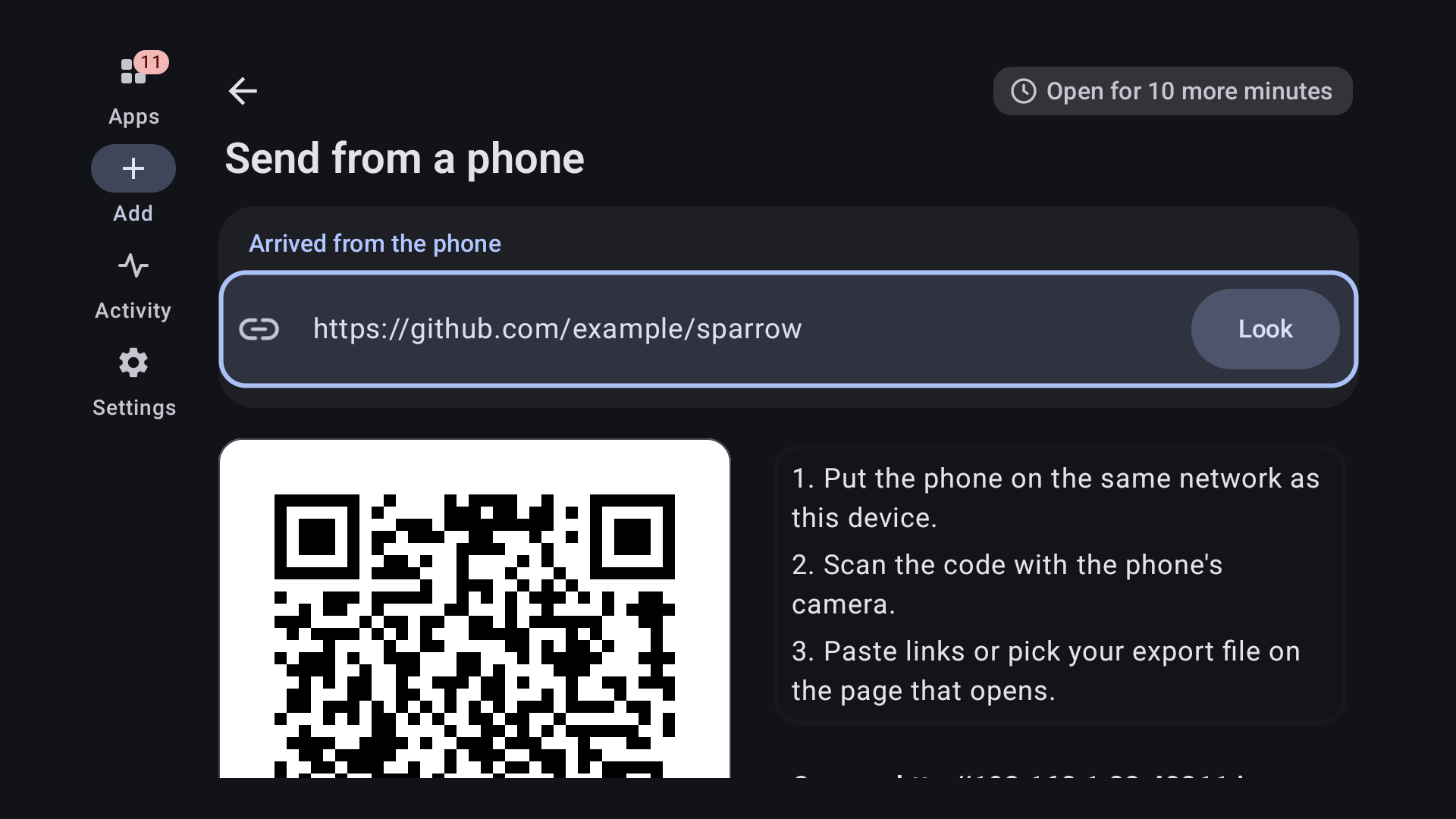

Every screen works with the remote alone. A TV has no file picker, so exports go to Download/Tern and imports come from a list, an address or a phone. Choose Send from a phone and the TV shows a QR code and a code of 20 characters. The phone's browser seals the links or the export file with that code before they leave the phone, and the TV opens only what was sealed with it. Nothing is added until you look at it on the TV. docs/TELEVISION.md has the details.

Import its export file under Settings. Apps come over with their filters, categories, notes and pinned certificates, and the settings in the file come along under Tern's names: the interval, the list's order and grouping, the theme and the colours of the categories. Tokens and the installer never travel in a file. Apps that arrive with a pinned certificate or a filter are named in the summary, because those are settings somebody else chose. Going the other way, Settings writes a file Obtainium imports.

You can also start from the repositories you starred on GitHub: give a user name, tick the ones that are apps, and Tern adds them one by one.

Tern can also open obtainium:// links, which is how the crowdsourced configurations are shared. That is off until you turn it on in Settings, and a link only ever fills in the Add screen: nothing is stored or installed until you press the button.

If you publish an Android app on GitHub or anywhere else Tern reads, a badge in your README lets people add it to Tern with one tap:

[<img src="https://tern.munzzyy.dev/badge.png" alt="Get it with Tern" height="80">](https://tern.munzzyy.dev/add/#url=https%3A%2F%2Fgithub.com%2FYOU%2FYOUR-APP)

The site writes this line for you from your address. The link opens a small page that hands the address to Tern, which shows the app first and adds nothing until the person presses Add. Without Tern the page offers the download.

Tern comes in English and 28 other languages, right-to-left ones included. The translations were made by a machine and checked by a second one; no native speaker has reviewed them yet, and corrections are welcome. Pick the language under Settings, Appearance, on any Android version; from Android 13 on, Android's own app language setting shows the same choice.

Text at twice the normal size keeps each screen's main action on screen, on a phone and on a TV. From one and a half times the size, a TV shows the list and an app's page one at a time, as a phone does. The look is yours to change under Settings, Look: the theme, colours from the wallpaper, a palette or a colour of your own, contrast, density, corners and the shape of app icons.

docs/COMPARISON.md goes through it point by point, with the file and line in Obtainium's source or the issue number for each claim about it, and the test or measurement for each claim about Tern. It also lists what Obtainium does that Tern does not.

• Without Shizuku, Dhizuku or root, a first install always asks, and silent updates need Android 12, as Android decides.
• An archive compressed with zstd is not opened; zip, tar, and tar compressed with gzip, bzip2 or xz are.
• The translations are machine-made. Details of an error that come from a server or a parser stay in English, and an entry in the activity log stays in the language it was written in.
• This version has run on emulators: phones with Android 9, 13 and 16, and a television with Android TV 14. Earlier versions also ran on Android 10 and Android TV 9 and 12. It has not yet run on a shelf of real devices. On Android 9, a kept export or a file saved from an app's page goes through a file picker instead of straight to Download/Tern, since Android only added that folder in 10; Android itself offers no certificate transparency check there either. Everything else, install and update included, works the same. On Android 9 and 16 emulators the background check was still scheduled after a reboot and after Tern updated itself, and it ran in a Doze maintenance window. Doze was only forced and stepped through there, not left to run for hours, and vendor installers are untested. On the television image Play Protect stopped the first install of an app it had not seen and offered "Install anyway"; that answer is yours to give.
• F-Droid and IzzyOnDroid are read through their per-app listings, which are protected by TLS and not by the index signature. Add either as a repository by its address if you want the signature checked; the first contact then downloads the whole index, 19 MB for F-Droid, and later changes cost a diff.
• A filter pattern that takes too long to match is stopped after half a second and reported, but the thread it ran on keeps spinning until Android ends the app's process. Tern does not run that pattern again while it spins, and while four are left spinning it applies no app's filters until they stop or Tern restarts. Apps without filters are not affected.
• On Android 9 to 11 the Update button of a notification works from a locked phone, since Android lets a button wait for an unlock only from 12 on. Skip this version is left off there for the same reason.

export ANDROID_HOME=~/Android/Sdk
./gradlew :app:assembleRelease
bash tools/check-apk.sh app/build/outputs/apk/release/app-release-unsigned.apk

You need JDK 21 and the Android SDK with platform 37. The result is unsigned; docs/RELEASING.md covers signing.

./gradlew :core:test runs the parsers, the sources and the update decision on the JVM, against fixtures built by Google's own tools, so the oracle for an APK's package, version and certificate is aapt2 and apksigner and not Tern.

./gradlew :core:test -Dtern.live=true --tests '*LiveSmokeTest*' runs the same code against GitHub, F-Droid, Codeberg and GitLab. It reads public data and sends no credentials.

bash tools/device-suite.sh <serial> -e live true -e class io.github.munzzyy.tern.enginetest.LiveSourcesTest does the same on a device, through the real engine, with one real app from each of GitHub, GitLab, Codeberg, F-Droid, IzzyOnDroid, a web page, SourceForge, itch.io, Telegram, Neutron Code and the eight stores. It leaves out GitHub Actions, which needs a token, Jenkins, SourceHut, direct links and other F-Droid format repositories. Every request has to carry Tern's User-Agent, and a refused site, or a store while the stores are off, must not be asked anything. On an Android 16 phone emulator and an Android TV 14 emulator every source gave a listing. Where a store offers only ARM files that the emulator cannot run, Tern says there is no file for that device.

bash tools/device-suite.sh <serial> runs the device tests on an emulator or a phone, after ./gradlew :app:assembleDebug :app:assembleDebugAndroidTest. They install a test app through Tern, publish a new version, and check that the update arrives without a prompt; then they offer the same update signed by another key and check that the installer is never called. They also cut downloads mid-way, redirect a request with a token to another host, hand the gate bundles that were altered after signing, and send checks through a proxy that is not there. Gradle's own connected task is not used, because it drops a permission that old Android versions only take from the host.

bash tools/check-schedule.sh <serial> sets the debug build to check every 15 minutes and makes sure the job is still there after a reboot and after Tern replaces itself. Then it forces Doze and steps through its maintenance windows until the check runs in one, without ever starting the job by hand.

bash tools/check-handoff-page.sh runs the handoff page's own ChaCha20, SHA-256 and HMAC against the RFC test vectors in node, then sends links and files from a real Chromium to a live handoff and checks that the page broke no rule of its Content-Security-Policy.

bash tools/check-network-doors.sh fails if any code other than the one HTTP client opens a connection or resolves a name on the device, or uses anything else that fetches by itself. bash tools/tests/network-doors/run.sh proves it catches each of those ways.

bash tools/check-reproducible.sh <folder> builds the release twice from two clones in different places and compares the files byte for byte.

tools/check-apk.sh reads the built APK and fails if its permissions differ from the list in the script, if cleartext traffic is allowed anywhere, if it is debuggable, if it is over 7 MiB, or if test code reached it.

python3 tools/strings.py check app/src/main/res compares every translation with the English: the same placeholders, the plural forms the language needs, nothing that exists in one and not the other.

What is left needs people, devices or decisions from outside this repository.

• Real devices. Every test so far ran on emulators, as What it does not do says. A phone with its maker's own Android, a television box, root through Magisk or KernelSU, Doze through a whole night, and sending to a television from a real phone's browser over Wi-Fi are still to be tried.
• Native speakers for the 28 translations, which Languages and screens says machines made.
• An independent security review of the verifier, the install gate and the handoff. Tern has had none, and docs/SECURITY-MODEL.md writes down what such a review would hold it to.

Bugs and ideas go to the issue tracker, and CONTRIBUTING.md has the setup and the house rules. A security problem goes to me privately first, as SECURITY.md describes.

GPL-3.0-or-later. See LICENSE.

Tern contains no code from Obtainium. It reads Obtainium's export format so that people can move, and it owes the idea to Imran Remtulla's app.
