munzzyy/starling

Private location sharing for friends and family. End to end encrypted, no accounts, no phone numbers, and a relay that stores nothing it could ever read.

Live: starlingmap.app · grab the Android app there, from F-Droid, or from the releases page.

Life360 works by shipping everyone's location to a company. Starling keeps the Life360 features people actually want (live map of your people, SOS, check-ins, battery, invite links) and drops the surveillance: positions are encrypted on your device with a key the server never sees, and the relay holds at most 24 hours of ciphertext.

Circles are plural. Keep one for family and one for the friends you split up from at a fair or a concert, and switch between them with a tap on the circle name. Each circle has its own secret, its own channel, and its own signing identity, so the relay cannot tell that two circles share a member. The map, sharing, and invites all follow whichever circle is active.

This document describes protocol v2: forward secrecy, post-compromise security, and cryptographic member removal. As of 0.5.0 it is wired end to end, crypto core through relay through storage through UI, on both web and Android, and 500-plus unit tests plus six end to end suites exercise it as a running app talking to a running relay. Nobody outside this project has independently reviewed any of it. See docs/AUDIT.md for exactly what has and has not been checked, including whether the live relay has actually been redeployed to speak v2 yet.

• Creating a circle generates its keys on your device. Inviting someone shares a one-time invite secret, in the URL fragment, which browsers never send to any server; it is not the circle's own key material, so a stolen invite link is only good for one join attempt, and only if you accept a safety number you were not expecting. Share the link over something you already trust, like Signal, the same as always.
• Locations are AES-256-GCM encrypted under a key that advances every 10 minutes (HKDF-SHA-256, one hash step forward per epoch) and is destroyed the moment a device moves past it. A device seized after it has advanced cannot decrypt what it already forgot, and neither can anyone who takes it. Names, avatars, and statuses ride inside the ciphertext too. Every plaintext is padded to exactly 512 bytes so message sizes carry nothing.
• Each device signs its posts with its own Ed25519 key (P-256 fallback), and every receiving device checks that signature itself. The content key advances per member as well as per epoch, so it proves only that a message came from a key material holder; the signature is what says which member. The relay pins each key on first write, so nobody can overwrite your slot, and a strictly increasing (epoch, timestamp) rule kills replays, checked by every receiver, not just the relay.
• Removing someone from a circle re-keys it: a fresh chain, mixed with fresh key-exchange entropy, delivered to everyone except the member being removed. They get no wrap, derive no new keys, and cannot follow the circle to its next channel. That is what makes removal complete rather than a request the removed device can just ignore.
• The relay is a small Cloudflare Worker with a D1 table of ciphertext rows. It knows channel ids, ciphertext sizes, timing, and IPs. It never learns where you are or who your circle is. Rows expire after 24 hours, swept deterministically on every read and write. Cloudflare hosts the default relay, so it sees the same IPs and timing. Tor mode in the Android app's Settings keeps your IP from both.
• No push tokens, no analytics, no third party requests. The only external fetch in the whole app is OpenStreetMap tiles, and only when a street basemap is on; the Off-grid basemap renders locally and makes zero requests.
• Optional app lock encrypts the circle secret at rest behind a passcode (Argon2id, 64 MiB and three passes, from a reproducible build of the reference implementation: docs/ARGON2.md) and, where the browser supports it, a biometric unlock through the WebAuthn PRF extension. A locked device holds no readable secret in memory or on disk. An optional duress passcode, typed on the lock screen, runs the full panic wipe and comes back up as a fresh install.
• Places live only on your phone. Name a spot like Home or School and Starling says when someone in the circle arrives or leaves; detection runs on-device against positions that already arrive, so the relay never learns a place exists. SOS, arrival, and low-battery alerts reach the Android app as system notifications while it is in the background, built locally, with no push service involved.

The exact wire format and crypto are in docs/PROTOCOL.md. What the relay can and cannot learn, stated honestly, is in docs/THREAT-MODEL.md. Exactly which of it is wired into a running app today, file by file, is in docs/AUDIT.md. If the code and those files ever disagree, that is a bug.

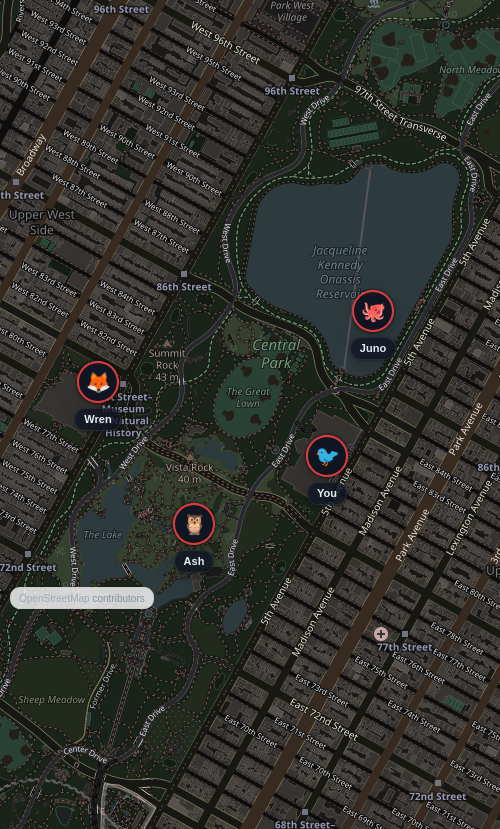

Dark-first UI. Draggable member sheet, live markers with eased motion, trails, SOS hold-to-fire, check-ins, coarse mode (your device rounds your position to about 1 km before encrypting), panic wipe, and a demo you can run without sharing anything: open starlingmap.app and hit Watch the demo.

An SOS can also mint a help link. Your circle is a list you chose in advance, and the person who can actually reach you may not be on it, so the link opens your live position in any browser with no app and no account, for as long as the emergency lasts. It shows that one emergency: not your circle, not its other members, not any history. Checking in safe switches it off.

A check-in timer covers the walk home or the meeting with a stranger: pick 30 minutes to 8 hours, and if you have not checked in by then your circle's phones say so, even if yours is off or gone. On Android a button on the sharing notification can check in too, if you turn it on.

Circles are app-only by design. The hosted website is a landing page plus that demo; it refuses to create or open circles, because a browser tab is the weakest place to keep a long-lived location secret (extensions, shared machines, no OS keystore). The full app still runs on localhost for development and testing.

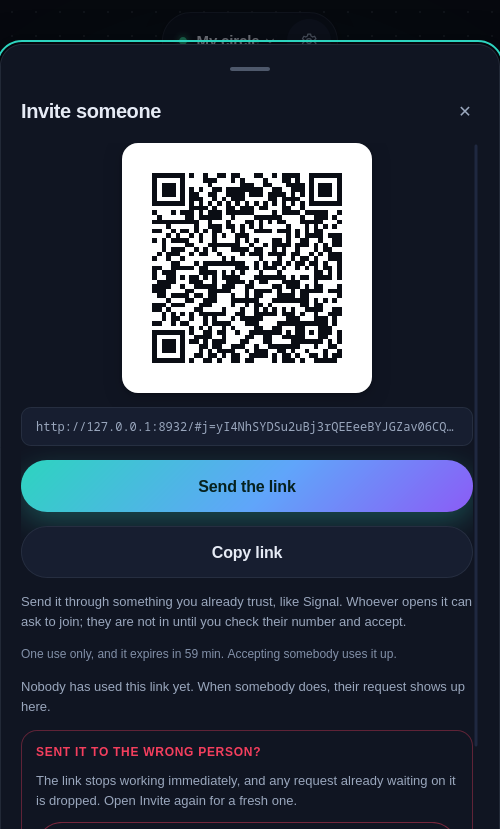

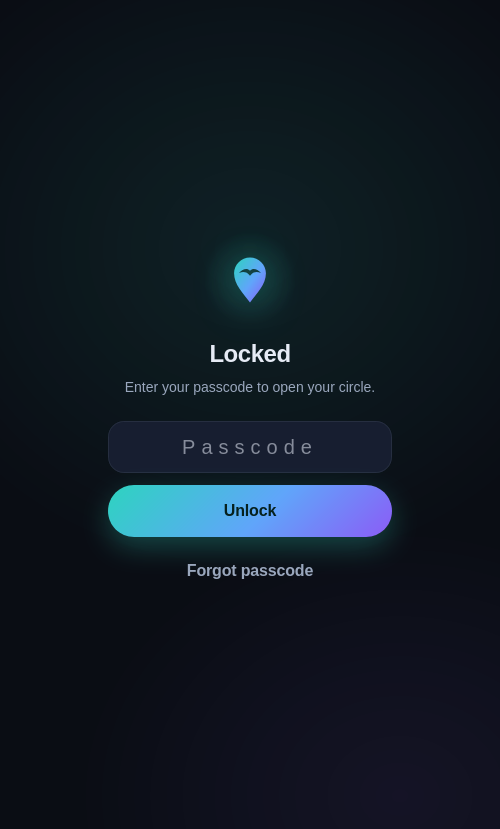

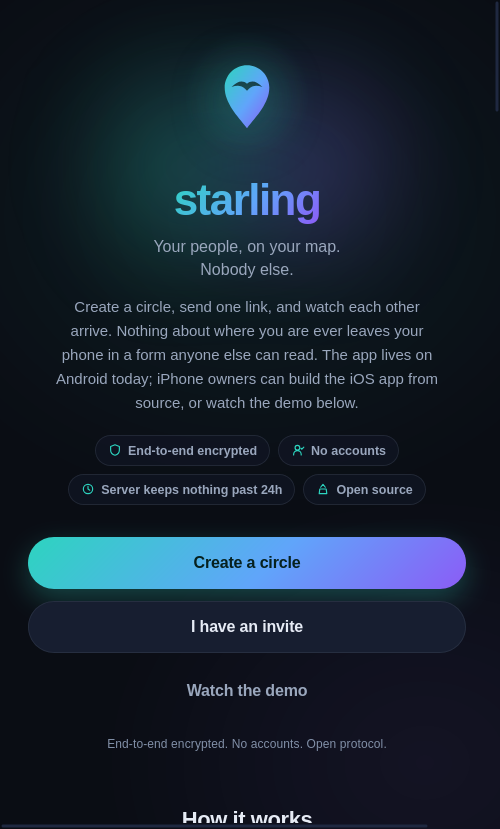

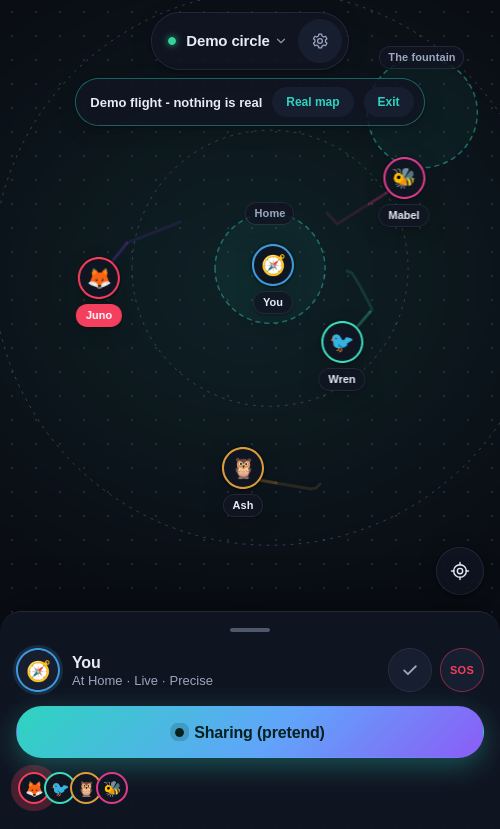

Onboarding	The demo	Invite	App lock

The test/screenshots/ set is regenerated on every end to end run.

Sharing is off until you turn it on, and stopping posts a signed goodbye so your circle sees "stopped" instead of a stale dot. Where the code runs as a plain page (the iOS build, or a local dev tab) it is live-when-open sharing like Signal's, not an always-on tracker: when the OS suspends the page, sharing pauses. That is the honest ceiling of the web platform, and the app says so instead of pretending otherwise.

The Android app goes as far past that ceiling as it can. A share runs in a foreground service typed for location, so a backgrounded app or a dark screen keeps posting. Swiping the app out of recents still ends the share, because the code that seals each position lives in the page and a torn-down process holds no keys, and the service stops rather than sit there looking alive with nothing going out. Since 0.12.0 the app writes down that a share was running and puts it back when you reopen it, saying so on screen. A share you ended yourself is never resumed, a timed share that ran out while the app was closed stays ended, and a locked phone resumes nothing until you unlock it.

Since 0.13.0 there is also a switch, off by default, in Settings under Sharing: "Keep sharing when the app is closed". With it on, the page is held by the process instead of the window, so a swipe takes the screen and leaves the share running. The cost is spelled out in the setting: a phone you think you closed is still holding your circle's keys, and the app lock cannot cover them until the share ends.

Since 0.18.0 two more switches sit under it, also off by default: Also after a restart and Also after an update. With one on, and Android's Allow all the time granted, a share that a restart or an update ended comes back without the app being opened, with the sharing notification and an alert saying so. Not with the app lock on, not with Starling's notifications turned off, and not before the first unlock after a restart.

No build step, no dependencies to install. Needs Node 24 or newer.

# unit tests (crypto, wire, ratchet, rekey, membership,
# relay, QR, UI logic, lock, circles, manifest, and every committed test vector)
node --test test/*.test.mjs

# local dev server (app + relay on one origin)
node test/serve_local.mjs 8899

# the end to end suites (need a real Firefox, and Chromium for the wrapper one; not run in CI)
python3 test/e2e_marionette.py   # sharing: create, invite, join, cross-visibility, check-in, SOS, help link, stop
python3 test/e2e_v2_ui.py        # safety-number comparison, review/accept, re-key, key-change warning, beacon revocation
python3 test/e2e_lock.py         # the app-lock lifecycle, duress included
python3 test/e2e_places.py       # places: save, arrive, rename, reload; the relay never sees one
node test/e2e_wrapper.mjs        # the app-vs-website split and the demo scene
node test/e2e_share_resume.mjs   # a share comes back after the app is closed and reopened

The QR tests cross-check the encoder against the Python qrcode library when it is installed (pip install qrcode); without it those checks skip rather than fail. Run tools/sync-vendor.sh first, though: two service-worker checks assert that every precached path exists on disk, and app/vendor is not in the repo.

The e2e suites drive real headless Firefox profiles through the flows named above, dump the relay database at the end, and assert no name and no coordinate appears anywhere in it. Run them yourself rather than trust a claim that they passed on some earlier date; docs/AUDIT.md has the exact commands and what each suite covers.

The default relay and the app ship as one Cloudflare Worker with static assets. With a Cloudflare API token in CLOUDFLARE_API_TOKEN (Workers Scripts, D1, and Account Settings read), one command creates the database, applies the schema, and deploys:

bash relay/deploy.sh

It is idempotent, so re-running it just ships the latest code. The hosted page serves the landing and demo; sharing itself lives in the Android app. Geolocation needs a secure context, so plain HTTP will not work anywhere.

A Cloudflare account is not required. The relay is plain fetch-in, fetch-out code over one SQL table, and relay/server.mjs runs that same code under plain Node with a file-backed SQLite database, behind Apache or nginx on your own VPS or home server. See docs/SELF-HOSTING.md.

Redeploying is what actually breaks v1: the relay answers /api/v1/* with 410 Gone rather than syncing an old client into a channel nobody else is on. A v1 client cannot be upgraded in place to talk to a v2 relay, because v1 and v2 derive different channel ids from the same circle secret; every existing circle has to be re-created after a v1-to-v2 relay upgrade. See the changelog entry for 0.5.0.

The relay's rate limits are two vars in relay/wrangler.toml, both per minute: RATE_POST_MIN (writes per channel, default 256) and RATE_GET_MIN (requests per client address, reads and writes, default 240). They are sized so a full 16-member circle sharing normally never meets them, with room for re-key bursts and movement posting; the arithmetic behind each number is in the comments next to them. Raise RATE_GET_MIN if several circles reach you from one NAT, VPN exit or Tor circuit, and RATE_POST_MIN if a whole circle shares while moving. Changing them is a var edit and a redeploy, not a code change.

Invite QR codes are generated on-device by a from-scratch byte-mode encoder (versions 1-10, EC level M, all masks). The test suite proves every matrix byte-identical to the Python qrcode library across all mask patterns, so the codes are correct by construction, not by eyeball.

Being clear about the edges is part of the point.

• Background sharing is Android only. The Android app keeps sharing with the screen off through a foreground service. The iOS build and a local dev tab are live-when-open: when the OS suspends the page, sharing pauses. A wake-lock toggle helps while the screen is on.
• The relay still sees metadata. It cannot see your position or who you are, but it sees IP addresses, timing, and how many members a channel has. On top of a VPN or Tor this drops to the exit's IP. Firing an SOS is its own correlation signal: the beacon channel and the circle channel update from the same IP at the same instant, even though their keys are unlinkable. And the beacon viewer page opens on a street map immediately, so each helper's browser fetches OpenStreetMap tiles of the emergency's area: the tile host sees the helper's IP and that viewport. See the threat model.
• Forward secrecy is bounded by the history window, not absolute. Content keys advance every 10 minutes and the old key is destroyed; how much trail stays readable on a device is a setting (10 minutes to 24 hours), and that is the window a compromise can still expose. Post-compromise security comes from re-keying, which has to actually happen: nothing detects a compromise and re-keys automatically.
• A circle invite still needs a human to say yes. It is no longer a bearer token: a stolen link is inert until the real joiner uses it, and the inviter has to come back online and accept a safety number before any key material changes hands. That is a real cost, not a free upgrade: someone has to be there to say yes.
• The served page is still a web page. If someone poisons the JavaScript at the origin, that is fatal for whoever loads it, the same as for any web client of any encrypted service. The mitigations are a strict CSP, no third party scripts, and, for the one page the hosted site still serves for security-relevant work (the beacon viewer), published per-release asset hashes that make a targeted swap detectable rather than invisible; see docs/WEB-INTEGRITY.md for exactly what that does and does not buy. The structural fix is that circles only exist in the apps, which bundle their code and never load any from the network: the Android APK, and the iOS wrapper in ios/ (build-from-source today, see docs/IOS.md). The hosted site still refuses to open circles in any browser tab, on every platform, for the same reason.
• No independent security review. The design is documented before the code, 500-plus unit tests replay committed test vectors, and two rounds of adversarial review plus a cross-model audit have found and fixed real bugs. Nobody outside this project has reviewed any of it. See docs/AUDIT.md.

A native Android app is on F-Droid, ships with every release, and downloads straight from starlingmap.app. F-Droid builds Starling from source, checks that its build matches the published APK, and then ships that same developer-signed APK, so all three routes carry one signature and you can move between them without reinstalling. F-Droid can trail a new release by a few days. Google Play is in progress and not live. It runs the same app/ code inside a hand-written Kotlin WebView, and adds what the web platform cannot give it on its own: background sharing through a foreground service (with a persistent notification the whole time, so it is never silent about what it is doing), fingerprint or face unlock through the Android Keystore in place of WebAuthn PRF, a PanicKit responder for panic-button apps like Ripple, and Orbot support. See docs/ANDROID.md for building it, docs/play-listing.md for the Play Store listing, and docs/fdroid/ for the F-Droid metadata.

A signed APK ships with every release, with a stable starling.apk name that Tern can track. The app has no Google services dependency at all (plain LocationManager, no Firebase, no push), so it runs as-is on GrapheneOS and other de-googled Android builds; testing happens on the no-GMS AOSP emulator image for exactly that reason.

Android 9 works too, with two catches. Google's last security fixes for Android 9 came out in January 2022, and Android 9 has no "only while using the app" choice for location, so the location permission there covers all the time (Starling still only reads your location while you're using it or sharing). Starling says both once, the first time it opens there. It also needs Android System WebView 137 or newer, because older versions can't check the Ed25519 signatures newer phones make, and people in your circle would quietly stop showing up. A phone that gets updates through Google Play should already have it; with an older WebView, Starling explains how to update it instead of opening.

starlingmap.app/privacy

What is left needs someone other than this repo's code: an outside reviewer, a native speaker, a store account, or a design decision.

• An independent security review. Nothing else on this list matters as much; see docs/AUDIT.md for where to start. The check-in timer is the newest thing to look at: its deadline rides inside every post and sits on the phone in plaintext while it runs. The relay's new cap on post size is new surface too. So are the bridge methods the Android app gained for the share sheet, the bar icons and the share reminder.
• Native-speaker review of the German (#14), French (#15) and Brazilian Portuguese (#16) catalogs. They ship as first passes; Spanish went through a line by line review (#1) and the other three want the same. The strings added since then are first passes in all four, Spanish included. They cover the check-in timer and the SOS card, place alerts and the help link page, the Do Not Disturb setting, the share reminder with its Android notification, and the invite scanner. One file per language in app/js/strings-*.js, English on the left. The Android notifications have their own strings.xml per language under android/app/src/main/res/. More languages are welcome: node tools/extract-strings.mjs prints the full catalog for a new one, and a test holds every catalog to full coverage. RTL layout polish lands with the first RTL translation.
• Google Play, still not live.
• Being visible to more than one circle at once. Precision and cadence are per circle now; sharing itself still goes to the active circle only, and posting to several means one ratchet, one channel and one outbox each, which is a design pass, not an afternoon. It also has to keep the promise above that the relay cannot tell two circles share a member: one phone posting to two channels on the same beat from one address says exactly that, so each circle would need its own schedule, and maybe its own Tor circuit.
• One-time guest links as short-lived side circles. A one-way "watch me walk home" link could reuse the help link code, but three things need deciding first: whether ordinary links on the hosted viewer are fine outside an emergency, how loudly the phone has to say one is running so it cannot turn into a quiet tracker, and whether it follows neighborhood precision and privacy fences, which an SOS ignores on purpose.
• An SOS from the sharing notification or the lock screen, without opening the app. That is a lock screen security call, the same kind that makes Stop ask for an unlock on Android 12 and up, and a pocket tap that sends a real SOS needs a confirm step and a test in a real pocket, not on an emulator.
• A real-phone pass over the QR scan. The decoder is proven on rendered and distorted codes. The safety number camera path ran on an emulator and the invite scan in Chromium with a fake camera. Neither has run on a phone camera pointed at another phone. The iOS wrapper has the camera permission text but no one has run the scan on iOS.
• A real-phone pass over the alerts that have to reach a phone in a pocket. A missed check-in and an SOS that went quiet use the same urgent notification as an SOS, and they only fire while Starling can listen in the background, which Samsung and Pixel builds police differently. Four newer Android behaviors have only run on the stock emulator so far. An SOS rings through Do Not Disturb as an alarm. The sharing notification comes back after a swipe. Send opens the share sheet. The share reminder shows up when it should. The people testing #6 on those phones are the right check.

There is an iOS app now: a WKWebView wrapper around the same bundled app, in ios/, that holds a real circle. It is build-from-source only today: a Mac with Xcode, and a free Apple ID re-signs every 7 days, and background sharing does not exist on it, because iOS offers no equivalent of the Android foreground service. docs/IOS.md carries the full capability table and the build steps; TestFlight distribution waits on a paid developer account. What has not changed: circles still do not belong in a browser tab on any platform, and the hosted site still refuses to open them.

• @Quantum-Future reviewed every line of the Spanish translation.
• @Catalyze4 and @KC5YVV tested "Keep sharing when the app is closed" on their own Pixels and kept reporting until it actually worked, which is how 0.13.3 and 0.13.4 happened.

Ask in Discussions. Bugs and feature requests go in issues, and security problems go by email, as the security policy explains.

Starling is free and stays free. If you want to help keep it going, you can sponsor on GitHub Sponsors or send Monero to:

8BApLkfsBS39oNXz4L1qCmZ7f5zKVRr1qLJgrHddRZb4JRcnjDkcKdk7wW7uThCeV9CuLn8o7gAn8d6vFeWNiyeXSmrRUSq

GPL-3.0-or-later. You can use, study, change and share it. If you distribute a copy or a modified version, it has to stay under the GPL and come with its source. Releases up to v0.11.0 were under MIT.
