mausimus/ShaderGlass

Overlay for running GPU shaders on top of Windows desktop and Wine.

• applies shader effects on top of desktop, in a floating window or full-screen
• built-in RetroArch shader library (1200+ shaders!) covering:
  • CRT monitor simulation
  • image upscaling
  • TV, VHS and handheld simulation
  • softening, denoising, blur, sharpen and many more
• works with most emulators, retro platforms and pixel art editors including:
  • DOSBox, FS-UAE, Altirra, ScummVM, AGS, VICE, Aseprite etc.
• excellent companion for pixel art showing shaded and/or aspect-ratio corrected preview
• you can even use it on top of YouTube, Twitch or modern games
• allows capture from a USB source (webcam or capture card)
• saving and loading profiles
• import of external .slangp/.slang shaders
• high customizability with various options, operating modes and shader parameters
• can be captured by OBS (using Game Capture source)

Check out Online Manual for details.

Latest stable release (v1.3.0, 19 Mar 2026):

• desktop/window capture under Linux/Wine
• shader search function
• shader library update
• minor enhancements

https://github.com/mausimus/ShaderGlass/releases/download/v1.3.0/ShaderGlass-1.3.0.win-x64.zip

Betas and older versions available here

Black Frame Insertion (BFI) and Blur Busters' CRT Beam Simulator have been spun off into a new app ShaderBeam.

• Windows 10, version 2004 (build 19041) or Windows 11
  • will work on version 1903 but in limited capacity (no Desktop Glass mode)
  • Windows 11 allows the removal of yellow border (see FAQ for tips on avoiding it on Windows 10)
• DirectX 11-capable GPU
• Linux: running under Wine/Proton is supported since 1.3 using ScreenCast/PipeWire for capture (clone mode only)

Click to view on YouTube

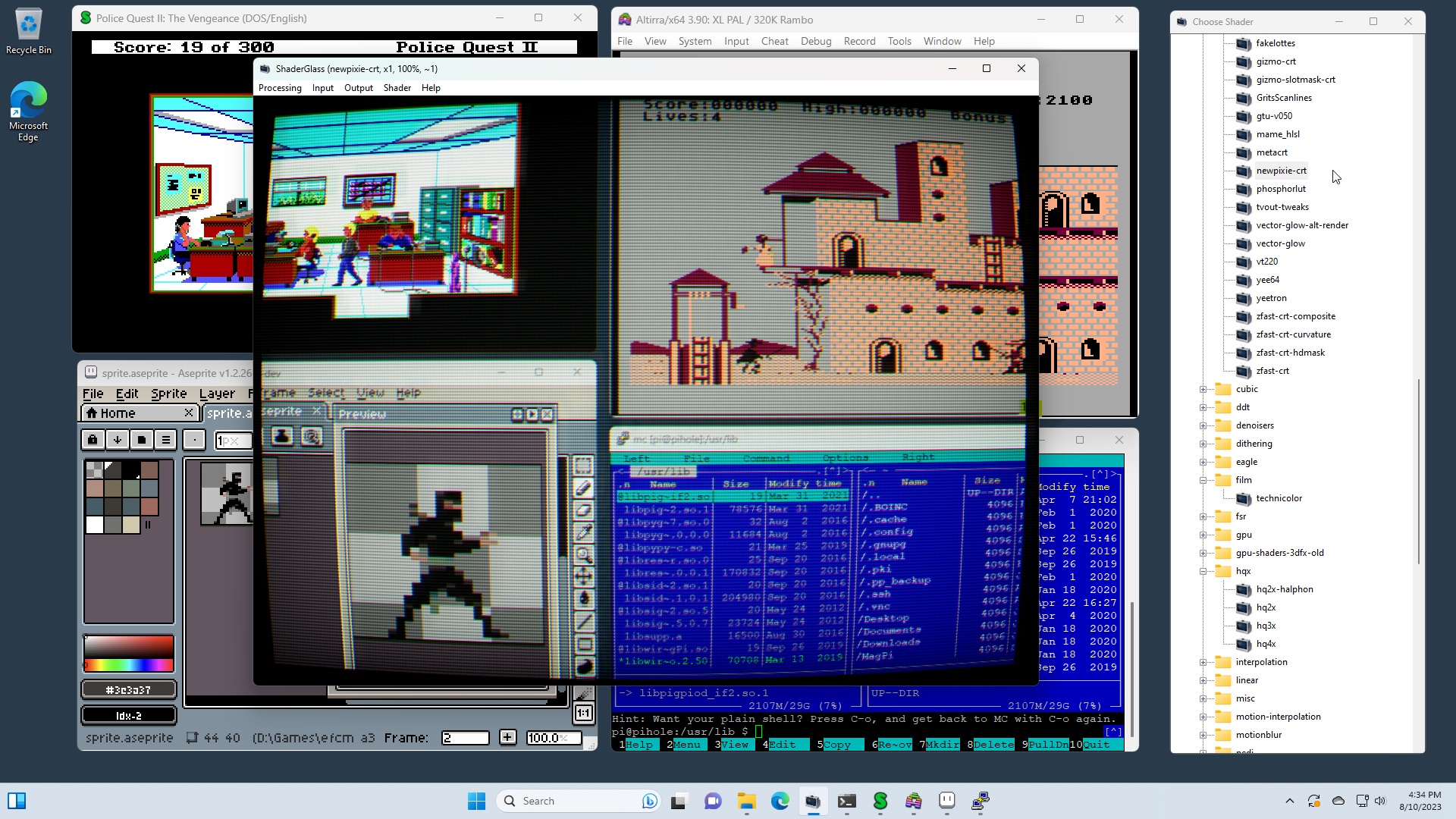

ShaderGlass running over multiple applications on Windows 11 desktop.

In this mode a transparent floating window will apply a shader to anything behind it. Requires Windows 10 2004 - on 1903/1909 you will see only a black window if you switch to this mode.

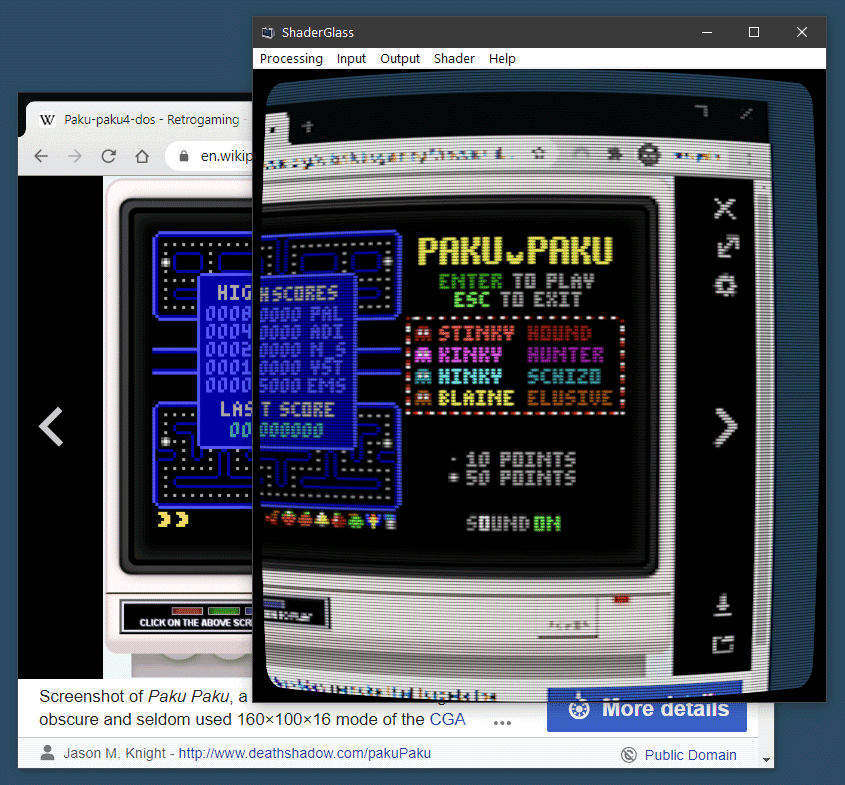

Wikipedia in Chrome processed by crt-geom shader which applies scanlines and CRT curvature.

When capture is fixed to a specific window it's easier to tune scaling to match the input and image can also be recaptured (screenshot/OBS etc.)

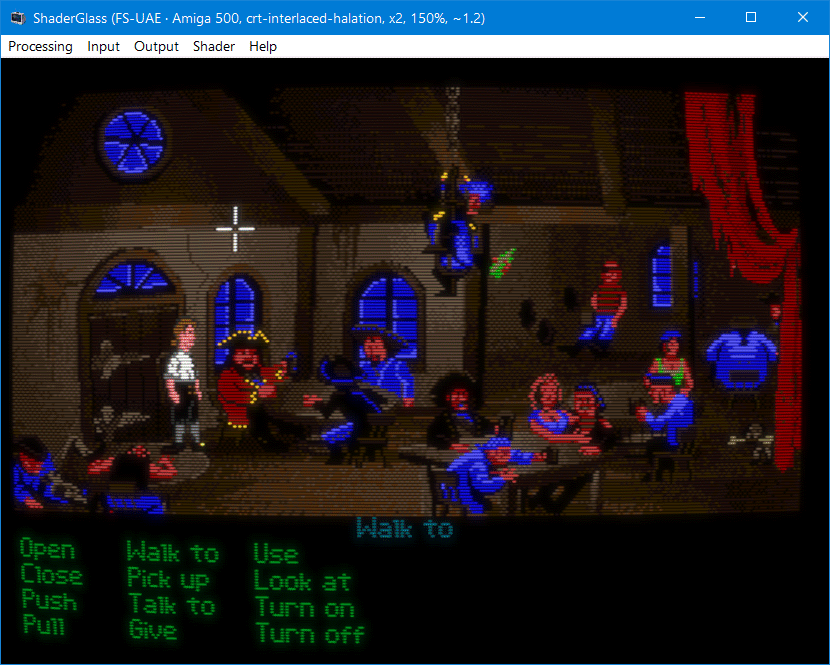

Amiga version of The Secret of Monkey Island (1990) running in FS-UAE with crt-interlaced-halation shader applied.

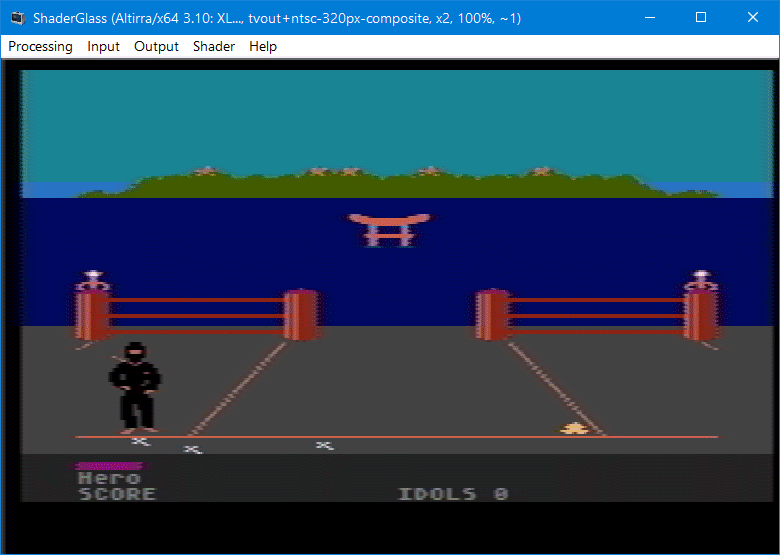

Ninja (1986) for the Atari XL running in Altirra with a TV-OUT simulation shader.

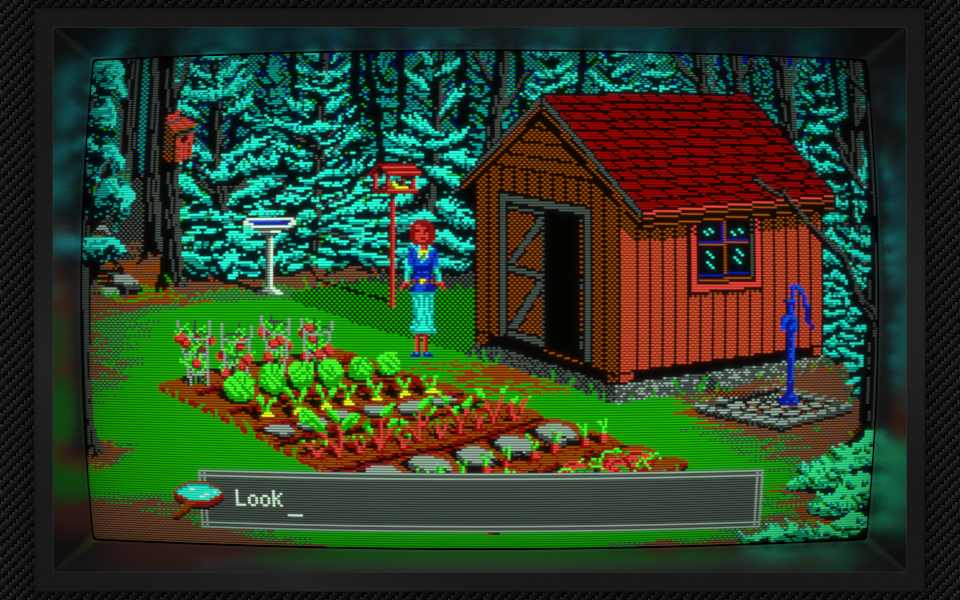

The Crimson Diamond (2024), a modern AGS game using HSM MegaBezel STD shader.

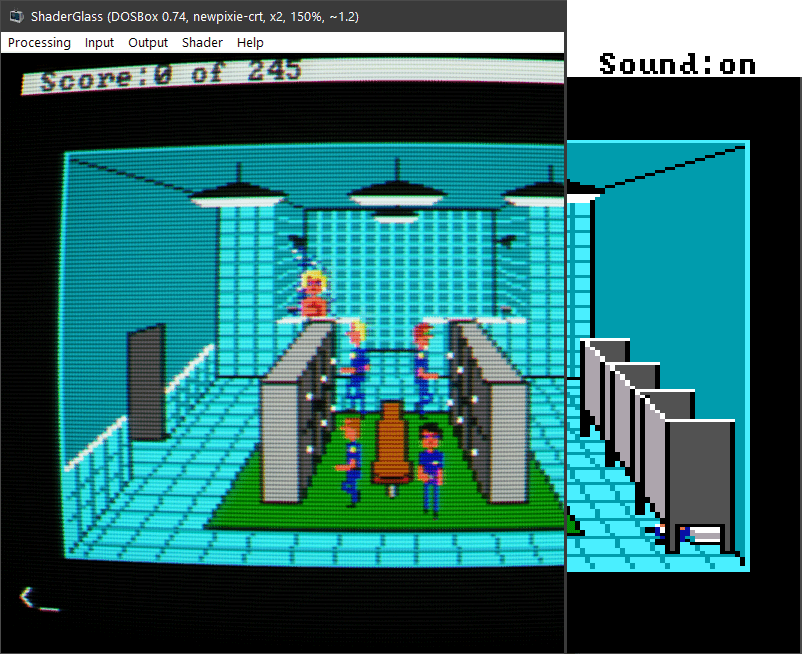

Police Quest (1987) with its massive half-EGA pixels, aspect-ratio corrected and post-processed using newpixie-crt shader.

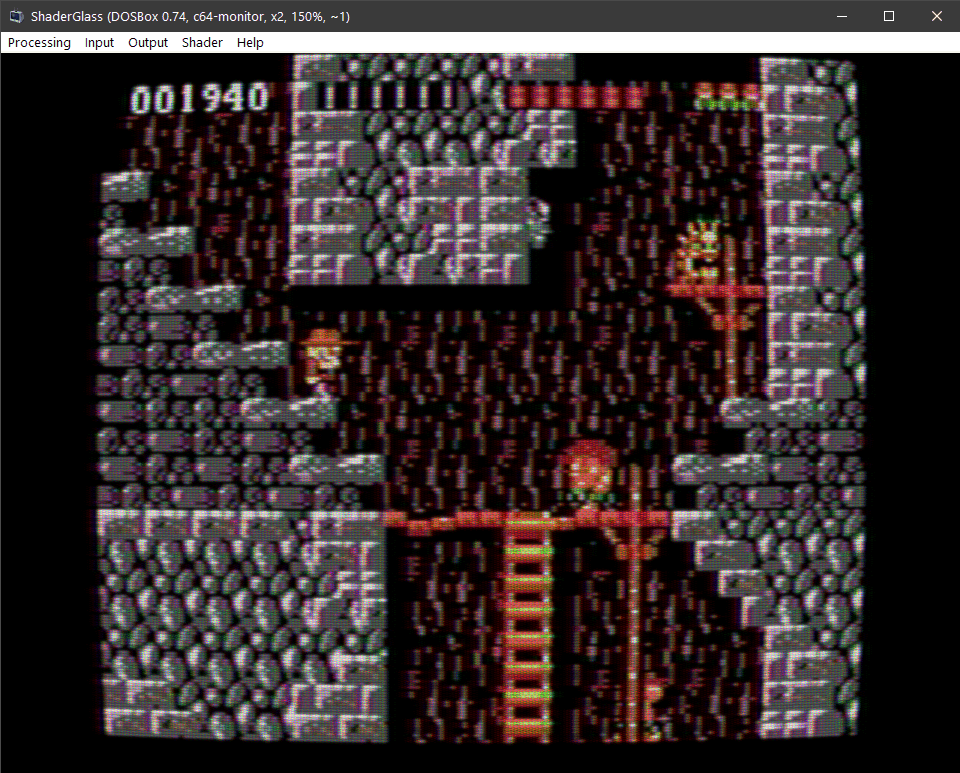

Rick Dangerous (1989) with C64 monitor shader applied.

See Online Manual for option explanations and Frequently Asked Questions.

Built using Visual Studio 2022 using ISO C++ 20, Windows SDK 10.0.26100, Windows Capture API and DirectX 11.

ShaderGlass includes a limited implementation of RetroArch shader back-end using DirectX 11. ShaderGen is a command-line tool for converting Slang shaders into .h files which can be precompiled in ShaderGlass. The conversion process relies on:

1. glslang for converting Slang/GLSL shaders to SPIR-V
2. SPIR-V cross-compiler for converting those to HLSL (DX11 format)
3. Direct3D Shader Compiler (fxc.exe) for pre-compiling into bytecode

• ShaderGlass application is provided under GNU General Public License v3.0

• Includes precompiled shaders from libretro/RetroArch shader repository. Please refer to copyright notes within shader code for detailed copyright and license information about each shader.

• App icon courtesy of Icons-Land

• Big kudos to RetroArch team, emulator developers and the wide retro community!

• Thanks to @lonestarr and @EndlesslyFlowering for PRs and everyone for feedback and testing 👍
