linuxkid473/gbos-x86

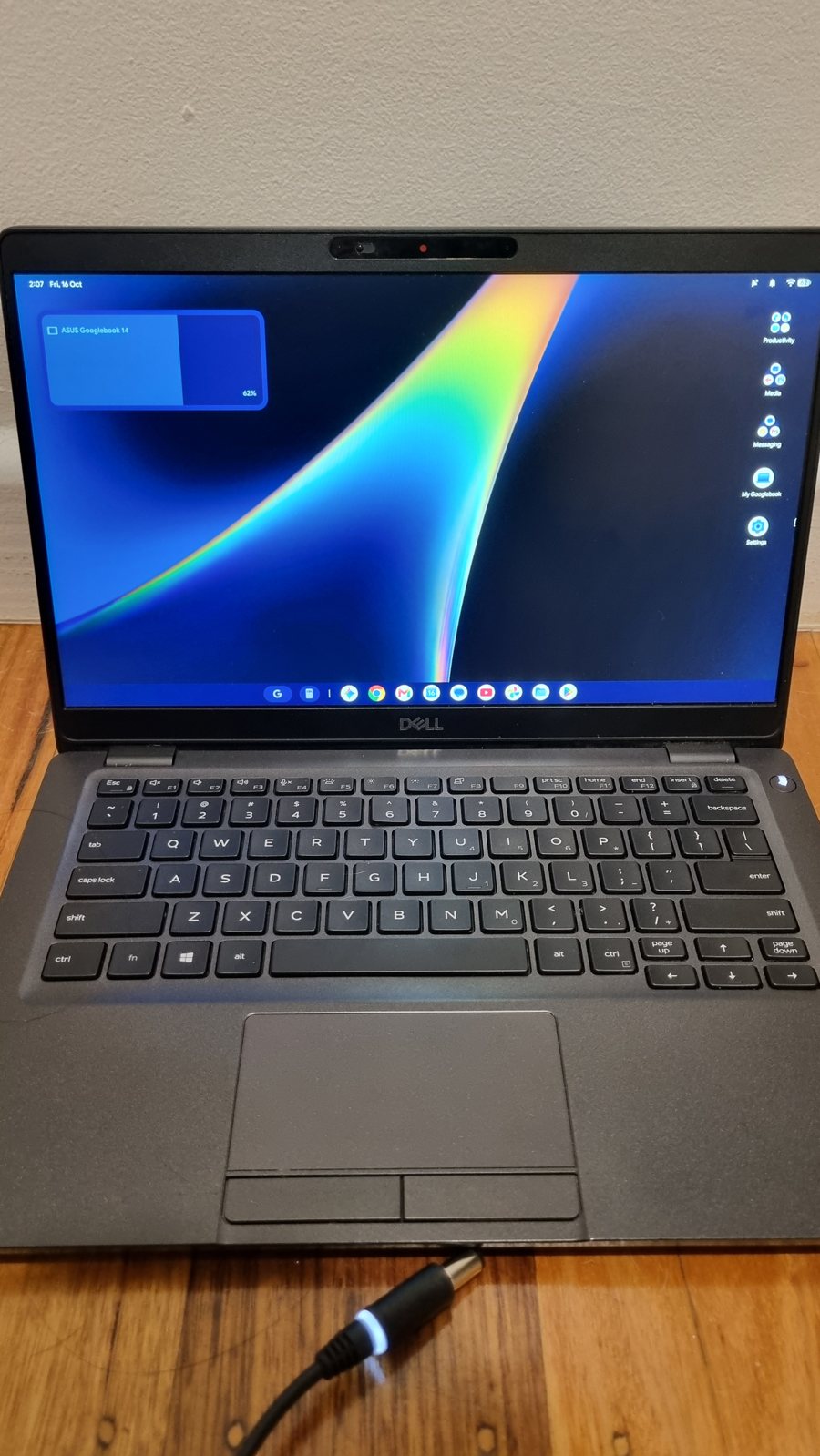

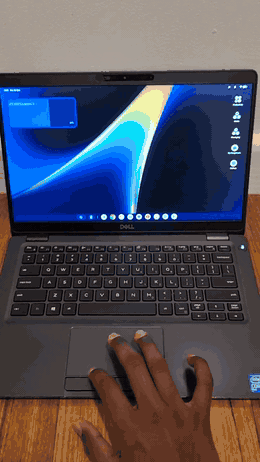

Googlebook OS on a Dell Latitude 5300. Full 43 s demo: gbos86.com/static/demo.mp4

Google's Googlebook OS (the lapis Android desktop build) running on an ordinary laptop: a Dell Latitude 5300 (Intel i5-8365U "Whiskey Lake", UHD 620, 16 GB). It boots from a USB stick or from the internal NVMe, reaches the desktop, and runs Play Store apps.

Website and community: https://gbos86.com (guides, hardware list, forum) | Discord: https://discord.gg/h9AD9fSnDT

usb/patched/ and usb/libkm_compat.so are modified copies of Google's proprietary libraries, included because the build needs them; Google's terms apply to them. The OS images themselves are not in the repo (they are GBs and Google's); you rebuild them from Google's official recovery download. gbOS86 is an independent project, not affiliated with or endorsed by Google.

You need macOS or Linux with docker (running), python3, curl and about 35 GB of free disk. Nothing from Google is stored in this repository: the script downloads Google's public recovery image itself.

git clone https://github.com/linuxkid473/gbos-x86 && cd gbos-x86
./build.sh                      # asks before downloading; writes dist/gbOS86-YYYYMMDD.img (6.7 GB)
# flash it: balenaEtcher / Rufus, or  sudo dd if=dist/gbOS86-*.img of=/dev/rdiskN bs=4m

Then boot the laptop from the stick (F12), turn Secure Boot off, and choose 1 (live, nothing is written to the laptop). ./build.sh --dry-run shows what it would download (Google's 7.7 GB image, ~1 MB busybox, 14 MB of kernel modules and 53 MB of firmware from this repo's release). It streams only the six partitions it needs out of Google's zip, so the 19 GB disk image inside is never unpacked. Allow 30 to 60 minutes, mostly the download. Only the Dell Latitude 5300 has been tested; if you try another laptop, please post its gbos/logs/boot-N/hwdetect.txt in an issue. Fedora/RHEL with SELinux enforcing: the scripts add :z to the docker bind mounts of this repo's own folders automatically; don't disable SELinux.

UEFI firmware
 └─ EFI/BOOT/BOOTX64.EFI      our kernel (android17-6.18 + patches) with stage0 built in as initramfs
     └─ stage0 (usb/stage0_init.sh, busybox)
         ├─ finds the gbos volume: USB stick (FAT label GBOS) or NVMe install (GBOSSYS)
         ├─ loads i915, logs to gbos/logs/boot-N/
         ├─ MODE=install → gbos/install.sh (NVMe installer/updater), never boots Android
         ├─ mounts super.img's erofs partitions (system, vendor, product, ...) via loop + dm-linear
         ├─ runs gbos/hook.sh (all Android-side workarounds, editable without a kernel rebuild)
         ├─ mounts /data, /metadata (NVMe ext4, else tmpfs)
         └─ switch_root → /system/bin/init selinux_setup   (Google's Android init, unmodified)

The core problem: lapis binaries use CPU instructions this CPU lacks: GFNI, AVX-VNNI, SHA-NI, 256-bit VAES/VPCLMULQDQ, AVX-IFMA. Two layers deal with that:

1. Kernel emulation (kernel/isa_emu_patch/). The #UD (invalid opcode) handler decodes the instruction, emulates it on the saved FPU state (isa_emu_core.c, 13k known-answer tests), and continues. It is correct but slow, about a microsecond per instruction.

2. Binary patches for the hottest code (usb/patched/, bind-mounted by hook.sh, and only applied when the original's sha256 matches):

   • libz.so: adler32_z always takes its scalar path (was ~50% of all emulation).
   • libcrypto.so ×3 (system, vendor, Conscrypt APEX): SHA-NI SHA-256 → scalar SHA-256 (was ~50%).

   When they are bound. usb/early_patch.sh (sourced from gbos.cfg) wraps chroot in stage0 and binds the system/vendor libz + libcrypto just before the first dmctl call. Without it, every dmctl process (one per partition) loads libcrypto and runs BoringSSL's load-time module hash through SHA-NI, about 3.7M emulated instructions, ~2 s of boot, before hook.sh could bind anything. hook.sh still does the same binds later as a fail-safe and logs already patched (early_patch.sh) when the early pass got there first. Both are gated on the sha256 of the exact original, so a new Google build silently disables them (NOT patched in stage0-dmesg.txt). To verify on hardware: stage0-dmesg.txt must show early: patched system libcrypto before running gbos/hook.sh. Shipping: early_patch.sh is in install.sh's FILES (so 1 Update copies it to the NVMe) and in the image builder. The gbos.cfg source line is guarded by [ -f ... ], so a stick without the file still boots.

Google hardware the laptop doesn't have, mostly the GSC security chip and the pKVM Trusty VM: hook.sh hides or replaces each service that would otherwise hang the boot:

Laptop-specific drivers that Google's vendor modules can't provide (they're built for Google's kernel): battery/AC, Intel LPSS I2C (touchpad), legacy HDA audio and btusb are built into our kernel (kernel/configure_whl.py). Wi-Fi and Bluetooth firmware are in usb/firmware/.

HANDOFF.md is the chronological engineering log: every bug, its evidence and its fix. Read it before changing anything.

The kernel (#31) builds drivers for most Intel-era laptops as modules, and boot detects what is present:

1. usb/hwdetect.sh (called by hook.sh) bind-mounts the stick's full module tree (gbos/modules/, depmod'ed for the running kernel) over /lib/modules, then does a udev-style coldplug: it reads every device's sysfs modalias and modprobe -a's them, repeating until no new module loads (a loaded driver creates new devices).
2. The kernel's firmware loader is pointed at gbos/firmware (a trimmed linux-firmware + sof-bin, ~300 MB).
3. logs/boot-N/hwdetect.txt records DMI vendor/model, PCI/USB devices without a driver, input devices, network and Bluetooth interfaces, backlight, sound cards, rfkill, missing-firmware messages and lsmod. Send it back when something doesn't work.

Honest limits. Only the Latitude 5300 has been booted; everything else is built and wired but untested on hardware. Sound on SOF machines needs the codec's mixer controls to match the generated config (best effort); suspend/resume, fingerprint readers, IPU6 cameras and NVIDIA/AMD dGPUs are not covered. Build the payload with tools/fetch_firmware.sh (firmware, not committed) and kernel/isa_emu_patch/build_generic*.sh (modules, not committed).

tools/make_gbos86_image.sh builds dist/gbOS86-YYYYMMDD.img (~6.3 GiB) from the repo plus Google's extracted partitions (lapis/parts/*_a.img). Write it to an 8 GB+ stick with balenaEtcher, Rufus or dd. Booting it shows the gbOS86 menu (10 s timeout): 1 live from the USB (nothing saved), 2 install or update on the internal SSD, 3 boot the installed system (offered, and the default, when one exists). MODE in gbos/gbos.cfg skips the menu (live, install, boot; ask = menu). The image holds Google's OS and patched Google libraries: for your own use only.

The stick has two partitions: EFI (FAT, EFI/BOOT/BOOTX64.EFI) and GBOS (FAT32: /busybox, gbos/). The firmware boots the EFI partition's copy. Pick the stick with F12 at the Dell logo.

gbos/ holds: super.img + super.layout, hook.sh, install.sh, apex_patch.sh, gbos.cfg, bootdisk.img, crossystem, libkm_compat.so, system_ext_manifest.xml, soft_gk, and the firmware/, patched/, audio/, installer/, kmod/ folders. Logs go to gbos/logs/boot-N/.

Set MODE=install in gbos/gbos.cfg and boot the stick. The target is the internal NVMe or eMMC disk (an eMMC is recognised by its MMC device type: SD cards, card readers and the stick are never targets; the eMMC's boot/RPMB areas are left alone). With more than one internal disk the installer refuses until INSTALL_DISK=nvme0n1 (or mmcblk0) is set in gbos.cfg. Minimum disk size 24 GB. eMMC controllers on the PCI bus work (sdhci-pci); ACPI-only ones (some AMD and older Atom parts) are not supported.

• No gbos on the disk: it shows the disk's model/serial/size and erases the whole disk only after you type the serial number (eMMC: the MMC serial, or its CID when that is empty or zero). Layout: GBOS_EFI 512M (ESP), GBOSSYS 8G FAT32 (the gbos/ files), GBOS_META 64M ext4, GBOS_DATA rest ext4. Every copied file is sha256-verified.
• gbos already installed: it asks 1) Update (keeps data, copies new files and kernel, and saves the install's last 3 boots of logs to the stick), 2) Reinstall (erase; still asks for the serial) or 3) Only save its logs (read-only on the NVMe, takes seconds; LOG_BOOTS=N in gbos.cfg = how many boots).

The installed system boots normally without the stick. With the stick plugged in and MODE=install, booting the stick always goes to that menu.

The installed system writes logs to its own GBOSSYS partition. To read them, boot the stick, choose menu 2, then 3 (Only save its logs) (or 1 to update too), and read gbos/logs/boot-N/nvme-logs/ on the stick from a computer. Each boot dir has kmsg.log, stage0-dmesg.txt (look for hook: lines), rotated logcat.txt* (oldest = highest number), crash.txt, hw.txt, audio.txt, and pstore-prev/ (the previous boot's kernel panic, if any). FAT has no journal: shut down from Android's power menu, not the power button.

Density stays Google's stock 260. RESOLUTION=2400x1350 in gbos.cfg makes Android render at a larger logical size that the display scales to the 1920x1080 panel: bigger = smaller UI (empty = native). DENSITY= can still override the density but is unset by default. If you changed Settings → Display → Display size, reset it to Default.

Needs macOS or Linux with docker, python3, qemu (for tests) and ~30 GB free. The build images used: gbos-kbuild (kernel/docker/Dockerfile) and gbos-erofs (tools/erofs-docker/Dockerfile).

1. Google's OS image: lapis/dl.sh downloads lapis-user/16452207/recovery.zip from dl.google.com. Extract the recovery disk image from it, then pull the logical partitions (system, vendor, product, system_ext, system_dlkm, vendor_dlkm; slot _a) out of super with tools/lp_extract.py DISK.raw lapis/parts NAME... (run it with just DISK.raw to list the names).
2. super.img: usb/make_super.py OUT/super.img OUT/super.layout system_a=... vendor_a=... (system_a first). It must stay under 4 GB (FAT32).
3. Kernel source: AOSP kernel/common, branch android17-6.18, commit 3938c8d97142d5cf31543aa96f864a2cf832dda0, and AOSP prebuilt clang-r584948c. Both were fetched into the docker volume gbos-ksrc (/build/{src,inputs,out}) by gbrunch/tools/prepare_amd_build_inputs.py.
4. Config: kernel/configure_whl.py RECOVERY_KERNEL.config /build/out/.config, then make olddefconfig; set CONFIG_CMDLINE from kernel/isa_emu_patch/debug_cmdline.txt (debug_config.sh) and CONFIG_INITRAMFS_SOURCE=/build/out/gbos_stage0.cpio.
5. Patches: in the volume, kernel/isa_emu_patch/apply.sh, kernel/ashmem_shim/apply.sh, and the i915 scripts kernel/isa_emu_patch/i915_color_pipeline.sh (dummy plane COLOR_PIPELINE for the HWC) and i915_edp_colorspace.sh (eDP always gets default colorimetry; BT.2020 made the panel pale) and i915_edp_no_colorspace.sh (no Colorspace property on eDP at all, from kernel #25) and i915_edp_full_range.sh (eDP always full-range RGB, from kernel #27) and i915_ignore_gamma.sh (ignore userspace gamma/degamma/CTM: the HWC loads an xe LOG_GAMMA_LUT curve into GAMMA_LUT, kernel #29).
6. Build: kernel/isa_emu_patch/build.sh (in gbos-kbuild), then make modules_install into usb/modroot, then usb/make_initramfs.py usb/modroot usb/stage0.cpio, copy it to /build/out/gbos_stage0.cpio, and build again so it's embedded. arch/x86/boot/bzImage is BOOTX64.EFI. btusb.ko/btintel.ko/btrtl.ko from /build/out/drivers/bluetooth/ go in usb/kmod/.
7. Test the emulator: kernel/isa_emu_test/run_qemu.py BOOTX64.EFI (expects 16/16 PASS).
8. Userspace pieces: tools/fetch_installer_tools.sh; gatekeeper/build.sh (needs gatekeeper/libs/ from the image: libc, libdl from the runtime APEX, libbinder_ndk, libcrypto, liblog); patched libraries with tools/patch_libz_adler.py and tools/sha_redirect.py. The hashes in hook.sh/apex_patch.sh pin the exact originals they apply to.
9. Firmware: from linux-firmware (intel/iwlwifi/iwlwifi-9000-pu-b0-jf-b0-46.ucode, intel/ibt-17-16-1.{sfi,ddc}); regulatory.db* from the vendor image.

Android's built-in updater can't work here (it expects Google's A/B partitions and kernel). To move to a newer lapis build:

1. download the new recovery image, re-extract, rebuild super.img;
2. tools/isa_scan.py it for instructions the emulator doesn't cover (AVX-512, AMX, ...);
3. re-check every hash-pinned patch in hook.sh (libz, libcrypto, libkm_compat): a new build has new files, so patches silently stop applying until regenerated, and renamed vendor files stop being hidden;
4. copy to the stick and run 1 (Update). Data carries over; going back to an older build requires a data wipe.

• install.sh erases the entire internal disk (NVMe or eMMC) on a fresh install. The serial-number prompt is the only guard.
• SELinux runs permissive, and the security services are software stand-ins. Don't treat this as a secure device.
• The ISA emulator runs in the kernel's #UD handler; a bug there is a kernel bug.
