isod89/sloop-fm1

A live groovebox firmware for the M-VAVE FM-1 — for any style.
Free and open source (GPL-3.0), based on Felucca by Leo Kuroshita / Hügelton Instruments.

Install from the browser · Complete guide · Manual · Guide en français · Web editor · Releases · Report a bug

SLOOP turns the FM-1 into a four-track groovebox you play live: three synths and a drum machine with 16 sounds on the white keys, twelve synthesis engines, 153 sounds, 37 drum kits, your own samples, a song mode you play with your hands, USB audio, MIDI in on the jack and MIDI clock — and now physical models (guitars, sitar, bells, hand drums), a noise engine, six-operator FM with DX7 patches, parameter locks, micro timing, fills, a quick chain of sections and the sequencer to MIDI out. House, techno, hip-hop, trap, drum & bass, amapiano, synthwave, lo-fi, ambient, chiptune — it does not pick a style for you. No factory patterns, nothing to load: everything you hear, you play.

Status: 2.7.1 (a fix for 2.7: an FM-1 whose second core ran late showed a FELUCCA CRASH screen and restarted; it now carries on, on one core). 2.7: two processor cores, fifteen arp modes, KBD HOLD, drum TUNE and DECAY, favourite sounds, looping samples, QUANT off, MIDI 3, your own screen colours; after 2.6's 27 punch-in effects, INSERT and MIDI LEARN. Still a beta: install at your own risk, and please report what you find. Your projects, presets, samples and settings are kept when you update, and you can go back at any time (see Going back).

1. What's new in 2.7, 2.6 and 2.5
2. Screenshots
3. Features
4. Install
5. Your first beat in 60 seconds
6. The controls
7. The menu: settings of the FM-1
8. MIDI and USB audio
9. The web editor
10. Compatibility
11. Troubleshooting
12. Specifications
13. Documentation
14. Building and tests
15. Contributing
16. Credits and thanks
17. Licence

2.7.1 fixes a crash: when the FM-1's second core did not finish its share of the sound in time, SLOOP stops it and carries on on one core, but stopping it raised a false alarm on the chip, and the FM-1 showed a red FELUCCA CRASH screen and restarted. It now holds the second core the safe way (after Felucca 1.6.1): a short glitch, and the music goes on. The crash screen also says more (the stack, the second core's state) and stays 10 seconds, long enough for a photo.

• Two cores: the sound now runs on both of the FM-1's cores (andrerezemini, #111): about twice the room, so many voices and INSERT effects no longer crackle. On by default (HOME menu → SYSTEM → 2ND CORE).
• Fifteen arp modes from Felucca 1.5.1 (REPEAT, DNUP, UP+8, CONV, DIVG, PINKY, THUMB, WALK, CHORD), ORD in the order you pressed, and the arp keeps going when you change the sound.
• KBD HOLD (#103): HOLD with the arp off holds your chord. ARP SWG works stopped too (#52).
• Samples that loop while held (LOOP, LOOP+TAIL, zero-crossing loop points, a WAV's own loop), on the editor's Samples page.
• Tune and decay every drum sound (DRUMS screen, new SOUND page), on every kit, kept with each section.
• Kicks you hear on any speaker: the synthesised kits' kicks (808, 909, 606, TRAP…) were a 50 Hz sine the FM-1's speaker, a phone or earbuds cannot play: only a quiet click was left. They now have the drive and pitch sweep that carry them up there, and more level.
• Favourite sounds at the top of the PRESETS list (PRESETS page, KNOB 4).
• QUANT off on the REC screen keeps your timing as nudges; overdub over held notes.
• GLO → MIDI 3: punch-in effects from MIDI (FX CH), drums from any 16 notes (DR MAP 1-16), the 14 buttons over MIDI (REMOTE), CLOCK OUT on USB (#106). CC 74 sweeps each engine's own cutoff (after @renebohne, #71).
• Faster knobs (KNOB ACCEL) and LEVEL / PAN glide, after JIANT FM.
• The editor's LIVE page: play a whole show from a computer, tablet or phone: PLAY / REC, BPM and TAP, sections A–D on the next bar, a mixer (level, mute, solo, filter, pan, sends, sound), the 27 punch-in effects as pads, keys and drum pads, fills, full screen and computer-key shortcuts; songs saved as files and played from a playlist. Scenes (8, at once or morphed over bars, an A/B crossfader), a PERFORM card (every knob of the track you play, its steps), chains, roll and erase from the keys, the pattern's tools, each pad's tune and decay, throws and the master volume, MIDI learn for your controller, a lock, the set recorded as WAV, and a ? on every card that explains it.
• Steadier on two cores: the supplies at M-VAVE's own levels from power-on (after X0X 1.0.9).
• Your own screen colours: the editor's Theme page (light themes too), MENU → COLOR.
• USB RATE (44.1 / 48 kHz) for phones; the drum MUTE mode stays after EDIT (#126).
• SAVE → SECTION A–D (was PROJECT 1–4): the FM-1 holds one song; keep several as editor backups.

Details in SLOOP.md. Projects, autosaves and backups from 2.6 load as they are; a project saved in 2.7 opens in 2.6 without the 2.7 features.

• 27 punch-in effects: eleven more on the black keys (hold FX): KILL LOW / MID / HIGH, REWIND, OCT UP, FLANGER, AUTO-PAN, FREEZE, LOOP 8T, MONO, FADE OUT.
• From Felucca 1.4 / 1.5 (Leo Kuroshita): an INSERT effect on every track (SOFT, HARD, FOLD, FUZZ, CRUSH, PHASR, FLANG, CHOR, with dry / wet), LFO 2 (tempo SYNC, TRIG NOTE / FREE, POL BI / UNI), ENV SYNC (attack, decay and release as note values), the ANALOG filter as LP, BP or HP, a note's LEN in steps and each step's velocity, MIDI LEARN (GLO + F#3), and the latched-arp fix (#191).
• TEXTURE: a looping bed under the mix (vinyl, tape, rain, wind, radio, room tone or your own sample), breathing slowly with the tempo, without taking a track (GLO → TEXTURE).
• Live drum mutes: EDIT + a black key, then the sounds' keys.
• Sustain pedal and pitch bend from a MIDI keyboard (the bend's range: GLO → MIDI 2).
• Each track on its own MIDI channel (GLO → MIDI: CH1, CH2, CH3, OTHER), in and out, for an external sequencer (drums 10, bass 2, pad 11, lead 8…). Thanks to the viewer who asked!
• Step entry from a MIDI keyboard: on the STEP page, the notes your keyboard plays write the step, as the FM-1's keys do.
• Program Change, 1/4D delay, REV / ECHO THROW (FX + OCT− / OCT+), after Felucca 1.5.1.
• Erase a saved loop: SAVE → PROJECT → ERASE (KNOB 2) empties a project slot, song section A–D. Thanks to the viewer who asked!
• The web editor offline: Download the editor saves it as one file that runs in Chrome or Edge without internet, or Install the app (Android too): the editor and the installer then open without internet.
• MIDI IN on one channel (GLO → MIDI 2 → IN = CH 1 … 16), for a sequencer driving other gear on the same cable.
• A bolder screen: Terminus Bold, all in capitals.
• No more clicks when loading a sound over held notes, or when a filter (track, drums, master FILT) starts to close.
• A cleaner output: the master limiter looks ahead, so loud kicks and basses no longer crackle with MASTER turned up (headphones especially).
• Fixed in the web editor: the same value set on a second track (DIV 1/8 on the drums, then on track 1) is sent again.
• The installer finds an FM-1 running CLIPPER (or another firmware naming its USB port its own way).

Details in SLOOP.md. Projects, autosaves and backups from 2.5 load as they are; a project saved in 2.6 does not open in 2.5 (keep a backup before updating). Going back to 2.5 after changing GLO → MIDI or learning CCs: restore your SYN drum kits from a backup (2.5 does not read the 2.6 settings and starts them over).

• PHYS: physical models. An eleventh engine, from Felucca 1.0 (the models of DaisySP and Mutable Instruments Rings, by Emilie Gillet): plucked and struck strings, bars and bells, drum heads, and strings with sympathetic strings that ring along. Guitars (NYLON GTR, STEEL GTR, MUTED GTR), PLUCK BASS, KOTO, BANJO, SITAR and TANPURA, PHYS HARP, CHIMES, BIG BELL, VIBRA BAR, STEEL PAN, WOOD BLOCK, CELLO BOW, GLASS BOWL, TABLA, CONGA, TIMPANI and more: 26 sounds.
• NOISE. A twelfth engine, from Felucca 1.0: noise from analogue to digital, through a resonant filter. WIND, RAIN, OCEAN, VINYL, HISS, RISER, NZ SNARE, BITCRUSH, RADIO, NZ ARCADE, NZ METAL.
• 153 factory sounds (76 in 2.4): 77 new, every one level-matched. Besides PHYS and NOISE: bass guitar, mono and saw basses, harp, steel drum, glockenspiel, celesta, xylophone, tubular bell, pan flute, harmonica, accordion, a 70s string machine (ENSEMBLE), an 80s poly synth, rock and chapel organs, granular clouds (STR CLOUD, SHIMMER, DRONE, PNO FREEZE, HORN CLOUD), chip sounds (NES BASS, CHIP CHORD, WAVE LEAD…), CZ lead / pad / reso, ROBOT and VOX PAD. See the sound bank.
• Two engines, no memory more. GRAIN, FM6 and PHYS keep their big per-track state in one shared area (a track plays one engine at a time), so the new engines cost no memory at all; the pitch table now takes 768 bytes instead of 8 KB. Every sound of 2.4 renders bit for bit as before.
• The web editor: piano roll, MIDI files, song. On the Sequencer page: a length control (1–64 steps; the steps redraw at once), a piano roll to draw, delete and stretch notes and chords with the mouse, and Export MIDI / Import MIDI for the selected track (the drum track too, as GM drum notes), with a preview that says what moves or does not fit before anything is written. A new Song page edits the order of the sections A–D, as the FM-1's SONG screen does. Thanks to the viewer who suggested them!
• USB audio at 48 kHz too: record into your phone. The FM-1's USB audio input now also runs at 48 kHz when the phone, tablet or app asks for it (many only take 48 kHz), resampled in the FM-1 (after Felucca 1.1.5). Plug it into your phone and record into a sampler app. At 44.1 kHz nothing changed.
• Drum synth: make your own drum kits. A new page in the web editor changes every value of the synthesised drum sounds — the tone and its pitch drop, the click, the noise (white, the 808's metal, chip, clap), the filter, drive and level — and the FM-1 plays each change at once. Four kits of your own, SYN1–SYN4, after the others on the drum track's KIT, stored on the FM-1, in backups and as files.
• DX7 cartridges in one go. Drop a .syx file on the editor's FM6 panel, tick up to 27 of its voices (the first 27 are ticked) and Store cartridge in bank puts them in B1, B2… in one write, asking before it replaces anything. Choose to add them to the user presets too, and the FM-1's PRESETS and SELECT find them by name; or pick them with PTCH. Thanks to the viewer who asked!
• A delay send for the drums. GLO → DRUMS → DLY (next to REV) sends the drum track into the tempo delay: echoing hats, dub snares. CC 94 on the drum channel sets it too. Thanks to the viewer who asked!
• MIDI CCs (after Felucca 1.1.5). A controller's knobs now set the sound: CC 7 level, 10 pan, 74 the track's filter, 71 resonance, 73 / 75 / 72 attack / decay / release, 5 glide, 91 / 93 / 94 the reverb, chorus and delay sends, on the track the channel plays (as the notes). Until now SLOOP ignored every CC.
• Swing reads 0 to 100. 0 is straight, 100 the strongest (a step pair played 75 / 25, MPC's 75 %); it used to read 50–75 %. The swing itself and your projects did not change.
• SEL, as printed on the button. The key / scale button between FX and ENV is now called SEL everywhere (its pages SEL and SEL 2, the calibration, the guides); it was written SCL. Not to be mixed up with the SELECT knob.
• The DRUMS page's level dial goes from ghost on the left to hard on the right (its needle followed the wrong order; the levels were right).
• Fixed (2.4.1, folded into 2.5): imported DX7 patches with AMS above 0 (about one in four) played noise and static: they now sound as on a DX7. The click (and the REC count-in) is heard again with your own drum kits and with the drum track muted or another track soloed: it has its own sound now. In chord mode, a key on the STEP page writes the whole chord it plays, not only its root.

Projects, autosaves and backups from 2.4 load as they are. Going back to 2.4: a track playing PHYS or NOISE opens with another engine there, and 2.4 does not keep the SYN kits (a drum track on SYN1–4 plays USR3+4 there), so keep a backup.

Projects, autosaves and backups from 2.3 load as they are. The full list, and what came before: SLOOP.md.

The full list, and what came in 2.0, 2.1 and 2.2: SLOOP.md. Release notes: Releases.

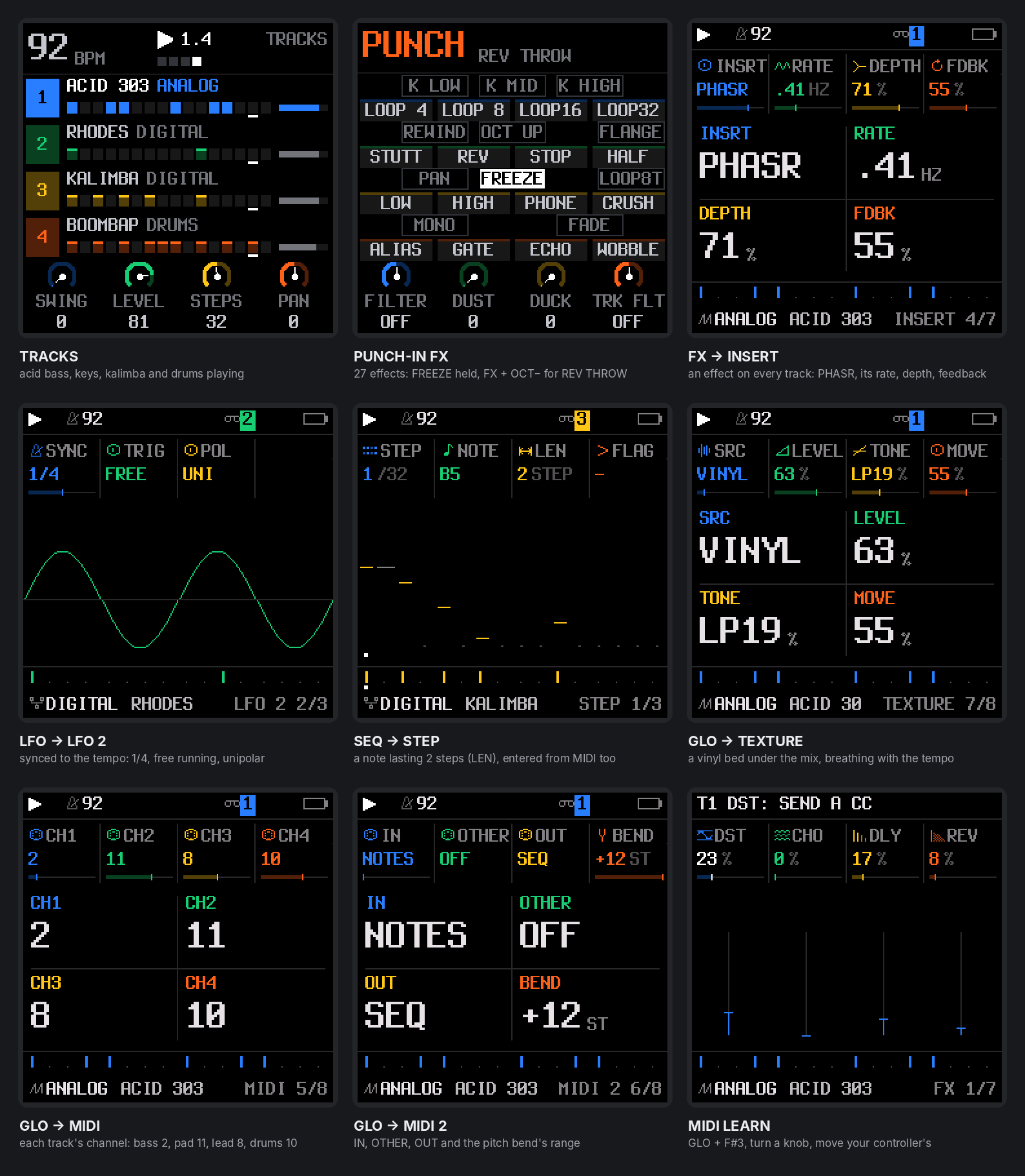

_{The FM-1's screen in 2.6, in its bold font: the tracks playing, the 27 punch-in effects (FREEZE held, REV THROW on), an INSERT on a track, LFO 2 synced to the tempo, a note's LEN on the STEP page, the TEXTURE bed, every track's MIDI channel (GLO → MIDI, MIDI 2) and MIDI LEARN.}

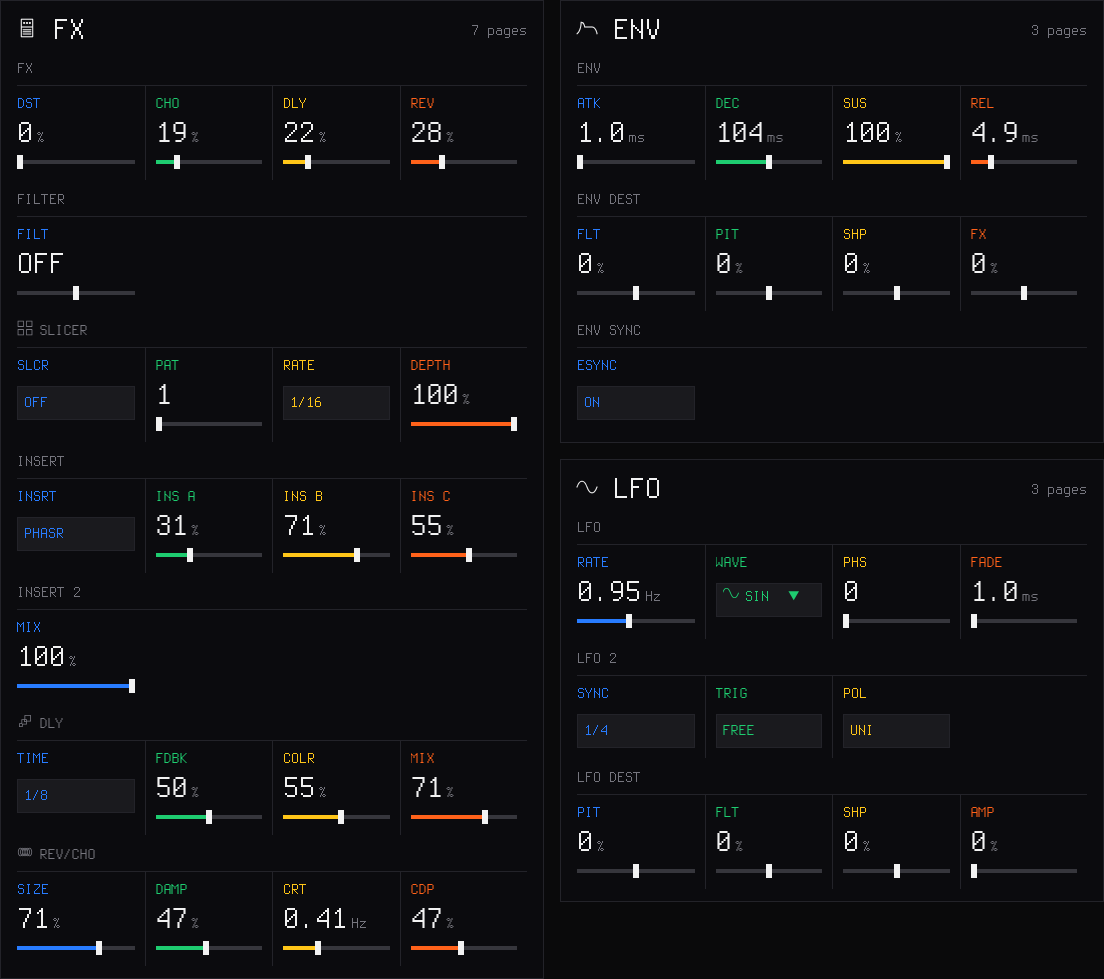

_{The web editor's Sound page in 2.6: the INSERT and its dry / wet, ENV SYNC, LFO 2 (SYNC, TRIG, POL).}

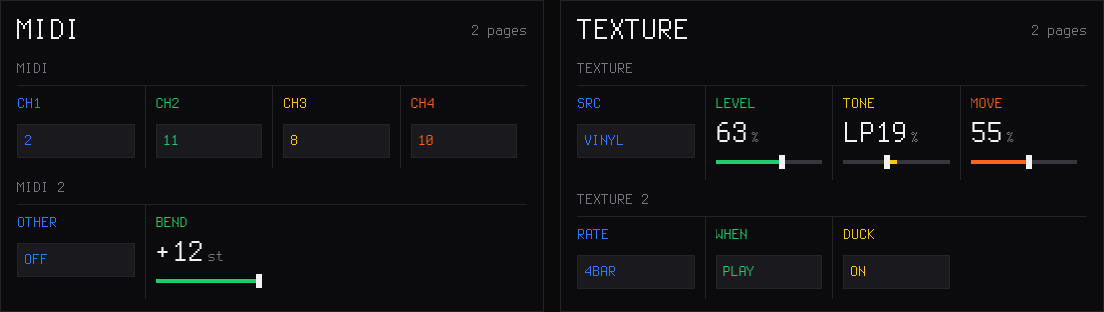

_{Settings: each track's MIDI channel, the other channels and the bend range; the TEXTURE bed.}

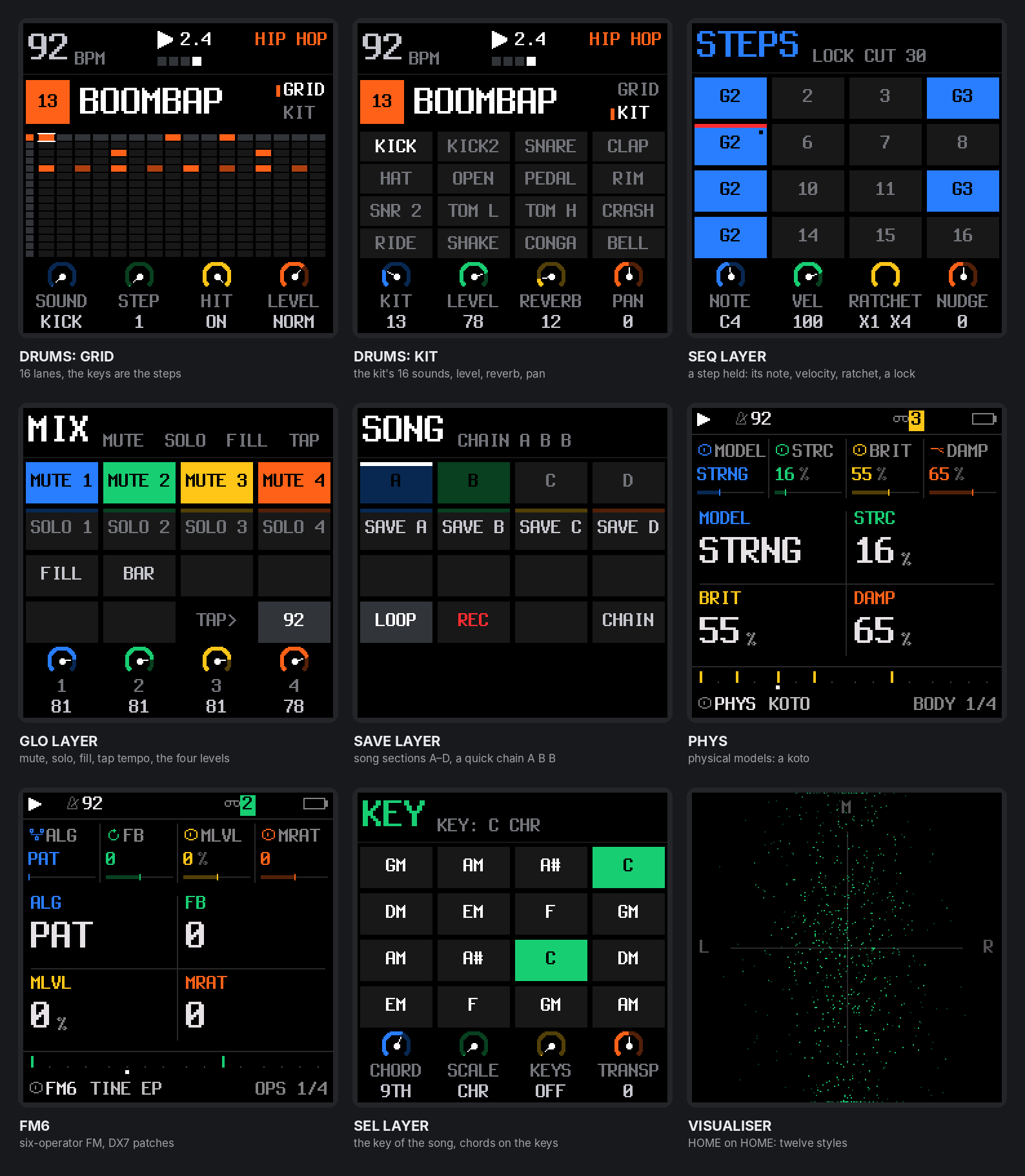

_{And the rest, in 2.6's look: the drum grid and kit, a step held in the SEQ layer (its note, velocity, ratchet and a lock), the GLO mix layer, the SAVE layer's song sections and chain, PHYS, FM6, chords on the keys (SEL), the visualiser.}

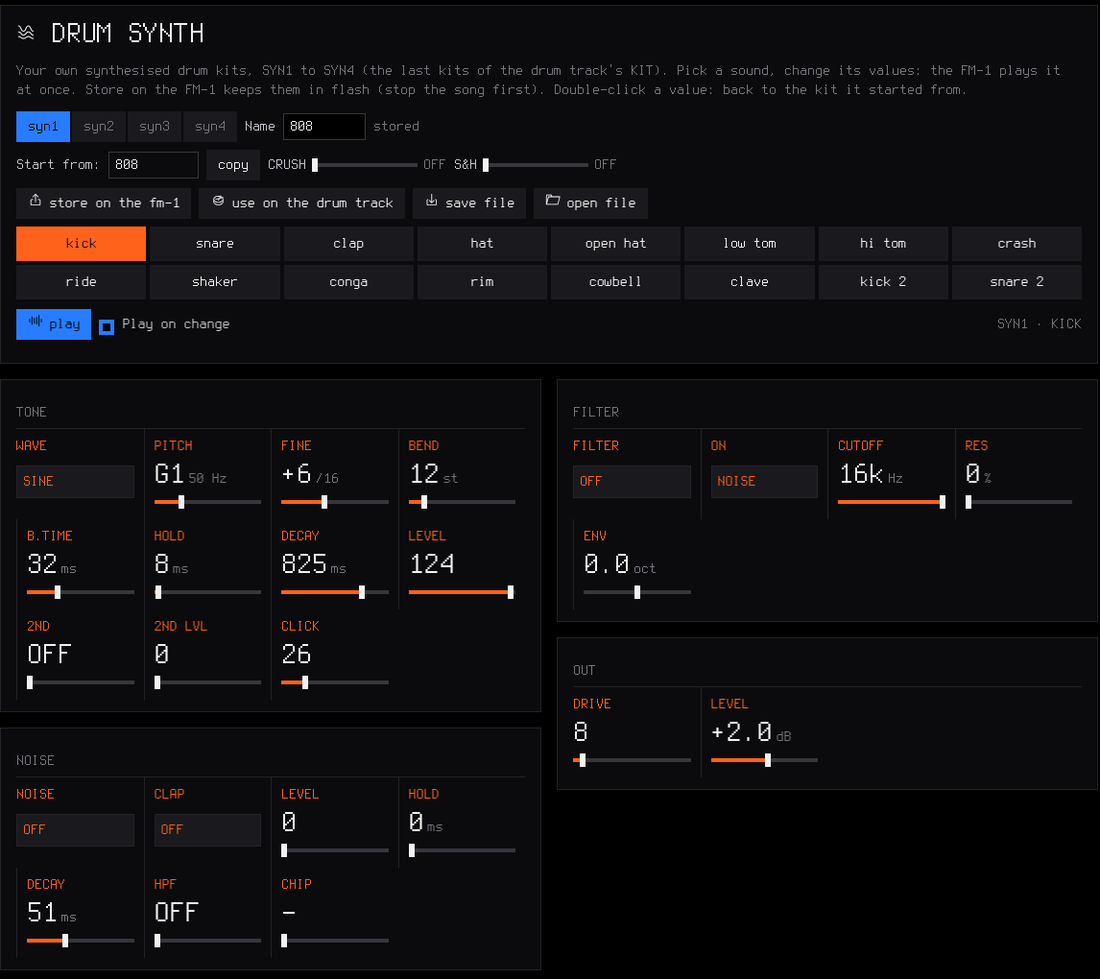

_{The web editor's Drum synth page: every value of every drum sound, heard on the FM-1 at once.}

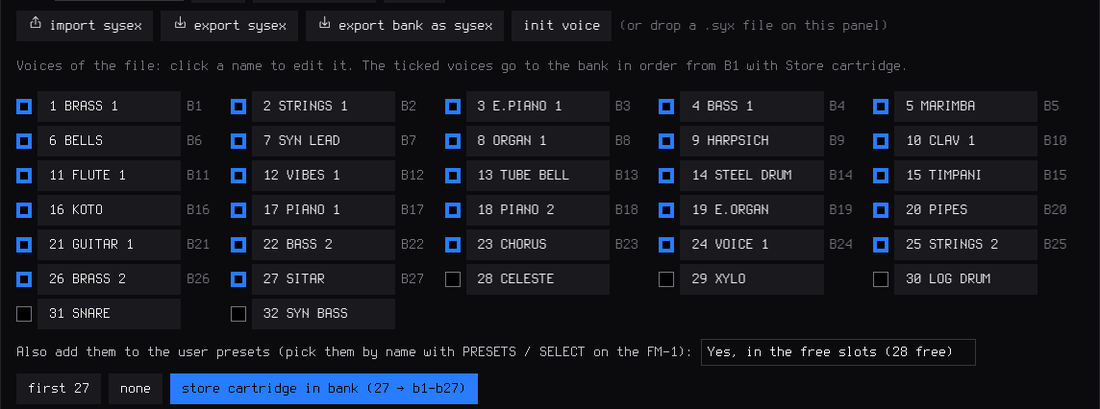

_{A 32-voice DX7 cartridge dropped on the FM6 panel: 27 voices ticked, into the bank in one write, and as user presets if you choose.}

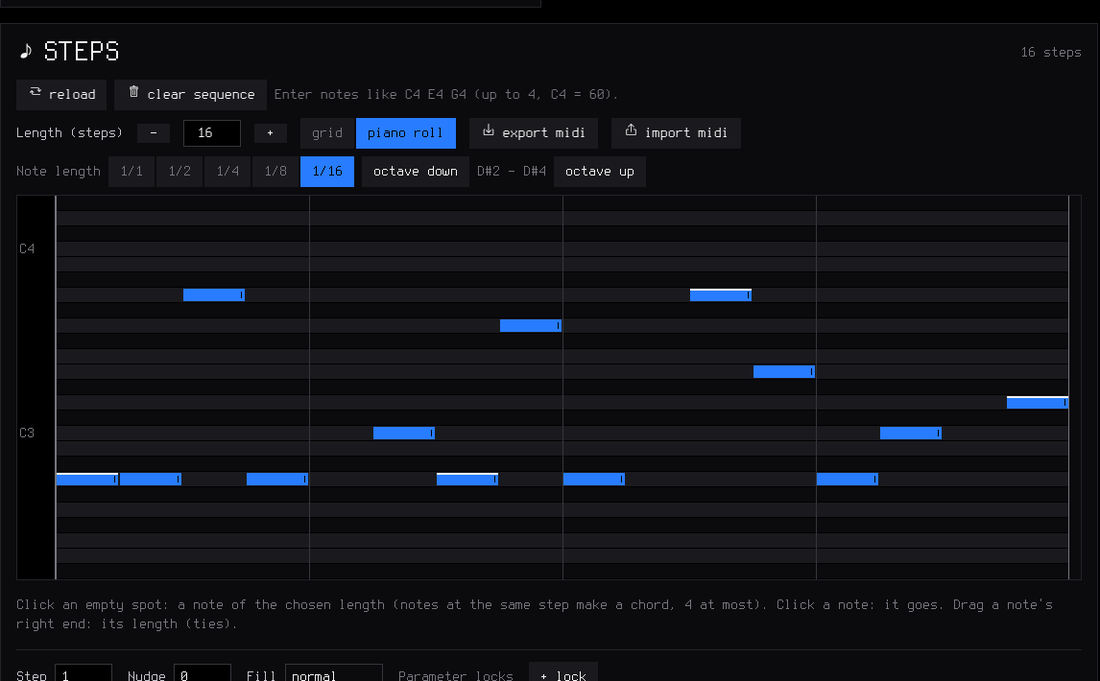

_{The piano roll: draw, delete and stretch notes and chords with the mouse; Export MIDI / Import MIDI next to it.}

Every function button is a layer: hold it and the 16 white keys and the four knobs change job, and the screen shows how. Tap it and its pages open. Hold a layer button and tap HOME to lock it open, both hands free.

Keys 1, 5, 9 and 13 glow dimly while a layer is held: the first key of each row of the 4 × 4 grid on the screen. EDIT + OCT− / OCT+ is undo / redo.

• 16 sounds on the white keys, kick to cowbell; a black key doubles the white key on its left (fast rolls with two fingers).
• Ghost and hard hits: hold OCT− / OCT+ while you play. Every hit keeps its level (GHOST, SOFT, NORM, HARD) and a ratchet (x1–x4).
• 37 kits, all level-matched: a sampled acoustic kit in 5 treatments (CC0 studio recordings) and 32 synthesised kits — 808, 909, 606, 80s, vintage, trap, drill, boom bap, lo-fi, phonk, house, deep house, techno, minimal, electro, disco, UK garage, jungle, dubstep, reggaeton, amapiano, afrobeat, latin, tribal, synthwave, chiptune, arcade, glitch, industrial, hyperpop, ambient, jazz brushes. Each synthesised sound is built like on the classic machines; softer hits are darker as well as quieter. Your own kits too (2.4): KIT USR1–USR4 (or USR3+4, about 15 s) plays sample slots you fill in the editor's Drum kit page, a sound of yours per lane. And (2.5) SYN1–SYN4, synthesised kits you make in the editor's Drum synth page.
• Grid and kit pages on the FM-1 (EDIT or SEQ on the drum track): on the grid, the keys are the steps of the sound you pick (and you hear it); a 16-lane grid in the web editor.

• Twelve engines: analog, 4-op FM, 6-op FM with DX7 patches (FM6, 2.4), phase distortion, three-oscillator, tonewheel organ, formant voice, granular, lo-fi chip, sampler, physical models (PHYS, 2.5), noise (NOISE, 2.5).
• 153 sounds, browsed by kind — basses (sliding 808s, acid 303, reese, FM, bass guitar), guitars, sitar and koto (physical models), keys (Rhodes, a real Steinway grand, house and afro keys), organs and accordion, pads (string machine, granular clouds), leads (supersaw, talkbox, pan flute, harmonica), plucks and bells (harp, steel drum, glockenspiel, celesta, xylophone), stabs and dub chords — every one level-matched. 32 slots for your own presets.
• Envelopes (with a pitch punch for 808s; 2.6: in note values with ENV SYNC), LFO (2.6: tempo-synced, free-running or unipolar), arpeggiator, glide and voice modes (POLY, MONO, LEGATO, UNISON), per-track drive, INSERT effect (2.6: soft / hard clip, wavefolder, fuzz, bit crush, phaser, flanger, chorus) and slicer, ANALOG's filter as LP, BP or HP (2.6), sends to a stereo chorus, a tempo delay (dotted 1/8 and 1/16 too) and a stereo reverb.
• Key and chords (SEL): the key of the song for all synths, 16 scales, one-key chords (triad, 7th, 9th, sus4, power), keys snapped to the scale or the scale on the white keys.

• Records as you play, no click needed: while it plays, REC records at once and every pass is added on top (overdub). Notes land where you heard them: the ~12 ms of the keys are taken back.
• The REC screen (2.3): mode free — no tempo, no grid: play, press REC on the "1" after your last bar, and the loop's length sets the tempo — or tempo — record at the tempo you set; length 1, 2 or 4 bars; start on your first note, or after a one-bar count-in.
• Hold REC ~2 s to clear a track; undo / redo brings it back.
• 64 steps per track, each track with its own length and division, 1/32 to two bars (polymeters stay in phase); chords up to 4 notes a step, ties, slide; MPC swing, 0 (straight) to 100; one sample-accurate clock for everything: no drift at any tempo.
• Parameter locks, micro timing and fills (2.4): hold a step to give it its own value of any sound parameter, to nudge it off the grid, or to make it play only (or never) during a fill.
• The PLAY light flashes on every beat (a visual metronome); an audible click is in GLO → GLOBAL → CLICK and is never recorded.

Save up to four sections A–D (SAVE + keys 5–8), play them live on the next bar (SAVE + keys 1–4), and record the song as you play it (SAVE + key 14). Keep SAVE held and tap several sections for a quick chain (2.4). In song mode PLAY plays the whole chain. The SONG screen edits it by hand.

• 27 punch-in effects (FX + a key, white or black), locked to the tempo: DJ kills, rewind, reverb freeze and more.
• Master: DUST (an old sampler and a record: bits, rate, crackle), DUCK (the kick pumps the synths), FILT (a DJ filter: low-pass ← off → high-pass), and an output limiter.
• TEXTURE (2.6): a looping bed under the mix: vinyl, tape, rain, wind, radio, room tone or one of your samples, with level, tone and a slow breath over 1–16 bars.

• Four slots (USR1–USR4) of about 7.4 s each, played by a synth track or as a drum kit (USR3+4: one kit of about 15 s); up to 16 WAV files per slot, each on its own key.
• CHOP in the web editor: open or drop a recording (WAV, MP3, AIFF…) of any length, tap along while it plays (each tap snaps to its hit), or find the hits, a tempo grid, equal parts; keep the chops you want, shorten them or Fit to slot; send them to a slot, one per key, or download them as WAV files.

• USB MIDI in and out, class compliant.
• TRS MIDI IN (the 3.5 mm jack, 2.3) for a keyboard or a pad controller.
• MIDI clock in (USB or TRS): tempo, START, CONTINUE, STOP.
• MIDI CCs (2.5): level, pan, filter, resonance, envelope, glide and the sends from a controller's knobs; MIDI LEARN (2.6): any knob of yours onto any parameter of a track.
• MIDI out: the keys always; the sequencer, the arp and the rolls too with GLO → MIDI 2 → OUT = SEQ (2.4).
• Details: MIDI and USB audio.

The FM-1 is also a USB audio input: record its master output on a computer, no driver, over the same cable as MIDI and the editor. Details: USB audio.

Every button can glow so its label is readable on a black FM-1; the C keys or every white key can glow too; the notes playing can light their keys. Details: The menu.

• Autosave: stop and leave it 2.5 s, your work is kept; at power-on SLOOP comes back exactly as you left it.
• 1 song of 4 sections (A–D) (more songs as backup files), 32 user presets, 27 FM6 patches, undo / redo.

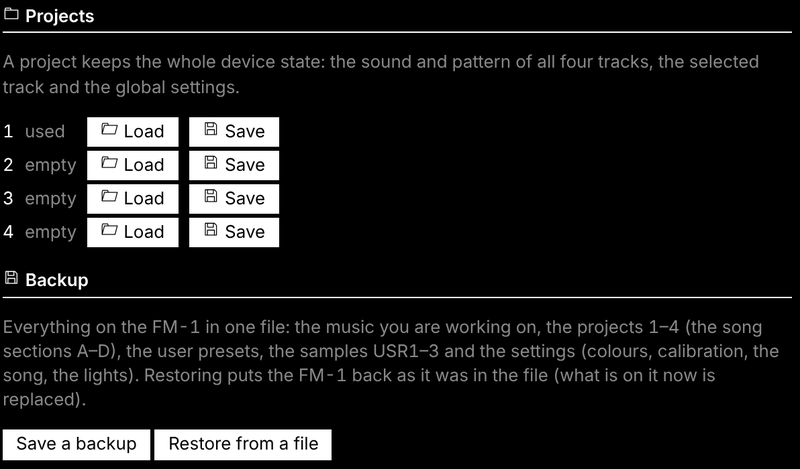

• Full backup and restore from the web editor (2.3).
• Safe updates: the installer checks the package (SHA-256) before writing it, the update loader checks it again (CRC) before starting it; an interrupted install finishes when you press Install again; USB rescue (OCT− at power-on).

1. Open the SLOOP installer in Chrome or Edge on a computer.
2. Connect the FM-1 by USB — a data cable, directly (no hub).
3. Press INSTALL, allow MIDI access, and wait for Done. The FM-1 restarts on the SLOOP logo.

Nothing to download or compile. Your projects, user presets, samples and settings are kept. After an install, unplug and plug the FM-1 back in once so the computer finds its USB audio input.

• Python: the .fwsc of a release with python tools/fm1_install.py sloop-2.4.fwsc (needs pip install mido python-rtmidi).
• Build it yourself: see Building and tests; on Windows, INSTALL-SLOOP.bat builds SLOOP and opens the installer locally.

• To an earlier SLOOP: install the .fwsc of its release (for example 2.3). Your samples, user presets and settings stay. Projects saved by 2.4 (format FUN5: locks, nudges, fills) do not open in 2.3 or older — 2.3 sees them as empty, and its autosave can write over the music in progress; a 2.4 backup restores into 2.4 only. Save a backup before you go back, and restore it once you are on 2.4 again.
• To the official firmware: on the installer page, open Return to the official firmware (V15). Save a backup with the editor first, download FM-1 V15 from m-vave.com and select its FM-1.fwsc — only that exact file is accepted. M-VAVE's updater, M-UPGRADE, works too. To come back, install SLOOP again and restore your backup.

• The FM-1 no longer starts SLOOP: hold OCT− alone while switching it on (SLOOP USB RESCUE), then install again.
• An install was cut off: the FM-1 stays in update mode; press INSTALL again and it finishes.
• If an FM-1 no longer starts at all, recovery needs FM-1-transporter.

Custom firmware is installed at your own risk. No warranty.

1. ALGORITHM to track 4 (orange, drums). The white keys are 16 drum sounds; PRESETS picks a kit (try 808 or BOOMBAP).
2. Press REC and play a beat freely, at your own tempo. Hold OCT− while you hit for ghost notes, OCT+ for hard ones.
3. Press REC on the "1" after your last bar. The loop closes, its length sets the tempo, the hits snap to the grid and it plays at once. (Prefer a set tempo, or a count-in? Turn KNOB 1 and KNOB 3 on the REC screen before you start.)
4. REC again while it plays: you record on top. Hold ARP and hold the hat key for a hat roll.
5. ALGORITHM to track 1, REC, play a bass line. Hold SEL and press the key of your song; on track 2, hold SEL and turn KNOB 1 to 7TH: every white key now plays a chord.
6. Hold FX and press a key (white or black) for a punch-in effect; still holding FX, turn KNOB 2 for DUST, KNOB 3 for DUCK.
7. A mistake? Hold EDIT and press OCT−: undo.

Colours: blue track 1 and KNOB 1, green 2, yellow 3, orange 4 (drums). White is what you touch; red is recording.

Hold HOME. The menu is in four sections, as the pages are: SCREEN (COLOR, ZOOM, KNOB ACCEL), LIGHTS (LIGHTS, KEYS, NOTES), AUDIO (LOWCUT, USB AUDIO, USB RATE; 2.6: USB SERIAL), SYSTEM (HARDWARE CALIBRATION, ABOUT). SELECT goes from one section to the next, KNOB 1, 2, 3 set the section's rows (each row shows its knob's colour), PRESETS moves the cursor, OCT+ steps the cursor's setting round or opens it (CALIBRATION, ABOUT), OCT− closes. These are settings of the FM-1, not of a project: loading a project or NEW PROJECT does not change them, and the backup keeps them.

Two more settings of the FM-1 live elsewhere: SYNC (GLO → SYSTEM: INT, USB or TRS) and the REC screen's mode and start.

SLOOP takes MIDI from two places at once:

• The MIDI IN jack (3.5 mm TRS): a keyboard or a pad controller with a MIDI output, through a TRS-to-DIN MIDI adapter. If nothing plays, try the other adapter type (A / B).
• USB, from a computer or a phone (a DAW, a MIDI routing app) or a USB MIDI host box.

Your own channels (2.6). For an external sequencer with its own channels (drums 10, bass 2, pad 11, lead 8…): GLO → MIDI sets each track's channel (CH1, CH2, CH3, CH4 the drums: OFF or 1–16, in and out; two tracks never share one) and GLO → MIDI 2 the rest: IN, OTHER (SEL: the channels no track has play the selected track; OFF: ignored), OUT, BEND. Notes, CCs and MIDI out follow. Settings of the FM-1, kept through power-off.

Your sequencer uses the other channels for other gear? GLO → MIDI 2 → IN = CH 1 … CH 16 (2.6): SLOOP then answers that one channel only, on the selected track, and ignores the rest.

A USB keyboard plugged straight into the FM-1 cannot work: both are USB devices, and a USB link needs a host (a computer, a phone, or a USB MIDI host box). Bluetooth MIDI is not supported: SLOOP, like Felucca, never switches the radio on.

What you play on the keys always goes out on USB MIDI, each track on its channel (1–3 the synths, 10 the drums). GLO → MIDI 2 (or SYSTEM) → OUT = SEQ sends what the sequencer, the arp and the rolls play too: every note is ended, STOP ends whatever was still on, and notes that came in from a computer or the jack are never sent back. Record the FM-1's MIDI in a DAW and you get your pattern as notes.

GLO → SYSTEM → SYNC = USB or TRS (INT: SLOOP's own tempo). START plays from the top, CONTINUE carries on, STOP stops; the tempo follows the master and the steps follow its 24 pulses a beat, so SLOOP never drifts. When the clock stops for half a second, PLAY on the FM-1 plays at its own tempo again.

Clock only (2.4): GLO → MIDI 2 → IN = CLOCK: SLOOP follows the clock and ignores incoming notes (and CCs), handy when a DAW or a sequencer also sends notes to other gear.

The knobs of a MIDI controller set the sound, on the track the channel plays (as the notes: 1–3 the synths, 10 the drums, 4–16 the selected track). A CC sets its parameter as a knob would, 0–127 over its range. The standard map of Felucca 1.1.5:

Other CCs (mod wheel…) are ignored. From 2.6 the sustain pedal (CC 64) and pitch bend work too (the bend's range: GLO → MIDI 2 → BEND, 1–12 semitones).

MIDI LEARN (2.6, after Felucca 1.5): GLO + F#3, turn the knob of SLOOP you want, move a knob of your controller; GLO + F#3 again to finish. A learned CC sets that track's parameter on any channel, in place of the map above (up to 16; kept through power-off). HOME menu → SYSTEM → MIDI LEARN CLEAR forgets them. Details: GUIDE.md.

On USB the FM-1 is also an audio input named "Felucca": 44.1 or 48 kHz (2.5: phones and apps that only take 48 kHz), 16-bit stereo, class compliant — no driver on Windows, macOS or Linux. Choose it in your DAW or in Audacity and record: you get the master output, exactly what the headphones play (after DUST, DUCK and FILT). MIDI, the web editor and the installer keep working on the same cable.

• The level: HOME menu → USB AUDIO. MASTER (default): the recording follows the MASTER knob, as the headphones do — keep MASTER well up while you record. FULL: a fixed level, as with MASTER all the way up, kept from clipping by the limiter; MASTER then only sets the headphones (the right choice for an interface with no level control).
• The first time (and after an install), the computer sets the FM-1 up again as a MIDI + audio device: unplug and plug it back in if the input does not show. The MIDI port keeps its name.
• The audio input comes from Felucca 1.0.

Open it from the installer page (or the editor link) in Chrome or Edge, with the FM-1 on USB, and press Connect. It follows the device live: turn a knob on the FM-1 and the editor moves.

Local audio preview. Build the browser audio engine with python3 tools/build_preview.py (Emscripten required; see BUILDING.md), generate and serve the local site, then open http://localhost:8766/webapp/editor/?mock=1. Press Connect and Play loop to hear the current four-track loop. Presets, sound parameters, tempo, mixer, steps, locks, FM6 patches and uploaded samples feed the actual firmware DSP compiled to WebAssembly, running in an AudioWorklet at 44.1 kHz. The preview starts collapsed so the sound editor stays visible. Its compact bar keeps Play loop and Stop, plus the selected sound and its live step/note. Show preview opens the piano/pads, volume and sequence; Hide preview folds them again while the loop keeps playing. Sound parameters remain editable during playback in either view. Click the notes or play A W S E D F T G Y H U J K; Space toggles the sequencer, Stop releases all notes, and Volume adjusts browser output. Current sequence shows all four patterns with the actual audio engine's playing step highlighted, independently following each track's length and division. Patterns over 16 steps follow automatically. Click a synth step to enable or disable it: re-enabling keeps its previous notes, velocity, levels and ratchets. Double-click a synth step to open a piano picker: click a key, use − / + to browse octaves, then Apply to change the pitch (or Cancel to keep it). Listen on click auditions the draft through that track's instrument without saving it to the sequence. For chords, select a member above the piano and change its pitch. An empty step uses the new note chosen beside its track or by playing its piano. Drum rows show individual percussion sounds: click a cell to toggle that hit while keeping the other sounds on the same step. Drums start as a compact overview of hits per step; Show drum grid (or clicking an overview step) expands the editable sound rows, and Hide drum grid collapses them without changing the pattern or interrupting playback. Common and programmed sounds stay visible; Show all 16 sounds reveals the rest. Edits reach the playing loop through the editor protocol. Follow playback and the page arrows control which 16 steps are shown; paging pauses under the pointer or keyboard focus so a click keeps its target. Full editor opens the detailed sequencer (including chords and ties). Hide keys/pads saves space. The simulated device stays still until you edit it; its changes are kept only for the current page session. This mode makes no MIDI requests and does not connect to or update an FM-1. It previews the current project loop; the saved Song section order and hardware recording are not emulated. Audio preview requires the served site, rather than the downloaded single-file editor.

Offline (2.6). Download the editor (under Connect, or on the installer page) saves the whole editor as one file for a computer, sloop-editor-2.6.html, also attached to each release. Double-click it: it opens in Chrome or Edge without internet (Chrome asks once to allow MIDI) and works as the online one. Its sound library (kept in the browser) is its own, apart from the online editor's: move sounds between them with Export / Import, or a backup.

As an app, also on Android (2.6). Open the online editor or the installer once with internet, then Install the app (under Connect, or on the installer page; or Chrome's menu → Install app / Add to Home screen). From then on the SLOOP app opens the editor without internet, and its link to the installer works offline too (with the firmware it installs). It stays the online site kept by the browser, so it uses the same sound library as the online editor, and it takes each new SLOOP version by itself the next time it opens online. On Android, use the app rather than the downloaded file: Chrome on Android does not allow MIDI in a downloaded file.

• Sound — every parameter of the selected track, the engines and the presets; on an FM6 track the FM6 panel: every operator, the bank, Import / Export SysEx (DX7 voices and banks).
• Sequencer — the steps, as tiles or as a piano roll, and the track's length (1–64 steps); on the drum track a grid of 16 sounds × the steps, with levels and ratchets, and the kit. Click a step for its nudge, parameter locks and fill condition. Export MIDI / Import MIDI: the selected track as a MIDI file, and back.
• Tracks — the four channel strips.
• Song — the order of the sections A–D (the SONG screen): which section, how many bars, how many times, and whether the song starts again at the end.
• Library — your user presets and preset files.
• Samples — the three user slots, files and CHOP.
• Drum synth (2.5) — your own synthesised kits SYN1–SYN4: every value of every drum sound, heard at once.
• Song & sections — the sections A–D, and Backup (one file per song): Save a backup writes everything on the FM-1 to one file (with the FM6 bank); Restore from a file puts it all back (stop playback first).
• Settings — global, master (DUST, DUCK, FILT, ROLL), drums.

The protocol is documented in web/EDITOR_PROTOCOL.md.

The installer or the editor does not find the FM-1. Use Chrome or Edge, a data cable, no hub, and allow MIDI access. Close every other app or tab that uses MIDI (a DAW, M-UPGRADE, another editor tab), then reload the page.

An install stopped half-way. The FM-1 waits in update mode: press INSTALL again. If SLOOP no longer starts, hold OCT− alone while switching on (SLOOP USB RESCUE) and install again.

The black keys make no sound on a synth track. That track plays chords or the scale on the white keys (in chord mode the black keys change the chord: CHORD+): hold SEL (between FX and ENV) and set KNOB 1 CHORD to OFF and KNOB 3 KEYS to OFF. The drum track always uses the black keys.

Nothing plays from the MIDI IN jack. Try the other adapter type (A / B); check the keyboard's channel (1–3 synths, 10 drums, the others the selected track; 2.6: GLO → MIDI sets them).

The USB audio input does not show. Unplug the FM-1 and plug it back in (after an install the computer must find it again). On a Mac (macOS 13–15) with 2.6, check that HOME menu → USB SERIAL is OFF (the default), then restart the FM-1. In Audacity: Transport → Rescan Audio Devices. On Windows: Sound settings → Recording → show disabled devices.

The USB recording is too quiet, or follows the volume knob. Set HOME menu → USB AUDIO to FULL, or turn MASTER up.

Recorded notes move to the grid. SLOOP quantises what you record to the steps of the track (its DIV: 1/4 … 1/32, triplets). In 2.7, set QUANT off on the REC screen (KNOB 4): your timing is kept as each step's nudge. Otherwise set DIV to 1/32, or hold the step and nudge it (KNOB 4); for groove, use SWING.

Notes fade out on a dense part. The processor is at its limit: SLOOP fades one voice at a time (never the bass or the lead) rather than glitching. Fewer held notes or a lighter engine help.

An FM6 sound changed after loading a project. A project keeps the track's patch slot (PTCH), not the patch itself: store a patch you edited in the bank (editor → FM6 → Store in bank) and set PTCH to it.

The lights or SYNC went back to OFF / INT. You went back to an earlier SLOOP, which does not keep them; set them again in 2.4.

Something else? Open an issue: what you did, what you expected, what happened, and the version shown in HOME menu → ABOUT.

• GUIDE.md — the complete guide: every button, combination, layer, page, engine and editor page, with a one-page cheat sheet
• SLOOP.md — the manual (every page, layer, sound and kit) and the history of each version
• DEMARRAGE-RAPIDE-FR.md — guide de démarrage en français
• BUILDING.md — building, build options and tests
• web/EDITOR_PROTOCOL.md — the editor's SysEx protocol
• LICENSING.md — the licences of the code and the assets

See BUILDING.md. In short: the JieLi toolchain and three files of the AC79 SDK, then ./build.sh (Linux / macOS) or INSTALL-SLOOP.bat (Windows with WSL), which builds the firmware and serves the installer and the editor on http://localhost:8766.

tests/run_tests.sh runs the host test suite with no hardware: audio renders against golden hashes, CPU budgets, the sequencer's timing (no drift, swing, ratchets, rolls, the REC modes and the count-in, MIDI clock), the UI pages and layers, the knobs, flash storage, the update loader, MIDI and USB audio, and the web pages (editor, backup, CHOP, installer).

• Bugs and ideas: open an issue — what you did, what you expected, what happened, and the version in HOME menu → ABOUT.
• Pull requests are welcome. Keep the style of the code around your change, add a host test when you can, and make sure tests/run_tests.sh passes. Contributions are credited in the release notes and the manual.
• By contributing you agree that your code is released under GPL-3.0, like the rest of SLOOP.

• Felucca by Leo Kuroshita (@kurogedelic) / Hügelton Instruments — the engines, the sequencer, the editor, the installer, in 2.3 the USB audio input, the MIDI clock, the knob reading and many fixes, in 2.4 the FM6 engine and its DX7 patch editor (Felucca 1.0 / 1.0.1), and in 2.6 the INSERT effects, LFO 2 (SYNC / TRIG / POL), ENV SYNC, the ANALOG filter types, note LEN and step velocity, MIDI LEARN, the live drum mutes, the latched-arp fix (#191), the 1/4D delay and REV / ECHO THROW (Felucca 1.4 / 1.4.1 / 1.5 / 1.5.1), and in 2.7 the arp modes REPEAT, DNUP, UP+8, CONV, DIVG, PINKY, THUMB, WALK and CHORD, and ORD in the order you pressed (Felucca 1.4 / 1.5.1). Thank you.
• The Felucca community, who asked for those features first (Felucca discussions and issues): Wulgaren (insert effects with dry / wet, #78; the arp report, #191), etyrnal (the lo-fi bit effect, #177; envelopes in note values, #175), benjaminguerrer (LFO sync, #154), gospodindilly-ops (the ANALOG filter types, #104), Armstrong1980 (#178) and oMauNaProducer (#173) (note length, step velocity), lostfictions and planist79 (MIDI LEARN, #170).
• @renebohne — the played-note key lights (pull request #11) and, in 2.6, MIDI Program Change (Felucca pull request #179).
• ChanceTheMaker and keremimo — the TRS MIDI input fix (Felucca Salt) and contributions to the MIDI clock.
• andrerezemini (sloop-lab) — in 2.7 the sound on the FM-1's second core and 38 KB of RAM back (pull request #111), on the dual-core start of Charles Vestal (X0X) and keremimo (Melodee).
• juanjiant-bit (JIANT FM) — in 2.7 the progressive knob acceleration (KNOB ACCEL) and the LEVEL / PAN glide come from JIANT's.
• renebohne — in 2.7 MIDI CC 74 sweeps each engine's own cutoff or brightness, after his pull request #71 (Felucca 1.1.5's standard CC map).
• @ordenador (Mario Faúndez Vidal) — the web editor's local audio preview: the firmware's own engines and sequencer in the browser (WebAssembly), with the playable piano / pads and the inline sequence editing (pull request #120).
• Everyone who installed SLOOP, made music with it, commented, reported a bug or asked for a feature — most of each update comes from your messages: parameter locks, DX7 patches, dotted delays and longer steps (2.4); in 2.6 a MIDI channel per track, sustain and pitch bend, step entry from a MIDI keyboard, TEXTURE, the fixed crackles, the web editor bug with the same value on two tracks, and the MIDI learn backup. You asked, tested and reported them.
• Samples: Versilian Studios VSCO-2 CE and VCSL, Sonic Pi (all CC0). Font: Terminus and Terminus Bold (SIL OFL 1.1). Icons: Fukiai (MIT, Hügelton Instruments). PHASE engine after CrispyZebra (GPL); VOICE after klattsch (MIT); FM6: msfa from Dexed by Google Inc. and Pascal Gauthier (Apache-2.0).
• Interface ideas after teenage engineering's pocket operators and EP-133, Elektron's step entry and Akai's MPC (swing, note repeat, erase).

Code: GPL-3.0-only (see LICENSE, and LICENSING.md for the assets). No warranty. M-VAVE and FM-1 are trademarks of their owners; SLOOP is not affiliated with M-VAVE, teenage engineering, Elektron or Akai. Drum kit names describe styles, not products.
