eladharels/ps5-60FPS

Unlock 60 FPS in PS4 and PS5 games on a jailbroken PS5, with one switch per game.

fps60 is a payload for a jailbroken PS5. It looks at the games you have installed, finds the ones that have a known 60 FPS patch for your exact game version, and lets you switch those patches on from a page on the console's own browser (or your phone). When you start a patched game, fps60 writes the patch into the game's memory as it loads. Your game files are never changed.

The screenshots in this README come from a test run with sample games on a PC, so the page looks exactly as it does on the console.

• What you need
• Quick start
• Tested games
• Using fps60
• How it works
• Files on the console
• Limits and safety
• Troubleshooting
• Versions and releases
• Building from source
• Credits

• A PS5 that is jailbroken and running an ELF loader on port 9021. Firmware up to 13.60 works with the Relapse exploit, which provides one.
• A way to send a payload: Payload Manager, the exploit's payload menu, or a computer on the same network (socat or make test).
• Optional: Payload Manager, to start fps60 automatically after each jailbreak.

1. Download fps60.elf from the latest release (or the zip, which also has this README and the changelog).
2. Send it to the console after jailbreaking:

   socat -t 99999999 - TCP:<ps5-ip>:9021 < fps60.elf

   or pick it in Payload Manager. The console shows "fps60 v1.0.0 running: http://<ps5-ip>:8060".
3. Open fps60. On the home screen, go to Media and open the fps60 tile. It opens the page in the console's browser. On a phone or computer on the same network, open http://<ps5-ip>:8060 instead.
4. Switch on a patch for a game marked Matches your version.
5. Start the game. A notification says "<game>: 60 FPS enabled".

fps60 keeps running until the console restarts or goes into rest mode. Your switches are saved, so after a reboot you only need to send fps60.elf again. To skip even that, add fps60.elf to Payload Manager's autoload list.

These patches have been confirmed working on a real PS5. They show a Tested on PS5 label on the Games tab, and the Tested on PS5 filter lists only them.

The other patches come from the community and should work the same way, but haven't been tried with fps60 yet. If you test one, open an issue with the game, its version and the result, so it can be added here.

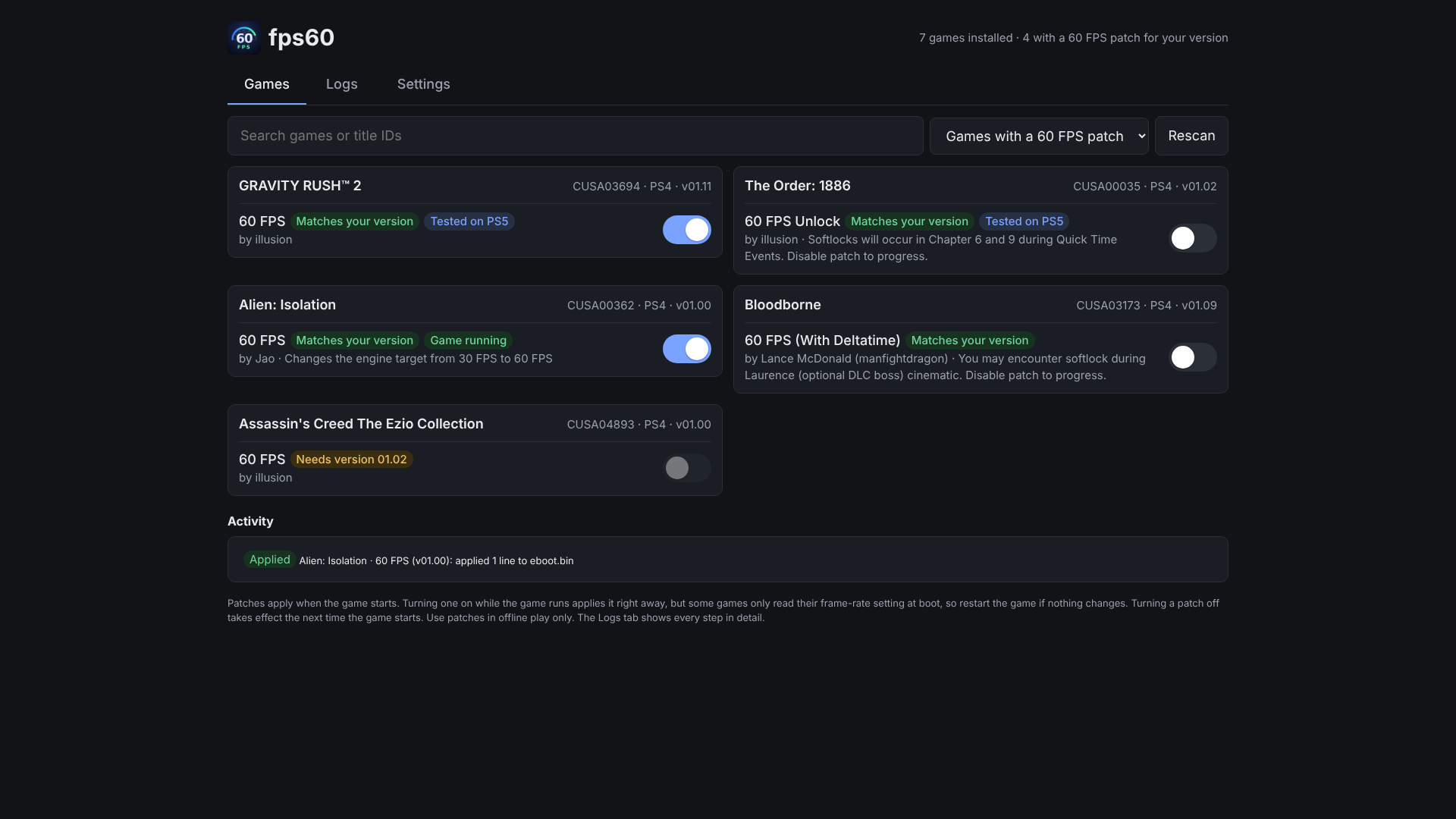

Every installed game with a frame-rate patch is listed with its title ID, whether it's a PS4 or PS5 game, and the installed version. Each patch has a switch and a label:

• Matches your version: the patch is made for the version you have installed. You can switch it on.
• Tested on PS5: confirmed working on a real console (see Tested games).
• Needs version X: the patch exists, but for another game version. Update (or downgrade) the game to use it.
• Not supported by fps60: the patch uses a feature fps60 doesn't implement.
• Game running: the game is running now and the patch is on.

The author and the patch notes are shown under each patch. Read them: some patches have side effects, such as a cutscene you need to switch the patch off for.

• Search filters by name or title ID.
• Tested on PS5 shows only tested patches; All installed games shows games without a patch too.
• Rescan reads the installed games again (after installing or updating a game).
• Activity lists what was applied, and why a patch failed.

Switching a patch on while the game is running applies it right away. Some games only read their frame-rate setting at startup, so restart the game if nothing changes. Switching a patch off takes effect the next time the game starts.

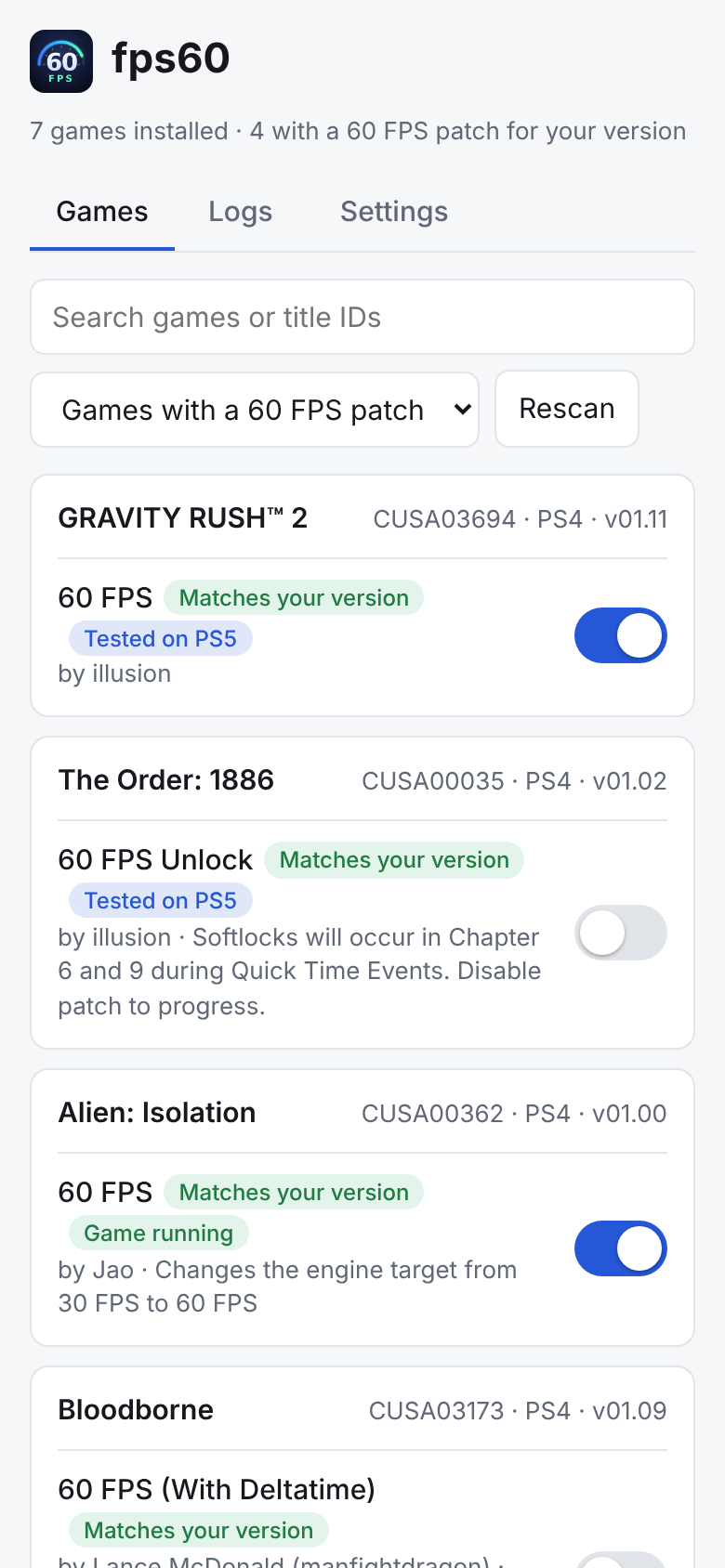

The same page works on a phone or computer on your network, at http://<ps5-ip>:8060.

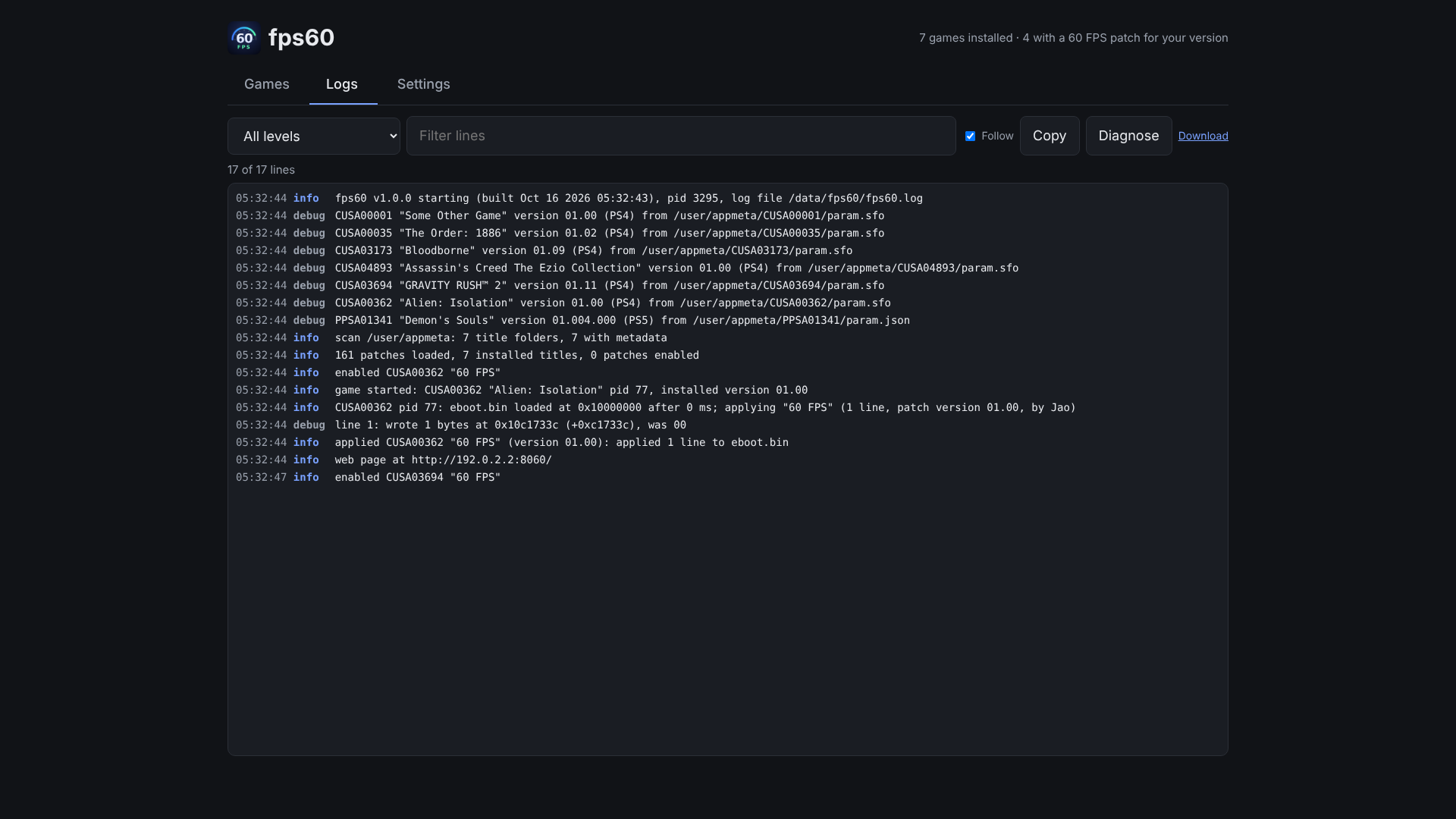

Every step fps60 takes is logged:

• which metadata files it read for each game
• when a game starts and exits
• where each patch line was written, and which bytes were there before
• every error

You can filter by level or text, Copy or Download the log, and Diagnose writes every running process and its loaded modules to the log. That shows how a game looks to fps60 if it isn't being detected. While you're on another tab, a red number on Logs counts new errors.

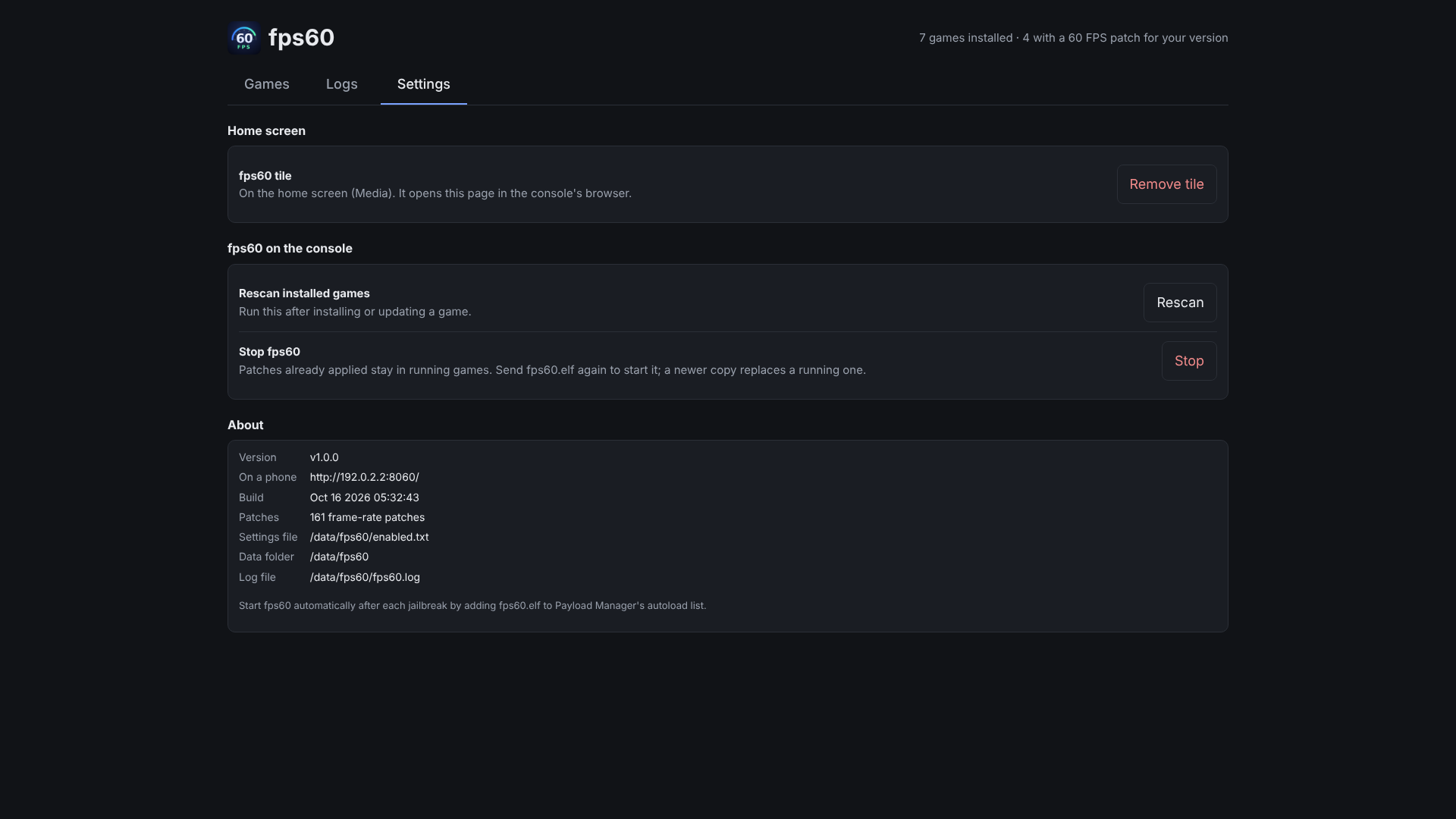

• Home screen tile: remove or reinstall the fps60 tile. If you remove it, fps60 doesn't put it back on its next start.
• Rescan installed games.
• Stop fps60. Patches already applied stay in running games.
• About: the address to open on a phone, the build, and where fps60 keeps its files.

• Update: send the new fps60.elf. It asks the running copy to stop and takes its place, and you get "fps60 restarted".
• Stop: use Stop in Settings, or kill fps60.elf in Payload Manager's process list (fps60 names its process fps60.elf so it shows up there).

flowchart TB
  subgraph build["At build time"]
    repo["Community patches<br>(GoldHEN XML)"] --> conv["tools/build_patchdb.py<br>keeps 60 FPS patches"]
    conv --> db[("patch database<br>built into fps60.elf")]
  end
  subgraph console["On the PS5"]
    meta["/user/appmeta<br>param.sfo / param.json"] --> games["installed games<br>+ versions"]
    db --> match{"patch for this<br>title + version?"}
    games --> match
    match --> page["web page :8060<br>switches"]
    page --> enabled[("/data/fps60/enabled.txt")]
    watch["watcher, every 100 ms"] --> proc["game process starts"]
    enabled --> watch
    proc --> load["wait for its executable<br>(eboot.bin) to load"]
    load --> write["resolve every address,<br>then write the patch<br>into game memory"]
  end

There's no system-wide 30 FPS setting. Every game limits its own frame rate, so every unlock is a hand-made patch for one version of one game. fps60 uses the community patches from illusion0001/PS4-PS5-Game-Patch.

1. Patch database. At build time tools/build_patchdb.py keeps only the frame-rate unlocks (about 160) and converts them into a compact format. All value encoding happens there: little-endian integers, floats, UTF-8 and UTF-16 strings, byte patterns with wildcards. The result is built into fps60.elf.
2. Installed games. fps60 reads each game's metadata, param.sfo for PS4 games and param.json for PS5 games, from /user/appmeta, /system_data/priv/appmeta and a few fallback folders. That gives the title ID, name and installed version.
3. Finding the running game. A watcher checks the running processes 10 times a second. It identifies games by their title ID and, as a fallback, asks the system which game is in the foreground. That second method is what makes PS4 games running on the PS5 work.
4. Applying a patch. When a game with an enabled patch starts, fps60 waits for its executable to load and finds its base address.
   • It computes every address first: fixed addresses relative to the game's image base, or a search of the game's code for a byte pattern.
   • Only when all of them are found does it write, so a patch is applied completely or not at all.
   • Bundles with several executables, such as the Ezio Collection, get each part as its executable loads.
   • A running game is patched once. Switching a patch off and on doesn't write it again.
5. The page and the tile. fps60 serves its page on port 8060. The home screen tile is a small media app whose link opens http://127.0.0.1:8060/ in the console's browser.

To update the patch list without rebuilding fps60, copy a newer build/patches.db to /data/fps60/patches.db and send fps60 again.

• Coverage. About 160 patches, almost all for PS4 games running on the PS5. Very few native PS5 games have one.
• Exact versions. A patch only works on the game version it was made for.
• Side effects. Some games behave oddly at 60 FPS (physics or timers tied to the frame rate, or stutter when the GPU can't keep up). Read the patch notes.
• Offline only. Changing a game's memory during online play can get an account flagged.
• Your network. The page and the ELF loader are reachable by anything on your home network. Don't forward their ports to the internet.

Every version is published on the Releases page with:

• fps60.elf, ready to send to the console
• fps60-vX.Y.Z.zip, which holds the same ELF plus this README and the changelog

What changed in each version is in CHANGELOG.md and in each release's notes. The running version is shown in the start notification and under Settings > About.

Version numbers follow semantic versioning:

• X: goes up for changes that break your setup.
• Y: goes up for new features.
• Z: goes up for fixes.

Publishing a new version (for maintainers):

1. In a pull request, put the new number in VERSION and add a ## [X.Y.Z] - date section at the top of CHANGELOG.md.

2. Merge it into main.

3. The release workflow then:

   • runs the tests
   • builds with the pinned SDK (v0.44)
   • creates the tag vX.Y.Z
   • publishes the release with the changelog section as its notes

   It skips versions that already have a release. You can also start it by hand from Actions > release > Run workflow.

sudo apt-get install make clang-18 lld-18 llvm-18 wget unzip zip python3 git socat
wget https://github.com/ps5-payload-dev/sdk/releases/download/v0.44/ps5-payload-sdk.zip
sudo unzip -d /opt ps5-payload-sdk.zip
export PS5_PAYLOAD_SDK=/opt/ps5-payload-sdk LLVM_CONFIG=/usr/bin/llvm-config-18

make            # fps60.elf
make check      # host tests: no SDK or console needed
make dist       # build/fps60-vX.Y.Z.zip
make test PS5_HOST=<ps5-ip>   # send fps60.elf and stream its log

The first make clones the patch repository into build/patch-repo. Set PATCH_REPO=<path> to use an existing checkout.

make check runs on a normal Linux PC with AddressSanitizer and UBSan:

• the converter's encoding of every patch value type
• a parse of the real patch database
• metadata parsing, including damaged files
• pattern scans across chunk boundaries
• the watcher against a fake game process: apply on start, re-apply after a restart, bundles, and no second write after a switch is turned off and on
• the web routes, settings file and log

GitHub Actions builds fps60.elf, runs the tests and uploads the fps60 artifact on every push and pull request. An optional deploy job sends the build to your console. It needs a self-hosted runner on your home network, since GitHub's cloud runners can't reach the console. Configure it with these repository variables:

The repository is public, so before adding a self-hosted runner, set Settings > Actions > General > Require approval for all external contributors.

• Patches: the authors credited on each patch, collected in illusion0001/PS4-PS5-Game-Patch (GoldHEN patch format).
• ps5-payload-dev/sdk, the PS5 payload SDK.
• The home screen tile uses the approach introduced by John Törnblom's ftpsrv and used by Payload Manager.

Sister project: NetDis shows every network port in use on the console.
