blakebratcher/bitwig-nitro-tools

An offline reverse-engineering toolchain for Bitwig Studio's Nitro DSP format. Nitro is the language every Bitwig native device and Grid module is written in, and the compiled modules ship as an encrypted archive of serialized syntax trees (.nitrobin). This toolchain decrypts that archive, decompiles the modules back to readable Nitro pseudo-source, and lets you parse, edit, and re-serialize them. It runs entirely on your machine against your own Bitwig install, using standard-library Python only.

It ships tools and format specs. It does not ship any Bitwig source, any decrypted content, or any cipher key. You bring your own licensed install and your own extracted keys.

Read the DSP behind any built-in device or Grid module. Point the decompiler at a module and instead of a wall of bytes you get its Nitro pseudo-source: its ports, its state, and the process block that does the per-sample work:

nitro-decompile filter/GrandLPF

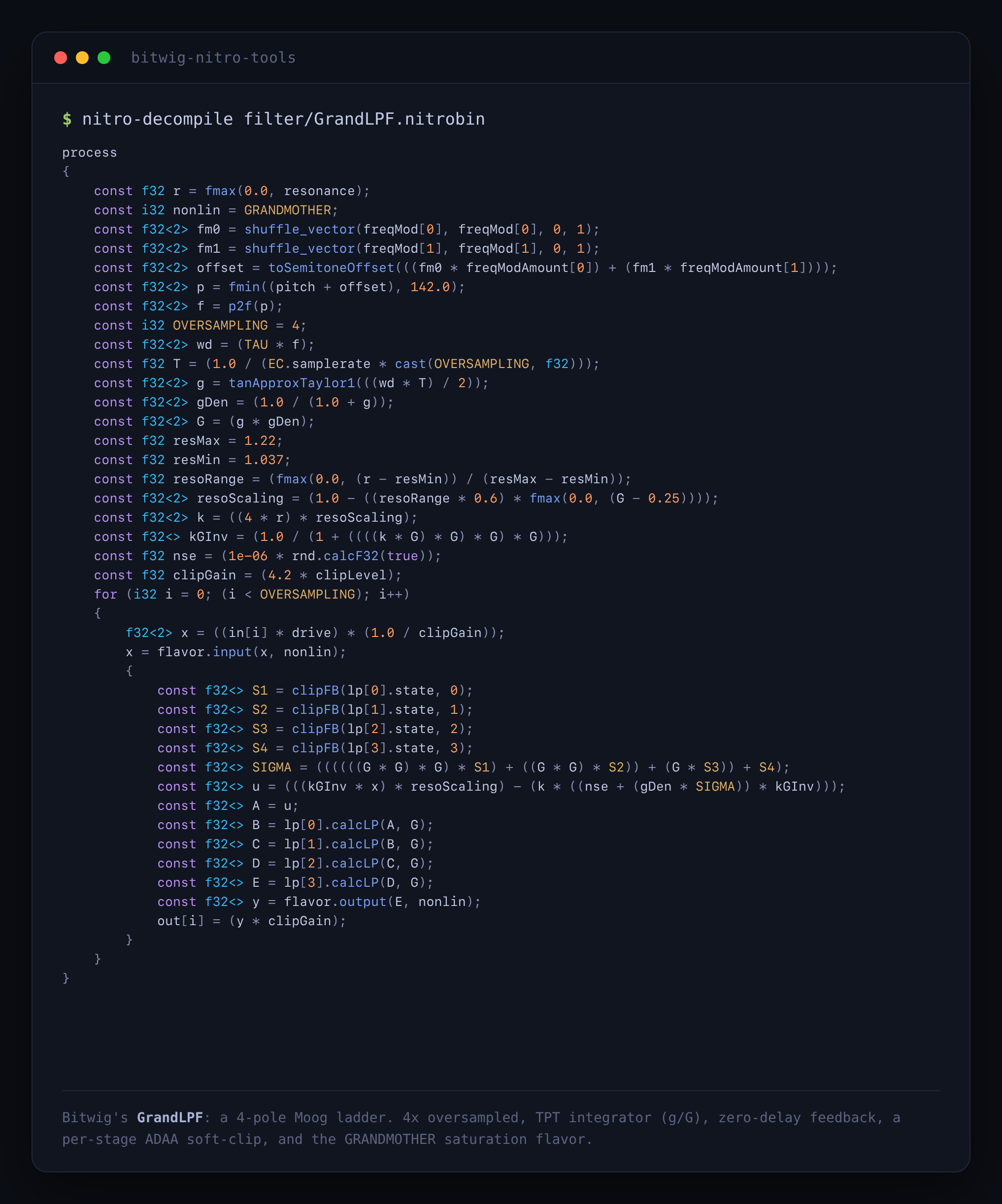

That is Bitwig's GrandLPF, verbatim: a 4-pole Moog ladder, 4× oversampled, with a TPT integrator, zero-delay feedback, a per-stage ADAA soft-clip in the feedback path, and a selectable saturation flavor (GRANDMOTHER here). You can read exactly why it sounds the way it does.

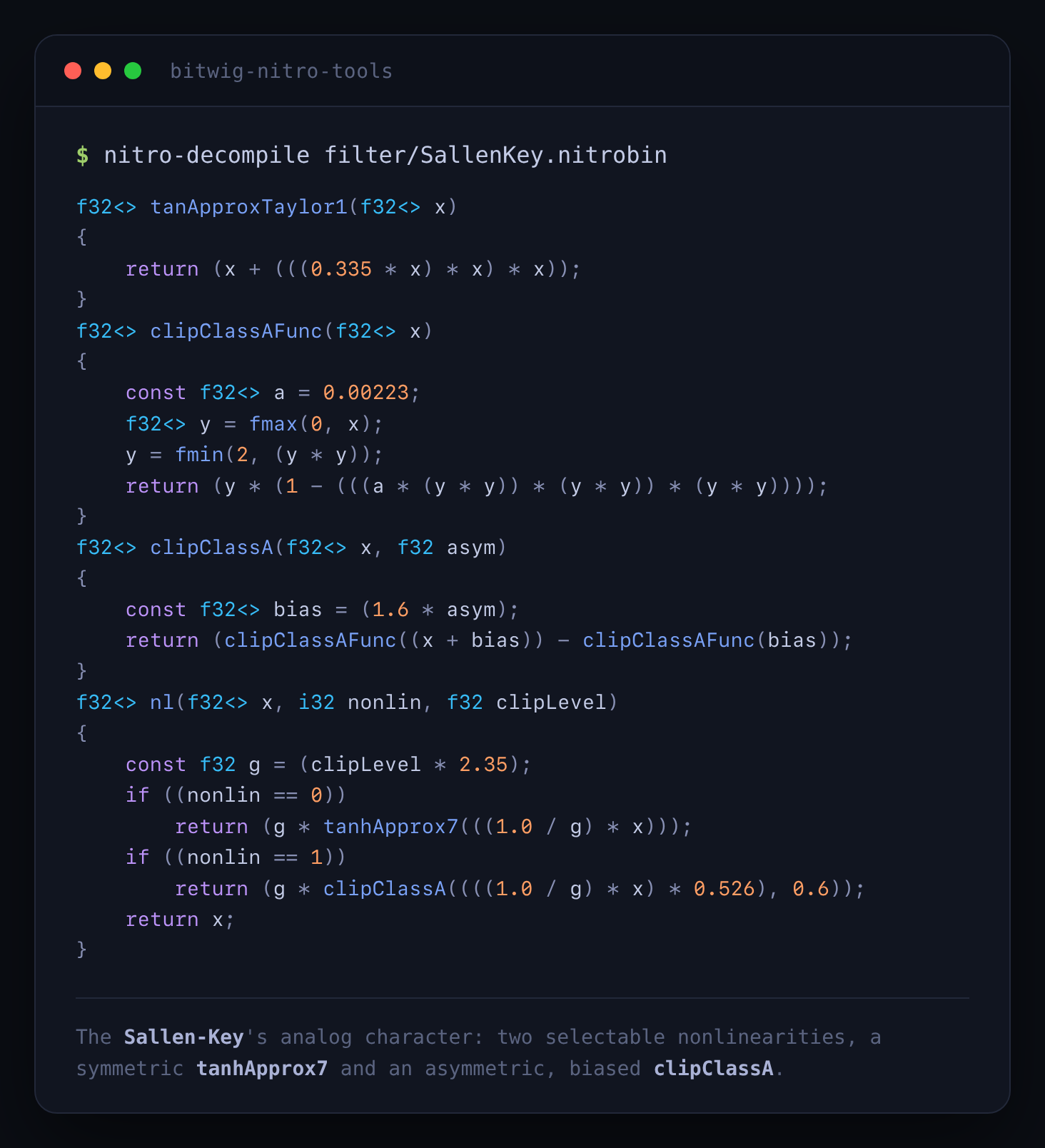

The character of the other filters is just as legible. Here is the Sallen-Key's nonlinearity. It has two selectable curves, a symmetric tanhApprox7 and a biased, asymmetric clipClassA:

The same works for oscillators, envelopes, dynamics, delays, and the rest of the module set. You can also go the other way: mutate a numeric constant in a module at fixed size and repack the archive, byte-identical except for the member you touched (see Status & limitations for what that does and does not get you).

pip install -e .

# 1. recover your nitro-image key from your own install, via the bundled
#    controller (see docs/KEY_EXTRACTION.md):
nitro-extract-keys --install-controller   # copy the controller into Bitwig

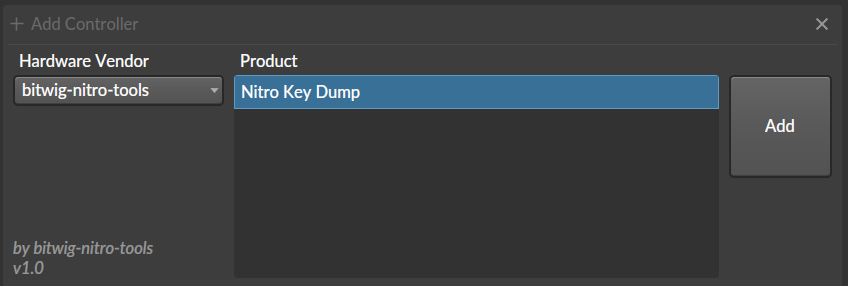

#    then add "Nitro Key Dump" in Bitwig -> Settings -> Controllers, and:
nitro-extract-keys --live                 # read its dump, write keys.json
#    (already have the hex? nitro-extract-keys --image-key <hex>)

# 2. decrypt every module from your install's nitro-image
nitro-decrypt-corpus

# 3. read a module
nitro-decompile filter/SallenKey

# (optional) decrypt the nitro-std stdlib SOURCE. Unlike nitro-image it needs a
# live JVM (runtime PRNG cipher), so it runs via its own bundled controller:
nitro-decrypt-std --install-controller    # copy the controller into Bitwig
#    then add "Nitro Std Dump" in Bitwig -> Settings -> Controllers, and:
nitro-decrypt-std                          # verify + report the decrypted tree

Extracting keys is the one step that needs setup, because the keys live in your Bitwig install and this project ships none. nitro-extract-keys writes keys.json to your per-user config directory (%APPDATA%\bitwig-nitro on Windows, $XDG_CONFIG_HOME/bitwig-nitro or ~/.config/bitwig-nitro elsewhere); set BITWIG_NITRO_CONFIG to use a different directory. See docs/KEY_EXTRACTION.md.

From Python, the same read path without writing anything to disk:

from bitwig_nitro import read_entry, decompile_nitrobin, pretty_print

plaintext = read_entry(None, "filter/SallenKey.nitrobin")  # decrypts from your image
ast       = decompile_nitrobin(plaintext)
print(pretty_print(ast))

read_entry resolves the installed nitro-image and your nitro-image key automatically. If neither is found you get a clear error pointing at the key docs, not a stack trace.

Ships: the Python tools (decrypt, decompile, parse, serialize, edit, pretty-print, atlas builder), the CLI commands, the .nitrobin binary-protocol and AST grammar specs, and the two AST grammar tables the parser is driven from.

Does not ship: any cipher key, any decrypted Bitwig content, any decompiled DSP source, any corpus or atlas data. Those are all derived locally from your own install and are gitignored, never redistributed.

Bring your own licensed Bitwig Studio. MIT licensed.

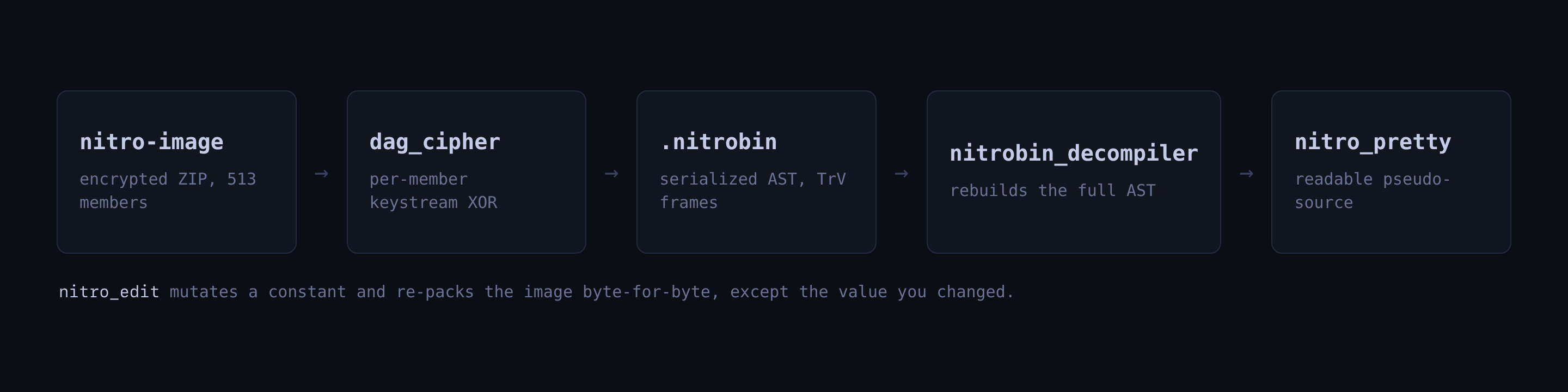

Four stages take you from the encrypted archive to readable source:

1. dag_cipher: Bitwig's Dag cipher is a self-inverse keystream XOR. dag_decrypt(data, key, iv) decrypts (and, being self-inverse, re-encrypts) a payload once you supply the key and IV.

2. nitro_image: <install>/Library/nitro-image is a plain ZIP whose member payloads are each [version][iv:198][ciphertext]. NitroImage.load() opens the archive; .plaintext(name) decrypts one member.

3. nitrobin_decompiler: a decrypted member is a serialized AST in Bitwig's TrV frame format. decompile_nitrobin(bytes) walks the frames and rebuilds the AstNode tree, driven entirely by the shipped grammar tables.

4. nitro_pretty: pretty_print(ast) renders the tree as Nitro pseudo-source for reading and diffing.

nitrobin_writer closes the loop by re-serializing an AstNode tree back to bytes (byte-identical when unchanged), and nitro_edit mutates constants at fixed wire size so a repack stays valid.

The formats behind each stage are documented in docs/: binary protocol, AST model, and load mechanism.

A few things that surfaced while reverse-engineering the format:

• Bitwig JIT-compiles its own DSP. Every device and Grid module is a small program, compiled at first use: Nitro source becomes an AST, then LLVM IR, then native machine code that runs inline on the audio thread. The LLVM IR is even cached in plaintext under ~/.BitwigStudio/cache/nitro/, so there are two readable layers: the decompiled Nitro source and the IR itself.
• The "encrypted" module library is a plain ZIP. nitro-image is an ordinary ZIP archive; only each member's payload is XOR'd, and the cipher is self-inverse, so encrypting and decrypting are the same operation. Every module re-encrypts byte-identically, and a whole-image identity repack matches the shipped file's SHA-256.
• Nothing on the load path is integrity-checked. No signature, checksum, or content hash validates the image; the cipher is unauthenticated. (BLAKE3 shows up only as a compile-cache key.) The loader will even read a directory where the ZIP normally sits. Whether it accepts a modified image is the one open, untested question. See the load-mechanism doc.
• The analog modeling is readable. GrandLPF is a real Moog ladder, Sallen-Key exposes tanh-vs-class-A saturation, and MS20 models diode-clip resonance. What you read is the actual per-sample math, not opcodes.
• Recovery is complete, not partial. Over 170,000 AST nodes across the whole module set parse to a clean EOF, including the device-specific filters that older tooling left as empty stubs.

• The read/build side is solved and offline. Every module in a current shipped image decrypts, parses to a clean EOF, and re-serializes byte-for-byte identically to its decrypted input. The whole module set round trips.
• A clean parse proves the grammar, not loader acceptance. That the toolchain reproduces the bytes says the format is understood. It does not prove Bitwig's loader would accept a modified module. That is a separate, live, untested question. See docs/NITRO_LOAD_MECHANISM.md.
• Key extraction runs against your own install, not this repo. Both keys are materialized at runtime — neither appears anywhere in Bitwig's jars, in any encoding — so there is no static or offline key recovery. Recovery goes through a small controller extension this project bundles: you install it, add it once in Bitwig, and it dumps the key for the CLI to pick up (nitro-extract-keys --install-controller, then --live). That live step loads inside your own licensed Bitwig and is yours to run and confirm; the Dag key (for 0004 documents) is entered manually. See docs/KEY_EXTRACTION.md.
• Repacked-image loader acceptance is unproven. Repacking the archive is byte-exact offline, but whether Bitwig loads your repack is one restart-gated experiment that this project does not perform for you. Keep a verified backup of the original image before writing to your install.
• nitro-std (stdlib source) needs a live JVM — not offline. The compiled nitro-image modules decrypt fully offline (self-inverse Dag/XOR cipher). The nitro-std source archive is different: each member is wrapped in a runtime PRNG stream cipher that is not reproducible offline, so it is decrypted inside a running Bitwig via the bundled Nitro Std Dump controller (nitro-decrypt-std), which walks the archive through NitroFile's (ctx, byte[]) -> java.io.Reader source-decrypt method and writes the plaintext tree to your disk. The decrypt mechanism is verified on Bitwig 6.0.11 (121/121 members).
• 0004 document files decrypt at the metadata level. The Dag key opens the readable metadata; a file body may sit behind a further layer this key does not open.

• docs/NITRO_BINARY_PROTOCOL.md: the .nitrobin byte format (frame markers, string interning, file frame).
• docs/NITRO_AST.md: the AST model, grammar tables, and the decompile/pretty-print pipeline.
• docs/NITRO_LOAD_MECHANISM.md: how Bitwig compiles and loads Nitro, and what injection is and is not reachable.
• docs/KEY_EXTRACTION.md: where the two keys live and how to extract them from your own install.
• docs/REGENERATING_THE_CORPUS.md: the full local decrypt-decompile-atlas flow.

Contributions to the tools and the format specs are welcome. Do not commit any key, any decrypted Bitwig content, or any corpus or atlas output; those are local artifacts and stay gitignored. Runtime code is standard-library only, Python 3.10+. Tests run under pytest (dev extra).

MIT. See LICENSE.

Built from clean-room reverse engineering of Bitwig Studio's Nitro format: disassembling the format's own serializer and loader to recover the byte grammar and the AST tables, and reading the on-disk artifacts on a licensed install. Bitwig Studio is a product of Bitwig GmbH; this project is independent and unaffiliated, and distributes none of Bitwig's code or content.
