aarongayle/tvtop-kiosk-firmware

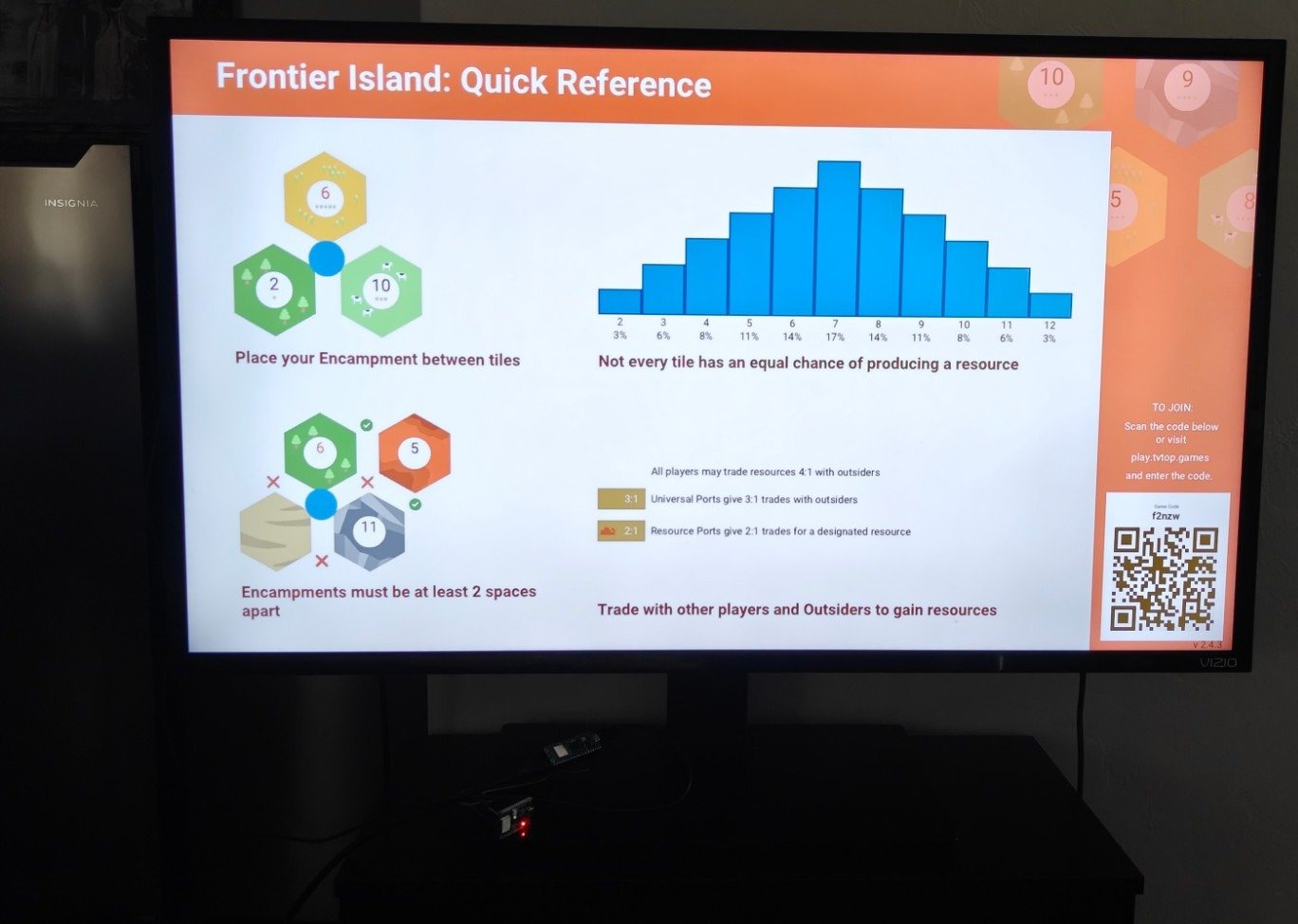

Firmware that turns a Raspberry Pi Pico 2 W into an HDMI games console for TV-Top Games, a board game platform where the TV is the board and everyone plays from their own phone. The kiosk joins your Wi-Fi, pairs with the TV-Top server, and draws whatever the current game sends it.

It outputs 1920x1080 at 30 Hz in full 8-bit-per-channel colour, with no framebuffer and no external video hardware. A 1080p frame at 24 bit is almost 6 MB and the RP2350 has 520 KB, so there is no frame in memory at all. Each scanline is built as a run-length HSTX command stream just before the beam reaches it, six lines ahead, out of vector geometry cached in flash.

The RP2350's HSTX serialiser is rated for 300 Mbit/s per pin. 1080p30 needs 744, so it runs at 372 MHz with the core regulator at 1.30 V. See docs/HARDWARE.md for the clock tables, the overclock, and the Wi-Fi interference problem that comes with it.

You do not need custom hardware. A Raspberry Pi Pico 2 W, some way to get eight of its GPIOs onto an HDMI connector, and a TV.

There are two configurations, matching the two revisions of the custom board:

Option 1 is the simpler build. Option 2 moves Wi-Fi, the IP stack and TLS onto the ESP32, which is what the v3 board does and what the 1080p work is developed on. Wiring and the ESP-IDF build are in docs/MODEM.md.

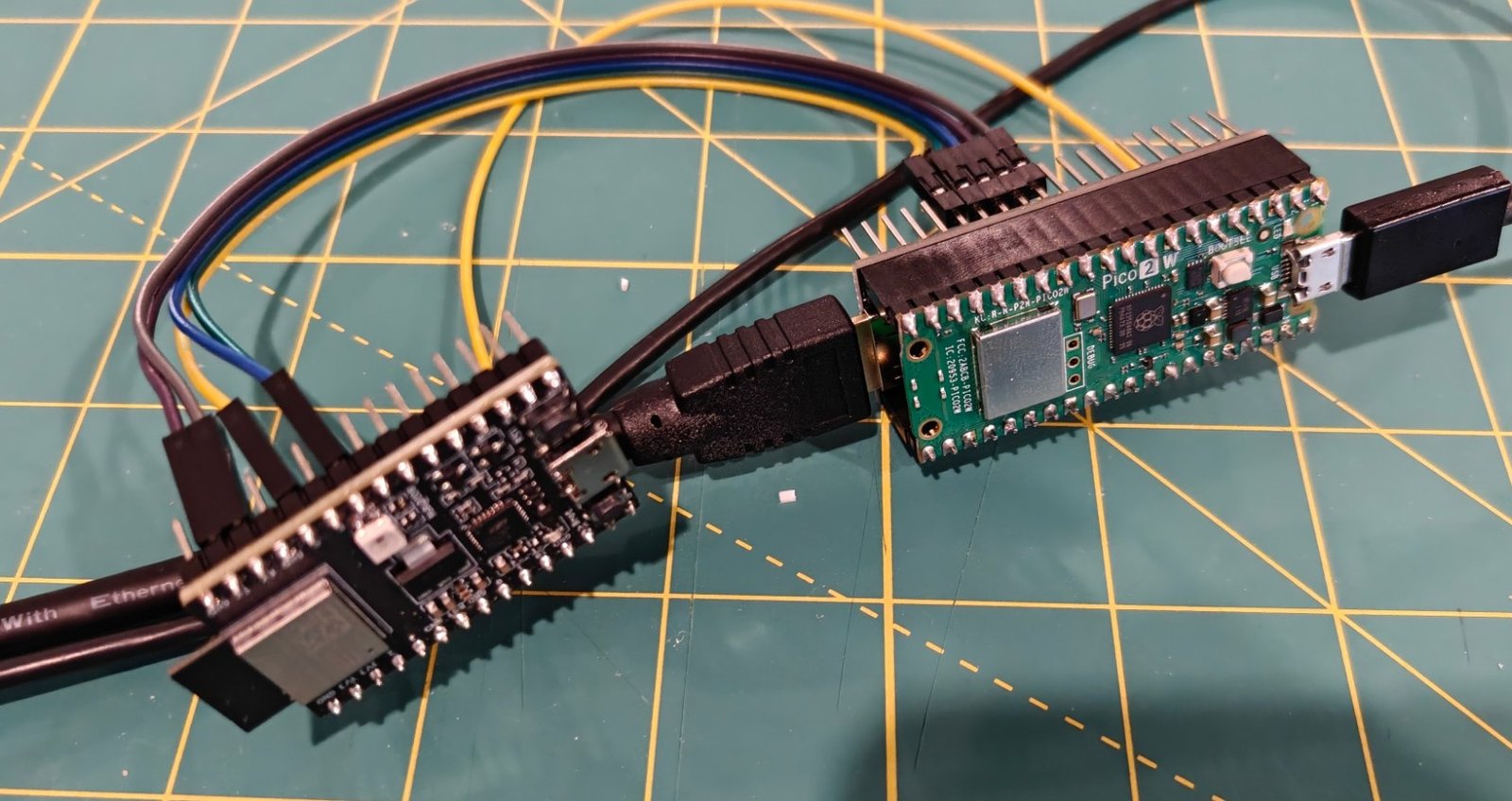

Option 2 on the bench: a Pico 2 W and an ESP32-C3 DevKitM-1, with the HSTX DVI breakout between the Pico and the HDMI cable.

A Pico W (RP2040) also runs this firmware, driving DVI from PIO instead of HSTX, but it tops out well below 1080p.

Four differential pairs, eight GPIOs. The positive line of each pair is the lower GPIO, so nothing needs inverting:

This is the same pinout as libdvi's pico_sock_cfg, which most Pico DVI breakouts follow, so any of them will work: an HSTX to DVI adapter, a Pico DVI Sock, a plain HDMI breakout board, or soldered wires. Pick whatever is in stock.

Optionally, DDC on GPIO4 (SDA) and GPIO5 (SCL) lets the edid console command read what modes your display actually claims to support, which is the fastest way to work out why a TV is refusing a mode. Video works without it.

On wiring quality. At 1080p each lane carries 744 Mbit/s out of 3.3 V CMOS pins. Jumper wires on a breadboard are fine for getting a picture at 480p60 and will probably manage 720p60, but 1080p wants short, tightly paired connections and a short HDMI cable. Start at 480p60, confirm you have a picture, then work up.

Install the Pico SDK (2.2.0 or later), the Arm GNU toolchain, cmake, ninja and picotool. Then, for option 1:

cmake -S . -B build -G Ninja -DPICO_BOARD=pico2_w -DKIOSK_TLS=ON -DKIOSK_VIDEO_MODE=1080p30
cmake --build build
picotool load -f build/tvtop_kiosk.uf2 && picotool reboot

Or for option 2, where the ESP32 terminates TLS so this firmware does not need mbedTLS:

cmake -S . -B build -G Ninja -DPICO_BOARD=pico2_w -DKIOSK_MODEM=ON -DKIOSK_VIDEO_MODE=1080p30
cmake --build build
picotool load -f build/tvtop_kiosk.uf2 && picotool reboot

Option 1 at 1080p with TLS is the tightest configuration there is: it links with about 48 KB of the RP2350's 520 KB left for the heap, and an mbedTLS handshake wants 30 to 40 KB of that. It builds, but it has not been run on hardware. If it will not reach the server, drop to -DKIOSK_VIDEO_MODE=720p60 (which frees roughly 140 KB of line pool) or use option 2, where TLS lives on the ESP32 and there is about 79 KB spare.

On first boot the kiosk has no Wi-Fi credentials, so it starts an open access point called TVTOP-xxxx and shows that name on the TV. Join it from your phone, the setup page opens by itself, pick your network and press Save. Full details in docs/PROVISIONING.md.

The kiosk then registers itself with the server and shows a pairing code on the TV to enter in the app.

Set with -DKIOSK_VIDEO_MODE= at build time, or mode <name> on the USB serial console followed by a reboot. The setting persists in flash.

On the Pico 2 W (RP2350, HSTX):

The refresh rate being low costs nothing here: the kiosk only redraws when the game state changes, so 30 Hz and 60 Hz look identical in use.

No picture? docs/HARDWARE.md has a checklist. The usual causes are a TV that rejects the timing, or a long HDMI cable at 744 Mbit/s from 3.3 V pins.

The kiosk talks to https://kiosk.tvtop.games by default. Override it at build time with -DKIOSK_SERVER_BASE=, on the setup page, or with server <url> on the serial console. The drawing ops the kiosk implements are documented in docs/RENDERING.md. The protocol specification and the server itself are not open source.

• PicoDVI by Luke Wren, vendored as vendor/libdvi, which does the video on the RP2040 path and showed that any of this was possible.
• pico-examples for the DHCP server used by the setup portal.
• stb for font rasterisation.

MIT, which covers everything here except the vendored and generated pieces below. They keep their own terms, all of them permissive and compatible with it.
