Liquid Glass for Flutter: refraction, blur, tint and a rim over the live backdrop, in the shape the engine already draws (RSuperellipse). Built for cost first. Features come second.

The name is glass, spelled in digits.

_{Every loop is rendered by the package itself, headless, from example/showcase/. The tiles are cut from one backdrop, two to a row, and meet without a seam. Tap a tile for its page on the site.}

• How it works
• Install
• Quick start
• AI agents
• What is in the box
• Finishes
• Common patterns
• What is not here, and why
• Things the application has to declare
• Misuse and common errors
• Platforms
• Diagnostics
• Development
• Re-shooting the animations
• License

Most glass packages put a BackdropFilter on every surface, which means the engine reads the backdrop once per surface on every frame. This package takes a different route:

Measured costs, each on its own platform, because the platforms are not comparable:

Every number in this README and on the site was measured in a profile build, on the device named, before the package's first release: the code that became 0.1.0 on 2026-10-03, on Flutter 3.47.1 stable (framework 6655482ec0, engine 5d53178869, Dart 3.13.1). The raw digests are in provenance/.

The ratios above compare scenes on the same device, run in one binary in a shuffled order. They do not carry from one device to another, and they are not a frame time.

flutter pub add g1455

Requires Flutter 3.47 or later.

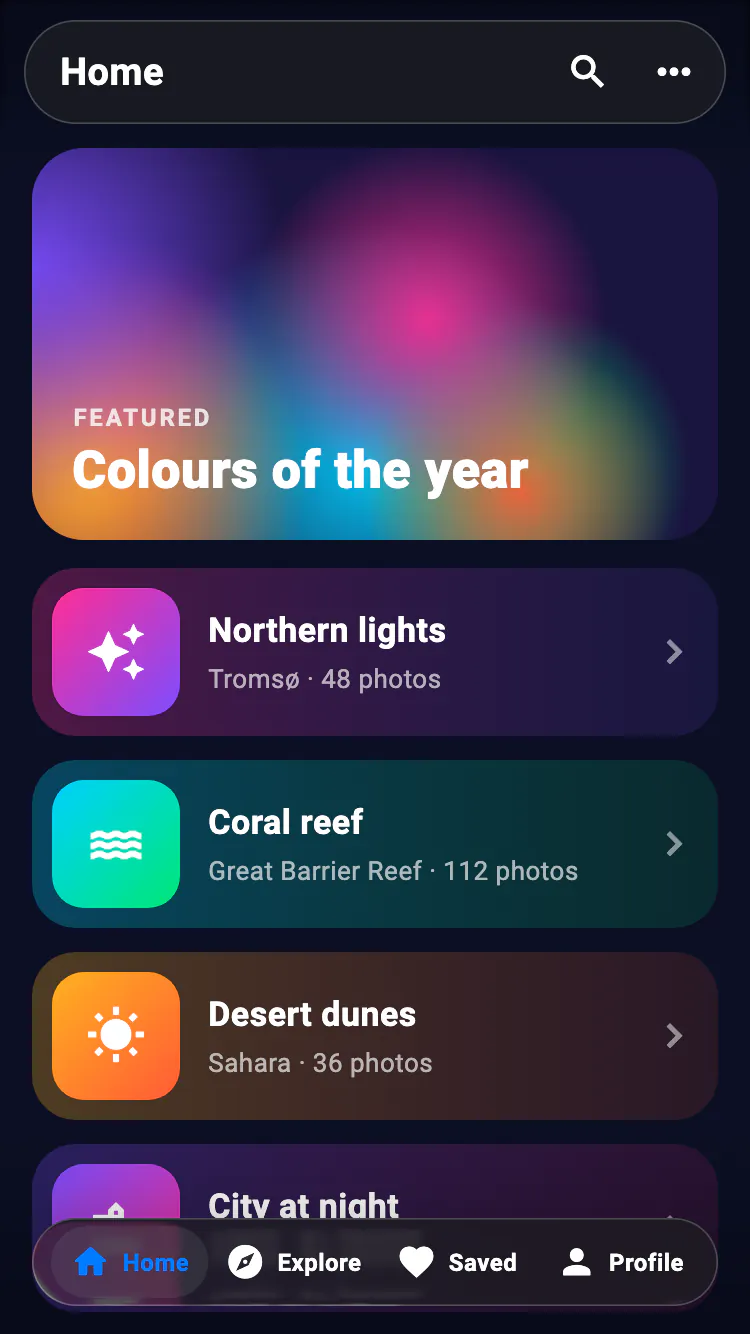

A whole app: a list of coloured tiles to refract, a bar over it and a tab bar under it. Paste it over lib/main.dart.

import 'package:flutter/material.dart';
import 'package:g1455/g1455.dart';

void main() => runApp(const App());

class App extends StatelessWidget {
  const App({super.key});

  @override
  Widget build(BuildContext context) => MaterialApp(
    // The host goes above the navigator, so dialogs, sheets and menus are
    // under it as well as the screens.
    builder: (BuildContext context, Widget? navigator) => GlassHost(
      // The backdrop is a feed of colours rather than one flat colour: pick
      // the labels against any backdrop, and dim the glass if they need it.
      richBackdrop: true,
      minLabelContrast: kTextContrastAA,
      child: navigator!,
    ),
    home: const Home(),
  );
}

class Home extends StatefulWidget {
  const Home({super.key});

  @override
  State<Home> createState() => _HomeState();
}

class _HomeState extends State<Home> {
  int _tab = 0;

  @override
  Widget build(BuildContext context) => Scaffold(
    body: Stack(
      children: <Widget>[
        // What the glass refracts: coloured tiles, scrolling under both bars.
        ListView.builder(
          padding: const EdgeInsets.fromLTRB(16, 120, 16, 120),
          itemCount: 40,
          itemBuilder: (BuildContext context, int i) => Container(
            height: 96,
            margin: const EdgeInsets.only(bottom: 12),
            decoration: BoxDecoration(
              color: HSLColor.fromAHSL(1, i * 27.0 % 360, 0.7, 0.55).toColor(),
              borderRadius: BorderRadius.circular(20),
            ),
          ),
        ),
        const Positioned(
          top: 0,
          left: 16,
          right: 16,
          child: SafeArea(
            child: GlassBar(child: Text('Library')),
          ),
        ),
        Positioned(
          left: 16,
          right: 16,
          bottom: 0,
          child: SafeArea(
            child: GlassTabBar(
              items: const <GlassTabItem>[
                GlassTabItem(icon: Icons.photo_library_outlined, label: 'Library'),
                GlassTabItem(icon: Icons.favorite_border, label: 'For You'),
                GlassTabItem(icon: Icons.search, label: 'Search'),
              ],
              selectedIndex: _tab,
              onSelected: (int i) => setState(() => _tab = i),
            ),
          ),
        ),
      ],
    ),
  );
}

The host goes in MaterialApp.builder, above the navigator, rather than around one screen: dialogs, sheets and menus are built in the navigator's overlay, and a host below the navigator does not see them.

Every component is live at g1455.plugfox.dev, with its guide, its code and its API. The site is the example/ app built for the web: one host, every component on its own page, the original full-screen demos, and a settings menu that switches the finish, the tint, the rung and the ripple.

The package ships an agent skill for Claude Code, Codex, Cursor, Antigravity, Gemini CLI, GitHub Copilot and the rest: the rules an agent needs to write glass that works (one host above the navigator, what the app declares, what costs a capture), with every page of the site as a reference it reads before it writes a component.

npx skills add PlugFox/g1455

In Claude Code, the repository is a plugin marketplace:

/plugin marketplace add PlugFox/g1455
/plugin install g1455@g1455

Without Node, unpack it where the agent looks for skills (.claude/skills/ for Claude Code, .agents/skills/ for the others):

mkdir -p .agents/skills/g1455
curl -fsSL https://g1455.plugfox.dev/.well-known/agent-skills/g1455.tar.gz | tar -xz -C .agents/skills/g1455

Or point any agent at https://g1455.plugfox.dev/SKILL.md. The site also serves llms.txt, and every page as markdown at its address plus .md. The skill is in skills/g1455/; more on the site.

Every name links to its page in the API reference.

The button, switch, slider, segmented control, stepper, page control and a toolbar's cells take the keyboard's focus: Space and Enter press, the arrows step a slider, a segmented control, a stepper and a page control, and the ring is drawn without a capture on glass. The switch, slider, segmented control, stepper, page control and toolbar mirror under a right-to-left Directionality. Inside a horizontal PageView or list, a horizontal drag that starts on the switch, slider or segmented control moves the control and not the page, and a vertical swipe that starts on them still scrolls the vertical list around them.

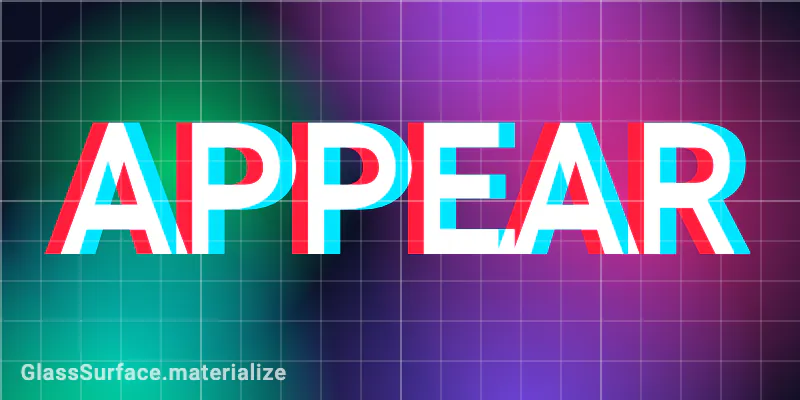

Glass appears and leaves through GlassSurface.materialize: the bend, the blur and the tint arrive over the whole shape. presence erodes the shape and is for budding inside a GlassGroup; on a lone panel it narrows to a line.

The whole library is at pub.dev/documentation/g1455.

A finish is what the glass does to the light it lets through. The four presets, every number as GlassFinish holds it:

• Blur is the sigma applied to the capture before it is sampled, in logical pixels.
• Tint is laid over the refracted sample as mix(sample, tint, alpha), so 1 - alpha of the backdrop comes through: 0.307 of it under .regularDark, 0.282 under .regularLight. .regular is dark because it barely transmits the backdrop, not because it lays something dark over it.
• Rim is a white outline 0.79 px wide that adds to what is under it rather than mixing over it, and has no light direction.
• Bend is how far a sample is pulled at the rim; negative is inward. It falls to nothing 21 px in from the edge along the falloff curve.
• Magnification is 1 for every finish. What magnifies is the tab bar's held drop, by kGlassTabDropZoom (1.17), as iOS's does.

.regularDark and .regularLight are the two branches of Apple's .regular, which is dark over a dark backdrop and light over a light one. GlassFinish.regular(appearance:, backdrop:) picks the branch, and GlassHost calls it unless a finish is named. .clear and .frosted differ only in blur. .frosted is a heavy blur kept under its old name: scored against Apple's material, it is a UIVisualEffectView blur rather than Liquid Glass.

A finish of your own is a GlassFinish(...) or a copyWith of a preset. The package's damage tables are keyed by the four names above, so a finish under another name gets no measured price.

Each snippet assumes a GlassHost above it, as in the quick start.

The commonest screen there is, and the case the capture is built for: a frame the list moves is one capture for all the glass on the screen, and a frame it rests is none. For iOS's soft edge under the bar, put the bar in a GlassScrollEdge.

class Feed extends StatelessWidget {
  const Feed({super.key});

  @override
  Widget build(BuildContext context) => Stack(
    children: <Widget>[
      // A frame the list moves is one capture for every glass on the screen;
      // a frame it rests is none.
      ListView.builder(
        padding: const EdgeInsets.only(top: 96),
        itemCount: 100,
        itemBuilder: (BuildContext context, int i) => ListTile(title: Text('Message $i')),
      ),
      const Positioned(
        top: 0,
        left: 16,
        right: 16,
        child: SafeArea(
          child: GlassBar(child: Text('Inbox')),
        ),
      ),
    ],
  );
}

Glass that moves over still content would otherwise be captured on every frame it moves, because its slot in the capture is its own box. GlassTravel makes the slot the whole region, so the drag costs no capture. The content under it goes behind its own RepaintBoundary, and so does the moving glass: a repaint under the glass counts as changed content. The switch, slider, segmented control and tab bar already do this for their drops.

class Lens extends StatefulWidget {
  const Lens({super.key});

  @override
  State<Lens> createState() => _LensState();
}

class _LensState extends State<Lens> {
  Offset _at = const Offset(100, 100);

  @override
  Widget build(BuildContext context) => Stack(
    children: <Widget>[
      // What the lens moves over, behind its own boundary: the drag repaints
      // none of it.
      const Positioned.fill(
        child: RepaintBoundary(child: FlutterLogo(style: FlutterLogoStyle.stacked)),
      ),
      // The lens may go anywhere in here, and the host captures all of it
      // once: dragging the lens over still content takes no capture.
      Positioned.fill(
        child: GlassTravel(
          child: RepaintBoundary(
            child: Stack(
              children: <Widget>[
                Positioned(
                  left: _at.dx - 48,
                  top: _at.dy - 48,
                  width: 96,
                  height: 96,
                  child: GestureDetector(
                    onPanUpdate: (DragUpdateDetails d) => setState(() => _at += d.delta),
                    child: const GlassSurface(
                      borderRadius: kGlassCapsule,
                      finish: GlassFinish.clear,
                      labelled: false,
                      child: SizedBox.expand(),
                    ),
                  ),
                ),
              ],
            ),
          ),
        ),
      ),
    ],
  );
}

A bar over a list of glass cards is the cards' sibling, and by default it sees the page with the cards cut out. GlassAbove raises it a level, so it refracts the cards. A level costs one more snapshot on a frame that captures, and nothing when there is no glass under the lifted one.

class Cards extends StatelessWidget {
  const Cards({super.key});

  @override
  Widget build(BuildContext context) => Stack(
    children: <Widget>[
      ListView(
        padding: const EdgeInsets.fromLTRB(16, 96, 16, 16),
        children: <Widget>[
          for (int i = 0; i < 20; i++)
            Padding(
              padding: const EdgeInsets.only(bottom: 12),
              child: GlassCard(child: Text('Card $i')),
            ),
        ],
      ),
      // The bar is the cards' sibling, not their parent. Without GlassAbove
      // it would show the page with the cards cut out of it; with it, the bar
      // is a level above them and refracts them.
      const Positioned(
        top: 0,
        left: 16,
        right: 16,
        child: SafeArea(
          child: GlassAbove(child: GlassBar(child: Text('Cards'))),
        ),
      ),
    ],
  );
}

Both are built in the navigator's overlay, so the host has to be above the navigator: MaterialApp(builder: (context, navigator) => GlassHost(child: navigator!)). The package's own modals are already lifted above the bars.

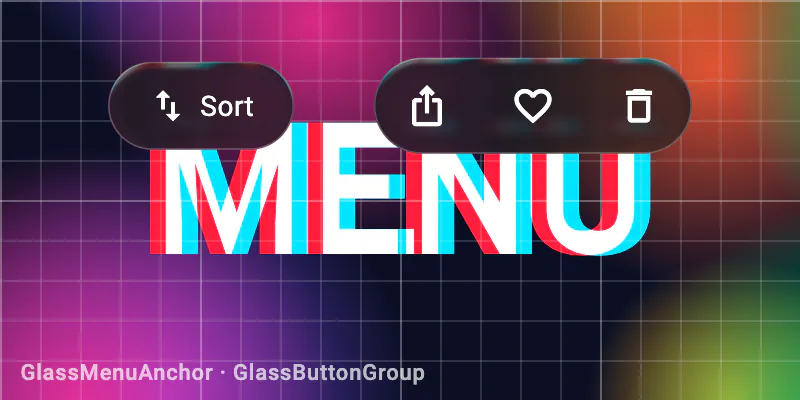

class NotesBar extends StatelessWidget {
  const NotesBar({super.key});

  @override
  Widget build(BuildContext context) => GlassBar(
    child: Row(
      children: <Widget>[
        const Expanded(child: Text('Notes')),
        GlassMenuAnchor(
          items: <GlassMenuItem>[
            GlassMenuItem(label: 'Delete all', isDestructive: true, onPressed: () => _confirm(context)),
          ],
          builder: (BuildContext context, GlassMenuController menu) => GlassButton(
            onPressed: menu.open,
            semanticLabel: 'More',
            padding: EdgeInsets.zero,
            child: const Icon(Icons.more_horiz),
          ),
        ),
      ],
    ),
  );

  Future<void> _confirm(BuildContext context) => showGlassDialog<void>(
    context: context,
    builder: (BuildContext context) => GlassAlert(
      title: const Text('Delete all notes?'),
      actions: <GlassAlertAction>[
        GlassAlertAction(label: 'Cancel', isDefault: true, onPressed: () => Navigator.pop(context)),
        GlassAlertAction(label: 'Delete', isDestructive: true, onPressed: () => Navigator.pop(context)),
      ],
    ),
  );
}

iOS 26's tab bar shrinks to its selected tab while the content scrolls down, and comes back on a scroll up. A scroll only reports upward, and the bar is not inside the scroll view, so both go under one GlassTabBarMinimizer, which GlassScaffold already is. The collapse moves inside a declared travel region and takes no capture; the scroll that set it off captures as any scroll does.

class Library extends StatefulWidget {
  const Library({super.key});

  @override
  State<Library> createState() => _LibraryState();
}

class _LibraryState extends State<Library> {
  int _tab = 0;

  @override
  Widget build(BuildContext context) => GlassTabBarMinimizer(
    // Above the list and the bar both: the list's scrolls bubble up to it,
    // and the bar, which is not inside the list, reads it.
    child: Stack(
      children: <Widget>[
        ListView.builder(
          padding: const EdgeInsets.only(bottom: 160),
          itemCount: 60,
          itemBuilder: (BuildContext context, int i) => ListTile(title: Text('Song $i')),
        ),
        Positioned(
          left: 16,
          right: 16,
          bottom: 0,
          child: SafeArea(
            child: GlassTabBar(
              items: const <GlassTabItem>[
                GlassTabItem(icon: Icons.library_music, label: 'Library'),
                GlassTabItem(icon: Icons.search, label: 'Search'),
              ],
              selectedIndex: _tab,
              onSelected: (int i) => setState(() => _tab = i),
              minimizeBehavior: GlassTabBarMinimizeBehavior.onScrollDown,
              // Above the bar, and beside its circle once it collapses.
              bottomAccessory: const Text('Now playing'),
            ),
          ),
        ),
      ],
    ),
  );
}

The host captures what is under its glass by painting that part of the tree a second time. A platform view, a Texture, a video or a camera preview paints outside Flutter's pictures and records nothing, so the glass over it shows a hole. GlassProxy.replace paints a stand-in in its place, for the capture only:

class Player extends StatelessWidget {
  const Player({super.key, required this.video});

  /// A platform view, a `Texture`, anything that paints outside Flutter's own
  /// pictures.
  final Widget video;

  @override
  Widget build(BuildContext context) => Stack(
    fit: StackFit.expand,
    children: <Widget>[
      GlassProxy.replace(
        // A gradient of the poster's colours. Write a GlassProxyPainter of your
        // own for anything else: the last frame as an image, the map's tiles.
        painter: const GradientProxyPainter(
          LinearGradient(colors: <Color>[Color(0xFF1B1F2A), Color(0xFFFF9F0A)]),
        ),
        child: video,
      ),
      const Positioned(left: 16, right: 16, bottom: 16, child: GlassBar(child: Text('Live'))),
    ],
  );
}

Three more declarations do the rest of what the capture cannot know:

A stand-in changes what the glass sees, not when the host captures: a video that composites a new frame is still a change. Live, with each declaration: Capture control.

When the application already knows what is behind the glass — a page of one colour, a wallpaper, a gradient — capturing it is a snapshot of something in hand. GlassBackdrop declares it for a subtree: the glass below samples a texture made once from the declaration, through the same shader, and the host leaves it out of the capture. The cards here capture nothing; the bar over the list still refracts the list:

class Lockscreen extends StatelessWidget {
  const Lockscreen({super.key, required this.wallpaper, required this.feed});

  /// The wallpaper, which does not change while the screen is up.
  final ImageProvider wallpaper;

  /// A list that scrolls under the bar.
  final Widget feed;

  @override
  Widget build(BuildContext context) => GlassBackdrop.image(
    wallpaper,
    // Painted under the child, then sampled by every glass below: the cards
    // capture nothing at all.
    child: Column(
      children: <Widget>[
        const GlassCard(child: Text('12:45')),
        const GlassCard(child: Text('2 notifications')),
        Expanded(
          // The bar over the list has to refract the list, so it captures.
          child: GlassBackdrop.live(
            child: Stack(
              children: <Widget>[
                feed,
                const Positioned(left: 16, right: 16, top: 8, child: GlassBar(child: Text('Feed'))),
              ],
            ),
          ),
        ),
      ],
    ),
  );
}

The declaration is what the glass shows, so it has to be true. The widget paints it under its child unless paintBackdrop: false; content between the backdrop and the glass is not refracted, and a backdrop that changes without the declaration changing is shown as it was. Until an image loads, the glass captures as if nothing were declared.

GlassTier.cheap draws the tint over the backdrop and captures nothing. The package sets no ceiling itself, because whether a screen can afford full glass is a fact about the application's frame. The application decides, and declares it. Reduce transparency gives GlassTier.opaque, a solid fill matched to the glass over the declared backdrop.

MaterialApp(
  builder: (BuildContext context, Widget? navigator) => GlassHost(
    backdrop: Colors.white, // what the opaque rung fills to match
    tier: GlassTierPolicy(
      reduceTransparency: reduceTransparency, // read natively by the app
      ceiling: lowEndDevice ? GlassTier.cheap : null, // the app's own benchmark or device table
    ).choose(),
    child: navigator!,
  ),
  home: const Scaffold(body: Feed()),
)

To put one part of a screen on another rung, wrap it in a GlassTheme with a tier of its own.

• Dispersion, or chromatic aberration. Apple's material sends the red, green and blue channels to the same place, to within 0.155 logical px against a measurement floor of 0.457. One sample per pixel is what the reference does, not a shortcut, and a dispersion effect would be a departure from it.
• Shapes other than RSuperellipse. Every surface is a BorderRadius drawn as the engine's round superellipse, the shape a RoundedRectangleBorder already lowers to and the continuous corner Apple's material has. A plain rounded rectangle is not a substitute: the curvature jumps where its straight side meets the arc, and the rim's shading would show the jump. The refraction is an analytic distance to that one shape, with one corner radius per surface, so four different corners, a star or an arbitrary path are not drawn. A capsule is a radius larger than the box, kGlassCapsule.

The package cannot work some things out from the render tree, so the application declares them:

• What is behind the glass, for label legibility: GlassHost.backdrop for a flat colour, or richBackdrop: true with minLabelContrast for an image or a scrolling feed. Without either, labels are picked against the worst case, and in debug the package warns when a finish cannot be read over it. Or let bars, cards and buttons read it: GlassHost(adaptive: GlassAdaptive()) measures the capture under each of them, for a small read-back per capture.
• Reduce transparency, increase contrast on macOS, and thermal state. Flutter does not pass these on, and this package ships no platform code to read them. Read them natively and pass them in: reduce transparency to GlassTierPolicy, contrast to GlassHost.highContrast, thermal state to GlassHost.thermal as a GlassThermalState. On iOS and Android 34+ the host already reads contrast from MediaQuery. On macOS the engine does not pass it on.
• The hardware family, if it is not an Apple device: GlassHost.hardware. Undeclared hardware gets the same behaviour with no price attached.
• What the capture cannot read: a platform view, a Texture or a video records nothing, and the glass over it shows a hole. Wrap it in GlassProxy.replace with a stand-in; see the pattern above.

Most mistakes with glass fail quietly: no exception, only glass that is missing, grey, or captured on every frame. Each entry is the symptom, then the cause and the fix; a message a debug build prints is quoted as it starts. To see where the glass is, set debugPaintGlassSurfaces = true: every surface gets a cyan outline. The same list, at more length: Misuse & common errors.

• Only the children are drawn, with no glass. No GlassHost above the surface: it paints its child over nothing, and says nothing. Put one host in MaterialApp.builder, as in the quick start.
• GlassAlert was built with no GlassHost above it. Or "A glass sheet", or a menu's or popover's panel. Modals are built in the navigator's overlay, and a host inside a route does not reach them, nor does the one GlassScaffold mounts when none is above. Debug only; in release the modal shows without glass. Move the host above the navigator.
• A GlassTheme above the host changes nothing. The host installs its own theme from its parameters. Declare on GlassHost, and put a GlassTheme below it for a subtree.
• The first frames show no glass, then a blur without tint or rim. The first frame of a screen has no glass by design: the capture reads the frame just painted. The blur without optics is the shaders still compiling; await GlassHost.precache() in main() compiles them first.

• A hole over a video, a map or a platform view. They paint outside Flutter's pictures and record nothing into the capture. Wrap them in GlassProxy.replace with a stand-in, as in the pattern above.
• Glass inside an Opacity or a fade disappears. An Opacity below 1, a FadeTransition, a ColorFilter or an ImageFiltered opens a layer, and glass inside it does not survive it. On the cheap rung the rim and the press highlight add to the layer instead: one Opacity(0.99) above a button takes its press from +50 code values to +4. Fade glass with GlassSurface.materialize, hide it with Visibility. Content fading under glass is fine.
• A bar over glass cards shows the page with the cards cut out. Sibling glass does not see sibling glass: wrap the bar in GlassAbove, as in Glass on glass.
• An unlifted bar shows up blurred inside a scroll edge. Levels are a declaration, not paint order. Lift the bar with the edge, which GlassScrollEdge.child does.
• A surface that replaces another at the same place draws nothing. A known issue: a host replacing one surface with another at exactly the same rect keeps the old capture until something else under the glass changes.
• The glass does not refract what scrolls under it. A GlassBackdrop above it declares the backdrop, and the glass shows the declaration only. Wrap the part with live content in GlassBackdrop.live.
• A tab bar with minimizeBehavior: onScrollDown never collapses. A scroll reports only upward, and the bar is the scroll view's sibling. Put a GlassTabBarMinimizer above both, as in the pattern above; GlassScaffold is one. Only the nearest vertical scroll view counts, not one nested in it.

• A glass component has no GlassThemeData.backdrop, and its finish is not legible over every backdrop. Declare backdrop for a flat screen, or richBackdrop: true with minLabelContrast over an image or a feed; see what the application declares.
• GlassTier.opaque with no GlassThemeData.backdrop declared. The opaque rung fills with the level the glass shows over backdrop; without one it fills with the tint, 29 of 255 for .regularDark where the glass shows 69 over mid-grey. Declare backdrop whenever reduce transparency can be on.
• Glass over a flat colour is a grey box. There is nothing to refract. Put glass over content, or use a plain Container.
• A lens or a held drop looks grey. The label floor dims glass for a label it does not have: pass labelled: false to glass with no text.
• Labels in a bar have the wrong colour. Bars, cards, buttons and modals set DefaultTextStyle and IconTheme to a legible colour; a colour hard-coded inside them overrides it.
• Adaptive glass does not adapt. GlassAdaptive re-picks bars, cards and buttons. A raw GlassSurface, GlassScrollEdge, the tab bar and the segmented control do not adapt, and a finish named anywhere is held.
• N of M surfaces in a GlassGroup name their own finish. A fused group is one draw with one finish: the group's. Its members draw no fade and no ripple either.
• A GlassGroup holds N surfaces; the fused draw carries 12. Past kMaxFusedShapes the group is refused, not truncated: the members draw themselves without the bridges. Fuse fewer.
• A ripple does not show. It is off by default, under reduced motion, below GlassTier.full and on a fused group member.
• A panel appearing through presence narrows to a line. presence is for budding inside a group; animate materialize instead.
• A shape inside glass sits badly in its corners. A highlight, a thumb or a ring inset in glass has the glass's radius less the inset: GlassConcentric.radius(outer, inset) or .borderRadius(...), not a number that agrees by accident until one of the two moves.
• A badge drawn as glass is a different red over every backdrop. Apple's badge is opaque, on the glass and not of it: use GlassBadge, which is a plain capsule and costs no surface.

• Moving glass captures on every frame. Its slot is its own box. Wrap the region it moves in in a GlassTravel, as in the pattern above.
• Glass in a GlassTravel still captures as it moves. Moving it must repaint nothing else: put the still content and the moving glass behind a RepaintBoundary each.
• A custom finish costs more than its preset. A name outside the measured tables gets no lower capture resolution. Derive it with copyWith, which keeps the name.
• Too much glass. Each surface is a draw, and the cost grows faster than the count: glass is for bars and controls, not every card of a feed. A row of icon actions is one GlassButtonGroup, and a minus and a plus are one GlassStepper, not two buttons; a group is a look, not a saving (twelve clustered surfaces cost 1.60 to 1.65 times ungrouped).
• The search bar captures when it takes or loses the focus. Cancel's slide narrows the field's glass, and glass whose box changes is retaken: 16 captures over the 250 ms at 60 Hz, each way, and none after it (headless, in the package's tests). showsCancelButton: false keeps the box still; under reduced motion it is one frame.
• A change inside a large sheet captures. An opaque large sheet is drawn on GlassTier.cheap and reads no backdrop, but a cheap surface is content to the capture of the glass around it, so a change in the sheet is a retake. Headless, a 400 × 800 window with a glass bar under the sheet: one surface of two captured instead of two, 20,608 px² of capture against 337,408, and one retake for a label changed in the sheet against none. A translucent largeFinish keeps it glass, and its capture with it.
• Every press of a button captures twice. The swell grows inside a travel region declared from touch-down until the spring settles: one capture as it appears, one as it goes, nothing at rest. GlassPress.none on the host, a theme or one button keeps the box still and builds no region.
• A tab bar rebuilt by a bare setState captures once. A known cost, not yet traced. Rebuild the bar when its selection changes, not with every change of the screen around it.
• A page control captures while the pages turn. The control does not: the PageView moving under the glass does: 43 captures a swipe headless, with the dots following it and with dots that stay put. Content that moves under glass is a capture a frame.
• Glass is coarser on a large window. The capture must fit the GPU's texture limit, and the host assumes the specification's floor (4096 on Vulkan, 8192 on Metal). Every GPU measured allocates 16384: GlassHost(maxTextureSide: 16384) on a device you know.
• A slider rounded in onChanged is told every frame. Pass divisions: every input lands on a stop, and onChanged is called only when the stop changes.
• Every frame captures, still or not. content: GlassContentDeclaration.undeclared is for ruling the change detection out, not for shipping; nor are maxCaptures, resolution and blurPass.

• Reduce transparency, contrast on macOS or thermal state change nothing. Flutter does not pass them on: read them natively and declare them. A GlassTierPolicy(pinned: ...) overrides the user's setting; never ship one.
• A widget test finds no glass. The test needs a GlassHost above the glass (above the Navigator for modals), and the first frame has none: pump one more.
• await GlassHost.precache() hangs in a widget test. The fake clock never completes the shader load. Alternate tester.runAsync with tester.pump until it completes, or leave the precache out.

The route renders byte-identically on all of them. Every bundled shader is compiled for all five shader targets in test/shader_targets_test.dart, so a shader that SkSL would reject fails the tests rather than a user's app.

package:g1455/glass_diagnostics.dart exposes the switches a benchmark flips, such as the tile split of a group's draw and the anti-alias flag. It also exposes the host's proxy handle, whose counters show whether a frame captured. An application has no reason to import it.

flutter pub get
dart format .
flutter analyze --fatal-infos
flutter test --coverage
(cd example && flutter test test/ showcase/)

dart format takes its width (120) and its trailing-comma rule from analysis_options.yaml, and CI fails on a file it would change.

The skill's SKILL.md is written by hand; its references/ are the site's pages, generated from the catalog in example/lib/src/catalog/ by (cd example && dart run tool/skill.dart). The example's tests fail when they are stale.

Some tests check a constant baked into lib/ against the measurement it came from. Those measurements are copied into provenance/, unchanged and under their original file names. They live in the repository only; the published package does not carry them.

A pull request runs the same checks in CI, plus flutter pub publish --dry-run and pana. A release is a tag: bump version in pubspec.yaml, add its ## <version> section to CHANGELOG.md, and push v<version>. The tag publishes to pub.dev and opens a GitHub release with that section as notes.

tool/showcase.sh                  # every tile
tool/showcase.sh switch,tab_bar   # just these
tool/showcase.sh screen           # the whole screen at the top

The script plays each scene of example/showcase/scenes.dart under flutter test, with a fake clock and scripted touches, so every run produces the same frames and needs no device. It plays one loop to let springs and waves settle and records the next, and it fails if the last frame does not lead back into the first. It then packs the frames into looping webp files in doc/showcase/ with cwebp and webpmux (from libwebp: brew install webp), each frame encoding only the rect that changed.

The whole screen at the top is example/showcase/screen.dart. It has its own size and no shared backdrop, and it is not one of pub.dev's screenshots, so the script shoots it only when it is named.

The screenshots pub.dev shows are the same loops at half the size, because pub ships them with the package:

SHOWCASE_DPR=1 SHOWCASE_DIR=doc/screenshots tool/showcase.sh

A new scene is a ShowcaseScene in that list: a builder given the loop's phase from 0 to 1, and Strokes for the fingers. Scenes are cut from one backdrop in list order, two to a row, so a scene's position in the list is its place in the grid; keep the count even, and at most ten — as many screenshots as pub.dev shows.

The banner at the top is doc/readme/banner.svg, drawn by hand over the same backdrop, and so are the four cards under How it works, doc/readme/how-*.svg. Their numbers are copied from the tables beside them; change both together.

MIT
