PiggyBackBayonet/MiAuto

Xiaomi CarWith, OPPO Car+, vivo Jovi InCar and other ICCOA CarLink phones, on your car's head unit. Wireless.

MiAuto runs on the car, advertises itself as an ICCOA CarLink-capable head unit, and pairs with a phone that already supports it — Xiaomi CarWith, OPPO Car+ 车联, vivo Jovi InCar and others. Your phone keeps its own maps, music and calling apps — nothing extra is installed on the phone, and the car needs no companion account, dongle, cable, root or firmware modification.

This repository is built on DiAuto Pro, which is an independent fork of DiAuto, which in turn is an independent fork of Open Headunit. The car-side shell, the settings tree and the BYD cluster / HUD outputs come from that lineage; the phone-side protocol has been replaced with ICCOA CarLink — the one protocol that Xiaomi CarWith, OPPO Car+ and vivo Jovi InCar all speak. See Credits and license below.

Download & installation · Latest release

English · 简体中文

Wording only — behaviour is identical to 0.1.0.

• ICCOA CarLink is a standard jointly initiated by Xiaomi, OPPO and vivo, so the home screen, the About and Support screens and the legal notice now name Xiaomi CarWith, OPPO Car+ and vivo Jovi InCar together instead of Xiaomi alone.
• The legal notice now explains what ICCOA CarLink is, and lists OPPO and vivo alongside Xiaomi, ICCOA, Google and BYD.
• Added Traditional Chinese home-screen strings; a zh-TW device used to fall back to English.

First public release.

• Wireless ICCOA CarLink reception on the car — Xiaomi CarWith, OPPO Car+ and vivo Jovi InCar phones included — with a 6-digit pairing code shown on the car screen and confirmed on the phone.
• A 30-second re-advertise watchdog: while the car is unconnected it restarts its advertisement, which brings back a pairing prompt that was dismissed on the phone without restarting the app.
• The full settings tree inherited from the base project — connection, display, video, input, audio, backup, reset and diagnostics.
• The inherited instrument cluster and HUD projection paths, kept for cars that expose those areas and off by default.
• Its own package name (com.miauto.app) and its own release signing key, so MiAuto installs next to other receiver apps on the same head unit.

Each item below is described with its actual state, not just its promise.

The app advertises an ICCOA CarLink head unit — the kind Xiaomi CarWith, OPPO Car+ and vivo Jovi InCar all connect to; the phone finds it in the nearby-device list, a 6-digit code is confirmed on the phone, and the phone screen appears on the car. There is no button to press on the car side for a normal first pairing.

The car-side codebase still contains the Android Auto half of the base project. It is kept only as a foreground keep-alive, and its Android-Auto-only side effects are deliberately disabled through a build flag, because the ones that matter here would fight the CarWith session for the Wi-Fi Direct group and the local hotspot it needs for its data channel.

The failure mode worth engineering against is a pairing prompt the user dismissed on the phone. The car is still advertising, but the phone will not show the dialog again by itself, and the previous behaviour was that the app had to be restarted.

MiAuto re-advertises every 30 seconds while it is not connected:

The base project targets the instrument cluster area that BYD already exposes to third-party apps, plus the windshield navigation outputs (arrows, distance, street names). Both paths are carried over into MiAuto for cars that expose them.

The cluster mirror is experimental and off by default. Where the cluster area is not shared with apps, the setting reports the feature as unavailable rather than failing. Cluster projection is opt-in per car; the mirror timing control below it is intentionally always shown, because a control that hides itself is indistinguishable from a feature that was never built.

These two paths are carried over and are not yet verified with MiAuto's protocol stack.

• Wireless reception for ICCOA CarLink phones (Xiaomi CarWith, OPPO Car+, vivo Jovi InCar and others); the phone stays in a pocket or on a wireless charger.
• Automatic pairing code, with the 30-second re-advertise watchdog described above.
• Full settings tree: connection, display, video, input, audio, backup, reset and diagnostics.
• Instrument cluster mirror and windshield HUD navigation, for cars that expose those areas.

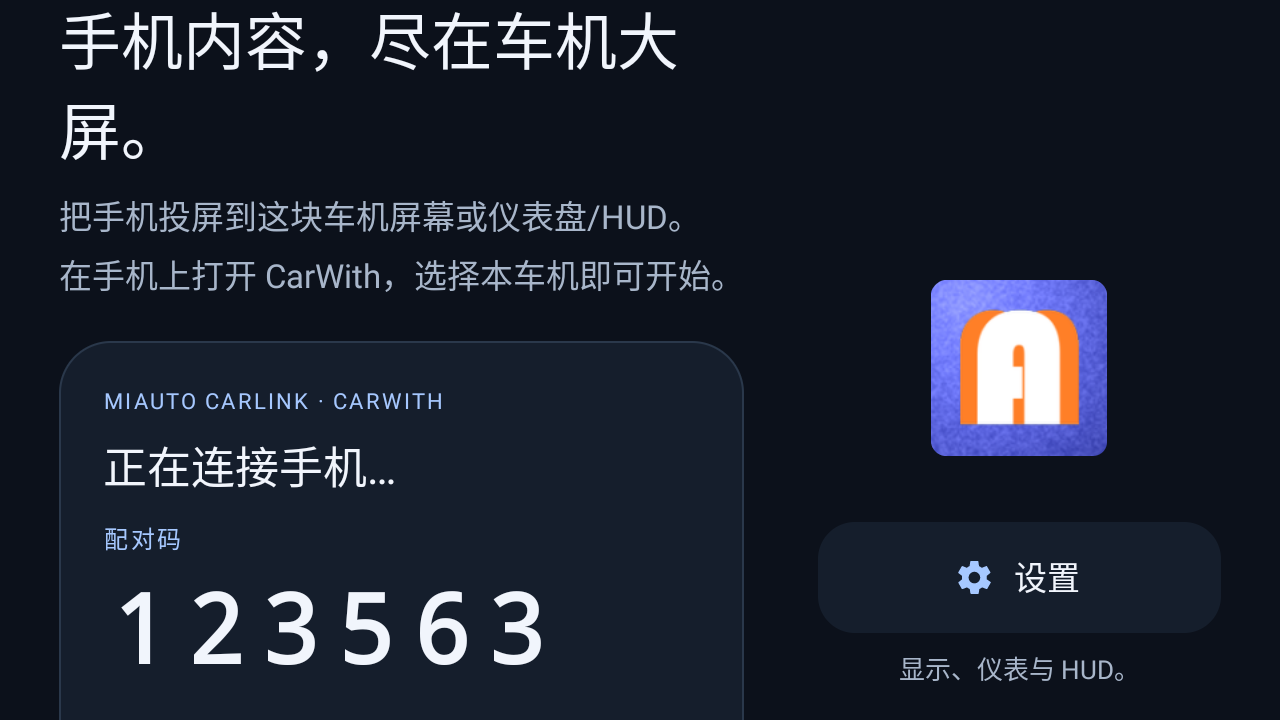

• Car-friendly home screen: large pairing digits, a refresh button, one entry into settings.
• Own package name and signing key, so it coexists with other receiver apps.
• English and Simplified Chinese download page; the app itself ships the community translations inherited from the base project.

Verified on a Newland NLS-MT9055-GL running Android 11 (arm64): the app installs, starts, advertises, shows a pairing code, completes a CarWith session, and the pairing code survives a cold start.

Not yet verified: installation and pairing on a BYD or other production head unit, and the instrument cluster / HUD projection paths. If you run one of those setups, expect to be an early tester, and please report what you see.

A phone that supports ICCOA CarLink is required: Xiaomi CarWith, OPPO Car+ 车联, vivo Jovi InCar, or an equivalent screen-mirroring entry in Settings. This is not Android Auto and not Apple CarPlay.

See the installation guide, including permissions and installation routes. APK installation must be allowed by your head unit. Set up while parked.

Requires JDK 17, Android SDK 36, NDK 29.0.14206865, and CMake 3.22.1. Set ANDROID_HOME or an untracked local.properties with sdk.dir=....

./gradlew :app:testGithubDebugUnitTest :app:assembleGithubDebug :app:assembleGithubRelease

APKs are under app/build/outputs/apk/github/.

ICCOA CarLink — the protocol behind CarWith, Car+ and Jovi InCar — is consumed as a prebuilt SDK that is absent from git (see app/libs/README.md). The compile-time half of it is a signature-only stub jar, app/stubs/icar-sdk-stubs.jar, which is committed — it is used for type checking and never enters the APK.

Without the SDK dex the build still succeeds, but the resulting APK has no CarWith support. When the SDK dex is present, injectIccoaDex appends it to the packaged APK as the next free classesN.dex, then zipaligns and re-signs, because writing to the zip invalidates whatever AGP signed. The task is a finalizer and therefore idempotent: it removes any previously injected copy that is byte-identical to the SDK dex before appending, so repeated builds do not inflate the APK.

Release builds are signed when an untracked key.properties provides:

storeFile=/absolute/path/to/your-release-keystore.jks
storePassword=YOUR_PRIVATE_PASSWORD
keyAlias=YOUR_KEY_ALIAS
keyPassword=YOUR_PRIVATE_PASSWORD

storeFile may be relative to either the repository root or the app/ module; both locations are tried. Never commit signing keys or passwords. Your self-built APK will not upgrade a public release unless it is signed with the same key.

The debug ID lets a test build sit next to a stable install on the same head unit. Only the github flavor is covered by this repository's CI.

The static download page lives under site/ and is generated by scripts/build_site.py. Edit site/content.json and the BASE / REPO / VERSION constants near the top of that script, then run:

python3 scripts/build_site.py

Do not hand-edit site/*/index.html — the next build overwrites them. GitHub Actions deploys only site/ to GitHub Pages.

MiAuto is built on DiAuto Pro, an independent fork of DiAuto, which is an independent fork of Open Headunit, based on work by its contributors and Michael Reid.

MiAuto is licensed AGPL-3.0. See LICENSE and the original copyright notices in COPYRIGHT_MICHAEL_REID_GPLv3AFFERO.txt. This repository contains the source for the published app.

This is an independent community project. It is not affiliated with, authorised by or endorsed by Xiaomi, OPPO, vivo, ICCOA, Google or BYD. Android Auto, CarWith, Car+, Jovi InCar and all product and company names mentioned are trademarks of their respective owners.
