IMSI-catcher
This program shows you IMSI numbers, country, brand and operator of cellphones around you.
/!\ This program was made to understand how GSM network work. Not for bad hacking !
What you need
1 PC with Gnu/Linux. Tested with :
- debian 10
- Ubuntu 20.04/LinuxMint 22.2+
- Kali 2025+
1 SDR receiver. Tested with :
- USB DVB-T key (RTL2832U) with antenna (less than 15$)
- OsmocomBB phone
- HackRF
- BladeRF
Setup
git clone https://github.com/Oros42/IMSI-catcher.git
cd IMSI-catcheror
wget https://github.com/Oros42/IMSI-catcher/archive/master.zip && unzip -q master.zip cd IMSI-catcher-master
sudo apt install python3-numpy python3-scipy python3-scapy gr-gsm
Warning : don't use python 3.9 (ctypes bug)!
Importlib vs Imp
Beginning with Python 3.1, Imp is replaced by importlib. Imp is deprecated in Python 3.11, with the new requirements met as follows.
apt install python3-pip pip install importlib
Install gr-gsm with Docker (not recommended)
sudo xhost +local:docker
docker pull atomicpowerman/imsi-catcher
docker run -ti --net=host -e DISPLAY=$DISPLAY --privileged -v /dev/bus/usb:/dev/bus/usb atomicpowerman/imsi-catcher bashRun all grgsm_* in this docker.
Usage
We use grgsm_livemon to decode GSM signals and simple_IMSI-catcher.py to find IMSIs.
python3 simple_IMSI-catcher.py -h
Usage: simple_IMSI-catcher.py: [options]
Options:
-h, --help show this help message and exit
-a, --alltmsi Show TMSI who haven't got IMSI (default : false)
-i IFACE, --iface=IFACE
Interface (default : lo)
-m IMSI, --imsi=IMSI IMSI to track (default : None, Example:
123456789101112 or "123 45 6789101112")
-p PORT, --port=PORT Port (default : 4729)
-s, --sniff sniff on interface instead of listening on port
(require root/suid access)
-w SQLITE, --sqlite=SQLITE
Save observed IMSI values to specified SQLite file
-t TXT, --txt=TXT Save observed IMSI values to specified TXT file
-z, --mysql Save observed IMSI values to specified MYSQL DB (copy
.env.dist to .env and edit it)

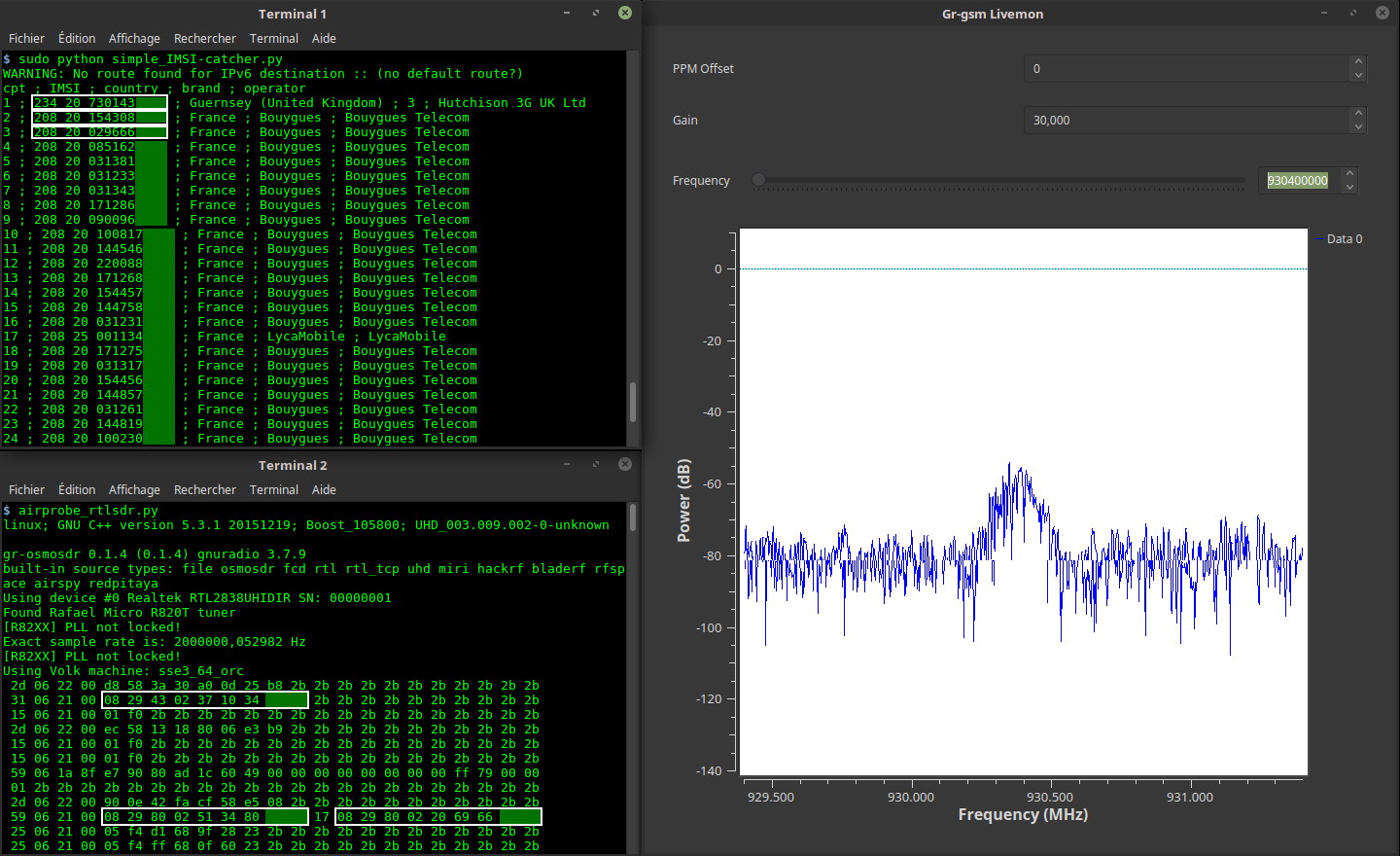

Open 2 terminals.
In terminal 1
sudo python3 simple_IMSI-catcher.py -s
In terminal 2
grgsm_livemon
Now, change the frequency until it display, in terminal, something like that :
15 06 21 00 01 f0 2b 2b 2b 2b 2b 2b 2b 2b 2b 2b 2b 2b 2b 2b 2b 2b 2b
25 06 21 00 05 f4 f8 68 03 26 23 2b 2b 2b 2b 2b 2b 2b 2b 2b 2b 2b 2b
49 06 1b 95 cc 02 f8 02 01 9c c8 03 1e 57 a5 01 79 00 00 1c 13 2b 2b
Wireshark
You can watch GSM packets with wireshark.
sudo apt install wireshark
sudo wireshark -k -Y '!icmp && gsmtap' -i loFind frequencies
grgsm_scanner
ARFCN: 974, Freq: 925.0M, CID: 2, LAC: 1337, MCC: 208, MNC: 20, Pwr: -41
ARFCN: 976, Freq: 925.4M, CID: 4242, LAC: 1007, MCC: 208, MNC: 20, Pwr: -45
Now, you can set the frequency for grgsm_livemon :
grgsm_livemon -f 925.4M
Or, for hackrf, fetch the kalibrate-hackrf tool like this:
sudo apt-get install automake autoconf libhackrf-dev
git clone https://github.com/scateu/kalibrate-hackrf
cd kalibrate-hackrf/
./bootstrap
./configure
make
sudo make installRun
kal -s GSM900
kal: Scanning for GSM-900 base stations.
GSM-900:
chan: 14 (937.8MHz + 10.449kHz) power: 3327428.82
chan: 15 (938.0MHz + 4.662kHz) power: 3190712.41
...
Log data in mysql
Use db-example.sql to create your DB.
cp .env.dist .env
nano .env
# set your config
sudo apt install python-decouple python3-mysqldbsudo python3 simple_IMSI-catcher.py -s --mysql
scan-and-livemon (no longer used)
Scan frequencies and listen the 1st found :
In terminal 1
python3 scan-and-livemon
In terminal 2
python3 simple_IMSI-catcher.py
Links
Setup of Gr-Gsm : https://osmocom.org/projects/gr-gsm/wiki/Installation and https://github.com/velichkov/gr-gsm
Frequency : http://www.worldtimezone.com/gsm.html and https://fr.wikipedia.org/wiki/Global_System_for_Mobile_Communications
Mobile Network Code : https://en.wikipedia.org/wiki/Mobile_Network_Code
Scapy : http://secdev.org/projects/scapy/doc/usage.html
IMSI : https://fr.wikipedia.org/wiki/IMSI
Realtek RTL2832U : https://osmocom.org/projects/sdr/wiki/rtl-sdr and http://doc.ubuntu-fr.org/rtl2832u and http://doc.ubuntu-fr.org/rtl-sdr
