Keralots/BambuHelper

Dedicated Bambu Lab printer monitor built with ESP32-S3 Super Mini and a 1.54" 240x240 color TFT display (ST7789).

Connects to your printer via MQTT over TLS and displays a real-time dashboard with arc gauges, animations, live stats, and optional buzzer notifications.

Additional supported boards include Guition JC3248W535 320x480, CYD 240x320, Waveshare ESP32-S3-Zero (with 240x240 or 240x320 panel), Waveshare 2" 240x320, Waveshare 1.54" 240x240, and ESP32-C3 DIY builds using the same 240x240 display as the ESP32-S3 version.

One-click setup: as of v3.2, you can flash your board and configure WiFi entirely from the browser at keralots.github.io/BambuHelper - no PlatformIO, no esptool, no captive portal hopping.

H2 series LAN mode: On current firmware, H2C / H2D / H2S connect over LAN Direct with no printer-side toggles - you do not need LAN-only mode or Developer Mode, and the printer stays cloud-connected (Bambu Handy keeps working) while you monitor it locally. Just enter the printer IP and LAN access code (Settings > Network). Verified on an H2C. If a printer accepts the connection but shows no data, enable Developer Mode in printer settings - and note that if you deliberately run the printer in LAN-only mode, Developer Mode is required in that mode.

Tip: Use "Bambu Cloud (All printers)" if you don't want to enable LAN/Developer mode on your printer (for example to keep Bambu Handy working), if your ESP32 is on a different network than the printer, or if your printer only supports cloud mode (P2S).

When using Bambu Cloud, BambuHelper connects through Bambu Lab's cloud MQTT service. There are three ways to get it access, and they differ in what your device ends up holding:

• Whatever you choose, the token is what talks to Bambu. It expires after about 3 months. With a remembered password the device signs in again on its own; otherwise you sign in again or paste a fresh token.
• Read-only access - BambuHelper only reads printer status. It never sends commands or modifies printer settings, beyond the chamber-light and smart-plug actions you trigger yourself.
• The config portal has no password and runs over plain HTTP. Anything you type into it, including a Bambu password, crosses your network unencrypted and is readable by anything else on that network. On a network you do not fully trust, prefer the email code or paste a token - a token expires on its own, a password does not.
• Same approach as other community projects - the token is the same credential used by the Home Assistant Bambu Lab integration, OctoPrint-Bambu, and other trusted third-party tools.
• Signing out wipes all of it - token, email and any stored password - from the device.

Preview	Board	Notes

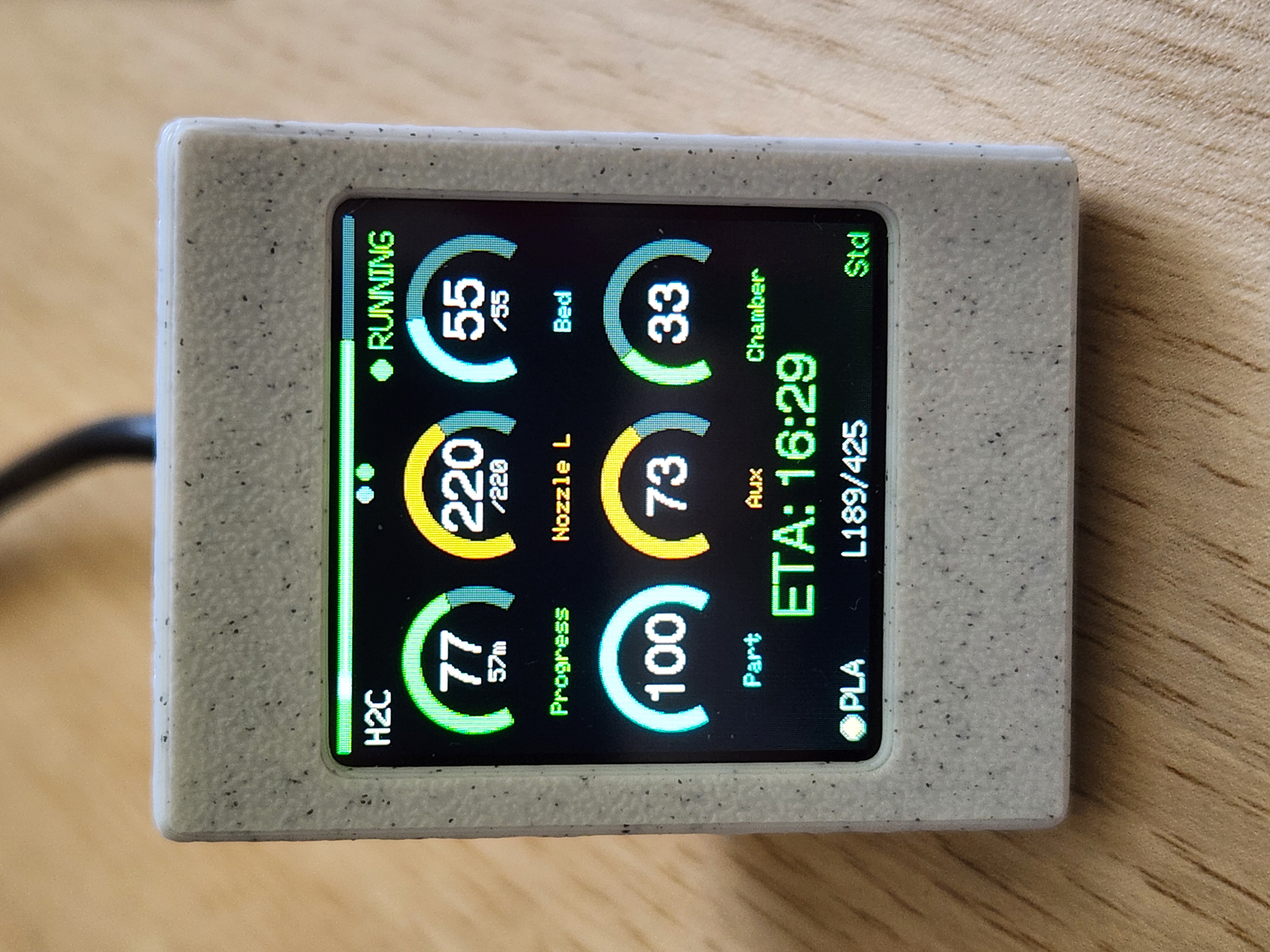

	ESP32-S3 Super Mini + 1.54" ST7789	Base implementation this project started from. Uses an ESP32-S3 Super Mini with a 1.54" TFT SPI ST7789 (240x240) display. Use the esp32s3 firmware build. Supports up to 2 printers (no PSRAM).

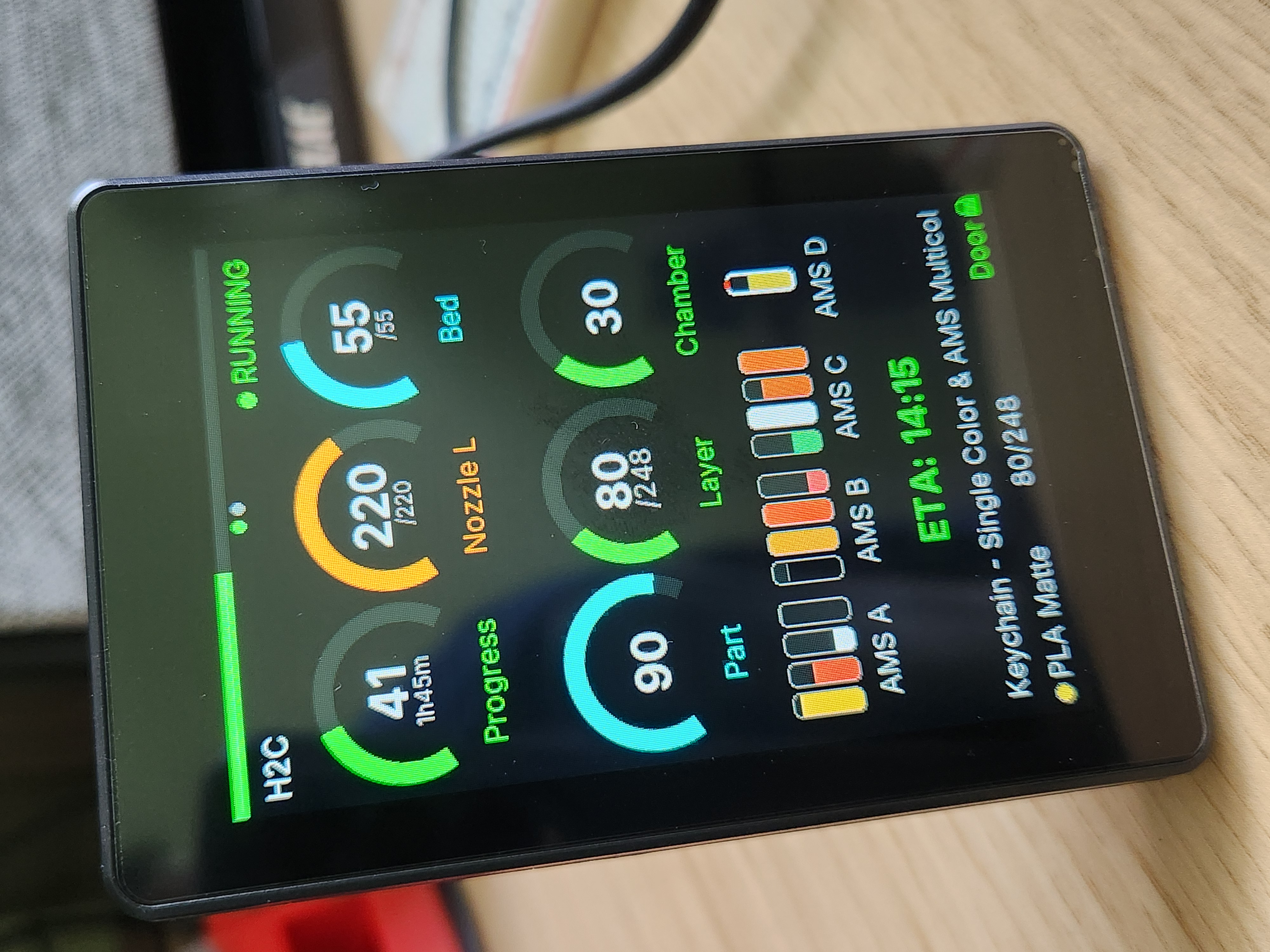

	Guition JC3248W535	320x480 IPS all-in-one board with AXS15231B QSPI display driver, ESP32-S3-N16R8 (16MB flash / 8MB PSRAM), and capacitive touch (AXS15231B touch controller on I2C). Use the jc3248w535 firmware build. Supports up to 2 printers (up to 4 with the experimental opt-in - see Multi-Printer Monitoring). Includes an onboard NS4168 I2S speaker for notifications and a battery indicator (GPIO5 BAT divider), and supports portrait and landscape (480x320) layouts. Initial port contributed by Niels (@theNailz). AliExpress: pl.aliexpress.com/item/1005007566315926.html

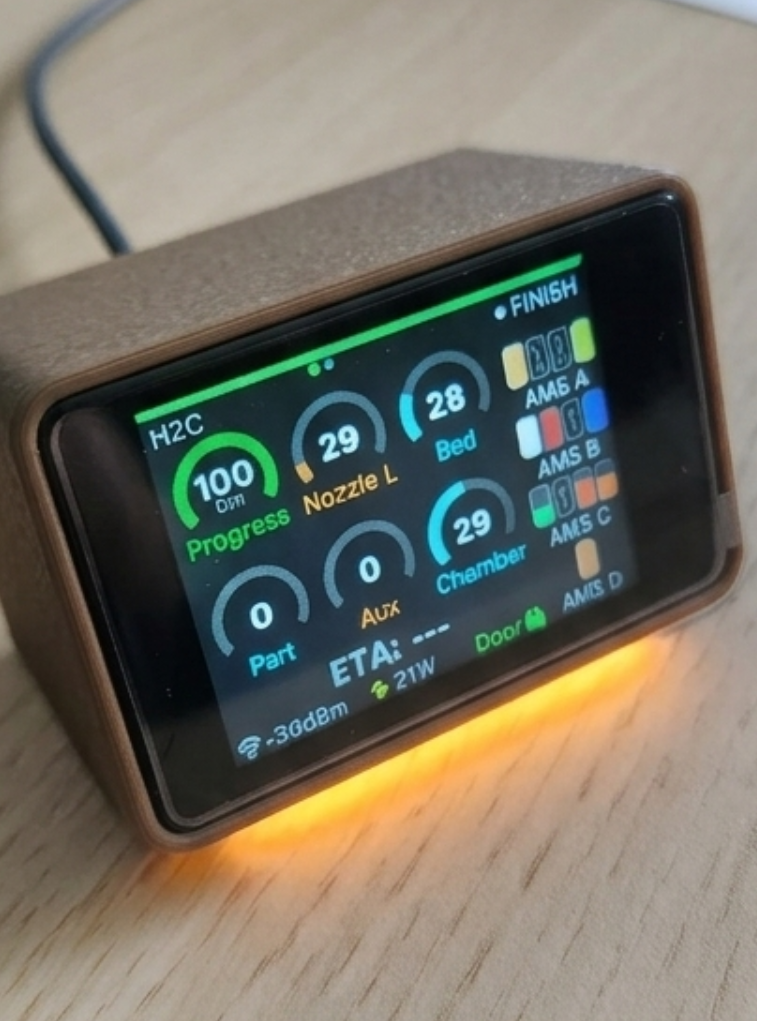

	Waveshare ESP32-S3-Touch-LCD-2	240x320 ST7789 version with ESP32-S3R8 (16MB flash / 8MB PSRAM), sold as a more plug-and-play option. Use the ws_lcd_200 firmware build. Supports up to 2 printers (up to 4 with the experimental opt-in - see Multi-Printer Monitoring). Product page: waveshare.com/esp32-s3-touch-lcd-2.htm Case (Horizontal and vertical): MakerWorld model

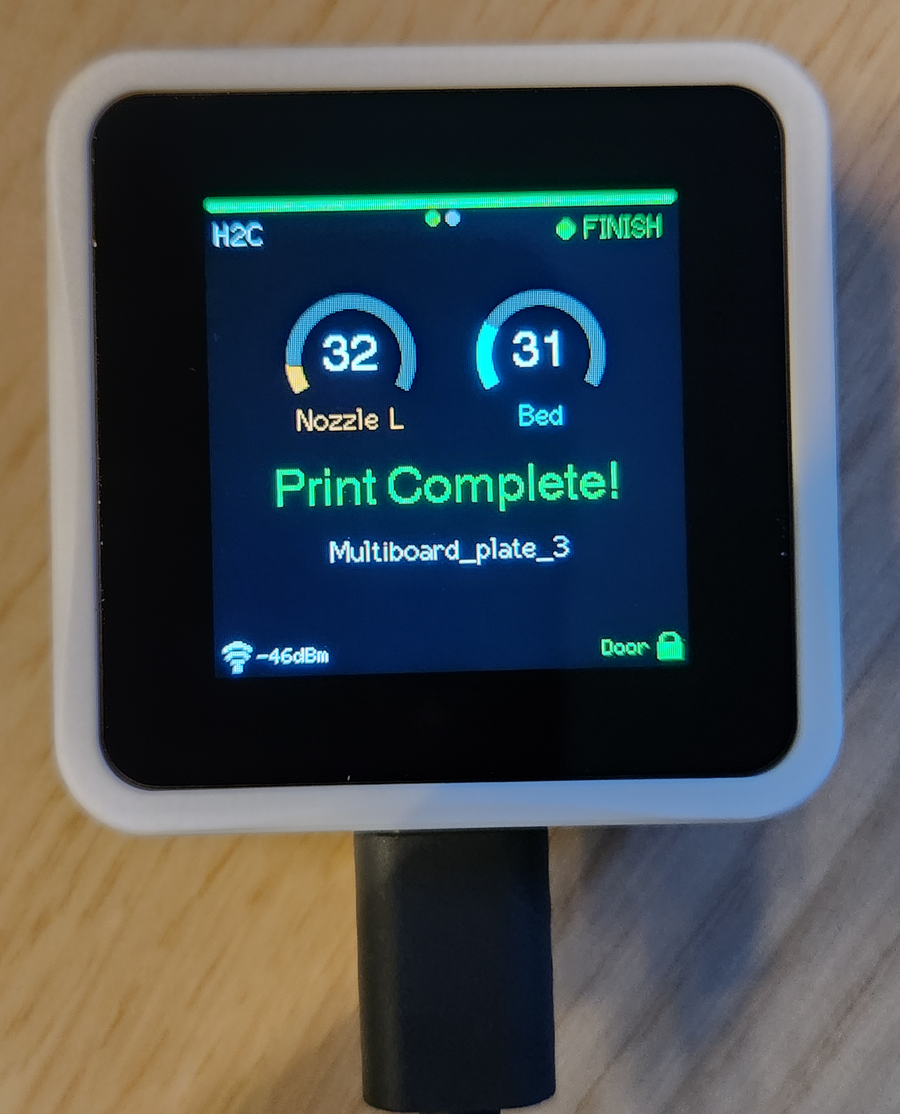

	Waveshare ESP32-S3-Touch-LCD-1.54	240x240 ST7789 with ESP32-S3R8 (16MB flash / 8MB PSRAM), touchscreen, battery holder, and 3 built-in buttons. Use the ws_lcd_154 firmware build. Supports up to 2 printers (up to 4 with the experimental opt-in - see Multi-Printer Monitoring). The left button (BOOT) works as a screen switcher alongside the touchscreen. Battery power: press and hold the center PWR button to power on. To power off, hold the left (BOOT) and right buttons simultaneously for 1.5 seconds. Product page: waveshare.com/esp32-s3-touch-lcd-1.54.htm

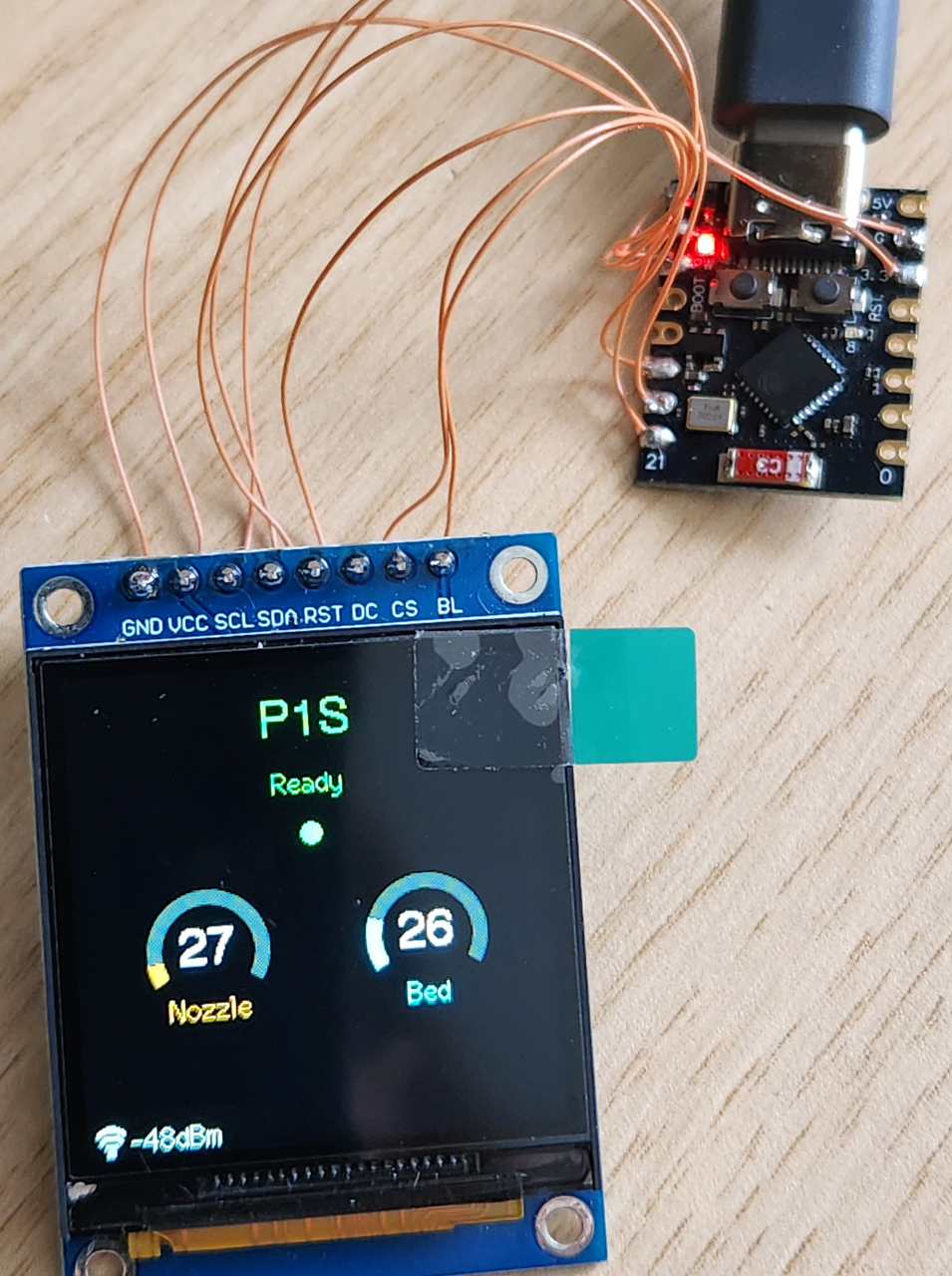

	ESP32-C3 Super Mini	DIY version, just like the main ESP32-S3 build, using the same 240x240 ST7789 display. Use the esp32c3 firmware build. Due to RAM limits, this board supports 1 printer only.
	ESP32-S3 / ESP32-C3 Super Mini + 1.28" GC9A01 round	DIY variant with a round 1.28" GC9A01 (240x240) 7-pin SPI module and a dedicated round dashboard with three selectable print skins (Rim / Speedo / Rings, chosen in the web UI). Use the esp32s3_round build on an ESP32-S3 Super Mini (up to 2 printers) or the esp32c3_round build on an ESP32-C3 Super Mini (1 printer only). Wiring uses the same SPI pins as the square ST7789 builds - see the wiring table below. The 7-pin module has no backlight pin, so brightness control and night dimming are not available. Display module (AliExpress, pick the Type Y variant): aliexpress.com/item/1005007702290129.html Case (ESP32-S3 and ESP32-C3 variants): MakerWorld model

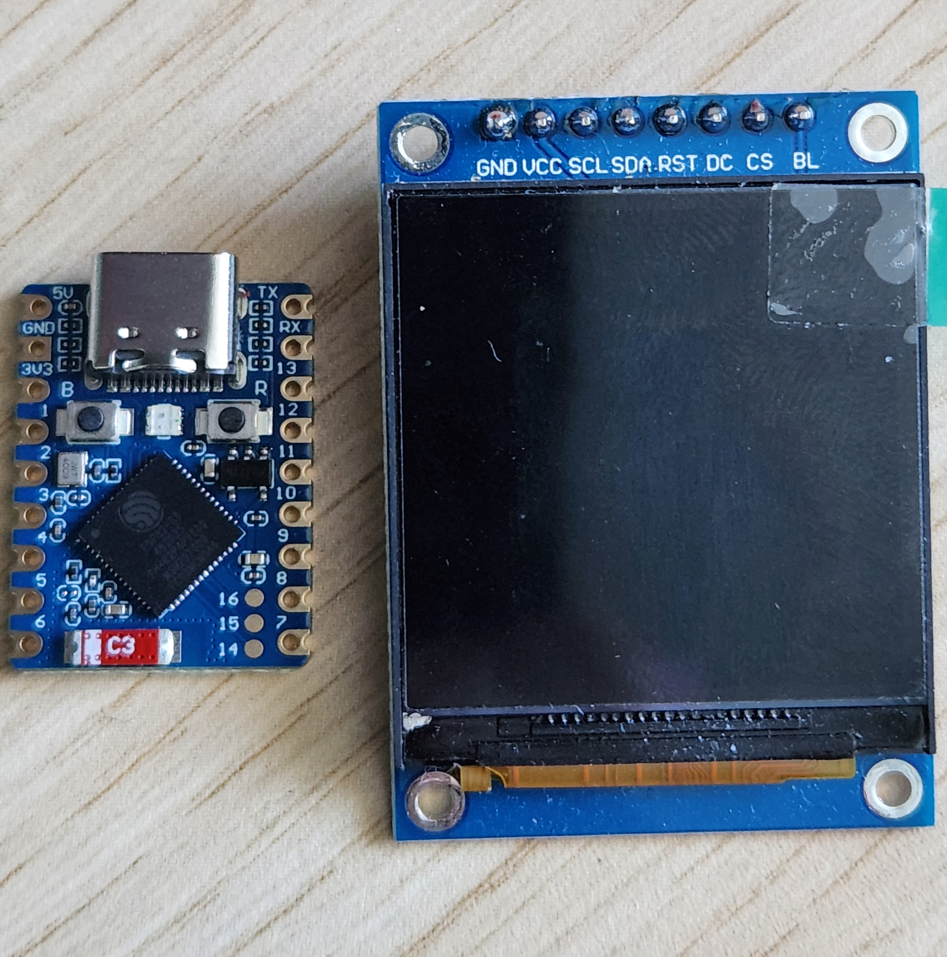

	Waveshare ESP32-S3-Zero + 1.54" ST7789	DIY version for the ESP32-S3FH4R2 module with 4MB flash and 2MB PSRAM. Use the esp32s3_zero firmware build. It uses the same external ST7789 wiring as the ESP32-S3 Super Mini build and supports up to 2 printers (up to 4 with the experimental opt-in). GPIO21 is occupied by the onboard WS2812 RGB LED. Product page: waveshare.com/esp32-s3-zero.htm

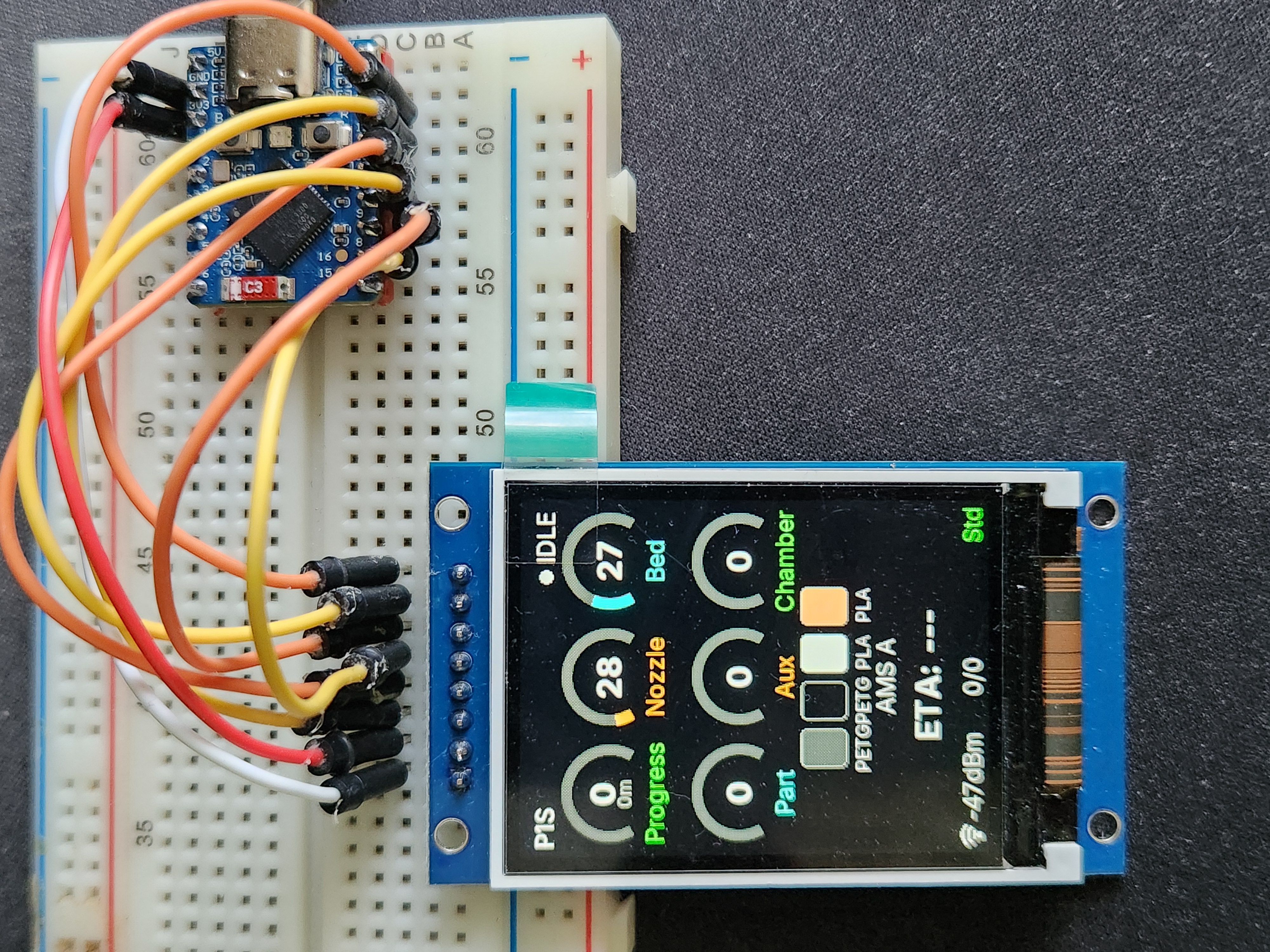

	Waveshare ESP32-S3-Zero + 2.0" ST7789V (240x320)	DIY variant of the ESP32-S3-Zero build using a larger 240x320 ST7789V panel module instead of the 1.54" 240x240. Same pinout as the standard esp32s3_zero build - only the panel differs (driven through the existing 240x320 layout). Use the esp32s3_zero_320 firmware build. Supports up to 2 printers (up to 4 with the experimental opt-in). Display module (AliExpress): pl.aliexpress.com/item/1005007523612119.html

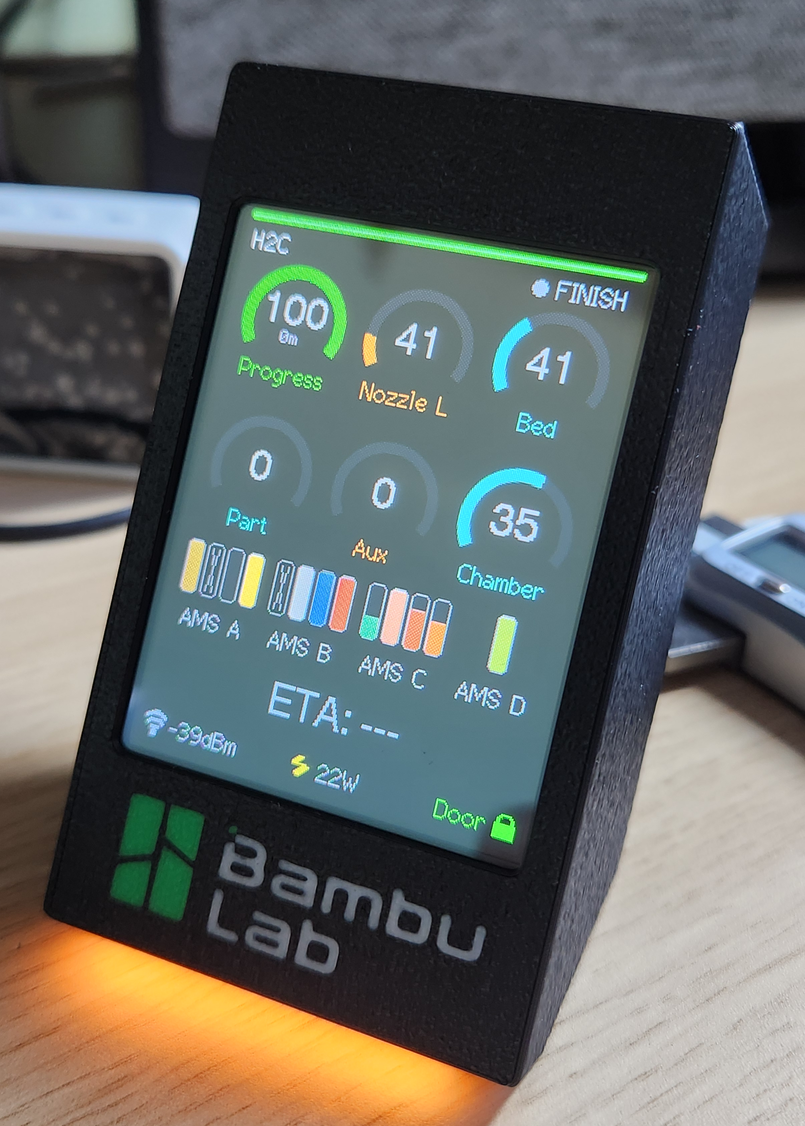

	CYD / ESP32-2432S028 (ILI9341)	240x320 ILI9341 all-in-one board. Use the cyd firmware build. Due to RAM limits, this board supports 1 printer only. When flashing from ESP Web Flasher, set Baudrate: 115200 before clicking Connect. If the first attempt fails, click Disconnect and then Connect again without unplugging the USB cable. If colors look reversed (white background instead of dark), enable Invert display colors (fix white background) in the web UI under Hardware. Case shown in the photo: MakerWorld model.

Firmware for these boards exists and builds cleanly, but the maintainer doesn't physically own the hardware. They may require custom toolchain forks, aren't validated on every release, and individual features (e.g. touch) might still be experimental. For issues specific to these boards, please ping the listed maintainer / tester.

Preview	Board	Notes	Maintainer / Tester

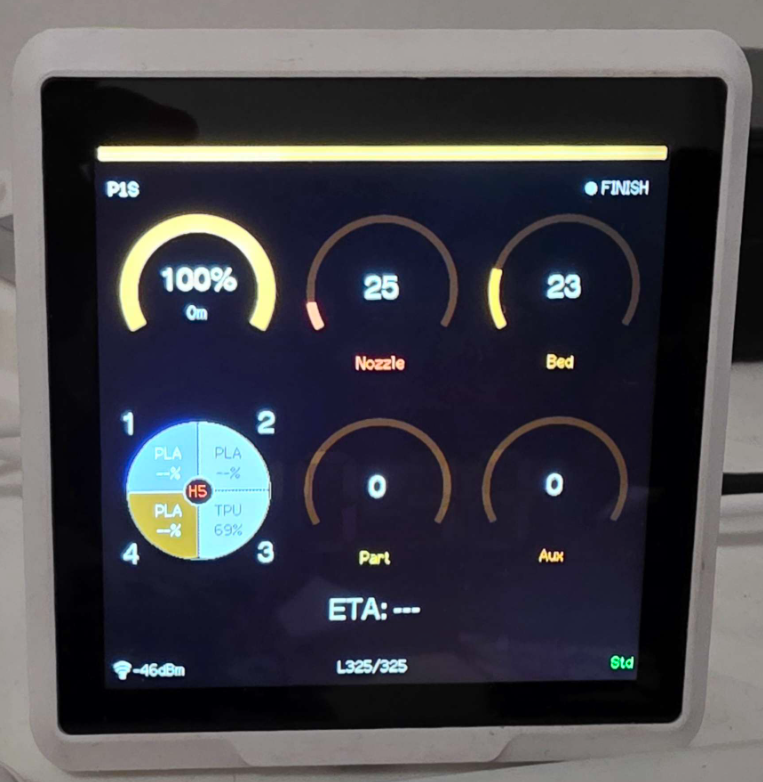

	Seeed SenseCAP Indicator	480x480 ST7701S RGB panel with ESP32-S3, FT5X06 capacitive touch, 8MB flash with OPI PSRAM, all-in-one industrial enclosure. Use the sensecap_indicator firmware build. Supports up to 2 printers (up to 4 with the experimental opt-in). Requires custom forks of arduino-esp32 (TCA9535 IO expander) and LovyanGFX (ST7701S RGB panel), both pinned to specific commits in boards/sensecap_indicator.ini. Product page: seeedstudio.com/SenseCAP-Indicator-D1-p-5695.html	@kjames2001

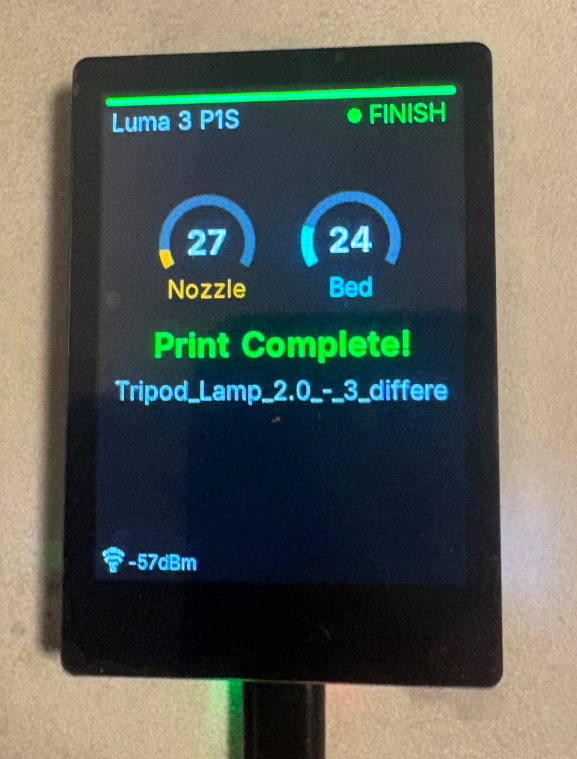

	Waveshare ESP32-S3-Touch-LCD-2.8	240x320 ST7789 with ESP32-S3 and CST328 capacitive touch (different chip from the 2.0" board, so the ws_lcd_200 firmware will boot but the screen stays black). Use the ws_lcd_280 firmware build. Same 240x320 layout as the 2.0", same ESP32-S3R8 core (16MB flash / 8MB PSRAM) - supports up to 2 printers (up to 4 with the experimental opt-in). Battery / IMU / audio not wired up in firmware. Pinout from the Waveshare wiki. Product page: waveshare.com/esp32-s3-touch-lcd-2.8.htm	@FranciscoSaoMarcos

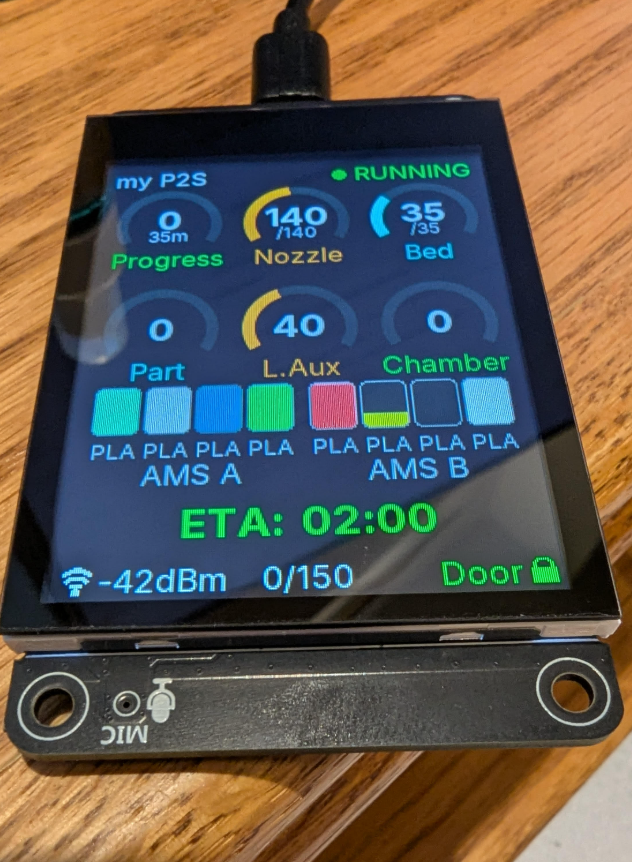

	QD ES3N28P 2.8" (ILI9341V)	240x320 ILI9341V IPS panel over 4-wire SPI with ESP32-S3-N16R8 (16MB flash / 8MB PSRAM) and FT6336 capacitive touch on I2C. Use the es3n28p firmware build. Reuses the same 240x320 layout as the Waveshare 2"/2.8" boards and supports up to 2 printers (up to 4 with the experimental opt-in). The board carries an onboard WS2812 and ES8311 audio that the firmware does not drive, and the buzzer is disabled by default because its default pin is an I2S clock line. Sold as the QD electronic 2.8" IPS ESP32-S3 module (board codes ES3C28P / ES3N28P); see issue #125.	@gwbuss

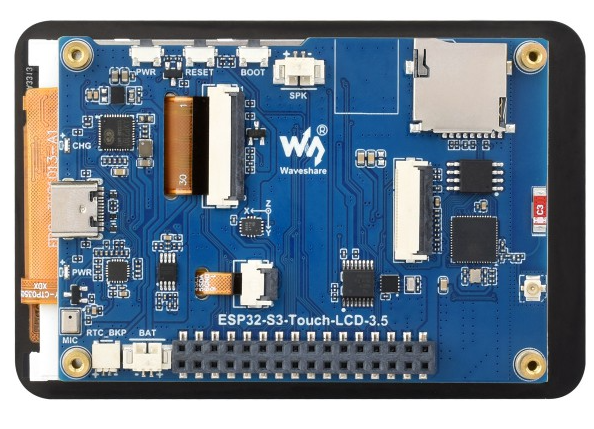

	Waveshare ESP32-S3-Touch-LCD-3.5	320x480 ST7796 IPS panel over plain 4-wire SPI (native LovyanGFX, not the Guition board's AXS15231B QSPI), ESP32-S3R8 (16MB flash / 8MB PSRAM), and FT6336 capacitive touch on I2C. The LCD reset line is driven through an on-board TCA9554 I2C IO expander rather than a GPIO. Use the ws_lcd_350 firmware build. Reuses the same 320x480 layout as the JC3248W535 and supports up to 2 printers (up to 4 with the experimental opt-in). The board has no buzzer hardware. Pinout from the Waveshare wiki. Product page: waveshare.com/product/esp32-s3-touch-lcd-3.5.htm	community

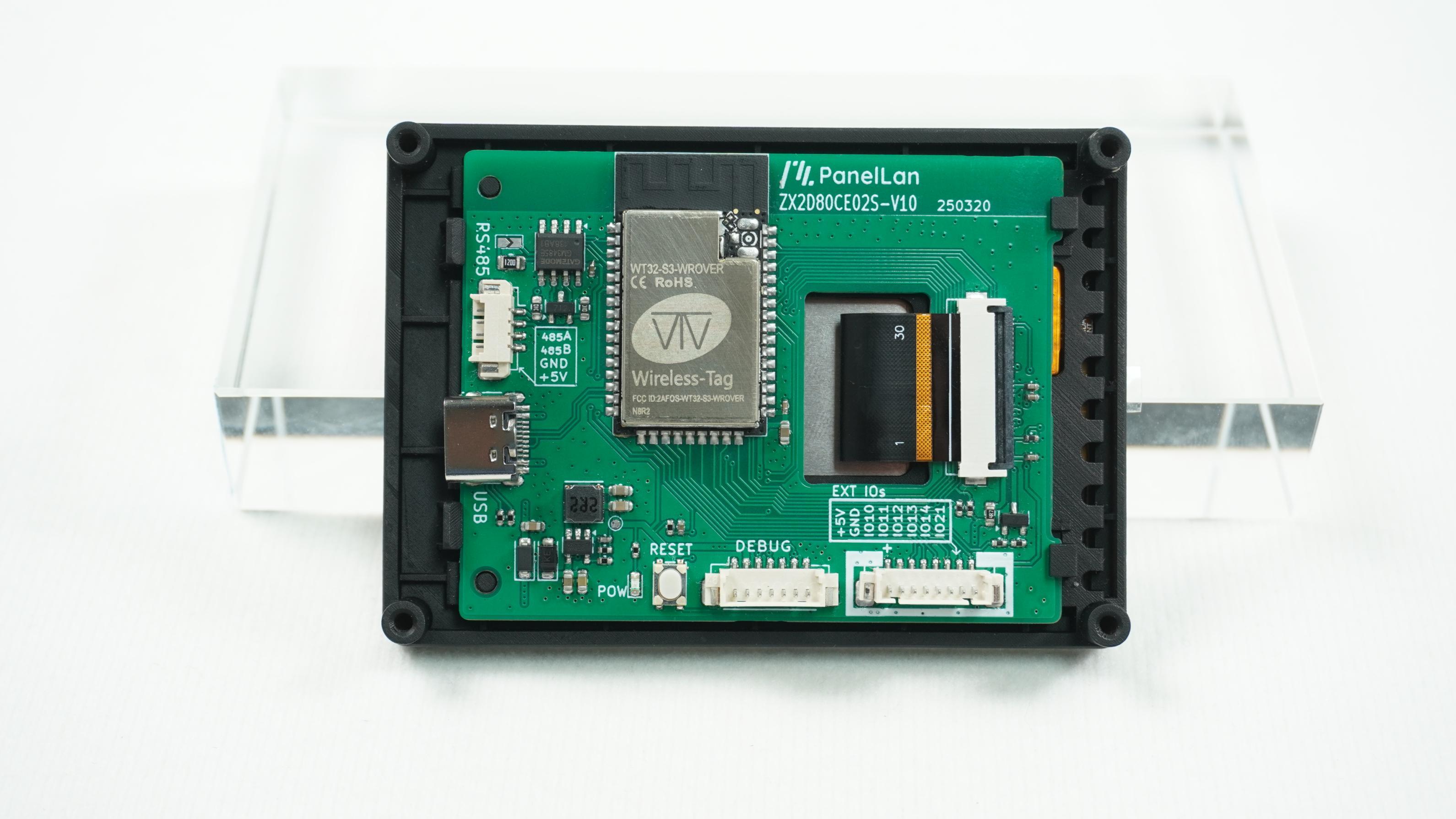

	Panlee SC05_X / ZX2D80CE02S 2.8"	240x320 ST7789 IPS panel driven over an 8-bit 8080 parallel bus, ESP32-S3 with 8MB flash / QSPI PSRAM, and FT5X06 capacitive touch on I2C. Use the sc05_x firmware build. This is not the 3.5" WT32-SC01 Plus; selecting the wt32_sc01_plus firmware on this board leaves the screen black because the LCD driver, resolution, backlight, reset, touch, and data pins are different. The onboard USB-C connector carries native ESP32-S3 USB data for serial and Improv; the separate 7-pin debug header exposes UART0, EN, and BOOT for the vendor's external ZXACC-ESPDB flashing adapter. Pinout and photo from the official Wireless-Tag / PanelLan datasheet and PanelLan Arduino library.	@nunnypern

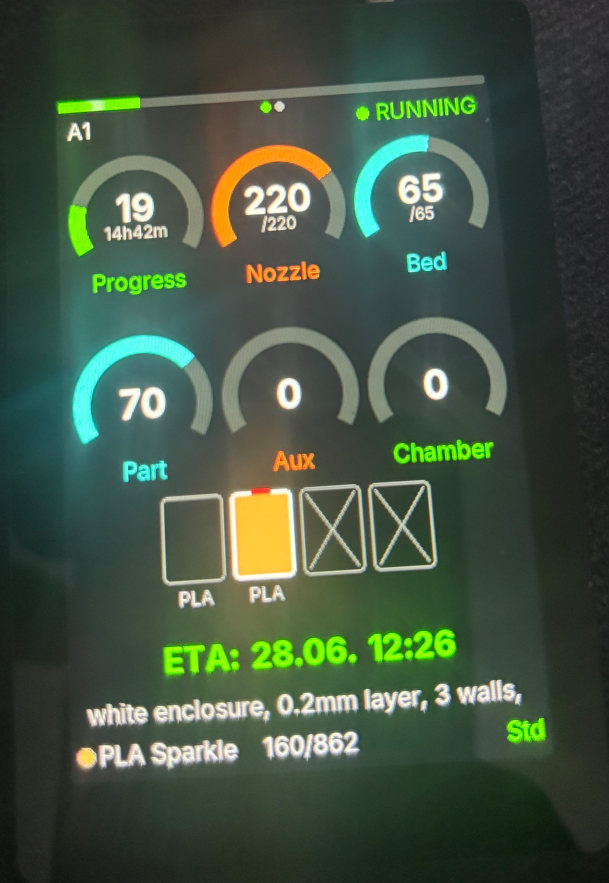

	Panlee WT32-SC01 Plus 3.5"	320x480 ST7796 IPS panel driven over an 8-bit 8080 parallel bus (the project's first Bus_Parallel8 board, not SPI or QSPI), ESP32-S3-N16R8 (16MB flash / 8MB PSRAM), and FT6336 capacitive touch on I2C. Use the wt32_sc01_plus firmware build. Reuses the same 320x480 layout as the JC3248W535 and supports up to 2 printers (up to 4 with the experimental opt-in). The board has an I2S audio amp, but the buzzer is disabled by default because its default pin is the touch I2C clock line. Sold as the WT32-SC01 Plus.	@cliomjh

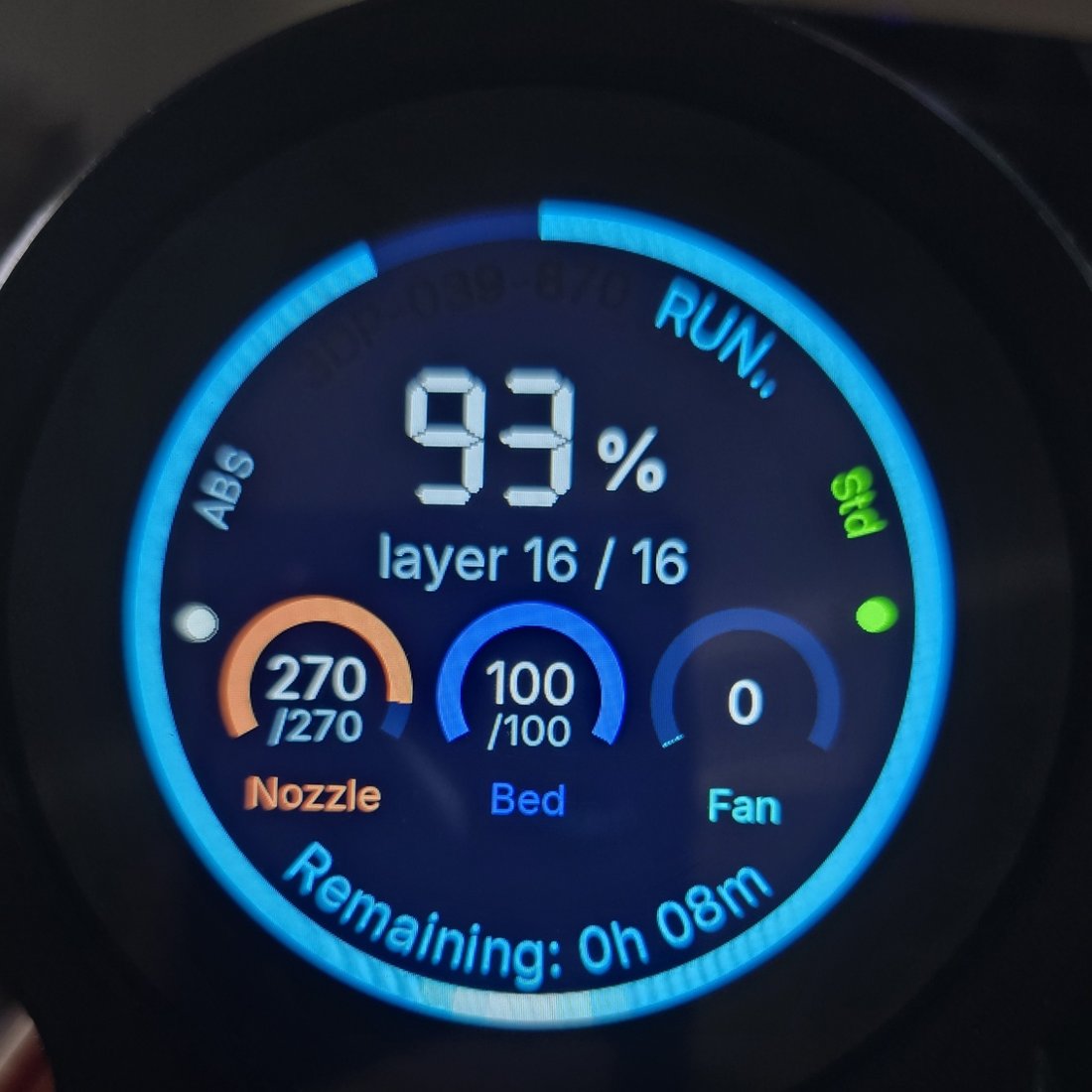

	Waveshare ESP32-S3-Touch-LCD-2.8C	480x480 round ST7701 IPS panel on the ESP32-S3's LCD_CAM RGB bus (16-bit parallel, with a 3-wire SPI command interface), ESP32-S3R8 (16MB flash / 8MB PSRAM), and GT911 capacitive touch. Use the ws_lcd_28c firmware build. Gets its own 480x480 round layout - the 240x240 round dashboard at exactly 2x, with a larger font tier - and supports up to 2 printers (up to 4 with the experimental opt-in). LCD reset, LCD CS, touch reset and the buzzer all hang off an on-board TCA9554 I2C IO expander; the buzzer is therefore on/off only, so melodies play as rhythm without pitch. Battery voltage is read on GPIO4. IMU, RTC and microSD are not wired up in firmware. Hardware-confirmed by the requester in issue #171. The RGB pixel clock runs at a conservative 12 MHz and is an .ini knob. Product page: waveshare.com/esp32-s3-touch-lcd-2.8c.htm	community

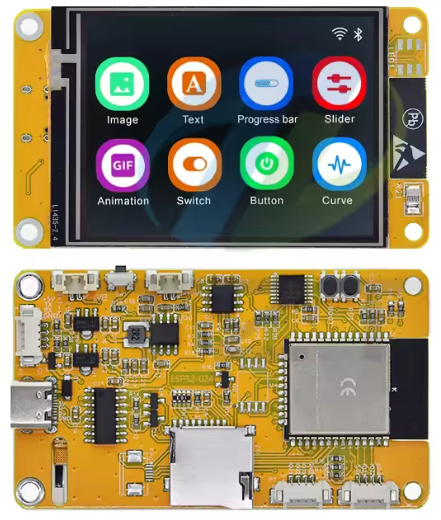

	CYD / TZT L1435-2.4 (ST7789)	Looks almost identical to the standard CYD, but uses a 240x320 ST7789V panel (instead of ILI9341) and the backlight is on GPIO27. Use the tzt_2432 firmware build - the regular cyd build will give you a black screen on this hardware. Due to RAM limits, this board supports 1 printer only. Often sold on Aliexpress as "TZT ESP32 LVGL 2.4 inch LCD TFT 240320 With Touch"*.	community

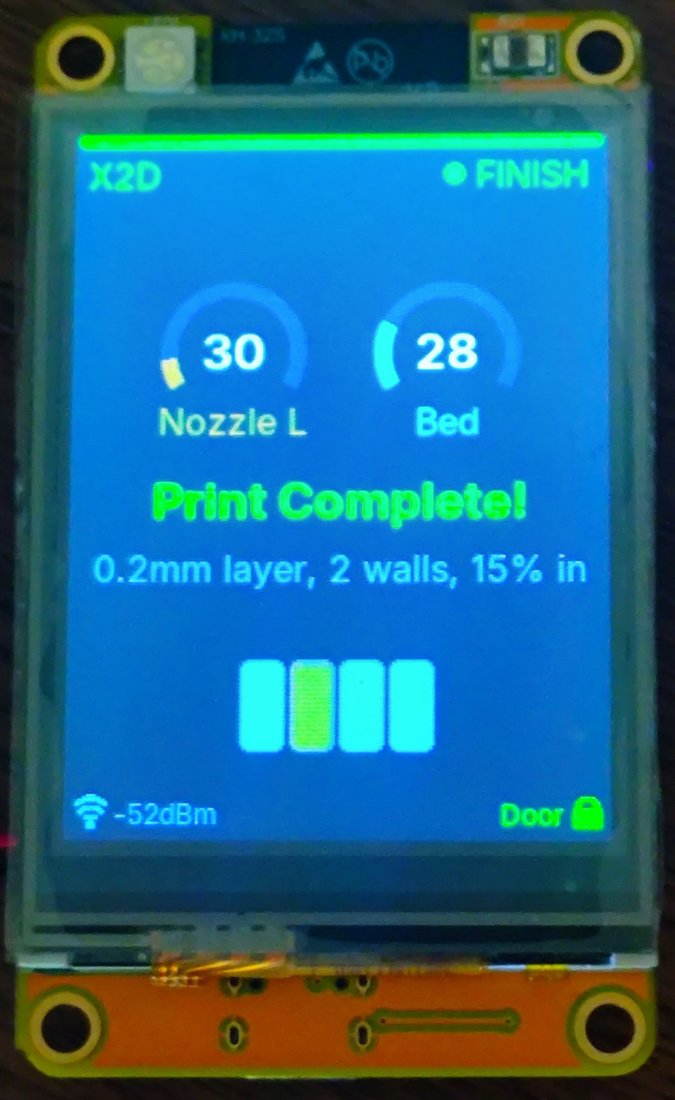

	CYD 2.4" / ESP32-2432S024 (ILI9341)	The 2.4" sibling of the classic CYD - 240x320 ILI9341 panel with XPT2046 resistive touch, printed ESP32-2432S024 on the back. Use the cyd_2432s024 firmware build: the backlight is on GPIO27 and the touch chip shares the display SPI bus, so the regular cyd build gives a black screen with dead touch, and tzt_2432 gives a white screen. Due to RAM limits, this board supports 1 printer only. Hardware-confirmed by the requester in issue #186.	community

Wired your own SPI display to a bare ESP32 and it doesn't match any board above? Instead of editing C++, there is a generic DIY build whose display driver and pins come from build flags in a boards/*.ini file. Set your wiring once and build - no source changes.

Supported drivers: GC9A01 (round 240x240), ST7789 (240x240 or 240x320), ILI9341 (240x320), ST7796 (320x480).

Two starter files live in boards/:

• boards/diy_round240.ini - a ready-to-use example for a GC9A01 round module on an ESP32-C3 Super Mini. Edit the five DIY_PIN_* lines to match your wiring and build with pio run -e diy_round240.
• boards/diy_round240_esp32.ini - the same round module on a classic ESP32 (DevKitC / WROOM). Build with pio run -e diy_round240_esp32.
• boards/diy_spi_template.ini - a fully commented template (a working ST7789 240x320 example). Copy it to a new boards/<yourname>.ini, rename the [env:...], and edit the flags.

Required flags in the env's build_flags:

-D BOARD_IS_DIY=1
-D DIY_PANEL_GC9A01=1        ; pick ONE panel driver
-D DISPLAY_ROUND_240=1       ; the layout that MATCHES the driver (see table)
-D DIY_PIN_SCLK=4            ; SPI clock
-D DIY_PIN_MOSI=3            ; SPI data (SDA)
-D DIY_PIN_DC=10             ; data/command
-D DIY_PIN_CS=1              ; chip select
-D BACKLIGHT_PIN=-1          ; a GPIO, or -1 if the backlight is hardwired on

Driver ↔ layout pairing (the build refuses to compile if they disagree, so you can't silently ship the wrong layout - which is what makes text fall off a round screen):

Optional flags: DIY_PIN_MISO / DIY_PIN_RST (default -1), DIY_FREQ_WRITE (default 40 MHz), DIY_INVERT (flip if colours are wrong), DIY_RGB_ORDER=1 (if red/blue are swapped), DIY_OFFSET_ROTATION (0-7, if the image is mirrored/rotated), DIY_OFFSET_X / DIY_OFFSET_Y (default 0 - where the glass starts inside the controller's GRAM; set these if the image is shifted by a fixed number of pixels with a noisy or blank strip along one edge, e.g. DIY_OFFSET_Y=80 on a 240x240 ST7789 bonded to the far end of its 240x320 die).

Classic ESP32 (DevKitC / WROOM) rather than S3/C3: add board = esp32dev, board_build.partitions = min_spiffs.csv, -D BOARD_LOW_RAM=1 and -D DIY_SPI_HOST=VSPI_HOST (drop the ARDUINO_USB_CDC_ON_BOOT flag - classic ESP32 has no native USB). See the commented block in diy_spi_template.ini.

The button, buzzer, and status-LED pins default to disabled on a DIY build (their normal defaults often collide with a custom display's SPI pins), and the firmware refuses to assign any of them to a pin that's already driving the display. Configure them in the web UI once the device boots. These envs are user-compiled and are not part of the web flasher / release set.

• One-click web flasher - install firmware directly from keralots.github.io/BambuHelper in desktop Chrome/Edge - no PlatformIO, no esptool, no flash offsets
• In-browser WiFi setup (Improv-Serial) - on first boot the install dialog asks for your WiFi over USB; no captive-portal switching needed (AP fallback still available)
• Bambu account sign-in on the device - cloud setup without digging a token out of browser cookies: sign in with a password, an emailed code, or an authenticator app, then pick your printer from the account's own list
• Live dashboard - progress arc, temperature gauges, fan speed, layer count, time remaining
• H2-style LED progress bar - full-width glowing bar inspired by Bambu H2 series
• Anti-aliased arc gauges - smooth nozzle and bed temperature arcs with color zones
• AMS visualization - per-tray colors, drying status, plus an optional bottom-row strip view on 240x240 screens, configurable per printer
• Smart-plug power monitoring - per-printer Tasmota, Shelly Gen2/Gen3, Shelly Power Strip Gen4, or TP-Link Kasa legacy plug with live wattage, per-print kWh + cost, and optional auto-off after print finishes (with hot-end gate)
• Button plug power control - double-click the device button (or touchscreen) to switch the shown printer's smart plug on or off, with a hold-to-confirm safety screen - power a switched-off printer back on without opening a browser
• Chamber light control - manual on/off buttons in the web UI plus per-printer automation: light off after a successful or failed print (with delay), on when a print starts; dual-bar printers (H2C/H2D) switch both bars
• Printer error reporting (HMS) - a red ERR badge when the printer reports an HMS code or print error, a tap-to-open detail screen with the official Bambu wording, and optional edge-glow / buzzer / LED / wake-the-screen alerts
• Cards print screen (beta) - an alternative to the gauges: big progress percentage, time left, finish time, one row of temperatures, plus an AMS column, the plate preview or the filaments of this print - see Cards print screen (beta)
• Animations - loading spinner, progress pulse, completion celebration

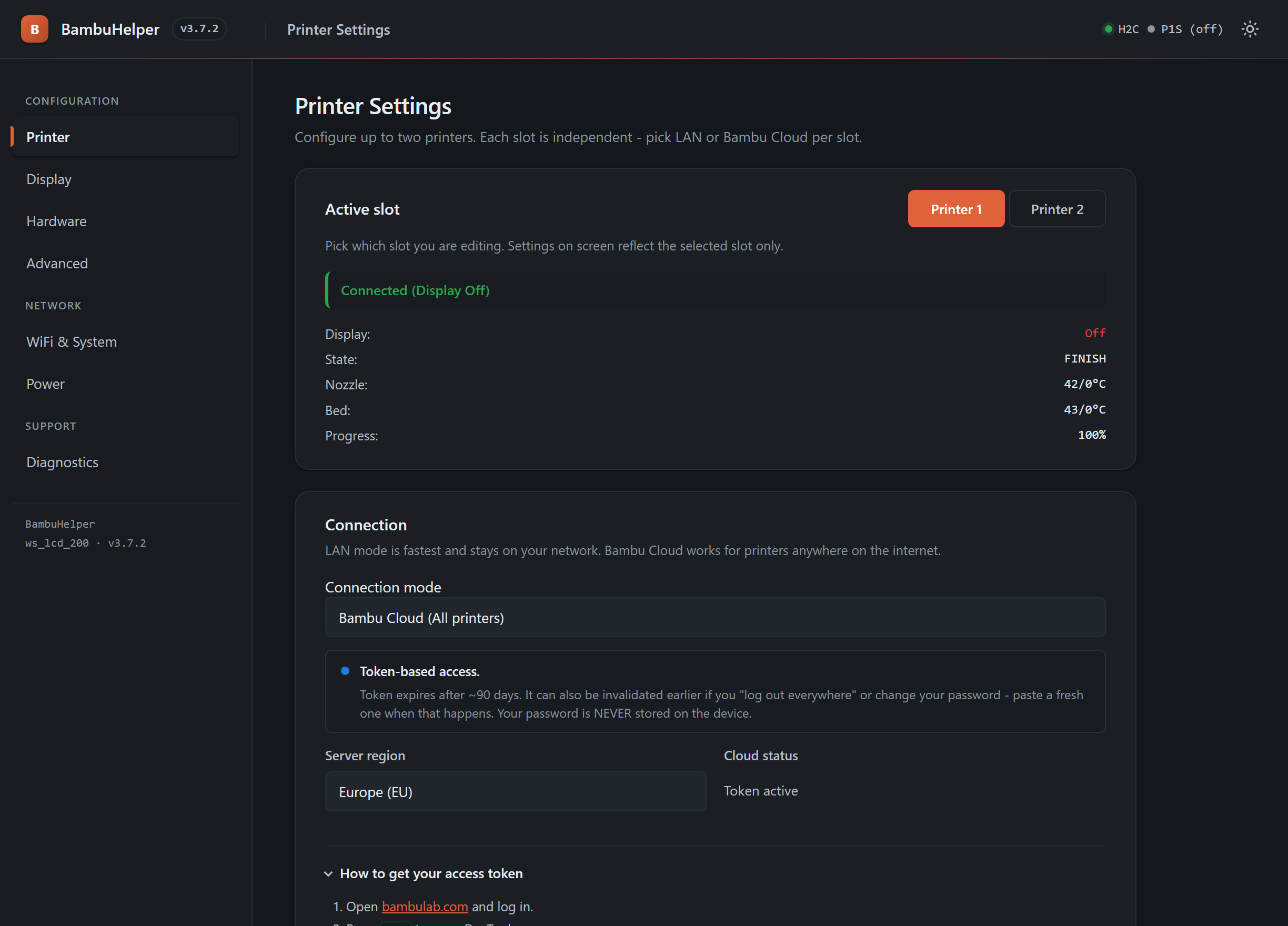

• Web config portal - dark-themed settings page for WiFi, network, printer, display, power, buzzer, and LED settings
• Network configuration - DHCP or static IP, with optional IP display at startup
• Display auto-off - configurable timeout after print completion, auto-off when printer is off
• NVS persistence - all settings survive reboots
• Auto AP mode - creates WiFi hotspot on first boot or when WiFi is lost
• Smart redraw - only redraws changed UI elements for smooth performance
• Customizable gauge colors - per-gauge arc/label/value colors with preset themes
• Customizable accent colors - recolor the finish-time (ETA / Remaining) line, the "Print Complete!" headline, the healthy status badge and the printer name in every screen header, plus the two neutral text colors (readout text and the muted secondary text), so a themed screen has no stray green or white left in it. Warning, pause and error colors stay fixed on purpose
• Customizable gauge labels - rename any gauge label (Nozzle, Bed, Power, Layer, Door, AMS, dual-nozzle L/R) from the web UI; leave a field blank to keep the built-in default, with an optional smaller-label font for fitting longer names
• European characters - print file names, printer names, gauge labels, and the currency symbol render accented text (German, Polish, Czech, Hungarian, Turkish, Romanian, French, Spanish, Nordic, and more) plus the euro sign
• Configurable gauge behavior - adjustable arc full-scale ranges (nozzle, bed, chamber/AMS, power), arc smoothing speed, and an optional warning color when a gauge runs hot
• Power gauge - optional arc gauge showing live smart-plug wattage (W/kW) in a gauge slot
• Plate preview tile - the plate thumbnail of the running job in any gauge slot (Plate preview (cloud) in the Gauge Layout), the same image the Cards left column shows: needs the account sign-in on the device, a job sent through the cloud and a board with PSRAM. On the Ready / Print complete pair it shows the last job
• Configurable status bar - alternate layer count / watts, always show watts, or always show the layer count; or hide the readout entirely to give the filament name more room
• Per-nozzle temperature gauges - fixed left/right nozzle arcs for dual-nozzle printers (H2 series)
• Split dual-printer dashboard - show two printers at once (stacked in portrait, side-by-side in landscape) with progress bar, status, ETA, and drying view per band
• Multi-printer support - monitor 2 printers simultaneously on ESP32-S3 boards; PSRAM-equipped boards add an experimental opt-in for up to 4 (see Multi-Printer Monitoring for the list); CYD, TZT, and ESP32-C3 have an experimental opt-in 2-printer mode but default to 1 printer
• Smart rotation - automatically shows the printing printer; cycles between both when both are printing
• Physical button / touchscreen - cycle printers and wake display via optional push button or TTP223, board-built-in buttons (Waveshare 1.54"), or the built-in capacitive touchscreens on CYD / TZT / Waveshare 2" / Waveshare 1.54"
• Optional LED - status LED on user-configurable pins: a single PWM channel, a 3-pin RGB LED or a WS2812, with a colour per printer state; hold the button/touch to dim
• Optional buzzer - passive buzzer notifications for print finished, connected, and error events; Waveshare 1.54" uses its built-in ES8311 audio codec and Guition JC3248W535 its onboard NS4168 I2S speaker instead
• OTA updates - update firmware from the device's web interface (manual upload or one-click from GitHub Releases)
• Battery support (Waveshare 2" and 1.54") - on-screen battery indicator, charging detection, hold-to-power-off
• Exponential backoff - reconnect attempts to offline printers gradually slow down to conserve resources

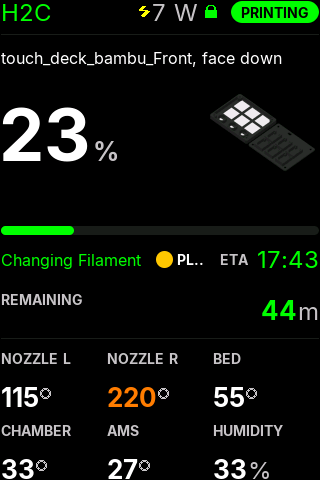

A calmer alternative to the gauge dashboard, readable from across the room: a big progress percentage, the time left and the finish time, a progress bar, and a single row of temperatures. The Ready and Print Complete screens follow the same style.

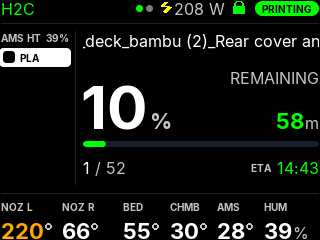

The same print at the same moment, on the same 320x240 screen:

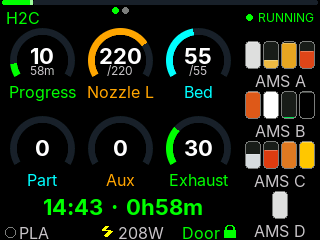

Gauges (default)

Cards (beta)

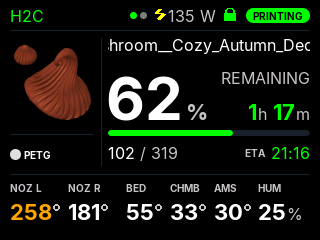

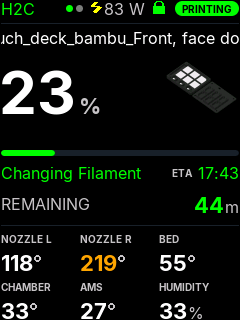

320x240 landscape	240x320 portrait	240x240

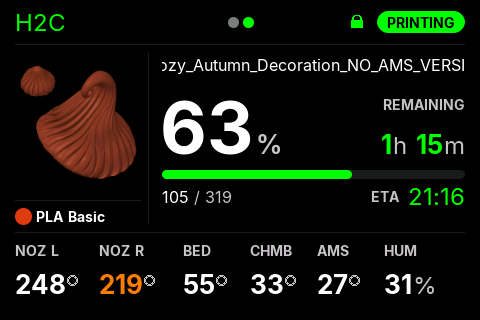

480x320 landscape		320x480 portrait

Screenshots are taken from the device at native resolution.

• Left column - the AMS slots with the feeding slot highlighted, a plate preview of the running job (from Bambu Cloud - needs the account sign-in on the device; works for LAN and Cloud printers bound to that account, for jobs sent through the cloud, on boards with PSRAM), or nothing
• Bottom row - the temperatures your printer actually has (both nozzles on H2 printers, chamber only where there is a sensor, AMS temperature and humidity), or the filaments of this print with how much is left on each spool
• AMS page - how much filament is left in every tray, Bambu Studio style (a remain bar over a tile in the filament color, low spools in orange, -- where the printer does not know). Pick it for the Ready screen under Card: Ready screen (Status, AMS filament left, or Alternate status / AMS), or tap the button / screen on Ready or Print Complete to switch to the other view for 30 seconds (the AMS page, or the status when the Ready screen already shows the AMS page)
• Header - printer name, plug power, door state and the status badge; long job names scroll; the finish time gets a "+1" when the print ends tomorrow
• Colors come from the existing Colors section (Background, Track, Progress Bar, Finish time, the accents, Door, and each gauge's value color for its temperature); temperatures switch to the warning color under the same Warning threshold as the gauges. The Warm paper preset suits it well

Turn it on in the web interface under Print screen: Print screen style -> Cards (beta), then pick Card: left column and Card: bottom row. While Cards is selected, the portal marks the settings it does not use as Gauges only. Split view (two printers at once) keeps the classic gauges.

Cards runs on every 240x320 and 320x480 board and on the square 240x240 boards with PSRAM. The 240x320 boards without PSRAM (CYD, TZT, CYD 2.4") draw it in strips, so a full screen change takes about a tenth of a second, and they cannot show the plate preview, which needs PSRAM. Tested on the CYD; the TZT and the CYD 2.4" use the same code but have not been tried yet. The ESP32-C3 boards, the round displays and the 480x480 SenseCAP keep the gauges.

BambuHelper monitors 2 printers simultaneously on full-RAM ESP32-S3 boards, each over an independent MQTT connection. PSRAM-equipped boards can opt in to a third and fourth printer.

3-4 printers need PSRAM and an opt-in. Each MQTT connection takes ~85 KB (TLS session + 40 KB message buffer). PSRAM-equipped S3 boards (esp32s3_zero, esp32s3_zero_320, ws_lcd_154, ws_lcd_200, ws_lcd_280, jc3248w535, ws_lcd_350, ws_lcd_28c, wt32_sc01_plus, es3n28p, sensecap_indicator) place the message buffers in PSRAM, leaving internal RAM free for extra TLS handshakes. They still default to 2 printers; printers 3 and 4 only appear after you enable 4-printer mode in WiFi & System > Danger zone. This mode is experimental and not yet validated with 3-4 live printers, so expect the occasional disconnect, and note the split dual-screen layout still shows only the first two printers. The Waveshare Touch-LCD boards (1.54" / 2" / 2.8") gained PSRAM support in firmware after v3.7.4 - update to the latest release first. No-PSRAM S3 boards (esp32s3, esp32s3_round) run two - a third connection would exhaust internal RAM during the TLS handshake. The low-RAM boards (CYD, TZT L1435-2.4, ESP32-C3 square and round) ship with a single printer slot by default, but expose an experimental opt-in 2-printer mode in Printer Settings - try it if you really need two, but expect tighter memory and the occasional disconnect under load.

Instead of rotating between printers one at a time, you can show two printers at once. Enable Split screen when two printers are printing in the Multi-Printer section. When both configured printers are printing, the dashboard divides into two bands - stacked top/bottom in portrait, or left/right in landscape - each with its own progress bar, status label, ETA, and drying view. When only one printer is active it falls back to the normal full-screen dashboard. A Always show split screen (testing) toggle forces the split layout regardless of activity so you can preview it without two live prints.

An optional physical button can be connected to cycle between printers and wake the display from sleep.

The button type and GPIO pin are configurable in the web interface (Multi-Printer section) - no recompilation needed.

The same button (or the built-in touchscreen) can also switch the printer's smart plug on and off - set Double tap to plug power (details under Power Monitoring -> Button power control below).

What each gesture does is set under Screen -> Button & touch gestures (the card appears once a button type is picked under Hardware):

A wake tap always wakes, and any double-tap action makes a single tap wait about half a second for a possible second one. The status / AMS choices appear only on boards with the Cards style, while Cards is the print screen style.

When a printer is physically powered off, BambuHelper uses exponential backoff to avoid wasting resources on repeated connection attempts:

When the printer comes back online, the backoff resets once the connection has held for 30 seconds. A connection that drops again within 30 seconds keeps the slower pace - this protects against a broker that accepts and immediately rejects the session (e.g. an expired cloud token or a duplicate client), which would otherwise hammer the server at full speed forever.

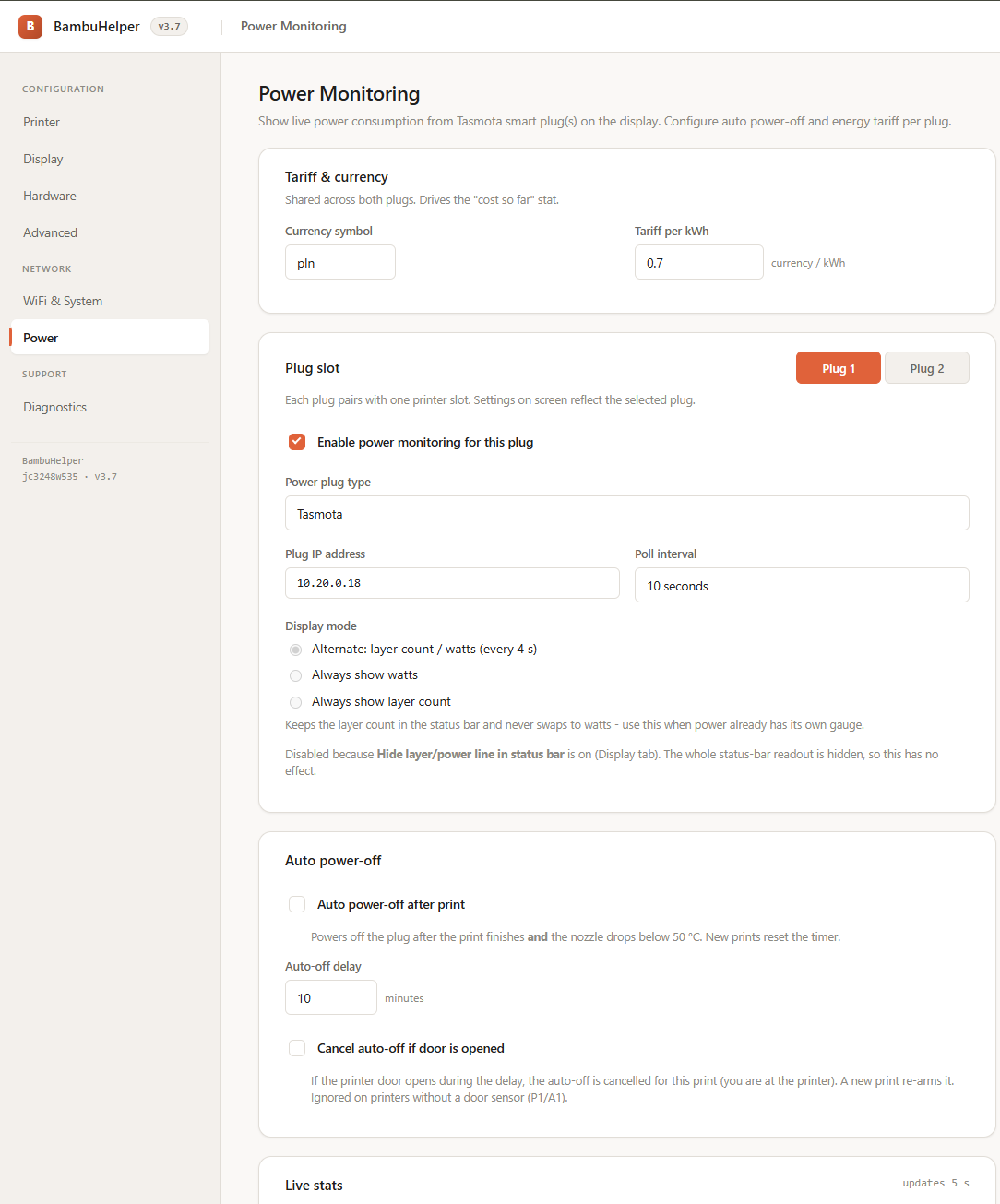

	BambuHelper can display live power consumption from a Tasmota-flashed smart plug, a Shelly Gen2/Gen3 plug, a Shelly Power Strip Gen4, or a TP-Link Kasa legacy-protocol plug connected to your printer. All communication stays on the local network - no smart-plug cloud connection is required. What it shows: - Live wattage in the bottom status bar on the idle and printing screens - Total kWh used during the print job, shown on the "Print Complete" screen Setup: open the web interface, go to Power Monitoring, pick the plug type, enter the plug's reserved local IP address, set your preferred poll interval (10-30s), and choose how the status bar shows it - alternate watts with the layer counter, always show watts, or always show the layer count (when power has its own gauge). For the Shelly Power Strip Gen4, also pick which output (0-3) this slot tracks/controls, and optionally tick further outputs under Also count these outlets so the watts and energy of a shared setup (external AMS supply, lights) are summed into the totals - Power On/Off and auto-off still act on the selected output only. Requirements: any Tasmota-flashed smart plug with energy monitoring (e.g. Sonoff S31, BlitzWolf BW-SHP6, Nous A1), a Shelly Gen2/Gen3 plug (Plus Plug S, Plug S Gen3, etc.), a Shelly Power Strip Gen4, or a TP-Link Kasa plug using the legacy local protocol on TCP port 9999 (tested with KP115; HS110 uses the same protocol). Newer Kasa KLAP/Matter models are not supported. The plug must be on the same reachable network as the ESP32. Shelly/Kasa notes: Shelly must not be password-protected (digest auth is unsupported). Their realtime APIs report cumulative Total but not Today's/Yesterday's energy, so those fields stay blank. Auto power-off: each plug can power itself off N minutes (1-240) after the print finishes, with a 50 °C nozzle gate so it never triggers while the hot end is hot. Configure under Power Monitoring -> Auto-off. If you like to harden your Tasmota plug you can use the following rule. Rule1 on Energy#Power>=30 do Backlog Powerlock 1 endon on Energy#Power<30 do Backlog Powerlock 0 endon Threshold is 30W. Change it according to the idle consumption of your setup. Every action is blocked if there is consumption above this threshold (power button, MQTT, web interface, etc.).

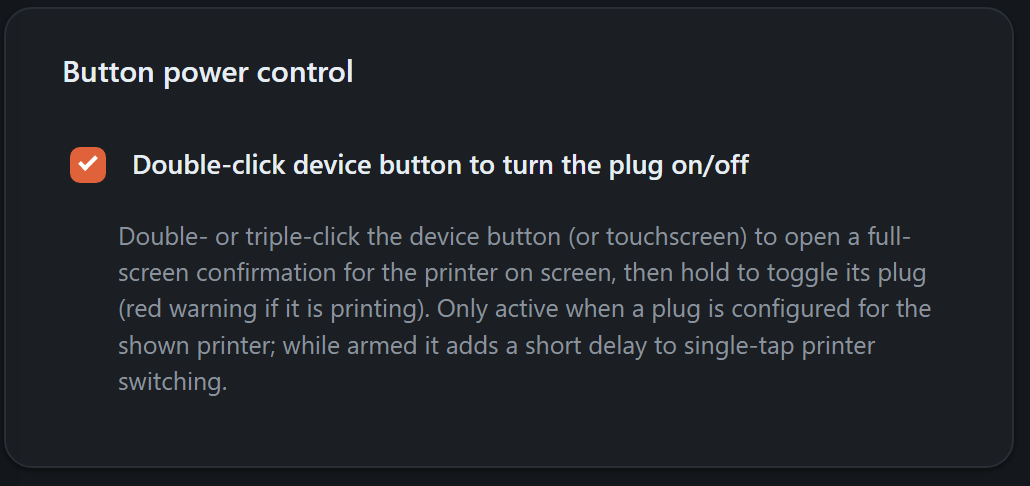

	Button power control (on-device plug switch): switch the plug on or off straight from the device - no browser needed. Set Double tap to Plug power on/off under Screen -> Button & touch gestures (off by default), then double- or triple-click the device button or touchscreen while the printer is on screen. A full-screen confirmation opens: hold ~1.5 s until the ring fills to toggle the plug; a short tap (or 10 s without input) cancels. The screen turns red when that printer is currently printing, since confirming would cut power to a live print. It also works from the "Connecting to printer" screen, so a switched-off printer can be powered back on - the main use case. Only active when a plug is mapped to the shown printer; while armed, single-tap printer switching waits ~0.5 s for a possible second click.

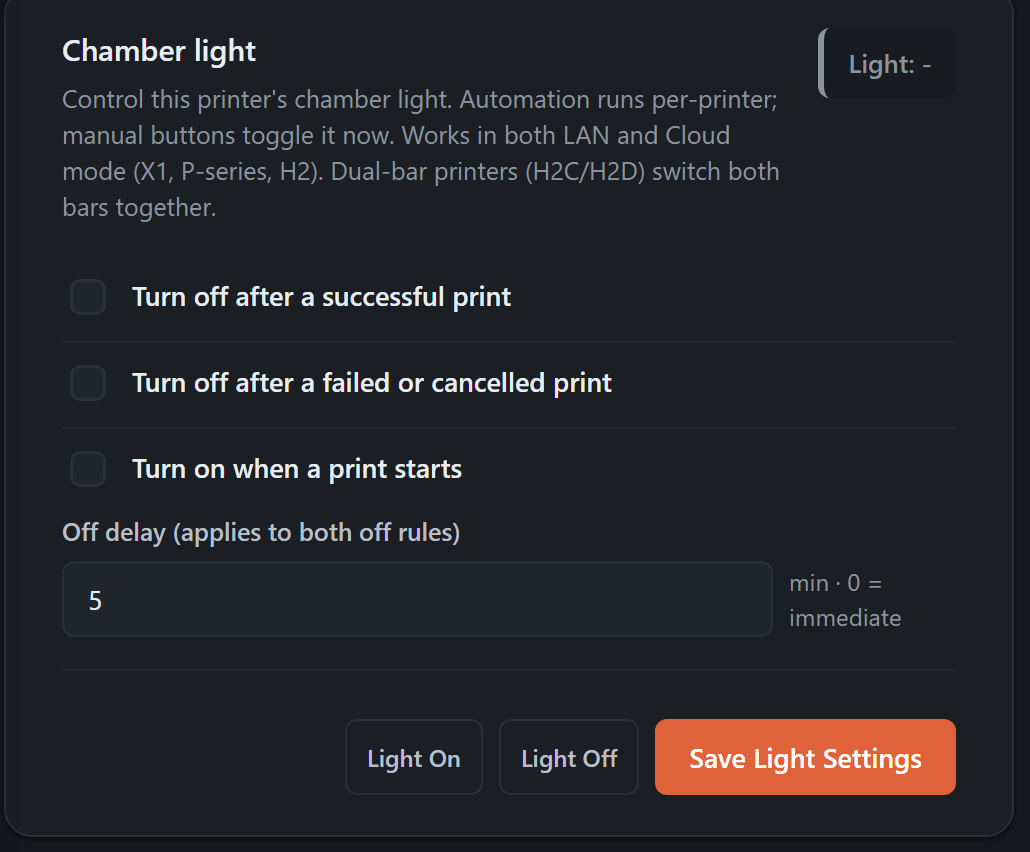

BambuHelper can control the printer's chamber light over LAN and Cloud connections (X1, P-series, H2 series). Each printer card in the web UI has a Chamber light section with manual Light On / Light Off buttons and per-printer automation: - Turn off after a successful print - Turn off after a failed or cancelled print - Turn on when a print starts The off rules share a configurable delay (0 = immediate), so the light stays on long enough to eyeball the finished print. If a new print starts during the delay, the pending off is cancelled. On dual-bar printers (H2C/H2D) both light bars switch together.

When a printer reports a problem, it publishes an HMS code (hardware/maintenance system) or a print error. BambuHelper decodes both and turns the raw hex into the same sentence Bambu Studio shows.

On the display: the status badge turns into a red ERR. Press the button or touchscreen to open the error screen, which lists each active code as a coloured severity bar, a MODULE SEVERITY line (for example AMS SERIOUS), the code on the line below it (0701-2000-0002-0021), and the official description underneath. Long descriptions wrap and end in ... when they run out of room; entries that do not fit are counted as +N more. Round 240x240 screens have room for the worst entry only, plus the count. The screen closes on the next tap or after 30 seconds.

In the web interface, the Printer Errors section lists everything the printers are reporting right now, per printer, with a wiki link on each row. Codes are written the way Bambu writes them - HMS_0701-2000-0002-0021 - so they can be pasted straight into the wiki or a search engine. Codes that were already active when the device connected are tagged standing - they are the printer's normal state, not news, so they never raise an alert.

Codes Bambu does not describe are not shown. Bambu's error feed registers some code numbers without publishing any wording for them, and its own printer screen and Bambu Studio stay silent about those - an X2D, for instance, stands permanently on HMS_0500-0100-0002-000B and HMS_0503-0000-0003-0027 while reporting nothing wrong. BambuHelper drops them the same way, so they never reach the badge, the error screen or the web interface. An open door is hidden too, on printers that show it in the door indicator instead. Two exceptions, both deliberate: a fatal code is always shown even if nothing describes it, because a stopped machine reporting nothing is worse than a stopped machine reporting a bare number; and print errors are never hidden, because they mean the job actually stopped. If a printer reports a code and BambuHelper shows nothing, GET /debug lists the dropped ones under hms_suppressed_codes, and the serial log names every one of them with MQTT debug logging on.

The HMS table is large - roughly 4000 codes and 400 KB - so it is compiled in only on boards with 8 MB or 16 MB of flash. The print-error table is smaller (about 540 codes, ~36 KB) and fits everywhere except the ESP32-C3, which is the tightest board in the range:

On the last two groups, the device itself never goes online for this - the config page you are looking at does the lookup, so an isolated printer network changes nothing. Untick Look up error text on this page to stop even that; every row keeps its code, severity, module and wiki link.

About the wiki links: Bambu's wiki documents only a small fraction of the HMS codes (about 225 of 4000). Rows for a documented code link straight to its page; every other row links to the HMS index, where you can search. The device screen always shows the full code, so you can look it up anywhere.

If you bought an all-in-one board (CYD, TZT L1435-2.4, Waveshare 2" or 1.54", SenseCAP Indicator), skip this section - everything is already wired on the PCB. The tables below apply only to the DIY builds (ESP32-S3 SuperMini, ESP32-S3-Zero, ESP32-C3 SuperMini) that need an external display soldered up - either the square 1.54" ST7789 or the round 1.28" GC9A01.

AliExpress links (DIY parts):

• Display 1.54" ST7789: https://a.aliexpress.com/_EG9y7wc
• Display 1.28" GC9A01 round: https://aliexpress.com/item/1005007702290129.html (pick the Type Y variant)
• ESP32-S3 SuperMini: https://a.aliexpress.com/_Eyk9GdA (the S3 variant supports 2 printers; the C3 variant supports 1 printer. If you use C3, the wiring is different; check the default wiring table)
• Case for the 1.54" DIY build: https://makerworld.com/en/models/2501721

Optional accessories - all configurable from the web interface, none required:

• Touch / push button (TTP223 or standard push button) for cycling printers and waking the display. See the wiring section below.
• Passive buzzer / mini speaker for print-finished, connected, and error notifications. See the wiring section below.
• Status LED (any common LED with a series resistor, an RGB LED or a WS2812 pixel) for at-a-glance progress / connection state. See the wiring section below.

Links for optional accessories:

• TTP223 touch button: https://aliexpress.com/item/1005006246380749.html
• LDO6AJSA LED driver: https://aliexpress.com/item/1005005344841325.html
• Filament LED 3V 39 mm: https://aliexpress.com/item/1005007883702652.html
• Passive buzzer: https://aliexpress.com/item/1005010400627387.html

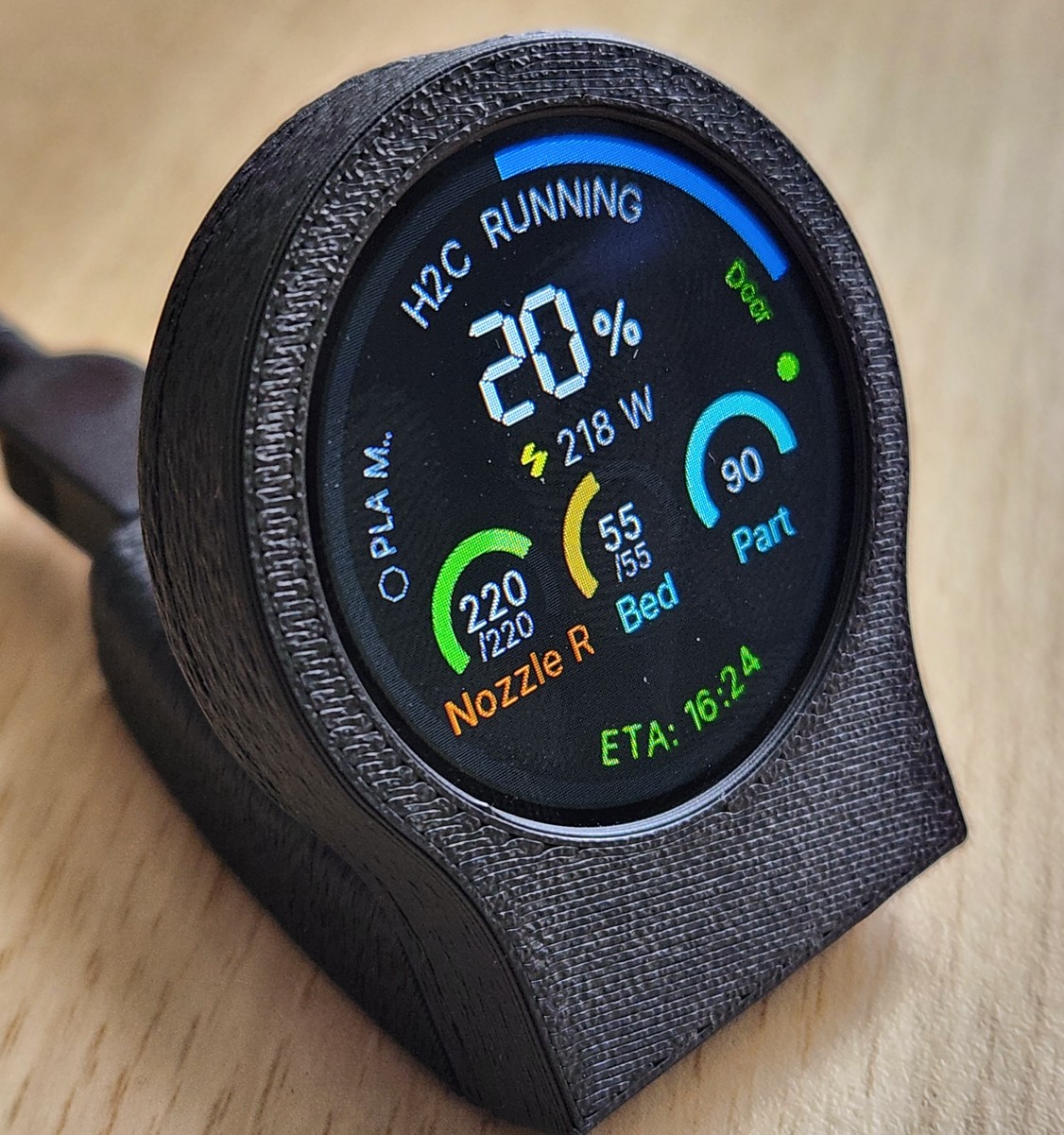

Round 1.28" GC9A01 display (esp32s3_round / esp32c3_round builds) - same SPI pins as the ST7789 table above, but the 7-pin module has no BL pin (backlight is hardwired on, so brightness control is not available):

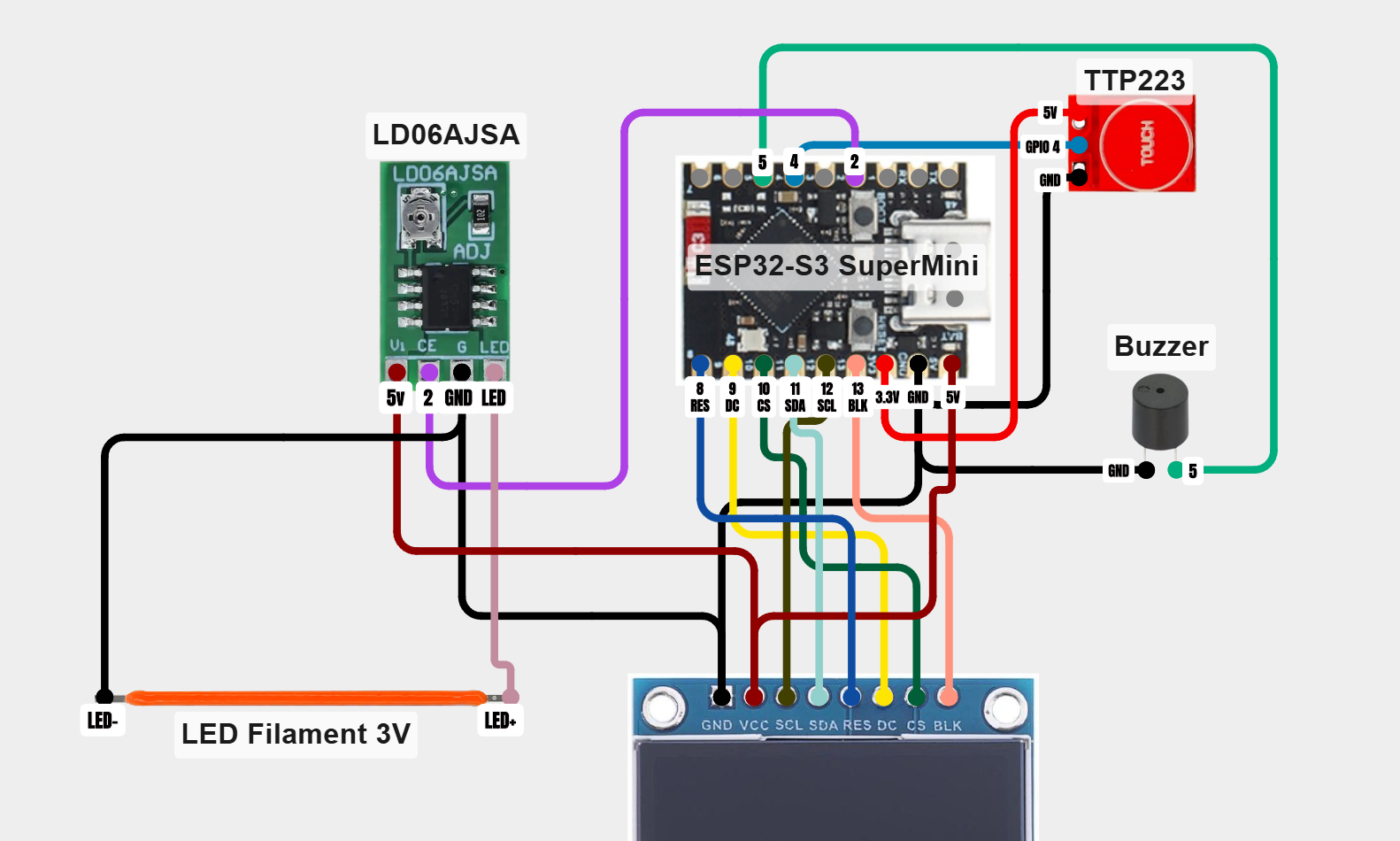

Adjust pin assignments in platformio.ini build_flags to match your wiring (only needed if you are flashing from source; the prebuilt binaries use the defaults above).

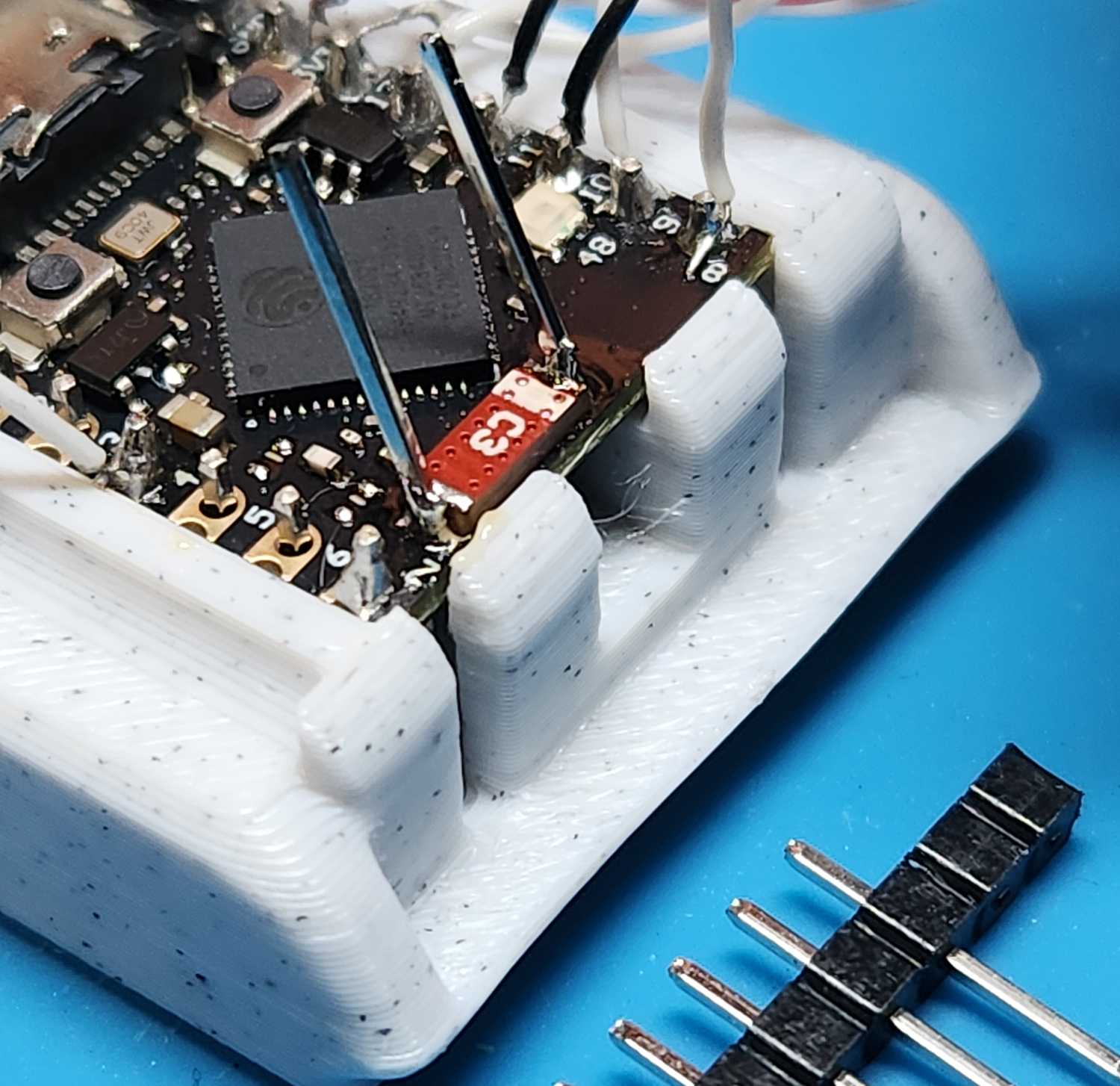

ESP32-S3-Zero: GPIO21 is connected to the onboard WS2812 RGB LED. It cannot be reused as a plain status-LED GPIO, but the status LED can drive that pixel directly - pick the WS2812 wiring under Status LED.

Cycles between printers, wakes the display from sleep, and (when held) dims the optional status LED. All input methods are configured from the web interface under Multi-Printer - no recompilation needed.

Built-in touchscreens (no wiring needed):

• CYD / ESP32-2432S028 - XPT2046 resistive touch, automatic
• TZT L1435-2.4 - XPT2046 resistive touch, same pins as CYD, automatic
• Waveshare ESP32-S3-Touch-LCD-2 - CST816D capacitive on I2C (GPIO48/47), automatic
• Waveshare ESP32-S3-Touch-LCD-1.54 - CST816 capacitive on I2C (GPIO42/41), plus three hardware buttons - BOOT (GPIO0), PWR centre (GPIO5), AUX (GPIO4)
• Waveshare ESP32-S3-Touch-LCD-2.8 - CST328 capacitive on I2C (GPIO1/3), reset on GPIO2, automatic
• Guition JC3248W535 - AXS15231B capacitive touch on I2C (GPIO4/8), polled (no IRQ wired), automatic

External TTP223 capacitive touch sensor (DIY ESP32-S3 / ESP32-S3-Zero / ESP32-C3 builds):

Standard push button: connect one leg to GPIO 4 and the other to GND. The internal pull-up is enabled automatically. Select Push Button in the web interface.

The buzzer is completely optional. If you do not connect one, BambuHelper works normally.

Use a passive buzzer (or a mini speaker on CYD) and connect it like this:

CYD speaker: The CYD board has a dedicated speaker connector on the PCB - just plug a mini speaker into it and set the buzzer pin to GPIO 26 in the web interface.

Note: The firmware default buzzer pin is GPIO 5 on both ESP32-S3 and ESP32-C3. The table above shows the recommended wiring. If you wire an ESP32-C3 buzzer to GPIO 3, you must change the buzzer pin to GPIO 3 in the web interface after the first boot.

Waveshare ESP32-S3-Touch-LCD-2.0: the generic GPIO 5 above does not apply - that pin is the battery ADC on this board. Wire the buzzer to GPIO 4, which is this board's default from v3.7.7 on. On firmware up to v3.7.6 the board incorrectly defaulted to the CYD's GPIO 26 (a flash/PSRAM bus pin on the ESP32-S3, so the buzzer stayed silent); after updating, the stored pin is migrated to GPIO 4 automatically, or you can set it by hand under Buzzer.

Waveshare ESP32-S3-Touch-LCD-2.8 / ESP32-S3-Zero (320): same pre-v3.7.7 GPIO 26 problem. The 2.8" board now starts with the buzzer pin disabled (0) because GPIO 5 is its backlight and GPIO 4 its touch IRQ - pick a free GPIO in the web interface. The S3-Zero 320 build uses GPIO 5 like the 240x240 version. You can change the buzzer GPIO later in the web interface under Buzzer. The buzzer can be used for print-finished, connected, and error notifications.

Waveshare ESP32-S3-Touch-LCD-1.54 has a built-in ES8311 audio codec + speaker on its own pins (no buzzer GPIO to set) - it produces the same notifications using the onboard amplifier. No external buzzer needed.

A status LED can be wired to any free GPIO for at-a-glance notifications (connection, progress, finish, error). Every board supports all three wirings below - including the flash-tight ESP32-C3 boards, which now carry the WS2812 driver too - so you can solder on a single, RGB, or addressable LED on any hardware. Pick the wiring under Status LED in the web interface and set the behaviour (heartbeat, finish flash, off) there too. Three wirings are supported:

Wiring a single-colour LED is done using: LD06AJSA Constant Current driver

Things to know:

• The pin is set in the web UI - there is no default. The setting starts disabled with pin 0.
• The firmware refuses to attach the LED to the configured buzzer pin or the configured button pin (it will silently disable LED output to avoid a conflict).
• On the Waveshare ESP32-S3-Touch-LCD-2.0, GPIO 2 is free and is a good choice for the LED driver's control input. The firmware rejects the pins this board already uses: 1 (backlight), 5 (battery ADC), 19/20 (USB), 26-37 (flash/PSRAM), 38/39/40/42/45 (display SPI) and 47/48 (touch I2C).
• The LED is also a dimmer target: hold the optional button / touchscreen to ramp brightness down/up while the LED is on. The chosen brightness is debounced and saved to NVS after ~2 s of release.
• For a single-colour LED, inverted-logic wiring (LED to VCC instead of GND) is not supported - the firmware always drives the pin active-HIGH. An RGB LED has a Common anode tick for exactly this, because most RGB packages are wired that way.

With the RGB or WS2812 wiring selected, the card grows a colour picker for each printer state. Defaults are white idle, blue printing, amber paused, green finished, red error. The brightness slider still sets the overall level, and every existing effect - pause breathing, finish pulse, error strobe, hold-to-dim - keeps working, just in colour.

Colours preview live on the LED as you pick them, even when the panel has gone to sleep.

Several supported boards already have an RGB LED soldered on, and the card offers a Use this board's onboard RGB LED button that fills in the right pins:

These pins are otherwise reserved and cannot be picked for a single-colour LED - the colour driver is the only thing allowed to claim them. On the CYD they were previously left floating, which is why an untouched board sits there glowing dim red; the firmware now parks them dark whenever the LED feature is not using them.

ESP32-C3 boards get the single-colour and 3-pin RGB wirings only. The WS2812 driver needs the RMT peripheral driver, which does not fit in the 1.75 MB app slot those boards have.

• For flashing: a desktop browser (Chrome or Edge) is enough - use the web flasher. PlatformIO is only needed if you want to modify the firmware yourself.
• LAN mode: Bambu Lab printer with LAN mode enabled, printer and ESP32 on the same local network
• Cloud mode: Bambu Lab account, ESP32 with internet access

Open keralots.github.io/BambuHelper in Chrome or Edge on a desktop or laptop, pick your board, plug it in over USB, and click Install. That's it - no downloads, no offsets, no baudrate dialogs.

After the flash, the install dialog runs a 3-minute Configure WiFi step right in the browser using Improv-Serial - type your home SSID/password and the device joins your network without you ever having to connect to the captive portal. The device still falls back to AP mode (showing the SSID and password on its screen) if you dismiss the dialog or run out of time.

Supports the 18 most common boards (ESP32-S3 SuperMini with 1.54" square or 1.28" round panel, ESP32-S3-Zero with 1.54" or 2.0" panel, ESP32-C3 SuperMini with 1.54" square or 1.28" round panel, Waveshare ESP32-S3-Touch-LCD-2, Waveshare ESP32-S3-Touch-LCD-1.54, Waveshare ESP32-S3-Touch-LCD-2.8, QD ES3N28P 2.8", Panlee SC05_X / ZX2D80CE02S 2.8", Waveshare ESP32-S3-Touch-LCD-3.5, Waveshare ESP32-S3-Touch-LCD-2.8C round, Panlee WT32-SC01 Plus, Guition JC3248W535, CYD / ESP32-2432S028, CYD 2.4" / ESP32-2432S024, TZT L1435-2.4). For the community-maintained SenseCAP Indicator use the manual flow below.

1. Download the latest firmware from Releases. If you are flashing a new device for the first time, use the file ending with -Full (for example BambuHelper-esp32s3-v3.9.0-Full.bin). The regular -ota.bin file is for OTA updates on devices that already have BambuHelper installed.
2. Open ESP Web Flasher in Chrome or Edge
3. If you are flashing a CYD or TZT L1435-2.4, set Baudrate to 115200 before clicking Connect. Two or more attempts may be needed - the first one will fail. This applies to both CYD-shaped boards (they use a CH340 USB-Serial chip that does not tolerate high baud rates on first contact).
4. Connect your ESP32 via USB
5. Click Connect and select your device
6. Set flash address to 0x0
7. Select the downloaded .bin file
8. Click Program

Once you have BambuHelper running, you do not need to re-flash over USB to update. From the device's web interface:

1. Open the device's IP in a browser
2. Go to WiFi & System -> Firmware update
3. Click Check for updates - the device queries GitHub Releases and, if a newer build is available, shows a one-click Install Update button that pulls the matching *-ota.bin straight from the release
4. If you prefer to upload manually (e.g. a custom build), the same panel accepts a local *-ota.bin file via drag-and-drop

The device reboots automatically once the update is written; the web page reloads when it comes back online.

The SenseCAP Indicator is not part of the automated release pipeline - build it locally with pio.exe run -e sensecap_indicator and flash the resulting .pio/build/sensecap_indicator/firmware.bin.

If you used the web flasher, steps 2-4 happen automatically in the install dialog (Configure WiFi step). The device joins your home WiFi straight away and the dialog gives you a link to its IP - jump to step 5. The AP captive-portal path below is the fallback when you skipped or timed out of the Configure WiFi dialog, or when you flashed via the generic ESP Web Flasher.

1. Flash the firmware (see above)

2. Connect to the BambuHelper-XXXX WiFi network (password: bambu1234)

3. Open 192.168.4.1 in your browser

4. Enter your home WiFi credentials and Save - the device restarts and connects to your WiFi

5. Note the IP address shown on the ESP32 display after it connects to WiFi

6. Open that IP address in your browser to access the full web interface

7. Configure your printer:

   LAN Direct (P1P, P1S, X1, X1C, X1E, A1, A1 Mini):

   • Printer IP address (found in printer Settings > Network)
   • Serial number (see note below)
   • LAN access code (8 characters, from printer Settings > Network)

   Bambu Cloud (All printers):

   • Under Account access, either sign in with your Bambu account or paste an access token (see Connecting to Bambu Cloud below)
   • Click My printers and pick yours from the list, or enter the serial number by hand (see note below)

   Important: Serial number is NOT the printer name. The serial number is a 15-character code (for example 01P00A000000000) found on the printer LCD under Settings > Device > Serial Number, or on the physical label on the back or bottom of the printer. Do not confuse it with the printer name shown in Bambu Studio (for example 3DP-01P-110), which is a shortened version and will not work.

8. Save Printer Settings - the device connects to your printer

Cloud mode runs on an access token from your Bambu Lab account. There are three ways to put one on the device - all of them end in the same stored token, so pick whichever suits you. Read the Cloud Mode Security Notice first if you plan to type your password into the portal.

In the web interface, open Printer, set the connection mode to Bambu Cloud, and under Account access choose Sign in with your Bambu account. Then either:

• Email code - enter your account email and press Email me a code. Bambu sends a 6-digit code; type it in. No password is involved at any point.
• Password - enter your email and password. If your account uses two-factor authentication, the device asks for the code next: either the 6 digits from your authenticator app, or a code Bambu emails you, depending on how your account is set up. A wrong code can simply be retyped.

Tick Remember the password only if you want the device to renew the token by itself every ~3 months. That works only on accounts without two-factor authentication - with 2FA the device deletes the password as soon as it sees the prompt, because it could never complete the sign-in unattended anyway.

Once signed in, press My printers to pick your printer from the account's own list instead of transcribing a serial number.

The Companion Tool (tools/BambuHelper-CompanionTool.exe on Windows, python tools/companion/bambu_companion.py on Mac/Linux) signs in on your computer, fetches your printer list, and pushes the token + serial to BambuHelper over your LAN. It is a normal app window, not a terminal: open Set up a device, sign in, pick your printer, and let it scan your network for the device rather than typing its IP. Useful when you would rather not type your password into the device's portal at all.

Copy the token from your browser cookies on https://bambulab.com (you must be logged in), then paste it into Account access -> Paste an access token.

Using browser DevTools (Chrome / Edge):

1. Open https://bambulab.com and log in to your account
2. Press F12 to open DevTools
3. Go to the Application tab (click >> if you do not see it)
4. In the left sidebar, expand Cookies -> click https://bambulab.com
5. Find the row named token in the cookie list
6. Double-click the Value cell to select it, then Ctrl+C to copy
7. Paste the value into BambuHelper's "Access Token" field in the web interface

Using browser DevTools (Firefox):

1. Open https://bambulab.com and log in to your account
2. Press F12 to open DevTools
3. Go to the Storage tab
4. In the left sidebar, expand Cookies -> click https://bambulab.com
5. Find the row named token
6. Double-click the Value cell to select it, then Ctrl+C to copy
7. Paste the value into BambuHelper's "Access Token" field

Using browser DevTools (Safari):

1. Open https://bambulab.com and log in to your account
2. Open Develop -> Show Web Inspector (enable the Develop menu first in Safari Preferences -> Advanced)
3. Go to the Storage tab -> Cookies -> bambulab.com
4. Find and copy the token value
5. Paste it into BambuHelper's "Access Token" field

Note: The token is valid for approximately 3 months. When it expires, the ESP32 will fail to connect - sign in again on the device, or repeat the process above and paste a fresh token. Make sure the Server region matches your Bambu account (Europe / Americas share one setting; China is separate).

Browser cookie token expires very quickly (after one session, on next reboot, etc.)? Sign in on the device or use the Companion Tool instead - tokens obtained that way tend to be more stable than browser cookies that get invalidated unexpectedly soon after extraction.

The built-in configuration portal (open the device's IP in any browser) covers everything - no recompiling, no config files. Every setting has inline help text, so the summary below only maps out where things live:

The display is managed from the Screen and After print sections of the web interface (see above for the full list of fields). In short:

• After a print completes, the finish screen is shown for the configured number of minutes (default 3), then the After the finish screen setting decides what happens next: the digital clock / screensaver (default), or display and status LED fully off. The off choice needs a button or touchscreen configured so the device can be woken; without one the clock is shown regardless.
• When the printer goes offline (powered off or disconnected), the display stays in whatever state it was in - it does not flicker back to the connecting screen.
• When the printer comes back online or starts a new print, the display wakes automatically (including from the full-off state).
• Keep display always on overrides the auto-off behaviour.
• For a dark-but-alive alternative to full off, set Screensaver brightness to 0 - the clock keeps running with the backlight dark.

BambuHelper embeds smooth fonts directly in the firmware as VLW tables in PROGMEM. The default font is Inter (Regular for small/body, Bold for large headings), shipped as TTF in fonts/ and pre-converted to C headers in include/fonts/. Swapping the font means regenerating those headers and reflashing - there is no runtime upload, because the font lives in flash next to the code.

Steps:

1. Drop your .ttf files into fonts/ (e.g. MyFont-Regular.ttf, MyFont-Bold.ttf).
2. Edit the FONTS list in scripts/generate_vlw_fonts.py - each entry is (output_name, ttf_filename, pixel_size). Keep the names inter_10, inter_14, inter_19, inter_22 unless you also rename the includes in src/fonts.cpp.
3. Install the converter dependency once: pip install freetype-py.
4. Regenerate the headers:

   python scripts/generate_vlw_fonts.py

5. Rebuild the firmware for your target:

   pio.exe run -e cyd

6. Flash the new .pio/build/<env>/firmware.bin over USB or push it OTA via the web UI's firmware update page.

Tips:

• Pick a font that renders well at small pixel sizes - thin or highly stylised faces will look smudged at 10-14 px. Sans-serif faces designed for UI work best.
• Each VLW table grows roughly linearly with pixel size and glyph count; the default Inter set is ~150 KiB total (three sizes; 320x480 boards add a fourth). Watch the flash usage line at the end of the build if you push to bigger sizes.
• The baked-in character set covers printable ASCII, Latin-1 Supplement, Latin Extended-A, and the euro sign (322 glyphs) - enough for most European languages. Add codepoints by editing CHARSET in the generator; keep it sorted ascending (the glyph lookup is a binary search). CJK and emoji are out of scope - they would need megabytes of glyphs.

SPI display cables near the ESP32 antenna can cause WiFi interference. The ESP32-S3 Super Mini has a PCB antenna at one end of the board. If the SPI wires to the display run close to or over this antenna area, RF interference can prevent WiFi from connecting or cause frequent disconnections.

Fix: Route the display cables away from the antenna end of the ESP32-S3. Even 1-2 cm of separation can make a significant difference. If using a breadboard, ensure the wires do not loop back over the ESP32 module.

Symptoms:

• "Connecting to WiFi" screen appears briefly, then falls back to AP mode
• WiFi connects sometimes but drops after a few seconds
• Works fine when display is disconnected

If WiFi issues persist Perform an antenna mod by soldering two individual goldpins to the antenna pads, as shown in the picture.

Check your external antenna orientation first. On boards with a detachable IPEX/U.FL antenna (e.g. ESP32-C3), the antenna is often mounted the wrong way around. The white mark on the antenna is the input - simply rotating it to the correct orientation can fix poor WiFi reception, often better than soldering wires to the pads. See issue #106 - it may help as well.

• LAN Direct: Make sure the printer and ESP32 are on the same network. Check that LAN mode is enabled on the printer and the access code is correct.
• Bambu Cloud: Verify the access token has not expired (about 3 months validity). Sign in again from the device's Account access section, or re-extract the token from your browser and paste it again. Check the server region matches your Bambu account.
• If a printer is physically powered off, reconnect attempts will gradually slow down (backoff). It will reconnect automatically when the printer comes back online.

• Check rotation mode in the web interface (Multi-Printer section). Smart mode only switches automatically when a printer is actively printing.
• Press the physical button (if configured) to manually cycle between printers.

MIT
