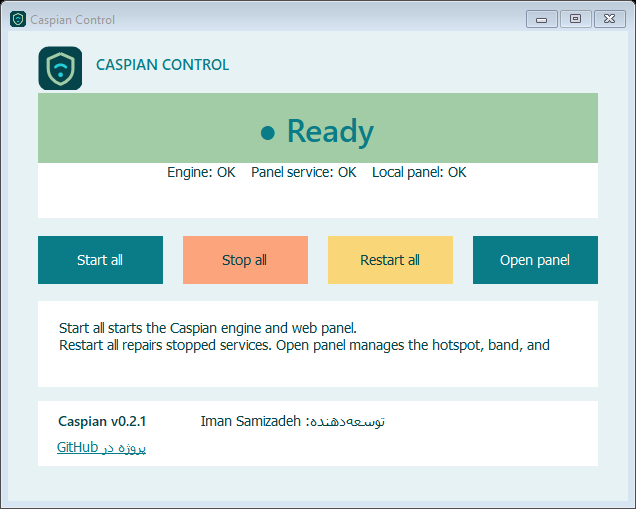

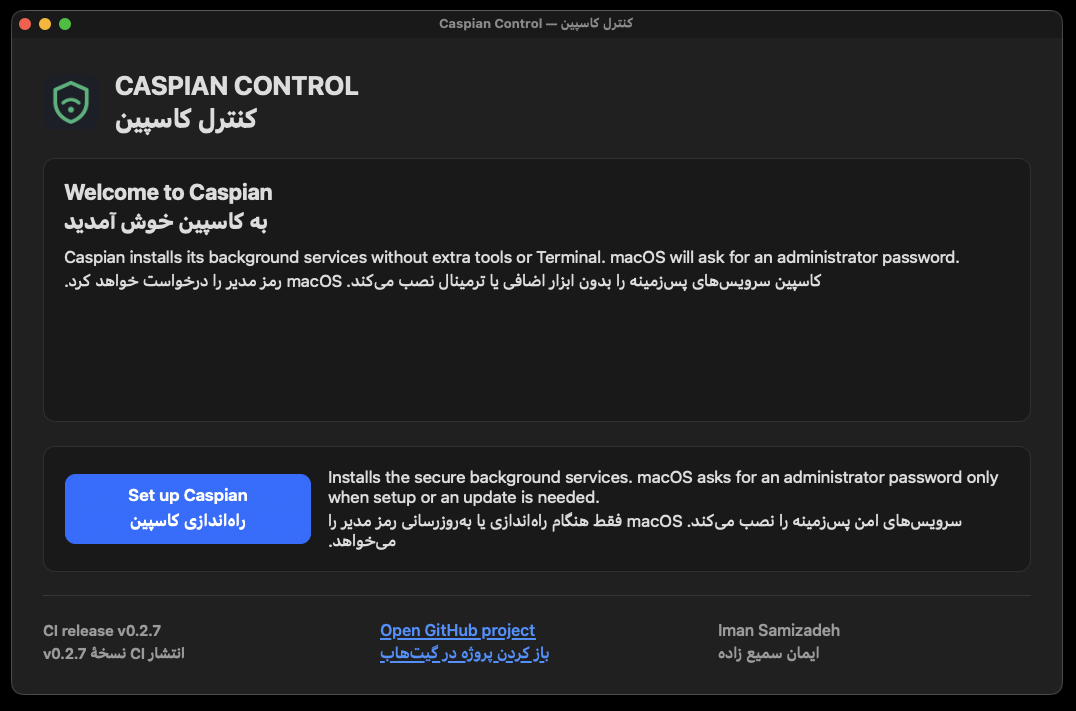

To build the Windows app and installer locally, see Windows build instructions.

Caspian-BYOC turns a Windows PC, Mac running macOS, Raspberry Pi, or Linux computer into a bring-your-own-config WiFi gateway. Paste a V2Ray or Xray-compatible proxy configuration into the web panel and press one switch. Caspian accepts VLESS, VMess, Shadowsocks, SOCKS, Trojan, and Hysteria2 share links. It also accepts Clash and Clash.Meta YAML, raw Xray JSON, link lists, and base64 subscription data. Caspian connects through Xray-core and shares the tunnel as a WiFi hotspot, so every device that joins is protected without installing an app. Optional anti-DPI (DPI circumvention) controls, SNI spoofing and TLS splitting, help the connection start on networks that inspect traffic.

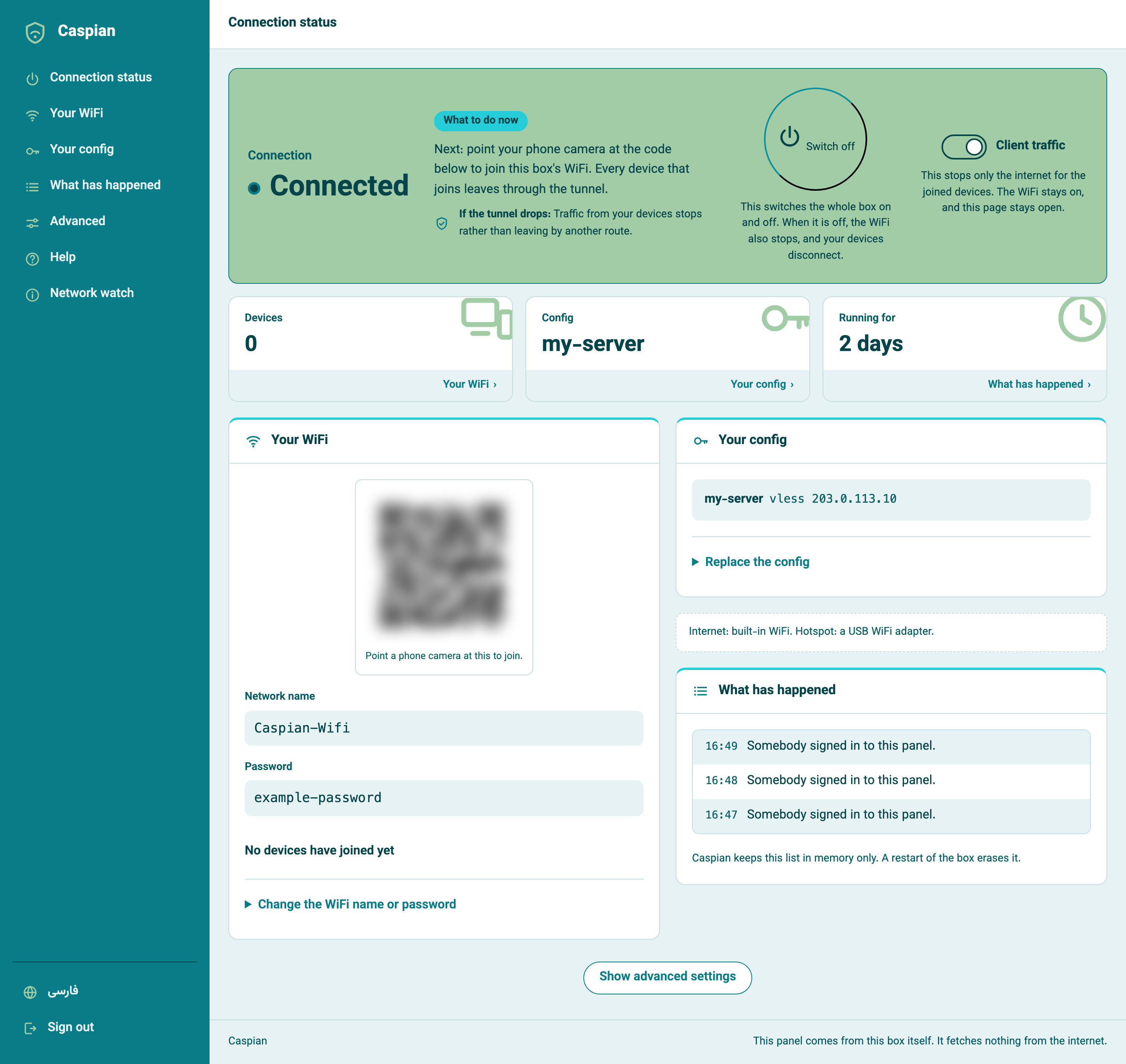

The panel above is a real screenshot from a running box, taken on a Raspberry Pi 5 on 2026-09-03 with the tunnel up, before any device had joined. The network passphrase, the configuration name and the server address in it are substituted, and the join code is blurred, because that code encodes the network name and its password. Nothing else is altered.

The panel opens in English. Choose Persian from the language menu at the top. There is no account, no telemetry, and the panel fetches nothing from the internet unless you press Refresh on a subscription address you saved.

Deep packet inspection (DPI) is how a network reads the start of a connection to decide whether to block it. Caspian carries three optional anti-DPI (DPI circumvention) controls, in the panel beside the saved config:

• Decoy server name. Caspian sends a TLS greeting that names a decoy domain before the real proxy stream. The real TLS or REALITY server name and the certificate checks stay exactly as they were.
• TCP split. The first TLS greeting leaves in two writes, split near the middle of the server name.
• TLS-record split. The greeting record is divided at that point without changing the handshake itself.

Each control is independent and can be combined with the others. Saving reconnects a running tunnel with the new settings. They work with VLESS, VMess and Trojan over the supported IPv4 TCP transports, and the two splits need plain TLS.

DPI bypass depends on the network and its filtering rules. Caspian does not promise to be undetectable or universally "DPI safe". The loopback tests verify unchanged data, a real TLS handshake, and rejection of a wrong certificate name; they do not establish bypass against an internet provider. See SNI setup, supported platforms, and limits and upstream research and credits.

Start with Ethernet from your router to the computer running Caspian. Use that computer's built-in Wi-Fi for the hotspot, or a compatible USB Wi-Fi adapter on Linux. This gives the internet connection and hotspot separate adapters. It is the recommended starting arrangement, not a measured speed guarantee.

In these diagrams, [1] is your internet router, [2] is the computer running Caspian, and [3] is your phone or another device. ETH means an Ethernet cable. A USB Ethernet adapter brings internet in; a USB Wi-Fi adapter creates a wireless connection. They do different jobs.

A  [1] --ETH--> [2] --built-in Wi-Fi--> [3]
B  [1] --ETH--> [2] --USB Wi-Fi-------> [3]
C  [1] --Wi-Fi A--> [2] --Wi-Fi B----> [3]
D  [1] --Wi-Fi--> [2: one radio] --Wi-Fi--> [3]

These are the arrangements the current code can plan or refuse. They do not certify every adapter, OS update, or laptop. A Wi-Fi adapter that can join your home network may still be unable to create a hotspot. Linux USB arrangements have modelled tests; the existing hardware record does not establish that every USB adapter works. On macOS, use Ethernet and built-in Wi-Fi for the documented path. Plugging in USB Wi-Fi does not remove that restriction.

Caspian accepts VLESS, VMess, Shadowsocks, SOCKS, Trojan, and Hysteria2 links, including the hy2 alias. It also accepts supported Clash/Clash.Meta YAML, full Xray JSON configs (one, or a JSON array of them such as a BPB subscription served for xray), lists of links, and base64 subscription content. From a JSON config it takes the proxy outbound only. It uses whichever entry of a list you choose. A subscription address can be saved beside the config and refreshed when you press the button, through the tunnel. Ask your provider for the actual supported configuration, not an account password or a web page link.

Supported transport names include raw/tcp, ws, grpc, httpupgrade, xhttp/splithttp, and kcp/mkcp. Protocol, transport, and security settings must be compatible; not every combination works. TUIC, WireGuard, SSR, AnyTLS, and Hysteria v1 links are not supported. Do not rename an unsupported protocol to make it pass validation. See the protocol guide for restrictions and test evidence.

For connection diagrams, cable-first setup, service restarts, and common errors, read the home-user troubleshooting guide.

CPU and RAM: Caspian has no measured minimum RAM, CPU core count, or clock speed yet. Resource use depends on traffic volume, proxy protocol, and simultaneous connections. Idle and load benchmarks are needed before minimum requirements can be published.

This section is for Linux and Raspberry Pi. Run the copy that the installer left on the box:

sudo /usr/local/bin/caspian-uninstall

The uninstaller stops both services. Then it replays the network journal, so the routes, firewall rules and sysctl settings return to what they were. Then it removes the units, the binary and the runtime directories. Last, it asks whether to keep /var/lib/caspian, which holds the saved configuration.

To delete the saved configuration and the caspian account as well, with no questions:

sudo /usr/local/bin/caspian-uninstall --purge -y

To print every action and take none:

sudo /usr/local/bin/caspian-uninstall --dry-run

If the journal cannot be replayed, the uninstaller stops the services, removes nothing else, and says so. Run it again with --force to remove the software anyway. Then reboot. A reboot returns the network to the box's own configuration.

If the local copy is missing, fetch the same script from this repository:

/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Iman/caspian/main/uninstall.sh)"

The uninstaller removes only Caspian's own files. It does not remove hostapd, dnsmasq or any other package.

This guide comes from the existing README. Its measurements retain their original dates; this documentation move does not report a new test run. English | فارسی | Русский | 中文

Added by test/tunnel. Every scheme the parser accepts is driven end to end against a real xray-core instance, built from this module's own dependency and loaded through the same loader internal/engine uses. The client side is the product path, unmodified: link.Parse, then xcfg.Build, then engine.Engine.Start. No config is hand-written.

Four controls stop a request that skipped the tunnel from passing, and all four run rather than being asserted in prose. The client is never told where the origin is, and is given a .invalid name and the port of a decoy. The name cannot be resolved, and the suite says so out loud if a resolver on the machine answers it anyway. The origin checks where the request was addressed, not only that it arrived. The decoy counts its own hits, and a tunnelled request must add none. TestEveryCarriageProofCanFail and TestTheProofRejectsARequestThatDidNotGoThroughTheTunnel are what make those controls evidence rather than intent.

Read each row narrowly. Every row but Hysteria2 runs over TCP: raw for every protocol, and since 2026-09-13 websocket, gRPC and httpupgrade on VLESS as well. No row drives REALITY, whose server side needs a real handshake target. Shadowsocks is aes-256-gcm only, because the 2022 ciphers take a different code path. Every row carries a TCP request, and UDP associate is off. Everything is on loopback, so no exit IP is captured and none can be.

TestEveryProtocolTheParserAcceptsIsDrivenEndToEnd reads the accepted-scheme list out of internal/link's source, so an eighth scheme cannot be added without a row here.

The table below is what real traffic has traversed with an exit IP captured. It is not what the parser accepts, and it is not what the loopback suite carries.

Each of those was proven by driving a real browser on a real phone joined to the hotspot. The exit address was captured from two independent sources and matched to the server the configuration names. Three different servers were used and each returned a different address, so a repeated or cached reading cannot be mistaken for a working tunnel.

A row that is not proven is not a claim that it is broken. It is a claim that nobody has watched a packet come out of the far end, which is a different thing and the only thing this project treats as evidence. The engine document each transport produces IS pinned as a golden file, so a change to how one is composed shows up as a diff. That proves the document is stable and says nothing about whether the transport connects.

At commit 5b0a8a7 with a clean working tree, on go1.27.0 darwin/arm64:

go build ./...                 exit 0
go test -count=1 -v ./...      exit 0

That run executed 1577 tests including subtests: 1572 passed, 5 skipped, 0 failed. Fifteen packages reported ok. Two have no test files: test/cucumber/harness and local/devpanel. The five skips announce what they are not proving: the TUN device lifecycle, which is linux-only and needs root and /dev/net/tun, three dnsmasq configuration checks that need dnsmasq installed, and an opt-in QR PNG dump.

The previous recorded run, at commit dd15ad6 on 2026-08-30, executed 1323 tests including subtests: 1319 passed, 4 skipped, 0 failed, across twelve packages reporting ok.

-count=1 is not optional. It defeats the result cache. Without it a second run prints the first run's PASS lines and exits 0 having executed nothing.

The full gate is scripts/gate.sh: gofmt, go vet, the whole suite with the race detector, and a per-package coverage floor. Read its header before you pipe it anywhere. A shell pipeline returns the status of its last command, and that trap has produced a false green in this project before.

packaging/test-install.sh covers the two shell scripts on any machine with bash, including one that cannot be installed to.

docs/BEHAVIOUR.md lists 24 scenarios. The 2026-08-31 run executed all 24, and TestEveryScenarioCanFail executed 24 matching injected defects, so each scenario has been watched going red for the specific thing it claims to detect. TestBehaviourDocumentListsEveryScenario fails if the document and the suite drift apart, in either direction. To run one:

go test ./test/bdd/ -run 'TestBehaviour/the_firewall'

test/tunnel drives each of the seven schemes the parser accepts through a real xray-core server on loopback. Each one has to deliver an HTTP request to an origin only the far side of the tunnel can reach. See "What has carried bytes through a real server" above for what each row covers and what it does not. Before this package existed, the strongest statement held about six of those seven protocols was that the engine would load the document they produce.

internal/netcfg/testdata/PROVENANCE.md is the record, and it is careful about the difference between what was captured and what was written. Filenames carry the class: capture-pi5- is byte output of a real command on the Pi, scenario- is a machine nobody has measured, and golden- is this project's own output.

Measured on the Pi and recorded there: all five distinct generated rulesets parsed by nft -c -f, with each file's sha256 read back on the Pi rather than on the developer machine, and nft list ruleset empty before and after. The interface release sequence and its inverses. The driver refusing to create a second AP interface while accepting a type change on the existing one. The kill switch's provocations with their negative controls. And the input-policy lockout that caused that policy to be withdrawn.

That file also records what replacing authored bytes with measured ones broke, which is the argument for keeping both kinds. Several defects had been green through every prior run, including a firewall ruleset that no kernel would load and a teardown that would have switched reverse-path filtering off on a machine that had it on.

The harness is test/hardware/caspian-hw and the runbook is docs/HARDWARE-TEST.md. Its standard is the project's own. A connect is not a result, and a transport is proven only when real traffic has traversed it and the exit IP has been captured and matched to the server the config names. An exit IP equal to the untunnelled baseline is a leak and outranks everything else in the run. A phone that changed network state mid-capture makes the reading void, not a pass and not a leak.

A run recorded on 2026-08-30, run-20260830T144015Z, graded, over IPv4:

• two configs proven, each verdict PASS with sources agree and an exit IP from both independent sources, matched to the box the config names.
• the exit fingerprint changing when the config was switched.
• the DNS check finding a per-run random .invalid label zero times in cleartext on the uplink during a 30 second window. Four plaintext DNS packets did cross that uplink in that window, and they are the box's own, which the design places outside the guarantee. That is exactly why the check looks for a label nothing else on the network could have produced, rather than counting port 53 packets, which cannot tell an escaped client query from the box's own.
• fail closed: with the engine stopped and the phone's cellular removed by airplane mode, neither source reached the internet, while the panel still answered over the hotspot. So this was the firewall refusing traffic rather than a dead link. Two earlier attempts at that step were graded VOID and retaken rather than reported.

Two things about that record. It reached a pass on the third attempt at the last step, and the two void readings are in the ledger rather than deleted. And the run artefacts live under local/, which is gitignored, so they are not in this repository. If you clone this, you cannot check that run. You can only re-run the harness yourself.

Two sources are used because one can be cached or stale, and both are pinned to IP addresses rather than names. docs/HARDWARE-TEST.md explains why in the paragraph it calls the most important in the file. The resolver on that LAN sinkholes IP-echo services. So a box that changed nothing but the DNS server, and tunnelled no traffic at all, would have shown exactly the signature a name-resolving harness looks for. It would have been graded a pass.

The harness redacts every config, server address, user id and key from everything it writes. It re-reads each artefact to check the redaction held, and it has a sweep that re-reads the whole run for anything that escaped the filter. No packet capture ever leaves the Pi. The tcpdump output is reduced to two integers on the box, because a capture on that uplink is a recording of the maintainer's own browsing.

flowchart LR
    subgraph device["A device joined to the hotspot"]
        BR["Browser<br/>port 8088 on the hotspot address"]
    end

    subgraph panelproc["caspian serve --panel, runs as the caspian account"]
        PANEL["internal/panel<br/>routes, sessions, wording, rendering"]
        STATE["internal/state<br/>the only writer of state.json"]
        LINK1["internal/link<br/>parse the pasted share link"]
        ENG1["internal/engine<br/>Validate only, opens no socket"]
    end

    subgraph privproc["caspian serve --privileged, runs as root"]
        SVC["internal/privsvc<br/>Service.Start, Stop, Cut, Restore, Recover"]
        XCFG["internal/xcfg<br/>compose the engine document"]
        NETCFG["internal/netcfg<br/>routes, nftables, the teardown journal"]
        HOT["internal/hotspot<br/>hostapd and dnsmasq"]
        ENG2["internal/engine<br/>xray-core, in this process"]
    end

    BR --> PANEL
    PANEL --> STATE
    PANEL --> LINK1
    PANEL --> ENG1
    PANEL -->|"/run/caspian/priv.sock<br/>0660 root:caspian"| SVC
    SVC --> XCFG
    SVC --> NETCFG
    SVC --> HOT
    SVC --> ENG2

flowchart TB
    LINK["internal/link<br/>share link in, one outbound out.<br/>Carries no credential in an exported field"]
    XCFG["internal/xcfg<br/>everything around the outbound:<br/>TUN inbound, SOCKS, local DNS, routing"]
    ENGINE["internal/engine<br/>starts and stops xray-core.<br/>Redacts every line on the way in"]
    NETCFG["internal/netcfg<br/>plans the machine, generates the ruleset,<br/>journals the inverse of every change"]
    HOTSPOT["internal/hotspot<br/>renders and supervises hostapd and dnsmasq.<br/>Detects no interface, queries no radio"]
    STATE["internal/state<br/>state.json, atomically, 0600"]
    PANEL["internal/panel<br/>the web interface and the fault vocabulary"]
    PRIVSVC["internal/privsvc<br/>the order of the steps, and the readbacks"]

    PANEL --> LINK
    PANEL --> STATE
    PRIVSVC --> LINK
    PRIVSVC --> XCFG
    PRIVSVC --> NETCFG
    PRIVSVC --> HOTSPOT
    PRIVSVC --> ENGINE
    LINK --> XCFG
    XCFG --> ENGINE

flowchart TB
    subgraph panelowns["Written only by caspian serve --panel"]
        SJ["/var/lib/caspian/state.json<br/>0600 caspian. Holds the pasted config<br/>and the hotspot passphrase"]
    end

    subgraph privowns["Written only by caspian serve --privileged"]
        JN["/var/lib/caspian/netcfg.journal<br/>0600 root. The inverse of every change,<br/>written before the change"]
        HC["/run/caspian/hostapd.conf<br/>0600 root, tmpfs, rewritten every start"]
        DC["/run/caspian/dnsmasq.conf<br/>0600 root, tmpfs, rewritten every start"]
    end

    subgraph nofile["Held in memory and written to no file"]
        CUT["the cut"]
        EVT["the panel's event list"]
        RING["the engine log ring"]
    end

sequenceDiagram
    autonumber
    participant U as The person at the panel
    participant PA as internal/panel
    participant LK as internal/link
    participant EN as internal/engine
    participant PS as internal/privsvc, root
    participant NC as internal/netcfg
    participant HS as internal/hotspot

    U->>PA: POST /power, on=1
    PA->>LK: link.Parse of the stored text
    Note over LK: State 1. It did not parse.<br/>The user has to fix the text.
    LK-->>PA: a Link that holds no credential in any exported field
    PA->>LK: Link.XrayConfig
    LK-->>PA: one outbound, tagged proxy, nulls removed
    PA->>EN: engine.Validate
    Note over EN: State 2. Read, and unusable as written.<br/>No socket opens. Nothing is dialled.
    PA->>PS: StartRequest over priv.sock
    PS->>PS: clock floor, re-parse, validate against this machine
    PS->>NC: Detect, then PlanNetwork
    PS->>PS: xcfg.Build, then engine.Validate again
    PS->>NC: Apply PreEngineSteps. The firewall is first.
    PS->>NC: AssertHotspotInterfaceReleased
    PS->>EN: Engine.Start. The tunnel device appears here.
    PS->>NC: Apply PostEngineSteps. Each needs the tunnel or engine listener.
    PS->>HS: Supervisor.Start: hostapd, then dnsmasq
    PS->>NC: AssertHotspotIsAccessPoint
    PS->>PS: probe the server
    Note over PS: State 3. The link was fine and the<br/>server did not answer. No rollback:<br/>the box is fully configured and blocking.
    PS-->>PA: nil, or one panel.Fault

flowchart TB
    DEV["A joined device<br/>address from dnsmasq"] --> IF["The hotspot interface"]
    IF --> PRE["nft chain prerouting, type nat<br/>DNS on port 53 is redirected here"]
    PRE --> ROUTE{"Routing decision<br/>ip rule from the hotspot subnet<br/>lookup table 8410"}
    ROUTE -->|"tunnel route present"| TOTUN["oif is the tunnel device<br/>default route in table 8410"]
    ROUTE -->|"tunnel route withdrawn"| TOUP["oif is the uplink"]
    TOTUN --> FW1["nft chain forward, policy drop"]
    TOUP --> FW2["nft chain forward, policy drop"]
    FW1 -->|"iifname hotspot oifname tunnel<br/>ip saddr the hotspot subnet, accept"| POST["nft chain postrouting<br/>deliberately empty, no masquerade"]
    FW2 -->|"iifname hotspot oifname uplink, drop<br/>the leak block, first rule in the chain"| DROP["dropped"]
    POST --> TUN["The tunnel device<br/>a userspace netstack in the engine"]
    TUN --> OB["the outbound tagged proxy"]
    OB --> UP["The uplink<br/>a pinned host route to the server"]
    UP --> SRV["Your server"]

flowchart TB
    GONE["The tunnel stops carrying traffic"] --> Q{"Does the device still exist?"}
    Q -->|"device removed"| WD["The kernel withdraws every route through it"]
    WD --> FB["Client traffic falls back to the main table<br/>and heads for the uplink"]
    FB --> LB["The leak block matches: iifname hotspot oifname uplink, drop"]
    Q -->|"device persists with nothing servicing it"| ENTER["Traffic enters the tunnel device"]
    ENTER --> NOWHERE["Nothing reads it. It goes no further."]
    LB --> SAFE["No client traffic leaves"]
    NOWHERE --> SAFE

flowchart TB
    ASK["A joined device asks whatever resolver it was told to use,<br/>or one hardcoded into it, on port 53"]
    ASK --> RD["nft prerouting on the hotspot:<br/>udp dport 53 and tcp dport 53 redirect to :53<br/>The destination address is rewritten to this box"]
    RD --> DM["dnsmasq, bound to the hotspot interface<br/>/run/caspian/dnsmasq.conf"]
    DM -->|"its only permitted upstream is a loopback address"| LD["the engine's DNS listener<br/>127.0.0.1:5354, inbound tag local-dns-in"]
    LD --> R1["rule ruleTagLocalDNS<br/>inboundTag local-dns-in, outbound dns-out"]
    R1 --> APP["the engine's DNS app<br/>resolvers from internal/xcfg/resolvers.go"]
    APP --> R2["rule ruleTagResolvers<br/>inboundTag resolver-in, outbound proxy.<br/>Above the private-address rule"]
    R2 --> OB["the outbound tagged proxy"]
    OB --> EXIT["the resolver chain, reached from the far end of the tunnel"]

flowchart LR
    DOT["DNS over TLS<br/>tcp 853"] --> REJ["reject with tcp reset,<br/>so the device falls back to port 53"]
    DOQ["DNS over QUIC<br/>udp 853"] --> DRP["drop"]
    DOH["DNS over HTTPS<br/>port 443"] --> CAR["carried through the tunnel like any HTTPS.<br/>Not a leak. Not visible to anything here."]

flowchart LR
    subgraph modea["Mode A, the measured one"]
        A1["Ethernet<br/>brings the internet in"] --- A2["Built-in WiFi<br/>becomes the hotspot"]
    end
    subgraph modeb["Mode B, never run on real hardware"]
        B1["Built-in WiFi<br/>brings the internet in"] --- B2["USB adapter reporting AP support<br/>becomes the hotspot"]
    end

stateDiagram-v2
    [*] --> Off
    Off --> Running: POST /power on=1
    Running --> Off: POST /power on=0
    Running --> TrafficCut: POST /cut cut=1
    TrafficCut --> Running: POST /cut cut=0
    Running --> Running: POST /recover
    TrafficCut --> Off: the machine restarts
    Running --> Off: the machine restarts

    note right of Off
        The privileged service replays the
        journal at startup and starts nothing.
    end note
    note right of TrafficCut
        Hotspot up. Devices joined.
        Panel reachable. Nothing forwarded.
    end note
