ClickingMaster/ssrecomp

A native build of Pokémon SoulSilver for single-screen devices. The game's ARM9 code is statically recompiled to C++ from the pokeheartgold decompilation's build output; the melonDS core (GPLv3, vendored in melonDS/ at tag 1.1 with a few patches) provides the DS hardware: graphics, sound, cartridge, save memory and the ARM7.

Made with heavy use of AI. Nearly all of the code, documentation and testing in this project was done by an AI coding assistant (Anthropic's Claude, through Claude Code), directed and play-tested by the maintainer. Expect bugs a person would not have made, and review the code with that in mind before reusing it.

This repository contains no game code or data. It holds the recompiler, the runtime and the frontend. The game-specific part (gen/) is generated on your own machine from your own build of pret/pokeheartgold, which in turn needs your own copy of the game; see "Building". Do not commit gen/, ROMs, saves or save states to this repository.

Not affiliated with or endorsed by Nintendo, Game Freak, The Pokémon Company, pret or the melonDS project. Pokémon is a trademark of its owners. Because it is AI-written, do not submit any of it to pret, whose contribution rules do not accept such work.

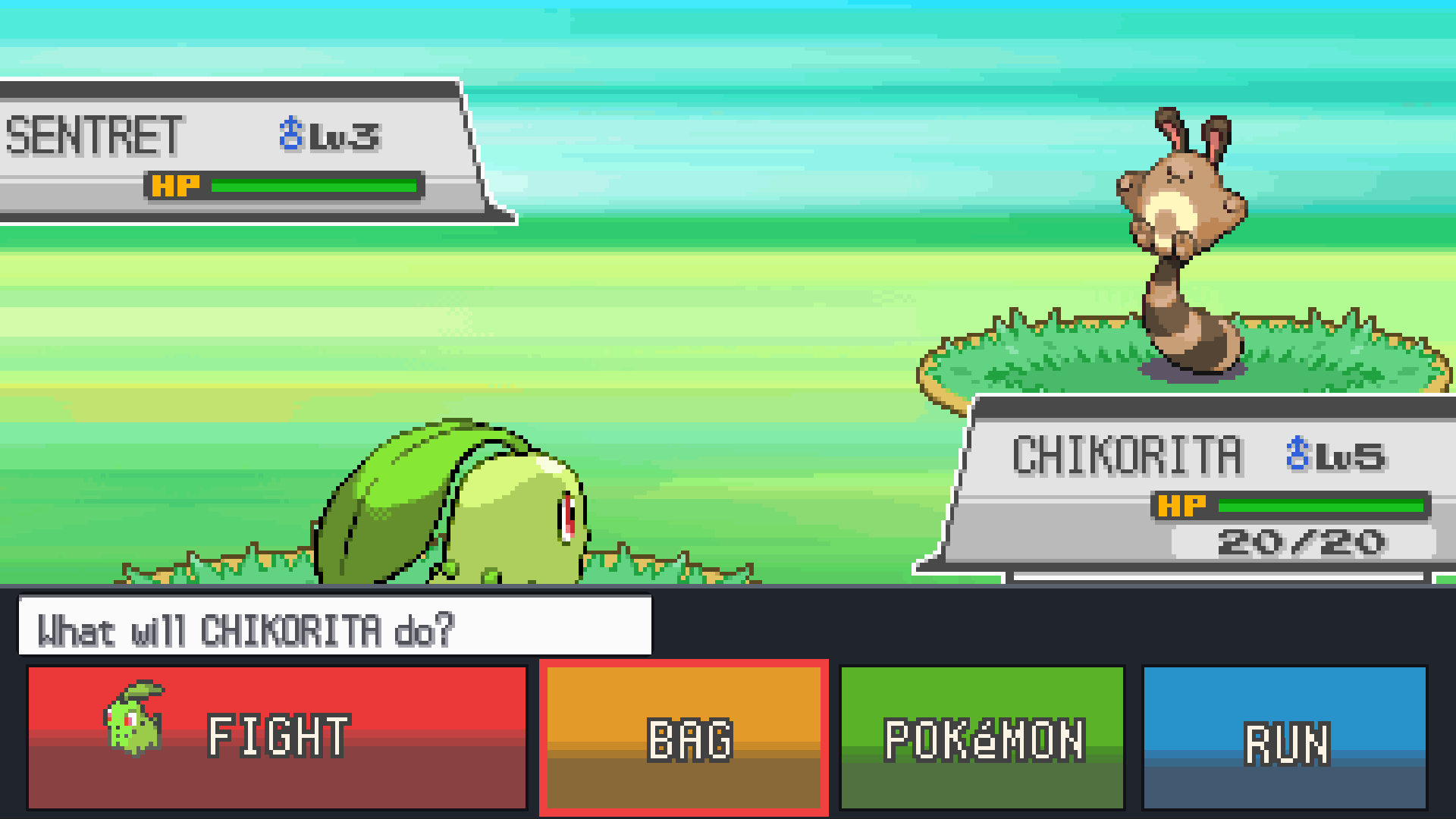

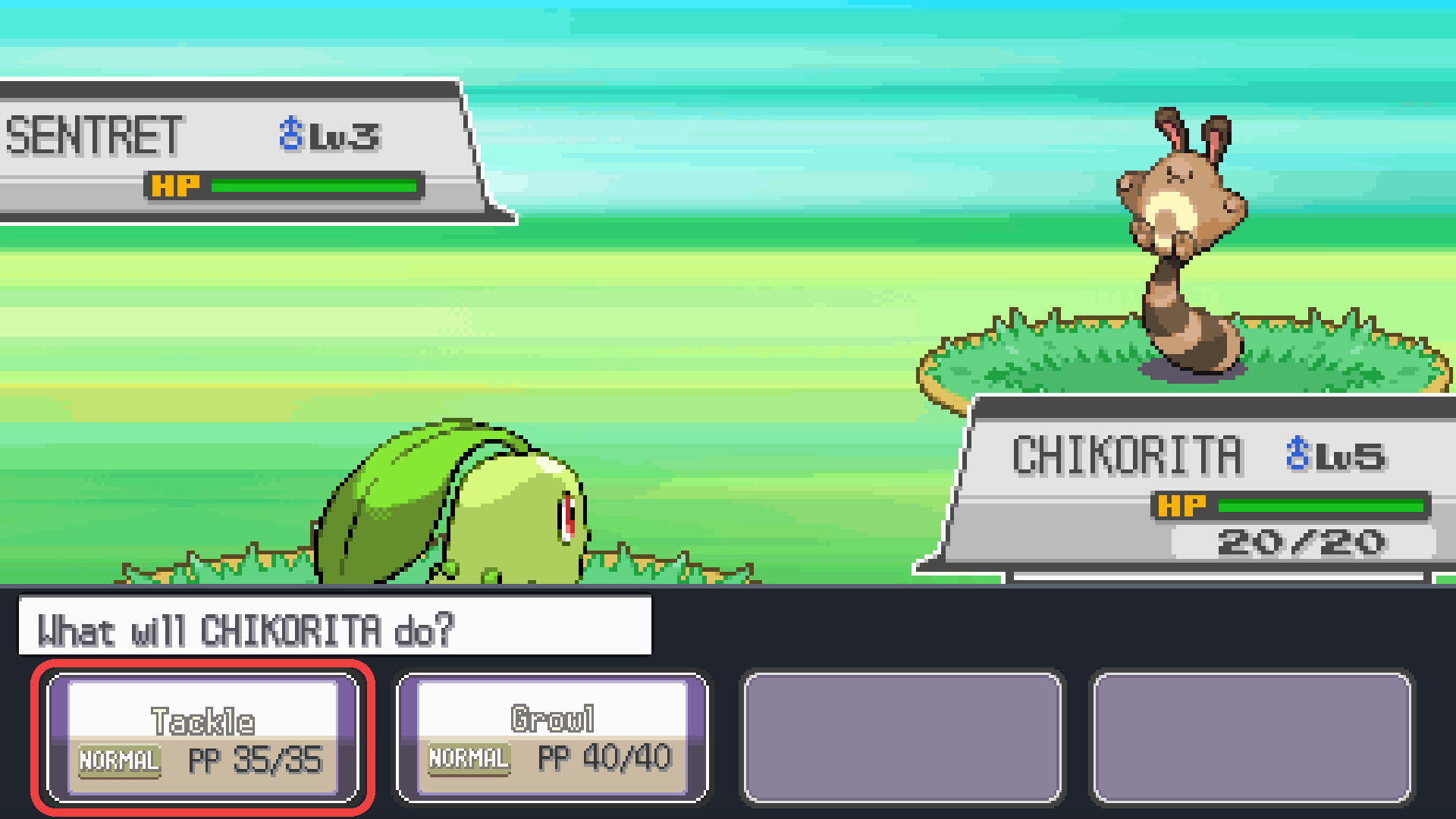

The overworld and battles drawn across a 16:9 screen, with the touch-screen buttons laid out along the bottom in battle (one screen, played with a controller):

You need your own copy of Pokémon SoulSilver (US) as a .nds file, dumped from your cartridge. Nothing of the game is in this repository or its releases.

1. Download the setup program for your system from the latest release:

   • Linux PC: ssrecomp-setup-linux-x86_64
   • Linux on ARM (Raspberry Pi 4/5 with a 64-bit OS, other arm64 boards and laptops): ssrecomp-setup-linux-aarch64.AppImage
   • Windows: ssrecomp-setup-windows-x86_64.exe

   On Linux, make it executable (chmod +x <file>, or the file's properties).

2. Start it.

3. Choose your ROM, press Build, wait (the first build takes 20–40 minutes), then press Play.

Apple Silicon and Intel builds target macOS 11 (Big Sur) or later. Install Xcode Command Line Tools and Python 3 with Tk, then run from this repository:

xcode-select --install
python3 -m pip install "cmake>=3.21,<4" ninja
python3 ssrecomp_setup.py

Choose your ROM, press Build, then Play. Without the setup window:

python3 ssrecomp_setup.py --rom "/path/to/your SoulSilver.nds"
./run.sh --fullscreen

Setup downloads and builds SDL2 and libpng automatically; Homebrew libraries are not needed. The first build needs an internet connection. Builds resume when setup is run again; add --jobs N to choose the number of compile jobs. Use native arm64 Python on Apple Silicon or x86_64 Python on Intel.

The Mac setup download, when available, is a .zip containing ssrecomp-setup.app; unpack it and open the app. Python/Tk is included, but Command Line Tools, CMake and Ninja are still required. Development builds are ad-hoc signed and may need approval in System Settings → Privacy & Security.

The frontend uses Metal and supports Retina displays. Control-Command-F or F11 toggles fullscreen. Full builds and boot/intro instruction comparisons have passed on Apple Silicon; older macOS releases and Intel gameplay still need hardware testing. Android builds and setup.sh's decompilation route are currently unavailable on macOS.

The Android version is built on your PC by the same setup program, from your ROM, and installed on the phone or handheld (64-bit ARM, Android 7.0 or later):

1. In the setup program, choose your ROM and press Build for Android. It needs only CMake and Ninja on the PC (see below); the first time it downloads Google's Android NDK (about 650 MB on Linux, 750 MB on Windows) and SDL2. The build takes about as long as the PC one.
2. Copy SoulSilver-ssrecomp.apk (in the setup program's folder) to the device, open it there and allow installing it when asked.

The APK contains your copy of the game: never share it. It is signed with a key kept next to it (android/signing-key.json); builds made later with the same key install over it and keep the save. Uninstalling the app deletes its save.

On the device: the touch screen works on the touch-screen parts of the picture, and on-screen buttons are shown over it. Using a controller (Bluetooth, USB, or a handheld's built-in controls) hides them; touching the screen brings them back. The MENU button or Back opens the pause menu. Messages and frame timings go to log.txt in Android/data/io.github.clickingmaster.ssrecomp/files on the phone's storage (open it with a file manager, or from a PC over USB), which helps with bug reports.

When a newer version is released, the app says so at start (it asks GitHub, its only use of the internet): update the setup program, press Build for Android again and install the new APK over the old one.

The setup program carries this project's source and unpacks it into a folder of its own (~/.local/share/ssrecomp on Linux, %LOCALAPPDATA%\ssrecomp on Windows, ~/Library/Application Support/ssrecomp on macOS), where the game is built and its save is kept. It contains nothing of the game. Instead of the download you can also run python3 ssrecomp_setup.py from a copy of this repository (then the game is built in that folder).

Updating: the setup window shows its version and whether a newer release is out; Update downloads it, checks its checksum, replaces the setup program and restarts it. Press Build once afterwards to rebuild the game with the new version (your save and settings are kept). Without a display: ssrecomp-setup-linux-x86_64 --update, then --rom again.

Portable mode: put an empty file named portable.txt next to the setup program (the .exe, or the AppImage on Linux). Everything — the unpacked source, the build, the save and the settings — then goes into a folder ssrecomp-data beside it instead, so the whole thing can live on a USB stick or another drive and move between PCs. Keep the ROM in that folder too (or on the same drive), so it is still found when the drive letter changes. After moving to another PC, Play works straight away; Build (only needed for updates) compiles everything again, since the build remembers where it was made.

The window checks that the ROM is the right game and tells you if something needed for compiling is missing, with the command to install it (with python3 ssrecomp_setup.py instead of the download, add Python's Tk support: python3-tk, python3-tkinter or tk):

• Linux (Ubuntu, Debian, Mint): sudo apt install cmake ninja-build g++ pkg-config libsdl2-dev libpng-dev zlib1g-dev

• Fedora: sudo dnf install cmake ninja-build gcc-c++ pkgconf-pkg-config SDL2-devel libpng-devel zlib-devel

• Arch: sudo pacman -S --needed cmake ninja gcc pkgconf sdl2 libpng zlib

• Immutable Linux (Bazzite, Silverblue, SteamOS): run it in a container:

  distrobox create -n ssrecomp -i ubuntu:24.04
  distrobox enter ssrecomp -- sudo apt install -y cmake ninja-build g++ pkg-config libsdl2-dev libpng-dev zlib1g-dev
  distrobox enter ssrecomp -- ./ssrecomp-setup-linux-x86_64


  The finished game also runs outside the container (./run.sh).

• Windows (untested so far): install MSYS2 in its default place (C:\msys64), open "MSYS2 UCRT64" and install the compiler and libraries with

  pacman -S --needed mingw-w64-ucrt-x86_64-gcc mingw-w64-ucrt-x86_64-cmake mingw-w64-ucrt-x86_64-ninja mingw-w64-ucrt-x86_64-SDL2 mingw-w64-ucrt-x86_64-libpng mingw-w64-ucrt-x86_64-zlib


  The setup program finds them there by itself. (To run ssrecomp_setup.py instead of the download, also install mingw-w64-ucrt-x86_64-python and mingw-w64-ucrt-x86_64-tk and start it from that window.)

Without a display: ssrecomp-setup-linux-x86_64 --rom your-rom.nds (or python3 ssrecomp_setup.py --rom ...) does the same in the terminal; add --android for the Android build on Linux or Windows.

Making the setup programs: pip install "pyinstaller>=6" certifi pillow && python tools/package_setup.py on the system they are for; tools/make_appimage.sh wraps the Linux one into an AppImage. On macOS it creates dist/ssrecomp-setup.app with Python/Tk included. .github/workflows/release.yml packages Linux, Windows and separate Mac architectures when started by hand from the Actions tab. Mac bundles are checked for dependency paths and minimum OS versions before archiving. Set SSRECOMP_CODESIGN_IDENTITY when packaging with a Developer ID; public distribution also needs notarization.

Mac builds compile pinned SDL2/libpng sources for the selected deployment target, using the SDK's zlib. Advanced CMake builds can use installed libraries with -DSSR_MACOS_SOURCE_DEPS=OFF; those libraries must support the chosen architecture and OS version. MACOSX_DEPLOYMENT_TARGET (default 11.0) selects the minimum OS for direct CMake builds. The setup workflow uses 11.0.

How it works without the decompilation: the code to recompile is read straight from your ROM (tools/ndsrom.py). What the decompilation adds, which parts of it are ARM or Thumb code and where the functions the frontend watches are, comes from layouts/soulsilver-us.json, made with tools/make_layout.py; that file holds addresses and checksums only. The generated code is identical to what the decompilation's build gives.

If you want to change the game itself, build from the decompilation instead with ./setup.sh (see "Building").

./run.sh                 # windowed
./run.sh --fullscreen

First build it: see "Building" below. run.sh expects the ROM at ../pokeheartgold/build/soulsilver.us/pokesoulsilver.us.nds, i.e. the decompilation checked out next to this repository and built. The save file is soulsilver.sav next to the script; settings are remembered in ssrecomp.cfg.

Everything can be done from a controller:

The pause menu also has the view, 60 FPS, smooth scaling, button mapping by label or by position, reset and quit.

run.sh also writes what the game prints to game.log next to it; a bug report about a controller should include it (it lists every controller SDL sees).

Steam Deck / SteamOS: add run.sh to Steam as a non-Steam game. If a controller does nothing that way, setting the shortcut's compatibility tool to Proton Experimental (Properties → Compatibility) has been reported to make it work.

The default view (merged) shows one picture, with no second screen beside it and no switching by hand. What it is made of depends on what the game is doing:

The right-stick touch cursor works through these overlays; if nothing touchable is on screen, moving it brings up the bottom screen. Clicking the right stick (F1) shows the other screen as an escape hatch for situations not covered yet.

The pieces are put together by the graphics card (frontend/gpucompose.h): each is uploaded at DS resolution and scaled by the SDL renderer, so the cost does not grow with the size of the window. MergedCompose in frontend/merged.h draws the same picture on the CPU for the headless tests; the two are compared with SSR_CPU_COMPOSE=1 and window screenshots (see "Performance").

How it works: a patch to the 2D renderer records which graphics layer each pixel came from, so a screen's background can be dropped and only its buttons drawn (frontend/merged.h). The situation is recognised by which game functions ran in the last few frames: tools/apps.py reads every application's per-frame function, and the names in tools/focus_symbols.txt, out of the decompilation's linker map. The rules are in pickScene in frontend/main.cpp. A new layout must be asked for several frames in a row before it replaces the one on screen, so transitions do not flash a wrong one.

The older layouts are still in the pause menu: hybrid, side, vertical, top, bottom.

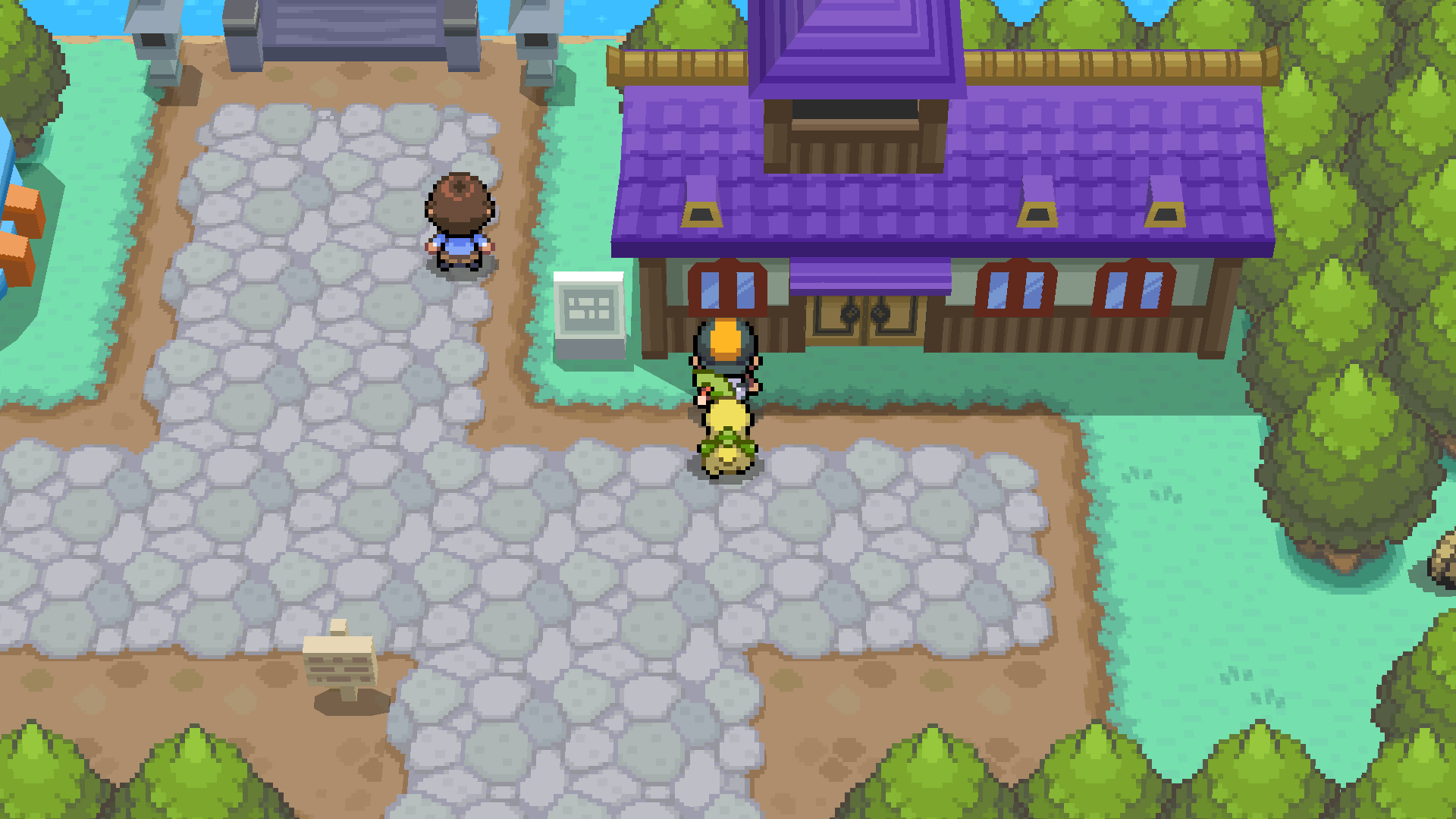

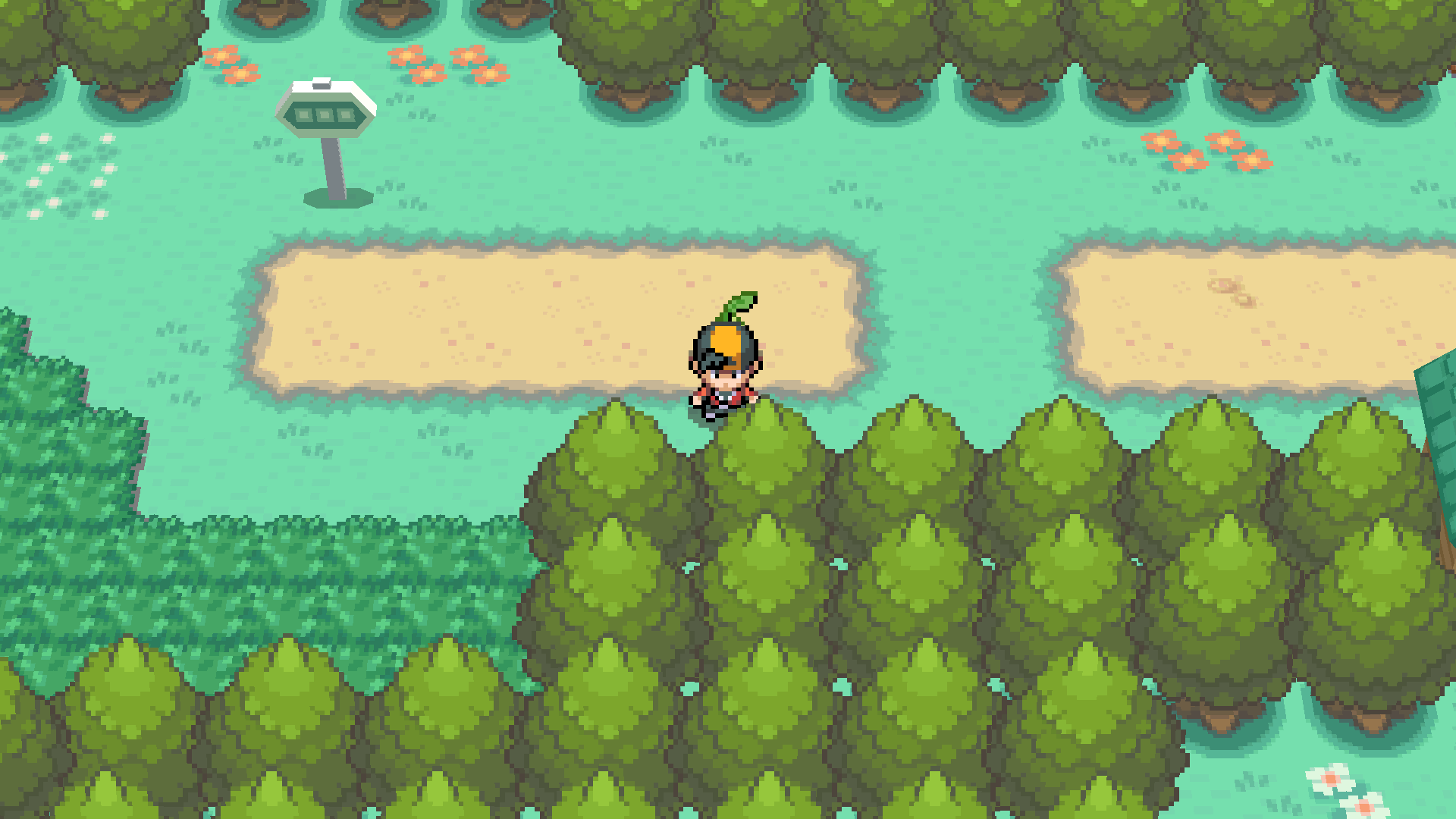

In the merged view on a wide display the overworld fills the whole picture instead of a 4:3 box, and is drawn at high resolution ("WIDESCREEN WORLD" and "WORLD DETAIL" in the pause menu; wide and wide_lines in ssrecomp.cfg). Because it is no longer limited to the DS's 256x192 pixels, the world also moves in steps smaller than a DS pixel: walking up and down, where the camera's tilt makes the DS scroll 2, 1, 2, 1 pixels, is even.

How it works (melonDS/src/GPU3D_Wide.cpp): every polygon the game submits is recorded before clipping. When the frame is flushed, the list is submitted a second time with the horizontal clip coordinate squeezed by 256 / (view width), so that what lies left and right of the DS's view survives clipping, into separate polygon memory. A separate rasteriser draws that list at the size of the output (perspective-correct textures, depth, translucency, fog; no edge marking or shadow volumes), on worker threads while emulation continues. The frontend puts the picture behind the top screen and draws only the top screen's 2D pixels (text boxes, signs) over it; fades are applied to it from the brightness registers, and 2D effects that touch the screen's edge (wipes) are continued into the margins. The game sees the same polygon counts as without it, with one exception: the box test, which the game uses to decide whether a tree or a building is in view, is made against the wide view while widescreen is on, so that those are also drawn beside the DS's own picture instead of popping in at its edge (GPU3D::BoxTest). --lockstep therefore runs with widescreen off. Battles, menus and everything that is not the overworld stay 4:3.

Known limits: anything the game culls by other means than the box test could still pop in at the far left and right (none found so far); there are no edge-marking outlines; 2D weather or overlays do not extend beyond the 4:3 area; "WORLD DETAIL" above 720 costs frame time (about 5 ms at 720 lines, 12 at 1080, 18 at 1440 on a 6-core desktop CPU). On slow devices, 384, 288 or 192 (the DS's own sharpness) cost the least; "FPS COUNTER" in the same menu shows whether the game keeps up.

The game updates its 3D scene 30 times a second. With "60 FPS" on (the default, in the pause menu), the 3D engine records the polygons of each frame and, on the display frame in between, draws them halfway between their old and new positions. Walking scrolls 1 pixel per frame instead of 2 every other frame. Game speed and game state are unchanged, the 3D picture is one display frame (1/60 s) later than without it, and 2D elements such as text boxes still update at the game's own rate. A polygon is paired with its counterpart in the previous frame by how the scene as a whole moved (found by letting every possible pairing vote), and only if it moved roughly like that; anything else is drawn where it now is. The polygon after the last partner is tried first (objects keep their order in the list), the scene's movement is voted on from both ends of the list so that a map block entering it does not upset the vote, and a strip polygon whose neighbour was treated differently is built on its own. SSR_PAIR_DEBUG=1 logs where the pairing changes step. Pairing with the nearest look-alike instead drew models halfway towards a neighbour that had just left the picture (SSR_PAIR_LOOSE=1 brings that back for comparison). It switches itself off when the scene does not update on a steady 30 fps cadence, when polygons cannot be matched between frames, and while the game captures the 3D image.

SSR_PERF=1 prints, every 300 frames, the average time spent per frame in emulation, in choosing and drawing the picture, in presenting it and in waiting for the next frame, and the longest frame. At 2560x1440 on a 6-core desktop CPU the overworld with the widescreen world at 720 lines takes about 8 ms of the 16.7 ms a frame has.

What keeps it there:

• the DS-resolution 3D picture is drawn on its own thread (melonDS's threaded software renderer; SSR_NO_RENDER_THREAD=1 turns that off), the widescreen picture on a pool of worker threads;
• the graphics card composes the picture, through SDL's OpenGL ES renderer, which uploads textures several times faster than its desktop OpenGL one here (SDL_RENDER_DRIVER overrides the choice);
• in recompiled code a branch to an instruction of the same chunk continues there instead of returning to the dispatcher (half as many dispatches);
• frames are paced by sleeping and then spinning for the last fraction of a millisecond, which keeps them an even 16.7 ms apart.

The recompiled code itself is now about 6–9% faster than the plain interpreter (--interp): 1,800 frames of overworld from a save state, headless, take about 9.0–9.9 s against 9.9–10.6 s (the range is between runs on a busier or quieter machine). What got it there:

• the common instructions (arithmetic, loads and stores, LDM/STM, PUSH/POP, branches; about 97% of all) are translated to inline C++ with their operands folded in (tools/recomp_inline.py), instead of calling the interpreter's handler; each translation is chosen by the handler melonDS would run, so it does exactly what that handler does;
• R15 is a constant in every statement, and after a translation that calls nothing only the time slice is checked;
• memory accesses to the TCMs and main RAM, and jumps, go through small functions (runtime/recomp_mem.cpp) instead of the core's general bus functions. Copying them into every instruction instead made the code 30 MB bigger and slower overall.

Around the recompiled code, in the melonDS core (--lockstep still passes, and each change was checked to give the same pictures, sound and memory as before, except the longer time slices, see below):

• the 2D renderer keeps each finished line and its sprites, and draws a line again only when something it is made from changed (the engine's registers, palettes, VRAM, OAM, the 3D line); most lines are the same as in the frame before. Text backgrounds are drawn a tile row at a time;
• the scheduler gives each CPU 512 cycles at a time instead of 64 (events still happen at their exact times; melonDS's own JIT is coarser). This is the one change to timing: of 2,312 test screenshots, 3 differ, each by one line during a battle transition;
• the ARM7 reads its code and data in main RAM and WRAM directly;
• loops that wait for the SPI bus (ARM7) or the game card (ARM9) are skipped to the end of the time slice in whole turns, so they end at the same cycle;
• the widescreen 3D draws opaque polygons nearest first, so hidden pixels are rejected before they are shaded;
• the interrupt path of melonDS's built-in BIOS (FreeBIOS), which runs at every HBlank interrupt (most lines), is recompiled too (section bios9), so no game code is interpreted any more.

Together that is about 30% less time in the overworld and 20% in battles than v0.3.0. The ARM9 game code is now about 60% of the main thread's time; most of the rest is the ARM7, the sound and melonDS's bookkeeping.

SSR_SAMPLE=<file> records about 1000 call stacks a second from whichever thread is running (frontend/sampler.h); tools/samples.py build/ssrecomp <file> lists where the time went. To measure the real window path without putting a window on the desktop, run the game inside a headless compositor:

SSR_PERF=1 gamescope --backend headless -W 2560 -H 1440 -w 2560 -h 1440 -- \
    build/ssrecomp <rom> --fullscreen --no-save --state-load <snapshot> --frames <n>

In a window, --shot-dir with --shot-at/--shot-every also writes window_<frame>.png, read back from the renderer: exactly what is shown.

Tested on Linux (Ubuntu 24.04 inside a distrobox on Fedora/Bazzite). Other Linux distributions should work the same way; Windows gameplay is untested. For the macOS direct-ROM workflow, see the macOS section above. The decompilation route below is Linux-only. Expect about half an hour for a first build.

• The game. Only build this if you own Pokémon SoulSilver (US). The decompilation below rebuilds the game from its source; the result has to be byte-for-byte identical to the retail cartridge, which you can check against a dump of your own copy (SHA-1 below).

• About 3 GB of free disk space and 16 GB of RAM. The generated code is large and the compiler needs about 1.5 GB per parallel job.

• pret/pokeheartgold's build requirements — see its INSTALL.md.

• For this project: CMake 3.16+, Ninja, a C++17 compiler (GCC or Clang), SDL2 (or sdl2-compat), libpng, zlib, and Python 3 with pyelftools. On Ubuntu/Debian:

  sudo apt install cmake ninja-build g++ libsdl2-dev libpng-dev zlib1g-dev python3-pyelftools


  On Fedora: sudo dnf install cmake ninja-build gcc-c++ SDL2-devel libpng-devel zlib-devel python3-pyelftools.

This is for working on the game's source (mods): the recompiled code then comes from your build of the decompilation instead of from a ROM. ./setup.sh runs these steps for you; they are here in case you want to do them by hand or something goes wrong.

1. Put both repositories side by side. run.sh and the commands below assume this layout:

   some-folder/
   ├── pokeheartgold/   (pret's decompilation)
   └── ssrecomp/        (this repository)

   git clone https://github.com/pret/pokeheartgold.git
   git clone <this repository's URL> ssrecomp


2. Build SoulSilver with the decompilation (in pokeheartgold/):

   cd pokeheartgold
   make soulsilver


   This produces build/soulsilver.us/pokesoulsilver.us.nds plus the files the recompiler reads (the linked .nef and one .sbin per code section). Check the ROM is a faithful build:

   sha1sum build/soulsilver.us/pokesoulsilver.us.nds
   # f8dc38ea20c17541a43b58c5e6d18c1732c7e582


   If it differs, fix the decompilation build first (see its INSTALL.md); the recompiled code would not match the ROM.

3. Generate the recompiled code (in ssrecomp/). This writes gen/, which is the game's code translated to C++: keep it to yourself, never commit or share it.

   cd ../ssrecomp
   python3 tools/recomp.py ../pokeheartgold/build/soulsilver.us melonDS/src gen
   python3 tools/apps.py ../pokeheartgold/build/soulsilver.us gen


   The first prints something like 121 sections, 25118 chunks, 1685104 instructions, 71 files.

4. Compile:

   cmake -S . -B build -G Ninja -DCMAKE_BUILD_TYPE=RelWithDebInfo
   ninja -C build


   This takes 20–30 minutes on a 6-core CPU: gen/ holds 1.69 million recompiled instructions. Ninja runs one job per CPU thread by default; with less than about 1.5 GB of RAM per thread, limit it (ninja -C build -j8 for 16 GB). The result is build/ssrecomp.

5. Run:

   ./run.sh --fullscreen


   run.sh starts build/ssrecomp with the ROM from step 2 and keeps the save in soulsilver.sav next to the script. The ROM built in step 2 is identical to the cartridge, so build/ssrecomp <your own dump>.nds --save my.sav works too, as long as it is the same US SoulSilver ROM.

• Updating: after pulling changes to this repository, run ninja -C build again. After changing or updating the decompilation, repeat steps 2–4.
• Mods: changes made to the game's source in pokeheartgold/ flow into the native build by repeating steps 2–4.
• Rebuild times: changing runtime/recomp_rt.h, runtime/recomp_gen.h or melonDS headers included by NDS.h recompiles all of gen/; frontend changes take seconds.

tools/recomp.py reads the linked .nef for section addresses and the $a/$t/$d mapping symbols, so it knows exactly which bytes are ARM code, Thumb code or data in the main module, the ITCM block and all overlays. Every instruction becomes a labelled statement inside a "chunk" function of up to 256 instructions (gen/rc_*.cpp).

• runtime/recomp_gen.h defines what one recompiled instruction does. It repeats the interpreter's per-instruction sequence (prefetch, execute, cycle accounting), so a recompiled run is bit-identical to an interpreted one. The execute step is inline C++ for the common instructions (tools/recomp_inline.py) and the melonDS handler for the rest.
• Many overlays are linked at the same addresses. runtime/recomp_rt.cpp enters a chunk only after comparing its bytes with emulated memory, and each instruction checks its own opcode, so stale code is never executed. Anything not covered (the BIOS, code not yet loaded) falls back to the interpreter one instruction at a time.

The save states and input scripts used during development are not part of this repository (save states contain game memory), so the examples below need ones of your own: --state-save writes one.

build/ssrecomp <rom> --lockstep --frames 9000 --input test/play2.txt

--lockstep runs an interpreter-only console and the recompiled one side by side and compares registers, flags, cycle counts and timestamps after every ARM9 instruction. Other test options (--headless, --input, --shot-at, --compose, --state-save/--state-load, --hash-every, --log-sections, --shot-layers, --trace-funcs, --count-changes, --interp60) are listed by running the binary with no arguments. --no-wide turns the widescreen renderer off, --bench-compose composes the merged picture every frame in headless mode so whole-frame time can be measured, and the environment variable SSR_WIDE_PROF=1 prints the widescreen renderer's time per frame. tools/try.sh resumes from a snapshot, runs an input script and tiles the screenshots; tools/mshots.sh does the same for the merged view (tools/wshots.sh through the real window path, inside a headless gamescope), and tools/scroll.py measures the scroll between consecutive screenshots. With --log-sections and a shot directory a screenshot is taken at every change of merged layout; tools/strip.py tiles a shot directory into contact sheets, which is how layouts are reviewed in motion. Input scripts can drive a virtual controller (pad:guide, pad:rt, pad:rx+, ...) to test the controller paths without hardware.

To get around the game world in tests, --nav "x,z;x,z;..." walks the player to a list of tiles (door tiles included; x,z,L keeps walking left into a side door), using the overworld collision grid that tools/navmap.py extracts (--nav-map; --nav-map-id <map id>=file adds the grid of one interior, made by passing that map's matrix file to navmap.py; ladders need a push, x,z,U); the input script is held until it arrives or, with --nav-stop-on-battle, until a battle starts. --battle-mash fights battles by pressing A and tapping the left-hand moves in turn, --pos-every N prints the player's tile, --stop-at N quits at a real frame (writing the --state-save snapshot), and tools/navrun.sh wraps these; tools/grind.sh loops grass walking and healing to gain levels. --log-sections also prints each change of merged scene, which shows where a new screen appeared in a long run. Tile coordinates of doors and people are in the decompilation's files/fielddata/eventdata/zone_event/*.json.

Thank you to DarthMDev for the macOS side of the project: the native macOS build and setup program (#7) and its self-updating (#11).

GPL-3.0-or-later (see LICENSE), as required by the melonDS core it is built on. melonDS/ is melonDS 1.1 with changes for this project: recompiled-code dispatch in the ARM9 loop, per-pixel layer flags in the 2D renderer, the 60 fps in-between frames and the widescreen renderer (src/GPU3D_Wide.cpp, new). The changes to existing melonDS files are listed in melonDS-ssrecomp.patch.

tools/android/skeleton.apk contains SDL 2.32.10's Android Java code (org.libsdl.app, zlib license, copyright Sam Lantinga and contributors), compiled by tools/android/make_skeleton.sh. The Android build also downloads and builds SDL2 and uses Google's Android NDK under their own licenses.
