Super Mario Bros. Wonder Recomp
A Projeto Belmante project · youtube.com/@belmante
Static recompilation of Super Mario Bros. Wonder (Nintendo Switch, 1.0.0, title ID 010015100B514000) to native
code. No emulator runs: the game's AArch64 machine code becomes C++ compiled for the host, and its system and graphics
calls (NVN, Nintendo's own API) are implemented natively on Vulkan (MoltenVK on the Mac).
Part of the SwitchGamesRecomp work (same runtime, see docs/FRAMEWORK.md); this repo follows Wonder alone. Living log: PROGRESS.md.
Note
No game files are included. This repository holds no game code, assets, keys or firmware, and no build
made from them. Everything derived from the game stays in private/ (gitignored). You need your own legally
dumped copy of Wonder 1.0.0, plus your own keys and firmware. Instructions on how to obtain them are not
provided.
Important
This project was made with a lot of AI and a lot of study. Most of the code, tooling and documentation was written with AI assistance (Anthropic's Claude), directed, tested and reviewed by a human who spent a great deal of time studying the Switch's CPU, OS and graphics stack (AArch64, NVN, Maxwell shaders, Vulkan) to guide it. If you don't agree with the use of AI or don't trust AI-written code, that is your right; you run the code at your own discretion.
Important
A note on the history of this repo. The project was developed across several computers, and files were lost when moving between them. Part of the code had to be rewritten from scratch, and some early notes, test scripts and intermediate results no longer exist. If something in PROGRESS.md or the docs refers to a file you cannot find, that is probably why. Bug reports about gaps like this are welcome.
Platforms
| Platform | Status | Graphics |
|---|---|---|
| macOS (Apple Silicon) | works, the reference platform | Vulkan on Metal through MoltenVK |
| Windows (x86-64) | works, tested on NVIDIA (RTX 3050) and Intel GPUs | native Vulkan 1.3 |
| Android (arm64) | works, tested on a Galaxy S23 | native Vulkan 1.3 |
| Linux | not ported yet, but close | native Vulkan 1.3 |
Linux is not a rewrite. The recompiled game code is portable C++ and the NVN layer talks only generic Vulkan, with
no Metal code. What is missing is the same small platform layer macOS, Windows and Android already have: a
platform_linux.cpp (window, input, audio) and a memguard_linux.cpp next to the existing platform_mac.cpp /
platform_win.cpp / memguard_*.cpp in runtime/src/, plus a Linux branch in CMakeLists.txt (today its
non-Apple, non-Android branch is the Windows one). Nobody has built or run it on Linux yet. Pull requests are
welcome.
State

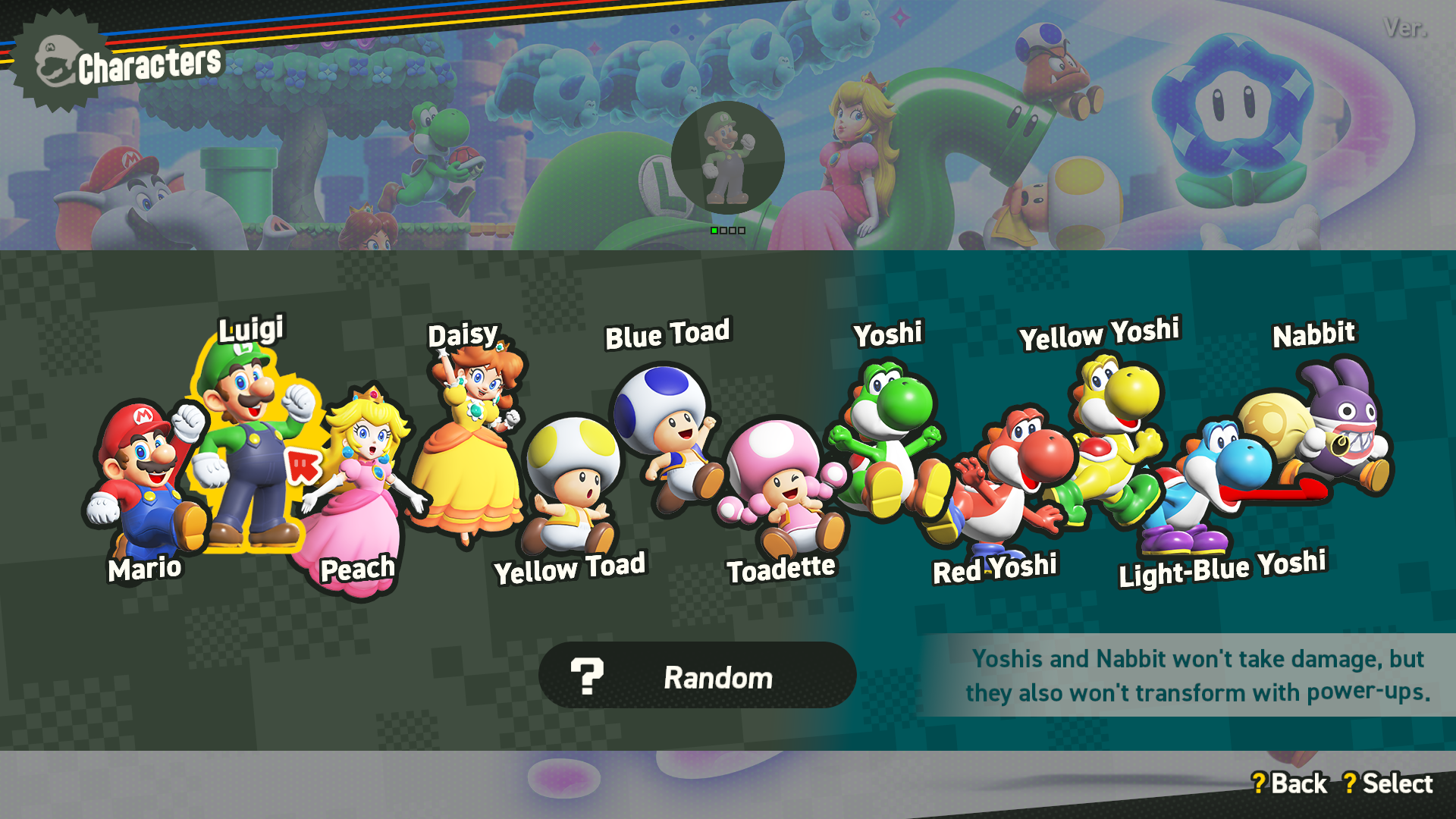

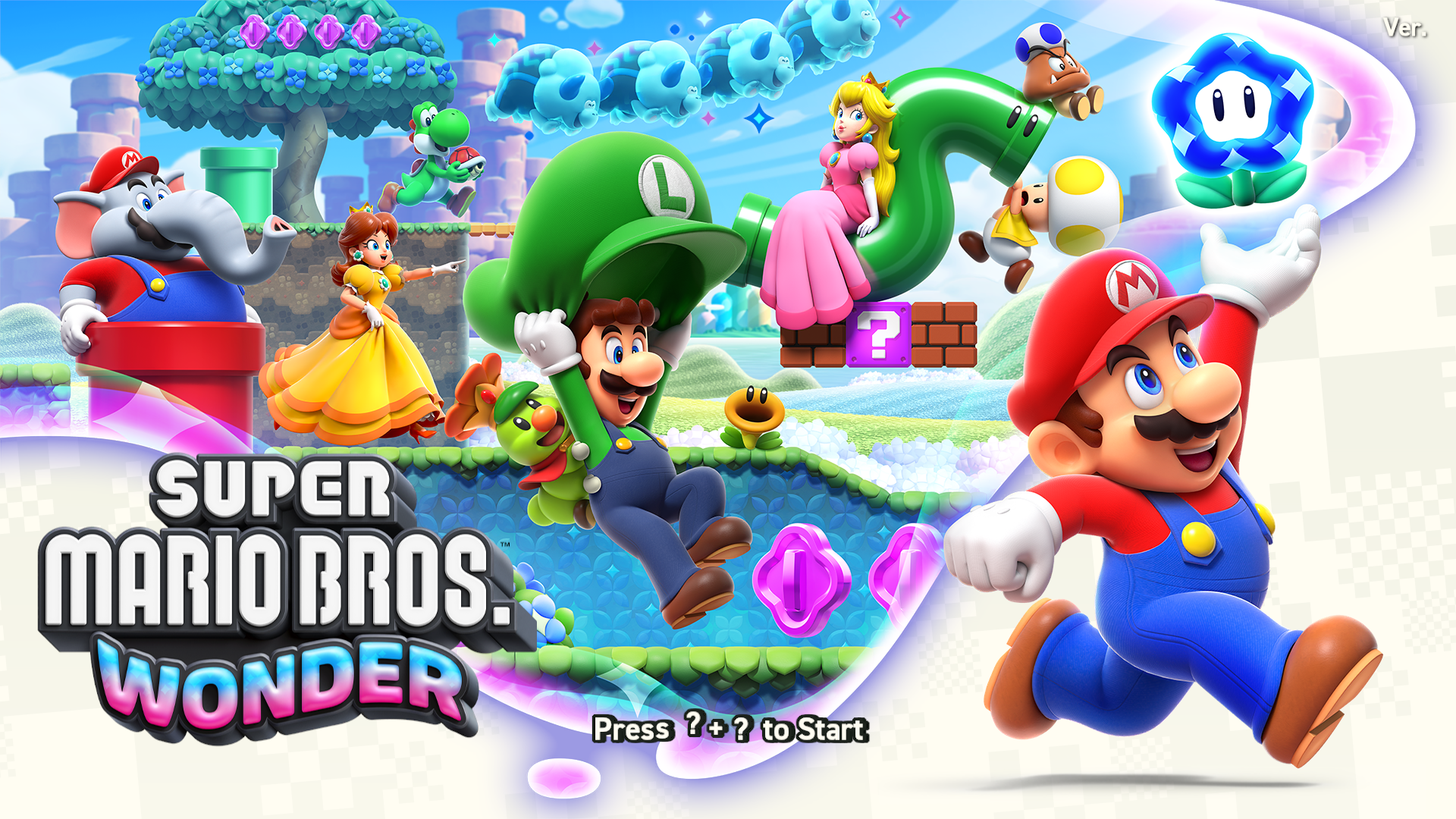

| Title | Character select |
|---|---|
 |
 |

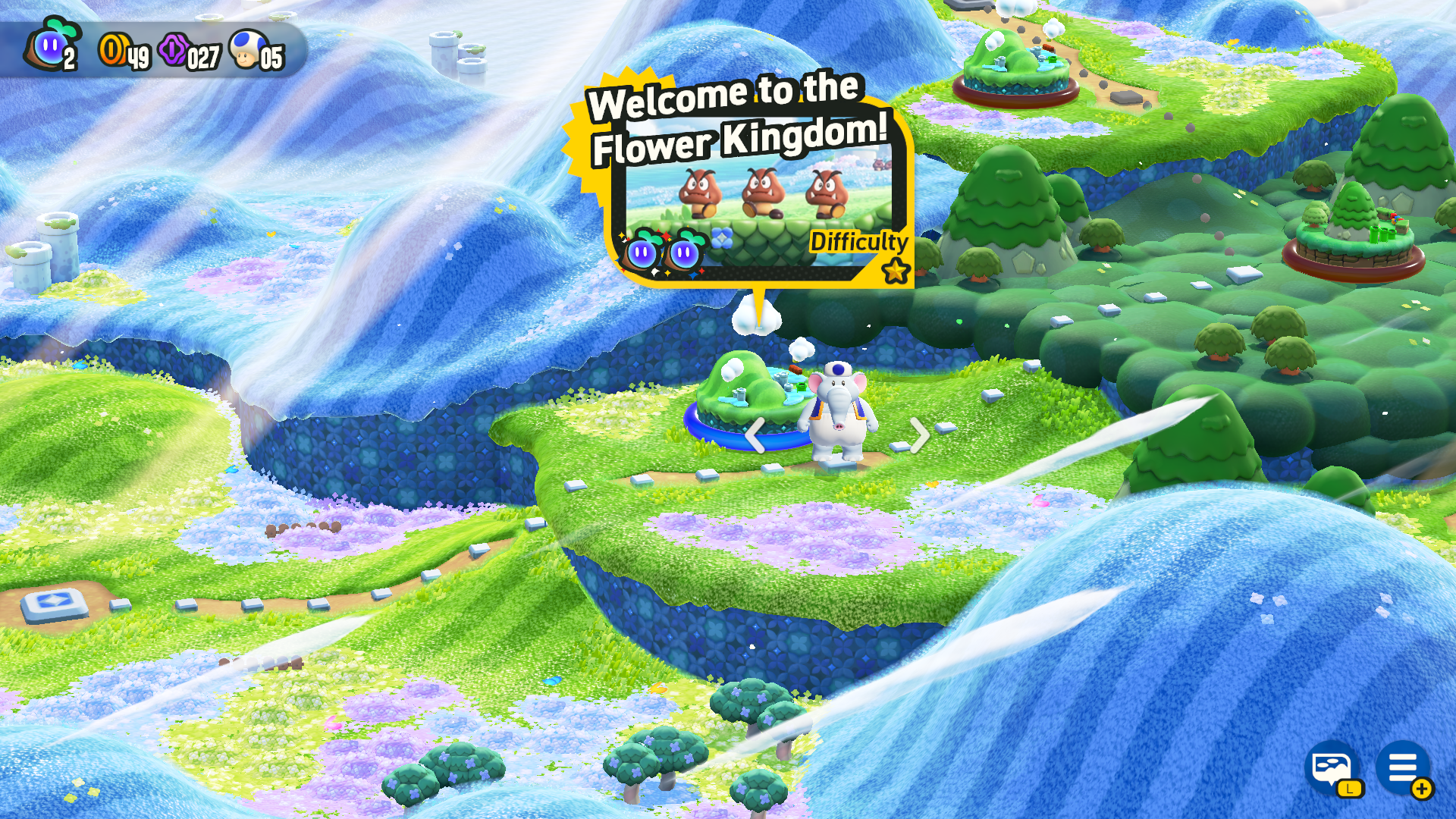

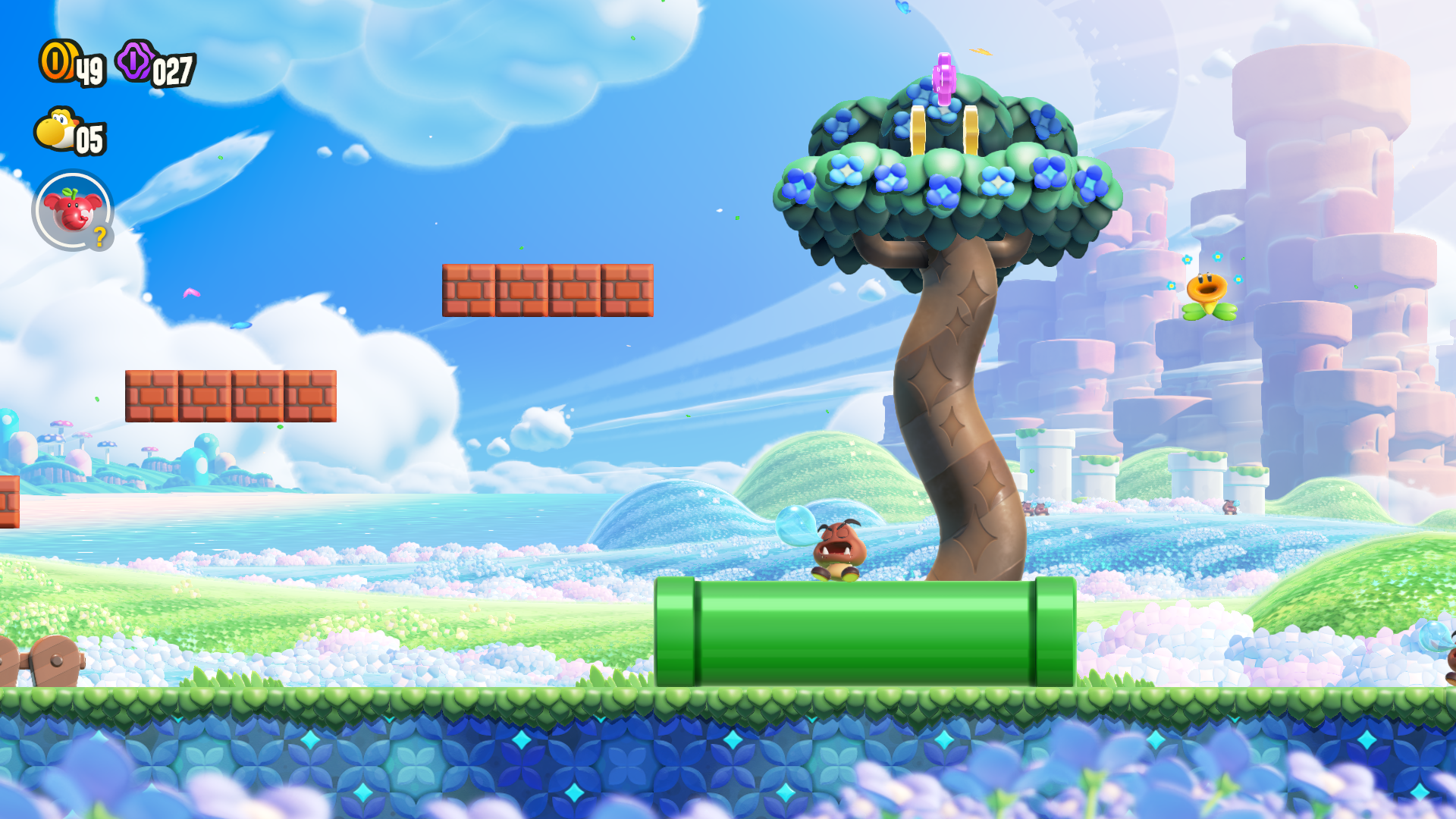

| World map | Course 1-1, 60 fps |
 |
 |
What works
- CPU:
mainand the SDK are recompiled: 17.8M AArch64 instructions, 250k functions, about 1.4 GB of generated C++. The game runs its whole frame loop natively on macOS. - Graphics: Wonder draws through NVN, Nintendo's own graphics API. The
nvn*functions are implemented on the host: recorded command buffers are replayed into Vulkan, running on Metal through MoltenVK.- All 12,717 Maxwell shader blocks were translated to SPIR-V ahead of time, with the Ryujinx translator (MIT).
- Textures are untiled from the block-linear layout. ASTC and BCn are sampled natively.
- Render targets, samplers, views, clears, compute and write-backs are replayed per submit.
- Screens: title, file and player select, character select, the opening, the world map and course 1-1 render correctly.
- Speed: 60 fps in the menus and in course 1-1 (headless test runs). Submits are pipelined: the frame's GPU work is not waited for.
- Button icons: our own glyph font for the NintendoExtended codepoints (
tools/fonts/make_button_font.py). - Audio: the sdk's own AudioRenderer (server and DSP code) runs in process.
- Memory: 3.5 to 4.2 GB in play.
Open
The details are in the GitHub milestones.
- Windowed stretches at 35-40 fps (#51): the GPU goes past the frame budget only when a window is visible.
- Windowed confirmation of the W7 glitch fixes (#43-#45, #47): horizon band, silhouettes, present mode.
- Character-select blur: needs a reference from a real console.
- Android rendering bugs and performance: hand-off notes in docs/nvn/android-perf/.
- Linux: see Platforms.
Windows
Wonder runs on Windows 10/11 with a Vulkan 1.3 GPU (tested on an NVIDIA RTX 3050 and on Intel). The port is
described in docs/nvn/WINDOWS-PORT.md and WINDOWS-PLAN.md,
the PC quality work in docs/nvn/pc-quality/. dev.ps1 sets up the build environment
(Visual Studio Build Tools, clang, CMake, Ninja, Vulkan SDK) and tools/pack_pc_wonder.py packs your own data for
the PC. The recompile, shader and build steps are the same as in the macOS section below.
Android
The same recompiled code runs on arm64 phones with a native Vulkan 1.3 driver. On a Galaxy S23 (Snapdragon 8 Gen 2) the game runs with drawn touch controls, a present pass rotated to the display (16:9 with bars), a pipeline cache on disk and ADPF performance hints. Progress, the test list and the performance phases are in docs/nvn/ANDROID-PORT.md.
Build and install (macOS or Linux, Android SDK with NDK 28.2):
private/venv/bin/python tools/pack_phone_wonder.py # your data -> private/wonder/Wonder-data.zip (~4 GB) CMAKE_BUILD_PARALLEL_LEVEL=4 bash android/build_apk.sh --game wonder # -> private/wonder/apk/wonder.apk bash tools/wonder_push_android.sh <adb serial> # install + data to Internal storage + all-files access bash tools/wonder_run_android.sh <adb serial> 90 run1 # start, wait, save the log, pull frame dumps
Without a computer, copy the APK and the zip to the phone:
- Extract the zip into Internal storage. You get
Super Mario Bros. Wonder/. - Install the APK.
- Allow "all files access" when the app asks.
The APK contains recompiled game code built from your own dump. It is for you only: never share or publish it.
Touch controls:
- Right side: A (jump, big), B, Y (dash), X.
- Top: ZR, R, L, + and -.
- Left half: a stick that appears where your thumb lands; pushed all the way, it also dashes.
A Bluetooth or USB controller works too, and the touch controls hide while it is in use.
Build and run (macOS, Apple Silicon)
Requirements: Xcode command line tools, CMake, Ninja, Homebrew sdl3 + vulkan-headers + vulkan-loader + molten-vk, Python 3 venv
in private/venv.
- Dump. Dump your own cartridge (nxdumptool) and keys (Lockpick_RCM). Extract to
private/wonder/exefsandprivate/wonder/romfswithnstool. - Recompile the CPU code. This takes about 6 minutes and 2.4 GB of memory for
main:private/venv/bin/python -m recomp private/wonder/exefs/main private/wonder/gen/main --name main --base 0x4000000000 private/venv/bin/python -m recomp private/wonder/exefs/sdk private/wonder/gen/sdk --name sdk --base 0x4010000000
- Translate the shaders. Extract the shader containers with
tools/maxwell/containers.py, then translate them with the harness intools/maxwell/spirv_harness. This writesprivate/wonder/spirv/<hash>.spv. See docs/nvn/TRANSLATOR.md. - Build the button font. It is local only and never committed:
private/venv/bin/python tools/fonts/make_button_font.py
- Build. The first build takes about 15 minutes:
cmake -S . -B private/wonder/build -G Ninja -DNX_GAME=wonder -DCMAKE_BUILD_TYPE=Release ninja -C private/wonder/build -j6 wonder - Run:
It plays with a gamepad (SDL) or the keyboard.
NX_LOG=private/wonder/nx.log private/wonder/build/wonder
Useful switches:
| Switch | What it does |
|---|---|
NX_MEM_LIMIT_GB=<n> |
memory guard, ends the process past this footprint (default 8) |
NX_HEADLESS=1 |
no window, for unattended test runs |
NX_MUTE=1 |
no sound |
NX_HANDHELD=1 |
handheld mode, 720p |
NX_PIPELINED=0 |
waits for every submit, as before 60 fps (diagnosis) |
Every debug switch (draw traces, snapshots, bisecting toggles) is listed in docs/nvn/SWITCHES.md.
How it works, and where it is written down
| Document | What |
|---|---|
| PROGRESS.md | living log, newest first, with screenshots |
| docs/NVN.md | the NVN → Vulkan plan: phases N0-N7, where to cut, ground rules |
| docs/nvn/WONDER.md | facts about the game: modules, RomFS, recompilation numbers, the host GPU |
| docs/nvn/SHADERS.md, TRANSLATOR.md | shader containers, and Maxwell → SPIR-V |
| docs/nvn/TILING.md | block-linear texture layouts |
| docs/nvn/DEBUG.md, DEBUG-2.md | every rendering bug found so far (67 entries): symptom, cause, fix, switch |
| docs/nvn/GLITCH-PLAN.md, PERF-PLAN.md | glitch and performance studies and plans |
| docs/nvn/ANDROID-PORT.md | study for the Android port: gaps, risks, milestones A0-A7 |
Ground rules for this track:
- only our own dumps, keys and firmware;
- no leaked NVN headers: the API is reverse engineered from binaries;
- no GPL code (Ryujinx, MIT, is used as a reference and for the offline shader translator);
- Hades must not regress.
Repository layout
| Path | What |
|---|---|
recomp/ |
the AArch64 → C++ recompiler (Python) |
runtime/ |
shared runtime: kernel, IPC, nn::* HLE, memory, platform layers (Windows, macOS, Android) |
runtime/src/nvn/ |
NVN over Vulkan (Wonder) |
games/<game>/ |
per-game glue (entry, patches, mods) |
tools/ |
extraction, shader and font tools, packaging |
android/ |
Android project and build script |
docs/ |
findings, plans, debug history, screenshots (docs/media/) |
Credits
- Ryujinx shader translator (MIT) - used offline to translate the Maxwell shaders to SPIR-V; also a reference for the Switch GPU. Ryujinx and yuzu were studied as references only; no GPL code is used.
- Hephaistos by Nicolas Busseneau (MIT, copy of the license in
games/hades/mods/hephaistos/LICENSE) - the Lua widescreen mod served to Hades by the shared runtime. It is not used by Wonder. - SDL 3 (zlib), MoltenVK (Apache 2.0) and the Vulkan headers and loader (Apache 2.0 / MIT).
- envytools, Switchbrew and the Switch homebrew community's documentation.
Legal
This is a fan project. It is not affiliated with, endorsed by or sponsored by Nintendo. Super Mario Bros. Wonder and Nintendo Switch are trademarks of Nintendo. No game files, game code, assets, keys, firmware or fonts are included, in this repository or in any release. You must provide your own legally obtained copy of the game. The APK or data zip you build from your own dump contains Nintendo's code and data: it is for you only, never share or publish it. The API (NVN) is reverse engineered from binaries; no leaked NVN headers are used.
License
The code in this repository is open source under the MIT License. Third-party components keep their own licenses (see Credits). The license covers this project's code only and grants nothing for Nintendo's game. See CONTRIBUTING.md to report bugs or contribute.
