NORIA
A Decoupled, Hexagonal Pipeline Orchestrator for Opportunity Extraction & Generative Evaluation
Designed and engineered by Ahmad Hassan (B-Ted).
The Vision
Opportunities define careers, yet discovery remains a chaotic manual process. Noria was created to bridge this gap. Noria connects humans to life-changing possibilities by crawling raw web pages, executing rigorous AI evaluations against human profiles, and sending real-time alerts. Whether helping students secure fully funded academic scholarships or matching developers with remote job postings, Noria converts raw internet noise into structured opportunities.
Screenshots

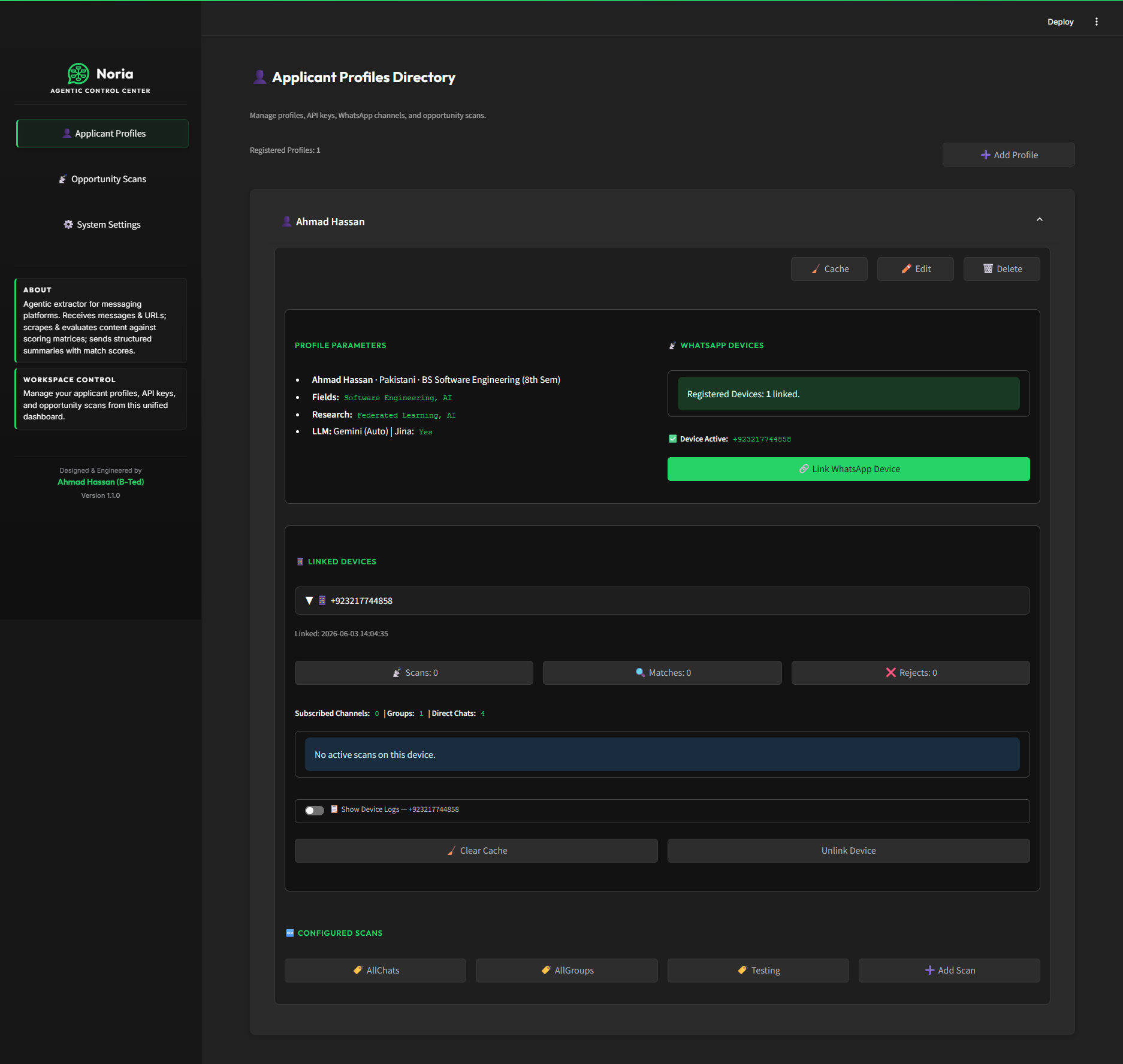

Applicant Profiles Directory - manage profiles, linked devices, scan configs, and WhatsApp connections |

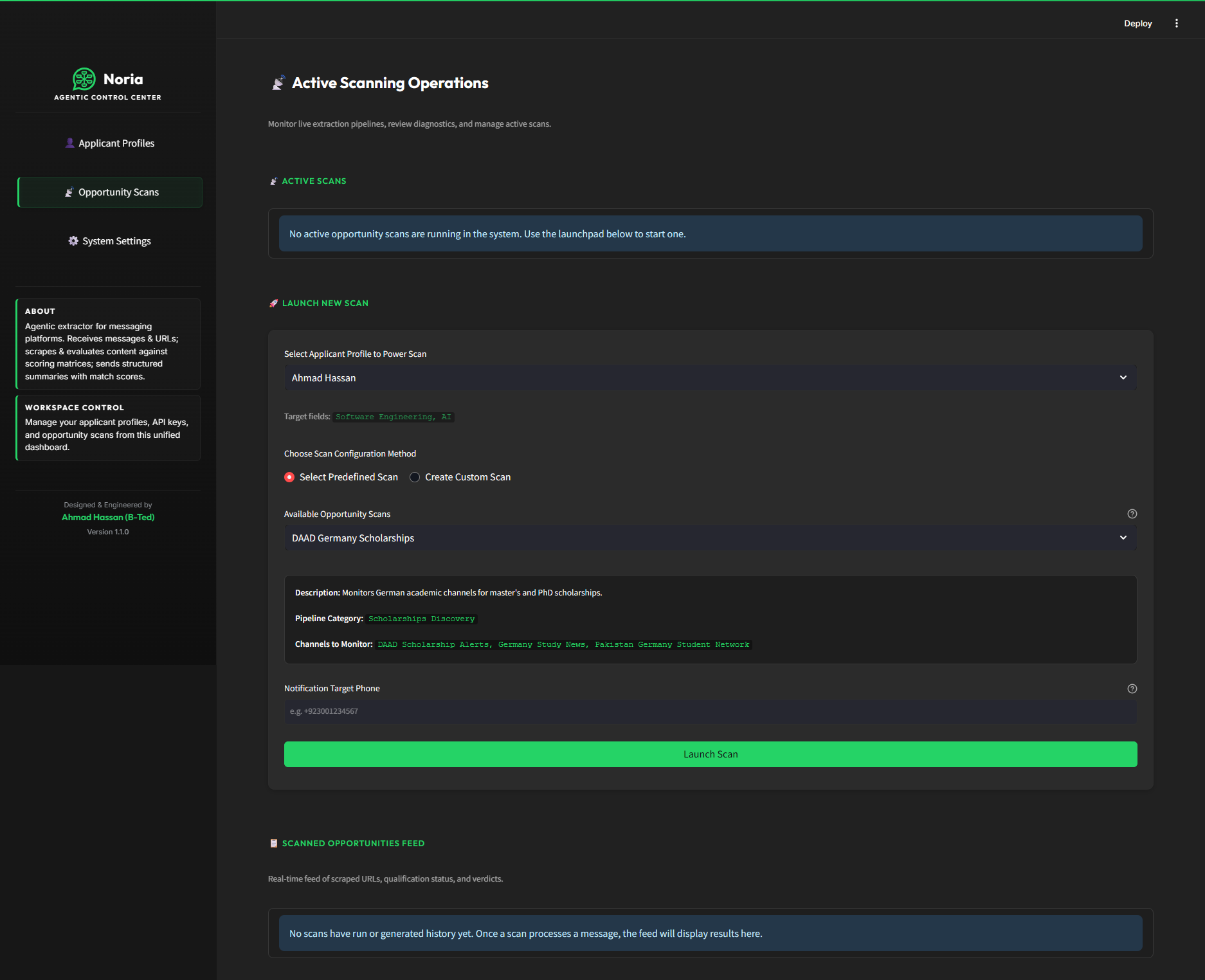

Active Scanning Operations - launch scans, select predefined pipelines, and monitor the live opportunity feed |

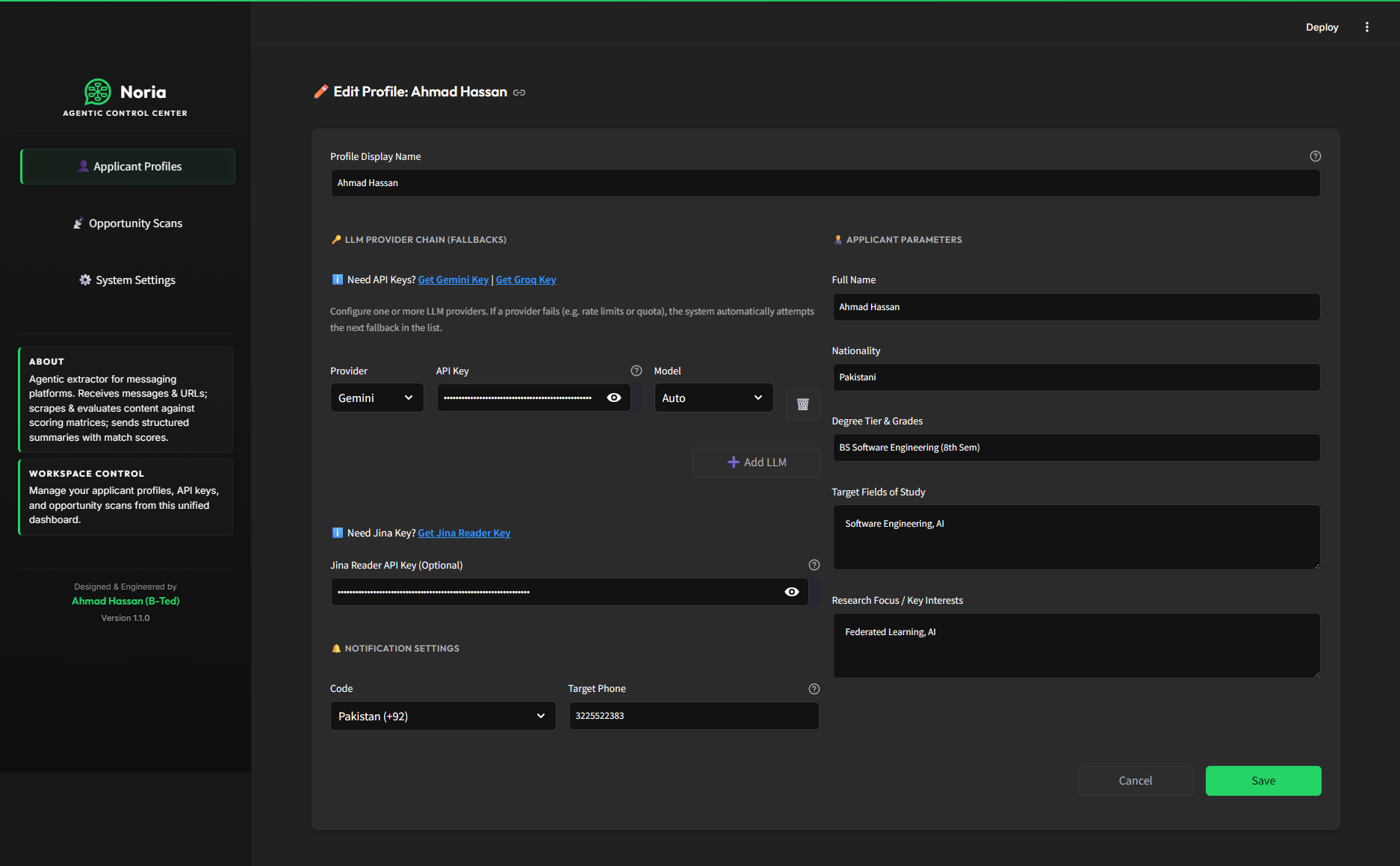

Profile Editor - configure LLM provider chain, API keys, applicant parameters, and notification targets |

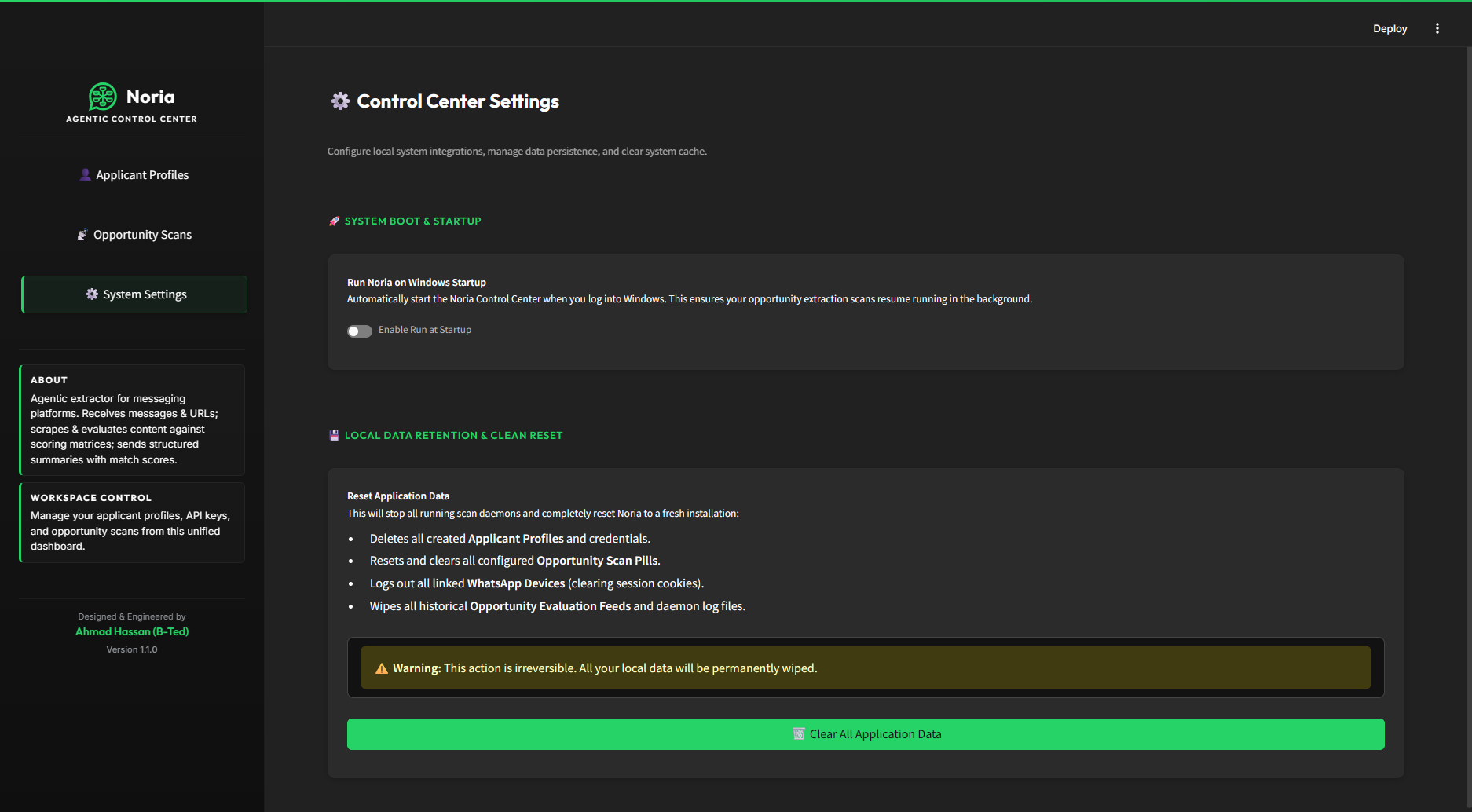

Control Center Settings - Windows startup toggle, local data retention, and full application reset |
Clean Architecture & Boundary Separation
Noria enforces strict Hexagonal Architecture principles, separating core business domains from pluggable technical infrastructure. Dependencies flow strictly inward, managed through a central registry bootstrapper (src/config/plugins.registry.js) acting as the composition root.
Module Relationship & Boundaries
graph TD
classDef core fill:#e1f5fe,stroke:#03a9f4,stroke-width:2px;
classDef domain fill:#efebe9,stroke:#8d6e63,stroke-width:2px;
classDef infra fill:#f1f8e9,stroke:#7cb342,stroke-width:2px;
classDef config fill:#fff9c4,stroke:#fbc02d,stroke-width:2px;
subgraph Domains ["src/domains/ (Pure Business Logic)"]
Scholarships["scholarships/ <br> (Evaluation Prompt & Layout Template)"]:::domain
Jobs["jobs/ <br> (Evaluation Prompt & Layout Template)"]:::domain
end
subgraph Core ["src/core/ (Core Orchestrator & Contracts)"]
Pipeline["pipeline.js <br> (Sequential Orchestrator)"]:::core
Registry["registry.js <br> (Functional Registry)"]:::core
Events["events.js <br> (Domain Events)"]:::core
end
subgraph Infrastructure ["src/infrastructure/ (Stateless Adapters)"]
Scrapers["scraper/ <br> (Jina, Puppeteer, Resilient Fetch)"]:::infra
LLM["llm/ <br> (Gemini & Groq Adapters + Fallback Chain)"]:::infra
Messaging["messaging/ <br> (WhatsApp Sender & Listener)"]:::infra
end
subgraph UI ["ui/ + app.py (Control Center - Streamlit)"]
ControlCenter["app.py <br> (Entry Point)"]:::config
Views["ui/views/ <br> (Profile, Scans, Settings)"]:::config
Styles["ui/styles.py <br> (Dark Theme CSS)"]:::config
end
subgraph Config ["src/config/ (Composition Root / Wiring)"]
PluginRegistry["plugins.registry.js <br> (Registry Wiring Bootstrapper)"]:::config
end
PluginRegistry --> Registry
PluginRegistry --> Domains
PluginRegistry --> Infrastructure
Pipeline --> Registry
Pipeline --> Events
ControlCenter --> Views
Views --> PluginRegistry
System Lifecycle & Request Flow
Noria processes raw internet inputs and coordinates executions dynamically through standard domain events:
sequenceDiagram
autonumber
actor TargetChat as WhatsApp Group/Chat
participant Listener as WhatsApp Listener
participant Core as Pipeline Orchestrator
participant Scraper as Scraper Adapter
participant Cache as Memory Cache
participant Analyzer as LLM Adapter (Gemini / Groq)
participant Sender as WhatsApp Sender
TargetChat->>Listener: Shares raw URL message
Listener->>Core: Emit link_extracted (URL)
Core->>Cache: Check for processing duplicates
alt Cache Hit (Already Processed)
Cache-->>Core: Skip URL evaluation
else Cache Miss (Fresh Opportunity)
Core->>Scraper: Execute Scrape (Jina / Puppeteer)
Scraper-->>Core: Return extracted web text
Core->>Core: Validate web text size & contents
Core->>Core: Emit scraper:success
Core->>Core: Build Prompt (Domain promptBuilder)
Core->>Analyzer: Call LLM via Fallback Chain (Gemini → Groq)
Analyzer-->>Core: Return match results & verdict
alt Match Score >= 50 (High Alignment)
Core->>Core: Emit analyzer:match_found
Core->>Core: Format Template (Domain templateBuilder)
Core->>Sender: sendMessage (whatsapp-sender)
Sender->>TargetChat: Deliver markdown message alert
Core->>Core: Emit notifier:send
else Match Score < 50
Core->>Core: Emit analyzer:no_match
end
end
Registry Validation
Dynamic verification occurs at boot-time inside the Registry (registry.js), which is bootstrapped and wired up by the Composition Root (plugins.registry.js). Registered modules are validated functionally:
View Enforced Interface Constraints (Collapsible)
| Registry Category | Target Registration | Mandatory Signature / Keys |
|---|---|---|
| Domain | Plain Domain Object | buildPrompt, resolveProfile, buildTemplate, schema |
| Adapter (scraper) | Plain Scraper Object | scrape |
| Adapter (llm) | Plain LLM Object | generateStructuredData |
| Adapter (sender) | Plain Sender Object | sendMessage |
| Listener | Constructor Class | initialize(), on(event, cb), close() |
Repository Structure
noria/
├── app.py # Streamlit Control Center entry point
├── run_noria.bat # Windows developer launcher
├── run_noria.sh # macOS/Linux developer launcher
├── .env.example # Environment variable template
├── dist/ # Compiled Windows executable (Noria.exe)
├── docs/ # Guides & system architecture docs
│ ├── ARCHITECTURE.md # Hexagonal Architecture specifications
│ ├── CHANGELOG.md # Version history
│ └── RELEASE_NOTES_v1.0.0.md # v1.0.0 release notes
├── pipelines/ # Declarative YAML pipeline configurations
│ ├── jobs.yaml # Job opportunity scan config
│ └── scholarships.yaml # Scholarship scan config
├── scripts/ # Build & release tooling
│ ├── build_exe.py # Compiles Noria.exe via csc.exe
│ ├── launcher.cs # C# standalone Windows launcher source
│ └── publish_release.py # GitHub Release publisher (tag + notes + exe)
├── src/ # Core platform code
│ ├── config/ # Environment loader & registry wiring
│ ├── core/ # Pipeline orchestrator, event types, registry
│ ├── domains/ # Pure business logic (prompts & templates)
│ ├── infrastructure/ # Stateless adapters (Gemini, Groq, Scraper, WhatsApp)
│ ├── queue/ # Decoupled global event broker
│ ├── utils/ # Shared helpers (Retry, Cache)
│ └── index.js # Node.js boot entrypoint
├── ui/ # Streamlit Control Center UI
│ ├── styles.py # Global dark theme CSS injection
│ ├── components/ # Shared UI components (navigation, etc.)
│ └── views/ # Page views (profiles, scans, settings)
└── tests/ # Unit test suite mirroring src/
Installation & Quickstart
1. Requirements
- Node.js:
>=22.12.0(LTS highly recommended) - NPM:
>=10.0.0
2. Setup
Install dependencies:
git clone https://github.com/AhmadHassan-BTed/Noria.git
cd noria
npm install3. Configure
Create a .env file from the template:
cp .env.example .env
Provide the required keys - use Gemini, Groq, or both:
# LLM providers (use one or both) GEMINI_API_KEY=your_gemini_api_key # https://aistudio.google.com/ GROQ_API_KEY=your_groq_api_key # https://console.groq.com/ # Optional: faster web scraping JINA_API_KEY=your_jina_api_key # https://jina.ai/reader/ # WhatsApp notification target NOTIFICATION_TARGET=+923001234567 # Active pipelines ACTIVE_PIPELINES=scholarships,jobs
Applicant profiles (name, nationality, degree, fields) are created and managed inside the Control Center UI - not in
.env.
4. Run
Start the orchestrated pipelines:
npm start
5. Noria Dashboard (Control Center UI)
For a visual administration dashboard, run the Streamlit-based Noria Control Center:
🟢 Windows - Standalone Executable (Recommended)
Download and double-click Noria.exe from the v1.0.0 Release.
The executable is fully self-contained:
- Automatically installs Python and Node.js dependencies on first run
- Starts the Streamlit server in the background
- Opens the Control Center as a standalone app window (not a browser tab) via Chrome or Edge
--appmode - No
run_noria.bator manual setup required
Windows - Developer Launcher
If running from source, use run_noria.bat from the repo root.
macOS / Linux - Shell Launcher
Run run_noria.sh in your terminal:
chmod +x run_noria.sh && ./run_noria.shFrom the dashboard you can create applicant profiles, link your WhatsApp by scanning the QR code, configure and trigger scans, and monitor parsed opportunities in real-time.
Developer Workflow & Commands
Ensure all local verification checks pass cleanly:
| Command | Objective | Quality Gate Target |
|---|---|---|
npm run lint |
ESLint Code Quality | Zero errors or warnings |
npm run format:check |
Prettier Layout Verification | Compliant with project styles |
npm test |
Jest Unit Tests Execution | All 223 tests passing |
npm run test:coverage |
Test Coverage Telemetry | Global coverage must be > 90% |
Made with by Ahmad Hassan (B-Ted)
