AhmadHassan-BTed/Attendify

Streamlining academic records, reducing administrative stress, and connecting students and educators through a reliable, human-centric database portal.

Behind every attendance entry, every percentage calculation, and every database row lies a human story. A classroom is not just a collection of registration IDs; it is a community of students pursuing their aspirations and teachers dedicating their expertise to guide them.

Traditional attendance marking is often tedious and error-prone, draining valuable class time and causing administrative anxiety for both parties. Students worry about record accuracy and leave approvals, while teachers bear the burden of tracking compliance across multiple classes.

This Attendance & Leave Management Portal was developed by Ahmad Hassan (B-Ted) to bridge this gap. By automating database updates and providing a clean, transparent interface, the administrative friction is minimized. This project is built on the belief that software should work for people—restoring focus to the learning experience and bringing peace of mind to the academic lifecycle.

The interface prioritizes clarity, utilizing a structured sidebar, real-time statistics cards, and a modern data grid to display student records.

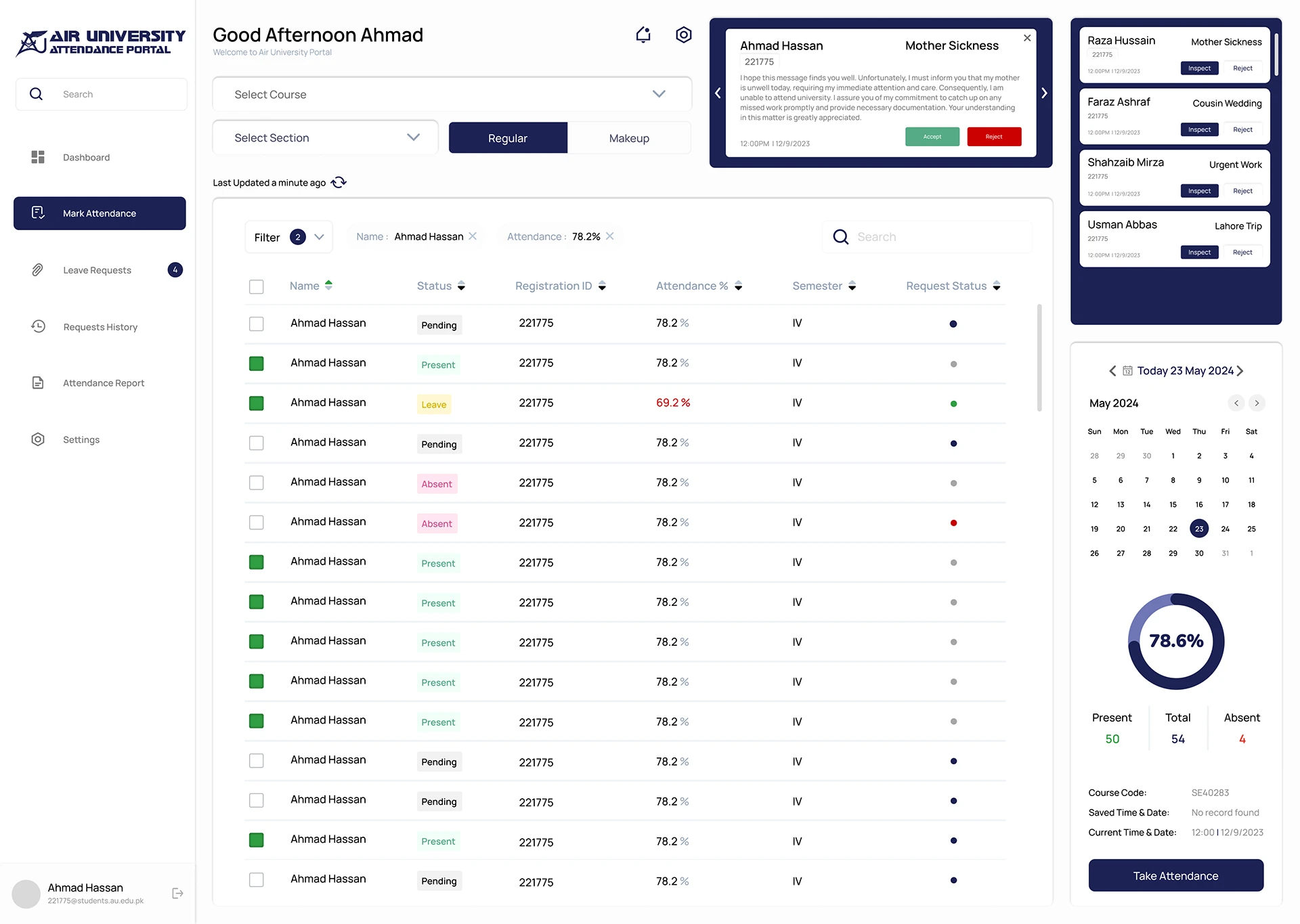

Figure 1: The primary Teacher Portal Dashboard displaying student lists, attendance percentages, and current leave application statuses.

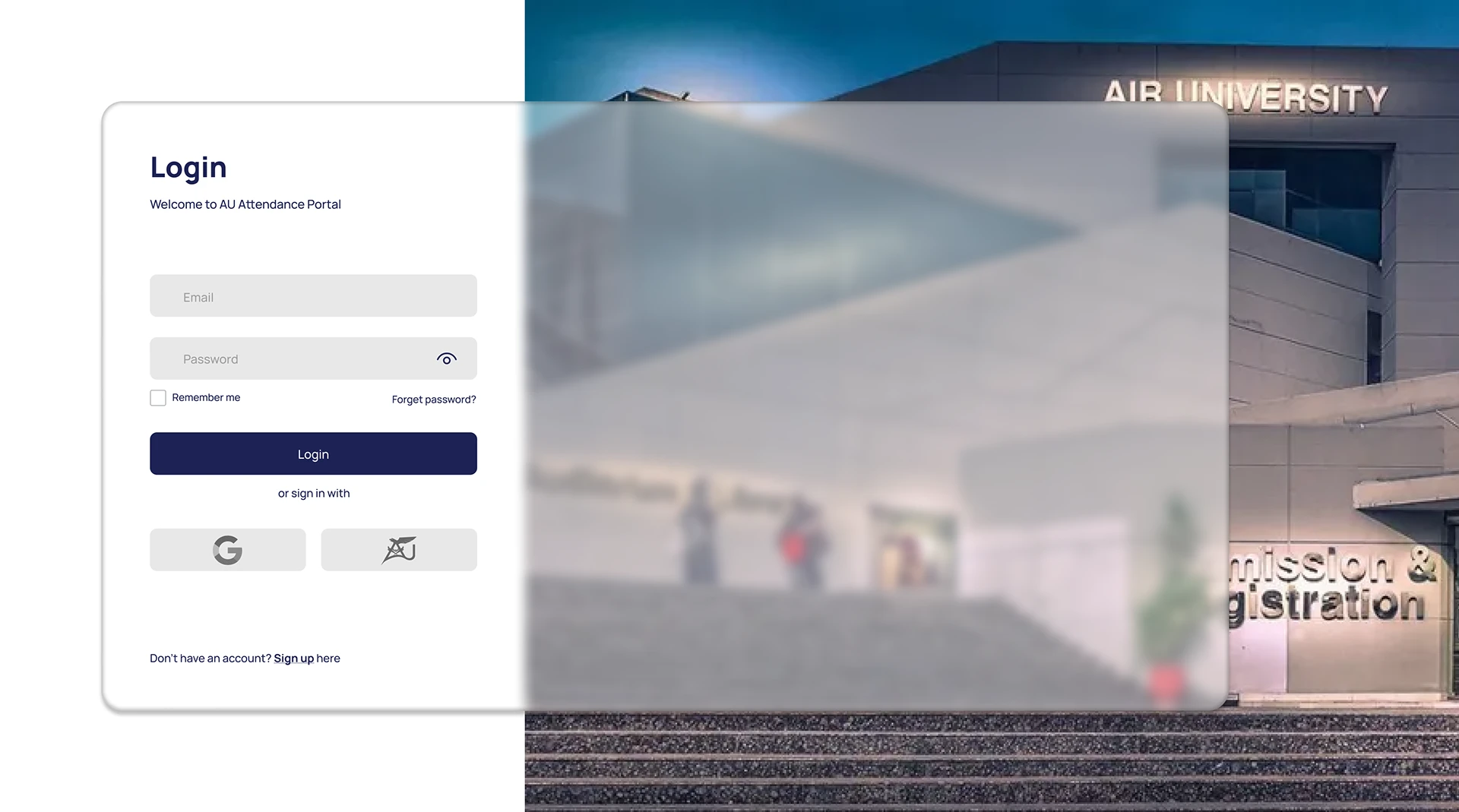

Figure 2: The secure Teacher Login interface for portal authentication.

The portal implements a classic Client-Server Architecture optimized for local deployment and low latency. The frontend client communicates with the server via structured HTTP requests, utilizing an asynchronous AJAX pipeline for dynamic view updates.

graph TD
    %% Define styles
    classDef client fill:#eef2ff,stroke:#6366f1,stroke-width:2px,color:#1e1b4b;
    classDef backend fill:#f0fdf4,stroke:#22c55e,stroke-width:2px,color:#052e16;
    classDef db fill:#fff7ed,stroke:#f97316,stroke-width:2px,color:#431407;

    subgraph Client ["Client Side (User Browser)"]
        UI["Web Interface (HTML5, CSS3, ES6 JS)"]
        AG["AG-Grid Engine (Dynamic Data Grid)"]
        AJ["AJAX Request Manager (Fetch API)"]
        UI --> AG
        AG --> AJ
    end

    subgraph Server ["Server Side (Apache / PHP Environment)"]
        Router["api.php (API Gateway & Action Router)"]
        DBC["db_connect.php (MySQLi Connection Manager)"]
        AJ -- HTTP POST/GET --> Router
        Router --> DBC
    end

    subgraph Database ["Database Layer (MySQL)"]
        MySQL[("attendance_portal_beenishtasaffar<br/>(MySQL Tables & Constraints)")]
        DBC -- SQL Query / Port 3316 --> MySQL
    end

    class UI,AG,AJ Client;
    class Router,DBC Server;
    class MySQL Database;

The system utilizes an asynchronous api-action routing system. Below is the step-by-step Request/Response Lifecycle representing how attendance is fetched, rendered, and recorded.

sequenceDiagram
    autonumber
    actor Teacher as Faculty / User
    participant Browser as Browser UI (ag-Grid)
    participant API as Backend (api.php)
    participant DB as MySQL Database

    Teacher->>Browser: Select Course & Date
    Browser->>API: GET api.php?action=getStudents&course_id=CSE101&date=YYYY-MM-DD
    activate API
    API->>DB: Query students registered in course & verify leave status
    activate DB
    DB-->>API: Return student names, registration IDs, and pending leaves
    deactivate DB
    API-->>Browser: Return JSON Payload
    deactivate API
    Browser->>Browser: Parse JSON & render rows in ag-Grid dynamically

    Teacher->>Browser: Toggle Status (Present/Absent) & Click 'Submit'
    Browser->>API: POST api.php?action=markAttendance (Payload: student IDs & statuses)
    activate API
    API->>DB: INSERT INTO attendance (att_status, att_date, stu_regId, ...)
    activate DB
    DB-->>API: Confirm Insertion
    deactivate DB
    API->>DB: UPDATE studentregisteredcourses (increment totals)
    activate DB
    DB-->>API: Confirm Update
    deactivate DB
    API-->>Browser: Return JSON Success Confirmation
    deactivate API
    Browser->>Browser: Update UI state & display confirmation notification

The core database design is modeled to reflect real-world university relationships: Departments house Courses; Teachers teach registered Courses; Students register for Courses; and Attendance is logged against daily classes, with optional references to Leave Applications.

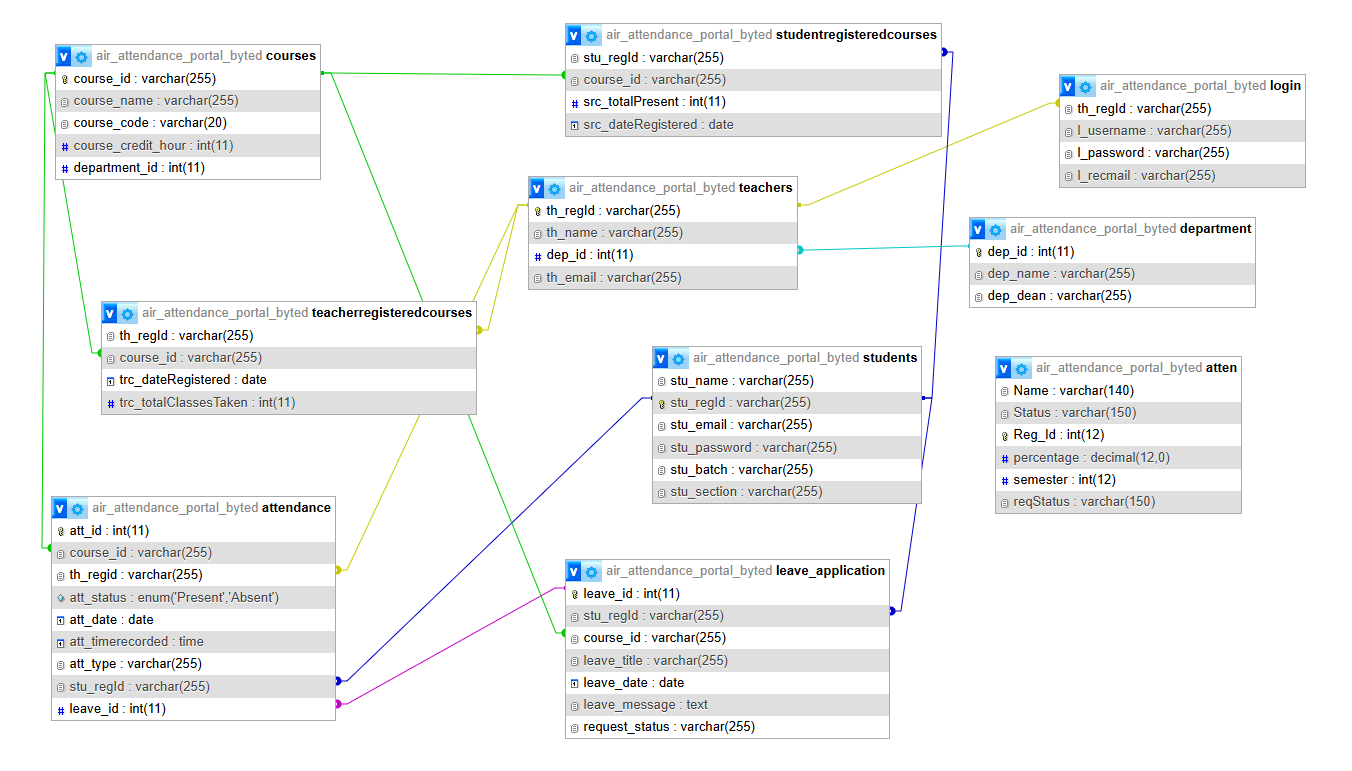

Figure 3: Relational Schema showing primary/foreign key connections and referential constraints.

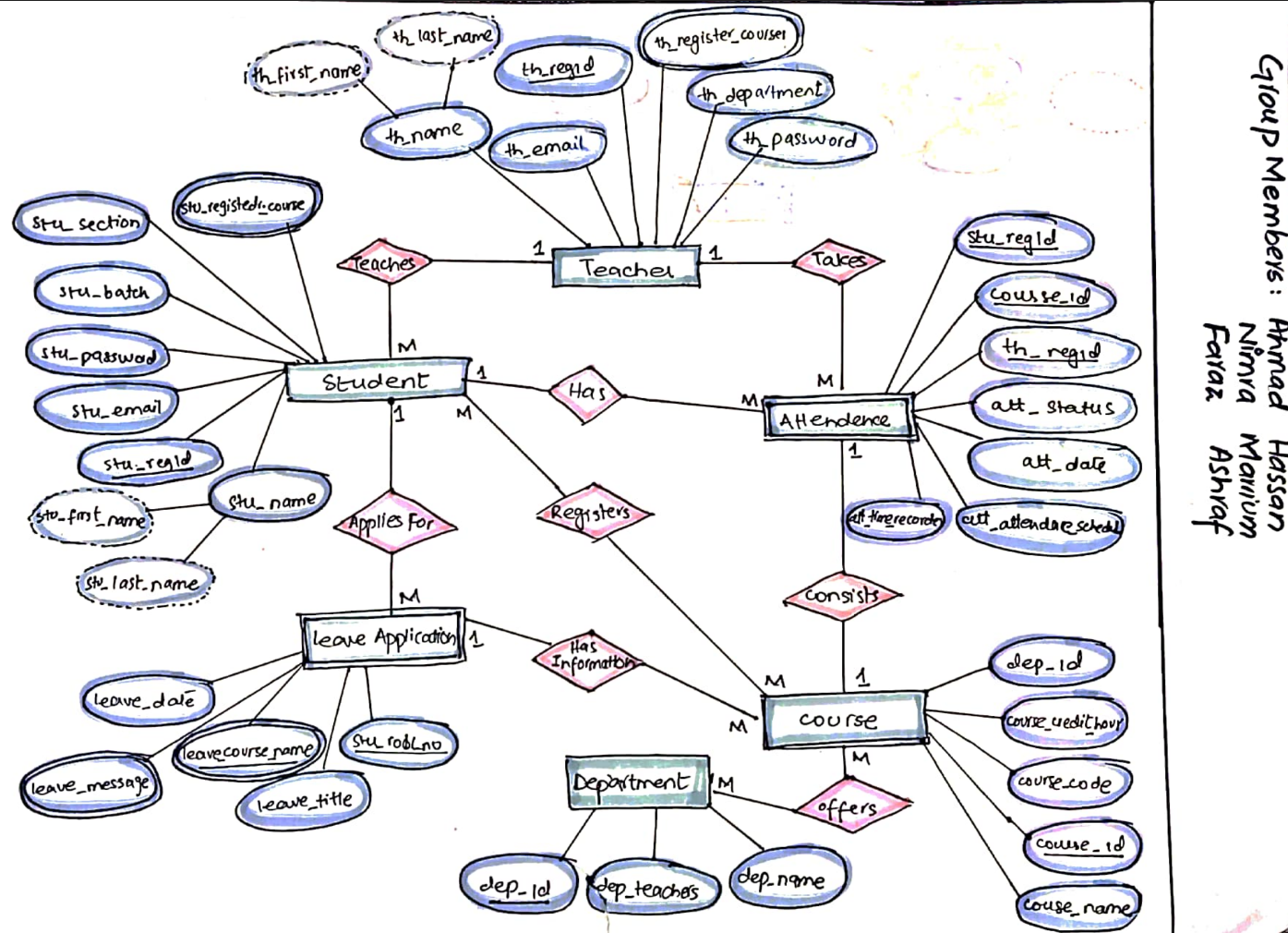

Figure 4: Hand-drawn Entity Relationship Diagram illustrating conceptual database relationships.

All database interactions are protected via Prepared Statements. Below is a collection of the primary queries driving the system.

SELECT th_regId
FROM login
WHERE l_username = ?
  AND l_password = ?;

SELECT
    s.stu_name,
    src.stu_regId,
    ROUND((src.src_totalPresent / trc.trc_totalClassesTaken) * 100, 2) AS attendance_percentage,
    (2026 - s.stu_batch) AS semester,
    COALESCE(la.request_status, 'No Request') AS requestStatus
FROM studentregisteredcourses src
JOIN students s ON s.stu_regId = src.stu_regId
JOIN teacherregisteredcourses trc
    ON trc.course_id = src.course_id
   AND trc.th_regId = ?
LEFT JOIN leave_application la
    ON la.stu_regId = s.stu_regId
   AND la.course_id = src.course_id
   AND la.leave_date = ?
WHERE src.course_id = ?;

SELECT
    c.course_id,
    CONCAT(c.course_id, ' - ', c.course_name) AS course_info
FROM teacherregisteredcourses trc
JOIN courses c ON c.course_id = trc.course_id
LEFT JOIN attendance a
    ON a.course_id = trc.course_id
   AND a.att_date = ?
WHERE trc.th_regId = ?
  AND a.course_id IS NULL;

-- Step A: Log individual attendance record
INSERT INTO attendance (
    course_id, th_regid, att_status, att_date,
    att_timerecorded, att_type, stu_regId, leave_id
) VALUES (?, ?, ?, ?, ?, ?, ?, ?);

-- Step B: Increment cumulative total classes taken by the teacher
UPDATE teacherregisteredcourses
SET trc_totalClassesTaken = trc_totalClassesTaken + 1
WHERE th_regId = ? AND course_id = ?;

-- Step C: Increment student present total (only executed if status is 'Present')
UPDATE studentregisteredcourses
SET src_totalPresent = src_totalPresent + 1
WHERE stu_regId = ? AND course_id = ?;

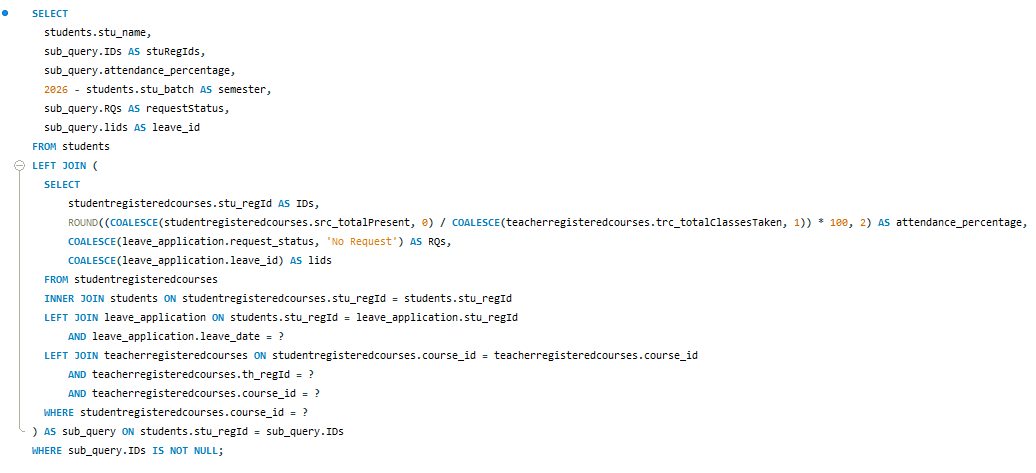

Figure 5: Sample query execution result demonstrating database operations.

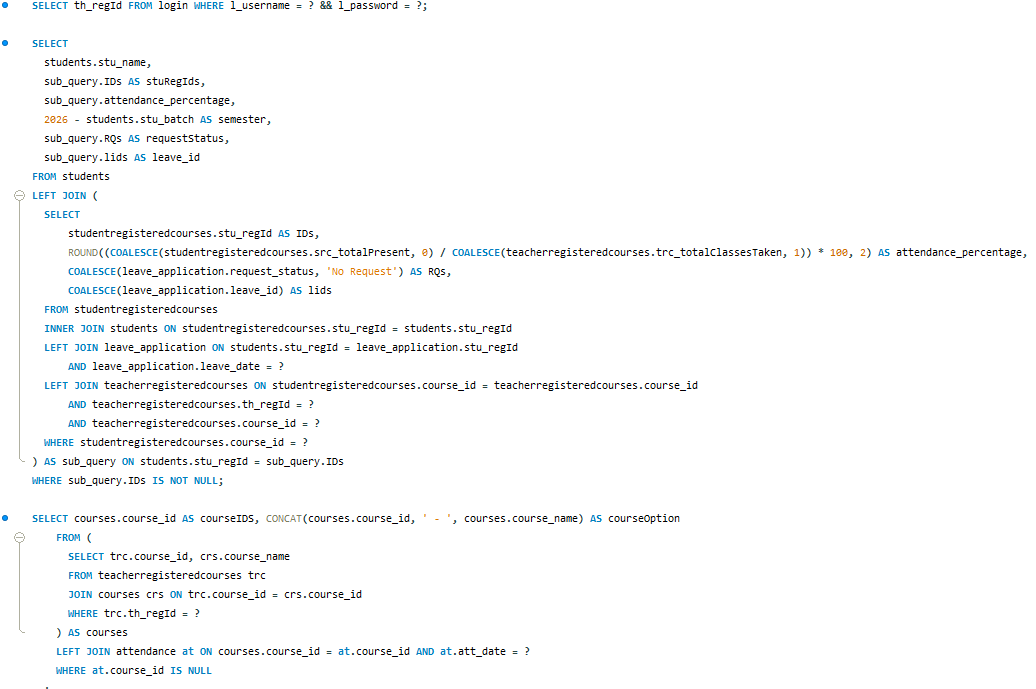

Figure 6: Additional query execution result showcasing database output.

The directory organization is configured to keep assets, backend logic, stylesheets, and DB scripts separated cleanly:

├── css/                                  # Application Stylesheets
│   ├── App.css                           # Global dashboard layout
│   ├── login.css                         # Custom styling for credentials screen
│   ├── portal.css                        # UI components & side navigation
│   └── register.css                      # Registration views
├── docs/
│   └── assets/                           # Presentation visuals & diagrams
│       ├── Database.png                  # Relational Database Schema
│       ├── ERD - HandWritten.png         # Hand-drawn ERD diagram
│       ├── portal_dashboard.webp         # Teacher Portal Screenshot
│       ├── portal_login.webp             # Login Portal Screenshot
│       ├── project_banner.webp           # Behance Presentation Header Banner
│       ├── query - 1.png                # Sample SQL query result 1
│       └── query - 2.png                # Sample SQL query result 2
├── images/                               # Web interface image assets
│   ├── google_logo.png
│   ├── login_background.jpg
│   ├── logo.png
│   └── unilogo.jpg
├── Attendance and Leave Management Portal...docx # Full project document
├── Attendance and Leave Management Portal...pdf  # PDF copy of report
├── api.php                               # Application API Gateway & Action Router
├── attendanceReport.php                  # Attendance summary views
├── attendance_portal_beenishtasaffar.sql # Database schema dump
├── dashboard.php                         # Dashboard interface file
├── db_connect.php                        # Database connection settings
├── index.php                             # System entrypoint (redirects to login)
├── leaveRequests.php                     # Leave application listing page
├── login.php                             # Teacher login screen logic
├── logout.php                            # Destroys sessions & logs out
├── portal.php                            # Core layout interface & data grid
├── register.php                          # Teacher registration logic
├── requestsHistory.php                   # Historic logs for leave applications
├── sidebar.php                           # Side navigation include
├── test_db.php                           # Connection testing script
└── web project demo.mp4                  # Dynamic video walkthrough

Running the portal locally requires the standard XAMPP package (Apache & MySQL).

1. Download and install XAMPP (PHP 8.0+ / MariaDB).
2. Clone this repository to local machine.

1. Open the XAMPP Control Panel.
2. Ensure the MySQL configuration is running on Port 3316. (Note: If standard port 3306 is preferred, open db_connect.php and change the port configuration in the connection statement).
3. Start the Apache and MySQL services.

1. Open http://localhost/phpmyadmin in web browser.
2. Create a new database named attendance_portal_beenishtasaffar.
3. Click the Import tab.
4. Select the database dump file: attendance_portal_beenishtasaffar.sql.
5. Click Import at the bottom to build the schema tables and insert seed data.

1. Move the repository folder into the htdocs directory of local XAMPP installation (typically C:\xampp\htdocs\Attendance-Portal-DataBase-Project).
2. Access the application in browser: http://localhost/Attendance-Portal-DataBase-Project/.

This repository was designed and engineered by AhmadHassan-BTed (Ahmad Hassan).

To maintain clean repository standards, new contributions are welcomed under the following conditions:

• Branches should be named descriptively (e.g. feature/attendance-alerts).
• Code formatting should follow standard PHP PSR-12 guidelines.
• Pull requests must be fully documented, stating what adjustments were made and linking back to the relevant system flow or module.
• Collaborative feedback and UI designs are contributed in partnership with Nimra Marrium.
• Database schema structure, documentation, and reporting are contributed in partnership with Beenish Tasaffar.
